Panasonic TC-P42S1X User manual

TM
Quick Start Guide
(See page 8-18)
Operating Instructions
42”/46”/50” Class 1080p Plasma HDTV
(41.6/46.0/49.9 inches measured diagonally)
Model No. TC-P42S1X
TC-P46S1X
TC-P50S1X
TQB2AA0825-1
English
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.

2
HDMI, the HDMI logo and High-
Definition Multimedia Interface are
trademarks or registered trademarks of
HDMI Licensing LLC.
VIERA Link™ is a trademark of
Panasonic Corporation. SDHC Logo is a trademark.
HDAVI Control™ is a trademark of
Panasonic Corporation.
Manufactured under license from Dolby
Laboratories.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
Turn your own living room into a movie theater!
Experience an amazing level of multimedia excitement

3
Viewing Advanced FAQs, etc.
Quick Start
Guide
This product qualifies for ENERGY STAR
in the “Home Use” setting and this is the
setting in which energy savings will be
achieved. Any modifications to the “Home
Use” setting or other factory default settings
could result in greater energy consumption
beyond levels that meet ENERGY STAR
qualifications.
Watching TV··············································· 19
Using VIERA TOOLS ································· 21
Viewing from an SD Card ·························· 22
Watching Videos and DVDs······················· 24
How to Use Menu Functions
(picture, sound quality, etc.) ·······················26
VIERA LinkTM “HDAVI ControlTM” ················ 30
Lock ··························································· 36
Editing and Setting Channels····················· 38
Closed Caption ·········································· 40
Input Labels ··············································· 41
Using Timer················································ 42
Recommended AV Connections ················ 43
Ratings List for Lock ·································· 44
Technical Information································· 45
Care and Cleaning····································· 49
FAQ···························································· 50
Specifications············································· 52
Enjoy your TV!
Basic Features
Advanced Features
FAQs, etc.
Safety Precautions ······································· 4
Notes ···························································· 7
Please read before using the unit
Accessories/Optional Accessory ····· 8
Basic Connection····························11
Identifying Controls························ 15
First Time Setup····························· 16
Quick Start Guide
Enjoy rich multimedia
SD memory card
Camcorder
Amplifier
Home theater
system
VCR
DVD recorder/
Blu-ray Disc recorder
Set Top Box
DVD player/
Blu-ray Disc player
Contents

4
Safety Precautions
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set
(including on shelves above, etc.).
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments / accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart /
apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15) To prevent electric shock, ensure the grounding pin on the
AC cord power plug is securely connected.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service
personnel.
The lightning flash with
arrowhead within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to persons.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions
are in the papers with the
appliance.

5
WARNING
Small parts can present choking hazard if accidentally
swallowed.
Keep small parts away from young children.
Discard unneeded small parts and other objects, including
packaging materials and plastic bags/sheets to prevent
them from being played with by young children, creating
the potential risk of suffocation.
Set up
This Plasma TV may fall and can cause personal injury or
even death if not installed correctly. To prevent personal injury
or death, follow these warnings:
Install the Plasma TV in accordance with the
manufacturer’s recommended pedestal or stand,
corresponding hardware and installation instructions.
This Plasma TV is for use only with the following optional
accessories. Use with any other type of optional accessories
may cause instability. The following accessories are
manufactured by Panasonic Corporation.
• Wall-hanging bracket (Angled) TY-WK4P1RW
Be sure to ask a qualified technician to carry out the
installation and set-up.
Two or more people are required to install or remove the
television.
Some wall mounts (wall-hanging brackets) are not
designed to be mounted to walls with steel studs or old
cinder block constructions.
Ask your dealer or licensed contractor to properly secure the
wall-hanging bracket.
Do not place the Plasma TV or its stand on a sloped or
unstable surface.
The Plasma TV may fall or tip over.
Do not support the Plasma TV on a non-specified
pedestal.
Do not place the Plasma TV on furniture that can easily
be used as steps, such as a chest of drawers.
Do not climb or allow children to climb on the Plasma TV
Place or install the Plasma TV where it cannot be pushed,
pulled over or knocked down.
Route all cords and cables such that they cannot be
tripped over or pulled by curious children.
Do not place any objects on top of the Plasma TV.
If water spills onto the Plasma TV or foreign objects get
inside it, a short-circuit may occur which could result in fire
or electric shock. If any foreign objects get inside the Plasma
TV, please consult an Authorized Service Center.
AC Power Supply Cord
To prevent fire or electric shock:
The Plasma TV is designed to operate on a 110-127 V AC,
60 Hz service. Insert the power cord plug as far as it will
go into the wall socket.
If the plug is not fully inserted, heat may generate, which
could cause a fire.
The included power cord is for use with this unit only.
Do not use any power cord other than that provided with
this TV.
Do not handle the power cord plug with wet hands.
Do not do anything that might damage the power supply
cord.
When disconnecting the power supply cord, hold the
plug, not the cord.
Do not use the power supply cord if the plug or cord is
damaged.
Replace the cord or contact your Authorized Service Center
Handling the power supply cord
Insert the power plug fully into the socket outlet. (If the
power plug is loose, it could generate heat and cause fire.)
Ensure that the power plug is easily accessible.
Ensure the earth pin on the power plug is securely
connected to prevent electrical shock.
•
An apparatus with CLASS I construction shall be connected to
a power socket outlet with a protective earthing connection.
Do not touch the power plug with a wet hand. (This may
cause electrical shock.)
Do not use any power cord other than that provided with
this TV. (This may cause fire or electrical shock.)
Do not damage the power cord. (A damaged cord may
cause fire or electrical shock.)
• Do not move the TV with the cord plugged in the socket outlet.
• Do not place a heavy object on the cord or place the cord
near a high-temperature object.
• Do not twist the cord, bend it excessively, or stretch it.
• Do not pull on the cord. Hold onto the power plug body
when disconnecting cord.
• Do not use a damaged power plug or socket outlet.
If Problems Occur During Use
If a problem occurs (such as no picture or no sound),
or if smoke or an abnormal odor is detected from the
Plasma TV, unplug the power supply cord immediately.
Continued use of the TV under these conditions might cause
a fire or permanent damage to the TV. Have the TV evaluated
by an Authorized Service Center. Servicing of the TV by
unauthorized personnel is strongly discouraged due to its
high voltage.
If water or an object gets inside the Plasma TV, if the
Plasma TV is dropped, or if the enclosure becomes
damaged, unplug the power supply cord immediately.
A short-circuit may occur, which could cause a fire. Contact
an Authorized Service Center for an evaluation.
CAUTION
Do not cover the ventilation holes.
Doing so may cause the Plasma TV to overheat, which can
cause a fire or damage to the Plasma TV.
Leave a space of 3 15/16” (10 cm) or more at the top, left
and right, and 2 3/4” (7 cm) or more at the rear.
When using the pedestal, keep the space between the
bottom of the TV and the pedestal or stand surface clear
from objects that may obstruct ventilation.
When Moving the Plasma TV
Be sure to disconnect all cables before moving the
Plasma TV.
Moving the TV with its cables attached might damage the
cables which, in turn, can cause fire or electric shock
To prevent an electric shock, disconnect the power
plug from the wall outlet as a safety precaution before
carrying out any cleaning.
WARNING/CAUTION

6
Safety Precautions (Continued)
Transport only in upright position
Transporting the unit with its display panel facing upright or
downward may cause damage to the internal circuitry.
Using a dry cloth, clean any dust from the power supply
cord and plug regularly.
Build-up of dust on the power cord plug can increase
humidity, which might damage the insulation and cause a fire.
This Plasma TV radiates infrared rays;
therefore, it may affect other infrared communication
equipment. Install your infrared sensor in a place away from
direct or reflected light from your Plasma TV.
The TV will still consume some power as long as the power
supply cord is connected to the wall outlet.
Display panel is made of glass. Do not apply strong force
or impact to the display panel.
This may cause damage resulting in injury.
The TV is heavy. TV should be handled by 2 or more
people. Support as shown to avoid injury by the TV
tipping or falling.

7

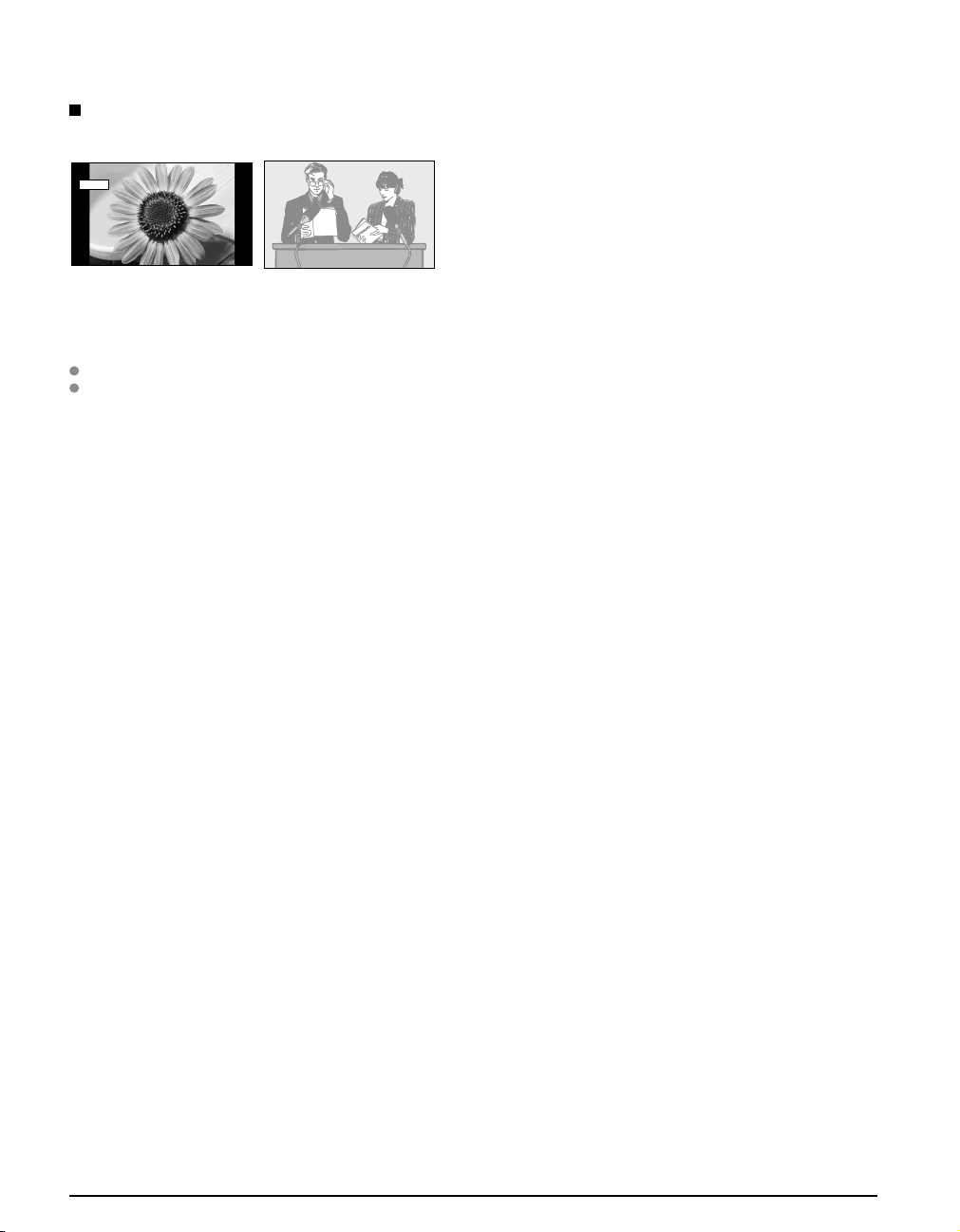

Do not display a still picture for a long time
This causes the image to remain on the plasma screen
(“Image retention”). This is not considered a malfunction and is not covered by the warranty.
4 : 3
12 To prevent “Image retention”, the screen saver is
automatically activated after a few minutes if no signals are
sent or no operations are performed. (p. 51)
Typical still images
•Channel number and other logos
•Image displayed in 4:3 mode
•SD Card photo •Video game •Computer image
■Set up
Do not place the unit where it’s exposed to sunlight or other bright light (including reflections).
Use of some types of fluorescent lighting may reduce the remote control’s transmission range.
Notes

8
Accessories/Optional Accessory
Accessories
Check you have all the items shown.
Remote Control
Transmitter
N2QAYB000321
Batteries for the
Remote Control
Transmitter (2)
AA Battery
AC cord Pedestal
TBLX0088
(TC-P42S1X)
TBLX0089
(TC-P46S1X,
TC-P50S1X)
Operating Instructions
Installing the remote’s batteries
Open
Hook
Note the correct polarity
(+ or -).
Close
Caution
Incorrect installation may cause battery
leakage and corrosion, resulting in damage
to the remote control.
•
Do not mix old and new batteries.
•
Do not mix different battery types (such
as alkaline and manganese batteries).
•
Do not use rechargeable (Ni-Cd) batteries.
Do not burn or break batteries.
Optional Accessory
Note
In order to maintain the TV’s performance and safety, be absolutely sure
to ask your dealer or a licensed contractor to secure the wall-hanging
brackets.
Carefully read the instructions accompanying the plasma TV stand or
pedestal, and be absolutely sure to take steps to prevent the TV from
tipping over.
Handle the TV carefully during installation since subjecting it to impact
or other forces may cause its panel to crack.
Wall-hanging bracket
(angle)
TY-WK4P1RW
Accessories
How to assemble (p. 9)
Cleaning cloth
Warranty Card (Mexico)

9
Quick Start
Guide Accessories/Optional Accessory
Accessories
Assembly screws
(4 of each)
A
M5 × 18 (Silver)
B
M5 × 25 (Black)
Poles (2)
LR
Lor Ris printed at the
bottom of the poles.
Base (1)
Attaching the pedestal to TV
■Assembling the pedestal
Fix securely with assembly screws A. (Total 4 screws)
Tighten screws firmly.
A
L
R
Pole
Front
Pole
Base
■Set-up
Carry out work on a horizontal and level surface.
Tighten screws firmly.
B
Fix securely with assembly
screws B. (Total 4 screws)
Rear side
Arrow
mark
Pole
Hole for pedestal
installation
Pole
Base
Bottom view
Warning
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During set-up, make sure that all screws are securely tightened.
If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be
strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

10
Accessories/Optional Accessory (Continued)
AC cord connection
Antenna terminal Pin terminals HDMI terminal
greenbluered
green
Firmly tighten by hand. Match colors of plugs and terminals.
Insert firmly. Insert firmly.
Reference of connection
To attach To remove
Insert it firmly until the
tabs on both sides click
into place.
Keep pushing both
side snaps and pull
down

11
Quick Start
Guide Basic Connection (Antenna + TV)
Accessories/Optional Accessory
To connect the antenna terminal and Cable Box
ANT OUTANT IN
VIDEO
AUDIO
R
P R
P B
Y
L
H
VIDEO
AUDIO
R
P
R
P
B
Y
L
H
Basic Connection
Note
Not all cables and external equipment shown in this book are supplied with the TV.
For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.
When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.
ATSC is not available except in U.S.A., Canada, and/or Mexico.
Example 1 Connecting Antenna (To watch TV)
Cable TV
VHF/UHF Antenna
TV VHF/UHF Antenna
•
NTSC (National Television System Committee):
Conventional broadcasting
• ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television
(HDTV), standard-definition television (SDTV), data broadcasting,
multi-channel surround-sound audio and interactive television.
(If no Cable Box)
AC Cord
(Connect after all the
other connections
have been made.)
Back of the TV
Cable TV
AC 110-127 V
60 Hz
VHF/UHF Antenna
Cable Box
or
or
Cable Box/Cable
• You need to subscribe to a cable TV service to enjoy viewing their
programming.
• If using a Cable Box, set the TV channel to CH3 or CH4 for regular cable.
• You can enjoy high-definition programming by subscribing to a high-
definition cable Service.
The connection for high-definition can be done with the use of HDMI or
Component Video cable. (p. 14)
• To view high-definition programming select the correct video input. (p. 24)
* See page 10
(AC cord
connection)

12

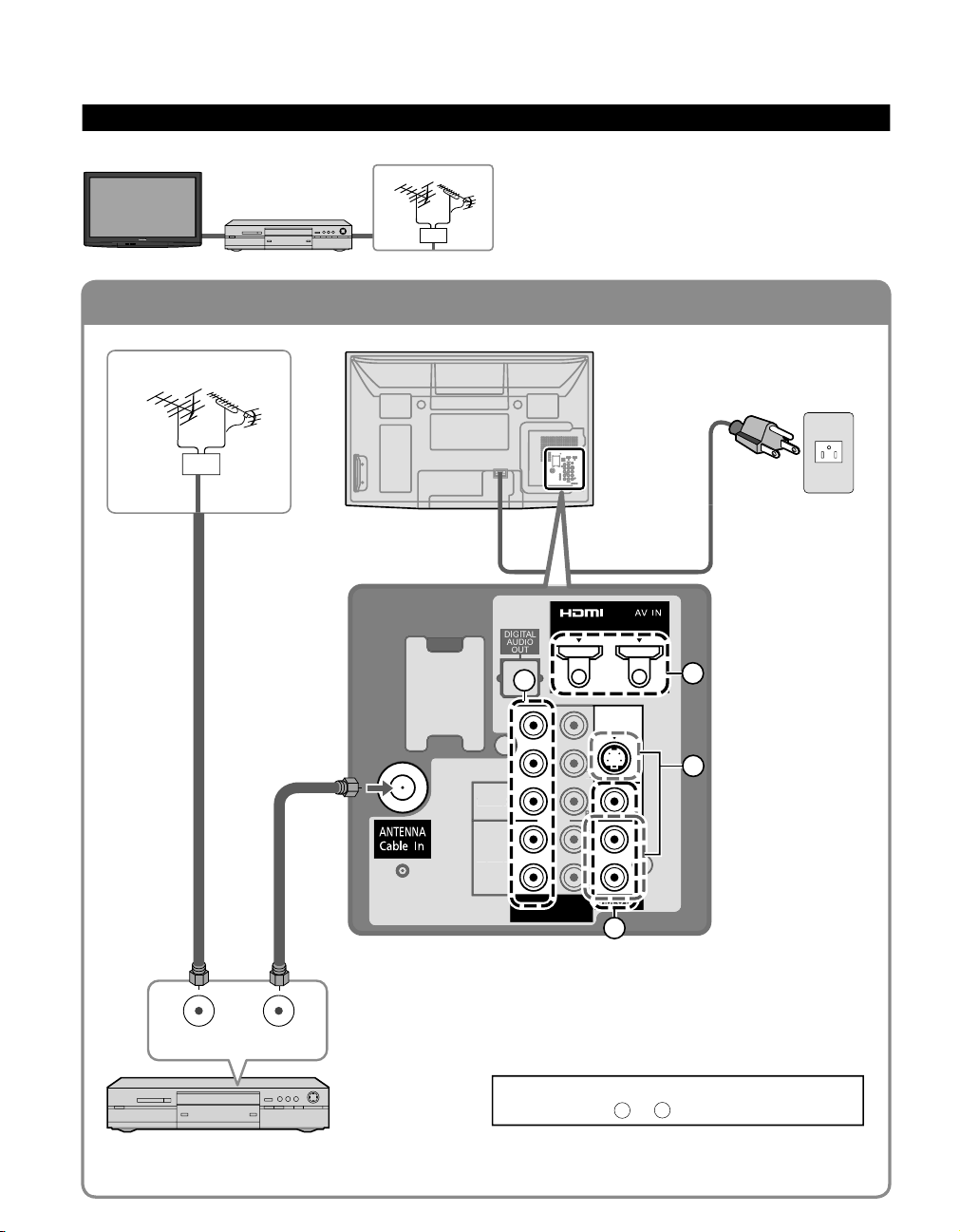

To connect the antenna terminal and DVD recorder or VCR
ANT OUTANT IN
COMPONENT
IN
VIDEO IN 1
12
VIDEO
S VIDEO
AUDIO
R
P R
P B
Y
L
R
P R
P B
Y
L
R
L
HDMI 1 HDMI 2
VIDEO
AUDIO
R
P
R
P
B
Y
L
B
D
A
C
Basic Connection (Continued)
Example 2 Connecting DVD recorder (VCR) (To record/playback)
DVD Recorder
If the source has a higher resolution signal (480p/720p/
1080i/1080p), connection can be made with the use of
a Component Video or HDMI cable. (p. 14)
VCR
Connection can be made with the use of an RF cable
and Composite Video/S Video cable. (p. 14)
VHF/UHF Antenna
TV AV Equipment
(e.g. DVD Recorder
or VCR)
Back of the TV
AC Cord
AC 110-127 V
60 Hz
VHF/UHF Antenna
AV Equipment
(e.g. DVD Recorder or VCR)
(with TV tuner)
Connecting TV and AV equipment
Please refer to A- Don p. 14
* See page 10
(AC cord
connection)

13
Quick Start
Guide Basic Connection (TV + DVD Recorder or VCR + Satellite Receiver)
(TV + DVD Recorder or VCR)
To connect the antenna terminal and Satellite Receiver and DVD recorder or VCR
ANT IN ANT OUTANT IN
COMPONENT
IN
VIDEO IN 1
12
VIDEO
S VIDEO
AUDIO
R
P R
P B
Y
L
R
P R
P B
Y
L
R
L
HDMI 1 HDMI 2
VIDEO
AUDIO
R
P
R
P
B
Y
L
B
D
A
C
Example 3 Connecting DVD recorder (VCR) and satellite receiver
DVD Recorder
or
VCR
Satellite
Receiver
TV
VHF/UHF Antenna
You can enjoy high-definition
programming by subscribing to
high-definition satellite service.
Connection can be done with the
use of HDMI or Component Video
cable. (p. 14)
Note
For details of external equipment connections, please refer to the operating manuals for the equipment.
Satellite Receiver DVD Recorder or VCR
(with TV tuner)
VHF/UHF Antenna
Back of the TV
AC Cord
AC 110-127 V
60 Hz
Connecting TV and AV equipment
Please refer to A- Don p. 14.
* See page 10
(AC cord
connection)

14
High-Definition
Standard-Definition
Note
Some programs contain a copyright protection signal to prevent recording.
When the copyright protection program is displayed, do not connect the other TV monitor through a VCR. Video signals fed
through VCRs may be affected by copyright protection systems and the picture will be distorted on the other TV monitor.
For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.
Basic Connection (Continued)
ATo use HDMI terminals
HDMI 1 HDMI 2 HDMI
AV OUT
e.g. Blu-ray Disc player
AV Equipment
Connecting to HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.
The HDMI connection is required for a 1080p signal.
For “VIERA LinkTM connections”, please refer to p. 31.
BTo use COMPONENT terminals
COMPONENT
IN
1 2
VIDEO
AUDIO
R
P R
P B
Y
L
P
P
VIDEO
AUDIO
P
P
L
R
Y
PB
PR
AUDIO
OUT
COMPONENT
VIDEO OUT
white
red
green
blue
red
white
red
green
blue
red
white
red
green
blue
red
e.g. Blu-ray Disc player
AV Equipment
Recorders may also be connected to COMPOSITE or S VIDEO terminals. (see below)
CTo use S VIDEO terminals
ENT
VIDEO IN 1
S VIDEO
R
P R
P B
L
R
L
ENT
R
P
R
P
B
L
L
R
white
red
white
red
AUDIO
OUT
S VIDEO
OUT
white
red
or
e.g. DVD Recorder
AV Equipment
e.g. VCR
DTo use COMPOSITE terminals
ENT
VIDEO IN 1
2
R
P R
P B
L
R
L
ENT
2
R
P
R
P
B
L
L
R
COMPOSITE
OUT
yellow
white
red
yellow
white
red
yellow
white
red
or
e.g. DVD Recorder
AV Equipment
e.g. VCR
The S Video input will override the composite video signal when S Video cable is connected. Connect
either S Video or Video cable.
Connecting to S VIDEO terminals will enable you to enjoy greater picture quality than using Composite
terminals.
AV cable connections

15
Quick Start
Guide Identifying Controls
Basic Connection (AV cable connections)
Remote control
Switches TV On or Off (Standby)
Changes the input mode (p. 24)
VIERA Link menu (p. 34-35)
Displays Sub Menu (p. 19, 28)
Colored buttons
(used for various functions)
(for example, p. 18, 22, 34)
Volume up/down
Sound mute On/Off
Changes aspect ratio (p. 20, 45)
Switches to previously viewed channel
or input modes.
External equipment operations
(p. 35)
Closed Caption On/Off (p. 19)
Selects Audio Mode for TV viewing (p. 19)
Exits from menu screen
Displays Main Menu (p. 26)
Display VIERA TOOLS (p. 21)
Viewing from SD Card (p. 22-23)
Selects/OK/Change
Returns to previous menu
Channel up/down
Displays or removes the channel
banner (p. 20)
Operates the Favorite channel list
function. (p. 20)
Numeric keypad to select any channel
(p. 19) or press to enter alphanumeric
input in menus.
(p. 18, 24, 34, 36, 38, 41, 42)
Use for digital channels. (p. 19)
Identifying Controls
Note
The TV consumes a limited amount of power as long as the power cord is inserted into the wall outlet.
Do not place any objects between the TV remote control sensor and remote control.
TV controls/indicators
Changes the input mode
Chooses menu and submenu entries.
Displays the Main
menu.
POWER
button
Volume up/down
Remote control sensor
Within about 23 feet
(7 meters) in front of
the TV set.
Selects channels
in sequence
Front of the TV Back of the TV
C.A.T.S. sensor
Plasma C.A.T.S. (Contrast Automatic
Tracking System). (p. 26)
Power indicator
(on: red, off: no light)
SD card slot
HDMI input 3 connector
Video Input 2 connector

16
First Time Setup
“First time setup” is displayed only when the TV is turned on for the first time after the power cord is
inserted into a wall outlet and when “Auto power on” (p. 28-29) is set to “No”.
or
■Press to exit from
a menu screen
■
Press to return
to the previous
screen
Turn the TV On with the POWER button
or
(Remote)(TV)
* This setting will be skipped next time if you select “Home Use”.
Select your language
Language
English FrançaisEspañol select
ok
Be sure to select “Home Use”
Please select your viewing environment
Select “Home Use” when using this TV in your home.
Home Use Store Demonstration select
ok
Please confirm your selection (Home Use) before pressing OK button.
■
If you select “Store Demonstration” by mistake in ,
confirmation screen will be displayed.
You are selecting the mode for store demonstration
Yes No
If you select “Yes”, the picture mode will regularly reset
to “Vivid” and a Picture Refresh message will be
displayed on the screen.
select
ok
Select “No” and return to previous screen .
If you select “Yes”, Screen enters store demonstration mode.
To display the “Please select your viewing environment” screen again as
shown above and select “Home Use”, do one of the following:
• Press and hold down the front POWER button.
• Unplug the TV and plug it again.

17
Quick Start
Guide First Time Setup
■
Press to exit from
a menu screen
Note
To change setting
(Language/Clock/
ANT/Cable setup/
Input labels) later, go
to Menu screen
(p. 28)

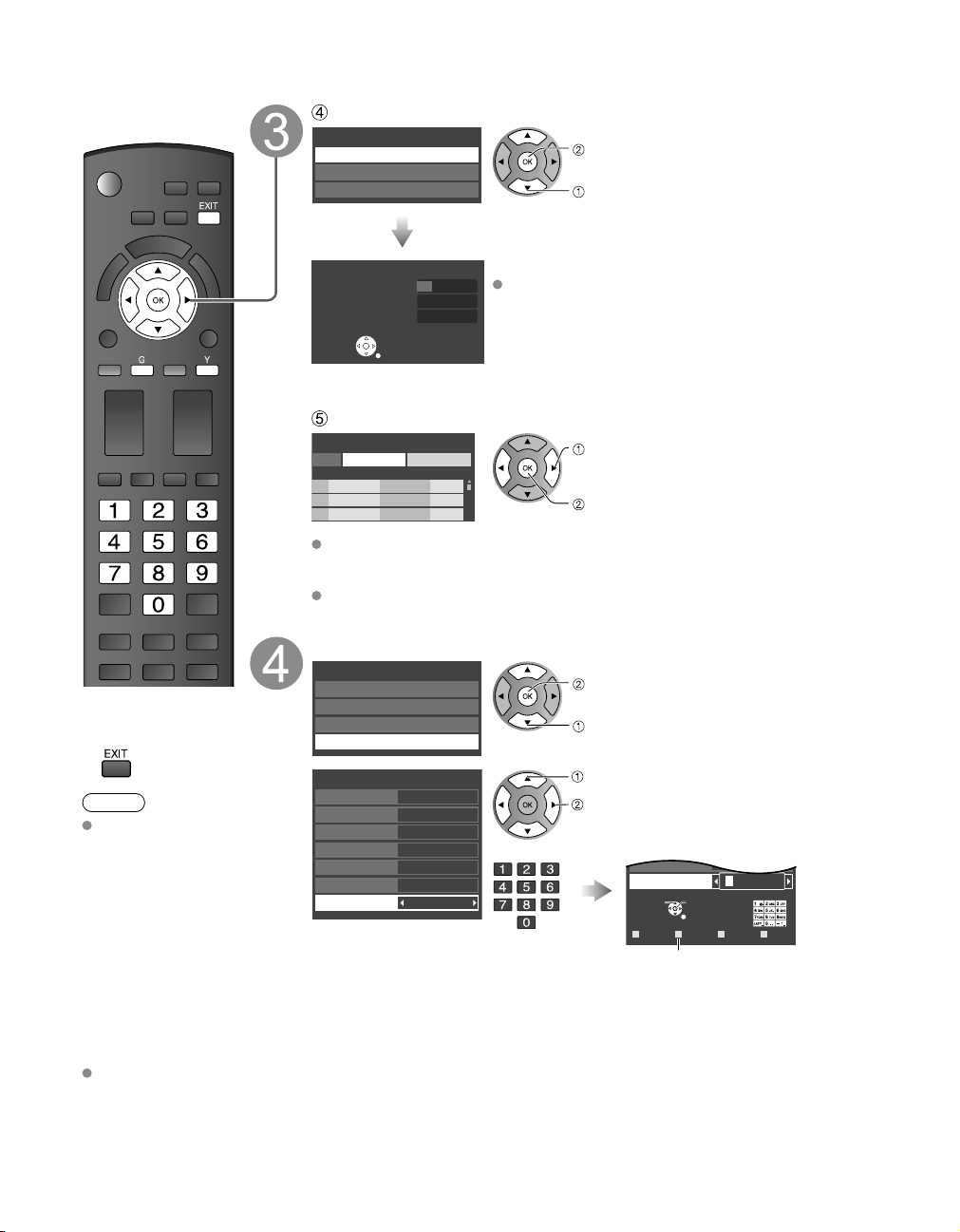

Adjust the clock
First time setup
Language
Clock
ANT/Cable setup
Input labels
next
select
2009
1
7
10 AM
10
Clock
Year
Month
Day
Hour
Minute
set
select item
Year: Select the year
Month: Select the month
Day: Select the day
Hour: Adjust the hour
Minute: Adjust the minute
Auto channel setup
Select “ANT/Cable setup”
First time setup
Language
Clock
ANT/Cable setup
Input labels
next
select
Select “ANT in”
Cable
ANT/Cable setup
ANT in
Auto program
set
select
ANT in
Cable: Cable TV
Antenna : Antenna
Not used : Skip TV tuning
go to
Select “Not used” when no wire is connected to the “Antenna/Cable” terminal.
Typical when Cable/Satellite box is connected to a TV input.
Prevents accidental tuning to an unavailable signal.
Select “Auto program”
Cable
ANT/Cable setup
ANT in
Auto program
next
select

18
■
Press to exit from
a menu screen
Note
About broadcasting
systems
Analog (NTSC):
Conventional
broadcasting
Digital (ATSC):
New
programming
that allows
you to view
more channels
featuring
high-quality video
and sound
ATSC is not available
except in U.S.A.,
Canada, and/or
Mexico.
Select scanning mode (ALL channels/Analog only/Digital only)
Auto program
All channels
Analog only
Digital only
ok
select
Auto program
Progress
Number of analog channels
Number of digital channels
32%
0
Press RETURN to quit
RETURN
Start scanning the channels
Available channels (analog/digital) are automatically set.
All channels: Scans digital and analog channels
Analog only: Scans Analog channels only
Digital only: Scans Digital channels only
Confirm registered channels
program
CancelApply
Caption Favorite Add
...
... Yes
...
... Yes
...
... Yes
l
select “Apply”
ok
If OK is not pressed after selecting “Apply”, the channels will not be saved.
The channel will be saved when no operation is performed for 60 seconds and
the “Manual program” menu will also exit automatically.
If you perform scanning more than twice, previously saved channels are erased.
Set the Input labels
First time setup
Language
Clock
ANT/Cable setup
Input labels
next
select
GAME
Input labels
Component 1
Component 2
HDMI 1
HDMI 2
HDMI 3
Video 1
Video 2
select
set
or
Select OK
RETURN
DeleteABC →abc
R G B Y
GA A
Video 1
Video 2
Switches Input mode alphabet to
numeric
Label: [BLANK] SKIP/VCR/DVD/CABLE/SATELLITE/DVR/GAME/AUX/RECEIVER/
COMPUTER/Blu-ray/CAMERA/DVD REC/HOME THTR/MONITOR/
MEDIA CTR/MEDIA EXT/OTHER
First Time Setup (Continued)

19
Quick Start
Guide Viewing Watching TV
First Time Setup
Watching TV
Connect the TV to a cable box/cable, set-top-box, satellite box or antenna cable (p. 11-14)
To watch TV and other functions

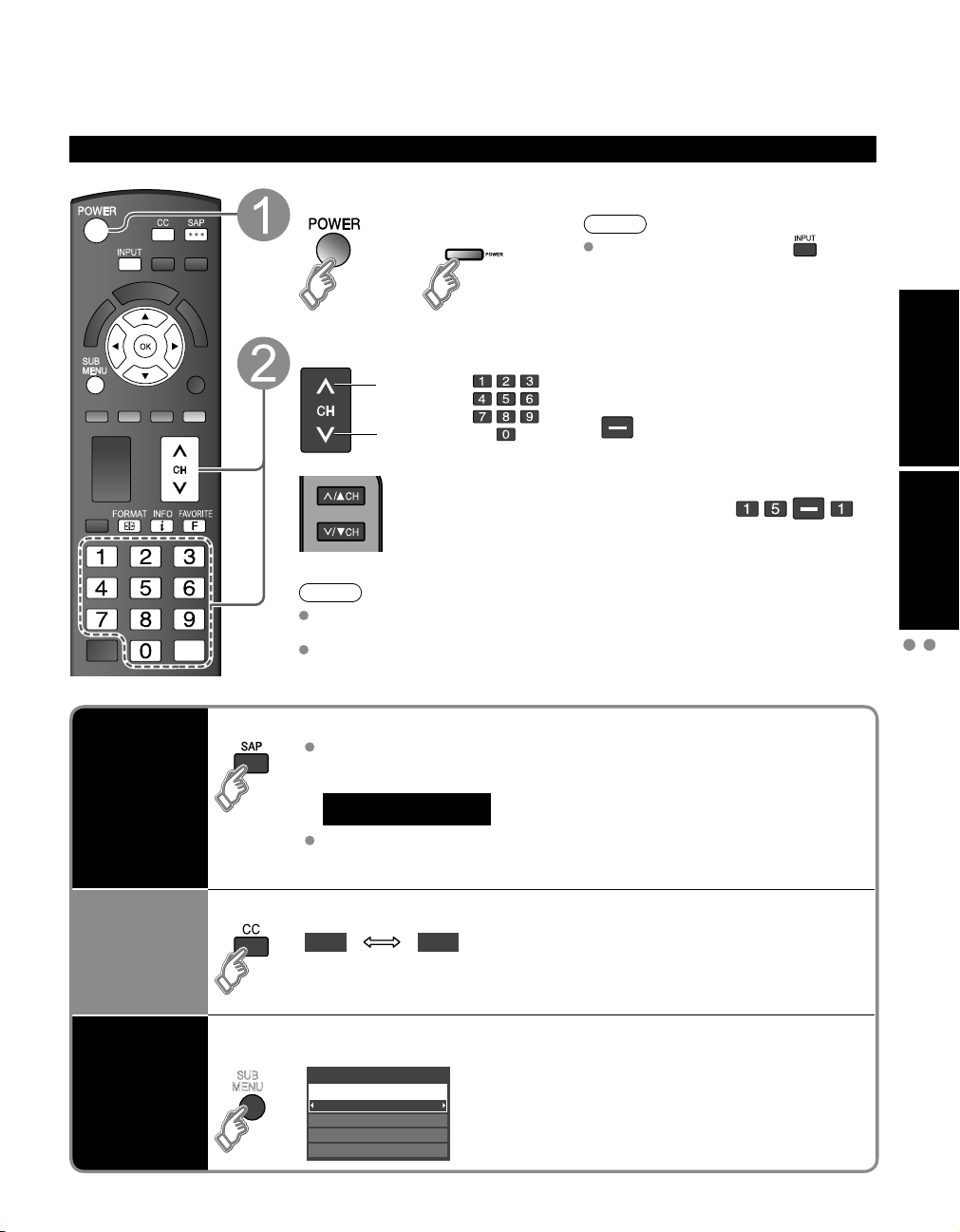

Turn power on
(TV)
or
Note
If the mode is not TV, press and
select TV. (p. 24)
Select a channel number
up
down
or
■
To directly input the digital
channel number
When tuning to a digital
channel, press the button to
enter the minor number in a
compound channel number.
example: CH15-1:
(TV)
Note
Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the
signal reception between cable TV and antenna. (p. 17, 39)
The channel number and volume level remain the same even after the TV is
turned off.
Listen
with SAP
(Secondary
Audio
Program)
■
Select Audio Mode for watching TV
Digital mode
Press SAP to select the next audio track (if available) when receiving a digital
channel.
Audio track 1 of 2
(English)
Analog mode
Press SAP to select the desired audio mode.
• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)
Closed
Caption
■
Switches Closed Caption mode On or Off
CC On CC Off
Display the
SUB MENU
■
Press SUB MENU to show sub menu screen. (p. 28)
This menu consists of shortcuts to convenient functions.
SUB
MENU
All
Setup SUB MENU
Edit CH caption
Signal meter
Set favorite
Channel surf mode

20
Watching TVWatching TV (Continued)
■
Other Useful Functions (Operate after )
Information
Recall
■
Displays or removes the channel banner.
15-2 12:30 PM
30
THE NEWS
CC SAP
TV-G 1080i Standard 4:3
ABC-HD
Channel
Station
identifier SAP indication Signal resolution
Rating Level
mode Sleep timer remaining time
Aspect ratio
Closed caption
Clock
Change
aspect
ratio
■
Press FORMAT to cycle through the aspect modes. (p. 45)
• 480i, 480p: FULL/JUST/4:3/ZOOM
• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM
Call up
a favorite
channel
■
FAVORITE
Channel numbers registered in Favorite are displayed on the favorite tune
screen. Select the desired broadcast station with the cursor or use number
buttons. (see below)
■Set Favorite Feature
1Display the SUB MENU.
SUB
MENU
2Select “Set favorite”
All
Setup SUB MENU
Edit CH caption
Signal meter
Set favorite
Channel surf mode
select
ok
3Set the displayed channel
Set favorite 1/3
26-1
1
2
3
4
5
select the list
number
save the displayed
channel
select the list number
(to save the channel
without pressing OK)
or
Delete a favorite channel
Set favorite 1/3
26-1
1
2
3
4
5
select
delete
(while holding down)
Favorite Feature
■Use Favorite Feature
1Display “Favorite channels”
2Select the channel
Favorite channels 1/3
26-1
1
2
3
4
5
select
or
3Set Favorite channel
Favorite channels 1/3
26-1
1
2
3
4
5
ok
■To change the page
Press repeatedly to change between
pages(1/3, 2/3, 3/3 or exit)
Changes the page forward/backward
