Parker PPLM-21196 User manual

PETROL LAWNMOWER
OWNERS MANUAL
PPLM-21196

32
INTRODUCTION/INTENDED USE CONTENTS
WHAT'S IN THE BOX ..................................................................................... 4-5
PRODUCT FEATURES .................................................................................. 6-7
SAFETY INFORMATION ............................................................................. 8-9
SAFETY INSTRUCTIONS ........................................................................... 10-12
ASSEMBLY ............................................................................................................ 14-27
PREOPERATION ............................................................................................ 28-29
ENGINE STARTING PROCEDURE ...................................................... 30-31
FLOODED ENGINE PROCEDURE ....................................................... 32-33
OPERATION ......................................................................................................... 34-36
MAINTENANCE ................................................................................................. 38-43
STORING YOUR MOWER .......................................................................... 44
TRANSPORTING YOUR MOWER ........................................................ 45
TROUBLESHOOTING ................................................................................... 46-47
ONLINE RESOURCE LIBRARY .............................................................. 48-49
EXPLODED DIAGRAMS .............................................................................. 50-53
SPECIFICATIONS ............................................................................................. 56
DECLARATION OF CONFORMITY ..................................................... 57
This manual has been produced by Parker Products Ltd. and should
be kept with the product and referenced for operation, maintenance
and troubleshooting.
This manual contains an overall description of the product, together with
all the necessary information for using the product correctly and safely. It
is highly recommended that this manual is read prior to any operation or
maintenance of this product. The safety precautions and warnings are to
ensure your safety and protect you from harm or damage to the product.
All photographs and drawings in this manual are supplied by Parker
Products Ltd. to help you with the operation and maintenance of the
product. The information contained in this manual was accurate at the time
of production, however Parker Products Ltd. may make modications to the
product without notication.
This Petrol Lawn Mower has been designed for lawn areas in private house
and hobby gardens.
The machine is to be used only for its prescribed purpose, any other
use is deemed to be a case of misuse. The user / operator and not the
manufacturer will be liable for any damage or injuries of any kind caused as
a result of this.
Please note that our equipment has not been designed for use in
commercial, trade or industrial applications. Our warranty will be voided
if the machine is used in commercial, trade or industrial businesses or for
equivalent purposes.
Thank you
ParkerBrand

4

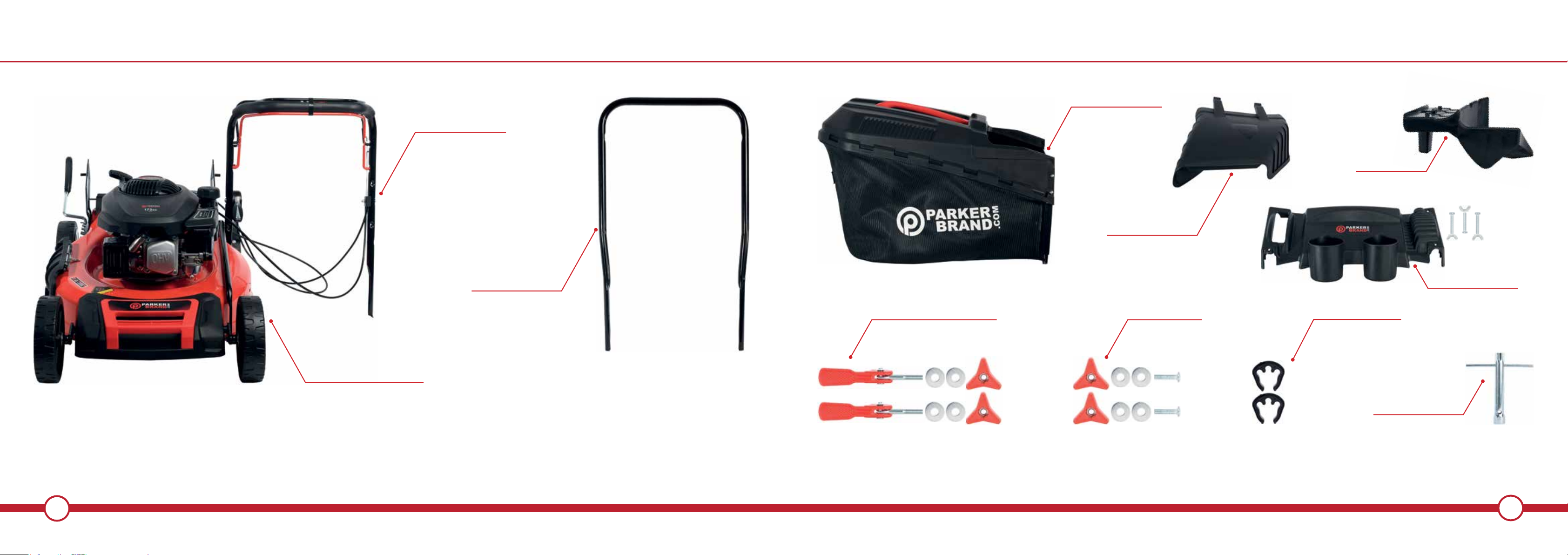

WHAT’S IN THE BOX
5
UPPER
FIXING/LOCKING KNOBS
WHAT’S IN THE BOX
UPPER HANDLE
THROTTLE ADJUSTER
THROTTLE LEVER
SELF DRIVE LEVER
LOWER HANDLE
PPLM-21196 MAIN UNIT
173CC ENGINE
STEEL DECK
21" BLADE
4x PUNCTURE PROOF TYRES
GRASS BAG
SIDE DISCHARGE
CHUTE
MULCHING
PLUG
DRINKS HOLDER
X3 SCREWS
X3 WING NUTS
LOWER
FIXING KNOBS
CABLE
SECURING CLIPS
SPARKPLUG
WRENCH

6 7
FUEL
FILLER CAP
PRODUCT FEATURES PRODUCT FEATURES
SOFT GRIP
HANDLE
COLLECTION
BAG
LEVERS
BRAKE LEVER (RED)
DRIVE LEVER (BLACK)
PUNCTURE
PROOF WHEELS
STARTER ROPE
GUIDE
DRINKS
HOLDER
THROTTLE
ADJUSTER
SIDE
DISCHARGE CHUTE
UPPER HANDLE
FIXING KNOB
PRIMER
BUBBLE
FRONT
CARRY HANDLE
HEIGHT ADJUSTMENT
HANDLE
DURABLE POWDER
COATED FINISH
LOWER HANDLE
FIXING KNOB

8 9
REMOVE SPARK PLUG LEAD BEFORE
MAINTENANCE
RISK OF INJURY. DO NOT OPEN OR REMOVE
SAFETY SHIELDS WHILE ENGINE IS RUNNING.
WEAR EAR PROTECTION & EYE PROTECTION
WHEN OPERATING.
BEWARE OF SHARP BLADES
WARNING! EXHAUST GAS CONTAINS TOXIC
SUBSTANCES. DO NOT RUN THE ENGINE IN
CLOSED OR POORLY VENTILATED AREAS.
SAFETY INFORMATION
NEVER REFUEL WHILE THE ENGINE IS
RUNNING
DO NOT TOUCH THE MOVING PARTS OF THE
MACHINE UNTIL THEY ARE COMPLETELY
STOPPED.
GUARANTEED SOUND POWER LEVEL
CONFORMS TO CURRENT SAFETY
STANDARDS
WASTE ELECTRICAL PRODUCTS SHOULD NOT
BE DISPOSED OF WITH HOUSEHOLD WASTE.
PLEASE RECYCLE WHERE FACILITIES EXIST
CHECK YOUR LOCAL AUTHORITY OR
RETAILER FOR RECYCLING ADVICE
SAFETY INFORMATION
i
WARNING- To reduce the risk of injury, user must read instruction manual.
SAFETY INFORMATION
IMPORTANT
PLEASE READ THESE INSTRUCTIONS FULLY BEFORE ASSEMBLING AND OPERATING
Description Of Symbols.
Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be
perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents.
This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this warning can lead
to an accident for yourself or for others. To limit the risk of injury, fire, or electrocution always apply the
recommendations indicated..
KEEP BY STANDERS AWAY.
HOT SURFACES WILL BURN FINGERS
OR PALMS

10 11
TRAINING
• Read the instructions carefully. Be familiar with the controls and the
proper use of the equipment.
• Never allow children or people unfamiliar with these instructions to
use the lawnmower. Local regulations can restrict the age of the
operator.
• Never mow while people, especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents
or hazards occurring to other people or their property.
PREPARATION
• While mowing, always wear substantial footwear and long trousers.
Do not operate the equipment when barefoot or wearing open
sandals.
• Thoroughly inspect the area where the equipment is to be used and
remove all objects which can be thrown by the machine e.g. stones,
sticks etc.
• Warning - petrol is highly flammable.
Store fuel in containers specifically designed for this purpose;
Refuel outdoors only and do not smoke while refuelling;
Add fuel before starting the engine. Never remove the cap of the fuel
tank or add petrol while the engine is running or when the engine is
hot;
If petrol is spilled, do not attempt to start the engine but move the
machine away from the area of spillage and avoid creating any
source of ignition until petrol vapours have dissipated;
Replace all fuel tank and container caps securely;
• Replace faulty silencers.
• Before using, always visually inspect to see that the blades, blade
bolts and cutter assembly are not worn or damaged. Replace worn
or damaged blades and bolts in sets to preserve balance.
SAFETY INSTRUCTIONS. SAFETY INSTRUCTIONS.
OPERATION
• Do not operate the engine in a confined space where dangerous
carbon monoxide fumes can collect.
• Mow only in daylight or in good artificial light.
• Avoid operating the equipment on wet grass, where feasible.
• Always be sure of your footing on slopes.
• Walk, never run.
• For wheeled rotary machines, mow across the face of slopes, never
up and down.
• Exercise extreme caution when changing direction on slopes.
• Do not mow excessively steep slopes.
• Do not mow slopes over 15-20 degrees.
• Use extreme caution when reversing or pulling the lawnmower
towards you.
• Stop the blade(s) if the lawnmower has to be tilted for transportation
when crossing surfaces other than grass, and when transporting
the lawnmower to and from the area to be mowed.
• Never operate the lawnmower with defective guards, or without
safety devices, for example deflectors and/or grass catchers, in
place.
• Do not change the engine governor settings or over speed the
engine.
• Disengage all blade and drive clutches before starting the engine.
• Start the engine or switch on the motor carefully according to
instructions and with feet well away from the blade(s).
• Do not tilt the lawnmower when starting the engine or switching on
the motor, except if the lawnmower has to be tilted for starting. In
this case, do not tilt it more than absolutely necessary and lift only
the part which is away from the operator.
• Do not start the engine when standing in front of the discharge
chute.

THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK
SAFETY INSTRUCTIONS.
• Do not put hands or feet near or under rotating parts. Keep clear of
the discharge opening at all times.
• Never pick up or carry a lawnmower while the engine is running.
• Stop the engine and disconnect the spark plug wire , make sure that
all moving parts have come to a complete stop and, where a key is
fitted remove the key:
Before clearing blockages or unclogging chute;
Before checking, cleaning or working on the lawnmower;
After striking a foreign object. Inspect the lawnmower for damage
and make repairs before restarting and operating the lawnmower;
If lawnmower starts to vibrate abnormally (check immediately);
• Stop the engine and disconnect the spark plug wire, make sure that
all moving parts have come to a complete stop and, where a key is
fitted remove the key:
Whenever you leave the lawnmower;
Before refuelling;
• Reduce the throttle setting during engine shut down and, if the
engine is provided with a shut-o valve, turn the fuel o at the
conclusion of mowing.
• Go slow when using a trailing seat.
MAINTENANCE AND STORAGE
• Keep all nuts, bolts and screws tight to be sure the equipment is in
safe working condition.
• Never store the equipment with petrol in the tank inside a building
where fumes can reach an open flame or spark.
• Allow the engine to cool before storing in any enclosure.
• To reduce the fire hazard, keep the engine, silencer, battery
compartment and petrol storage area free of grass, leaves, or
excessive grease.
• Check the grass catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• If the fuel tank has to be drained, this should be done outdoors.
12 13

14 15

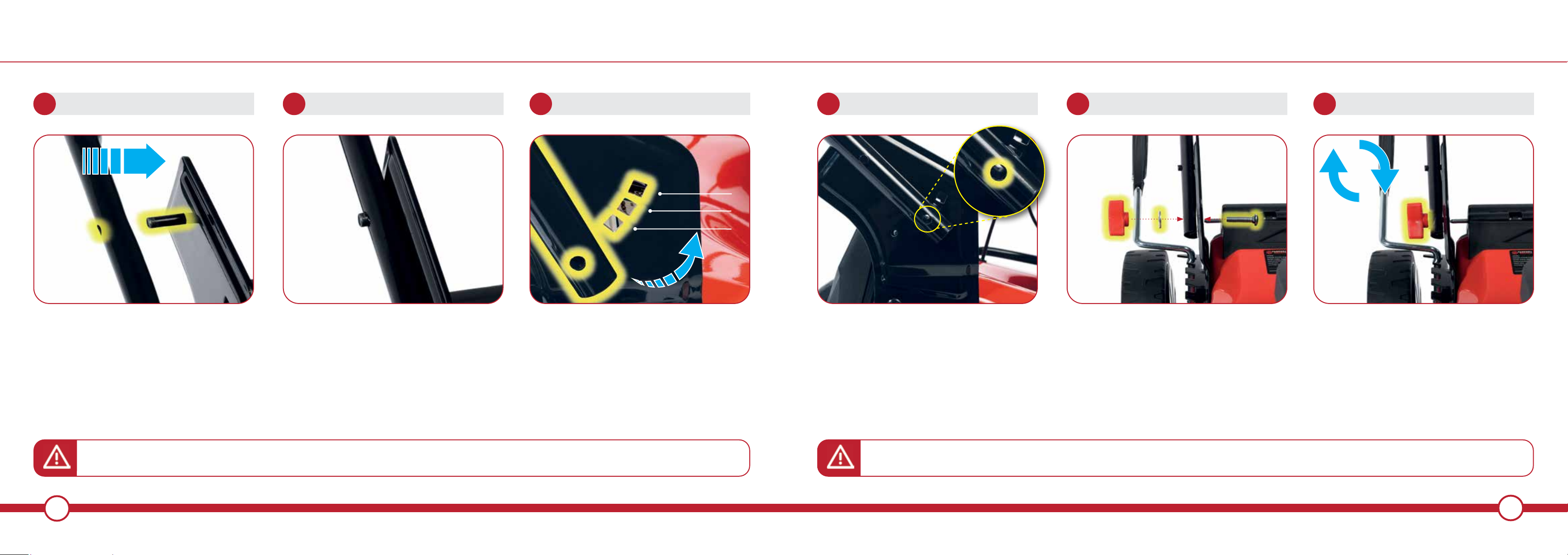

ASSEMBLY ASSEMBLY
Align the locating pin on the mower frame with the
upper hole in the lower handle.
1LOWER HANDLE ASSEMBLY
To adjust the handle angle pivot the lower handle
on the locating pins. There is a choice of 3 angles
to set the handle to, HIGH, MID & LOW. Set at an
angle that is most comfortable for the user.
3ADJUST HANDLE ANGLE
Locate the lower handle on to the locating pin
on the mower frame. This process will need to be
repeated on both sides of the handle.
2LOCATE HANDLE ON TO PIN
Align the lower round hole located on the lower
handle with one of the square holes on themower
frame.
4ALIGN HANDLE WITH FRAME
Tighten the red locking knob on to the bolt by
turning it in a clockwise direction. Tighten until the
lower handle is secured in place. This process will
need to be repeated on both sides of the handle.
6SECURE LOCKING KNOB
Thread the bolt through the square hole in the
mower frame and through the lower round hole
on the lower handle. Slide the washer on to the
bolt and up against the lower handle followed by
the red locking knob.
5THREAD LOCKING KNOB
LOW
MID
HIGH
WARNING: Do Not operate the machine with a loose handle, ensure that the lower handle is fully secured in place before commencing use.NOTE: The handle angle must be adjusted correctly to suit the user, this will ensure that use of the mower is as comfortable as possible.

1716

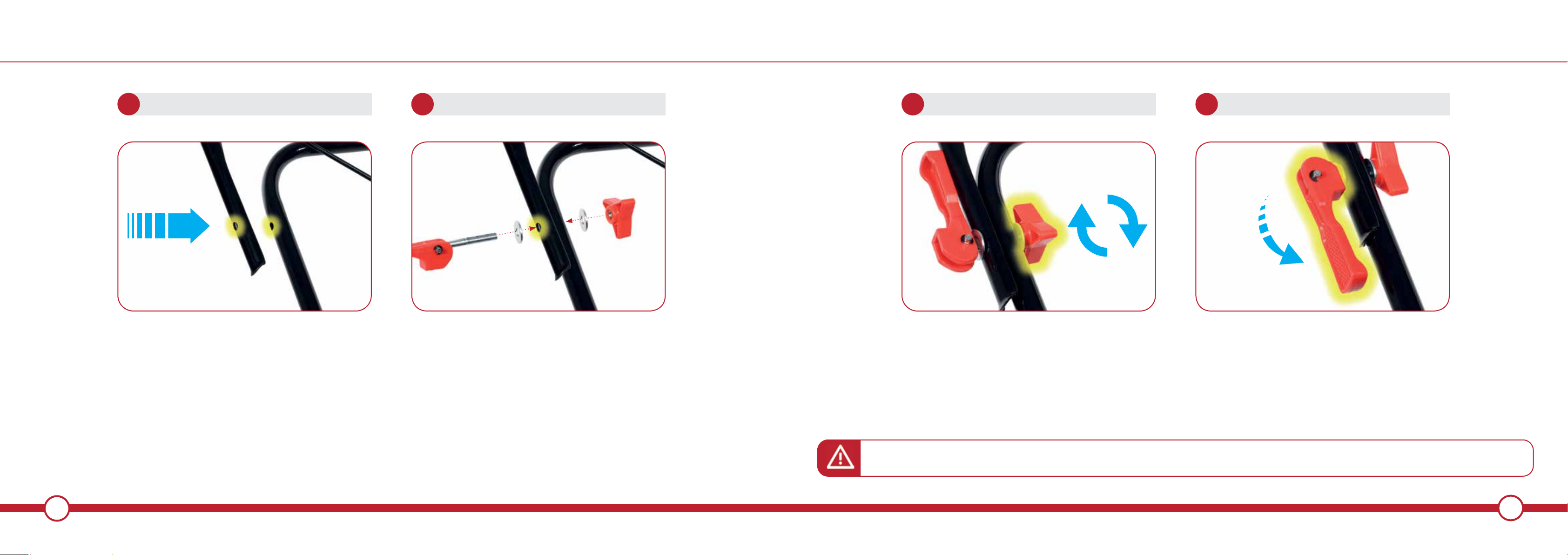

ASSEMBLY ASSEMBLY
78ASSEMBLE LOCKING KNOBALIGN TOP & BOTTOM HANDLES
Assemble the locking knob as shown above. Thread the
locking lever through both the upper and lower handle
and secure in place by tightening the locking knob. This
process will need to be repeated on both sides of the
handle.
Align the holes in the bottom of the upper handle with the
holes located at the top of the lower handle. This process
will need to be repeated on both sides of the handle.
910 LOCK LOCKING KNOBTIGHTEN LOCKING KNOB
Lock the the assembly in position by pulling the lever
into the downward position. This process will need to be
repeated on both sides of the handle.
Tighten the locking knob by turning it in a clockwise
direction. This process will need to be repeated on both
sides of the handle.
WARNING: Do Not operate the machine with a loose handle, ensure that the upper handle is fully secured in place before commencing use.

18 19
ASSEMBLY
ASSEMBLY

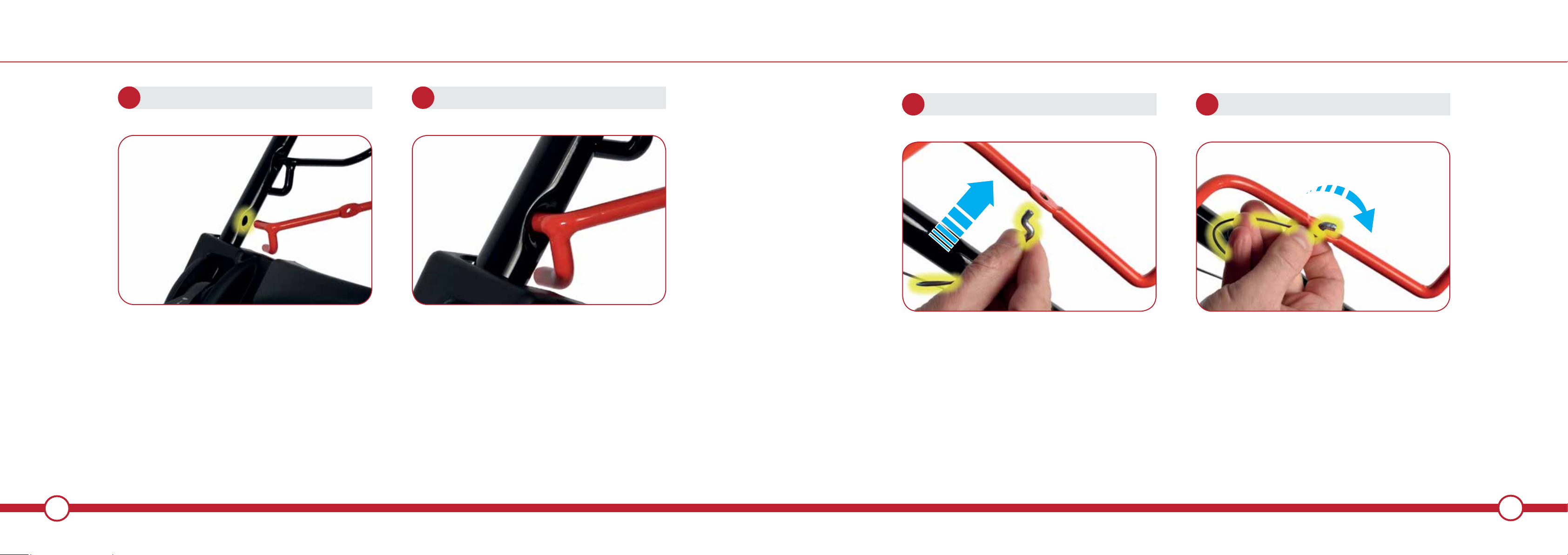

11 12 PULL THROTTLE LEVER FREEREMOVE THROTTLE LEVER
Pull the throttle lever away from the upper handle. The
lever will pull free from the upper handle very easily, simply
slide it freen from the opposite side.
Remove the throttle lever from the upper handle.
13 14 PULL THROTTLE CABLE FREE
DISCONNECT THROTTLE CABLE
The throttle cable will now pull free from the throttle lever.
Disconnect the throttle cable by simply sliding the dog leg
cable end in a curved motion through the hole on the lever.

20 21
ASSEMBLY
ASSEMBLY
15 16 POSITION DRINKS HOLDERATTACH DRINKS HOLDER
To attach the drinks holder to the upper handle correctly
position it as shown above.
There are three location holes situated on the upper handle
to attach the drinks holder to, these are illustrated above.
17 18 FIX DRINKS HOLDER IN PLACETHREAD THROTTLE CABLE
Carefully place the drinks holder over the throttle adjuster
and align with the three holes on the upper handle. Attach
utilizing the three screws and wing nuts provided.
Thread the throttle cable through the cable guide hole
located in the top of the drinks holder.

22 23
ASSEMBLY
ASSEMBLY
19 20 INSERT THROTTLE LEVER INTO HANDLEREATTACH THROTTLE LEVER
The image above shows the the pivot point of the throttle
lever inserted correctly into the upper handle.
The throttle lever can now be reattached to the upper
handle on the throttle adjuster side of the machine. Guide
the pivot point of the throttle lever into the hole located on
the upper handle.
21 22 SECECURE THROTTLE CABLERETHREAD THROTTLE CABLE
Secure the throttle cable by simply sliding the dog leg
cable end in a curved motion through the hole on the lever.
Re-thread the throttle cable through the hole on the throttle
lever on the side where the cable has been threaded
through the drinks holder.

24 25
ASSEMBLY
ASSEMBLY

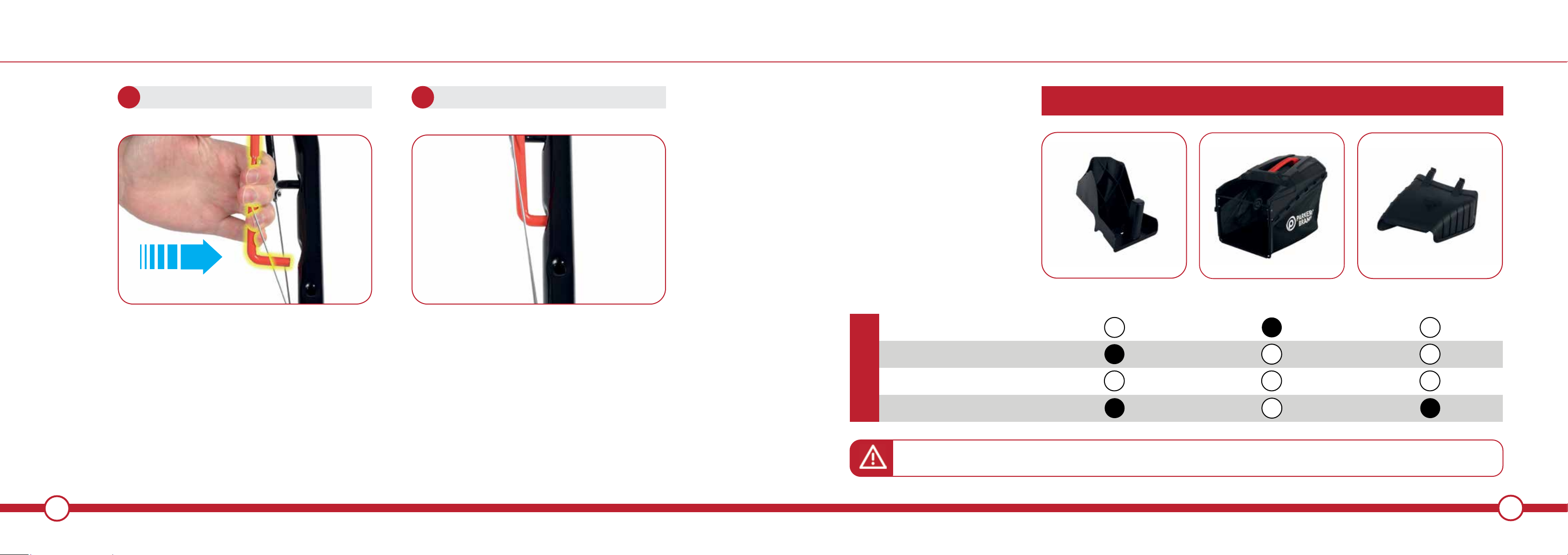

23 24 THROTTLE LEVER SECUREDREATTACH THROTTLE LEVER
The throttle lever is now secured in place with the drinks
holder and the throttle cable re-attached to the machine.
Guide the other pivot point of the throttle lever into the
hole located on the upper handle on the cable side of the
machine.
REAR DISCHARGING
ACCESSORY SETTINGS
This lawn mower has four functions,
these functions can be converted by
changing the accessory setting.
Please refer to the following chart for
setting requirements. The chart indicates
which accessory is required for the
desired function.
A solid black circle indicates when an
accessory is needed for the mower to
perform the desired function as and
when required.
FUNCTION
ACCESSORY SETTING
REAR BAGGING
MULCHING
SIDE DISCHARGING
MULCHING PLUG GRASS BAG SIDE DISCHARGE DUCT
NOTE: When installing an accessory please follow the required steps provided on pages 26 and 27 of this manual carefully.

26 27
ASSEMBLY
Lift the side discharge cover with one hand and
hook the side discharge duct on to the spaces on
the hinge. Then release the side discharge cover to
secure the duct in position.
27 ATTACH DISCHARGE CHUTE
NOTE: When using the side discharge function, remove grass bag and plug the mulching plug into place.
25 26 MULCHING PLUG ASSEMBLYBAG TO MOWER ASSEMBLY
Remove the grass bag. Push the plastic mulching plug into
the rear discharge chute until it is locked in place. Release
the flap, it will close back to cover the mulching plug.
Lift the rear discharge cover with one hand and hook on
the grass bag. Release the rear discharge cover to secure
the grass bag in position.
Locate the side discharge cover on the side of the
metal deck of the machine.
27 LOCATE DISCHARGE COVER
Unlock the side discharge cover by moving the
locking machanism in an upward direction.
27 UNLOCK DISCHARGE COVER
AB C

28 29
CAUTION! THE FOLLOWING PROCEDURES AND ADJUSTMENTS MUST BE PERFORMED BEFORE THE ENGINE IS STARTED.
DO NOT ATTEMPT TO MAKE ANY OF THESE ADJUSTMENTS WHILE THE ENGINE IS RUNNING.
CAUTION! To prevent engine damage the engine is shipped without oil or petrol. The engine must be filled with the correct grade of oil and petrol
before starting the engine.
NOTE! Running the engine with a low oil level will cause engine damage. It is recommend that high detergent, premium quality 4-stroke engine oil
is used. Using non-detergent oil can shorten the engine’s service life and using 2-stroke oil will damage the engine.
CAUTION! Always use high quality detergent oil classified SAE30 oil (or equivalent e. g SAE 10W/30, often termed as 4 Stroke lawn mower oil). Never
use additives with recommended oil. To prolong the life of your engine it is important that the oil is changed after the first 5 hours of use.
NOTE! To Check the engine oil level ,stop engine and place the mower on a level surface.
CAUTION! Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be used within 30 days. Never mix oil with petrol.
CAUTION! Do not fill into the base of neck to allow for fuel expansion. Do not overfill the fuel tank.
CAUTION! WARNING! Petrol is highly flammable and extreme precaution must be taken when handling or working with it. Keep out of reach of
children.
WARNING! Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flame or sparks in the area where the engine is refuelled
or where petrol is stored. Avoid repeated or prolonged contact with skin or inhalation of vapour
PRE-OPERATION
PRE-OPERATION
Remove the oil filler dipstick and wipe oil from it with a clean cloth, Insert the dipstick into the oil filler neck,
but do not tighten.
Remove dipstick and check the oil Level, the oil level must be between the Min and Max marks on the
dipstick.
The engine will not start without suicient oil. If near the lower level, fill to upper level with the recommended
oil (SAE30 or equivalent).
1CHECK FUEL
Remove the cap, check the fuel level. Refill the tank
if the fuel level is low. Pour fuel carefully to avoid
overfilling or spilling fuel.
There should be no fuel in the filler neck. Tighten
the filler cap finger tight.
2
CHECK OIL
NOTE: Please be aware there maybe trace elements of oil on the dipstick from factory testing and calibration.
NOTE: Clean around filler caps before removing. Clean any overflow or splashes of petrol/oil before starting.
NOTE:
To start the engine, make sure that the HT lead is located on the spark plug and the machine is filled with suicient oil and petrol.
MIN
MAX

30 31
When starting a cold engine, press down the
Primer fully 3-5 times.
2
Put the throttle control lever in the START position
before starting
3
PRIMING THE ENGINE SETTING THE THROTTLE
PRESS X 
ENGINE STARTING PROCEDURE
ENGINE STARTING PROCEDURE
WARNING! Using the primer too many times may cause the engine to flood. When starting a warm engine, the primer does not need
to be used. If the engine stops due to a lack of petrol, refill and press down the primer 3-5 times.
SECURING THE STARTER ROPE
Stand behind the mower, pull the engine Start/Stop lever
toward the upper handle. Place your other hand on the
starter handle, pull the starter handle out approx.
10-15cm until you feel a resistance and then start the
Engine with a sharp pull.
Once the engine is running, put the starter rope Into the
rope guide
NOTE: If the engine fails to start after three pulls, repeat the process.
NOTE: If the engine won’t start after you have operated the starter several times, the engine may
be flooded with excess fuel.
START/STOP LEVER
45
ROPE
GUIDE
STARTER
ROPE
Before attempting to start the engine set the deck
height to the highest setting. This will prevent the
blade from catching on any uneven ground and
make the machine much easier to start.
SET DECK HEIGHT
1

32
FLOODED ENGINE PROCEEDURE
33
NOTE: Install the spark plug carefully by hand, to avoid cross-threading.
After the plug is seated tighten 1/8 to 1/4 turn with a spark plug wrench to compress the washer.
FLOODED ENGINE PROCEEDURE
DISCONNECT COIL PACK
If the engine won’t start after you have operated the starter
several times, the engine may be flooded with excess fuel.
To unflood the engine first release the engine start/stop
lever to stop engine.
Locate and disconnect the coil pack from the sparkplug.
This can be found at the front of the machine next to the
exhaust.
START/STOP LEVER
12REMOVE & DRY SPARKPLUG
The sparkplug is easily accessible with the coil pack
removed.
Remove the sparkplug using the sparkplug wrench
provided. Dry the spark plug and then reinstall it. Follow
the starting proceedure again carefully
LOCATE THE SPARKPLUG
34

34 35
CUTTING HEIGHT ADJUSTMENT
3
OPERATION
OPERATION
The cutting height is adjusted with the cutting height
adjusting handle. Pull the handle out and select the
desired cutting height. When released the handle snaps
Into position.
From position 1 to position 7. The cutting height ranges
from 25mm to 75 mm
MAX
TO
MIN
MAX
MIN
mm 25mm
SELF PROPELLED FUNCTION
Release the engine start/stop lever, it will return to its Initial
position and the engine will automatically switch o.
This unit equipped with self-propelled system. If you press
the drive lever (clutch lever), the lawnmower will start to
move with the engine running. To stop, simply release the
drive lever..
STOPPING THE ENGINE
12
+
-
WARNING: Only utilise the cutting height adjustment handle when engine is switched o and the machine ie stationary.

36 37
OPERATION
MOWING
Select your required setting.
Start the engine and allow it run, and set it to required speed.
Keep a firm grip on the upper handle with engine stop/start lever and drive lever(clutch lever) closed and walk along with it self-propelling to start
mowing.
WORKING ADVICES
• Walk, never run with the mower, be very careful when mowing uneven or rough ground.
• Mow across slopes, never up and down.
• Be careful when changing the direction of the mower on a slope.
• Do not mow excessively steep slopes, this includes slopes over 15-20 degrees.
• The best result will be achieved if the grass is dry. Wet grass will tend to clog the blade and the grass collection system.
• Never use the lowest cutting height for the first cut of the season or in drought conditions.
• Only about one thirds of the grass height should be cut.
• When mulching, to ensure that the cut grass can be scattered eiciently, do not cut high or wet grass. When you have been cutting for several
minutes, please stop the mower, and clean the blade and the deck.
• Do not remove grass debris in the mower casing or on the blade by hand or with your feet. Instead use suitable tools such as a brush or broom.
WARNING Always observe the strictest safety procedures when using the lawnmower. Carefully read the safety instructions
of this manual before proceeding with use.
WARNING! Never open the ejector flap when the grass bag has been detached (to be emptied) and the engine is still
running. The rotating blade can cause serious injuries!
THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK

38 39
MAINTENANCE MAINTENANCE
MAINTENANCE SCHEDULE
Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble free use. Please keep this manual safe for future reference.
It is recommended that the following maintenance schedule is adhered to. This will ensure the lawn-mower is operated correctly and is safe to use.
HOURS OF USE HOURS OF USE HOURS OF USE
AIR FILTER CLEAN CLEAN REPLACE
SPARK PLUG CHECK CLEAN REPLACE
ENGINE OIL CHECK REPLACE CHECK
ENGINE OIL TO BE CHANGED AFTER  HRS
CLEANING
GENERAL CLEANING
• The lawn mower should be cleaned thoroughly every time after it
has been used.
• Do not allow grass cuttings and other debris to become dry and
hard on any of the mower surfaces.
• Dried grass remnants and dirt may impair the mowing operation.
• Check that the grass chute is free of any residual grass. Remove any
such residue.
• Check the underside of the lawn mower and the blade mount. for
this purpose, tilt the Lawn mower onto its left side (opposite the oil
filler neck)
WARNING! Before performing any maintenance or cleaning work, switch o the engine and wait until the blade has stopped.
NOTE: Before placing the lawn mower on its side, fully drain the fuel tank using a petrol extraction pump.
NOTE: Do not tilt the lawn mower by more than 90 degrees.
WARNING! Improper repairs can result in the product functioning unsafely. This can endanger yourself and others!
NOTE: Faults which cannot be rectified please contact ParkerBrand Customer Service on [e-mail]
CAUTION! Please be aware that any improper repairs will invalidate the warranty and additional costs may be incurred.
CAUTION! Use only genuine spare parts. The use of non genuine spare parts will void your machines warranty!
