Parker PPLM-17132 User manual

PETROL LAWNMOWER
OWNERS MANUAL
PPLM-17132

32
INTRODUCTION/INTENDED USE CONTENTS
WHAT'S IN THE BOX ................................................................................. 4-5
PRODUCT FEATURES .............................................................................. 6-7
SAFETY INFORMATION ......................................................................... 8-9
SAFETY INSTRUCTIONS ....................................................................... 10-12
BEFORE USING THE LAWNMOWER ........................................... 13
ASSEMBLY .......................................................................................................... 14-16
PREOPERATION ............................................................................................ 18-19
ENGINE STARTING PROCEDURE .................................................. 20-21
FLOODED ENGINE PROCEDURE .................................................. 22-23
OPERATION ....................................................................................................... 24-25
MAINTENANCE ............................................................................................... 26-33
STORING YOUR MOWER ...................................................................... 34
TRANSPORTING YOUR MOWER .................................................... 35
TROUBLESHOOTING ............................................................................... 36-37
ONLINE RESOURCE LIBRARY .......................................................... 38-39
EXPLODED DIAGRAMS ......................................................................... 40-43
SPECIFICATIONS ......................................................................................... 46
DECLARATION OF CONFORMITY ................................................. 47
This manual has been produced by Parker Products
Ltd. and should be kept with the product and
referenced for operation, maintenance and
troubleshooting.
This manual contains an overall description of the
product, together with all the necessary information for
using the product correctly and safely. It is highly
recommended that this manual is read prior to any
operation or maintenance of this product. The safety
precautions and warnings are to ensure your safety
and protect you from harm or damage to the product.
All photographs and drawings in this manual are
supplied by Parker Products Ltd. to help you with the
operation and maintenance of the product. The
information contained in this manual was accurate at
the time of production, however Parker Products Ltd.
may make modifications to the product without
notification.
This Petrol lawn mower has been designed for cutting
lawn areas in private house and hobby gardens.
The machine is to be used only for its prescribed
purpose, any other use is deemed to be a case of
misuse. The user/operator and not the
manufacturer will be liable for any damage or injuries of
any kind caused as a result of this.
Please note that our equipment has not been designed
for use in commercial, trade or industrial applications.
Our warranty will be voided if the machine is used in
commercial, trade or industrial businesses or for
equivalent purposes.

4
WHAT’S IN THE BOX
5
UPPER
FIXING/LOCKING KNOBS
WHAT’S IN THE BOX
UPPER HANDLE
THROTTLE LEVER
LOWER HANDLES
PPLM-17132 MAIN UNIT
132CC ENGINE
STEEL DECK
17" BLADE
4x PUNCTURE PROOF TYRES
GRASS BAG
LOWER
FIXING KNOBS
CABLE
SECURING CLIP
SPARKPLUG
WRENCH

6 7
AIR
FILTER
PRODUCT FEATURES PRODUCT FEATURES
SOFT GRIP
HANDLE
COLLECTION
BAG
LEVER
START/STOP (RED)
PUNCTURE
PROOF WHEELS
UPPER
TIGHTNING KNOB
STARTER ROPE
GUIDE
POWDER COATED
HANDLE
HEIGHT ADJUSTMENT
HANDLE
FUEL
FILLER CAP
PRIMER
BUBBLE
POWDER COATED
STEEL DECK
LOWER
TIGHTNING KNOB
RECOIL
STARTER

8 9
REMOVE SPARK PLUG LEAD BEFORE
MAINTENANCE
RISK OF INJURY. DO NOT OPEN OR REMOVE
SAFETY SHIELDS WHILE ENGINE IS RUNNING.
WEAR EAR PROTECTION & EYE PROTECTION
WHEN OPERATING.
BEWARE OF SHARP BLADES
WARNING! EXHAUST GAS CONTAINS TOXIC
SUBSTANCES. DO NOT RUN THE ENGINE IN
CLOSED OR POORLY VENTILATED AREAS.
SAFETY INFORMATION
NEVER REFUEL WHILE THE ENGINE IS
RUNNING
DO NOT TOUCH THE MOVING PARTS OF THE
MACHINE UNTIL THEY ARE COMPLETELY
STOPPED.
GUARANTEED SOUND POWER LEVEL
CONFORMS TO CURRENT SAFETY
STANDARDS
WASTE ELECTRICAL PRODUCTS SHOULD NOT
BE DISPOSED OF WITH HOUSEHOLD WASTE.
PLEASE RECYCLE WHERE FACILITIES EXIST
CHECK YOUR LOCAL AUTHORITY OR
RETAILER FOR RECYCLING ADVICE
SAFETY INFORMATION
i
WARNING- To reduce the risk of injury, user must read instruction manual.
SAFETY INFORMATION
IMPORTANT
PLEASE READ THESE INSTRUCTIONS FULLY BEFORE ASSEMBLING AND OPERATING
Description Of Symbols.
Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be
perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents.
This symbol, before a safety comment, indicates a precaution, a warning or a danger. Ignoring this warning can lead
to an accident for yourself or for others. To limit the risk of injury, fire, or electrocution always apply the
recommendations indicated..
KEEP BY STANDERS AWAY.
HOT SURFACES WILL BURN FINGERS
OR PALMS

10 11
TRAINING
• Read the instructions carefully. Be familiar with the controls and the
proper use of the equipment.
• Never allow children or people unfamiliar with these instructions to
use the lawnmower. Local regulations can restrict the age of the
operator.
• Never mow while people, especially children, or pets are nearby.
• Keep in mind that the operator or user is responsible for accidents
or hazards occurring to other people or their property.
PREPARATION
• While mowing, always wear substantial footwear and long trousers.
Do not operate the equipment when barefoot or wearing open
sandals.
• Thoroughly inspect the area where the equipment is to be used and
remove all objects which can be thrown by the machine e.g. stones,
sticks etc.
• Warning - petrol is highly flammable.
Store fuel in containers specifically designed for this purpose;
Refuel outdoors only and do not smoke while refuelling;
Add fuel before starting the engine. Never remove the cap of the fuel
tank or add petrol while the engine is running or when the engine is
hot;
If petrol is spilled, do not attempt to start the engine but move the
machine away from the area of spillage and avoid creating any
source of ignition until petrol vapours have dissipated;
Replace all fuel tank and container caps securely;
• Replace faulty silencers.
• Before using, always visually inspect to see that the blades, blade
bolts and cutter assembly are not worn or damaged. Replace worn
or damaged blades and bolts in sets to preserve balance.
SAFETY INSTRUCTIONS. SAFETY INSTRUCTIONS.
OPERATION
• Do not operate the engine in a confined space where dangerous
carbon monoxide fumes can collect.
• Mow only in daylight or in good artificial light.
• Avoid operating the equipment on wet grass, where feasible.
• Always be sure of your footing on slopes.
• Walk, never run.
• For wheeled rotary machines, mow across the face of slopes, never
up and down.
• Exercise extreme caution when changing direction on slopes.
• Do not mow excessively steep slopes (15 degrees and over)
• Use extreme caution when reversing or pulling the lawnmower
towards you.
• Stop the blade(s) if the lawnmower has to be tilted for transportation
when crossing surfaces other than grass, and when transporting
the lawnmower to and from the area to be mowed.
• Never operate the lawnmower with defective guards, or without
safety devices, for example deflectors and/or grass catchers, in
place.
• Do not change the engine governor settings or over speed the
engine.
• Disengage all blade and drive clutches before starting the engine.
• Start the engine or switch on the motor carefully according to
instructions and with feet well away from the blade(s).
• Do not tilt the lawnmower when starting the engine or switching on
the motor, except if the lawnmower has to be tilted for starting. In
this case, do not tilt it more than absolutely necessary and lift only
the part which is away from the operator.

SAFETY INSTRUCTIONS.
• Do not put hands or feet near or under rotating parts. Keep clear of
the discharge opening at all times.
• Never pick up or carry a lawnmower while the engine is running.
• Stop the engine and disconnect the spark plug wire , make sure that
all moving parts have come to a complete stop and, where a key is
fitted remove the key:
Before clearing blockages or unclogging;
Before checking, cleaning or working on the lawnmower;
After striking a foreign object. Inspect the lawnmower for damage
and make repairs before restarting and operating the lawnmower;
If lawnmower starts to vibrate abnormally (check immediately);
• Stop the engine and disconnect the spark plug wire, make sure that
all moving parts have come to a complete stop and, where a key is
fitted remove the key:
Whenever you leave the lawnmower;
Before refuelling;
MAINTENANCE AND STORAGE
• Keep all nuts, bolts and screws tight to be sure the equipment is in
safe working condition.
• Never store the equipment with petrol in the tank inside a building
where fumes can reach an open flame or spark.
• Allow the engine to cool before storing in any enclosure.
• To reduce the fire hazard, keep the engine, silencer, battery
compartment and petrol storage area free of grass, leaves, or
excessive grease.
• Check the grass catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• If the fuel tank has to be drained, this should be done outdoors.
12 13
NOTE: This Lawnmower is not supplied with any oil within the engine, there is only trace left from testing.
NOTE: The fuel to use for this machine is Unleaded Petrol (E-10 compatible).
WARNING! Do not start the engine without adding oil first, this will damage the engine beyond repair.
NOTICE
ENGINE SHIPPED
WITHOUT ENGINE OIL
1INSPECT THE LAWNMOWER
Check the Lawnmower is not damaged and all components
are present and in good working order before use. Regular
periodic inspection is required to ensure the Lawnmower
is suitable for the task. Before using the Lawnmower a
risk assessment should be carried out respecting the
legislation in the country of use.
BEFORE USING THE LAWNMOWER
(USE SAE30)(USE SAE30)
ALWAYS CHECK OIL BEFORE STARTING.ALWAYS CHECK OIL BEFORE STARTING.

14 15
ASSEMBLY ASSEMBLY

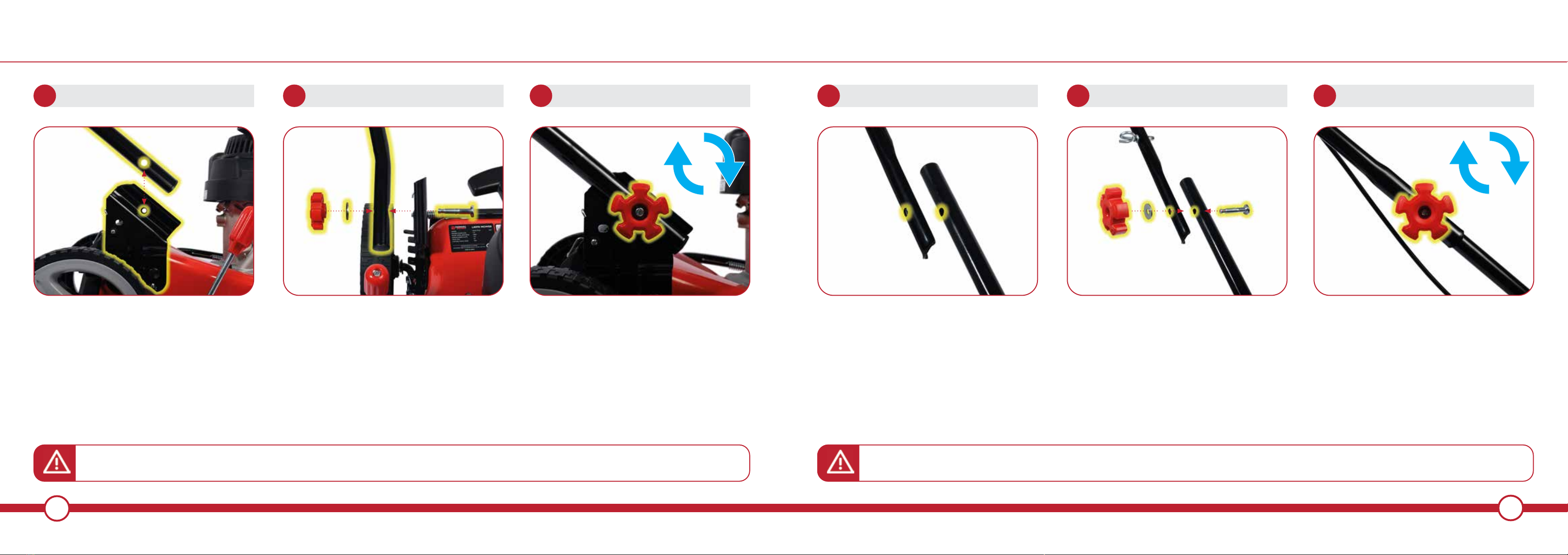

Align the hole on the lower handle with the hole
on the mower frame. This process will need to be
repeated on the opposite side.
1ALIGN HANDLE WITH FRAME
Secure the lower handle to the mower frame by
turning the lower locking knob in a clockwise
direction. This process will need to be repeated on
the opposite side.
3SECURE LOCKING KNOB
Thread the lower locking knob through the mower
frame and lower handle as shown in the image
above. This process will need to be repeated on
the opposite side.
2THREAD LOCKING KNOB
Align the hole in the upper handle with the hole on
the lower handle.
4ALIGN TOP & BOTTOM HANDLES
Secure the upper handle to the lower handle by
turning the upper locking knob in a clockwise
direction. This process will need to be repeated on
the opposite side.
6TIGHTEN LOCKING KNOB
Thread the upper locking knob through the lower
and upper handle as shown in the image above.
This process will need to be repeated on the
opposite side.
5ASSEMBLE LOCKING KNOB
WARNING: Do Not operate the machine with a loose handle, ensure that the handle assembly is fully secured in place before commencing use.NOTE: Ensure the lower handle is installed correctly, the lower handle should be at its narrowest where it attaches to the mower frame.

17
THIS PAGE HAS INTENTIONALLY BEEN LEFT BLANK
16
ASSEMBLY

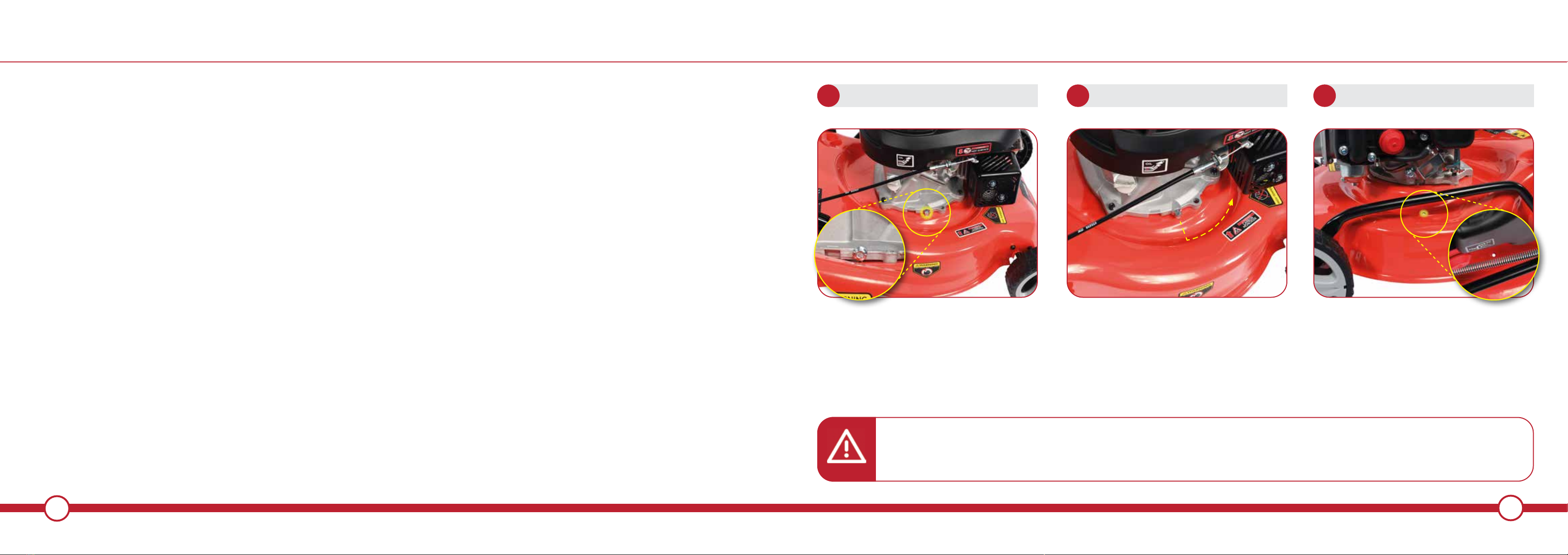

The rear discharge cover in located at the back of
the mower
7LOCATE REAR DISCHARGE COVER
Hook the grass bag onto the springs either side
of the discharge cover. Carefully lower the rear
discharge cover on to the grass bag to secure it
in place.
9ATTACH COLLECTION BAG
The rear discharge cover is spring loaded, carefully
open the cover and keep a firm grip to prevent it
from snapping back into the closed position.
8OPEN REAR DISCHARGE COVER
WARNING: Never stand behind the mower and open the rear discharge cover whilst the mowers engine is running.

18 19
CAUTION! THE FOLLOWING PROCEDURES AND ADJUSTMENTS MUST BE PERFORMED BEFORE THE ENGINE IS STARTED.
DO NOT ATTEMPT TO MAKE ANY OF THESE ADJUSTMENTS WHILE THE ENGINE IS RUNNING.
CAUTION! To prevent engine damage the engine is shipped without oil or petrol. The engine must be filled with the correct grade of oil and petrol
before starting the engine.
NOTE! Running the engine with a low oil level will cause engine damage. It is recommend that high detergent, premium quality 4-stroke engine oil
is used. Using non-detergent oil can shorten the engine’s service life and using 2-stroke oil will damage the engine.
CAUTION! Always use high quality detergent oil classified SAE30 oil (or equivalent e. g SAE 10W/30, often termed as 4 Stroke lawn mower oil). Never
use additives with recommended oil. To prolong the life of your engine it is important that the oil is changed after the first 5 hours of use.
NOTE! To Check the engine oil level place the mower on a level surface, ensure the engine is cold and hasn't been running, this way the oil will be
at the bottom of the sump and the oil reading will be more accurate.
CAUTION! Always use clean, fresh unleaded petrol. Purchase fuel in quantities that can be used within 30 days. Never mix oil with petrol.
CAUTION! Do not fill into the base of neck to allow for fuel expansion. Do not overfill the fuel tank.
CAUTION! WARNING! Petrol is highly flammable and extreme precaution must be taken when handling or working with it. Keep out of reach of
children.
WARNING! Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flame or sparks in the area where the engine is refuelled
or where petrol is stored. Avoid repeated or prolonged contact with skin or inhalation of vapour
PRE-OPERATION
PRE-OPERATION
Remove the oil filler dipstick and wipe oil from it with a clean cloth, Insert the dipstick into the oil filler neck,
but do not tighten.
Remove dipstick and check the oil Level, the oil level must be between the Min and Max marks on the
dipstick. The engine will not start without suicient oil. If near the lower level, fill to upper level with the
recommended oil (SAE30 or equivalent).
1CHECK FUEL
Remove the cap, check the fuel level. Refill the tank
if the fuel level is low. Pour fuel carefully to avoid
overfilling or spilling fuel.
There should be no fuel in the filler neck.
Tighten the filler cap finger tight.
2
CHECK OIL
NOTE: Please be aware there maybe trace elements of oil on the dipstick from factory testing and calibration.
NOTE: Clean around filler caps before removing. Clean any overflow or splashes of petrol/oil before starting.
NOTE:
To start the engine, make sure that the HT lead is located on the spark plug and the machine is filled with suicient oil and petrol.
MIN
MAX

20 21
ENGINE STARTING PROCEDURE
CAUTION! Be aware using the primer too many times will cause the engine to flood.
NOTE: If the engine fails to start after three pulls, repeat the process.
NOTE: If the engine stops due to a lack of petrol, refill and press down the primer 3-5 times.
ENGINE STARTING PROCEDURE
PRIMING THE ENGINE
Before attempting to start the engine set the deck height
to the highest setting. This will prevent the blade from
catching on any uneven ground and make the machine
much easier to start.
When starting a cold engine, press the Primer bubble fully
3-5 times. When the engine is warm the engine does not
need to be primed.
SET DECK HEIGHT
12SECURING THE STARTER ROPE
Stand behind the mower, pull the engine Start/Stop lever
toward the upper handle. Place your other hand on the
starter handle, pull the starter handle out approx. 10-15cm
until you feel a resistance and then start the Engine with
a sharp pull.
Once the engine is running, put the starter rope Into the
rope guide
START/STOP LEVER
34
STARTER
ROPE
ROPE
GUIDE
PRESS X 
WARNING: If the engine won’t start after you have operated the starter several times, the engine may
be flooded with excess fuel. Please follow the flooded engine proceedure on pages 22 & 23.

22
FLOODED ENGINE PROCEEDURE
23
NOTE: Install the spark plug carefully by hand, to avoid cross-threading. After the plug is seated tighten 1/8 to 1/4 turn with a sparkplug wrench
to compress the washer.

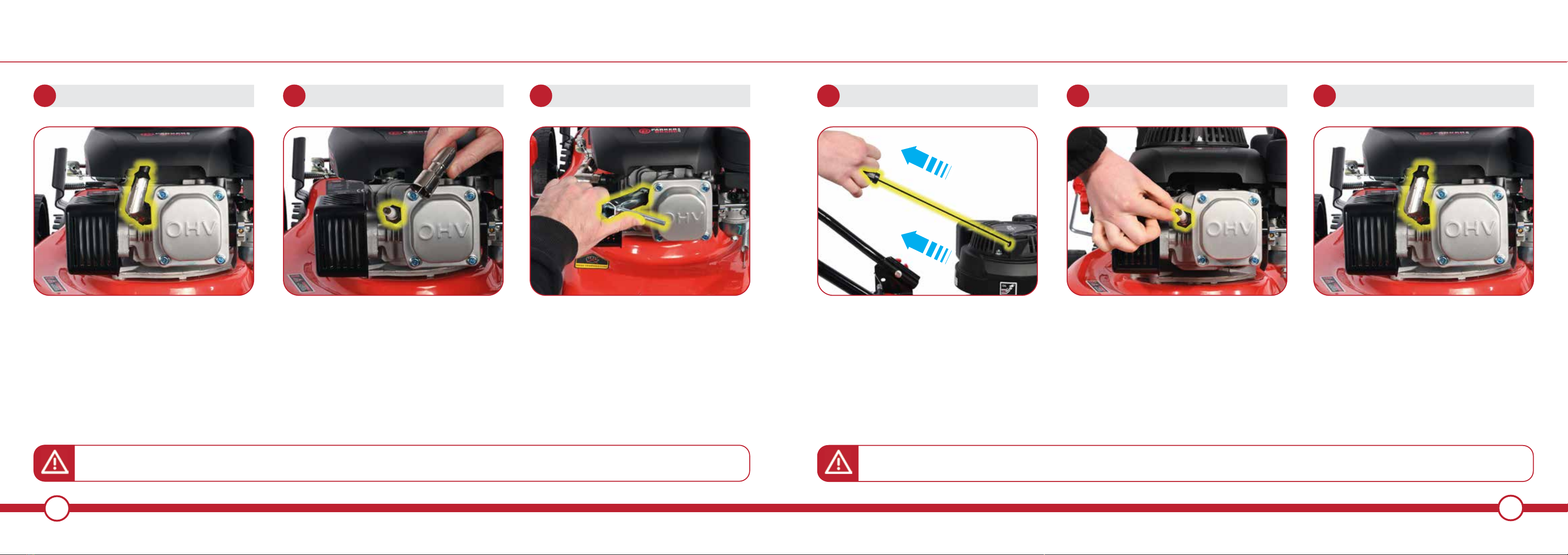

FLOODED ENGINE PROCEEDURE
If the engine won’t start after you have operated the
starter several times, the engine may be flooded
with excess fuel. To unflood the engine first locate
and disconnect the coil pack from the sparkplug.
This can be found at the front of the machine next
to the exhaust.
1DISCONNECT COIL PACK
Remove the sparkplug using the sparkplug wrench
provided. Dry the spark plug and then reinstall it.
Follow the starting proceedure again carefully.
3REMOVE & DRY SPARKPLUG
The sparkplug is now easily accessible with the
coil pack removed.
2LOCATE THE SPARKPLUG
Pull the starter recoil six to seven times to flush out
any excess fuel inside the carburettor.
4PULL STARTER RECOIL
Firmly push the coil pack back onto the sparkplug.
The engine is now unflooded and the starting
proceedure can be attempted again.
6REINSTALL THE COILPACK
Now reinstall the sparkplug. Do so carefully by
hand being sure not to cross the threads. Once the
sparkplug is seated correctly finish tightening by
using the wrench. Be careful not to over tighten.
5REINSTALL THE SPARKPLUG
PULL X 
WARNING! Never touch the coil pack/sparkplug when the machine is running as there is a risk of electric shock.

24 25
CUTTING HEIGHT ADJUSTMENT
2
OPERATION
OPERATION
The cutting height is adjusted with the cutting
height adjusting handle.
Pull the handle out and select the desired cutting
height. When released the handle snaps Into
position.
From position 1 to position 7. The cutting height
ranges from 25mm to 75 mm
WARNING: Only utilise the cutting height adjustment handle when engine is switched o and the machine ie stationary.
MAX
MIN
mm 25mm
STOPPING THE ENGINE
Release the engine start/stop lever, it will return to
its Initial position and the engine will automatically
switch o.
1
MAX
TO
MIN
+
-
MOWING
Select your required setting.
Start the engine and allow it run.
Keep a firm grip on the upper handle with engine stop/start lever closed and walk along with it to start mowing.
WORKING ADVICES
• Walk, never run with the mower, be very careful when mowing uneven or rough ground.
• Mow across slopes, never up and down.
• Be careful when changing the direction of the mower on a slope.
• Do not mow excessively steep slopes.
• The best result will be achieved if the grass is dry. Wet grass will tend to clog the blade and the grass collection system.
• Never use the lowest cutting height for the first cut of the season or in drought conditions.
• Only about one thirds of the grass height should be cut.
• When mulching, to ensure that the cut grass can be scattered eiciently, do not cut high or wet grass. When you have been cutting for several
minutes, please stop the mower, and clean the blade and the deck.
• Do not remove grass debris in the mower casing or on the blade by hand or with your feet. Instead use suitable tools such as a brush or broom.
WARNING Always observe the strictest safety procedures when using the lawnmower. Carefully read the safety instructions
of this manual before proceeding with use.
WARNING! Never open the ejector flap when the grass bag has been detached (to be emptied) and the engine is still
running. The rotating blade can cause serious injuries!

26 27
CLEANING
GENERAL CLEANING
• The lawn mower should be cleaned thoroughly every time after it
has been used.
• Do not allow grass cuttings and other debris to become dry and
hard on any of the mower surfaces.
• Dried grass remnants and dirt may impair the mowing operation.
• Check that the grass chute is free of any residual grass. Remove any
such residue.
• Check the underside of the lawn mower and the blade mount. for
this purpose, tilt the Lawn mower onto its left side (opposite the oil
filler neck)
MAINTENANCE MAINTENANCE
MAINTENANCE SCHEDULE
Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble free use. Please keep this manual safe for future reference.
It is recommended that the following maintenance schedule is adhered to. This will ensure the lawn-mower operated correctly and is safe to use.
HOURS OF USE HOURS OF USE HOURS OF USE
AIR FILTER CLEAN CLEAN REPLACE
SPARK PLUG CHECK CLEAN REPLACE
ENGINE OIL CHECK REPLACE CHECK
ENGINE OIL TO BE CHANGED AFTER  HRS
WARNING! Before performing any maintenance or cleaning work, switch o the engine and wait until the blade has stopped.
NOTE: Before placing the lawn mower on its side, fully drain the fuel tank using a petrol extraction pump.
NOTE: Do not tilt the lawn mower by more than 90 degrees.
WARNING! Improper repairs can result in the product functioning unsafely. This can endanger yourself and others!
NOTE: Faults which cannot be rectified please contact ParkerBrand Customer Service on [e-mail]
CAUTION! Please be aware that any improper repairs will invalidate the warranty and additional costs may be incurred.
CAUTION! Use only genuine spare parts. The use of non genuine spare parts will void your machines warranty!

28 29
WARNING! Never change the engine oil whilst the engine is running. This is not only dangerous it will damage the engine beyond repair.
CAUTION: Running the engine without suicient levels of oil will damage the engine. Use High quality SAE30.
CAUTION: Always clean the mower deck and surrounding areas of any spillages of oil after the oil change proceedure.
NOTE: Always dispose of oil responsibly. Contact your local authority to find a service to help you get rid of hazardous waste.
MAINTENANCE
MAINTENANCE
CHANGING THE ENGINE OIL
• Locate and remove the oil sump drain plug, allow the oil to drain into the the drainage channel. Have a container underneath the oil drainage
hole ready to catch the used oil. Remove the dipstick and wipe clean once the oil has been emptied.
• Clean the mower deck/drainage channel and any spillages that may occur.
• replace the oil sump drain plug and refill the engine with 400ml of SAE30 oil or when it shows as full.
• When the dipstick is rested on the filler pipe (i. e. not tightened ), the oil level must be between the Min and Max marks on the dipstick.
• Start the engine and allow it to run briefly.
• Stop the engine, wait one minute and check the oil level. top up if necessary.
CAUTION! The engine must be filled with the correct grade of oil and petrol before starting the engine.
NOTE! Running the engine with a low oil level will cause engine damage. It is recommend that high detergent, premium
quality 4-stroke engine oil is used. Using non-detergent oil can shorten the engine’s service life and using 2-stroke oil will damage the engine.
CAUTION! Always use high quality detergent oil classified SAE30 oil (often termed as 4 Stroke lawn mower oil). Never use additives with
recommended oil. To prolong the life of your engine it is important that the oil is changed after the first 5 hours of use.
NOTE! To Check the engine oil level ,stop engine and place the mower on a level surface.
NOTE: Do not overfill. Wipe away any spilt oil.
Place the mower on a level surface and set the
mower deck height to the highest setting. Locate
the oil sump drain plug on the mower. this will
need to be removed to drain oil from the engine.
The oil will run into the channel and around the
opposite side of the deck where the oil drainage
hole is located. Make sure you have a suitable
container underneath the oil drainage hole to
collect the used engine oil before you remove the
oil sump drain plug.
Allow the oil to drain from the engine and flow into
the oil drainage channel on the metal deck of the
machine. Always throughly clean the deck and
channel of any oil before using the mower again.
1LOCATE OIL SUMP DRAIN PLUG 3OIL DRAINAGE HOLE 2OIL DRAINAGE CHANNEL

30 31
MAINTENANCE
MAINTENANCE
SPARK PLUG MAINTENANCE
• Once the engine has cooled, twist o the spark plug cover/coil pack lead.
• Carefully Remove the spark plug using a spark plug wrench supplied.
• Clean the spark plug with a wire brush (not supplied) to remove any deposits.
• Using a feeler gauge set the gap to the correct mesurement of 0.75mm.
• Install the spark plug carefully by hand being careful not to cross the threads.
• After the spark plug is seated correctly, tighten with the wrench supplied .
AIR FILTER MAINTENANCE
• Remove the air cleaner cover by turning it in an anti-clockwise direction(X).
• Separate the Air Filter element (Y) from the Air Filter Housing (Z).
• Clean the air filter element with warm water and mild soap.
• Allow the air filter element to dry thoroughly before re-installation
• Re-assemble the air filter assembly as shown in the illustration.
• When the air filter is fully re-assembled the machine can be used once again.
WARNING! Never run the machine without the air filter element installed as this can damage the engine beyond repair.
SET THE GAP
TO .MM
X
Y
Z
WARNING! Never touch the coil pack/sparkplug when the machine is running as there is a risk of electric shock.

32 33
MAINTENANCE

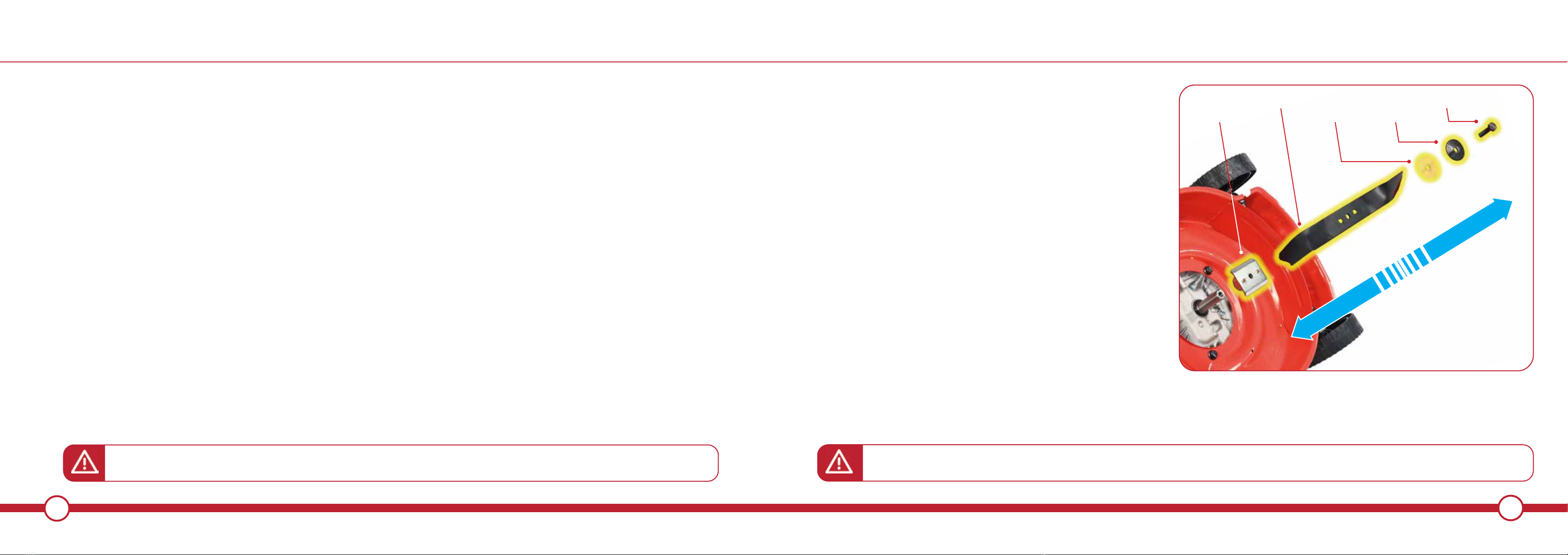

BLADE REPLACEMENT
FOR SAFETY REASONS YOU SHOULD ONLY EVER HAVE YOUR BLADE SHARPENED , BALANCED AND MOUNTED BY AN AUTHORISED
SERVICE WORKSHOP. FOR OPTIMUM RESULTS IT IS RECOMMENDED THAT THE BLADE SHOULD BE INSPECTED ONCE A YEAR.
WARNING! You will need garden gloves (not provided) and a spanner wrench (not provided) to remove the blade.
WARNING! Always handle the blade with care, sharp edges could cause injury
USE GLOVES. Renew your metal blade after 50Hrs mowing or 2yrs whichever is sooner regardless of condition.
WARNING! If the blade is cracked or damaged replace it with a new one.
WARNING! Don’t hold the blade by hand directly.
NOTE! Maintain the sharpness of the blade when cutting grass. If the blade has worn excessively and become pitted and blunt, it should be
replaced or sharpened. The sharpness of the blade will aect the performance of the lawnmower.
CAUTION: For safety reasons we recommend that the blade only be changed by someone qualified and authorized to do so.
BLADE REMOVAL/FITTING GUIDE
• Firmly secure the blade and unscrew the bolt using a spanner wrench.
• Remove the metal and plastic washers.
• Remove the blade from the blade adapter.
• Fit a new blade or re-sharpen the blade.
• Locate the new/sharpened blade on to the two studs of the blade
adapter
• The up turn of the blade must project into the motor compartment.
• Replace both of the washers and bolt.
• Make sure the blade is located correctly then firmly tighten the bolt.
• DO NOT over tighten.
BOLT
METAL
WASHER
PLASTIC
WASHER
BLADE
BLADE
ADAPTER
WARNING: Do Not handle the blade with bare hands, to help prevent injury always wear safety gloves when maintaining the blade.
MAINTENANCE

34 35
TRANSPORTING YOUR MOWER
STORING YOUR MOWER
STORING THE LAWNMOWER FOR SHORT PERIODS
The lawnmower can be stored for short periods of time (less than 15 days) without performing any storage maintenance. Before placing the
lawnmower into storage always carry out the following:
• Allow the engine to fully cool.
• Ensure the grass bag is empty.
• Clean all debris from under the mower deck.
• Store the lawnmower on flat and level surface with the mower upright.
• Store in a safe place which is not accessible by children or people who are not familiar with operation.
STORING THE LAWNMOWER FOR EXTENDED PERIODS
If the lawnmower is to be place into storage for more than 15 days, storage maintenance must be performed on the lawnmower. If the following
steps are not carried out, when you next operate the lawnmower it may not start correctly and may need to be serviced.
• Empty the petrol tank with a petrol suction pump if available.
• Start the engine and let it run until any remaining petrol has been used up.
• Drain the carburettor of any remaining petrol.
• Change the oil at the end of every season. To do so, remove the used engine oil from a warm engine and refill with fresh oil
• Clean the cooling fins of the cylinder and the housing
• Be sure to clean the entire machine to protect the paint.
• Store the machine in a well-ventilated place.
CAUTION! Do not empty the petrol tank in enclosed areas, near fire or when smoking. Petrol fumes can cause explosions and fire
TRANSPORT
• Empty the petrol tank
• Always let the engine run until it has used up the remainder of petrol in the tank.
• Empty the engine oil from the warm engine.
• Remove the spark plug boot from the spark plug.
• Clean the cooling fins of the cylinder and the housing.
• Use the original packaging to ship whenever possible.

36 37
TROUBLESHOOTING
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Loud while running,
machine vibrates heavily
Screws are loose Check screws
Blade fasteners are loose Check blade fasteners
Blade is unbalanced Replace blade
Engine does not start
Start/Stop Lever not engaged Engage Start/Stop Lever
Spark plug is defective Replace
Blade is worn or damaged Contact Customer Services at [e-mail]
Fuel tank is empty Refill with fuel
Engine may be flooded Remove spark plug and dry
Engine runs unsteady
Air filter is soiled Clean
Spark Plug is soiled Clean
PROBLEM POSSIBLE CAUSE SOLUTION
Uneven mowing
Blade is blunt Sharpen blade
Cutting too low Adjust height
Grass Bag not filling
suiciently
Blade is worn Replace
Grass Bag is clogged Empty
Lawn/Grass is wet Allow to dry
Discharge chute blocked Clean
Underside of mower deck clogged Clean
Cutting height is wrong Adjust height

38 39
SCAN QR CODE SCAN QR CODE SCAN QR CODE
SCAN QR CODE SCAN QR CODE SCAN QR CODE
SCAN QR CODE SCAN QR CODE SCAN QR CODE
SCAN QR CODE SCAN QR CODE SCAN QR CODE
ONLINE RESOURCE LIBRARY
ONLINE RESOURCE LIBRARY
No resources for your product? Don't worry we are adding new content all the time. If you require help/advice with your product
contact us via email at [e-mail]
SCAN QR CODE TO ACCESS ONLINE RESOURCES LIBRARY
HELPFUL PRODUCT RESOURCES
Gain access to the ParkerBrand online resource
library for this product.
Resources include Detailed descriptions of products,
literature, articles and video tutorials.
Simply scan the QR Code with your mobile devices
camera.
2TAP POPUP 4SELECT A RESOURCE TO ACCESS 3SCROLL DOWN PRODUCT PAGE
Tap the link/pop up that displays after scanning
the QR code.
It will take you directly to the proctduct page for
this machine on the ParkerBrand website.
Click on the tab for the resource you'd like to
access. Choose from description,literature,
articles and video.
your chosen resource tab will be highlighted in
green.
Scroll down the product page to the product
description box. Take note of of the green tab and
the greyed out tabs along the top of the
description box
1
OPEN PHONE CAMERA.
FRAME THE QR CODE.
