Parker 995810-Vac 35 Push User manual
Model
995810 – Vac 35 Push
Vac 35
04067900B 1/11
Printed in USA
ENGLISH
FRANÇAIS
Owner/Operator Manual
Manuel Du Propriétaire/Utilisateur
Gasoline containing up to 10% ethanol (E10) or up to 10% MTBE (methyl tertiary butyl ether) is
acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) or 10% MTBE will void the product warranty.
Il est possible d’utiliser de l’essence contenant jusqu’à 10% d’éthanol (E10) ou 10% de MTBE
(éther méthyl-tertiobutylique) sur cette machine.
L’utilisation d’une essence contenant plus de 10% d’éthanol (E10) ou de 10% de MTBE annulent la
garantie.
GB - 2
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . 7
CONTROLS and FEATURES . . . . . . . . 10
OPERATION . . . . . . . . . . . . . . . . . . . . . 11
MAINTENANCE . . . . . . . . . . . . . . . . . . 13
STORAGE. . . . . . . . . . . . . . . . . . . . . . . 13
TROUBLESHOOTING . . . . . . . . . . . . . 14
SPECIFICATIONS. . . . . . . . . . . . . . . . . 15
WARRANTY . . . . . . . . . . . . . . . . . . . . . 16
NON-ENGLISH MANUALS
Manuals in languages other than English may
be obtained from your Dealer. Visit your
dealer or www.ariens.com for a list of
languages available for your equipment.
Manuals printed in languages other than
English are also available as a free download
on our website:
http://www.ariens.com
MANUALES EN IDIOMAS
DIFERENTES DEL INGLES
Puede obtener manuales en idiomas
diferentes del inglés en su distribuidor. Visite
a su distribuidor o vaya a www.ariens.com
para obtener una lista de idiomas disponibles
para su equipo.
También puede imprimir manuales en
idiomas diferentes del inglés descargándolos
gratuitamente de nuestra página Web:
http://www.ariens.com
MANUELS NON ANGLAIS
Des manuels dans différentes langues sont
disponibles chez votre revendeur. Rendez-
vous chez votre revendeur ou allez sur le site
www.ariens.com pour consulter la liste des
langues disponibles pour votre équipement.
Les manuels imprimés dans des langues
différentes de l'anglais sont également
disponibles en téléchargement gratuit sur
notre site Web:
http://www.ariens.com
MANUALS
Before operation of unit, carefully and
completely read your manuals. If used
improperly, this unit could be dangerous and
cause personal injury or property damage.
The contents will provide you with safety
instructions for the safe use of your unit
during normal operation and maintenance.
All reference to left, right, front, or rear are
given from operator standing in operation
position and facing the direction of forward
travel.
ENGINE MANUAL
The engine on this unit is covered by a
separate manual specific to the engine. This
manual is included in the literature package
that shipped with the unit. Refer to this
manual for engine service recommendations.
If the engine manual is not available, contact
the engine manufacturer for a replacement
manual.
MODEL AND SERIAL NUMBERS
When ordering replacement parts or making
service inquiries, know the Model and Serial
numbers of your unit and engine.
Numbers are located on the product
registration form in the unit literature
package. They are printed on a serial number
label, located on the frame of your unit.
TABLE OF CONTENTS
INTRODUCTION
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
GB - 3
• Record Unit Model and Serial
numbers here.
• Record Engine Model and Serial
numbers here.
PRODUCT REGISTRATION
The dealer must register the product at the
time of purchase. Registering the product will
help the company process warranty claims or
contact you with the latest service
information. All claims meeting requirements
during the limited warranty period will be
honored, whether or not the product
registration card is returned. Keep a proof of
purchase if you do not register your unit.
Customer Note: If the dealer does not
register your product, please fill out, sign, and
return the product registration card to Ariens
or go to www.ariens.com.
UNAUTHORIZED REPLACEMENT
PARTS
Use only Parker replacement parts. The
replacement of any part on this vehicle with
anything other than a Parker authorized
replacement part may adversely affect the
performance, durability, or safety of this unit
and may void the warranty. Parker disclaims
liability for any claims or damages, whether
warranty, property damage, personal injury or
death arising out of the use of unauthorized
replacement parts. To locate your nearest
Parker Dealer, go to www.ariens.com on the
internet.
DISCLAIMER
Parker reserves the right to discontinue,
make changes to, and add improvements
upon its products at any time without public
notice or obligation. The descriptions and
specifications contained in this manual were
in effect at printing. Equipment described
within this manual may be optional. Some
illustrations may not be applicable to your
unit.
DELIVERY
Customer Note: If you have purchased this
product without complete assembly and
instruction by your retailer, it is your
responsibility to:
1. Read and understand all assembly
instructions in this manual. If you do not
understand or have difficulty following
the instructions, contact your nearest
Parker Dealer for assistance. Make sure
all assembly has been properly
completed.
NOTE: To locate your nearest Parker Dealer,
go to www.ariens.com on the Internet.
2. Understand all Safety Precautions
provided in the manuals.
3. Review control functions and operation
of the unit. Do not operate the unit
unless all controls function as described
in this manual.
4. Review recommended lubrication,
maintenance and adjustments.
5. Review Limited Warranty Policy.
NOTE: This machine comes with a one-year
limited warranty. The selling dealer is
responsible for explaining the terms and
limitations of the warranty coverage offered in
the country of sale.
6. Fill out a Product Registration Card and
return the card to the Ariens Company or
go to www.ariens.com.
Figure 1
Serial Number
Label
WARNING: Improper assembly or
adjustments can cause serious
injury.
GB - 4
SAFETY ALERTS
Look for these symbols to point
outimportantsafetyprecautions.
They mean:
Attention!
Personal Safety Is
Involved!
Become Alert!
Obey The Message!
The safety alert symbols above and signal
words below are used on decals and in this
manual. Read and understand all safety
messages.
NOTATIONS
NOTE: General reference information for
proper operation and maintenance practices.
IMPORTANT: Specific procedures or
information required to prevent damage to
unit or attachment.
PRACTICES AND LAWS
Practice usual and customary safe working
precautions, for the benefit of yourself and
others. Understand and follow all safety
messages. Be alert to unsafe conditions and
the possibility of minor, moderate, or serious
injury or death. Learn applicable rules and
laws in your area. Always follow the practices
set forth in this manual.
REQUIRED OPERATOR
TRAINING
Original purchaser of this unit was instructed
by the seller on safe and proper operation. If
unit is to be used by someone other than
original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any
needed safety training before operation.
SAFETY DECALS AND
LOCATIONS
ALWAYS replace missing or damaged Safety
Decals. Refer to figure below for Safety Decal
locations.
SAFETY
WARNING: This cutting machine is
capable of amputating hands and feet
and throwing objects. Failure to
observe the safety instructions in the
manuals and on decals could result in
serious injury or death.
Slopes are a major factor related to
slip and fall accidents. Operation on
all slopes requires extra caution.
Tragic accidents can occur if the
operator is not alert to the presence
of children. Never assume that
children will remain where you last
saw them.
Gasoline is extremely flammable and
the vapors are explosive, handle with
care.
Stop unit and engine, remove key (if
equipped) and allow moving parts to
stop before leaving operator’s
position.
DANGER: IMMINENTLY
HAZARDOUS SITUATION! If not
avoided, WILL RESULT in death or
serious injury.
WARNING: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, COULD RESULT in death or
serious injury.
CAUTION: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, MAY RESULT in minor or
moderate injury. It may also be used
to alert against unsafe practices.
GB - 5
1. DANGER! TO AVOID SERIOUS
INJURY OR DEATH
Do not open or remove safety shields while
engine is running.
Keep safety devices (guards, shields,
switches, etc.) in place and working.
2. Stop fan before removing housing
3. DANGER! TO AVOID SERIOUS
INJURY OR DEATH
4. HOT SURFACES!
SAFETY RULES
OPERATION
To prevent personal injury or property
damage, do not attempt to start engine until
all assembly steps are complete and you
have read and understand the safety and
operating instructions in this manual.
If unit is to be used by someone other than
original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any
needed safety training before operation.
If the operator or the mechanic cannot read
the manual, it is the owner’s responsibility to
explain it to them. Only the user can prevent
and is responsible for accidents or injuries
occurring to themselves, other people or
property.
This product is equipped with an internal
combustion engine. DO NOT use on or near
any unimproved, forest or brush covered land
unless the exhaust system is equipped with a
spark arrestor meeting applicable local, state
or federal laws. A spark arrestor, if used,
must be maintained in effective working order
by the operator. See your Parker Dealer or
engine manufacturer’s service center.
Wear approved safety glasses when
operating this equipment. The operation of
any powered machine can result in foreign
objects being thrown by high-speed rotating
parts.
Wear work gloves, sturdy footwear, and
hearing protection when operating this
equipment.
Remove hearing protection and watch for
traffic when operating near, or when crossing
roadways.
Figure 2
2
3
1
4
Never direct discharge toward
other people. Thrown objects
can cause injury.
DO NOT touch parts which are
hot from operation. ALWAYS
allow parts to cool.
OL0910
OD0061
GB - 6
Before inspecting or servicing any part of
equipment, shut off engine, disconnect spark
plug wire from spark plug, and make sure that
all moving parts have come to a complete
stop. Be aware that rotating blades slow
down gradually after engine is shut off.
Exercise extreme caution on slopes and
avoid excessively steep slopes.
Never leave equipment unattended when
engine is running. Shut off engine and
disconnect spark plug wire from spark plug
before leaving equipment. Turn off fuel shut-
off if equipped.
Do not vacuum any burning or smoldering
materials such as cigars, cigarettes, ashes,
or cinders.
Do not vacuum areas that have been recently
treated with fertilizers, pesticides, or
herbicides.
Follow chemical manufacturer's safety
instructions regarding contact with treated
areas.
Do not vacuum flammable liquids such as
gasoline, kerosene, diesel fuel, paint thinner,
etc.
Do not vacuum any airborne combustibles,
dust from wood, paper, metal ECT.
Do not operate the equipment on a paved,
gravel, or hard surface unless the collection
bag is installed. Discharged material may
bounce from a hard surface.
Never pick up or carry equipment while the
engine is running.
Walk, never run.
ALWAYS be sure of your footing. Use caution
to avoid slipping and falling.
Operate machine only in daylight or good
artificial light.
NEVER operate after or during the use of
medication, drugs or alcohol. Unit requires
complete and unimpaired attention.
If the machine should start to vibrate
abnormally, stop the engine (motor) and
check for the cause immediately. Vibration is
generally a warning of trouble.
Never allow children or untrained adults to
operate this equipment.
Keep the area of operation clear of all
persons, particularly small children, and pets.
Keep bystanders at least 25 feet away from
the area of operation.
Do not run engine in an enclosed area.
Engine exhaust contains carbon monoxide
gas, a deadly poison that is odorless,
colorless, and tasteless.
Before removing or installing collection bag,
shut off engine, disconnect spark plug wire
from spark plug, and allow all moving parts to
come to a complete stop.
Do not allow hands or any other part of the
body or clothing inside the vacuum inlet.
Do not start engine or operate this equipment
with any safety guards or housing removed.
If equipment jams or becomes clogged,
immediately shut off engine, disconnect spark
plug wire from spark plug, and allow all
moving parts to come to a complete stop. Use
only a wooden stick to clear away debris.
Empty the collection bag after each use.
Decomposed debris could generate enough
heat to catch fire.
Before emptying the collection bag, shut off
engine, disconnect spark plug wire from
spark plug, and allow all moving parts to
come to a complete stop.
See manufacturer’s instructions for proper
operation and installation of accessories.
Only use accessories approved by the
manufacturer.
Emission Control System
Certification Label
NOTE: Tampering with emission controls and
components by unauthorized personnel may
result in severe fines or penalties. Emission
controls and components can only be
adjusted by EPA and/or CARB authorized
service centers. Contact your Parker
Equipment Retailer concerning emission
controls and component questions.
Fuel is highly flammable and its vapors can
explode. ONLY use approved fuel containers.
•NOSmoking!
•NOSparks!
•NOFlames!
• Allow engine to cool before filling fuel
tank.
Never fill containers inside a vehicle or on a
truck or trailer bed with a plastic liner. Always
place containers on the ground away from
your vehicle before filling.
When practical, remove gas-powered
equipment from the truck or trailer and refuel
it on the ground. If this is not possible, then
refuel such equipment on a trailer with a
portable container, rather than from a
gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete. Do not use a nozzle lock-
open device.
Check fuel supply before starting engine.
GB - 7
DO NOT fill gasoline tank indoors, when
engine is running, or while engine is hot.
Allow engine to cool several minutes before
removing fuel cap.
Do not mix oil with gasoline.
DO NOT overfill. Allow about 1/2” (12 mm) of
tank space for fuel expansion.
Replace gasoline tank cap securely and
clean any spilled fuel before starting engine.
If fuel is spilled on clothing, change clothing
immediately.
NEVER store fuel inside where there is an
open flame, such as a water heater.
ALWAYS drain fuel outdoors away from
ignition sources.
ALWAYS shut off engine, and remove key,
and close fuel shutoff valve when transporting
unit on a truck or trailer.
MAINTENANCEANDSTORAGE
Keep all nuts, bolts, and screws tight to be
sure the equipment is in safe working
condition.
Never store equipment with fuel in the tank
inside a building where fumes may reach an
open flame or spark.
Allow engine to cool before storing in any
enclosure.
To reduce the fire hazard, keep the engine,
silencer, battery compartment, and fuel
storage area free of grass, leaves, or
excessive grease.
Replace worn or damaged parts for safety.
The VAC 35 covered in this owner's guide is
shipped complete in one box. Follow all
instructions on assembly very carefully.
Carton Contents
•Unit
• Literature Pack
• Spin-Pak®Deflector
ASSEMBLY
1. Remove all items from carton.
2. Tip box over so wheels are toward floor.
Pull unit out of box and stand upright.
IMPORTANT: DO NOT discard the carton or
any of the inserts until the unit is completely
assembled.
3. All hardware is on the unit in its proper
location. If something is missing, notify
the dealer/distributor where unit was
purchased. If unable to purchase parts
locally, contact Parker.
HANDLE ASSEMBLY
Figure 3
1. Remove the four 1/4-20 hex bolts and
hex lock nuts from the bottom end of the
upper handles and place upper handles
over the ends of the lower handles.
2. Align the mounting holes in upper and
lower handles. Replace 1/4-20 hex bolts
in the bottom two mounting holes.
3. Lift handles until the back braces can be
installed on the hex bolts installed in
step 2. Loosely install 1/4-20 hex lock
nuts.
4. Align the upper holes in both upper and
lower handles. Install the two 1/4-20 hex
bolts and hex lock nuts. Do not tighten.
5. Align the crossbar with the mounting
holes at the top of the upper handles
and install with two 1/4-20 hex bolts and
hex lock nuts. See Figure 4.
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
Figure 3
1/4-20 Hex Bolts and
Hex Lock Nuts
GB - 8
NOTE: Check handle alignment. The hex
lock nuts have been left loose to allow
movement between the holes and the bolts.
Do not bend tubing to accomplish proper
alignment.
6. Once handles are aligned, tighten all
hex lock nuts.
NOTE: Nuts should be tightened enough that
at least two of the bolt threads extend through
the nut. It may be necessary to collapse the
tubing SLIGHTLY to accomplish this.
THROTTLE CONNECTION
Figure 5
1. Remove throttle control from the right
lower handle.
2. Straighten the throttle cable and run it up
the right hand handle and attach the
throttle control to the upper right hand
handle with the furnished hex bolts and
hex nuts.
3. Attach snap-on clamps to handles to
secure throttle cable.
4. Make sure no bends are less than 8"
radius.
INSTALL SPIN-PAK®DEFLECTOR
Figure 6
1. Remove hex head bolts, flat washers,
and lock nuts from the three upper holes
used to secure retaining ring to housing
assembly. DO NOT remove the bottom
bolt or retaining ring from housing
assembly
2. Align the holes in Spin-Pak deflector with
three upper holes in retaining ring and
housing assembly.
3. Replace hardware removed in Step 1
and tighten.
NOTE: Illustration shows two of the three hex
bolts, washers and lock nuts.
Figure 4
1/4-20 Hex Bolts
1/4-20 Hex
Lock Nuts
Figure 5
Hex Bolts and
Hex Nuts
Throttle
Cable
GB - 9
INSTALL INTAKE HOUSING
Figure 7
1. Hook the hinge bosses on the inlet
housing on the pins on the front cover
assembly.
2. Swing intake housing to lie flat against
front cover assembly.
3. Secure by placing flat washer and
adjusting knob on pivot bolt over the
collar of the intake housing and then
tightening the adjusting knob.
ATTACHING DUST BAG
1. Place large loop in upper bag straps
over the upper handles.
2. Place neck of dust bag over Spin-Pak®
deflector until tie strap can be pulled
tight around neck of housing, just over
bead on retaining ring. Bead must be
covered.
3. Place bag hooks onto loops in lower bag
straps and hook to lower cross bar.

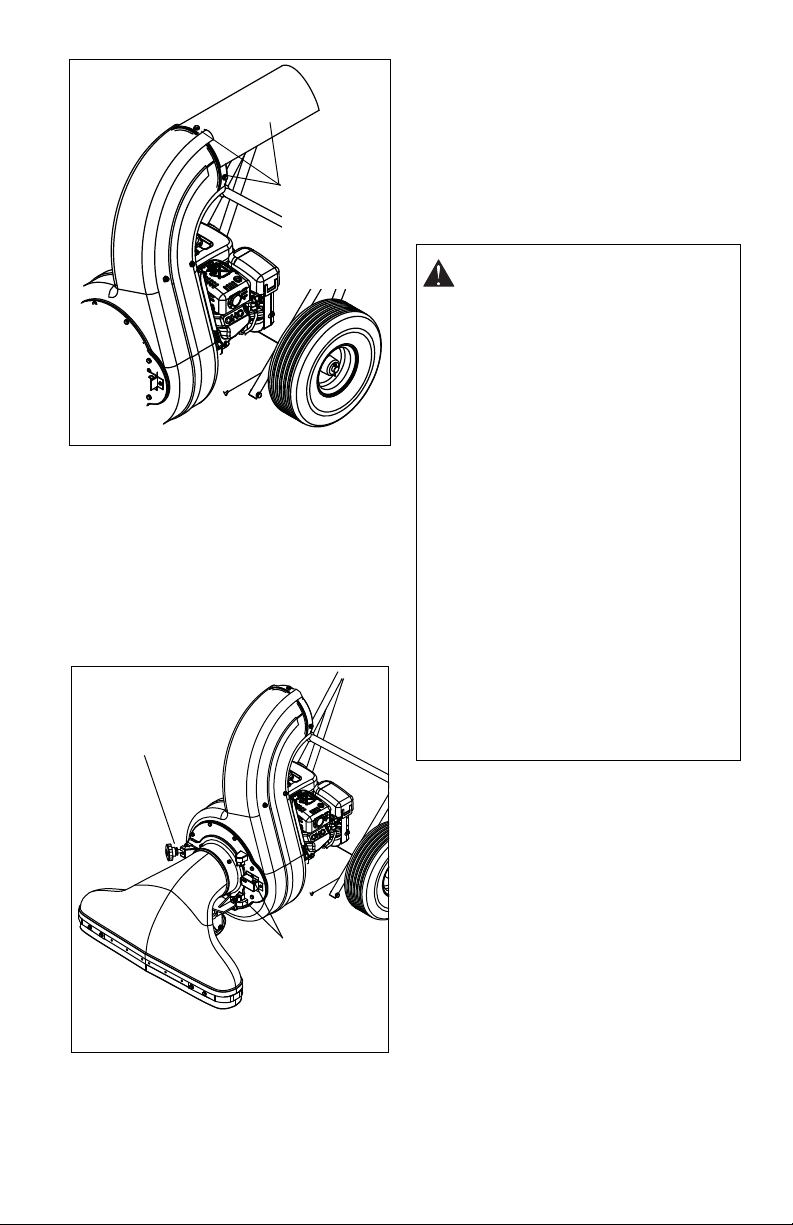

Figure 6
Install Spin-
Pakdeflector
with three
hex bolts, flat
washers and
lock nuts.
Figure 7
Hook hinge
bosses on
pins.
Secure with flat
washer, pivot bolt
and adjusting knob.
WARNING: Failure to attach bag
hooks to lower cross bar can cause
premature wear of bag and neck at
the Spin-Pak®. The Spin-Pak®may
also break prematurely due to
excessive weight from the bag.
WARNING: The engine contains NO
OIL. Read the Engine Instruction
Manual carefully before operating the
VAC 35. Be sure you know how to
start and stop the engine before
proceeding further. Do not start the
engine until all assembly is finished.
WARNING: Make a thorough
inspection to see that allfasteners are
tight and all parts are properly
installed. DO NOT start engine
without intake housing and dust bag
in place. If engine is started without
intake housing attached, serious
injury may result by drawing clothing
or parts of the body into the fan. If
engine is run without Spin-Pak®or
dust bag, small stones or other
objects may be picked up and
propelled at operator or bystanders
through the unprotected opening
causing serious injury.
GB - 11
SAFETY INTERLOCK
The switches on the front vacuum housing
and on the cloth bag assembly must be
engaged for the engine to start.
Engine Switch The engine
switch has two
positions:
1. OFF – Engine
will not start or
run.
2. ON – Engine
will start and run.
Choke Control Lever 1.Choke Closed
position: chokes
off air to engine
for easier start.
2.Choke Open
position: allows
for normal
operation.
IMPORTANT: Gradually open choke after
engine starts.
Throttle Control Lever The throttle
controls the
enginespeed.To
increase or
decrease the
engine speed,
adjust to:
1. Fast (normal or warm starts)
2. Part-Throttle
3. Slow (cold weather starts)
Fuel Shut-Off Valve
IMPORTANT: The fuel shut-off valve MUST
be in the closed position prior to transporting
the unit.
The fuel shut-off valve has two positions:
Recoil Starter Handle
When pulled, handle will turn engine over.
IMPORTANT: DO NOT let handle snap back
against starter.
USING THE VAC
Avoid heavy concentrations of sand and
gravel. The Vac 35 is designed to handle
moderate amounts of these abrasive
materials, not heavy applications.
The VAC 35 will handle most common kinds
of debris found around industrial plants,
commercial buildings, homes and farms. Acid
contaminated materials, magnesium, dust
and other DANGEROUS DEBRIS that is
considered hazardous should not be handled
with the VAC 35.
The efficiency of this unit depends on the
breathing capacity of the dust bag. Under
extremely dusty conditions the bag should be
emptied and cleaned frequently. Always
empty and clean bag before storing after use.
Debris allowed to remain in the bag may
cause spontaneous combustion, resulting in
an explosion or fire. See instructions supplied
with dust bag.
OPERATION
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
1
2
2
1
2
13
Figure 9
Open Position:
Use this position
to run the unit.
Closed Position:
Use this position
to service,
transport, or
store the unit.
GB - 12
Clearing the Machine of Clogs and
Jams
A clog or jam in the machine can cause the
vacuuming operation to decrease or even
stop completely. If this occurs, take the
following steps:
1. STOP THE ENGINE IMMEDIATELY and
disconnect the spark plug wire from the
spark plug. Wait for all moving parts to
come to a complete stop.
2. Check (and clean, if necessary) the
following areas in this order:
• Check that the collection bag is not
overfilled. Remove and empty bag.
• While the bag is removed, check that
the discharge deflector is not clogged
or jammed. Use a stick to clear away
any debris.
• Check that the vacuuming attachment
is not clogged or jammed. Remove the
attachment and thoroughly clean the
opening. While the attachment is
removed, check the inlet opening to
the machine. Use a stick to clear away
any debris.
BEFORE STARTING ENGINE
IMPORTANT: Read the Engine Manual
CAREFULLY before operating the VAC 35.
Before starting the engine read and
understands the following:
1. Be sure the engine crankcase is filled
with the proper type and amount of oil.
2. Spin-Pak® is in place.
3. Dust bag or discharge hose is in place.
4. Intake housing or hose kit is attached to
the fan housing.
Add Fuel to Fuel Tank
1. ALWAYS place unit in open or well-
ventilated area.
2. Stop engine and allow to cool.
3. Clean fuel cap and surrounding area to
prevent dirt from entering fuel tank.
4. Remove cap.
IMPORTANT: DO NOT use gasohol or
gasoline containing alcohol. See Engine
Manual for correct type and grade of fuel.
5. Fill fuel tank to within 1/2 in. (1.2 cm) of
bottom of filler neck with unleaded
gasoline.
NOTE: Tank capacity is 0.9 gallon (3.4 liters).
6. Replace fuel cap and tighten.
7. ALWAYS clean up any spilled fuel.
Start Engine
1. Move the engine switch to the ON
position.
2. Open the fuel shut off valve.
3. Set the choke lever based on engine
temperature (see Choke Control Lever
on page 11).
4. Slowly pull the recoil starter until engine
compression makes pulling difficult. Let
the starter rewind a little, and then pull
smoothly and quickly to start the engine.
5. Repeat step 4 as needed.
6. Fully open the choke and set the throttle
to full fast before operating the unit.
Stop Engine
1. Move throttle lever to slow position.
2. Move the engine switch to the OFF.
3. Close the fuel shut-off valve.
4. Remove any hearing protection and
listen for all moving parts to come to a
complete stop.
WARNING: AVOID INJURY. NEVER
use hands to clear debris from
discharge deflector, vacuum inlet or
vacuum attachment.
GB - 13
DUST BAG CARE
1. To clean dust bag, turn the bag inside
out and reattach to unit.
2. Start engine and run at full throttle.
Lightly tap bag to release dirt trapped in
the weave.
3. When clean, turn bag right side out and
reattach to unit.
4. Bag can be washed if extremely dirty.
LUBRICATION
Add a few drops of oil to the throttle control
cable and wire to help keep it operating
smoothly.
IMPORTANT: NEVER spray unit with high-
pressure water or store unit outdoors. Store
unit in a cool, dry, protected location.
Cleaning
NOTE: Allow unit to cool before cleaning.
Clean unit thoroughly with mild soap and low
pressure water. Brush off dirt and debris from
all surfaces. Touch up all scratched surfaces
to prevent rust. Matching touch-up paint is
available from your Dealer. Do not use
abrasives, solvents, or harsh cleaners.
Inspection
Inspect unit and repair or replace worn or
damaged parts to avoid delays when
beginning use again.
Regularly check all hardware and keep
fasteners tight. Know unit is in safe working
condition.
Dust Bag
Wash out dust bag and allow to dry before
storage. Dust bag may be stored in position
on mower.
Engine
When storing unit for extended periods of
time, remove all fuel from tank and carburetor
(run dry). Refer to engine manual.
Fuel System
Gasoline left in the fuel system for extended
periods without a stabilizer will deteriorate,
resulting in gum deposits in the system.
These deposits can damage the carburetor
and the fuel hoses, filter and tank. Prevent
deposits from forming in the fuel system
during storage by adding a quality fuel
stabilizer to the fuel. Follow the
recommended mix ratio found on the fuel
stabilizer container.
To treat the fuel system for storage:
1. Add fuel stabilizer according to
manufacturer’s instructions.
2. Run engine for at least 10 minutes after
adding stabilizer to allow it to reach the
carburetor.
NEVER store the engine with fuel in the fuel
tank inside of a building with potential
sources of ignition.
MAINTENANCE
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
STORAGE
CAUTION: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
GB - 14
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTION
Vacuum fails to
pick up debris 1. Collection bag is full.
2. Clog or jam in the intake
system.
1. Shut off engine and empty
collection bag. See ATTACHING
DUST BAG on page 9.
2. Shut off engine and check for clogs
in the discharge deflector, vacuum
attachment, intake opening. See
Clearing the Machine of Clogs and
Jams on page 12.
Engine will not
start. 1. No gas in the fuel tank.
2. Fuel shut-off valve
closed.
3. Engine shutoff switch is
in the off position.
4. Build up of dirt and
residue around
governor/carburetor.
5. Interlock switches are
not engaged.
1. Fill tank with clean, fresh gasoline.
2. Open fuel shut-off valve.
3. Turn the engine shutoff switch to
On.
4. Clean area around
governor/carburetor.
5. Make sure the intake assembly
and dust bag are properly installed
and are engaging the safety
switches. See your dealer for
repair.
Engine runs
briefly and stops. 1. Fuel shut-off valve
closed.
2. Contaminated fuel
supply.
3. Interlock switches not
engaging properly.
1. Open fuel shut-off valve.
2. Replace with clean fuel.
3. Make sure the intake assembly
and dust bag are properly installed
and are engaging the safety
switches. See your dealer for
repair of faulty switch.
GB - 15
SPECIFICATIONS
Model Number 995810
Description Vac 35
Length - in. (cm) 80.0 (203.2)
Height - in. (cm) 41.0 (104.1)
Width - in. (cm) 30.0 (76.2)
Actual Weight - lbs (kg) 137.0 (62.1)
Engine, 4 cycle Subaru Robin
Model SP170
Governed RPM (May
be different from
maximum rpm.)
3,600 +/– 50
Displacement Cu. In. (cc)
10.31 (169)
Cylinder Bore Aluminum
Engine Oil Type See Engine Manual.
Crank Case Capacity -
Oz. (Liter) 20.8 (0.615)
Oil System Splash
Spark Plug Gap - in. (mm)
0.02 – 0.03 (0.6 – 0.7)
Fuel Type Unleaded Gasoline
Fuel Tank Capacity -
Gal. (Liter) 0.9 (3.4)
Throttle Yes
Starting Recoil
Front Wheel Dia. - in.
Rear Wheel Dia. - in.
9.0 x 2.50
Warranty One Year Consumer Warranty
Parker_2011
16
Parker One Year Limited
Warranty
Ariens Company (Ariens) warrants to the original purchaser that Parker brand consumer products
manufactured and sold by Ariens will be free from defects in material and workmanship for a period of one
year after the date of purchase. An authorized dealer will repair any defect in material or workmanship, and
repair or replace any defective part, subject to the conditions, limitations and exclusions set forth herein.
Such repair or replacement will be free of charge (labor and parts) to the original purchaser except as noted
below.
90-Day Limited Warranty on Service Parts and Accessories
Genuine Parker brand service parts and accessories are warranted to be free from defects in material
and workmanship for a period of 90 days after the date of purchase. An authorized dealer will repair or
replace any such part or accessory free of charge, except for labor, during that period.
The duration of all warranties herein applies only if the product is put to personal use around a household or
residence. If the product is put to any business use, agricultural, commercial, or industrial, then the duration
of these warranties shall be 90 days after the date of purchase. If any product is rented or leased, then the
duration of these warranties shall be 90 days after the date of purchase.
Exceptions, Limitations, Exclusions
Customer Responsibilities
Register the product immediately at the time of sale. If the dealer does not register the product, the
customer must complete the product registration card in the literature package and return it to the Ariens
Company, or register the unit online at www.ariens.com.
To obtain warranty service, the original purchaser must:
• Perform the maintenance and minor adjustments explained in the owner’s manual.
• Promptly notify Ariens or an authorized service representative of the need for warranty service.
• Transport the product to and from the place of warranty service.
• Have the warranty service performed by an authorized service representative.
To find an authorized service representative, contact Ariens at:
655 W. Ryan Street
Brillion, WI 54110
(920) 756 - 4688
www.ariens.com
Exceptions and Limitations
• Batteries are warranted only for a period of 12 months after date of purchase, on a prorated basis. For
the first 90 days of the warranty period, a defective battery will be replaced free of charge. If the
applicable warranty period is more than 90 days, Ariens will cover the prorated cost of any defective
battery, for up to 12 months after the date of purchase.
Exclusions – Items Not Covered by This Warranty
• Engines and engine accessories are covered only by the engine manufacturer’s warranty and are not
covered by this warranty.
• Parts that are not genuine Parker brand service parts are not covered by this warranty.
• The following maintenance, service and replacement items are not covered by this warranty unless
they are noted in the Limitations section above: lubricants, spark plugs, oil, oil filters, air filters, fuel
filters, vacuum filters, brake linings, brake arms, brake shoes, runners, scraper blades, shear bolts,
blower blades, blower vanes, vacuum vanes, vacuum hoses, tines, brushes.
• Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires
repair is not covered by this warranty.
• This warranty applies only to products purchased in the United States (including Puerto Rico) and
Canada. In all other countries, contact place of purchase for warranty information.
Parker_2011
17
Disclaimer
Ariens may from time to time change the design of its products. Nothing contained in this warranty shall be
construed as obligating Ariens to incorporate such design changes into previously manufactured products,
nor shall such changes be construed as an admission that previous designs were defective.
LIMITATION OF REMEDY AND DAMAGES
Ariens Company’s liability under this warranty, and under any implied warranty that may exist, is limited to
repair of any defect in workmanship, and repair or replacement of any defective part. Ariens shall not be
liable for incidental, special, or consequential damages (including lost profits). Some states do not allow the
exclusion of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty, express or implied, other than what is expressly made in this
warranty. If the law of your state provides that an implied warranty of merchantability, or an implied
warranty of fitness for particular purpose, or any other implied warranty, applies to Ariens Company,
then any such implied warranty is limited to the duration of this warranty. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
CARB_EPA_2011
18
CALIFORNIA AND EPA (UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY) EVAPORATIVE EMISSION CONTROL
WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The CARB (California Air Resources Board), the EPA, and Ariens Company are pleased to explain the
evaporative emission control system's warranty on your 2011 model year small off-road equipment. In
California, new equipment that uses small off-road engines must be designed, built, and equipped to
meet the State's stringent anti-smog standards. Ariens Company must warrant the evaporative
emission control system on your small off-road equipment for the period listed below provided there
has been no abuse, neglect or improper maintenance of your equipment.
Your evaporative emission control system may include parts such as: fuel tanks, fuel lines, fuel caps,
valves, canisters, filters, vapor hoses, clamps, connectors, and other associated components.
MANUFACTURER'S WARRANTY COVERAGE:
This evaporative emission control system is warranted for two years. If any evaporative
emission-related part on your equipment is defective, the part will be repaired or replaced by Ariens
Company.
OWNER'S WARRANTY RESPONSIBILITIES:
• As the small off-road equipment owner, you are responsible for the performance of the required
maintenance listed in your Owner's Manual. Ariens Company recommends that you retain all
receipts covering maintenance on your small off-road equipment, but Ariens Company cannot deny
warranty solely for the lack of receipts.
• As the small off-road equipment owner, you should however be aware that the Ariens Company may
deny you warranty coverage if your evaporative emission control system part has failed due to
abuse, neglect, or improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road equipment to an authorized Ariens, Gravely,
or Parker service representative as soon as the problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding
your warranty coverage, you should contact Ariens Company Technical Service Center at
1-920-756-2141.
DEFECTS WARRANTY REQUIREMENTS:
(a.) The warranty period begins on the date the small off-road equipment is delivered to an ultimate
purchaser.
(b.) General Evaporative Emissions Warranty Coverage. Ariens Company warrants to the ultimate
purchaser and any subsequent owner that the evaporative emission control system when
installed was:
(1.) Designed, built, and equipped so as to conform with all applicable EPA and CARB
regulations; and
(2.) Free from defects in materials and workmanship that causes the failure of a warranted part
for a period of two years.
(c.) The warranty on evaporative emissions-related parts will be interpreted as follows:
(1.) Any warranted part that is not scheduled for replacement as required maintenance in the
written instructions must be warranted for the warranty period defined in subsection (b)(2).
If any such part fails during the period of warranty coverage, it must be repaired or replaced
by the Ariens Company. Any such part repaired or replaced under the warranty must be
warranted for a time not less than the remaining warranty period.
(2.) Any warranted part that is scheduled only for regular inspection in the written instructions
must be warranted for the warranty period defined in subsection (b)(2). A statement in such
written instructions to the effect of "repair or replace as necessary" will not reduce the
period of warranty coverage. Any such part repaired or replaced under warranty must be
warranted for a time not less than the remaining warranty period.
(3.) Any warranted part that is scheduled for replacement as required maintenance in the
written instructions must be warranted for the period of time prior to the first scheduled
replacement point for that part. If the part fails prior to the first scheduled replacement, the
part must be repaired or replaced by the Ariens Company. Any such part repaired or
replaced under warranty must be warranted for a time not less than the remainder of the
period prior to the first scheduled replacement point for the part.
CARB_EPA_2011
19
(4.) Repair or replacement of any warranted part under the warranty provisions of this article
must be performed at no charge to the owner at an authorized Ariens, Gravely, or Parker
service representative.
(5.) Notwithstanding the provisions of subsection (4) above, warranty services or repairs must
be provided at authorized Ariens, Gravely, or Parker service representatives that are
franchised to service the subject small off-road equipment.
(6.) The owner must not be charged for diagnostic labor that leads to the determination that a
warranted part is in fact defective, provided that such diagnostic work is performed at an
authorized Ariens, Gravely, or Parker service representative.
(7.) Throughout the evaporative emission control system's warranty period set out in subsection
(b)(2), the Ariens Company must maintain a supply of warranted parts sufficient to meet the
expected demand for such parts.
(8.) Manufacturer-approved replacement parts must be used in the performance of any
warranty maintenance or repairs and must be provided without charge to the owner. Such
use will not reduce the warranty obligations of the manufacturer issuing the warranty.
(9.) The use of any add-on or modified parts will be grounds for disallowing a warranty claim
made in accordance with this article. The manufacturer issuing the warranty will not be
liable under this Article to warrant failures of warranted parts caused by the use of an
add-on or modified part.
Evaporative Emission Warranty Parts List
The following parts are considered emission-related components for evaporative emissions:
• Fuel Tank, Fuel Cap and Tether
• Fuel Line, Fuel Line Fittings, Clamps*
• Pressure Relief Valves, Control Valves*
• Control Solenoids*, Electronic Controls*
• Vacuum Control Diaphragms*
• Control Cables*, Control Linkages*
• Purge Valves
• Vapor Hoses, Liquid/Vapor Separator
• Carbon Canister, Canister Mounting Brackets
• Carburetor Purge Port Connector
* As related to the evaporative emission control system
Disclaimer
New equipment sold in the state of California that uses small off-road engines must be exclusively
certified and appropriately labeled for sale in California. Some equipment covered by this Owner's
Manual my not be certified for sale in California and the presence of the preceding CARB and EPA
Warranty Statement does not by its existence indicate which, if any, of the equipment covered by this
Owner's Manual may be sold in California.
Some equipment covered by this Owner's Manual may have been manufactured prior to certain
affectivity dates requiring the inclusion of evaporative emission control systems. Therefore some
equipment covered by this Owner's Manual may not include the evaporative emission control systems
referred to in the preceding CARB and EPA Warranty Statement.
Parker
An Ariens Company Brand
655 West Ryan Street
Brillion, WI 54110
920-756-2141
Fax 920-756-2407
www.ariens.com
www.parkersweeper.com
This manual suits for next models
2
Table of contents
