Pegler Yorkshire Terrier User manual

The Remote Control
Handbook

What does it do?

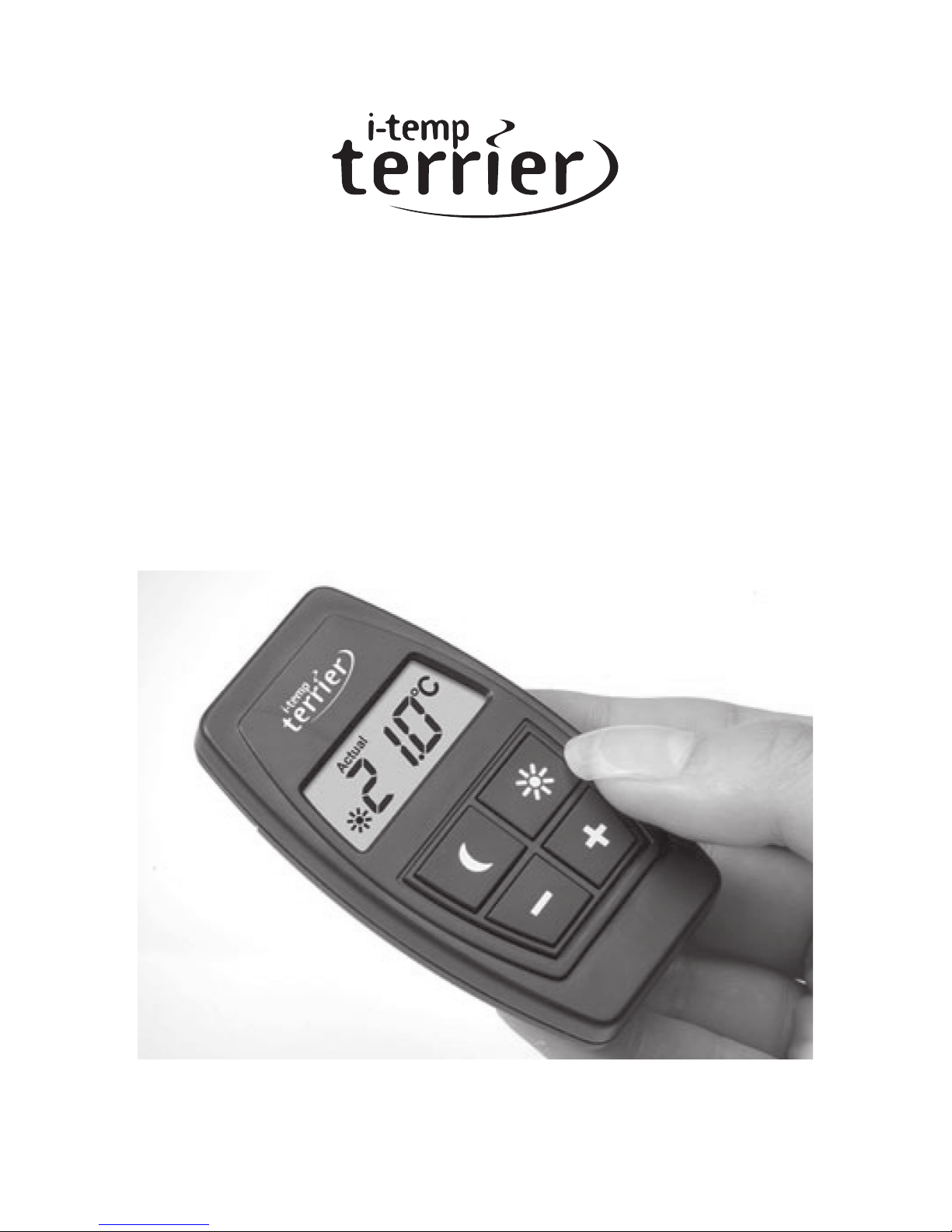

The Remote Control is a simple accessory for your existing
Terrier i-Temp Programmable Radiator Control (PRC).
The Remote Control is used to perform two types of
operation:
•Increaseordecreasethetemperaturerelativetothe
current i-Temp Set Temperature (±).
•Switchingbetweenthepredenedi-Tempsetback( ) and
comfort temperatures ( ).
The remote control also houses its own temperature sensor
and can detect and display the current ambient temperature.
How does it work?
The Remote Control must be “taught in” to the Terrier i-Temp
before the Terrier i-Temp is able to accept commands from
it. Teaching in the Remote Control should take no more than
30 seconds.
The Remote Control is a radio transmitter that is used to
send commands directly to your Terrier i-Temp.
Receivingthisinformation,theTerrieri-Tempreactstothe
command and alters the heat output from the radiator.
TheTerrieri-TempPRCiscapableofhavinguptofour
different accessories simultaneously “taught-in”.
One Remote Control is capable of being “taught in” to
severalTerrieri-Temp’s.

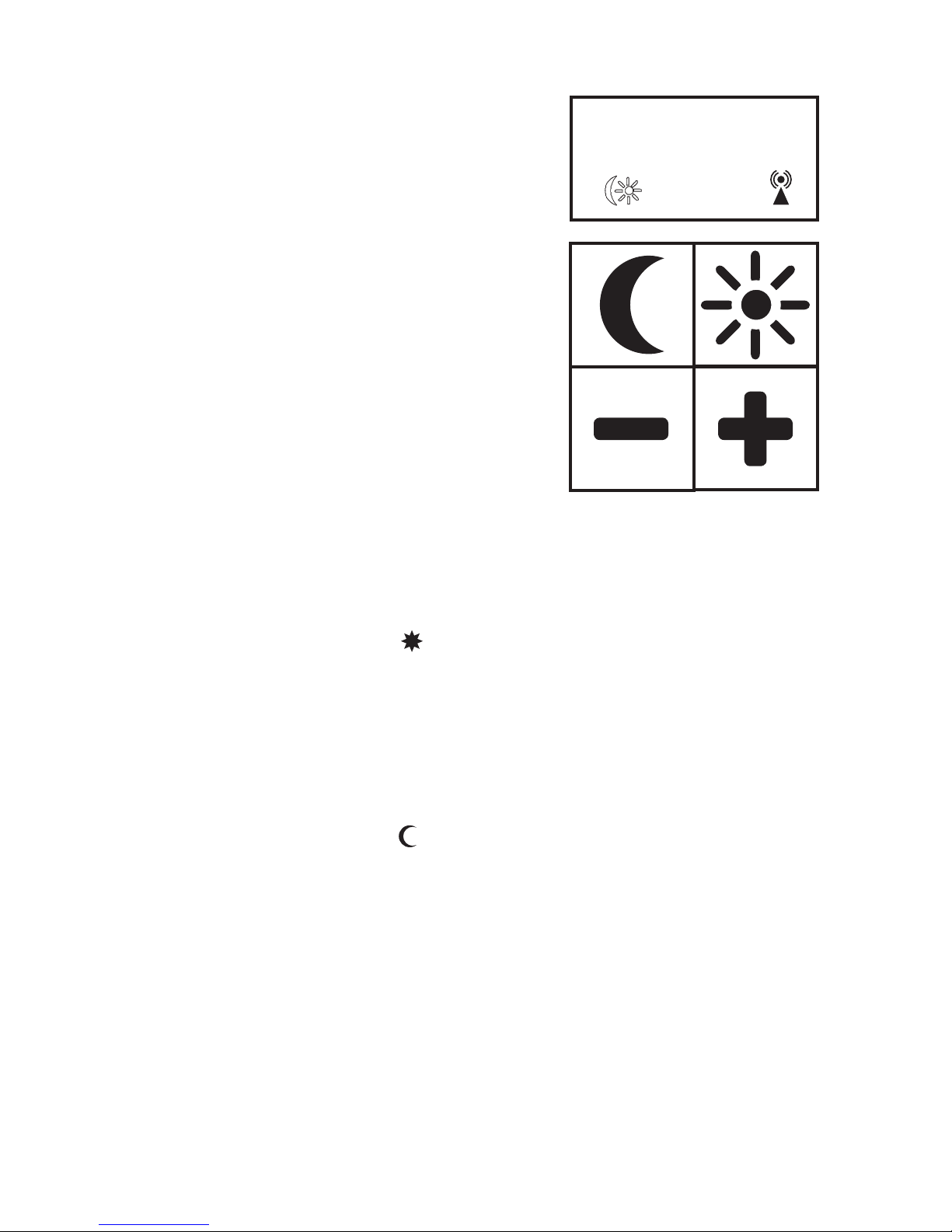

ASettemperature,actual
temperature
BSet-back temperature ,
comfort temperature ,
C Activatestheset-back
temperature
DMinus button(-): reduces
the set temperature
E“Battery empty” symbol
FTemperature display:
 relativetemperature
change (set) or current
temperature (actual)
GTransmission symbol/
radio transmission
HButton:activatesthecomforttemperature
IPlus button (+): increases the set temperature
Inserting the batteries
The Remote Control is powered by 2 x LR44 batteries.
The batteries are inserted as follows:
Thisdevicedoesnot
support operation with
rechargeable batteries.
•Neverrecharge
standard batteries.
•Doingsowill
present a risk of
explosion.
•Donotthrowthebatteriesintoare.
•Donotshortcircuitbatteries.
•Usedbatteriesshouldnotbedisposedofwithregular
domestic waste.
Instead,theyshouldbetakentoyourlocalbatterydisposal
point.

Teaching-in the Remote Control to your Terrier i-Temp
Firstly,ensurethatthebatteriesareinsertedcorrectlyinto
the Remote Control.
Activate ‘Teach-in’ on the Terrier i-Temp
Press and hold
OK for 3 seconds
1
3
2
You will
see the
30 second
countdown
start
4
The screen will
disappear and
then return with
normal screen
with symbol
Within the 30 seconds on the remote
controlpressanybuttontoactivate
“TEACHIN”

Displaying the ambient Temperature
The ambient (actual) temperature can be displayed by a
single short press of any of the buttons on the Remote
Control.
Note:Theambienttemperaturemeasurementdeviceis
storedwithintheremotecontrol.Holdingthisdeviceinthe
hand for any length of time will affect the accuracy of the
reading.
Increase or decrease the
temperature relative to the
current i-Temp
Set Temperature (±) The + and –
buttons are used to increase or
decrease the temperature in 0.5°C
increments.
•Pressthe+or-buttonsonthe
remote control as many times as
required.
•Thedisplaywillshowhowmuch
the temperature will be
altered by.
•Thetransmissionsymbolappears
on the display.
Comfort and setback temperatures
The setback ( ) and comfort ( ) buttons are used to
activatethesetbackandcomforttemperaturesstoredwithin
theTerrierI-TempPRC.
•Pressingthe( ) or ( )buttonsactivatesthesetbackor
comfort temperature
•Thedisplaywillshoweitherthe( ) or ( ) symbol on
the display.
•Thetransmissionsymbolappearsonthedisplay.
+0.5 °C

•Thenewtemperaturewillremain  
 activeuntilthenext   
Terrier i-Temp switching point.
•TheRemoteControldisplay  
switches off after 10 seconds
 ofinactivity.
Customising the comfort and
setback temperatures
The factory default settings are 21°C
for comfort and 17°C for setback.
Itispossibletocustomisethese
settings if required:
•Pressandholdthecomfort/setbackbuttononthe
Terrier i-Temp PRC for more than 3 seconds.
•Thecomfortsymbol( ) will appear on the display along
with the current comfort temperature.
•Usethethumbwheeltoadjusttothedesiredcomfort
temperature.
•PressOK.
•Thesetbacksymbol( ) will appear on the display along
with the current setback temperature.
•Usethethumbwheeltoadjusttothedesiredcomfort
temperature.
•PressOK.
+0.5 °C

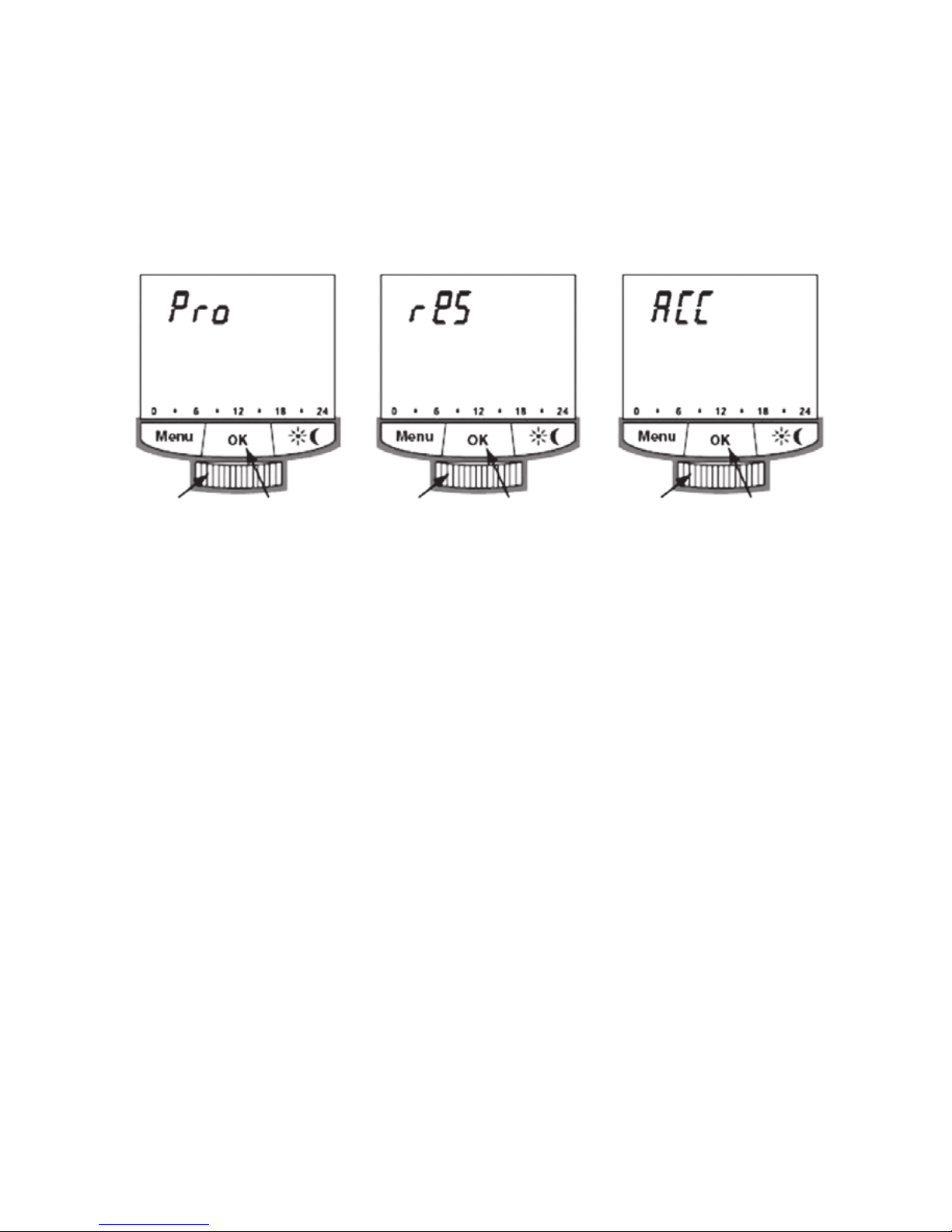

Hold down the
“Menu” button for
3 seconds until
“Pro” appears
Usethumbwheel
to select “del”
Press OK
“ACC” will appear
Press OK
Technical Information
Informationonradiooperation
Radiotransmissionisperformedonanon-exclusive
transmission path. Which means that there is a low
possibility of interference occurring.
Therangeoftransmissionwithinbuildingscanvarygreatly
from “open air” distances. As well as the transmitting
powerandreceptioncharacteristicsofthedevices;
environmentalinuencessuchashumidityandobscuring
structures can also weaken the strength of the signal.
Teaching out the Remote Control from your Terrier
i-Temp
To indicate that the Terrier i-Temp has successfully “taught
out”theaccessory,thedisplayreturnsbacktothenormal
view.
Note: All accessories will be “taught out” when using this
function.

Pegler Yorkshire Group Limited
St.Catherine’sAvenue,Doncaster,DN48DF.
TechnicalHelplineNo.08001560050
Pegler Yorkshire
PeglerYorkshireherebydeclaresthatthisdeviceconformsto
theessentialrequirementsandotherrelevantregulationsof
Directive1999/5/EC.
Youcanndthefulldeclarationofconformityat:
www.saveonheatingbills.co.uk
Safety Instructions
Thesedevicesarenottoys:
Donotallowchildrentoplaywiththem.
Donotleavepackagingmateriallyingaround.
Donotopenthedevice–itdoesnotcontainanyserviceable
components.
Intheeventofanerror,pleasecontactPeglerYorkshireLimited.
Disposal
Donotdisposeofthedevicewithregulardomesticwaste.
Electronicdevicesmustbedisposedofinaccordancewiththe
WasteElectricalandElectronicEquipmentDirectivevialocal
disposal points for electronic waste.
 TheCEmarkisafreetradesignaddressedexclusivelyto
the authorities and does not warrant any properties.
Technical properties:
Supplyvoltage:  3V
Batteries: 2 x LR44
Battery Life: Approx 4 years
(based upon 2 operations per day)
TransmissionFrequency: 868.3MHz
Transmission range: 30m (in open air)
RemoteControlDimensions: 41x74x15mm(WxHxD)
Wereservetherighttomakeanytechnicalchangesthat
constituteanimprovementtothedevice.
