Contents
Preparation 2
Keypad on top of the TV 2
Your remote control 3-5
Use of the menus and the menu system 6
Menu Info / Remote Control Info 7
Select the menu language 7
Store TV channels
Automatic installation 8
Manual installation 9
Give name 9
Reshuffle the channel list 9
Select favourite TV channels 9
Install TV setup
Speakers 10-11
General 11-12
Source 12
Demo 12
Installation
TV menu
Picture menu 13
Sound menu 14-15
Features menu 15-16
Dual screen/PIP 16
Multipip 17
Teletext 17-18
Connect Peripheral Equipment
Connecting and selecting equipment 20-24
Remote control functions for peripherals 24
Recording 24
Before calling service 25
Tips 26
Glossary 26
Specifications 27
Help?
If this instruction manual does not
give an answer or if ‘Before calling
service’ do not solve your TV
problem, you can call your Local
Philips Customer or Service Centre.
See the supplied World-wide
guarantee booklet.
Please, have the Model and Product
number which you can find at the
back of your television set or on the
packaging, ready, before calling the
Philips helpline.
Model:
Product No:
Operation
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 1

2Installation
&Place the TV on a solid surface.
For ventilation, leave at least 5 cm free all
around the TV.
Do not place the TV on a carpet.
To prevent any unsafe situations, do not place
any objects on top of the TV.Avoid heat,
direct sunlight and exposure to rain or water.
Keep mobile telephones at a safe distance to
avoid disturbances in picture and sound.
éInsert the aerial plug firmly into the aerial
socket xat the back of the TV. For best
picture quality use the suppressor-aerial cable
supplied.
“Remote control: Remove the cover of the
battery compartment.
Insert the 2 batteries supplied (Type R6-1,5V).
Preparation
1m
min.
The batteries supplied do not contain the
heavy metals mercury and cadmium.
Nevertheless in many countries exhausted
batteries may not be disposed of with your
household waste. Please check on how to
dispose of exhausted batteries according to
local regulations.
Note: this remote control functions with TVs and
other equipment which use the RC6 signalling
standard.
‘Insert the mains plug of the TV in the wall
socket having a mains voltage of 220V-240V.
To prevent damaging the mains (AC) cord
which could cause a fire or electric shock, do
not place the TV on the cord.
(Switch the TV on : Press the power switch
Aon the front of your TV.
A green indicator on the front of the TV
lights up when the screen is on.
If the indicator is red, press the - CH + keys
on the remote control.
The green lamp blinks every time you press a key
on the remote control.
When you switch on your set for the first time,
the menu Language automatically appears on
the screen.The explanation appears in different
languages one at a time. Choose your own
language and press the OK key on the remote
control.
VCH
M
Keypad on top of the TV Should your remote be lost or broken you can still change
some of the basic settings with the keys on top of your TV.
• Press the V- or + key to adjust the volume.
• Press the CH - and + key to browse through the TV
channels or sources stored and to select them.
• Press the Mkey to summon the main menu.
Use the V- and + keys to select the menu items in the
horizontal axis.
Use the CH - and + keys to select submenu items in the
vertical axis.
Note:
- Sometimes not all the menu items are visible on the screen.
Press the CH + key to reveal all items.
- Exit lets you dismiss the menu. Select Exit and press the Mkey.
2
AA - 1,5V
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 2

3
Use of the remote control
Installation
Mha
SMART
ACTIVE
CONTROL
SMART
PICTURESOUND
213
546
879
0
B
v
®Ò‡π
†
bx
Ï
i
DVDVCR AMP AUX
¬V CH
0
Sb fi
OK
MENU
PIXEL
PLUS

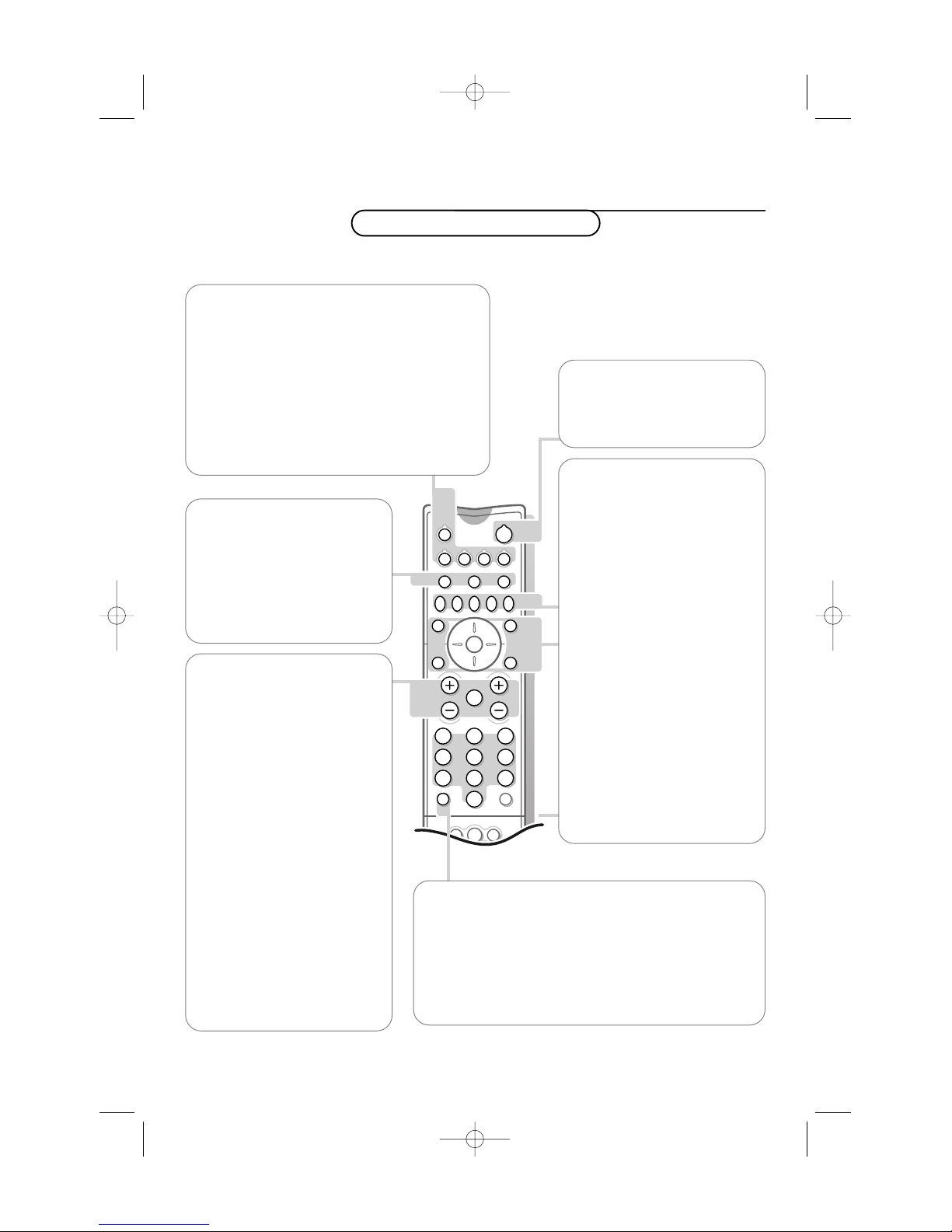

vSelect peripherals
Press this key repeatedly to select AV1,AV2,AV3,
AV4 or SIDE, according to where you connected
the peripherals (p. 20).
VCR DVD AMP AUX
Press one of these keys to use the remote control
directly in the video recorder, DVD, amplifier or
other auxiliary mode (CD,SAT). A green indicator
lights up.
To return to TV mode, press the key again or wait
for the indicator to dim (20 sec.)
BStandby
The set is switched off and the
red indicator lights up.
To switch the TV on again, press
again.
®Ò‡π†
Video recorder see p. 20
xSwitching Pixel Plus
demo on/off
&Press the Pixel Plus key.
The TV screen is divided into 2
parts:
- in the left part Pixel Plus and
Digital Natural Motion switched
off;
- in the right part Pixel Plus and
Digital Natural Motion switched
on.
éPress the Pixel plus key again to
switch the Pixel Plus demo off.
bTeletext on/off p. 17
ÏMain menu on/off p. 13
OK Press this key to activate
your choice, when in the menus.
bDual screen see p. 16.
SFreeze
To activate/de-activate the frozen
picture, p. 12 and to hold a
teletext page. See p. 18.
fiMultipip see p. 17.
Use the on-screen info for more information about the different
keys. See p. 7.
3
Use of the remote control
VPress + or - to adjust the
volume.
¬ Interrupt the sound or
restore it.
CH Channel selection
To browse through the TV
channels and sources stored.
Only those channels which are
in the favourite list can be
selected with the - CH + keys.
0/9 Digit keys
To select a TV channel.
For a two digit channel number,
enter the second digit within 2
seconds.
To switch immediately to a
selected one digit TV channel,
keep the digit key pressed a bit
longer.
iScreen information
Press to display information about the selected TV channel
and programme.
Menu / Remote Control Info
When the menu is on screen, press ito display info on
the selected menu item.While the menu info is displayed,
press any key to display remote control info. See p. 7.
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 3

4
U
QZqc
h
213
546
879
0
B
v
®Ò‡π
†
bx
Ï
i
VCR DVD AMP AUX
¬V CH
0
Sbfi
OK
MENU
PIXEL
PLUS
4Use of the remote control
0Smart surf
With this feature you can easily switch between up to 9 different TV channels/sources.
In the menu system, you can set Smart surf to 2- or 9-channel.
Press this key to select the previously viewed TV channel or source in case of a 2 channel
surf, or to select the surf ring in case of a 9 channel surf.
In case of a 9 channel surf, a list appears at the right side of the screen. On top, the most
recent channel is displayed.The puck is on the channel number currently viewed.
Press the 0key to turn to the next channel in the list or press cursor up/down to
immediately select the desired TV channel of the list.
To add a new channel or source: tune to the channel or source you wish to add.
Press the 0key. Press the cursor right to add.
If there are already nine channels/sources in the list, the one at the bottom of the list will be
removed.
To remove a channel or source: select the channel number you want to remove.
Press the 0key. Press the cursor right to remove.
Press the OK key or wait for the time out to dismiss the Smart surf display.
UTime display: The time
is displayed on the screen.
hTeletext function p. 18.
QSurround mode
Press this key repeatedly to
select another available
surround mode: Stereo, Dolby 3
Stereo, 3D Surround, Hall or
Dolby Pro Logic.
ZZOOM on/off
Press the ZOOM Zkey to
activate/ deactivate the zoom
function.Press the OK key
repeatedly to select one of the
zoom magnifications (x1, x4, x9,
x16). Use the cursor up/down,
left/right to shift the selected
zoom window over the screen
with the cursor.
The zoom window is reset
after: selecting another TV
channel, another picture format
or when another picture format
is selected automatically.
qPicture format
Press this key repeatedly to
select another picture format:
Auto format, 4:3 or Vertical
squeeze.
Auto format makes the picture
fill the screen as much as
possible.
Vertical squeeze squeezes the
picture to a wide screen picture
format.
cSwapping screens
See p. 16.
Auto format
Vertical squeeze
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 4

5
Mah
213
546
879
0
i
¬V P
0
SMART SMART
ACTIVE
CONTROL
rc2049 use rc 3

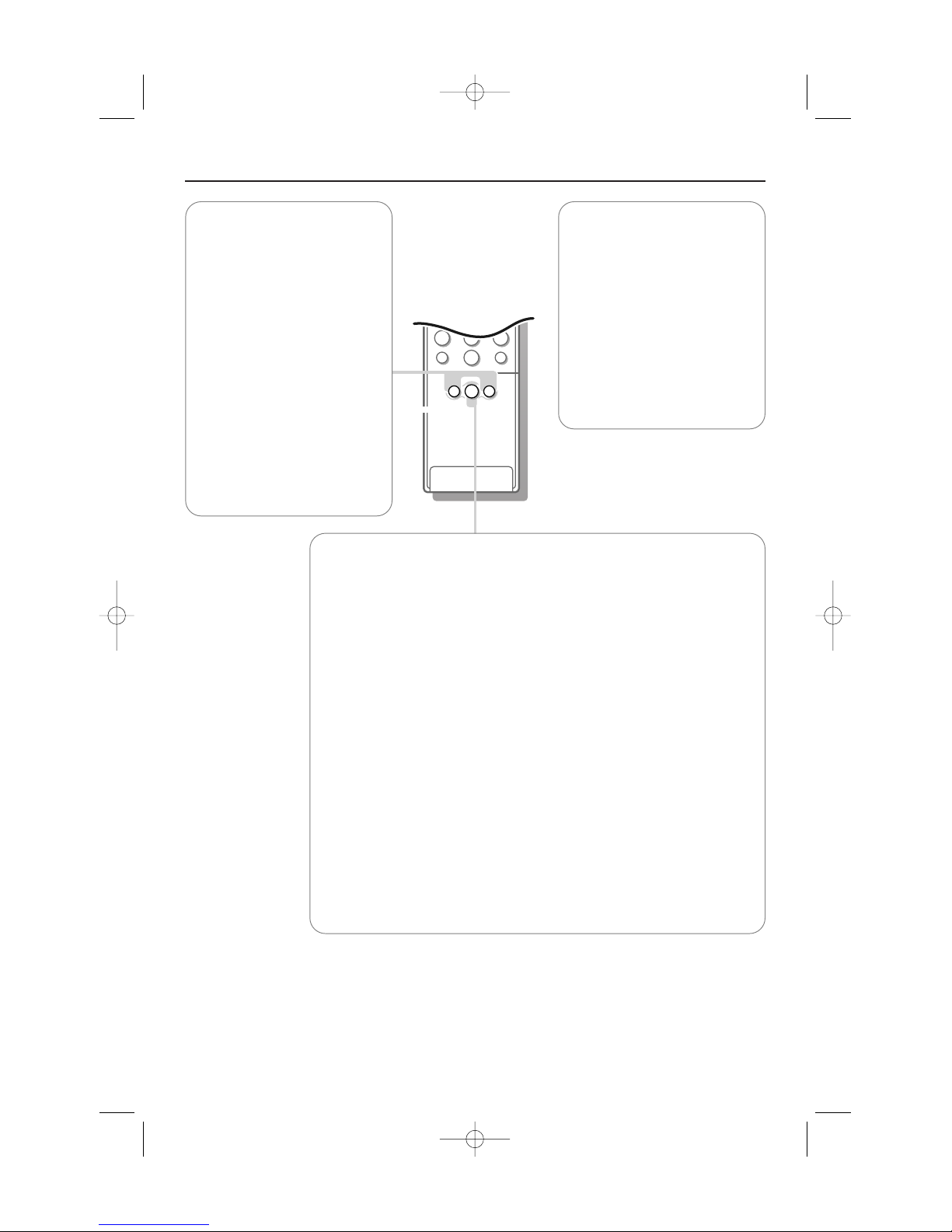

5Use of the remote control
Personal refers to the personal
preference settings of picture
and sound selected in the
picture and sound menu.
Remark: the moment you are in a
predefined smart sound or picture
setting and you modify a setting in
the picture or sound menu, all
values of the menu will overwrite
the previously made Personal
settings. The predefined factory
settings remain unchanged.
Smart Keys
To select predefined picture and
sound settings.
M Smart Sound
Each time it is pressed, a
different sound setting is
selected, corresponding with
specific factory settings of treble
and bass.
aSmart Picture
Each time it is pressed, a
different picture setting is
selected, corresponding with
specific factory settings of
Contrast, Colour, Sharpness,
Dynamic Contrast and Colour
enhancement.
hActive control
Active control is a pro-active and automatic system.The TV continuously
measures and corrects all incoming signals in order to provide the best
picture possible.Thanks to the Ambient Light Sensor which measures the
light conditions of the room, the contrast, dynamic contrast, brightness and
colour picture settings are adjusted automatically. The light sensor is active
when the Active control function is switched to Medium or Maximum.
Press the hkey repeatedly to select the Active Control values Off,
Minimum, Medium (recommended) or Maximum.
Off Sharpness and Dynamic Contrast are controlled automatically
Minimum Sharpness, Dynamic Contrast and Noise Reduction are
controlled automatically.
Medium Sharpness, Dynamic Contrast, Noise reduction and Colour are
controlled automatically.
Maximum Sharpness, Dynamic Contrast, Noise reduction, Colour and
Contrast are controlled automatically.
Press the cursor right to select INFO+.
The Active Control demo menu appears.
The picture settings are being adapted continuously and automatically.
The menu items cannot be selected.
The sliders will be moving, showing how the TV is tweaking the current
picture. None of the sliders is user controllable.
Press the OK key to switch off the Demo.
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 5

66 Installation
Use of the menus and the menu system
213
546
B
w
bx
Ï
VCR DVD AMP AUX
¬V CH
Sb fi
OK
MENU
PIXEL
PLUS
OK key to
activate
cursor to select
adjustments
return or switch
main menu on/off
&Press the MENU Ïkey on the remote control to
summon the main menu.
Note: Should your remote control be lost or broken you can still
use the keys on top of the TV. See p. 2.
éUse the cursor in the up/down direction to select the TV,
Settings, Install or Demo menu.
Note: Sometimes not all the menu items are visible on the screen.
Press the cursor down to reveal all items.
“Use the cursor left/right to select the menu item.
‘Use the cursor up/down again to select the control you
want to select or to adjust. For instance, see Picture menu.
(Press the MENU Ïkey to turn off the main menu.
The menu system
Pipes, balls and a puck
The hierarchy of menus and controls is
represented by an animated visual mechanism of
pipes, balls and a puck. Unlike a map, however, the
animated mechanism constantly shows the current
whereabouts, continually expands the view of the
immediate neighbourhood.
The puck surrounds the ball indicating the user’s
current position in the menu hierarchy.The puck is
always present when the menu system is displayed.
The puck is divided into 4 parts.They correspond
to the directional controls (up/down, left/right) on
the remote control.The arrows on the cursor
indicate which directions to choose. In this way
users can navigate through the menu hierarchy to
the control they wish to adjust.
When menu items are more numerous than can
fit comfortably on the TV display, only a portion
are shown.
Those omitted are indicated by a cluster of balls
which indicates that there are ‘more’below.
Direct selection and control
Menu items are controlled as soon as they are
selected by the puck. Only a few items require
information with the OK key.
List controls
A list control is used to select one or more items
from a list of options. Press the right key to move
the puck into the list.At least one item is the
current value and is highlighted.
Moving the puck up or down with the up/down
key causes the list to move up or down.
pipes
puck
balls
Picture Sound Features
Digital options
100 Hz Dig. Scan
Pixel Plus
Double lines
TV
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 6

77Installation
213
546
879
0
B
w
x
Ï
i
VCR DVD AMP AUX
¬V CH
0
Mqa
SMARTSMART
Sb fi
OK
MENU
PIXEL
PLUS
i
Ï
Language
English
....
.....
Install
Menu Info
&Press the MENU Ïkey and select a menu item or
submenu item.
éPress the ikey on the remote control to get
information about the selected menu item.
“Press the ikey again to exit.
Remote Control Info
&Press the MENU Ïkey.
éPress the ikey.
“Press any key on the remote control (except the
cursor keys, the OK, the MENU Ï, the digit, the i
and the Bkeys) and you get information about the
pressed key.
The normal function of the key is not executed.
The moment one of the remote control keys which do
not invoke remote control info, is pressed, remote info
is cancelled.
‘Press the ikey to display the menu that was on
screen before a remote control key for info was
pressed.
213
546
879
0
B
w
xb
Ï
i
VCR DVD AMP AUX
¬V CH
0
Mqa
SMARTSMART
Sb fi
OK
MENU
PIXEL
PLUS
Select the menu language
&Press the MENU Ï key on the remote control.
When you switch on your TV for the first time and no
channels are stored so far, the menu Language
automatically appears on the screen. This menu also has
an additional item Exit with which the menu can be
dismissed.The explanation appears in different languages
one at a time. Choose your preferred language and press
the OK key on the remote control. Proceed with the Install
menu.
éUse the cursor down to select Install.
“Use the cursor right to select Language.
Follow the instructions on screen.
‘Use the cursor up/down to select your preferred
language and press the OK key to confirm your
selection.
(Proceed with the Install menu.
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 7

8
Store TV channels
8Installation
Automatic install
Install Start
Install
You can now search for and store the TV channels in
two different ways: using Automatic Installation or
Manual Installation (tuning-in channel by channel).
Select your choice with the cursor right.
Automatic installation
&Select Automatic installation in the
Install menu.
Note: All channels must be unlocked in order
to autoprogram. If requested, enter your PIN
to unlock all channels. (See TV, Features
menu, Child lock, p. 15.)
éPress the cursor down.
The autoprogramming option label Start
appears.
“Press the cursor right.
‘The message Searching appears and the
progress of autoprogramming is
displayed.
When the Automatic installation is
complete, the puck navigates to Install
again.
The channel list is automatically filled
with all the channel numbers of the TV
channels transmitted.
Note: Channel numbers and names will
always be written in Latin characters, even
when a language has been selected which
uses other characters.
Manual installation
Searching for and storing TV channels is
done channel by channel.You must go
through every step of the Manual
Installation menu.
Press the i key on the remote
control to get information about the
selected menu item.
&Select Manual installation in the Install
menu.
éPress the cursor down.
Follow the instructions on screen.
Note: Search or direct selection of a TV
channel. If you know the frequency, enter the
3 digits of the frequency directly with the
digit keys 0 to 9 (e.g. 048). Press the cursor
down to proceed.
Repeat to search for another TV channel.
Manual install
Install
System
Channel
Search
Fine tune
Antenna level
Store
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 8

9
It is possible to change the name stored in the
memory or to assign a name to a TV channel
for which a name has not yet been entered.A
name with up to 5 letters or numbers can be
given to the channel numbers 0 to 99. For
example SUPER, BBC1,... Before channel
number 0 you can also enter a name for the
peripherals that are connected to an external
input.
&Select Give Name in the Install menu and
press the cursor down.
éSelect the channel number.
Note: keep the cursor up/down pressed to scroll
through the channel list and to avoid that the TV
tunes to each channel passed by.
“Press the cursor right.
A keyboard appears on the screen. Only
European characters are displayed.
Note:
- Dependent on the language selected in the
language menu, the key Special is available or
not.
- When having selected Arabic, you can toggle the
Special key to display Arabic or English
characters. The Shift key is changed to More.
Press the More key to toggle between part 1, 2
or 3 of the Arabic character sets.
Press the cursor right to enter the keyboard.
Press the cursor up/down, left/right to select
the first character and press OK. Repeat for
every character you want to enter.
Select Space to enter a space; Delete to
erase the highlighted character in the name
entered; Shift to display upper- or undercast
characters on the keyboard; Special to
display special characters on the keyboard.
Press OK to confirm.
‘Press the cursor left repeatedly when you
have finished the name giving of the selected
channel or peripheral.
(Select another channel number and repeat
steps “to ‘.
Give name
Reshuffle the channel list
According to your preference you can change the order of the stored TV channels.
&Select Reshuffle in the Install menu and press the OK key.
éFollow the instructions on screen.
Select Favourite TV channels
&Select Favourite channels in the Install menu.
éSelect your channel number with the cursor up/down.
“Select Ye s or No with the cursor right.
‘Repeat éand “for every TV channel or external you want to make a favourite or a
non-favourite TV channel or external.
VCR1
BBC1
BBC2
CNN
TVE
π.....
pπ ® Space ® Delete
ABCDEFG 1 23
HIJKLMN 4 56
OPQRSTU 7 89
VWXYZ 0
® Shift (® Special)
9
Installation
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 9

10 Installation10
The Setup menu contains items that control the
settings of the TV’s functions, features, services and
peripherals you may have connected.
The Speakers menu reflects the speaker-related
controls.
The General menu allows you to change settings that
will typically be accessed only occasionally.
The Source menu allows you to select a source
and/or to name each input source.
Install TV Setup
Speakers General Source
Test tone
Front left volume
Front right volume
(Centre volume)
(Surround volume)
Centre mode
Surround speakers
Auto surround
Setup
Stereo
3 Stereo
3D Surround
Hall
Pro Logic
Availability of Speaker menu items
Test tone •••••
Front left volume •••••
Front right volume •••••
Centre volume •• •
Surround volume ••
Centre mode •••••
Surround speakers ••
In order to receive the full reproduction
capability of true Dolby Surround Sound you
should include the proper use and
arrangement of the speakers:
•via the TV and its internal Front right,
Centre and Left speakers and two amplified
rear surround speakers connected to the
back of the TV;
•or via the Variable Line Out connectors and
an external Dolby amplifier. See External
speakers/Amplifier, p. 23.
Select the various Speakers menu controls to
setup the configuration of the TV’s speakers
system for Dolby audio playback.
Each volume control can be adjusted to match
test tone levels. Depending on the output and
Surround mode (see Main menu,TV, Surround,
Sound mode, p. 14) selected, some menu items
may be greyed out and are not selectable.
Test tone and Volume controls
The menu item Test tone enables you to have a
reference of the speakers loudness and to adjust
the level of each until they are balanced in
loudness.The speakers activated light up in the
screen graphic.
&Select Test tone with the cursor down.
éPress the cursor right to select On or Off.
“When turned On, the Test Tone control
generates a sound test signal that circulates
through the individual active speakers in a
clockwise direction, and is meant to be used
with the adjustable volume controls.
Once turned on, the Test Tone will continue
to circulate through the Left, Centre, Right
and both Rear surround speakers (if
present).
‘Press the cursor up/down to select the
desired speaker for individual volume level
adjustment.
(Press the cursor left/right to adjust the
volume level.
§Continue and select the other speakers for
adjustment as desired.
èPress the cursor up to return to the Test
Tone menu item when speaker adjustments
are complete and turn the control Off.
Speakers
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 10

11
Centre Mode
See Connect Peripheral Equipment, External
Speakers,Amplifier, p. 23.
If no external amplifier with front speakers is
connected, do not change the predefined
factory settings which is Centre mode No.If
an external amplifier with front speakers is
connected, select Centre mode Yes.
In this setting, the centre channel in surround
mode is directed to all three internal TV
speakers (left, centre and right).
Surround Speakers
See Connect Peripheral Equipment, External
Speakers, p. 23. If no Surround Speakers are
connected do not change the predefined
factory settings which is Off. If Surround
Speakers are connected select On.
Dolby Pro Logic and Hall are not available if Off is
selected.
Auto Surround
Sometimes the broadcaster transmits special
signals for Surround Sound encoded channels.
The TV automatically switches to the best
surround sound mode when Auto Surround
is switched On.
However it is possible to overwrite this
setting.

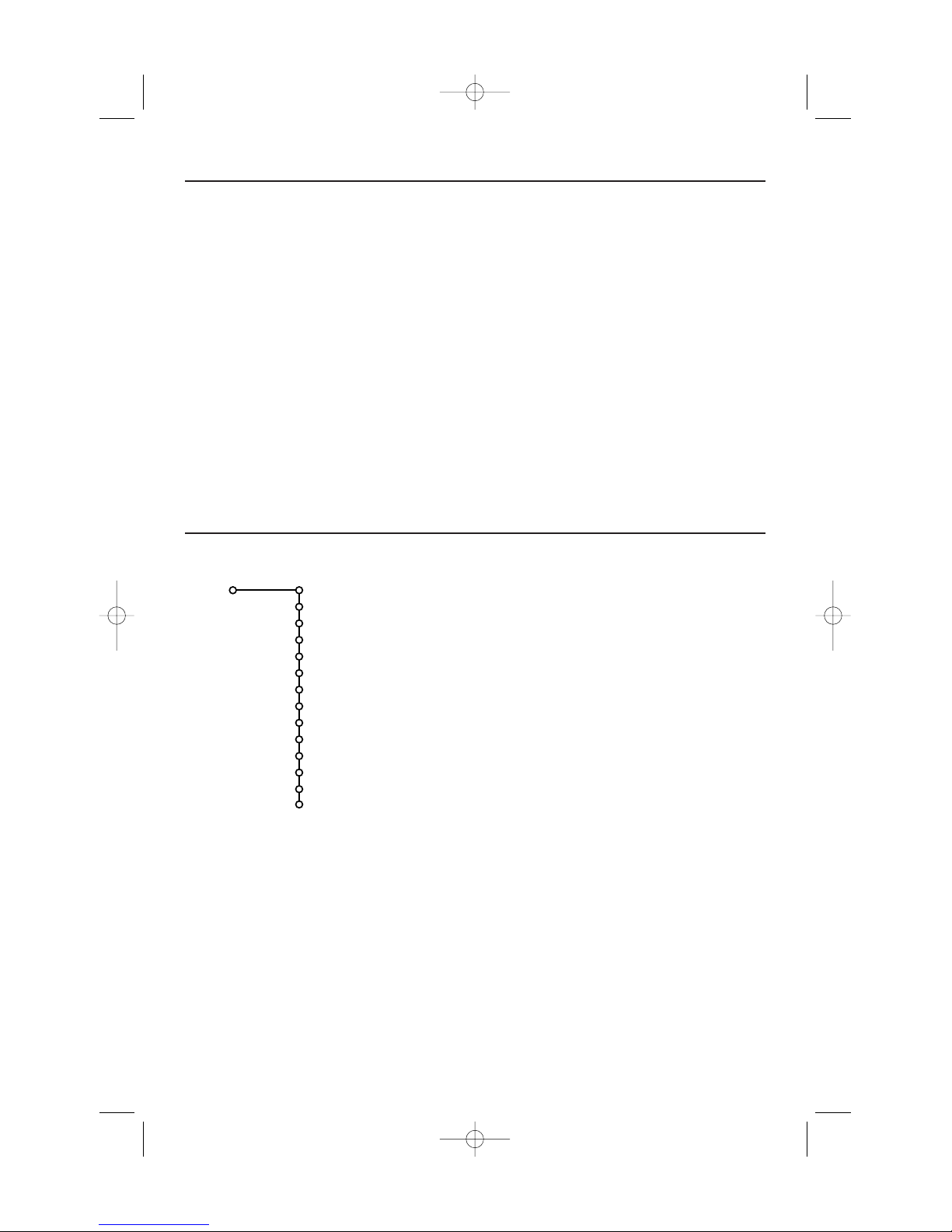

General
This menu allows you to change various
settings that are presumably adjusted less
frequently than most other settings.
Press the ikey on the remote
control to get information about
the selected menu item.
Dual screen format
The Dual screen and PIP functions allow you to view
two TV channels or sources at one time, hearing
audio from the main screen through the speakers
and audio from the other screen through the
headphones.This menu allows you to select the
preferred format which can then be displayed
toggling the bkey on and off. See Dual screen/PIP,
p. 16.
&Select Dual screen format with the cursor down.
éPress the cursor right.
“Select Dual screen, Large PIP, Medium PIP or Small
PIP with the cursor up/down.
When Dual screen is selected, and Dual screen
mode is activated with the remote control bkey,
the TV splits the screen into two equally sized
screens.
When a PIP mode is selected, and Dual screen mode
is activated with the remote control bkey, the TV
shows a full screen of video with a small, medium or
large window of video on top of it.
Note: Continuing to hold the bkey down will also cycle
the TV through the various formats (Dual screen, Large
PIP, Medium PIP, Small PIP) launching a new format after
each second the key is hold. Changing the format this
way does not store the selected format.
11
Installation
General
Menu background
Smart surf
Dual screen format
Multipip format
Freeze format
Factory settings
Tilt adjust
OSD
Channel title
Teletext level 2.5
Set/Change code
(Colour)
(PLL)
Setup
11
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 11

12 Use of the menus
Source
This menu allows you to select the
peripheral you connected to one of the
external inputs.
Source
AV1
AV2
AV3
AV4
Side
Setup
&Select Source with the cursor right.
éPress the cursor down to select one of the
external inputs.
“Press the cursor right to enter the list of
names of peripherals attached to the
selected input.
‘Select the peripheral device with the cursor
up/down.
Once you have selected the source, e.g.VCR,
this AV-input will automatically be selected
when your remote control is in VCR mode
and when you press the vkey on the
remote control. See p. 24.
Demo menu
Auto demo
Dual screen
Freeze-Replay-Photo finish
PIP
Zoom
Teletext
Install
Main menu
Speakers
Active control
Dealer demo - Digital options
- Light sensor
- Comb filter
TV
Setup
Demo
Install
The Demo menu allows to demonstrate the TV features
separately or in a continuous loop.
&Select Demo in the Main menu with the cursor down.
éSelect Auto demo or one of the features with the cursor
right and press the OK key on the remote control.
If Auto demo has been selected the demo will
automatically present all the features sequentially in a loop.
Press one of the cursor keys to stop the Auto demo.
If one of the features has been selected, this particular
feature demo will run one time only, until activated again,
and the Demo menu will reappear.
Select Dealer Demo
Select Digital options,Light sensor and Comb filter On
or Off to really see the difference in picture quality.
In Dealer Demo mode it is possible to change channels with
- CH + and to adjust the volume.
Note: the Dealer Demo is not part of the automatic sequence
and can only be activated separately.
Multipip format
In this menu you can select which format
you prefer to see in Multipip: PIP 3 or PIP 6,
referring to the number of PIP screens being
displayed pressing the fikey on the remote
control.
Note: Continuing to hold the fikey down will
also cycle the TV through the various formats.
Changing the format this way does not store the
selected format.
&Select Multipip format with the cursor
down.
éPress the cursor right and select PIP 3 or
PIP 6 with the cursor up/down. See Multipip,
p. 17 how to operate.
Freeze format
Freeze format allows you to select among
three options: Freeze,Replay,Photo finish,
to be activated when you press the Skey
on the remote control. See p. 3.
In this menu you can select which option
you prefer.
Note: Continuing to hold the Skey down will
also cycle the TV through the various
formats. Changing the format this way does not
store the selected format.
&Select Freeze format with the cursor down.
éPress the cursor right and select Freeze,
Replay, Photo finish with the cursor
up/down.
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 12

13Use of the menus
Picture Sound Features
Contrast
Brightness
Colour
Sharpness
Tint
Digital options
Dynamic contrast
DNR
Colour enhancement
(Hue)
Smart picture
Picture format
TV
TV menu
213
546
B
w
bx
Ï
VCR DVD AMP AUX
¬V CH
Sb fi
OK
MENU
PIXEL
PLUS
OK key to
activate
cursor to select
adjustments
return or switch
main menu on/off
Digital options with PAL signals
Although Pixel Plus is the most ideal setting, it
may be preferable, dependent on your own
preference, to select Double lines, or 100 Hz
Digital Scan.
•100 Hz Dig. Scan = 100 Hz + Dig. Scan (Field
and line flicker reduction) without motion
compensation.
•Pixel Plus = creates near High Definition
performance inside the TV on the basis of a
regular input signal.
The number of lines are increased and the
number of pixels on a line are doubled in
combination with Digital Natural Motion.As
such Pixel Plus enhances both regular
broadcast signals and DVD or Digital TV input
towards unparalleled sharpness and depth,
near High Definition and natural detail.
•Double Lines = provides for a doubling of
vertical and horizontal resolution which adds
astonishing sharpness and a total absence of
visible picture lines.
Motion compensation reduces jitter and offers
smooth, yet sharp motion reproduction.
Digital options with NTSC signals
•Progressive Scan = line doubling eliminates
line flicker.
•Pixel Plus
Note:
- Pixel Plus is not active when Multipip,Teletext
(Except when Subtitling is activated) or Teletext
Dual screen is selected.
- When having selected Pixel Plus, the size of the
menus on screen is reduced.This is a normal
behaviour.
- Interference, caused by fluorescent lights just above
the TV, may occur when having selected Pixel Plus.
The modified adjustments for Contrast,
Brightness, Colour, Sharpness,Tint, Digital options
and Dynamic Contrast are automatically stored.
Select Factory settings in the Setup menu,
General, to restore the predefined factory
settings, see p. 11.

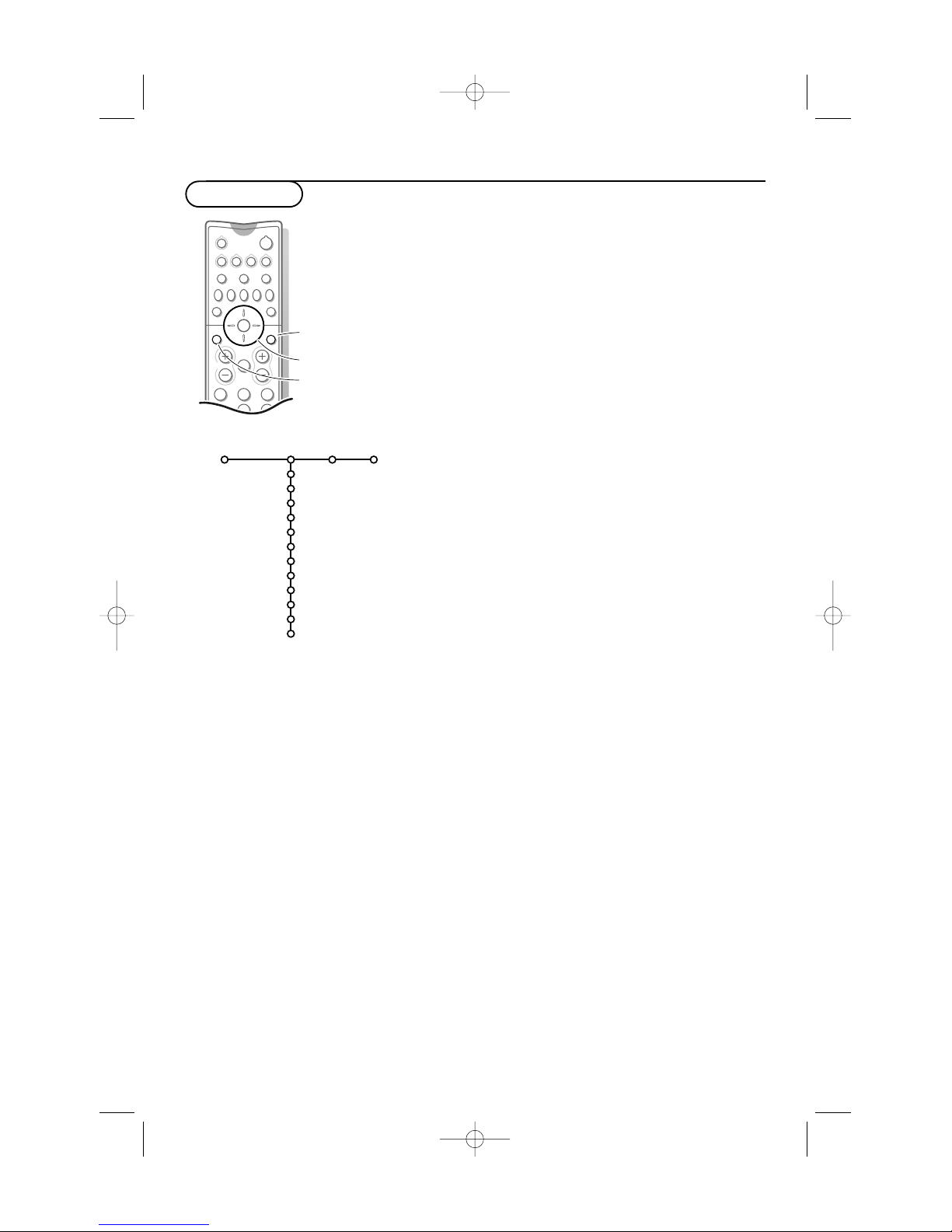

Press the MENU Ïkey on the remote
control to summon the main menu.
Use the on-screen Menu-Info, see p. 7, for
more information about the menu items.
Picture menu
Press the cursor right to select Picture.
Select the menu items in the Picture menu
with the cursor up/down.
Adjust the settings with the cursor left/right
or enter the list of submenu items with the
cursor right.
Select a submenu item with the cursor
up/down.
Note:To remove the menu background before
adjusting the picture settings, see Select TV setup,
General, p. 11.
x
x
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 13

14 Use of the menus

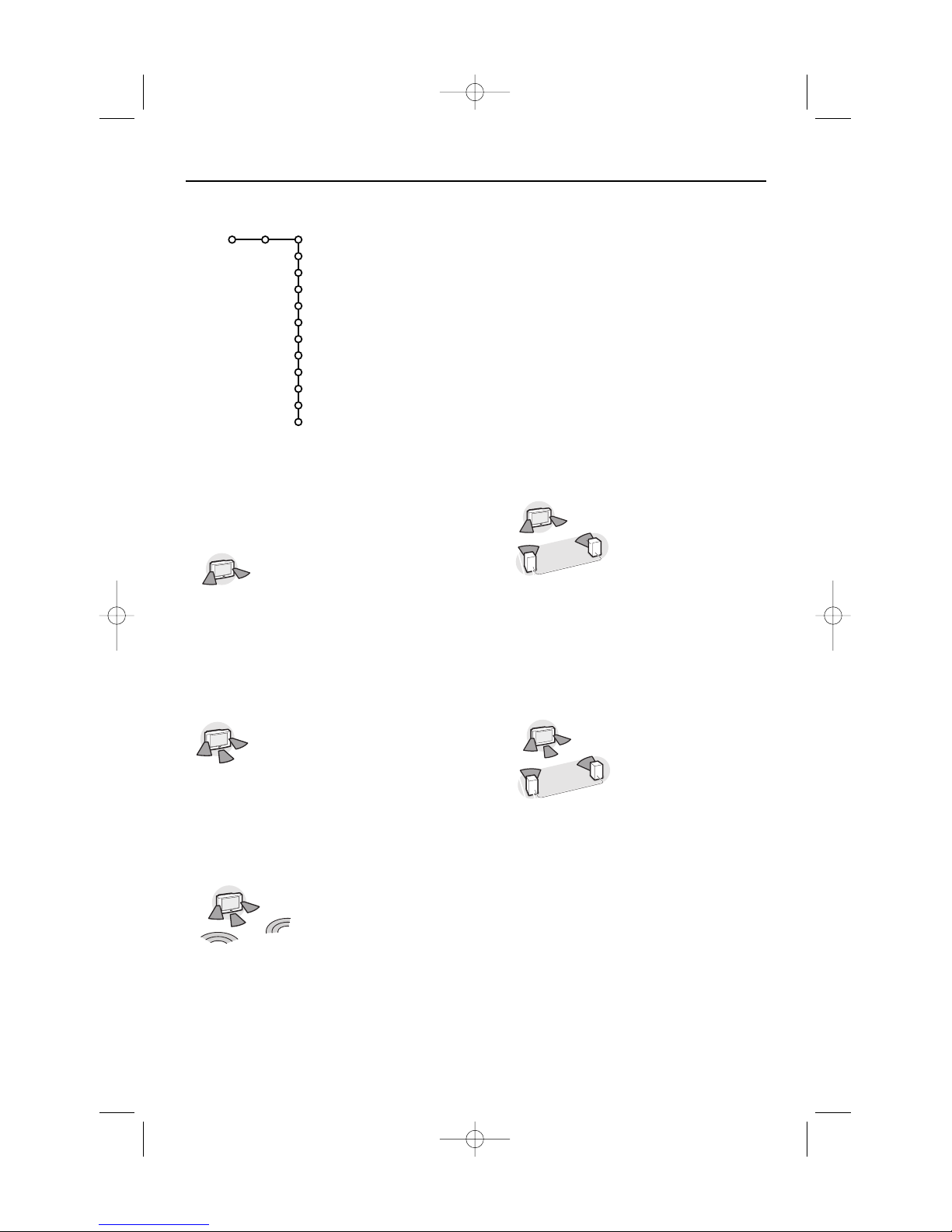

Surround Modes
Dependent on the sound signal broadcasted,
select one of the Surround modes.
Stereo
This mode reproduces only
the left and right front
sound signals.
You only hear a stereo
sound if the broadcast
which you are receiving is
transmitted in stereo or
nicam stereo.
Dolby 3 Stereo
(optimal with Dolby Surround broadcasting)
The sound signal is now
distributed over the front
left, the front right and
the centre TV
loudspeakers.
The rear loudspeakers do
not produce any signal.
3D Surround
(optimal with Dolby Surround broadcasting)
3D Surround enables you
to experience the effect of
Dolby Surround Pro Logic*
without the need of having
rear speakers connected or
activated.The graphical
representation of the rear loudspeakers is
replaced by the symbol ®r.
Select the level of 3D effect with the cursor
left/right.
Hall
The special sound signal is
distributed over the rear
loudspeakers which
creates a hall effect from
the rear.
The centre loudspeaker
does not reproduce any
signal.
This mode is recommended when you wish to
add surround sound to a broadcast which is not
encoded Dolby Surround or to a mono signal.
Pro Logic
(with Dolby Surround broadcasting)
In addition to the left and
right internal speakers, the
centre and the rear
surround loudspeakers
reproduce the Dolby
Surround Pro Logic
sounds.
This sound is always present in the movie or
programme marked with GDolby
Surround.This mode is especially recommended
for such programmes or movies.Dolby Pro Logic
signals are also present on some DVD tracks.
Note: Normal stereo broadcast is not always
encoded to produce a rear surround sound.
Pro Logic and Hall can only be reproduced if
Surround speakers is set to Yes in the Setup, Speaker
menu, p. 11, and rear speakers are connected.
Sound menu Press the cursor right to select Sound.
Select the menu items in the Sound menu with the
cursor up/down and adjust the settings with the cursor
left/right.
Remember, control settings are at normal mid-range
levels when the bar scale is centred.
Note:
- Dual is only available with dual sound transmission.
- Mono/Stereo is only selectable in case of analogue stereo
transmission.
- Nicam/Analogue is only selectable in case of Nicam
transmission.
- Surround modes can not be modified when a headphone
has been connected.
Sound
Volume
Equalizer
Headphone volume
Surround mode
(Dual I-II)
(Mono/Stereo)
(Nicam/Analogue)
(3D effect)
AVL
Delta volume
Smart sound
TV
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 14

151515Use of the menus

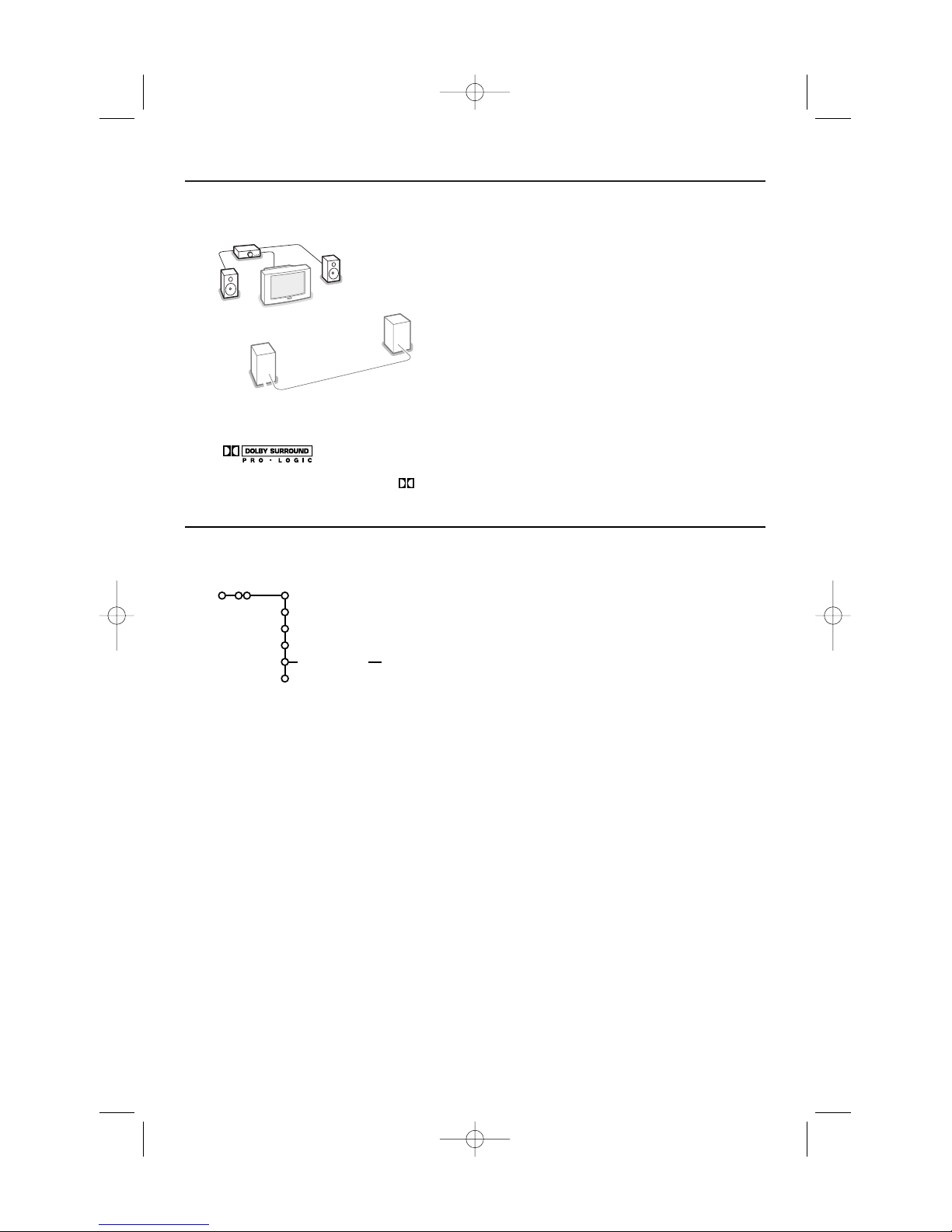

With two extra front loudspeakers connected
To enhance the sound reproduction of your TV you
may connect two extra front loudspeakers via an
external amplifier. See Connect Peripheral Equipment,
Extra loudspeakers/Amplifier, p. 23.
In the Surround modes + ext. amp is added to
indicate that you should switch on your amplifier as
in these modes the internal TV speakers produce
only centre sound.The subwoofer speaker is muted.
Note: If extra front speakers are connected and selected,
all internal TV speakers produce centre sound in the
surround modes Pro Logic*, Dolby 3 Stereo and 3D
Surround.
Features menu
‘Dolby’‘Pro Logic’and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
Manufactured under license from Dolby Laboratories Licensing Corporation.
*
Features
Channel list
Subtitle
Sleeptimer
Child lock
On timer
Lock
Custom lock
Unlock
Channel lock
TV
Press the cursor right to select Features.
Select the menu items in the Features menu with
the cursor up/down and adjust the settings with
the cursor left/right.
Use the on-screen Menu-Info i for more
information about the menu items.
Channel list
Press the OK key to switch over to the selected
TV channel or external.
Select subtitles
Switch on teletext and select the proper subtitle
page from the index.
Switch off teletext.Now the subtitle page is
stored for the selected TV channel.
Once subtitles have been stored and Subtitle
On has been selected they will automatically be
displayed on the selected TV channels if subtitles
are in the transmission.
A symbol will indicate that the mode is on.
Select On during mute when you want to have
the subtitles automatically displayed when the
sound has been muted with the ¬key on the
remote control.
Child lock
&Select Child lock with the cursor down.
éPress the cursor right to enter the Child lock
menu.You’re summoned to enter your code.
Enter the access code.
Note:You have to re-enter your code each time you
enter the child lock menu.
Important:You have forgotten your code !
• Select Cancel with the cursor down.
• Select Set/Change code in the Setup
menu. See General menu, Set/Change
code, p. 11.
• Press OK.
• Press the cursor right and enter the
overriding code 8-8-8-8.
• Press the cursor again and enter a new
personal 4-digit code.The previous code is
erased and the new code is stored.
Note:The overriding code only works in the
Set/Change code menu.
“Select one of the menu items of the child lock
menu.
•Select Lock if you want to lock all channels
and externals.
•Select Custom lock and press the cursor
right. Select Channel lock if you want to lock
the programmes from a certain TV channel or
external.
•Select Unlock to unlock all locked channels
and externals at once.
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 15

16
Dual screen/PIP
B
VCR DVD AMP AIX
Ï
OK
MENU
bx
Sfi
v
®Ò‡ π†
b
b
PIXEL
PLUS
Press the bkey to turn on or off Dual
screen or PIP, according to the format
selection made in the Dual screen format list
in the General menu, p. 11.
Audio from the main screen (the left screen
in Dual screen and the full size screen in PIP)
plays to the speakers;Audio from the right
screen or from the PIP plays to the
headphones.
Note: Continuing to hold the bkey down will
cycle the TV through the various formats (Dual
screen, Large PIP, Medium PIP, Small PIP),
launching a new format after each second the
key is held down.
To highlight a screen
Pressing the cursor left/right will toggle the
highlight between the left and the right
screen or between the main and the PIP
screen.The highlighted screen is made visible
with a yellow border.
Changing TV channels or external sources in left,
right or PIP screen
Press the - CH + key, the digit keys or the 0key in
order to change the TV channels or the external
sources in the highlighted screen.
Making the PIP screen movable
&Select a PIP format.
éHighlight the PIP picture with the cursor left/right
and press the OK key to make the PIP screen
movable.
The PIP screen can now be moved.This is made
visible with a blue border around the PIP screen.
“Press the cursor up/down, left/right to move the PIP
screen in the direction of the cursor press.
‘Press the OK key again.The PIP screen position is
fixed.
Swapping screens
Press the ckey to swap the left and the right screen
or the PIP screen. See notes below.
On-Screen information
The On-Screen information, which appears when
changing channels, always refers to the highlighted
screen.
Deactivating Dual screen mode
Press the bkey again to return to a full main screen
picture.The TV tunes to the picture which was
highlighted in Dual screen mode.
Note: When Dual screen mode is selected, two picture
formats are supported: Full screen or 4:3 letterbox picture
format (vertical squeeze).
16 Dual screen
On timer
&Select On timer with the cursor down.
éSelect On with the cursor right.
“Press the cursor right again to enter the
channel list.
‘Select the TV channel or external you want
your TV to switch to on a selected time and
day.
(Press the cursor right again to select a day
of the week or to select Daily.
Select Daily to set the On timer for daily
operation on the selected TV channel or
source.
§Press the cursor right once again to enter
the time.
èEnter the time with the digit keys or with
the cursor up/down/left/right.
!Press the OK key to activate.
çPress the MENU Ïkey to turn off the
menu.
Note:To check your timer settings, press the i
key
VCR1
BBC1
BBC2
CNN
TVE
π.....
Sunday
Monday
.......
Daily 15:45
On timer
Off
On
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 16

171717Multipip & Teletext
Multipip
In the Setup menu, General, p. 12 you selected which Multipip format
you prefer to see.
&Press the fikey on the remote control to toggle the selected
Multipip format On or Off.
The main screen displays the channel or source tuned before Multipip
was activated and the highlight is on the main screen.
éPress the cursor left/right, up/down to highlight a PIP screen.When the
highlight is on one of the PIP screens, it begins playing video and the
other PIPs freeze.The main screen always continues playing audio and
video.
“Pressing the - CH + or the 0key or the digit keys changes the
channel or source for the currently highlighted screen.
Note: channels cannot be added or deleted from the Smart surf list when
Multipip is activated.
‘Press the ckey to swap the highlighted screen and the main screen.
Press the cursor up/down to display a following series of PIP screen.
Note: Only TV channels which are in the favourite list and pictures from the
connected and activated externals are displayed in the PIP screen.
PIP 6
PIP 3
PIXEL
PLUS
B
v
æb
Sj
DVDVCR AMP AUX fi
Sb
®Ò‡ π†
fi
Teletext
213
546
879
0
B
v
xb
Ï
i
S
®Ò‡ π†
fi
VCR DVD AMP AUX
¬V CH
0
OK
MENU
b
b
Ï
b
S
i0
h
PIXEL
PLUS
U
QZqc
h
INSTANT
colour keys to
select
Mon 05 Feb 16.35.22
BBC CEEFAX
LIONS RECORD ANOTHER WIN 430
Index 100 News 300
BBC Info 110 Headlines 305
Children 120 Weather 400
Cookery 150 Sports 415
Education 200 Radio 500
Lottery 230 Travel 550
Finance 240 Subtitling 888
Music 280 TV Listings 600
puck
Red Green Yellow Blue
Menu 100 01
Favourite
Search
Most TV channels broadcast information via teletext.
This TV has a 1200 pages memory that will store most
broadcasted pages and subpages to reduce waiting time.
After each channel change, the memory is refreshed. It
may take some time for all pages to load.
Depending on the TV channel, teletext is transmitted in
different systems.The colours used in the bottom line of
the teletext page correspond with the colour keys of
your remote control.
Switch Teletext on and off
Press bto switch the teletext on or off.
The main index page appears on the screen.
It shows an information line at the top, an option line at
the bottom and a puck in the top left corner of the
screen.
(only English teletext supported)
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 17

18
Select a Teletext page
With the digit keys
Enter the desired page number with the digit
keys.
The page counter seeks the page or the page
appears immediately when the page number has
been stored in the memory.
A message appears when you have entered a
non existent or incorrect page number. Page
numbers beginning with 0 or 9 do not exist.
Choose another number.
With the option line
Select with the colour keys, corresponding to
the coloured options at the bottom of the
screen, the desired subject.
Quickly run through the txt pages
Press the cursor up/down or the - CH + key to
run through the previous or the following pages.
Select the previously selected page
Press the 0key.
Note: Only possible when teletext pages are active,
not when the Teletext menu is displayed.
Select the index teletext page
Press the grey colour key †to display the
main index (usually p.100).
Select subpages
When a selected teletext page consists of
different subpages, one of the subpages appears
on the screen.
Press the cursor right to highlight the
subpagenumber. Press the cursor up/down to
select the next or previous subpage or enter the
subpagenumber with the digit keys.
Special teletext functions
Hold
Press Sto stop the automatically rotating of
the subpages or to stop the page counter from
seeking when you have entered a wrong page
number or when the page is not available. Enter
another page number.
Enlarge
Press hrepeatedly to display the upper part,
the lower part and then to return to the normal
page size.When the upper part is displayed, you
can scroll the text, line by line using the cursor
up/down.
Hypertext
With hypertext you can select and search for
pages containing any word or number on the
current teletext page.
&Make sure you are not in the teletext menu
and that the puck is in the upper left corner
of the screen.
éPress the cursor key down to highlight the
first word or a number on the page.
“Use the cursor up/down, left/right to select
the word or number you want to search for.
‘Press the OK key to confirm.
A message appears at the bottom of the
screen to indicate that the searching is going
on or that the word or page is not found.
Select Continuous Subtitles
TV channels with teletext often transmit
programmes with subtitling. For each TV channel
you can store a subtitle page.
Switch on teletext and select the proper subtitle
page from the index.
Switch off teletext. Now the subtitle page is
stored for the selected TV channel.
Select Subtitle On or Off in the Features menu,
see p. 15.The subtitle symbol jappears when
Subtitle On is selected.
Teletext
315 2145.3 (16X24) 31-10-2002 08:43 Pagina 18
