Philips HTB5510D User manual

HTB5510D
HTB5540D
HTB5570D
HTB5575D
www.philips.com/support
User manual
Always there to help you
Register your product and get support at
Question?
Contact
Philips
Question?
Contact
Philips

1EN
Contents
1 Important 2
Safety 2
3D health warning 3
Care for your product 3
Care of the environment 3
2 Your home theater 4
Main unit 4
Remote control 4
Connectors 5
3 Connect and set up 7
Connect speakers 7

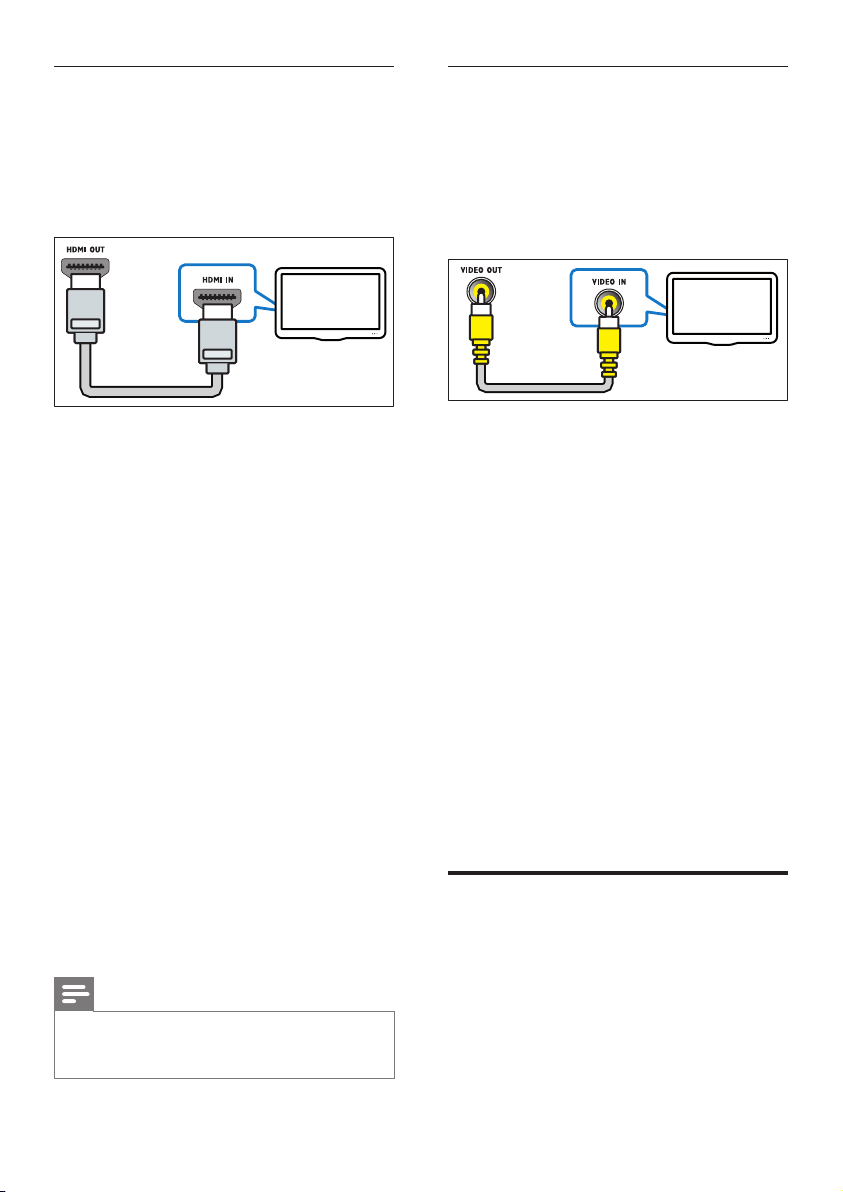

Connect to TV 8
Connect digital devices through HDMI 9
Connect audio from TV and other
devices 10
Set up speakers 11
Set up EasyLink (HDMI-CEC control) 11
Connect and set up a home network 12
4 Use your home theater 14
Access the home menu 14
Discs 14
Play audio through Bluetooth 16
Data les 16
USB storage devices 17
Audio, video, and picture options 18
Radio 19
MP3 player 20
iPod or iPhone 20
Smartphone control 20
Browse Smart TV 22
Browse PC through DLNA 23
Karaoke 25
Choose sound 25
5 Change settings 27
Language settings 27
Picture and video settings 27
Audio settings 27
Parental control settings 28
Display settings 28
Energy saving settings 28
Speaker settings 28
Restore default settings 29
6 Update software 30
Check software version 30
Update software through USB 30
Update software through the Internet 31
7 Productspecications 32
8 Troubleshooting 36
9 Notice 39
Copyright 39
Open source software 39
Trademarks 39
10 Language code 41
11 Index 42

2EN
1 Important
Read and understand all instructions before you
use your product. If damage is caused by failure
to follow instructions, the warranty does not
apply.
Safety
Riskofelectricshockorre!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
near naked ames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Batteries (battery pack or batteries
installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Riskofshortcircuitorre!
• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
Riskofinjuryordamagetothehometheater!
• For wall-mountable products, use only the
supplied wall mount bracket. Secure the
wall mount to a wall that can support the
combined weight of the product and the
wall mount. Koninklijke Philips Electronics
N.V. bears no responsibility for improper
wall mounting that results in accident,
injury or damage.
• For speakers with stands, use only the
supplied stands. Secure the stands to the
speakers tightly. Place the assembled stands
on at, level surfaces that can support the
combined weight of the speaker and stand.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Do not touch the disc optical lens inside
the disc compartment.
• Parts of this product can be made of
glass. Handle with care to avoid injury and
damage.
Riskofoverheating!
• Never install this product in a conned
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Riskofcontamination!
• Do not mix batteries (old and new or
carbon and alkaine, etc.).
• Danger of explosion if batteries are
incorrectly replaced. Replace only with the
same or equivalent type.
• Remove batteries if they are exhausted or
if the remote control is not to be used for
a long time.
• Batteries contain chemical substances, they
should be disposed of properly.
Riskofswallowingbatteries!
• The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach

3EN
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
This is CLASS II apparatus with double
insulation, and no protective earth provided.
3D health warning
• If you or your family has a history of
epilepsy or photosensitive seizures, consult
a medical professional before exposing
yourself to ashing light sources, rapid
image sequences or 3D viewing.
• To avoid discomfort such as dizziness,
headache or disorientation, we
recommend not watching 3D for extended
periods of time. If you experience any
discomfort, stop watching 3D and do
not immediately engage in any potentially
hazardous activity (for example driving a
car) until your symptoms have disappeared.
If symptoms persist, do not resume
watching 3D without consulting a medical
professional rst.
• Parents should monitor their children
during 3D viewing and ensure they do not
experience any discomfort as mentioned
above.Watching 3D is not recommended
for children under six years of age as their
visual system is not fully developed yet.
Care for your product
• Do not insert any objects other than discs
into the disc compartment.
• Do not insert warped or cracked discs into
the disc compartment.
• Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
• Use only microber cloth to clean the
product.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.

4EN
2 Your home
theater
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers(e.g. notication
of product software upgrade), register your
product at www.philips.com/welcome.
Main unit
This section includes an overview of the main
unit.
a (Open/Close)
Open or close the disc compartment.
b (Play/Pause)
Start, pause or resume play.
c (Stop)
Stop play.
d SOURCE
Select an audio, video, radio source or
Bluetooth mode for the home theater.
e +/- (Volume)
Increase or decrease volume.
f (Standby-On)
Switch the home theater on or to standby.
Remote control
This section includes an overview of the
remote control.
fa b c de
a (Standby-On)
• Switch the home theater on or to
standby.
• When EasyLink is enabled, press
and hold for at least three seconds
to switch all connected HDMI CEC
compliant devices to standby.
b (Home)
Access the home menu.
c Source buttons
• DISC/POP-UP MENU : Switch to disc
source.Access or exit the disc menu
when you play a disc.
• RADIO : Switch to FM radio.
• SOURCE : Select an audio input
source or Bluetooth mode.
d BACK
a
b
c
d
e
f
g
h
i
j
k
l
m
u
t
s
r
q
p
o
n

5EN
• Return to a previous menu screen.
• In radio mode, press and hold to erase
the current preset radio stations.
e Navigation buttons
• Navigate menus.
• In radio mode, press left or right to
start auto search.
• In radio mode, press up or down to
tune the radio frequency.
f OK
Conrm an entry or selection.
g / (Previous/Next)
• Skip to the previous or next track,
chapter or le.
• In radio mode, select a preset radio
station.
h (Stop) / (Eject/Open/Close)
• Stop play.
• Press and hold for three seconds to
open or close the disc compartment,
or eject the disc.
i / (Fast Backward / Fast Forward)
Search backwards or forward. Press
repeatedly to change the search speed.
j +/- (Volume)
Increase or decrease volume.
k SMART TV
Access online Smart TV service.
l Alphanumeric buttons
Enter values or letters (using SMS style
entry).
m AUDIO
Select an audio language or channel.
n TOP MENU
Access the main menu of a disc.
o OPTIONS
• Access more play options while playing
a disc or a USB storage device.
• In radio mode, set a radio station.
p (Play)
Start or resume play.
q (Pause)
Pause play.
r (Mute)
Mute or restore volume.
s
Access or exit sound options.
t SUBTITLE
Select subtitle language for video.
u Color buttons
• Select tasks or options for Blu-ray discs.
• Select iPod/iPhone source.
Connectors
This section includes an overview of the
connectors available on your home theater.

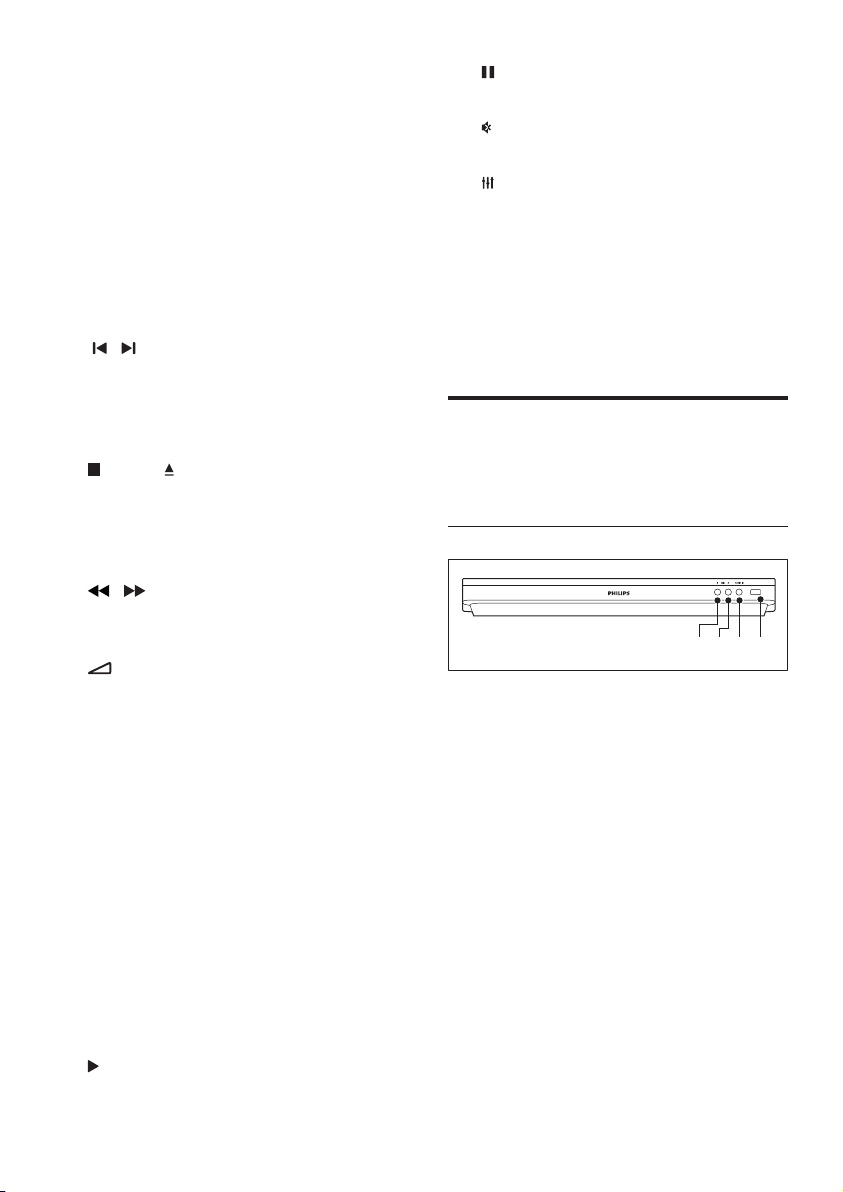

Front connectors
a MIC 1
Audio input from a microphone.
b MIC 2
Audio input from a microphone.
c AUDIO IN
Audio input from an MP3 player (3.5mm
jack).
d iPod/iPhone (USB)
• Audio, video or picture input from a
USB storage device.
• Connect to an iPod or iPhone.
• Connect a USB mass storage to access
BD-Live.
cab d
iPod/iPhone

6EN
Note
• When you connect an MP3 player to the home theater
with a 3.5mm audio cable, make sure that you connect
the MP3 player to the AUDIO IN connector, not to the
MIC 1 or MIC 2 connector, to ensure normal function
of the home theater.
Rear connectors
a AC MAINS
Connect the supplied AC power cable.
b SPEAKERS
Connect to the supplied speakers and
subwoofer.
c Wireless Rear Audio
Connect to a Philips wireless module.
(Model: Philips RWSS5512, optionally
available in your region)
d DIGITAL IN-COAXIAL
Connect to a coaxial audio output on the
TV or a digital device.
e AUDIO IN-AUX
Connect to an analog audio output on the
TV or an analog device.
f HDMI IN1 / HDMI IN2
Connect to the HDMI output on a digital
device.
g (USB)
Slot for a USB storage device.The USB
storage device is used to rent online
videos.
h VIDEO OUT
Connect to the composite video input on
the TV.
hijkl
i DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
j HDMI OUT (ARC)
Connect to the HDMI input on the TV.
k LAN
Connect to the LAN input on a
broadband modem or router.
l FM ANTENNA
Connect to the supplied FM antenna.

7EN
3 Connect and set
up
This section helps you connect your home
theater to a TV and other devices, and then set
it up.
For information about the basic connections
of your home theater and accessories, see the
quick start guide.
Note
• For identication and supply ratings, see the type plate
at the back or bottom of the product.
• Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Connect speakers
The speaker cables are color-coded for easy
connection.To connect a speaker to your home
theater, match the color on the speaker cable to
the color on the connector.

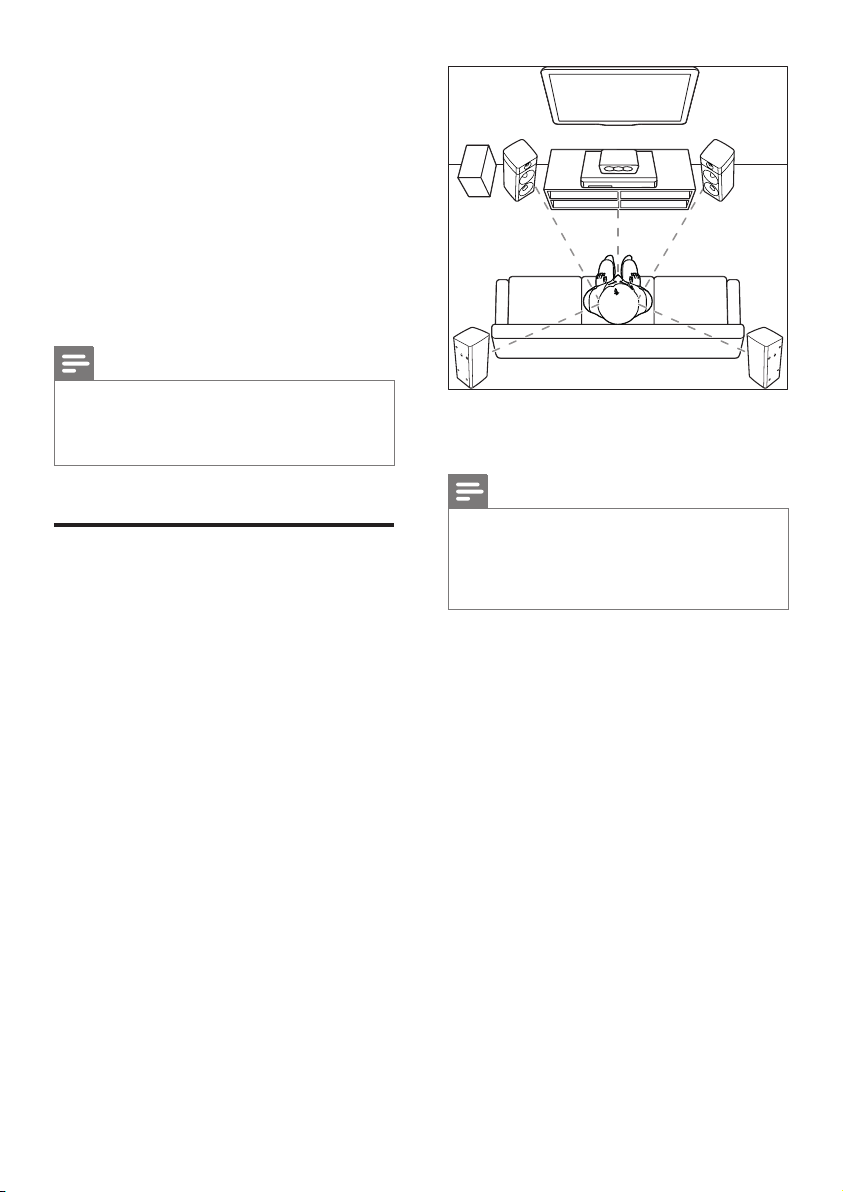

Speaker position plays a critical role in setting
up a surround sound effect. For best effect,
position all the speakers towards the seating
position and place them close to your ear level
(seated).
* The actual speaker shapes may vary from the
illustration above.
Note
• Surround sound depends on factors such as room
shape and size, type of wall and ceiling, windows and
reective surfaces, and speaker acoustics. Experiment
with the speaker positions to nd the optimum setting
for you.
Follow these general guidelines for speakers
placement.
1 Seating position:
This is the center of your listening area.
2 FRONT CENTER (front center) speaker:
Place the center speaker directly in front of
the seating position, either above or below
your TV.
3 FRONT LEFT (front left) and FRONT
RIGHT (front right) speakers:
Place the left and right speakers in the
front, and at equal distance from the center
speaker. Make sure that the left, right, and
the center speakers are at equal distance
from your seating position.
4 REAR LEFT (rear left) and REAR RIGHT
(rear right) speakers:
Place the rear surround speakers to the
left and right side of your seating position,
either in line with it or slightly behind it.
SUB
WOOFER
FRONT
LEFT FRONT
CENTER
FRONT
RIGHT
REAR
LEFT
REAR
RIGHT

8EN
5 SUBWOOFER (subwoofer):
Place the subwoofer at least one meter
to the left or right of the TV. Leave about
10-centimeter clearance from the wall.
Make your rear speakers wireless
Connect the rear speakers to your home theater
wirelessly using a wireless module accessory. For
details, see the wireless module user manual.
What you need
• A Philips wireless module. (Model: Philips
RWSS5512, optionally available in your
region)
1 Connect the wireless transmitter to the
Wireless Rear Audio connector on your
home theater.
2 Connect the rear speakers to the wireless
receiver.
3 Connect the wireless receiver to the
power supply.
Connect to TV
Connect your home theater to aTV to watch
videos.You can listen to theTV audio through
your home theater speakers.
Use the best quality connection available on
your home theater andTV.
Option 1: Connect to TV through
HDMI (ARC)
Best quality video
Your home theater supports HDMI version
with Audio Return Channel (ARC). If your TV
is HDMI ARC compliant, you can hear the TV
audio through your home theater by using a
single HDMI cable.
1 Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on
your home theater to the HDMI ARC
connector on the TV.
• The HDMI ARC connector on the TV
might be labeled differently. For details,
see the TV user manual.
2 On yourTV, turn on HDMI-CEC
operations. For details, see the TV user
manual.
• HDMI-CEC is a feature that enables
CEC compliant devices that are
connected through HDMI to be
controlled by a single remote control,
such as volume control for both the
TV and the home theater. (see 'Set
up EasyLink (HDMI-CEC control)' on
page 11)
3 If you cannot hear theTV audio through
your home theater, set up the audio
manually. (see 'Set up the audio' on page
12)
TV
