Philips MCM1350 User manual

www.philips.com/support
MCM1350
User manual
Always there to help you
Register your product and get support at
Question?
Contact
Philips

1EN
Contents
1 Important 2
Safety 2
Notice 2
2 Your Micro Music System 4
Introduction 4
What's in the box 4
Overview of the main unit 5
Overview of the remote control 6
3 Get started 7
Connect speakers 7
Connect power 7
Prepare the remote control 7
Demonstrate the features 8
Power on 8
Set the clock 8
Select a source 9
4 Play 10
Play from disc 10
Play from USB 10
Control play 10
Skip tracks 11
Program tracks 11
5 Listen to the radio 12
Tune to a radio station 12
Program radio stations automatically 12
Program radio stations manually 12
Select a preset radio station 12
6 Adjust sound 13
Select a preset sound effect 13
Adjust volume level 13
Mute sound 13
7 Other features 14
Set the alarm timer 14
Set the sleep timer 14

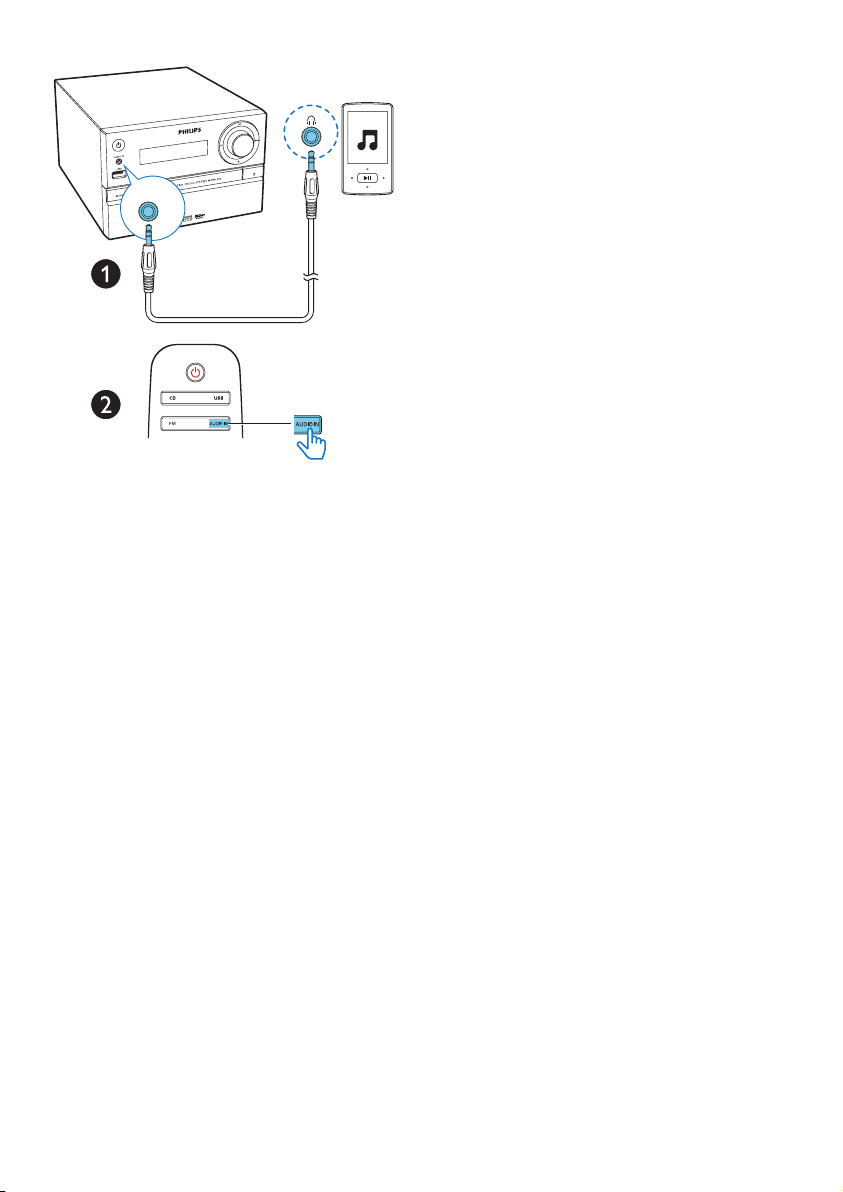

Listen to an external device 14
8 Product information 16
Specications 16
USB playability information 17
Supported MP3 disc formats 17
9 Troubleshooting 18

2EN
1 Important
Safety
Read and understand all instructions before
you use this micro music system. If damage is
caused by failure to follow the instructions, the
warranty does not apply.
This 'bolt of lightning' indicates uninsulated
material within the device may cause an
electrical shock. For the safety of everyone in
your household, please do not remove the
covering.
The 'exclamation mark' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING:Toreducetheriskofreorelectric
shock, the device should not be exposed to rain
ormoistureandobjectslledwithliquids,such
as vases, should not be placed on the device.
CAUTION:To prevent electric shock, fully
insert the plug. (For regions with polarized
plugs:To prevent electric shock, match wide
blade to wide slot.)
Warning
• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never look into the laser beam inside this apparatus.
• Never place this apparatus on other electrical
equipment.
• Keep this apparatus away from direct sunlight, naked
amesorheat.
• Ensure that you always have easy access to the power
cord, plug or adaptor to disconnect the apparatus from
the power.
• The device shall not exposed to dripping
or splashing.
• Do no place any source of danger on the
device(e.g.liquidlledobjects.litcandles).
• Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Make sure that there is enough free space
around the product for ventilation.
• Battery usage CAUTION –To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
• Install all batteries correctly, + and - as
marked on the unit.
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Batteries (packed or installed) shall not
be exposed to excessive heat such as
sunshine,reorthelike.
• Remove batteries when the unit is not
used for a long time.
• Onlyuseattachments/accessoriesspecied
by the manufacturer.
Notice
Anychangesormodicationsmadetothis
device that are not expressly approved by
Gibson Innovations may void the user’s
authoritytooperatetheequipment.

3EN
Compliance
Hereby, Gibson Innovations declares that this
product is in compliance with the essential
requirementsandotherrelevantprovisions
ofDirective2014/53/EU.Youcanndthe
Declaration of Conformity on www.philips.com/
support.
This apparatus includes this label:
Care of the environment
Disposal of your old product and battery
Your product is designed and manufactured
withhighqualitymaterialsandcomponents,
which can be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
This symbol means that the product contains
batteries covered by European Directive
2013/56/EU which cannot be disposed of with
normal household waste.
Inform yourself about the local separate
collection system for electrical and electronic
products and batteries. Follow local rules and
never dispose of the product and batteries
with normal household waste. Correct disposal
of old products and batteries helps prevent
negativeconsequencesfortheenvironmentand
human health.
Removing the disposable batteries
To remove the disposable batteries, see battery
installation section.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
The making of unauthorized copies of copy-
protected material, including computer
programs,les,broadcastsandsound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
Thisequipmentshouldnotbeusedforsuch
purposes.
Care for your product
• Do not insert any objects other than discs
into the disc compartment.
• Do not insert warped or cracked discs into
the disc compartment.
• Remove the discs from the disc
compartment if you are not using the
product for an extended period of time.
• Onlyusemicroberclothtocleanthe
product.
Note
• The type plate is located on the back of the product.

4EN
2 Your Micro
Music System
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
support that Philips offers, register your product
at www.philips.com/support.
Introduction
With this unit, you can:
• enjoy audio from discs, USB devices, and
other external devices;
• listen to radio stations.
You can enrich sound output with below
sound effect:
• Digital Sound Control (DSC)
The unit supports these media formats:
What's in the box
Check and identify the contents of your
package:
• Main unit
• Remote control (with one AAA battery)
• Speaker boxes (×2)
• Short user manual
• Safety and notice

5EN
Overview of the main unit
a
• Turn on the product.
• Switch to standby mode or ECO
power standby mode.
b AUDIO IN
• Connect external audio devices.
c Display panel
• Show current status.
d /
• Skip to previous/next track.
• Search within a track/disc.
• Tune to a radio station.
• Adjust time.
e
• Start or pause play.
f VOLUME knob
• Adjust volume.
g
• Open or close the disc compartment.
h
• Stop play.
• Erase a program.
i Disc compartment
ade cb f
ghijkl
m
n
j SOURCE
• Select a source: DISC, USB,TUNER,
AUDIO IN.
k
• Connect USB storage devices.
l SPEAKER OUT socket
• Connect with the speakers.
m ANTENNA socket
• Connect with the FM antenna.
n AC MAINS ~

6EN
Overview of the remote
control
a
• Turn the unit on or off.
• Switch to standby mode or ECO
power standby mode.
b CD
• Select CD source.
c USB
• Select USB source.
d /
• Skip to the previous/next track.
a
b
c
d
e
f
g
i
h
q
p
r
m
n
o
k
j
l
• Search within a track/disc/USB.
• Tune to a radio station.
• Adjust time.
e
• Play tracks randomly.
f ALBUM/PRESET /
• Select a preset radio station.
• Skip to previous/next album.
g DISPLAY
• Adjust display brightness.
• During playback, display the play
information.
h SLEEP/TIMER
• Set sleep timer.
• Set alarm timer.
i CLOCK
• Set the clock.
• View clock information.
j PROG
• Program tracks.
• Program radio stations.
• Auto store FM radio stations.
k
• Mute or unmute the sound.
l SOUND
• Enrich sound effect with Digital Sound
Control (DSC).
m VOL +/-
• Adjust volume.
n
• Play a track or all tracks repeatedly.
o
• Stop play or erase a program.
p
• Start, pause, or resume play.
q FM
• Select FM source.
r AUDIO IN
• Select AUDIO IN source.

7EN
3 Get started
Caution
• Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Connect speakers
Note
• Insert the stripped portion of each speaker wire into
the socket completely.
• Forbettersoundquality,usethesuppliedspeakersonly.
1 Fortherightspeaker,ndthesocketson
the back of the main unit marked "R".
2 Insert the red wire into the red (+) socket,
and the black wire into the black (-) socket.
3 Fortheleftspeaker,ndthesocketsonthe
main unit marked "L".
4 Repeat step 2 to insert the left speaker
wire.
To insert each speaker wire:
1 Holddownthesocketap.
2 Insert the speaker wire fully.
3 Releasethesocketap.
Connect power
Caution
• Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back
or the underside of the unit.
• Before you connect the AC power cord, ensure that
you have completed all other connections.
Connect the power cable to the wall socket.
Prepare the remote control
Caution
• Risk of product damage! When the remote control is
not used for long periods, remove the batteries.
To insert the remote control battery:
1 Open the battery compartment.
2 Insert the supplied AAA battery with
correct polarity (+/-) as indicated.
3 Close the battery compartment.

8EN
Demonstrate the features
In standby mode, press to demonstrate
features of this device.
» The features are displayed one by one
across the display panel.
• To turn off the demonstration, press
again.
Power on
Press .
» The product switches to the last selected
source.
Switch to standby mode
Press again to switch the product to standby
mode.
» The clock (if set) is displayed on the
panel.
• In standby mode, press to switch
between working mode and standby
mode.
Note
• The product switches to standby mode after 15
minutes inactive.
Switch to ECO power standby mode
Press and hold for more than two seconds.
» The red ECO power standby indicator
turns on.
• In Eco power standby mode, press to
switch between working mode and ECO
power standby mode.
Note
• The product switches to ECO power standby mode
after 15 minutes in standby mode.
Switch between standby mode and ECO
powerstandby mode:
• Press and hold for more than two
seconds.
Note
• If no button is pressed over 15 minutes in standby
mode, this product goes to ECO standby mode
automatically.
Set the clock
1 In standby mode, press and hold CLOCK
for more than two seconds to enter the
clock setting mode.
» [24H] or [12H] is displayed.
2 Press / to select 24H or 12H hour
format, and then press CLOCK.
» The hour digits begin to blink.
3 Press / to set the hour, and then
press CLOCK.
» The minute digits begin to blink.
4 Press / to set the minute, and then
press CLOCK.
» The set clock is displayed.
Note
• To view clock information in working mode, press
CLOCK.
• If no button is pressed in 90 seconds during setting,
the product exits clock setting without saving earlier
operations.
