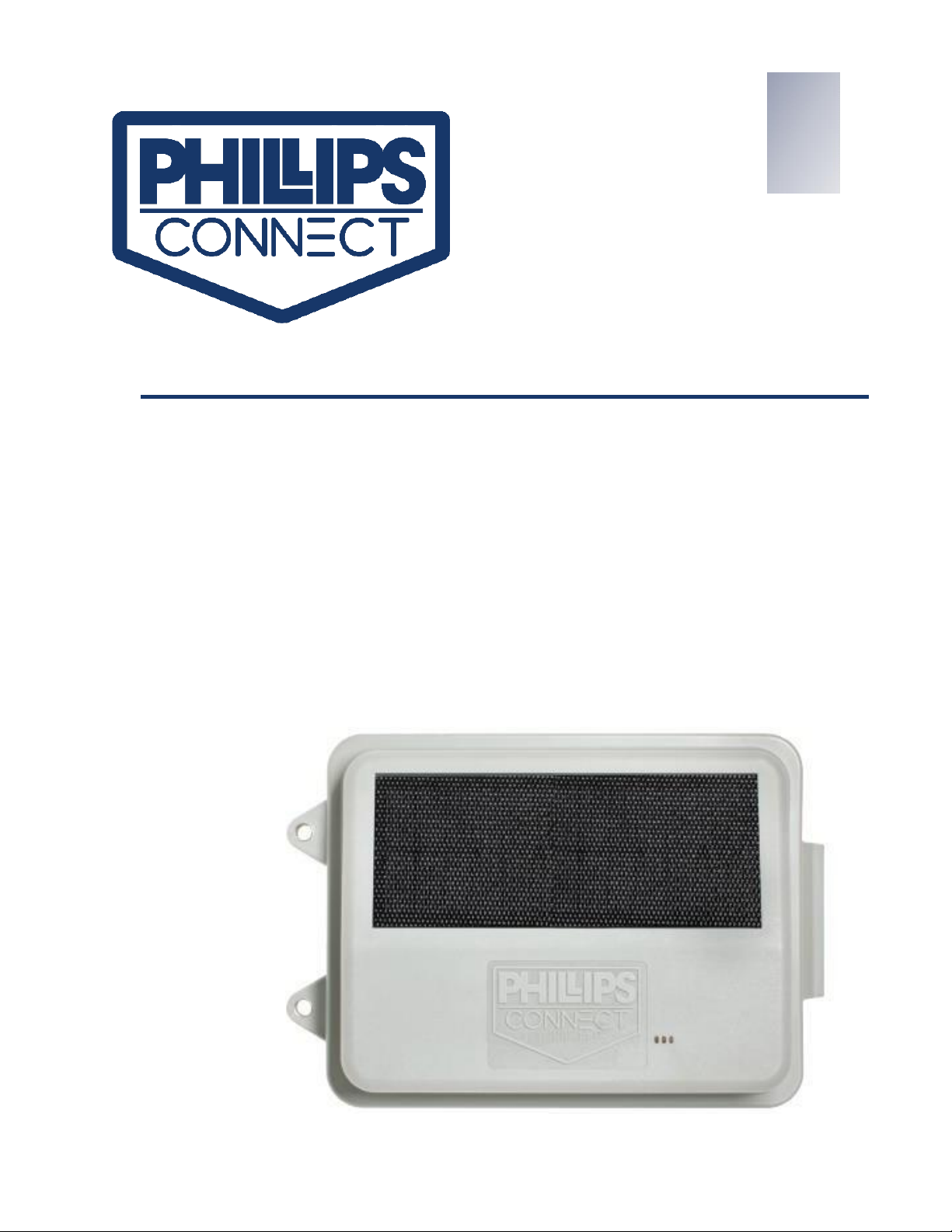

Phillips Connect 77-6811 User manual

Smart7 Lid User Manual Rev A
User Manual
Battery Operated LTE
Cellular GPS Tracker
Part #77-6811

USER MANUAL
© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 1 of 9
Table of Contents
1. Introduction .......................................................................................................................................... 2
2. Hardware Features ............................................................................................................................... 2
CELLULAR GATEWAY............................................................................................................................. 3
REPORTING ........................................................................................................................................... 3
GPS / LOCATION TRACKING .................................................................................................................. 3
INTEGRATED ABS MONITORING (THROUGH PLC) ................................................................................ 3
TRAILER PRECHECK ............................................................................................................................... 4
BLUETOOTH WIRELESS SENSOR SUPPORT............................................................................................ 4
HARNESS INTERFACES........................................................................................................................... 4
BATTERY PACK AND POWER SUPPLY.................................................................................................... 4
PHYSICAL DIMENSIONS AND MOUNTING............................................................................................. 4
ENVIRONMENTAL ................................................................................................................................. 4
CERTIFICATIONS.................................................................................................................................... 4
3. Technical Data....................................................................................................................................... 5
4. Mechanical Details................................................................................................................................ 6
4.1 Front/Rear Dimensions................................................................................................................. 6
4.2 Side Dimensions............................................................................................................................ 6
Federal Communication Commission Interference Statement .................................................................... 7
IMPORTANT NOTE: FCC Radiation Exposure Statement ...................................................................... 7
Industry Canada Statement.......................................................................................................................... 8
Radiation Exposure Statement: ............................................................................................................ 8
5. Company Information........................................................................................................................... 9

USER MANUAL
© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 2 of 9
1. INTRODUCTION
The Battery Operated LTE Cellular GPS Tracker from Phillips Connect Technologies is a vehicle tracking
device that combines GPS location with LTE and Bluetooth. The Smart7 Lid monitors vehicle functions
and collects data for tracking and analysis.
The Smart7 Lid appears to the user of a server application as a single endpoint device. It can be queried,
updated, and configured either through a serial connection or an over-the air (OTA) LTE IP connection.
The Smart7 Lid presents itself over the connections as an enhanced cellular modem with attached
functional elements. These elements include:
•GPS location engine
•General Purpose Bidirectional I/O (GPIO) pins
•Relay drive pin output
•Serial UART port
•CAN Communication (optional)
•BLE 5.0

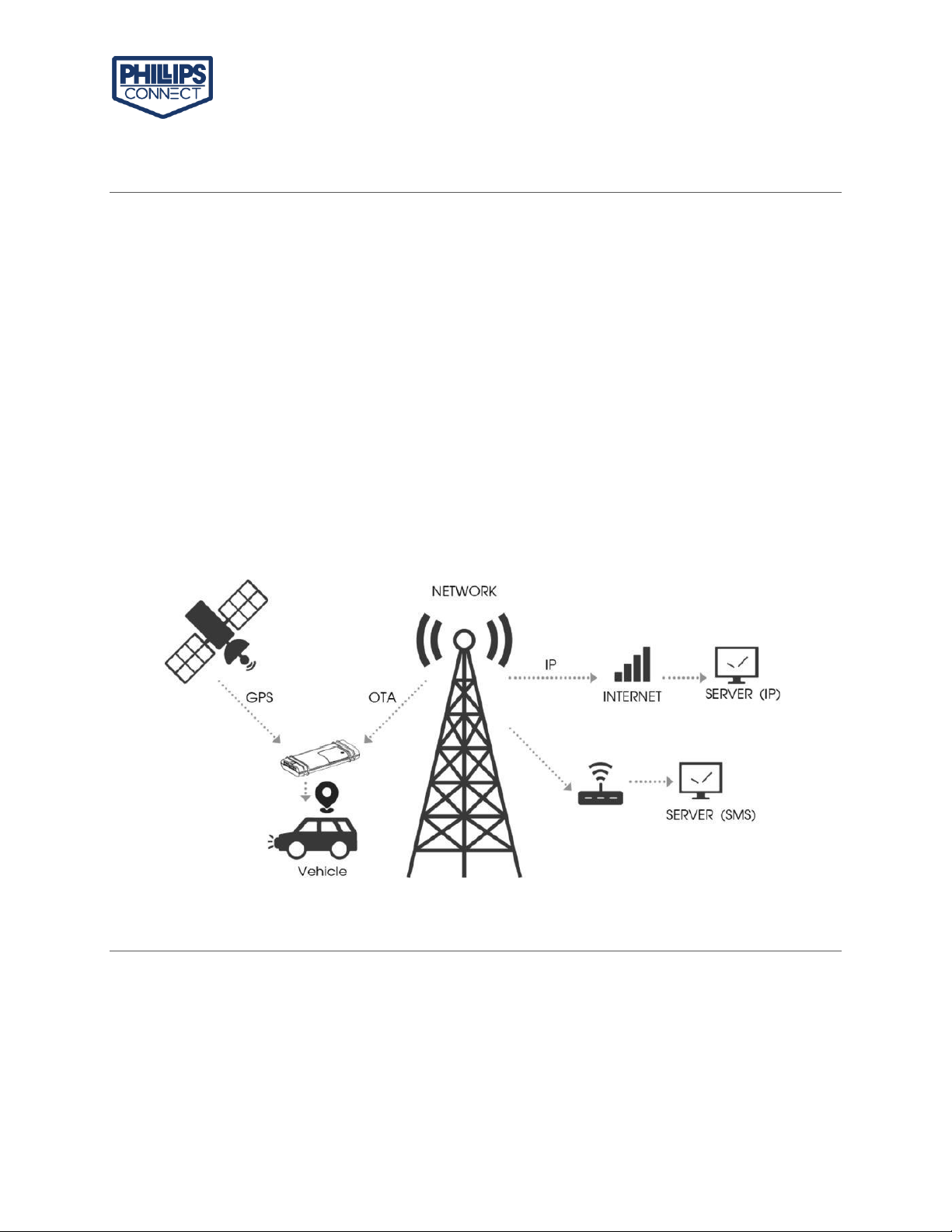

The following is a typical application scenario:
2. HARDWARE FEATURES
The Smart7 Lid ships from the factory pre-configured for a specific set of functions and is completely
configurable in the field, while providing support for external control through a Phillips Connect
proprietary set of AT commands. Supported features include the following:

USER MANUAL
© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 3 of 9
CELLULAR GATEWAY
An integrated cellular gateway provides continuous 4G-LTE connectivity to the trailer. A multi-
carrier SIM assures comprehensive coverage.
•4G-LTE Cat-1(bands 2, 14,12)
•3G-HSPA fallback (bands II,V)
•Roaming w/VPN onto TMO, ATT, VZ
•Canada, LatAm plans available ƒ Secure reports delivery with ACKnowledge
•Report queue size: 2000
•OTA update of all firmware components
•OTA update of compatible sensors
REPORTING
Reporting while on a trip includes:
•1- to 5-minute breadcrumbs (configurable)
•Heading changes
•Sensor data and alerts Reporting while stopped includes:
•Daily heartbeats (configurable)
•Vibration / motion-detection
•TPMS and Tilt alerts
•Tractor pairing
•Door open/close
•Cargo status change
•PreCheck alerts
•Current ABS Fault Code
GPS / LOCATION TRACKING
High performance GPS tracking means you always know where your trailers are located.
•25mm x 25mm sky-facing ceramic patch antenna
•GPS L1 band 1575MHz
•GPS-based odometer accuracy: > 99.5%
INTEGRATED ABS MONITORING (THROUGH PLC)
Compatible with most ABS manufacturers.
•Retrieved ABS data includes:
•Fault lamp status
•DTC trouble-codes (active & stored) ƒ Odometer
•VIN (if programmed into ABS)

USER MANUAL
© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 4 of 9
TRAILER PRECHECK
Know what to expect before the driver arrives with Schedule-based or Remote-On-Demand
PreCheck of trailer sensors… or conduct an onsite live PreCheck prior to tractor hookup.
•1A @ 12V supply for external sensors
•External sensors include TPMS, cargo, ABS, trailer-weight, and more
BLUETOOTH WIRELESS SENSOR SUPPORT
•Bluetooth 5 LE class II transmitter
•Receive sensitivity -96dBm
•Compatible sensors include:
oSmartPair™, Door✓™
oSmartLock™ gladhand
oMicro SP Transceiver
HARNESS INTERFACES
•Optional data harness for additional wired sensors using RS485, UART, or GPI
BATTERY PACK AND POWER SUPPLY
•10.6A-Hr recharge-able Li-ion battery pack
•~6 months untethered operation
•4hrs to 90% charge from either Aux or Marker circuit power
•360mA integrated solar panel
•Maximum 2A current draw from tractor
•Tracking mode: 50mA battery current
•Idle mode: 2mA battery current
•Sleep mode: 100μA battery current
PHYSICAL DIMENSIONS AND MOUNTING
•Length 13.6” x Height 7” x Depth 4.1”
•Mount with 2 x 5/16” bolts
ENVIRONMENTAL
•IP67 protection for electronics and battery
•Operating temp. range: -40C to 70C
•Battery charging temp. range: -20C to 45C
CERTIFICATIONS
•FCC / IC
•BQB Bluetooth
•PTCRB cellular
•RoHS compliant

USER MANUAL
© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 5 of 9
3. TECHNICAL DATA
Smart7 Lid RF Specifications
4G LTE Cat 1
Band
Band 2/4/5/12/25/26
Rx Spec
Follow TS 36.521. Ch. 7
Tx Spec
Follow TS 36.521. Ch. 6
BLE 5.0
ISM Band
2.4 BHz
Rx Spec
Follow Chipset
Tx Spec
Follow Chipset
GPS
Frequency Support
L1-band (1.57542GHz)
General Hardware Specifications
Air Interface
Support for LTE Cat.M1
Frequency
4G band support Band 2/4/5/12/13/25/26
Antenna
Internal Antenna/ Chip Antenna
GPS Antenna
Dedicated high performance ceramic antenna
Voltage Monitor
Supported
Watchdog
Supported
Motion Detect
Supported

© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 6 of 9
USER MANUAL –SMART7 LID™
4. MECHANICAL DETAILS
4.1 FRONT/REAR DIMENSIONS
4.2 SIDE DIMENSIONS

© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 7 of 9
USER MANUAL –SMART7 LID™
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept anyinterference
received, including interference that may cause undesired operation.
IMPORTANT NOTE: FCC Radiation Exposure Statement
This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator and your body.
The transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 8 of 9
USER MANUAL –SMART7 LID™
INDUSTRY CANADA STATEMENT
ISED Statement
English:This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B).
French: Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS
exemptés de licence d'Innovation, Sciences et Développement économique Canada.
L'exploitation est soumise aux deux conditions suivantes :
(1) Cet appareil ne doit pas provoquer d'interférences.
(2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un
fonctionnement indésirable de l'appareil.
l'appareil numérique du ciem conforme canadien peut - 3 (b) / nmb - 3 (b).
This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance
with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and compliance.
cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr - 102 et
conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données canadiennes sur
l'exposition aux champs rf et la conformité.
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment.
Cet équipement est conforme aux limites d'exposition aux rayonnements du Canada établies pour un
environnement non contrôlé.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps.

© 2021 Phillips Connect LLC
Smart7 Lid User Manual
Page 9 of 9
USER MANUAL –SMART7 LID™
5. COMPANY INFORMATION
Technology that
moves us forward
5231 California Ave. Suite 110
Irvine, CA 92617
Technical Support
1-833-213-5839
[e-mail]
Sales
1-833-213-5839
[e-mail]
