Subwoofer Owner’s Manual:
SubCompactTM 6, SubCompactTM 8, SubCompactTM 10
SubSonicTM, Baby BoomerTM, S-Fit Cnr Sub 300TM, CS 66TM, CS 88TM
Baby Boomer PlusTM, Sonic 500TM
Digital SubTM 600, SuperSonicTM & UltraSonicTM
2008 PINNACLE LOUDSPEAKERS

2
We congratulate and thank you for choosing a PINNACLE®subwoofer. Our subwoofers exemplify
the best in modern audio technology, and are designed to produce remarkable amounts of deep bass.
Please read this manual completely to ensure the best possible performance from your Home Theater or
sound system.
SOLID BRASS ISOLATION CONES:
If your subwoofer comes with Solid Brass Isolation Cones, please make sure to install them into the
bottom of your subwoofer cabinet. They are an important part of the performance of the product and will
improve the bass definition.
With the cabinet on its side, simply screw the cones into their receptacles on the bottom of the
cabinet. Then, with the cabinet upright, adjust the cones individually as needed to level the cabinet.
When the cones have been adjusted to the proper height, screw each nut up the threaded shaft flush with
the bottom of the cabinet to secure the height setting. If you intend to place your subwoofer on wooden or
vinyl floors, we suggest placing a penny under each cone to prevent any indentations.
PLACEMENT:
Recommended Subwoofer Placement:
a) Within a few inches of the room corner closest to your left or right front speaker (maximum low
bass output);
b) Against the wall between your left and right front speakers (strong low bass output with optimal
blending to front speakers);
c) Near any other room corner or wall.
Other locations will provide varying degrees of low bass impact and blending with your front speakers.
We recommend listening to your system, with the subwoofer in different room positions, to obtain a
location with an optimum response.
A Special Note to SubSonicTM, Baby BoomerTM, Baby Boomer PlusTM & UltraSonicTM owners: Due to
the bipole configuration of your subwoofer be sure to leave at least an inch or two between the rear
woofer and your wall.
If you must place your subwoofer near baseboard heaters or forced hot air vents try to leave at
least 4” of clearance for proper ventilation. Do not place your subwoofer outdoors, or in any wet or
excessively damp environment.
Note: If you have an older, non-flat screen TV, please place your subwoofer far enough away from
your TV (approximately 2-3 feet) to avoid any color distortion from being caused by your subwoofer’s
powerful magnet(s). If you experience picture distortion, simply move the subwoofer away from the TV
until the picture becomes distortion free. We also recommend keeping magnetic media such as
audio/videotapes and computer disks at least 2-3 feet away from your subwoofer to prevent damaging them.

3
CONNECTIONS:
Complete all wire connections in your Home Theater / sound system before powering up your
subwoofer or your receiver (amplifier). Be sure to observe proper polarity for all speaker wire connections
(+ to +, -to -). To obtain the best performance, use only speaker wire of 12, 14, or 16 gauge (available
from your dealer). Lightweight speaker wire (18, 20, 22 gauge, etc.) will result in degraded performance;
16 gauge wire may be used for short runs of about 8 feet or less.
CONNECTION OPTION #1 -Using The Line Input(s):
To use the subwoofer’s LINE INPUT(s) your receiver must have a dedicated "subwoofer output" jack
(sometimes called Sub Out, Low Pass or LFE), or pre-amp left & right channel outputs. If your receiver
has these outputs you may connect your subwoofer using standard (coaxially shielded) RCA cable(s)
(the same kind of audio cable used to connect your CD, tape deck, etc.). This method is generally the
easiest to hook-up.

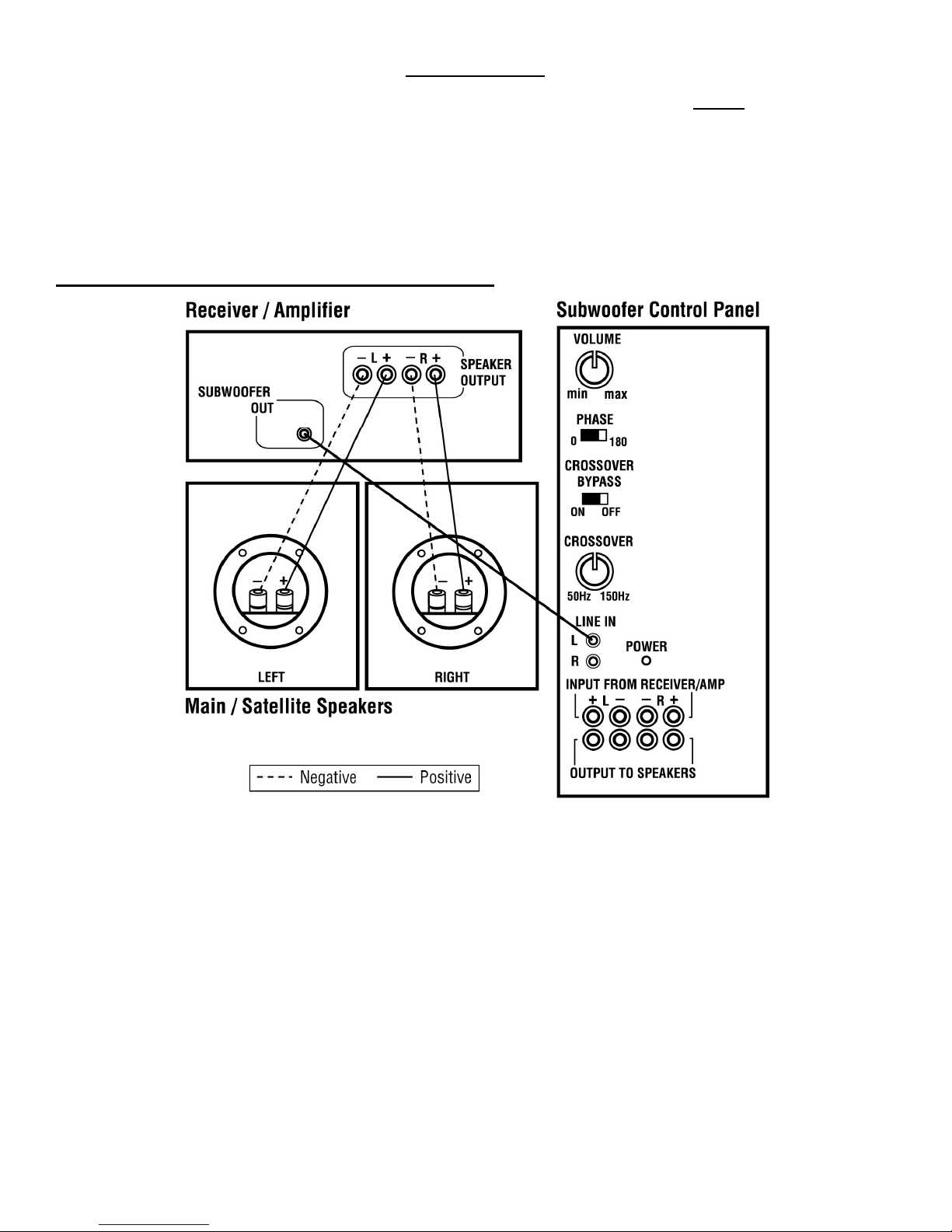

•If your receiver has a subwoofer output jack, simply connect your subwoofer, using the Mono / L Line
Input jack, to the subwoofer output jack on your receiver (refer to the Option #1 wiring diagram above).

4
•If your receiver has no subwoofer output jack but has pre-amp left & right channel outputs you can
connect your subwoofer directly to your receiver's pre-amp outputs using the L & R Line Input jacks. If
your receiver uses jumpers to connect its pre-amp outputs with its amp stage inputs you will need to
acquire two splitter cables (such as Radio Shack # 42-2535) to be able to hookup your sub while
continuing to provide a signal to your receiver's amp stage inputs. Note: Do not connect your
subwoofer to the tape loop outputs from your receiver as they will overdrive its circuitry!
•If you have a Dolby Digital or DTS receiver place the subwoofer's Crossover Bypass switch in the ON
position (this bypasses the Low Pass Filter in the subwoofer). If you do not have a Dolby Digital or
DTS receiver place the subwoofer's Crossover Bypass switch in the OFF position (this activates the
Low Pass Filter in the subwoofer).
•Lastly, wire your left and right front speakers directly to your receiver’s speaker outputs. Please refer
to the Option #1 wiring diagram for further clarification.
CONNECTION OPTION #2 -Using The Binding Post Inputs:

5
There are two reasons to use this connection option. The first is if your receiver has no subwoofer
output jack! The second is if your system would benefit from having the bass filtered out of the main
speakers (if you have a Dolby Digital or DTS receiver you can achieve the same results electronically
simply by configuring your main speakers as SMALL and connecting your sub using an RCA cable -see
Connection Option #1). If you have large main speakers that are capable of reproducing a great deal of
bass on their own then this connection option may not be advantageous to you. If however you have
small main speakers then this method deserves consideration. Since this connection method filters out
the low bass from the main speakers it provides the beneficial effects of increasing their power handling
and improving their clarity.
If you choose to use this connection option, simply run speaker wire from your receiver’s speaker
outputs to the subwoofer inputs marked "Input from Receiver / Amp". Then, wire your left and right front
speakers to the subwoofer outputs marked "Output to Speakers". Please refer to the Option #2 wiring
diagram for further clarification. Place the Crossover Bypass Switch on the subwoofer in the OFF position
(this activates the Low Pass Filter).
POWER-UP AND TONE CONTROL ADJUSTMENTS:
•Plug your subwoofer into any ordinary wall outlet. Since your subwoofer can require up to 800 Watts
of power, do not plug the subwoofer into any outlet that cannot deliver 800 Watts (like those on the
back of other electronic equipment such as your receiver).
•With the VOLUME control at minimum (maximum counter-clockwise position), plug in the subwoofer’s
power cord and turn the power switch on the subwoofer’s control panel to the ON position. The
Auto-on circuitry will automatically turn the unit on (LED turns green) when it receives an audio signal.
It will also automatically turn the unit off (LED turns red) after a few moments without any audio signals.
If for any reason you do not want your subwoofer on, simply turn the power switch to the off position.
•Please ensure that your receiver’s loudness control is off and that the bass tone control is in its middle
(no boost) position. Now play some music with ample bass content. (The following setup routine is
best accomplished with one person seated in a normal listening position directing another to adjust the
controls for the best sound.)
•Adjust the VOLUME level on the subwoofer’s control panel so that the output level of the subwoofer is
satisfactory (relative to your front speakers). If either of your front speakers or subwoofer are not
functioning properly, please refer to the Troubleshooting section toward the end of this manual.

6
•Adjust the PHASE switch on the subwoofer’s control panel to determine which position sounds the
most natural. The difference should be most audible in the mid-bass. If you cannot detect a
difference, leave the PHASE switch in the 0° (in-phase) position.
•If you have placed your subwoofer's Crossover Bypass switch in the OFF position adjust the
CROSSOVER knob and determine what position sounds best. This feature controls the output level of
the mid and upper bass frequencies. Please note that if you have put your subwoofer's Crossover
Bypass switch in the ON position, due to the low pass filter already in your receiver, the subwoofer's
crossover control is unnecessary, will have no effect, and its position can therefore be ignored.
•The best VOLUME level, PHASE switch and CROSSOVER positions will mostly be determined by
your room acoustics and the mid and upper bass frequency response characteristics of your front
speakers. The source material will also play a significant role as its bass level may vary considerably.
•After your initial adjustments you may want to go back and “tweak” these controls. Their effects are
acoustically interrelated. Re-adjusting them may be necessary to obtain optimal performance.
Generally, once you are satisfied with your subwoofer's settings, you can use your receiver’s tone,
equalizer, volume and subwoofer output level controls to optimize your whole system’s performance.
VERY IMPORTANT!
•If you have a Dolby Pro-Logic Home Theater system, make sure that your receiver’s center
channel mode is in the NORMAL position. This will ensure that all low bass information is sent
to your subwoofer.
•If you have a Dolby Digital or DTS Home Theater system, make sure that you have correctly
configured your receiver's Bass Management System so that all of your speakers are properly
categorized as either SMALL or LARGE (please note your receiver's terminology may differ).
This will ensure that all appropriate low bass information is sent to your subwoofer. As a
general rule, a speaker with an 8" or greater diameter woofer may be considered LARGE.
Conversely, a speaker with a woofer less than 8" in diameter may be considered SMALL.
Please note that the bass output of a dual woofer speaker could be comparable to that of a
larger single woofer speaker. Example: A dual 6.5" woofer system would generally be
considered LARGE since its woofer area approximates that of a single 10" woofer system.
•With high volume levels of certain types of signals, the subwoofer may be audibly strained. If
you hear the subwoofer “breaking-up” or distorting, turn your receiver’s volume level down.
•If you have any problems or questions please contact your PINNACLE®dealer for further assistance.

7
TROUBLESHOOTING:
No Sound only from Subwoofer -Please note that this subwoofer has a thermal protection feature which
will shut off its amplifier if it gets too hot; it will turn itself back on when it has cooled sufficiently. Otherwise:
Check subwoofer power / volume settings and all connections. Ensure that the center channel mode on
the receiver is in the NORMAL or SMALL position. If you have connected the subwoofer via RCA cable
and if your receiver has a subwoofer on/off or variable subwoofer output level control, ensure that the
subwoofer option is turned on and that the output level is at maximum. Make sure the RCA cable is
connected to the receiver's subwoofer output and not the subwoofer input jack that some receivers have.
If the problem persists, refer to the TO OBTAIN SERVICE section of your warranty at the end of this
manual.
No Sound only from Left and Right Front Speakers -Check all connections. Ensure that your receiver’s
speaker channel A or B is switched on. Note: You must connect your speakers to your receiver’s speaker
outputs if you connected the subwoofer via the LINE INPUT(s).
Too Much Bass -Check: subwoofer volume / phase / crossover control positions; receiver bass /
loudness controls; program material; move subwoofer further out of corner or away from wall.
Too Little Bass -Check: subwoofer volume / phase / crossover control positions; all speaker wire phase
(+ to +, -to -); receiver tone controls; program material; ensure that the center channel mode on the
receiver is in the NORMAL or SMALL position. If your receiver has a variable subwoofer output level
control, ensure that the output level is at maximum. Try moving the subwoofer further into a corner or
towards the wall. If you have connected the subwoofer via a single RCA cable you may want to try using
a cable splitter (such as Radio Shack part #42-2535). This will allow you to use both line inputs which will
increase the input signal strength to the subwoofer.
Rattling Noise: Tighten the binding posts on the sub’s speaker level inputs & outputs. Check all four of
the Solid Brass Isolation Cones to ensure they are making solid contact with the floor.
Hum:Check for faulty RCA connecting cable. Try to separate RCA cables from power cords (they can
induce hum into the system). If that doesn't work we recommend you turn off your subwoofer when it is
not in use. This is most easily accomplished by connecting its powercord to a switched power outlet.

8
PRODUCT SPECIFICATIONS:
Woofer(s): All subs use the highest quality, heavyweight woofers with butyl surrounds.
SubCompact 6 & S-Fit Cnr Sub 300: (1) 6.5" fibercone woofer with 2" voice coil and 30 oz magnet
SubSonic & CS 66: (2) 6.5" fibercone woofers with 2" voice coils and 30 oz magnets
SubCompact 8 : (1) 8" fibercone woofer with 2" voice coil and 40 oz magnet
Baby Boomer, Baby Boomer Plus, CS 88: (2) 8" fibercone woofers with 2" voice coils and 40 oz magnets
SubCompact 10 : (1) 10" fibercone woofer with 2" voice coil and 50 oz magnet
Sonic 500: (1) 12" polycone woofer with 2.5” voice coil and 50 oz magnet
Digital Sub 600, SuperSonic, UltraSonic: (2) 12" polycone woofers with 2.5” voice coils and 50 oz magnets
Subwoofer Low End Frequency Response:
SubCompact 6, SubSonic, S-Fit Cnr Sub 300, CS 66: -3 dB @ 28 Hz
SubCompact 8: -3 dB @ 27 Hz
SubCompact 10, Sonic 500, UltraSonic: -3 dB @ 25 Hz
Baby Boomer, CS 88, Baby Boomer Plus, Digital Sub 600, SuperSonic : -3 dB @ 23 Hz
Variable Subwoofer Low Pass Filter: Fourth Order from 50 -150 Hz
System: SubCompact 6, 8 & 10, S-Fit Cnr Sub 300, CS 66, CS 88, Sonic 500 -Acoustic Suspension
SubSonic, Baby Boomer, Baby Boomer Plus, UltraSonic -Acoustic Suspension/Bipole Configuration
Digital Sub 600 & SuperSonic -Compound Compression
Dimensions:SubCompact 6: 7 7/8" x 8" x 9 3/8" whd, SubCompact 8: 9 7/8" x 10" x 11 3/8" whd
SubCompact 10: 11 3/4" x 11 7/8" x 12 15/16" whd
S-Fit Cnr Sub 300: 8 3/4” x 9 3/4” Footprint x 12 3/8” Tall
CS 66: 10 3/4” x 11 3/4” Footprint x 14 1/4” Tall, CS 88: 12 3/8” x 13 3/8” Footprint x 17” Tall
SubSonic: 9 1/4” x 8” x 9 3/8” whd, Baby Boomer / Plus: 11 1/4” x 10” x 11 3/8” whd
Digital Sub 600: 14 1/4" x 15" x 16 3/8" whd, Sonic 500 & SuperSonic: 15" x 15" x 16 15/16" whd
UltraSonic: 15 3/4" x 22 7/16" x 16 1/16" whd
Weight: SubCompact 6 -16 lbs. / S-Fit Cnr Sub 300: 18 lbs. / SubCompact 8 -21 lbs. / SubSonic -22 lbs.
CS 66 -24 lbs. / SubCompact 10 -28 lbs / Baby Boomer & Baby Boomer Plus -30 lbs.
CS 88 -31 lbs. / Sonic 500 -47 lbs. / Digital Sub 600 -50 lbs.
SuperSonic -58 lbs. / UltraSonic -65 lbs.
Amplifier Power: SubCompact 6 -200 Watts; S-Fit Cnr Sub 300 & SubCompact 8 -300 Watts
SubSonic, CS 66 -350 Watts; SubCompact 10 -400 Watts; Sonic 500 -500 Watts
Baby Boomer & Digital Sub 600 -600 Watts; CS 88 -700 Watts
Baby Boomer Plus, SuperSonic, UltraSonic -800 Watts
Power Requirements: AC 120 V, 60 Hz, 800 Watts Maximum

9
LIMITED WARRANTY:
What Is Covered
Your Pinnacle®subwoofer features a limited warranty as follows. The subwoofer driver(s) and all
assembly and construction aspects are covered by this warranty for a period of seven (7) years from the
date of original purchase. Your subwoofer amplifier is covered by this warranty for a period of two (2)
years from the date of original purchase. The warranty covers all necessary parts and labor to return the
subwoofer to proper working order. Cabinet surfaces, grille assembly, and other exterior parts subject to
normal wear and tear are not covered except where an inherent structural defect becomes evident.
Parts replacement and labor will be performed at the discretion of Pinnacle Loudspeakers and will be
provided free of charge unless (in the opinion of our service department, service representatives, or
engineering department) the system has failed due to abuse or negligent operation.
What Is Not Covered
This warranty will be void and no free services performed if we or any party acting as our agent
determines that the system has had any of its elements (amplifier, woofer, etc.) removed or tampered with
in any way whatsoever. Furthermore, if your subwoofer is not found to be defective a service charge will
be levied. In either case the minimum charge will be $30.00. An additional charge will be applicable for
same day service where possible and this charge will always be in effect even if the actual parts and labor
are covered by this warranty. Pinnacle Loudspeakers reserves the right to make the final determination of
whether or not the system has been damaged by abuse or negligent operation.
To Obtain Service
To obtain service under this warranty, either contact your Pinnacle®dealer or us directly at [phone]
or [email protected]. If you ship your subwoofer you are responsible for packing and
shipping insurance. The freight must be prepaid. We will, however, pay return freight charges on any
returned subwoofer that qualifies for in-warranty service. Sorry, we cannot accept any collect freight
charges. You must include a note, attached to the unit, with your name, phone number or email address,
and return shipping address (no Post Office boxes), indicating the nature of the problem you are
experiencing. For warranty service you must also include a copy of your dated sales receipt. YOU MUST
FIRST CONTACT US FOR THE CUSTOMER SERVICE SHIPPING ADDRESS IN YOUR AREA IF YOUR
DEALER IS NOT EQUIPPED FOR THIS SERVICE. Please be sure to pack any items you ship us
carefully since we cannot be held responsible for damages incurred during shipping.
This warranty may be transferred to a subsequent owner.
SAVE YOUR ORIGINAL SHIPPING CARTON AND PACKING MATERIALS, AS WELL AS THIS
WARRANTY AND YOUR SALES RECEIPT. YOU WILL NEED THEM TO OBTAIN SERVICE UNDER
THE PROVISIONS OF THIS LIMITED WARRANTY.

1 Fairchild Court Suite 140
Plainview, NY 11803
Tel. [phone], Fax. [phone]
[email protected]
http://www.pinnaclespeakers.com
PR MAN QB REV0508
