Pioneer AVH-X1700S/XNUC User manual

ORDER NO.
PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2014
AVH-X1700S/XNUC
CRT5617
DVD RDS AV RECEIVER
AVH-X1700S /XNUC
AVH-X1700DVD/XNUW5
AVH-X1750DVD/XNRC
AVH-X1750DVD/XNRD
AVH-X1750DVD/XNRI
AVH-X1790DVD/XNID
This service manual should be used together with the following manual(s):
Model No. Order No. Mech.Module Remarks
CX-3311 CRT5651 LS2.5 DVD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly,
Diagnosis Flowchart
K-ZZZ OCT. 2014 Printed in Japan

AVH-X1700S/XNUC
2
1234
1234
C
D
F
A
B
E
SAFETY INFORMATION
Where in a manufacturer’s service documentation, for example in circuit diagrams or lists
of components, a symbol is used to indicate that a specific component shall be replaced only
by the component specified in that documentation for safety reasons, the following symbol shall
be used:
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
-Safety Precautions for those who Service this Unit.
When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
WARNING!
The AEL (accessible emission level )of the laser power output is less than CLASS 1
but the laser component is capable of emitting radiation exceeding the limit for
CLASS 1.
A specially instructed person should do servicing operation of the apparatus.
CAUTION
This product is a class 1 laser product classi-
fied under the Safety of laser products, IEC
60825-1:2007, and contains a class 1M laser
module. To ensure continued safety, do not re-
move any covers or attempt to gain access to
the inside of the product. Refer all servicing to
qualified personnel.
CAUTION—CLASS 1M INVISIBLE LASER
RADIATION WHEN OPEN, DO NOT VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive
harm.
Health & Safety Code Section 25249.6 - Proposition 65

AVH-X1700S/XNUC 3
5678
5678
C
D
F
A
B
E
Additional Laser Caution
Transistors Q1103 and Q1104 in PCB drive the laser diodes for DVD and CD
respectively. When Q1103 or Q1104 is shorted between their terminals,
the laser diodes for DVD or CD will radiate beam. If the top cover is removed
with no disc loaded while such short-circuit is continued, the naked eyes may
be exposed to the laser beam.
Laser diode characteristics
Wave length:
DVD:660 nm to 670 nm
CD:780 nm to 800 nm
Focus lens on Maximum output:
CD:6.26 mW(Emitting period :9 sec.)
DVD:1.27 mW (Emitting period : unlimited)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replaced only with the same or equivalent type recommended by the manufacturer.
Discord used batteries according to the manufacturer's instructions.

AVH-X1700S/XNUC
4
1234
1234
C
D
F
A
B
E
CONTENTS
SAFETY INFORMATION..................................................................................................................................... 2
1. SERVICE PRECAUTIONS ............................................................................................................................... 6
1.1 SERVICE PRECAUTIONS......................................................................................................................... 6
1.2 NOTES ON SOLDERING .......................................................................................................................... 8
2. SPECIFICATIONS ............................................................................................................................................ 8
2.1 SPECIFICATIONS...................................................................................................................................... 8
2.2 DISC/CONTENT FORMAT ........................................................................................................................ 8
3. BASIC ITEMS FOR SERVICE.......................................................................................................................... 9
3.1 CHECK POINTS AFTER SERVICING....................................................................................................... 9
3.2 PCB LOCATIONS .................................................................................................................................... 10
3.3 JIGS LIST ................................................................................................................................................ 11
3.4 CLEANING............................................................................................................................................... 11
4. BLOCK DIAGRAM.......................................................................................................................................... 12
4.1 OVERALL CONNECTION DIAGRAM...................................................................................................... 12

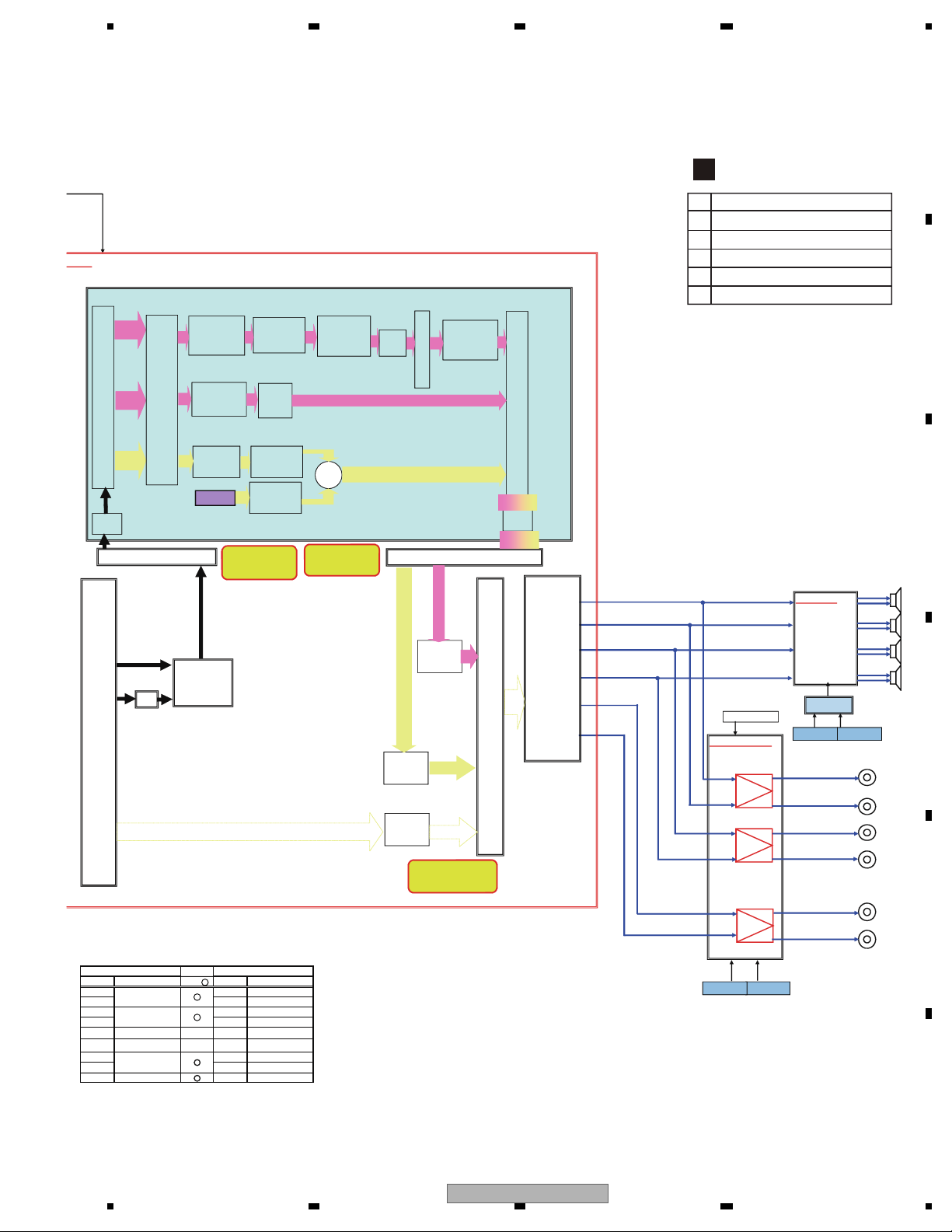

4.2 BLOCK DIAGRAM ................................................................................................................................... 14

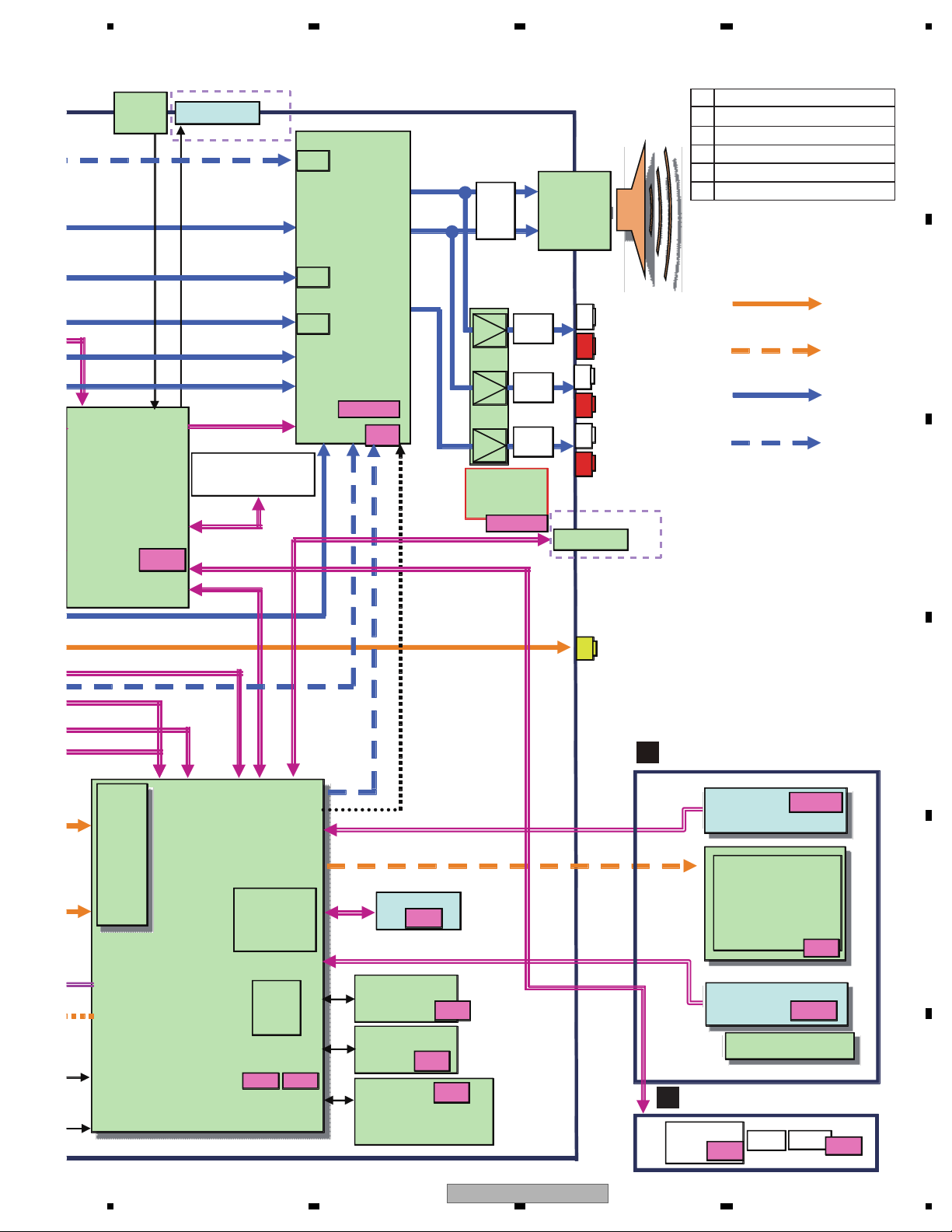

4.3 POWER SUPPLY SYSTEM FIGURE....................................................................................................... 20
5. DIAGNOSIS.................................................................................................................................................... 26
5.1 OPERATIONAL FLOWCHART ................................................................................................................ 26
5.2 INSPECTION METHOD OF PICKUP UNIT............................................................................................. 27
5.3 DIAGNOSIS FLOWCHART...................................................................................................................... 30
5.4 ERROR CODE LIST ................................................................................................................................ 30
5.5 CONNECTOR FUNCTION DESCRIPTION............................................................................................. 33
6. SERVICE MODE ............................................................................................................................................ 34
6.1 MONITOR TEST MODE .......................................................................................................................... 34
6.2 DVD TEST MODE.................................................................................................................................... 52
6.3 DVD MECHANISM TOUCH PANEL TEST MODE................................................................................... 57
7. DISASSEMBLY............................................................................................................................................... 58
8. EACH SETTING AND ADJUSTMENT ........................................................................................................... 62
8.1 DVD ADJUSTMENT................................................................................................................................. 62
8.2 SERIAL NUMBER EDIT........................................................................................................................... 67
8.3 PCL OUTPUT CONFIRMATION.............................................................................................................. 67
9. EXPLODED VIEWS AND PARTS LIST.......................................................................................................... 68
9.1 PACKING ................................................................................................................................................. 68
9.2 EXTERIOR (1) ......................................................................................................................................... 70
9.3 EXTERIOR (2) ......................................................................................................................................... 72
9.4 DVD MECHANISM MODULE (1) ............................................................................................................. 74
9.5 DVD MECHANISM MODULE (2) ............................................................................................................. 76
10. SCHEMATIC DIAGRAM ............................................................................................................................... 78
10.1 MOTHER PCB (VEHICLE IF) ................................................................................................................ 78
10.2 MOTHER PCB (PWR OTHER) .............................................................................................................. 80
10.3 MOTHER PCB (2chDC/DC)................................................................................................................... 82
10.4 MOTHER PCB (1chDC/DC)................................................................................................................... 84
10.5 MOTHER PCB (SYSCOM) .................................................................................................................... 86
10.6 MOTHER PCB (GERDA) (1/2 scale) ..................................................................................................... 88
10.7 MOTHER PCB (AVSEL) ........................................................................................................................ 90
10.8 MOTHER PCB (OPAL)........................................................................................................................... 92
10.9 MOTHER PCB (PWR-IC)....................................................................................................................... 94
10.10 MOTHER PCB (TUNER POWER)....................................................................................................... 96
10.11 MOTHER PCB (LITHIO) ...................................................................................................................... 98
10.12 MOTHER PCB (PWR USB) ............................................................................................................... 100
10.13 MOTHER PCB (LS2.5 IF) .................................................................................................................. 102
10.14 MOTHER PCB (EXT I/F) (1/2 scale).................................................................................................. 104
10.15 SERVICE UNIT (MONITOR) (PCB I/F).............................................................................................. 106
10.16 SERVICE UNIT (MONITOR) (LED BL) .............................................................................................. 108
10.17 SERVICE UNIT (MONITOR) (LCD PW) ............................................................................................ 110
10.18 SERVICE UNIT (MONITOR) (LCD I/F) .............................................................................................. 112
10.19 DVD CORE UNIT (1/2 scale) ............................................................................................................. 114
10.20 INTERFACE PCB (1/2 scale)............................................................................................................. 116
10.21 SERVICE UNIT (KEYBOARD)........................................................................................................... 118
10.22 WAVEFORMS.................................................................................................................................... 120
11. PCB CONNECTION DIAGRAM ................................................................................................................. 122
11.1MOTHER PCB ..................................................................................................................................... 122
11.2 SERVICE UNIT (MONITOR)................................................................................................................ 126
11.3 DVD CORE UNIT ................................................................................................................................. 130

AVH-X1700S/XNUC 5
5678
5678
C
D
F
A
B
E
11.4 INTERFACE PCB .................................................................................................................................132
11.5 SERVICE UNIT (KEYBOARD) .............................................................................................................134
12. ELECTRICAL PARTS LIST .........................................................................................................................135

AVH-X1700S/XNUC
6
1234
1234
C
D
F
A
B
E
1. SERVICE PRECAUTIONS
1.1 SERVICE PRECAUTIONS
1. You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.
2. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by electrostatic
induction.
3. Please be sure to conduct line process to original status if you make assembling after repair.
4. Please be careful of not to imply static charge onto integrated circuits, etc, when you conduct repair work.
Especially, please use soldering iron with its tip grounded.
Also, please use a pair of tweezers with static charge protection capability if there is the possibility of contacting to
device terminals, and avoid the use of metal-made tweezers.
5. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors during power-on
mode may damage the ICs inside the unit.
6. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment (shorting-solder)
by referring to "the DISASSEMBLY".
7. Please keep the distance of more than 13 cm from focus lens for safety when you check pickup and make adjustment,
and do not look straight at Laser Beam for more than 10 seconds.
8. Please power adjustment when you replaced mechanical area of DVD Mecha Module or DVD core unit.
9. On this mechanism, Pickup and Spindle Motor can not be replaced at the service site, because a special facility is
required for the adjustment after replacing them.
So, if Pickup or Spindle Motor is defective, replace the Mechanism Unit.
10. The part listed below is difficult to replace as a discrete component part.
When the part listed in the table is defective, replace whole Assy.
Unit No. Part No. Reason
Mother PCB IC351 KBD9876EFJ Heat pad
IC601 MN1AA9010Z
Heat pad, Terminal pitch is narrow
(0.4 mm)
IC891 337S3959 Heat pad
IC1201 PM9014A Heat pad
IC2201 TEF6686HN Heat pad
IC3191 STCC2540IQ Heat pad
Service Unit(Monitor) IC5001 AK4187VN Heat pad
IC5101 OZ527ILN Heat pad
IC5201 R1290K103A Heat pad
11. EJECT LOCK MODE for DVD mechanism
< Procedure >
To enter EJECT LOCK MODE : Reset start while pressing [VOL+] key and [REVERSE] key.
To exit EJECT LOCK MODE : Follow the same steps to enter this mode.

AVH-X1700S/XNUC 7
5678
5678
C
D
F
A
B
E
MOTHER PCB
MOTHER PCB

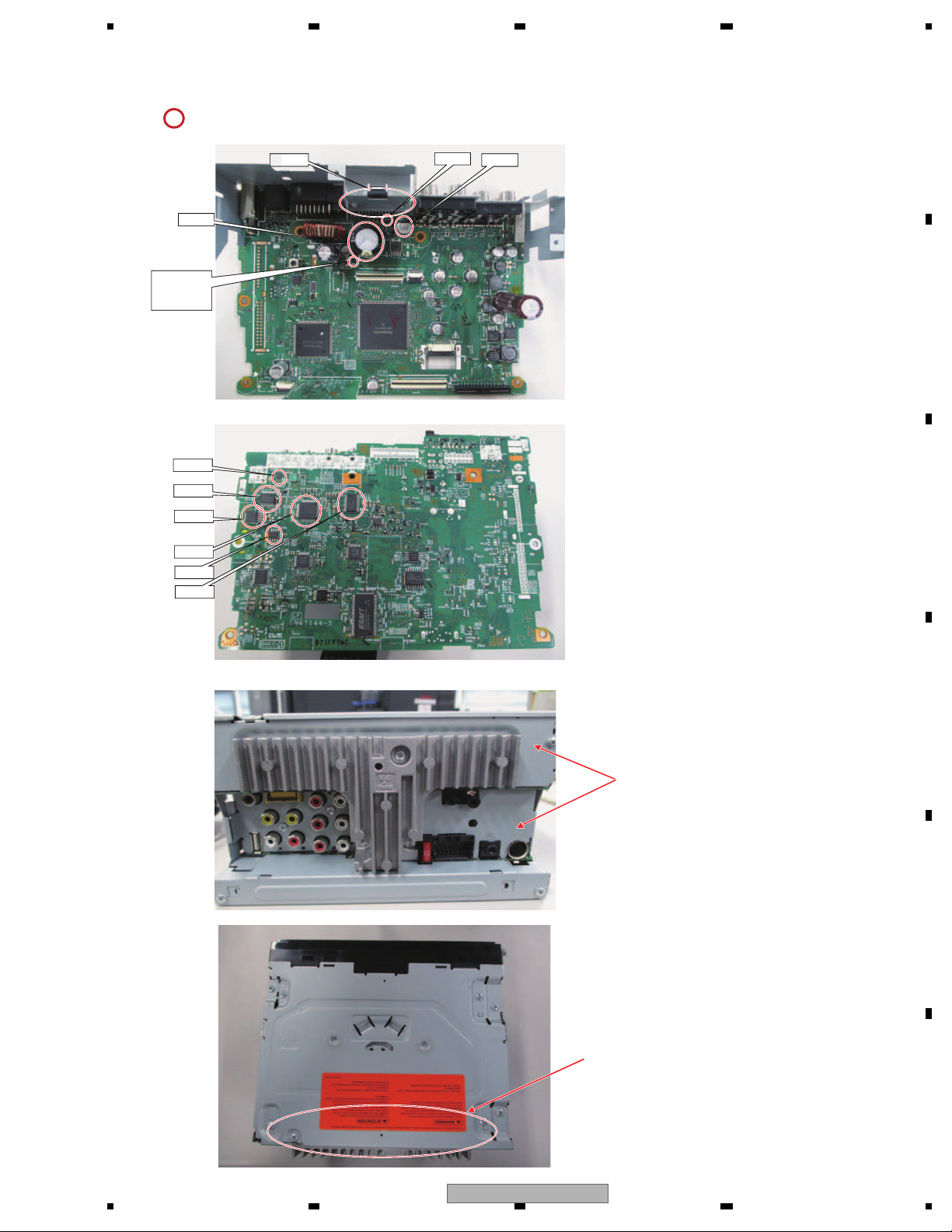

12. area and a heat sink becomes hot areas. Be careful not to burn yourself.
1F & 2F Rear Holder
LS2.5 DVD Mechanism Module Top Case
IC3191
IC2401
C1306
C1313
IC1271
IC1201
IC351
IC160
C1317
P2001
SXi
Model only
IC1301

AVH-X1700S/XNUC
8
1234
1234
C
D
F
A
B
E
1.2 NOTES ON SOLDERING
2. SPECIFICATIONS
2.1 SPECIFICATIONS
2.2 DISC/CONTENT FORMAT
For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit.
Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs
accompanied by reworking of soldering.
Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 C.
Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 C in general, although
the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of
the soldering iron.
Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting
temperatures (hard to melt/easy to harden).
The following lead-free solders are available as service parts:
Parts numbers of lead-free solder:
GYP1006 1.0 in dia.
GYP1007 0.6 in dia.
GYP1008 0.3 in dia.
For all items except the backup current, refer to the Owner's Manual.
Backup current......................... 5.0 mA or less
is a trademark of DVD Format/Logo Licensing Corporation.

AVH-X1700S/XNUC 9
5678
5678
C
D
F
A
B
E
3. BASIC ITEMS FOR SERVICE
3.1 CHECK POINTS AFTER SERVICING
To keep the product quality after servicing, please confirm following check points.
No. Procedures Item to be confirmed
1 Confirm whether the customer complain has
been solved.
If the customer complain occurs with the
specific media, use it for the operation check.
The customer complain must not be
reappeared.
Display, video, audio and operations must be
normal.
2 DVD Measure playback error rates at the
innermost and outermost tracks by using the
test mode with the following disc.
DVD test disc (TDV-582)
Deterioration of mecha-drive can be
checked.
The error rate must be less than the
threshold value.
(Refer to the chapter of DIAGNOSIS for the
threshold value.)
3 DVD Play back a DVD.
(Menu operation; Title/chapter search)
Display, video, audio and operations must be
normal.
4 CD Play back a CD.
(Track search)
Display, audio and operations must be
normal.
5 FM/AM tuner Check FM/AM tuner action.
(Seek, Preset)
Switch band to check both FM and AM.
Display, audio and operations must be
normal. * If the reception sensitivity is poorer
than normal, the gasket on the FM/AM tuner
unit may be damaged or lost.
6 Check whether no disc is inside the product. The media used for the operating check must
be ejected.
7 Appearance check No scratches or dirt on its appearance after
receiving it for service.
For check items concerning image and voice, please refer to the followings:
Check items concerning image Check items concerning voice
Block-noise Distortion
Crosscut noise Noise
Dot noise Low volume
Distorted image (Image skip) High volume
Low brightness Changes in level
Too bright Pause of sound
Color fading
Partial discoloration

AVH-X1700S/XNUC
10
1234
1234
C
D
F
A
B
E
3.2 PCB LOCATIONS
EService Unit (Keyboard)
BService Unit (Monitor)
AMother PCB
CDVD Core Unit
DInterface PCB
A:AVH-X1700S/XNUC
B:AVH-X1700DVD/XNUW5
C:AVH-X1750DVD/XNRC
D:AVH-X1750DVD/XNRD
E:AVH-X1750DVD/XNRI
F:AVH-X1790DVD/XNID
Service Unit(Mother I/F)
Consists of
Mother PCB
Interface PCB
Unit Name : Service Unit(Mother I/F)
Unit Number : CXX7266(A)
Unit Number : CXX7267(B)
Unit Number : CXX7268(C)
Unit Number : CXX7269(D)
Unit Number : CXX7270(E)
Unit Number : CXX7271(F)
Unit Name : Service Unit(Monitor)
Unit Number : CXX7273
Unit Name : DVD Core Unit
Unit Number : CWX4609
Unit Name : Service Unit(Keyboard)
Unit Number : CXX7275

AVH-X1700S/XNUC 11
5678
5678
C
D
F
A
B
E
3.3 JIGS LIST
3.4 CLEANING
-Grease List
-Jigs List
Name
Grease
Grease
Grease
Jig No.
GEM1024
GEM1038
GEM1045
Remarks
DVD Mechanism Module
DVD Mechanism Module
DVD Mechanism Module
Disc(DVD-Video) TDV-582 Skew adjustment, Check points after servicing,
Inspection method of Pickup Unit
Disc(CD-DA) TCD-782 Inspection method of Pickup Unit
30P FFC GGD1222 DVD CORE UNIT <–> MOTHER PCB
Name Jig No. Remarks
Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools:
Portions to be cleaned Cleaning tools
DVD pickup lenses Cleaning liquid : GEM1004
Cleaning paper : GED-008

AVH-X1700S/XNUC
12
1234
1234
C
D
F
A
B
E
4. BLOCK DIAGRAM
4.1 OVERALL CONNECTION DIAGRAM
JA4003
CKS6437-A
2
3
1
JA
CK
12
JA3101
CKN1106-A
1 2 3 4
YKS5041-A
JA2201
12
3
TFT
FM/AM
TOUCH PANEL
ANT
WIRED REMOTE
POWER SUPPLY
BT
BT MODULE
AUX
YEK5001-A
CWX
CSX1234
SXi
YWX5055
iData Link
18 17
1
1SEG DTV
TUNER
CWE2519-A
10
1 1 4
1
15
1
15
50 1
JA4002
CKS6497-A
CN4002
CKS6603-A
1
30
1
JA1
CKM1613-A
CN3201
CKS6638-A
CN2901
CKS6364-A
112
24 13
60
CN5301
CKS6646-A
1 1 4
CN5001
CKS6625-A
NM
N
CN2501
VKN1620-A
1
30
CN1952
CKS6025-A
C
DVD CORE UNIT
A
MOTHER PCB
GERDA
6/16
A
SYSCOM
5/16
A
1chDC/DC
4/16
A
2chDC/DC
3/16
A
PWR OTHER
2/16
A
VEHICLE IF
1/16
A
L
12/16
A
H
11/16
A
T
10/16
A
PW
9/16
A
O
8/16
A
AV
7/16
A
D
INT
B
SERVICE UNIT
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST".
A

AVH-X1700S/XNUC 13
5678
5678
C
D
F
A
B
E
JA4004
2 1
03
AJA4001
CKN1101-A
2
3
1
TFT LCD
NAVI/TV INTERFACE
B. CAMERA
INPUT
PRE OUT
RCA V IN OUT
EMOTE BT MIC
DULE
USB IF
CWX4348
5055
CKS1825-A
1
26
150
CN4001
CKS4497-A
60 1
8 1
8 1 4
CN4004
CKS6605-A
CN3051
CKS6645-A
JA3161
CKB1113-A JA3151 CKB1110-A JA3191 CKN1097-A
901
64-A
12
13
CN3202
CKS6646-A
CN5003
CKS6646-A
1
5301
6646-A
60
CN5002
CKS6635
CN5004
CKS6635-A
CN5501
CKS6421-A
BACKLIGHT
NM
SERVICE UNIT(MOTHER I/F)
Consists of
MOTHER PCB
INTERFACE PCB
LITHIO
12/16
A
HD/DAB(Not used)
11/16
A
TUNER POWER
10/16
A
PWR-IC
9/16
A
OPAL
8/16
A
AVSEL
7/16
A
BT(Not used)
16/16
A
EXT I/F
15/16
A
LS2.5 IF
14/16
A
PWR USB
13/16
A
D
INTERFACE PCB
RVICE UNIT(MONITOR)
E
SERVICE UNIT
(KEYBOARD)
AAVH-X1700S/XNUC
BAVH-X1700DVD/XNUW5
CAVH-X1750DVD/XNRC
DAVH-X1750DVD/XNRD
EAVH-X1750DVD/XNRI
FAVH-X1790DVD/XNID

AVH-X1700S/XNUC
14
1234
1234
C
D
F
A
B
E
4.2 BLOCK DIAGRAM
A
NM
NM
NM
HD-TUN UNIT
DAB-TUN UNIT
X-2069
B.CAMERA
BT MIC IN
VCR IN
AUX Jack
V,L/R or AEQ
BT MODULE
Pioneer(SUNTEC)
System
uCOM
MN103LF15RXW
IC401
AV SEL
AK4223VQ
IC1101
(Ain 6ch,
Vin 6ch,
Aout 2ch
Vout 2ch)
Navi/TV-Tuner
NAVI
H/Abox
26pin
DV5
MN2DS001
IC1501
8MAUB
AV Dec
& OSD
LS2.5
V-DEC
USB
VDD3
SYS+B
VD5V
VD8V
1.1V
3.3V
USB5V
3.3V 1.8V
UART
UART
UART
UART
USB 5V
DDC+SW USBCONT
USBFLG
DAC
DABANT
TV/ AUDIO
NAVI GUIDE
C.VIDEO
Sxi
1Seg ANT
TUNER
Lithio/LithoDR
TUN3.3V
UART
- RGB
- Composite
TV
Navigation
1segDTV
(ISDB-T)
JASO ANT
12V
VENC
IC901
AK8814VQ
VVCC33
I2C
I2C
5 3 Converter
3.3V
SPI
A-RGB
Leaning
SWC
I2C
UART
CDP
IECOUT(S/PDIF)
REAR
AEQ/ATA
SEL
YCbCr
Front
Rear
UART
COMPOSITE
AMOTHER PCB
A
DVD CORE UNIT
C
-SYSTEM BLOCK DIAGRAM
NM
JA4003
JA2201
JA4001
CN4001
JA4002
JA3151
JA4004
JA3101
JA3191

AVH-X1700S/XNUC 15
5678
5678
C
D
F
A
B
E
A
A
BCDEF
AAVH-X1700S/XNUC
BAVH-X1700DVD/XNUW5
CAVH-X1750DVD/XNRC
DAVH-X1750DVD/XNRD
EAVH-X1750DVD/XNRI
FAVH-X1790DVD/XNID
Serial Flash
8MB
2MB
Serial Flash
16MB
SP
FRONT
REAR
FRONT
REAR
SW
FRONT
PREOUT
REAR
PREOUT
SW OUT
P.AMP
PA2032A
System
uCOM
MN103LF15RXW
IC401
MN1AA9010Z
IC601
GERDA3
Graphics
&Audio
&Video
LCD
6.2inch
WVGA
(800×480)
V-DEC
SDRAM
32MB
E-VOL
PM9014A
IC1201
VDD33
5.8V
VDD33
1.13V3.3V
3.3V
iPod CPIC
3.3V
RGB ILM
ILMB KEY REM
3.3V
AMP
MUTE
AMP
MUTE
AMP
MUTE
AMP
MUTE
DRIVE UNIT
UART
SPI 4 line
ASENS, BSENS, TELMUTE,
BGSENS, ISENS, PBSENS,
MICSENS, BGSENS
iDataLink
3.3V
I2C
Back light
OZ527ILN
DD8
built-in
SRAM
8MB
Multi-touch panel
3.3V
Touch Panel
REAR
VOUT
(
I2C
Analog
AUDIO
Analog
VIDEO
Digital
VIDEO
Digital
AUDIO
Mix
C
HighOut AMP
(NJW1240V)
4Vrms
SPDIF
RGB666
UART
Leaning
SWC
MCLK
3.3V
REAR
AEQ/ATA
SPDIF
Mix
I2S
3.3V
12V
Mix
KDT/PWM
SERVICE UNIT(MONITOR)
B
SERVICE UNIT(KEYBOARD)
E
NM
IC1301
JA4003
JA3161
CN4002
JA3151

AVH-X1700S/XNUC
16
1234
1234
C
D
F
A
B
E
A
E-VOL.IC Input Table
E-VOL_Analog INPUT
PIN NO CH *3
64,17 1
1,16 2
AVSEL Input Table 2,15 3
ISO 3,14 4
CH ON-> 4,13 5
15,12 6
26,11 7 *1
37,10 8 *1
4
8,9 9 *2
5
6
SOURCE
Sxi
Tuner(Lithio)
AV Selecter_INPUT OUTPUT Level Control [dB]
SOURCE OUT1(Front) OUT2(Rear) AVSEL
-00
AEQ/ATA MIC
-00
VCR -6 0 iphone/TV
AUX 00 RGB NAVI
-00
DTV(for BR) 0 0
Source
TUN_L
TUN_R
Analog(Main) Digital(Main)
AUX_L
AUX_R
DVD Mecha
LS2.5
CXK8101
H/A box
i-pod
26pins Navi/RGB
Connector
USB
BT Module
Pioneer BT Module
BT
RF : Far Voice
RF : Near Voice
Auto EQ Auto TA
MIC
SXi
AV_LOUT1
AV_ROUT1
AV SELECTOR
AK4223VQ
IC1101
CH3_L
CH3_R
ISO
CH6_L
CH6_R
CH5_L
CH5_R
OUT2
(Rear)
REARLOUT
REARROUT
OUT1
(Front)
CH1_L
CH1_R
ISO
CH4_L
CH4_R
ISO
ISO
ISO
CH2_L
CH2_R
ISO
AUX
VCR_L
VCR_R
Peripheral
Circuit
Devices
New
or
Current
VCR IN
MIC
TUNER Module
HD/DAB -TUN UNIT
X-2062
CWE2517-(DAB)
U2101
CWE2518-(HD)
AM/FM -TUN
LITHIO
IC2201
SOC
GERDA 3
IC601
Navi guide (MONO)
TV Audio
1-seg DTV
VCR_L
VCR_R
AUX_L
AUX_R
iTV_L
iTV_R
ONSEI2+/ONSEI2-
BUSL+/BUSL-
BUSR+/BUSR-
AEQMICIN
IECOUT(S/PDIF)
ATT
AMUTE
MUTE
SOCMUTE
DTV_L
DTV_R
DTV_L
DTV_R
Control,
Data
AUDIO_MCK
Analog(Mixing)
Analog(Main
Mixing Select) Digital(Main
Mixing Select)
S/PDIF
D+/D-
MUTE
NM
NM
NM
14
INBP4R
1
INAP2L
16
INAP2R
4
INCN5L
13
INCN5R
64
INAN1L
17
INAN1R
15
INBN3R
INBP4L
3
2
INBN3L
5
INCP6L
12
INCP6R
6
INDN7L
11
INDN7R
7
INDP8L
10
INDP8R
8,9
INMN
INPN
E-VOL IC
OPAL(PM9014A)
IC1201
Analog INPUT/MIXING SELECTOR
MIXING
ISO
DSP Part
ADC
DSP INPUT SELECTOR
Digital in/out
A
Digital in/out
B
Digital in/out
C
Digital in/out
D
Digital in/out
E
MAIN
souce
Mixing
souce
MAIN
souce2
DC CUT
HPF
Analog Mixing
souce
or
pre ATT
-3dB
(ASR=
ON)
-AUDIO BLOCK DIAGRAM
DVD CORE UNIT
C
*1. INDP7, 8 are set by termi
*2. INMPN and INMN are inp
*3. At single input, receipt of
*4. Digital Audio Input can be

AVH-X1700S/XNUC 17
5678
5678
C
D
F
A
B
E
E-VOL.IC Input Table
E-VOL_Analog INPUT ISO E-VOL_Digital INPUT
NO CH *3 Y-> CH *4 PIN NO
1A
28,29,30
2B31,32,33
3C
35,36,37
4D
45,46,47
5E48,49,50
6-
7 *1 -
8 *1 -
9 *2 -
SOURCE SOURCE
Sxi DVD Mecha
BT
Tuner(Lithio) -
-
AVSEL SOC
AEQ/ATA MIC
iphone/TV
RGB NAVI
FL(61)
FR(20)
RL(60)
RR(21)
Pre OUT
FL
FR
RL
RR
SWL(59)
SWR(22)
SWL
SWR
AMPMUTE
FL±
FR±
RL±
RR±
Power IC
50W×4ch
PA2032
IC1301
AMP OUT
HIOUTCLK
AMPMUTE
HighOut AMP
(NJW1240)
+6dB
IC1271
OFFMUTE
SYSMUTEOFFMUTE
4R
2L
2R
5L
N5R
1L
1R
3R
4L
3L
P6L
6R
7L
7R
8L
8R
OL IC
PM9014A)
1
Analog INPUT/MIXING SELECTOR
MIXINGMIXING
ISO
DSP Part
INPUT Gain
0dB-+36dB
/1dB
ADC DAC
DSP INPUT SELECTOR
X'over/EQ
DVOL(Multi)
(-79-0dB
/0.5dB,-inf)
AVOL(DMix)
(-69-0dB
/1dB,-inf)
DVOL(Boost)
(+36-0dB/
0.5dB,-inf)
in/out
A
in/out
B
in/out
C
n/out
n/out
DVOL(Att)
(-95.5-0dB
/0.5dB,-inf)
DVOL(Boost)
(+36-0dB
/0.5dB,-inf)
BEEP
DC CUT
HPF
BEEP LEVEL
(-79-0dB
/0.5dB,-inf)
MAIN
souce
Mixing
souce
DVOL(Att)
(-95.5-0dB
/0.5dB,-inf) +
Loudness
gain
(0-15dB/1dB)
Bassboost
Gain
(0-12dB/1dB)
Digital OUTPUT SELECTOR
Limiter
MAIN
souce2
Multi IIR
Filer
Fader
(-79-0dB
/1dB,-inf)
AVOL(AMix)
(-63-+6dB
/1dB,-inf)
DC CUT
HPF
Analog Mixing
souce
or
Analog OUTPUT
pre ATT.
-3dB
(ASR=
ON)
DAC Specification
AVDD=5.78V
0dBFS=2Vrms
ADC Specification
AVDD=5.78V
2Vrms=0dBFS
or
MIXING SW is 1ch.
Mixing souce should choose
DMIX or AMIX.
MOTHER PCB
A
AAVH-X1700S/XNUC
BAVH-X1700DVD/XNUW5
CAVH-X1750DVD/XNRC
DAVH-X1750DVD/XNRD
EAVH-X1750DVD/XNRI
FAVH-X1790DVD/XNID
*1. INDP7, 8 are set by terminal resistor common to main source and mixing source (simultaneous use is also available).
*2. INMPN and INMN are input dedicated to mixing. If differential is received by ISOLATOR, they become negative input of INDP8.
*3. At single input, receipt of 8ch by ISOLATOR becomes 4CH.
*4. Digital Audio Input can be also set to output depending on setting of resistor.

AVH-X1700S/XNUC
18
1234
1234
C
D
F
A
B
E
Only
Navi ; A-RGB
MINI
JACK
RGB 26pin CN
Navi /
ATV/
DTV
I/F
Video Output (Analog)
LS2.5
VCR
B.CAMB.CAM
VENC
AK8814VQ
USB
VCR_V
AUX_V
DVD_V
BCAM_IN
V1
V2
V3
AV Selector IC
IC1101
AK4223VQ
Analog Video Signal (composite)
Digital Video Signal
SOC
GERDA3
IC601
MN1AA9010Z-K
V6
D
NEW
V4
V5
ATV/DTV ;
Composite
Navi ; A-RGB
Analog Video Signal (A-RGB or component)
DTV_V
USB±
Hi-Z
ISO
ISO
ISO
ISO
AVSEL:6in2
ISO
-1dB ~ +1dB
0.1dB Step
ISO
LPF
LPF
220
75
75
75
75
100k
6
DIGITAL BT656
8bit
SEL
NJM2283V
75 Hi-Z Hi-Z
0
0
ATV_V
DVD_YCbCr
100k
1seg
DTV
CWE2519-
(for Digital
TV Tuner
model)
0
NM
NM

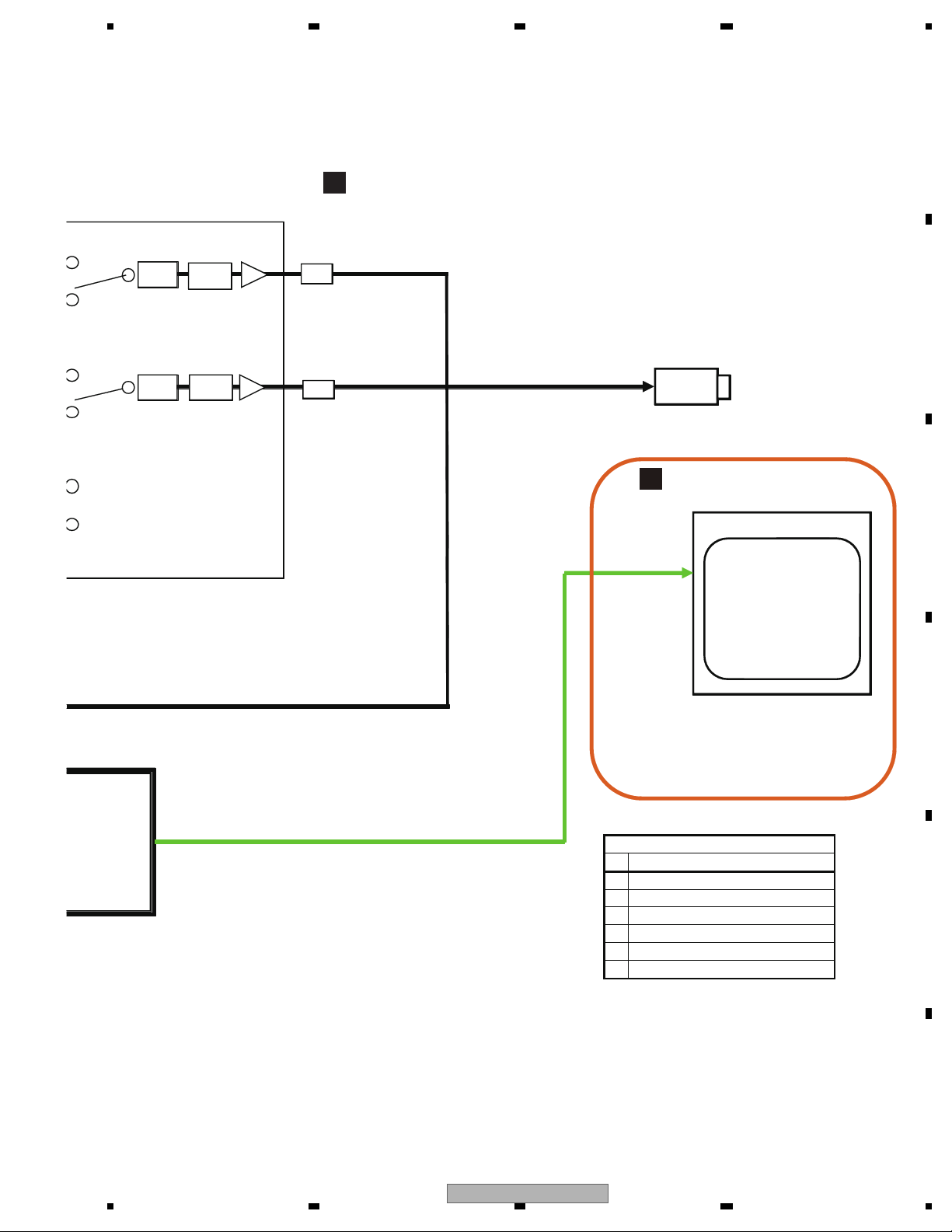

-VIDEO BLOCK DIAGRAM
DVD CORE UNIT
C

AVH-X1700S/XNUC 19
5678
5678
C
D
F
A
B
E
AV SELECTOR INPUT
VIDEO
1 VENC
2 VCR
6 DTV/ATV
3 DVD(LS2.5)
4AUX
5 BCAM_.IN
LCD
WVGA
6.2 inch(CWX4348-)
B.CAM
Rear Monitor Out
Front Monitor Out
AV Selector IC
IC1101
AK4223VQ
0Z-K
RCA_V
MONVBS
D-RGB
D-RGB
0
FRONT
REAR
AVSEL:6in2out
-1dB ~ +1dB,
0.1dB Step
+6dB/+3dB/0
dB/-3dB
LPF
LPF GCA
0dB
+6dB
75
GCA
6bit × 3
6bit × 3
MOTHER PCB
A
SERVICE UNIT(MONITOR)
B

AVH-X1700S/XNUC
20
1234
1234
C
D
F
A
B
E
4.3 POWER SUPPLY SYSTEM FIGURE
B.UP
min3.267V , max3.333V
min VVtyp mA
Typ . VVmax mA
max VVWPd 2.4W
1000µF Iout(MAX)100mA
typ mA min7.92V , max8.08V
max mA
WPd 3125mW
FSMD110-24R-T
Iout(MAX)300mA
BUP
SX12
0.50
NJW4184DL3-08A
45.0
10.8 24.3
15.1
70.0
14.4 49.0
0.58
3.3V VDD33
NJW4181U3-33B
SYSB 8.0V
VD5
DDC33
VD8
DDC33
SYSPW
NM
12 34 5
MOTHER PCB
A
AAVH-X1700S/XNUC
BAVH-X1700DVD/XNUW5
CAVH-X1750DVD/XNRC
DAVH-X1750DVD/XNRD
EAVH-X1750DVD/XNRI
FAVH-X1790DVD/XNID
