PITSOS WXP801B5 User manual

1 2 3 4 5 6
End of programme when ...
... the status indicator cŴƔƝƘƊƍƐ(spin) - büŵžƌƐƒ(end)
flashes.
Interrupting the programme
Programmes at high temperatures:
– Cool washing: Select Rinse.
– Select Start/Pause (ƒƎƂƑƏƈ/ ƂƝƓƈ).
Programmes at lower temperatures:
– Select Spin or Empty.
– Select Start/Pause (ƒƎƂƑƏƈ/ ƂƝƓƈ).
Changing the programme, if ...
... you have selected the wrong programme by mistake:
– Reselect the programme.
– Select Stat/Pause (ƒƎƂƑƏƈ/ ƂƝƓƈ) . The new
programme starts from the beginning.
Correct installation according to the
separate Installation instructions.
Checking the machine
– Never use a damaged machine.
– Inform the after-sales service.
Connecting the mains
plug
Make sure your hands are dry.
Take hold of the plug only.
Turning the tap on
Compartment II: Detergent for the main wash, water softener,
bleach, stain remover
Sorting and loading laundry
Follow the manufacturer's care information.
According to the information on the care labels.
According to type, colour, soiling and temperature.
Do not exceed the maximum load apage 7.
Observe the important information apage 6.
Insert large and small items of laundry.
Close the washing machine door. Take care not to trap items of laundry
between the washing machine door and the rubber seal.
Add detergent and care products
Measure accordingly:
Amount of laundry, soiling, water hardness (ask your water supply
company) and manufacturer's instructions.
Pour liquid detergent into the appropriate dispenser and place in the drum.
Your washing machine
Congratulations on having opted for a modern, high-quality domestic appliance manufactured by
Pitsos. This washing machine is distinguished by its economical energy consumption.
Each machine that leaves our factory has been inspected thoroughly to ensure that it functions properly and
is in perfect condition.
Environmentally friendly waste disposal All packaging must be disposed of in accordance with environmental guidelines.
This appliance is certified in accordance with European Directive 2012/19/CE on the waste electrical and
electronic equipment (WEEE).
This directive provides the framework for the EU-wide collection and reuse of used appliances
Intended use
Contents Page
ʋIntended use .......................................................................................1
ʋProgrammes .......................................................................................1
ʋSetting and adjusting the programme ...........................................3
ʋWashing ...........................................................................................3/4
ʋAfter washing ......................................................................................4
ʋIndividual settings ..............................................................................5
ʋImportant information ........................................................................6
ʋOverview of programmes ................................................................7
ʋSafety instructions .............................................................................8
ʋConsumption values .........................................................................8
ʋBefore washing for the first time/Care ..........................................9
ʋInformation to indicator lights ..........................................................9
ʋMaintenance .................................................................................... 10
ʋWhat to do if... .................................................................................. 11
Preparation Before washing for the first time
Wash once without any laundry apage 9.
Setting and adjusting programmes
Programme selector Start/Pause u(ƒƢƖƥƣƜ/ƖƱƧƓ)
Programme selector for
switching the machine on
and off and for selecting
the programme. Can be
turned in either direction.
Programmes
Detailed overview of programmes apage 7.
ŸƖơƗƖƟƚƥƑ(Cottons) hard-wearing fabrics
+ƆƥưƠƩƧƜ(+ Prewash) hard-wearing fabrics, prewash at
30°C
ƣƒƗƘƖƠơƖ(Rinse) with subsequent spin cycle
ƧƨƱƬƞơƤ(Spin) laundry washed by hand
ƑƢƨƠƜƧƜ(Empty) the rinsing water
ÿƟƑƠƠƞƢƖ(Wool) hand/machine-washable textiles
ƚƩƖƝƓ(Delicates) delicate washable fabrics
ƧƩƢƝƚƨƞƟƑ(Easy-Care) easy-care fabrics
Additional function aIndividual settings,
page 5.
Washing
1
2
Removing the washing
Open the washing machine door and remove the washing.
– Remove any foreign objects - risk of rusting.
– Leave the washing machine door and detergent
drawer open so that any residual water can
evaporate.
Turning the tap off
Not required for AquaStop models aHinweise
Installation Instructions, page 7.
Switching off
Turn the programme selector to stop.
Washing
Detergent drawer with
compartments I,II,~
Compartment ~: Fabric softener, starch
Compartment I: Detergent for pre-wash
ʋfor use in the household only,
ʋfor machine-washable fabrics and hand-washable wool
in detergent solution,
ʋto be operated with cold drinking water and commer-
cially available detergents and care products which are
suitable for use in washing machines.
ʋThe washing machine may be operated by children
from 8 years of age, by persons who have limited phy-
sical, sensory or mental abilities and by persons who
have inadequate experience or knowledge, provided
they are supervised or have been instructed by a res-
ponsible person.
.
– Do not leave children unattended near the
washing machine.
– Children must not play with the appliance.
– Children must not perform any cleaning or
maintenance work without supervision!
– Keep pets away from the washing machine.
Dilute thick fabric softener and fabric conditioner with water.
This prevents blockages.
Individual settings
ʑAdditional functions aand overview of programmes, see page 7.
2(ƘƜƞƐƢv
ơƐƕyƔƞƟƔ)
Additional rinse cycle. For areas with very soft water or for further
enhancing the spin result.
øReduced spin speed.
ʑStart/Pause uFor starting the programme.
Important information
Protecting the washing and the machine
– When measuring the amount of all detergents/additive s and cleaning agents, always check the
manufacturer's instructions.
– Empty pockets.
– Look out for metal items (paperclips, etc.).
– Wash delicates in a laundry bag (tights, curtains, underwired bras).
– Fasten zips, do up any buttons.
– Brush sand out of pockets and collars.
– Remove curtain fittings or place in the laundry bag.
Washing with varying degrees of soiling
Wash new items of clothing separately.
light Do not pre-wash.
If required, pretreat stains. Select programme
Cottons (ŤƂƍƃƂƋƆƑŽ)(eco)ü60°C.
heavy Load less washing.
Select programme Cottons (ŤƂƍƃƂƋƆƑŽ)(eco)ü60°C.
Starching Washing must not be treated with fabric softener
Starching is possible in all wash programmes if liquid starch is used. Pour the starch in
accordance with the manufacturer's instructions into fabric softener compartment ~(rinse first
if necessary).
Dyeing/bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel.
Always follow the dye manufacturer's instructions! Do not use the washing machine for
bleaching clothes!
Additional
function
3

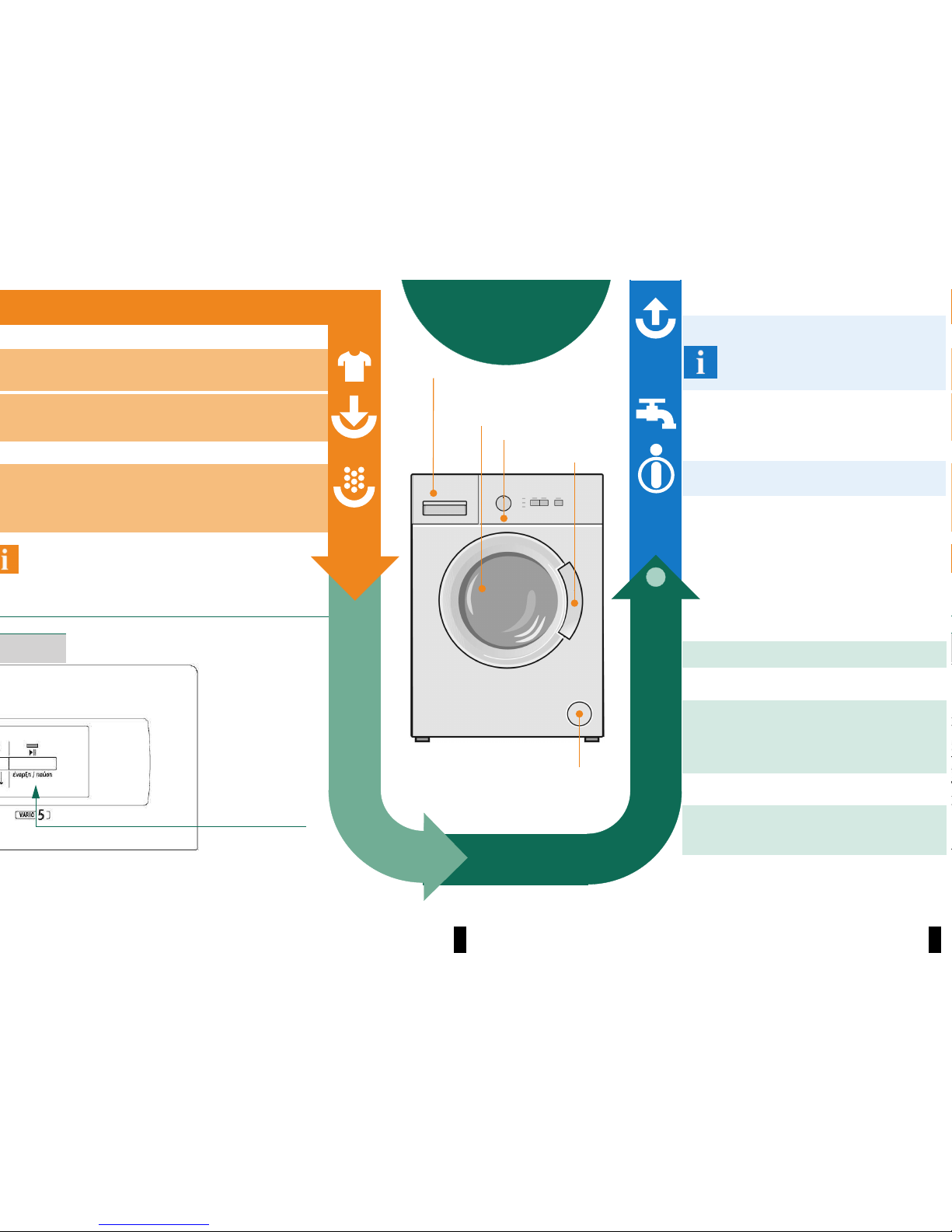

Washing machine door
Service flap
Status
indicators
Control panel
Washing machine
door handle
Environmental protection/Conservation tips
– Always fill the washing machine with a maximum amount of
laundry for the relevant programme.
– Wash normally soiled washing without a pre-wash.
–The selectable temperatures apply to the care labels on
the textiles. The temperatures in the machine may deviate
from this so that you get the optimum mix of energy-saving
and washing results
– Measure the detergent according to the manufacturer's
instructions and water hardness.
– If the laundry is then dried in the tumble dryer, select the
spin speed according to the instructions of the dryer
manufacturer (depending on model).
Select Start/Pause (žƎƂƑƏƈ/
ƂƝƓƈ)u

7
Overview of programmes aRefer to the table of consumption values on page 8 and notes on page 6.
Programmes °C max.
Type of laundry
Additional functions; information
żƚƥƛƚƣƞƩƕ(Cottons) 20, 30, 40, 60, 90 °C 5.5kg/
3,5kg* Hard-wearing fabrics, heat-resistant fabrics made
of cotton or linen ø,2ƞƢƤƖƨvƧƖƛyƚƤƥƚ+ ƩƴƤƭƫƠ(+ Prewash) 60 °C
+ecologic (eco) 40, 60 °C 5.5 kg ƫƭƦơƞƬƢƣƕ(Easy-Care) 30, 40 °C 2.5 kg Easy-care fabrics made of cotton, linen, synthetic
fibres or blended fabrics ø,2ƞƢƤƖƨvƧƖƛyƚƤƥƚƞƭƚơƗ(Delicates) 30 °C
2 kg
For delicate, washable fabrics, e.g. made of silk, satin, synthetic fibres or blended fabrics (e.g. cur- tains) ø,2ƞƢƤƖƨvƧƖƛyƚƤƥƚNo spin between rinse cycles
ơƑƠƠƞƢƖ(Wool)30 °C Handäor machine-washable fabrics made of wool
or containing wool øParticularly gentle wash programme to prevent shrinkage of
laundry. Longer programme breaks (fabrics rest in the detergent solution)
Additional programmes ƣƒƗƘƖƠơƖ(Rinse), ƧƨƱƬƞơƤ(Spin), ƑƢƨƠƜƧƜ(Empty)
*Programmes without prewash - add detergent to compartment II, programmes with prewash - distribute the detergent between compartments Iand II.
9502 / 9001044493 WXP801B5
Pitsos - BSH ƉƢƣƢƚƣƖƪƌƭƫƣƞƭƖƪA.B.E.
17° ƐƤƥ.ſơƦƢƣƗƪƉƝƨƵŻơƠƦƶƦ-
ƅƚƥƘƚƪ& ƊƨƬƚƥƨƵ20
145 64 ƄƠƮƢƫƢƕ,ŻơƗƦƚ
8
Safety instructions
– Read the instruction manual and installation instructions and all other information enclosed
with the washing machine and act accordingly.
– Retain the documents for subsequent use.
Risk of electric shock – Never pull the cable to disconnect the mains plug.
– Never insert/disconnect the mains plug with damp hands.
Danger to life For worn-out appliances:
– Disconnect the mains plug.
– Sever the mains cable and discard along with the plug.
– Destroy the lock on the washing machine door. This will prevent
children from locking themselves in and risking their lives.
Danger of suffocation – Keep packaging, film and packaging parts out of the reach of
children.
Risk of poisoning – Keep detergents and care products out of the reach of children.
Risk of explosion – Items of laundry pretreated with cleaning agents containing
solvents, e.g. stain remover/cleaning solvent may cause an
explosion after being loaded into the washing machine.
Rinse items of laundry thoroughly by hand beforehand.
Risk of injury – The washing machine door can become very hot.
– Be careful when draining hot detergent solution.
– Do not climb onto the washing machine.
– Do not lean on the open washing machine door.
– Do not reach into the drum if it is still rotating.
– Be careful when opening the detergent drawer while the machine
is in operation.
Consumption values
Programme Load Electricity*** Water*** Programme duration***
żƚƥƛƚƣƞƩƕ(Cottons) 20 °C 5.5 kg 0.25 kWh 57 l 1 3/4 h
żƚƥƛƚƣƞƩƕ(Cottons) 30 °C 5.5 kg 0.40 kWh 57 l 1 3/4 h
żƚƥƛƚƣƞƩƕ(Cottons) 40 °C* 5.5 kg 0.75 kWh 57 l 1 3/4 h
żƚƥƛƚƣƞƩƕ(Cottons) 60 °C 5.5 kg 1.20kWh 57 l 2 h
żƚƥƛƚƣƞƩƕ(Cottons) 90 °C 5.5 kg 2.00 kWh 64 l 2 h
ƫƭƦơƞƬƢƣƕ(Easy-Care) 40 °C* 2.5 kg 0.60 kWh 50 l 1 1/2 h
ƞƭƚơƗ(Delicates) 30 °C 2 kg 0.30 kWh 55 l 1h
ơƕƤƤƢƦƚ(Wool) 30 °C 2 kg 0.20kWh 30 l 1h
*Programme setting for testing in accordance with currently applicable EN60456 standard.
Note on comparative tests: When testing the test programmes, wash the specified load using the
maximum spin speed.
Programme Load Annual energy consumption Annual water consumption
żƚƥƛƚƣƞƩƕ(Cottons) Eco 40/60 °C ** 5.5/2.75 kg 182 kWh 9020 l
** Programme settings for testing and energy labelling in accordance with europian standard
2010/30/EU with cold water(15 °C).
***The values may deviate from the specified values depending on water pressure, water hard-
ness, and inlet temperature, ambient temperature, type, amount and level of laundry soiling,
detergent used, fluctuations in the power supply and selection of options.
8
9
Before washing for the first time
Do not load any laundry into the machine. Turn on the tap. Add the following to compartment
II:
– approx. 1 litre water
– detergent (dosage according to the manufacturer's instructions for light soiling and the
appropriate degree of water hardness)
Set the programme selector to ŤƂƍƃƂƋƆƑŽ(Cottons) 60 °C and select Start/Pause (ƒƎƂƑƏƈ/ƂƝƓƈ)). At the end of the programme, turn the programme selector to Off.
Care
Machine housing, control panel
– Remove detergent residue immediately.
– Wipe off with a soft, damp cloth.
– Do not clean with a jet of water.

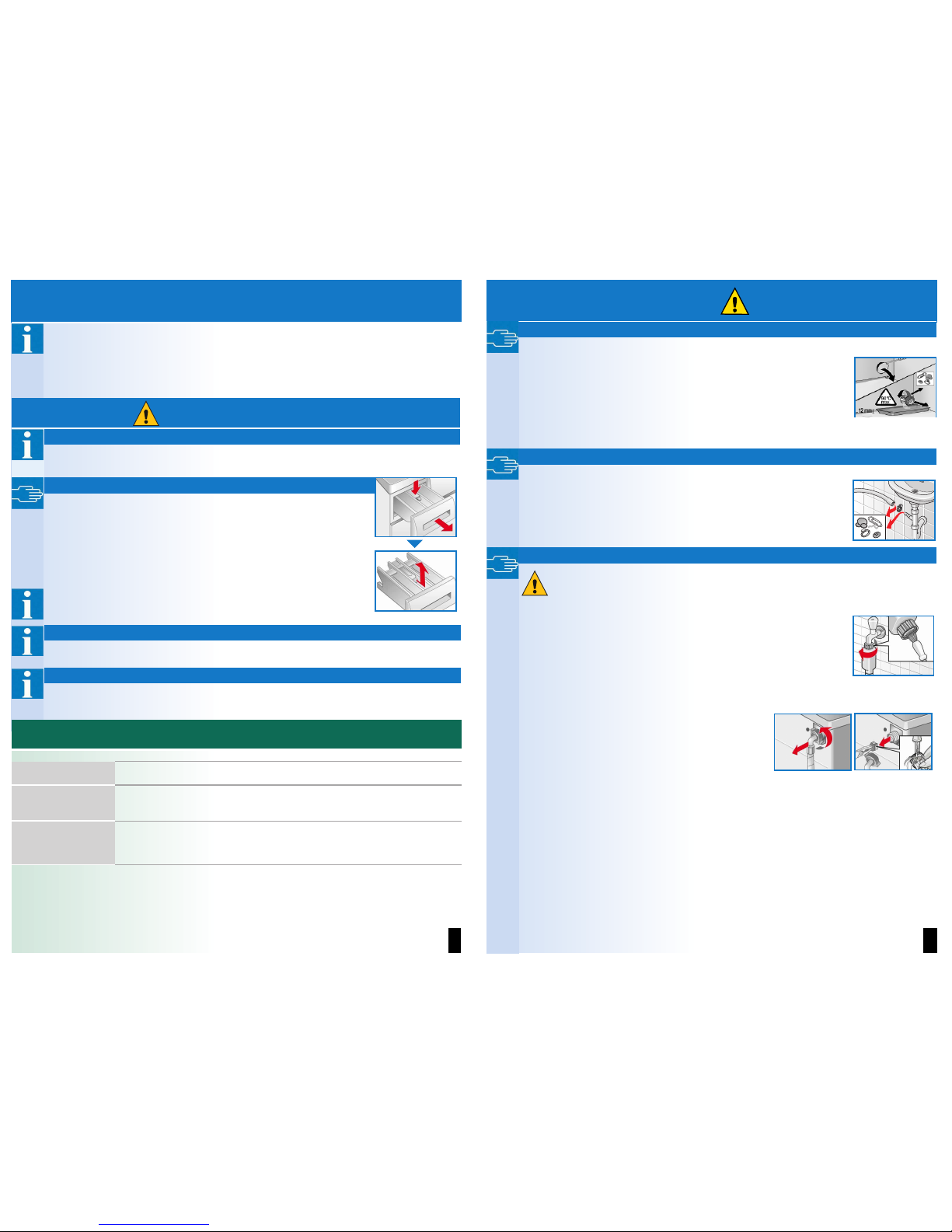

Cleaning the detergent drawer ...
... if it contains detergent or fabric softener residues.
1. Pull out, press insert down, remove drawer completely.
2. To remove the insert: press the insert upwards from below with your
finger.
3. Clean the detergent dispenser tray and insert with water and a brush and
dry it.
4. Attach the insert and engage (connect the cylinder to the guide pin).
5. Push in the detergent drawer.
Leave the detergent drawer open so that any residual water can
evaporate.
Drum
Leave the washing machine door open so that the drum can dry out.
Rust stains - use chlorine-free cleaning agent, not steel wool.
Descaling Ensure there is no laundry in the machine
This should not be necessary if the correct detergent dosage has been used. If it is necessary, however,
proceed according to the descaling agent manufacturer's instructions. Suitable descalers can be obtained via
our website or from our after-sales service (apage 1).
Information to indicator lights
Indicator lights for status displays flash:
1ŲƌƝƓƈ(wash)and
2ƏžƃƄƂƌƍƂ(rinse)
Close the washing machine door properly; laundry may be caught.
1ŲƌƝƓƈ(wash)and
cƓƔƝƘƊƍƐ(spin)
– Open the tap completely.
– Supply hose kinked or trapped.
– Clean the filter apage 10, Water pressure too low.
2ƏžƃƄƂƌƍƂ(rinse)
and
cƓƔƝƘƊƍƐ(spin)
Detergent solution pump blocked; Clean the detergent solution pump
apage 10.
Drainage hose/waste pipe blocked; Clean the drainage hose at the siphon
apage 10.
–Risk of electric shock.Disconnect the mains plug.
–Risk of explosion. No solvents.
10
Maintenance
Detergent solution pump
Turn the programme selector to stop and disconnect the mains plug.
1. Remove the service flap for detergent solution pump.
2. Carefully unscrew the pump cover (residual water).
3. Clean the interior, pump cover thread and pump housing (the impeller in
the detergent solution pump must rotate).
4. Replace the pump cover and screw it tightly.
5. Place the service flap back.
To prevent unused detergent from flowing straight into the drain during the next wash:
Pour 1 litre of water into compartment II and start the Empty (ŽƎƔƌƈƓƈ)programme.
Drainage hose at the siphon
Turn the programme selector to stop and disconnect the mains plug.
1. Loosen the hose clamp, carefully remove the drainage hose
(residual water).
2. Clean the drainage hose and siphon connecting piece.
3. Reattach the drainage hose and secure the connection with the hose
clamp.
Filter in the water supply
Risk of electric shock
Do not immerse the HydroSafe safety device in water (contains an electric valve).
Reduce the water pressure in the supply hose:
1. Turn off the tap.
2. Select any programme (except ƓƔƝƘƊƍƐ(Spin)c/ŽƎƔƌƈƓƈ(Empty)).
3. Select Start/Pause. Let the programme run for approximately 40
seconds.
4. Turn the programme selector to stop. Disconnect the mains plug.
5. Clean the filter:
Disconnect the hose from the tap.
Clean the filter using a small brush.
and/or for Standard and Aqua-Secure models:
Remove the hose on the rear of the appliance,
Remove the filter with pliers and clean.
6. Connect the hose and check the leak tightness of the
connection points.
–Risk of scalding. Allow the
detergent solution to cool down.
– Turn off the tap.
11
What to do if ...
ʑWater is leaking out. – Attach/replace the drainage hose correctly.
– Tighten the screw connection of the supply hose.
ʑNo water supply.
Detergent not dispensed.
–Start/Pause not selected?
– Tap not turned on?
– Filter blocked? Clean the filter apage 10.
– Supply hose kinked or trapped?
ʑWashing machine door
cannot be opened.
– Safety function active. Wait approx. 2 minutes.
ʑProgramme does not
start.
–Start/Pause selected?
– Washing machine door closed?
ʑDetergent solution is not
drained.
– Clean the detergent solution pump apage 10.
– Clean the waste pipe and/or drainage hose.
ʑWater not visible in the
drum.
– Not a fault - water below the visible area.
ʑUnsatisfactory spin
result.
Laundry wet/too damp.
– Not a fault - the unbalanced-load detection system has cancelled
the spin cycle because of uneven distribution of the laundry.
Distribute small and large items of laundry evenly inside the
drum.
ʑSpin cycle performed
several times.
– Not a fault - unbalanced load detection system adjusts the
imbalance.
ʑResidual water in the
compartment ~cfor care
products.
– Not a fault - the action of the care product is not affected.
– Clean the insert if necessary –> page 9.
ʑOdour formation in the
washing machine.
– Run programme ŤƂƍƃƂƋƆƑŽ(Cottons) 90 °C without laundry.
Use standard detergent.
ʑFoam escaping from the
detergent drawer.
– Too much detergent used?
If foam is escaping from the detergent drawer:
Mix 1 tablespoon of fabric softener with ½ litre of water and pour
into compartment II (not with outdoor or down fabrics).
– Reduce the detergent dosage for the next wash cycle.
ʑIntense noise formation,
vibrations and
“wandering” during the
spin cycle.
– Are the appliance feet fixed?
Secure the appliance feet aInstallation instructions.
– Transportation safety devices removed?
Remove the transportation safety devices aInstallation
instructions.
ʑIndicator lamps do not
function during
operation.
– Power cut?
– Fuses triggered? Reset/change the fuses.
– If the fault occurs repeatedly, call the after-sales service.
ʑProgramme sequence
longer than usual.
– Not a fault - unbalanced load detection system adjusts
imbalance by repeatedly distributing the laundry.
– Not a fault - foam detection system active - adds an additional
rinse cycle.
ʑDetergent residues on
the laundry.
– Occasionally, phosphate-free detergents contain water-insoluble
residues.
– Select ƏƒƗƘƖƠơƖ(Rinse) or brush the laundry after washing.
If you cannot correct a fault yourself or a repair is required:
– Turn the programme selector to stop and remove the mains plug from the socket.
– Turn off the water supply and call the after-sales service aInstallation instructions.
WXP801B5

1 2
cŴƔƝƘƊƍƐbüŵžƌƐƒƒƎƂƑƏƈƂƝƓƈƒƎƂƑƏƈƂƝƓƈƒƎƂƑƏƈƂƝƓƈCorrect installation according to the
separate Installation instructions.
Checking the machine
– Never use a damaged machine.
– Inform the after-sales service.
Connecting the mains
plug
Make sure your hands are dry.
Take hold of the plug only.
Turning the tap on
Compartment II: Detergent for the main wash, water softener,
bleach, stain remover
aa
Close the washing machine door. Take care not to tra
Pour liquid detergent into the appropriate dispense
Your washing machine
Congratulations on having opted for a modern, high-quality domestic appliance manufactured by
Pitsos. This washing machine is distinguished by its economical energy consumption.
Each machine that leaves our factory has been inspected thoroughly to ensure that it functions properly and
is in perfect condition.
Environmentally friendly waste disposal All packaging must be disposed of in accordance with environmental guidelines.
This appliance is certified in accordance with European Directive 2012/19/CE on the waste electrical and
electronic equipment (WEEE).
This directive provides the framework for the EU-wide collection and reuse of used appliances
Intended use
Contents Page
ʋIntended use .......................................................................................1
ʋProgrammes .......................................................................................1
ʋSetting and adjusting the programme ...........................................3
ʋWashing ...........................................................................................3/4
ʋAfter washing ......................................................................................4
ʋIndividual settings ..............................................................................5
ʋImportant information ........................................................................6
ʋOverview of programmes ................................................................7
ʋSafety instructions .............................................................................8
ʋConsumption values .........................................................................8
ʋBefore washing for the first time/Care ..........................................9
ʋInformation to indicator lights ..........................................................9
ʋMaintenance .................................................................................... 10
ʋWhat to do if... .................................................................................. 11
Preparation a
Programme selector Start/Pause u(ƒƢƖƥƣƜƖƱƧƓProgramme selector for
switching the machine on
and off and for selecting
the programme. Can be
turned in either direction.
Programmes
Detailed overview of programmes apage 7.
ŸƖơƗƖƟƚƥƑ(Cottons) hard-wearing fabrics
+ƆƥưƠƩƧƜ(+ Prewash) hard-wearing fabrics, prewash at
30°C
ƣƒƗƘƖƠơƖ(Rinse) with subsequent spin cycle
ƧƨƱƬƞơƤ(Spin) laundry washed by hand
ƑƢƨƠƜƧƜ(Empty) the rinsing water
ÿƟƑƠƠƞƢƖ(Wool) hand/machine-washable textiles
ƚƩƖƝƓ(Delicates) delicate washable fabrics
ƧƩƢƝƚƨƞƟƑ(Easy-Care) easy-care fabrics
aa~
Compartment ~: Fabric softener, starch
Compartment I: Detergent for pre-wash
ʋfor use in the household only,
ʋfor machine-washable fabrics and hand-washable wool
in detergent solution,
ʋto be operated with cold drinking water and commer-
cially available detergents and care products which are
suitable for use in washing machines.
ʋThe washing machine may be operated by children
from 8 years of age, by persons who have limited phy-
sical, sensory or mental abilities and by persons who
have inadequate experience or knowledge, provided
they are supervised or have been instructed by a res-
ponsible person.
.
– Do not leave children unattended near the
washing machine.
– Children must not play with the appliance.
– Children must not perform any cleaning or
maintenance work without supervision!
– Keep pets away from the washing machine. ʑa2ƘƜƞƐƢơƐƕƔƞƟƔøʑuŤƂƍƃƂƋƆƑŽüŤƂƍƃƂƋƆƑŽü~
Additional
function
Status
indicators
Environmental protection/Conservation tips
– Always fill the washing machine with a maximum amount of
laundry for the relevant programme.
– Wash normally soiled washing without a pre-wash.
–The selectable temperatures apply to the care labels on
the textiles. The temperatures in the machine may deviate
from this so that you get the optimum mix of energy-saving
and washing results
– Measure the detergent according to the manufacturer's
instructions and water hardness.
– If the laundry is then dried in the tumble dryer, select the
spin speed according to the instructions of the dryer
manufacturer (depending on model). žƎƂƑƏƈƂƝƓƈu

3 4
End of programme when ...
... the status indicator cŴƔƝƘƊƍƐ(spin) - büŵžƌƐƒ(end)
flashes.
Interrupting the programme
Programmes at high temperatures:
– Cool washing: Select Rinse.
– Select Start/Pause (ƒƎƂƑƏƈ/ ƂƝƓƈ).
Programmes at lower temperatures:
– Select Spin or Empty.
– Select Start/Pause (ƒƎƂƑƏƈ/ ƂƝƓƈ).
Changing the programme, if ...
... you have selected the wrong programme by mistake:
– Reselect the programme.
– Select Stat/Pause (ƒƎƂƑƏƈ/ ƂƝƓƈ) . The new
programme starts from the beginning.
Sorting and loading laundry
Follow the manufacturer's care information.
According to the information on the care labels.
According to type, colour, soiling and temperature.
Do not exceed the maximum load apage 7.
Observe the important information apage 6.
Insert large and small items of laundry.
Close the washing machine door. Take care not to trap items of laundry
between the washing machine door and the rubber seal.
Add detergent and care products
Measure accordingly:
Amount of laundry, soiling, water hardness (ask your water supply
company) and manufacturer's instructions.
Pour liquid detergent into the appropriate dispenser and place in the drum.
ʋʋʋʋʋʋʋʋʋʋʋʋʋʋBefore washing for the first time
Wash once without any laundry apage 9.
Setting and adjusting programmes
Start/Pause u(ƒƢƖƥƣƜ/ƖƱƧƓ)
aŸƖơƗƖƟƚƥƑƆƥưƠƩƧƜƣƒƗƘƖƠơƖƧƨƱƬƞơƤƑƢƨƠƜƧƜÿƟƑƠƠƞƢƖƚƩƖƝƓƧƩƢƝƚƨƞƟƑAdditional function aIndividual settings,
page 5.
Washing
1
2
Removing the washing
Open the washing machine door and remove the washing.
– Remove any foreign objects - risk of rusting.
– Leave the washing machine door and detergent
drawer open so that any residual water can
evaporate.
Turning the tap off
Not required for AquaStop models aHinweise
Installation Instructions, page 7.
Switching off
Turn the programme selector to stop.
Washing
Detergent drawer with
compartments I,II,~~ʋʋʋʋDilute thick fabric softener and fabric conditioner with water.
This prevents blockages. ʑa2ƘƜƞƐƢơƐƕƔƞƟƔøʑuŤƂƍƃƂƋƆƑŽüŤƂƍƃƂƋƆƑŽü~
3
Washing machine door
Service flap
Control panel
Washing machine
door handle
Select Start/Pause (žƎƂƑƏƈ/
ƂƝƓƈ)u

56
cŴƔƝƘƊƍƐbüŵžƌƐƒƒƎƂƑƏƈƂƝƓƈƒƎƂƑƏƈƂƝƓƈƒƎƂƑƏƈƂƝƓƈaa
ʋʋʋʋʋʋʋʋʋʋʋʋʋʋauƒƢƖƥƣƜƖƱƧƓaŸƖơƗƖƟƚƥƑƆƥưƠƩƧƜƣƒƗƘƖƠơƖƧƨƱƬƞơƤƑƢƨƠƜƧƜÿƟƑƠƠƞƢƖƚƩƖƝƓƧƩƢƝƚƨƞƟƑag.
– Leave the washing machine door and detergent
a~~ʋʋʋʋIndividual settings
ʑAdditional functions aand overview of programmes, see page 7.
2(ƘƜƞƐƢv
ơƐƕyƔƞƟƔ)
Additional rinse cycle. For areas with very soft water or for further
enhancing the spin result.
øReduced spin speed.
ʑStart/Pause uFor starting the programme.
Important information
Protecting the washing and the machine
– When measuring the amount of all detergents/additives and cleaning agents, always check the
manufacturer's instructions.
– Empty pockets.
– Look out for metal items (paperclips, etc.).
– Wash delicates in a laundry bag (tights, curtains, underwired bras).
– Fasten zips, do up any buttons.
– Brush sand out of pockets and collars.
– Remove curtain fittings or place in the laundry bag.
Washing with varying degrees of soiling
Wash new items of clothing separately.
light Do not pre-wash.
If required, pretreat stains. Select programme
Cottons (ŤƂƍƃƂƋƆƑŽ)(eco)ü60°C.
heavy Load less washing.
Select programme Cottons (ŤƂƍƃƂƋƆƑŽ)(eco)ü60°C.
Starching Washing must not be treated with fabric softener
Starching is possible in all wash programmes if liquid starch is used. Pour the starch in
accordance with the manufacturer's instructions into fabric softener compartment ~(rinse first
if necessary).
Dyeing/bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel.
Always follow the dye manufacturer's instructions! Do not use the washing machine for
bleaching clothes!
žƎƂƑƏƈƂƝƓƈu

7
Overview of programmes aRefer to the table of consumption values on page 8 and notes on page 6.
Programmes °C max.
Type of laundry
Additional functions; information
żƚƥƛƚƣƞƩƕ(Cottons) 20, 30, 40, 60, 90 °C 5.5 kg/
3,5kg* Hard-wearing fabrics, heat-resistant fabrics made
of cotton or linen ø,2ƞƢƤƖƨvƧƖƛyƚƤƥƚ+ ƩƴƤƭƫƠ(+ Prewash) 60 °C
+ecologic (eco) 40, 60 °C 5.5 kg ƫƭƦơƞƬƢƣƕ(Easy-Care) 30, 40 °C 2.5 kg Easy-care fabrics made of cotton, linen, synthetic
fibres or blended fabrics ø,2ƞƢƤƖƨvƧƖƛyƚƤƥƚƞƭƚơƗ(Delicates) 30 °C
2 kg
For delicate, washable fabrics, e.g. made of silk, satin, synthetic fibres or blended fabrics (e.g. cur- tains) ø,2ƞƢƤƖƨvƧƖƛyƚƤƥƚNo spin between rinse cycles
ơƑƠƠƞƢƖ(Wool)30 °C Handäor machine-washable fabrics made of wool
or containing wool øParticularly gentle wash programme to prevent shrinkage of
laundry. Longer programme breaks (fabrics rest in the detergent solution)
Additional programmes ƣƒƗƘƖƠơƖ(Rinse), ƧƨƱƬƞơƤ(Spin), ƑƢƨƠƜƧƜ(Empty)
*Programmes without prewash - add detergent to compartment II, programmes with prewash - distribute the detergent between compartments Iand II.
9502 / 9001044493 WXP801B5
Pitsos - BSH ƉƢƣƢƚƣƖƪƌƭƫƣƞƭƖƪA.B.E.
17° ƐƤƥ.ſơƦƢƣƗƪƉƝƨƵŻơƠƦƶƦ-
ƅƚƥƘƚƪ& ƊƨƬƚƥƨƵ20
145 64 ƄƠƮƢƫƢƕ,ŻơƗƦƚ
8
Safety instructions
– Read the instruction manual and installation instructions and all other information enclosed
with the washing machine and act accordingly.
– Retain the documents for subsequent use.
Risk of electric shock – Never pull the cable to disconnect the mains plug.
– Never insert/disconnect the mains plug with damp hands.
Danger to life For worn-out appliances:
– Disconnect the mains plug.
– Sever the mains cable and discard along with the plug.
– Destroy the lock on the washing machine door. This will prevent
children from locking themselves in and risking their lives.
Danger of suffocation – Keep packaging, film and packaging parts out of the reach of
children.
Risk of poisoning – Keep detergents and care products out of the reach of children.
Risk of explosion – Items of laundry pretreated with cleaning agents containing
solvents, e.g. stain remover/cleaning solvent may cause an
explosion after being loaded into the washing machine.
Rinse items of laundry thoroughly by hand beforehand.
Risk of injury – The washing machine door can become very hot.
– Be careful when draining hot detergent solution.
– Do not climb onto the washing machine.
– Do not lean on the open washing machine door.
– Do not reach into the drum if it is still rotating.
– Be careful when opening the detergent drawer while the machine
is in operation.
Consumption values
Programme Load Electricity*** Water*** Programme duration***
żƚƥƛƚƣƞƩƕ(Cottons) 20 °C 5.5 kg 0.25 kWh 57 l 1 3/4 h
żƚƥƛƚƣƞƩƕ(Cottons) 30 °C 5.5 kg 0.40 kWh 57 l 1 3/4 h
żƚƥƛƚƣƞƩƕ(Cottons) 40 °C* 5.5 kg 0.75 kWh 57 l 1 3/4 h
żƚƥƛƚƣƞƩƕ(Cottons) 60 °C 5.5 kg 1.20kWh 57 l 2 h
żƚƥƛƚƣƞƩƕ(Cottons) 90 °C 5.5 kg 2.00 kWh 64 l 2 h
ƫƭƦơƞƬƢƣƕ(Easy-Care) 40 °C* 2.5 kg 0.60 kWh 50 l 1 1/2 h
ƞƭƚơƗ(Delicates) 30 °C 2 kg 0.30 kWh 55 l 1 h
ơƕƤƤƢƦƚ(Wool) 30 °C 2 kg 0.20 kWh 30 l 1 h
*Programme setting for testing in accordance with currently applicable EN60456 standard.
Note on comparative tests: When testing the test programmes, wash the specified load using the
maximum spin speed.
Programme Load Annual energy consumption Annual water consumption
żƚƥƛƚƣƞƩƕ(Cottons) Eco 40/60 °C ** 5.5/2.75 kg 182 kWh 9020 l
** Programme settings for testing and energy labelling in accordance with europian standard
2010/30/EU with cold water(15 °C).
***The values may deviate from the specified values depending on water pressure, water hard-
ness, and inlet temperature, ambient temperature, type, amount and level of laundry soiling,
detergent used, fluctuations in the power supply and selection of options.
8
ŤƂƍƃƂƋƆƑŽƒƎƂƑƏƈƂƝƓƈa1ŲƌƝƓƈ2ƏžƃƄƂƌƍƂ1ŲƌƝƓƈcƓƔƝƘƊƍƐa2ƏžƃƄƂƌƍƂcƓƔƝƘƊƍƐaa
ŽƎƔƌƈƓƈƓƔƝƘƊƍƐcŽƎƔƌƈƓƈʑʑaʑʑʑaʑʑʑʑ~cʑŤƂƍƃƂƋƆƑŽʑʑaaʑʑʑƏƒƗƘƖƠơƖa

ażƚƥƛƚƣƞƩƕø2ƞƢƤƖƨƧƖƛƚƤƥƚƩƴƤƭƫƠƫƭƦơƞƬƢƣƕø2ƞƢƤƖƨƧƖƛƚƤƥƚƞƭƚơƗø2ƞƢƤƖƨƧƖƛƚƤƥƚơƑƠƠƞƢƖäøƣƒƗƘƖƠơƖƧƨƱƬƞơƤƑƢƨƠƜƧƜƉƢƣƢƚƣƖƪƌƭƫƣƞƭƖƪƐƤƥſơƦƢƣƗƪƉƝƨƵŻơƠƦƶƦƅƚƥƘƚƪƊƨƬƚƥƨƵƄƠƮƢƫƢƕŻơƗƦƚ
żƚƥƛƚƣƞƩƕżƚƥƛƚƣƞƩƕżƚƥƛƚƣƞƩƕżƚƥƛƚƣƞƩƕżƚƥƛƚƣƞƩƕƫƭƦơƞƬƢƣƕƞƭƚơƗơƕƤƤƢƦƚżƚƥƛƚƣƞƩƕ
9
Before washing for the first time
Do not load any laundry into the machine. Turn on the tap. Add the following to compartment
II:
– approx. 1 litre water
– detergent (dosage according to the manufacturer's instructions for light soiling and the
appropriate degree of water hardness)
Set the programme selector to ŤƂƍƃƂƋƆƑŽ(Cottons) 60 °C and select Start/Pause (ƒƎƂƑƏƈ/ƂƝƓƈ)). At the end of the programme, turn the programme selector to Off.
Care
Machine housing, control panel
– Remove detergent residue immediately.
– Wipe off with a soft, damp cloth.
– Do not clean with a jet of water.
Cleaning the detergent drawer ...
... if it contains detergent or fabric softener residues.
1. Pull out, press insert down, remove drawer completely.
2. To remove the insert: press the insert upwards from below with your
finger.
3. Clean the detergent dispenser tray and insert with water and a brush and
dry it.
4. Attach the insert and engage (connect the cylinder to the guide pin).
5. Push in the detergent drawer.
Leave the detergent drawer open so that any residual water can
evaporate.
Drum
Leave the washing machine door open so that the drum can dry out.
Rust stains - use chlorine-free cleaning agent, not steel wool.
Descaling Ensure there is no laundry in the machine
This should not be necessary if the correct detergent dosage has been used. If it is necessary, however,
proceed according to the descaling agent manufacturer's instructions. Suitable descalers can be obtained via
our website or from our after-sales service (apage 1).
Information to indicator lights
Indicator lights for status displays flash:
1ŲƌƝƓƈ(wash)and
2ƏžƃƄƂƌƍƂ(rinse)
Close the washing machine door properly; laundry may be caught.
1ŲƌƝƓƈ(wash)and
cƓƔƝƘƊƍƐ(spin)
– Open the tap completely.
– Supply hose kinked or trapped.
– Clean the filter apage 10, Water pressure too low.
2ƏžƃƄƂƌƍƂ(rinse)
and
cƓƔƝƘƊƍƐ(spin)
Detergent solution pump blocked; Clean the detergent solution pump
apage 10.
Drainage hose/waste pipe blocked; Clean the drainage hose at the siphon
apage 10.
–Risk of electric shock.Disconnect the mains plug.
–Risk of explosion. No solvents.
10
Maintenance
Detergent solution pump
Turn the programme selector to stop and disconnect the mains plug.
1. Remove the service flap for detergent solution pump.
2. Carefully unscrew the pump cover (residual water).
3. Clean the interior, pump cover thread and pump housing (the impeller in
the detergent solution pump must rotate).
4. Replace the pump cover and screw it tightly.
5. Place the service flap back.
To prevent unused detergent from flowing straight into the drain during the next wash:
Pour 1 litre of water into compartment II and start the Empty (ŽƎƔƌƈƓƈ)programme.
Drainage hose at the siphon
Turn the programme selector to stop and disconnect the mains plug.
1. Loosen the hose clamp, carefully remove the drainage hose
(residual water).
2. Clean the drainage hose and siphon connecting piece.
3. Reattach the drainage hose and secure the connection with the hose
clamp.
Filter in the water supply
Risk of electric shock
Do not immerse the HydroSafe safety device in water (contains an electric valve).
Reduce the water pressure in the supply hose:
1. Turn off the tap.
2. Select any programme (except ƓƔƝƘƊƍƐ(Spin)c/ŽƎƔƌƈƓƈ(Empty)).
3. Select Start/Pause. Let the programme run for approximately 40
seconds.
4. Turn the programme selector to stop. Disconnect the mains plug.
5. Clean the filter:
Disconnect the hose from the tap.
Clean the filter using a small brush.
and/or for Standard and Aqua-Secure models:
Remove the hose on the rear of the appliance,
Remove the filter with pliers and clean.
6. Connect the hose and check the leak tightness of the
connection points.
–Risk of scalding. Allow the
detergent solution to cool down.
– Turn off the tap.
ʑʑaʑʑʑaʑʑʑʑ~cʑŤƂƍƃƂƋƆƑŽʑʑaaʑʑʑƏƒƗƘƖƠơƖa

ażƚƥƛƚƣƞƩƕø2ƞƢƤƖƨƧƖƛƚƤƥƚƩƴƤƭƫƠƫƭƦơƞƬƢƣƕø2ƞƢƤƖƨƧƖƛƚƤƥƚƞƭƚơƗø2ƞƢƤƖƨƧƖƛƚƤƥƚơƑƠƠƞƢƖäøƣƒƗƘƖƠơƖƧƨƱƬƞơƤƑƢƨƠƜƧƜƉƢƣƢƚƣƖƪƌƭƫƣƞƭƖƪƐƤƥſơƦƢƣƗƪƉƝƨƵŻơƠƦƶƦƅƚƥƘƚƪƊƨƬƚƥƨƵƄƠƮƢƫƢƕŻơƗƦƚ
żƚƥƛƚƣƞƩƕżƚƥƛƚƣƞƩƕżƚƥƛƚƣƞƩƕżƚƥƛƚƣƞƩƕżƚƥƛƚƣƞƩƕƫƭƦơƞƬƢƣƕƞƭƚơƗơƕƤƤƢƦƚżƚƥƛƚƣƞƩƕŤƂƍƃƂƋƆƑŽƒƎƂƑƏƈƂƝƓƈa1ŲƌƝƓƈ2ƏžƃƄƂƌƍƂ1ŲƌƝƓƈcƓƔƝƘƊƍƐa2ƏžƃƄƂƌƍƂcƓƔƝƘƊƍƐaaŽƎƔƌƈƓƈƓƔƝƘƊƍƐcŽƎƔƌƈƓƈ
11
What to do if ...
ʑWater is leaking out. – Attach/replace the drainage hose correctly.
– Tighten the screw connection of the supply hose.
ʑNo water supply.
Detergent not dispensed.
–Start/Pause not selected?
– Tap not turned on?
– Filter blocked? Clean the filter apage 10.
– Supply hose kinked or trapped?
ʑWashing machine door
cannot be opened.
– Safety function active. Wait approx. 2 minutes.
ʑProgramme does not
start.
–Start/Pause selected?
– Washing machine door closed?
ʑDetergent solution is not
drained.
– Clean the detergent solution pump apage 10.
– Clean the waste pipe and/or drainage hose.
ʑWater not visible in the
drum.
– Not a fault - water below the visible area.
ʑUnsatisfactory spin
result.
Laundry wet/too damp.
– Not a fault - the unbalanced-load detection system has cancelled
the spin cycle because of uneven distribution of the laundry.
Distribute small and large items of laundry evenly inside the
drum.
ʑSpin cycle performed
several times.
– Not a fault - unbalanced load detection system adjusts the
imbalance.
ʑResidual water in the
compartment ~cfor care
products.
– Not a fault - the action of the care product is not affected.
– Clean the insert if necessary –> page 9.
ʑOdour formation in the
washing machine.
– Run programme ŤƂƍƃƂƋƆƑŽ(Cottons) 90 °C without laundry.
Use standard detergent.
ʑFoam escaping from the
detergent drawer.
– Too much detergent used?
If foam is escaping from the detergent drawer:
Mix 1 tablespoon of fabric softener with ½ litre of water and pour
into compartment II (not with outdoor or down fabrics).
– Reduce the detergent dosage for the next wash cycle.
ʑIntense noise formation,
vibrations and
“wandering” during the
spin cycle.
– Are the appliance feet fixed?
Secure the appliance feet aInstallation instructions.
– Transportation safety devices removed?
Remove the transportation safety devices aInstallation
instructions.
ʑIndicator lamps do not
function during
operation.
– Power cut?
– Fuses triggered? Reset/change the fuses.
– If the fault occurs repeatedly, call the after-sales service.
ʑProgramme sequence
longer than usual.
– Not a fault - unbalanced load detection system adjusts
imbalance by repeatedly distributing the laundry.
– Not a fault - foam detection system active - adds an additional
rinse cycle.
ʑDetergent residues on
the laundry.
– Occasionally, phosphate-free detergents contain water-insoluble
residues.
– Select ƏƒƗƘƖƠơƖ(Rinse) or brush the laundry after washing.
If you cannot correct a fault yourself or a repair is required:
– Turn the programme selector to stop and remove the mains plug from the socket.
– Turn off the water supply and call the after-sales service aInstallation instructions.
WXP801B5
