PNI Summer P40 User manual

PNI Summer P40
USER MANUAL
CAR REFRIGERATOR / FREEZER WITH COMPRESSOR

2
1. Features:
• High efficiency DC inverter compressor and conversion module with high reliability
and long life.
•
Fluoride-free insulation with good heat preservation performance and low energy
consumption.
•
12/24VDC and 110-240VAC power supply, allows use in the car or at home.
•
Compressor delay protection
•
Quick cooling to -20°C(basedon 25°C ambient temperature).
•
Intelligent car battery protection system.
•
Dual door opening direction.
•
Wide range electronic temperature control.
2. Safety instructions
-- Warning: Do not attempt or continue to operate your unit if it is wet. The installation
of the DC power source in the boat should be handled by the qualified personnel.
-- Make sure the voltage is within the correct range for socket and cable being used.
The technical data label on the side of the unit shows the voltage ranges.
-- Do not insert electronic devices inside the refrigerator as they may be damaged.
-- During transportation, do not tilt the refrigerator more than 45° and handle carefully.
-- Your unit requires good ventilation, allow the following free space for the air
circulation:
Back: 200mm
Side: 100mm
-- The unit must be placed in dry and ventilated place away from heat source (such as
stove, flue) and avoid direct sunlight.
-- It isrecommended tooperatetheunitonaflatsurface. Maximum operation angleis 30°.
-- Do not immerse the refrigerator in the water.
-- Before first use we strongly recommend to use soft cloth dampened with warm water
and a little neutral detergent to clean it, then wipe it with dry soft cloth.
(Warning: Electrical parts can be cleaned with dry cloth only)
-- Warning: Do not allow children to play with the refrigerator, climbing or standing on it.
They could damage the fridge and seriously injure themselves.

3
3. Operating settings.
3.1 Power supply: 12/24V DC or 110~240V AC ( by adapter)

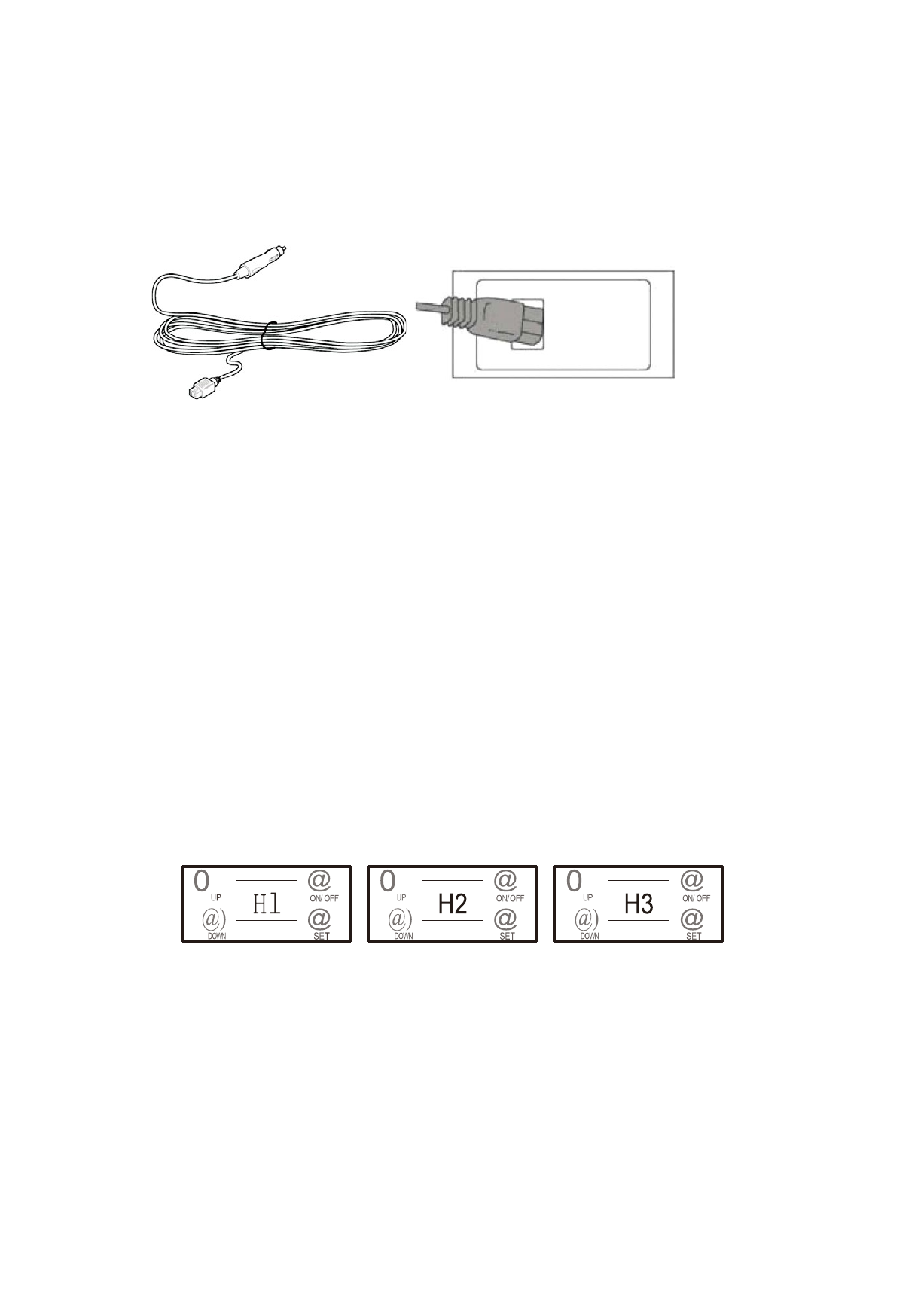

3.2 Power cable connection:
3.3 Operation setting:
--ON/OFF: press the ON/OFF button for 3 seconds to start the unit.
Press the ON/OFF button for 3 seconds to turn it off.
--Press the UPorDOWNbuttontoadjusttargettemperature. Pressthe UP button
to increase or DOWN buttonto decrease the temperature.
--"SET" BUTTON: Press the "SET" button to enter the economy running mode:
1. ECO (Energy-saving mode)
2. HH (Quick cooling mode)
--Indicator light:
1. Power indicator red light: the compressor is stopped.
2. Power indicator green light: the compressor is working.
3. Eco/Max indicator red light: quick cooling mode is running.
4. Eco/Max indicator green light: Energy-saving cooling mode isrunning.
--Battery Protection: Selecting the H1, H2, H3 positions, you can choose different levels
for battery protection. When the unit is on working, press the "SET" button for 3 seconds,
then the LED will display as below:
H1: Low power protection.
H2: Middle power
H3: High power protection (factory default)
When the unit is connected to the car, we suggest setting the battery protection to H3
(H) level.H2 (M) and H1 (L) are suggested when the unit is connected to thebackup battery.
If on the LCD is displayed “F1”, then set the battery protection from H3 to H2 or H1
Most cars will stop power supply if engine is stopped. But some cars will continue
power supply after you turn off the car. If your refrigerator is still working after the car has
stopped, you should adjust the battery protection to H3 (H), otherwise it may drain your car
battery.

4
4. FAQ
• The refrigerator is not working:
--Check the power supply connection
-- Check if the plug and the socket have a good connection.
--T he fuse may be burned out.
--Check if the refrigerator is turned on
--Whether the compressor is in delay start protection and the refrigerator is starting
up.
•
The food inside is frozen:
-- The temperature is set too low.
•
Hear the sound of water from the inside place.
It is normal, due to the flow of refrigerant.
•
Display F1 code
-- Low power protection, set the protection from H3 (H) to H2 (M) or H1 (U
•
Display F2 code
-- Fan overload protection, turn off the unit and restart the unit after 30 minutes. If
the F2 fault code persists please contact the seller.
•
Display F3 code
-- The compressor protection is activated. Please turn off the unit and restart it after
30 minutes. If the F3 fault code is still displayed, please contact the seller.
•
Display F5 code
-- Compressor controller module protection is activated. Please turn off the unit,
keep it in a ventilated place and restart the unit after 30 minutes. If the F5 faultcode
is still displayed, please contact the seller.
•
Display F7/F8 code
-- Temperature sensor error. Please restart the unit. If the F7/F8 code is still
displayed, please contact the seller.
5. Food storage
• Freezer (below -20°C }
--Meat should be cut and wrapped tightly, and then averagely placed in the freezer.
--After buying frozen food, put it in the freezer as it is still frozen.
--Do not put the fresh food and frozen food together.
--Do not put the fruits and vegetables in the freezer to avoid freeze-drying.
--Do not put glass containers or other container with sealed liquid in freezer, it may
explode.
•
Refrigerator (0°C ~10°C)
--Eggs, butter, milk and bottled drinks can be put in refrigerator.
--Fruit and vegetables should be put in the crisper for moisture retaining.
--Hot food should be cooled down before it's placed in, which could help to save
power.
--Food must be packed into fresh keeping bags. Leaving space between packed food
to maintain air circulation.

5
6. Defrosting
■ After a while of running, frost can be seen inside the freezer, this reduces refrigerating
effect and increases power consumption. In this case, you need to defrost it.
■ Unplug the refrigerator and open the lid. Use defrosting shovel to remove ice and frost
(also you can just leave the lid open, then the ice will melt). Then use a dishtowel to wipe
off the water. After that, place the food back to the refrigerator and plug it in.
Note: Do not use sharp metal tools to defrost. It can damage the refrigerator.
7. Care and cleaning
Unplug the refrigerator before cleaning!
■ Use soft cloth dampened with warm water to wipe the inner and outer surfaces .
■ Use neutral detergent to clean the heavy stains, and dry it with a clean soft cloth.
■ If the refrigerator is not used for a period of time. Defrost, clean and store it with the lid
cracked open in a ventilated place.
NOTE: Do not sprinkle water on the fridge during cleaning because that would reduce
the insulating property of electrical components and erode the metal parts.
■ Do not use cleaners that contain corrosive and deliquescent materials (such as
scouring powder, bleach, soap powder, alkaline cleansers, benzene, gasoline, acid,
hot water etc.) to clean the outer panels, lid gaskets and plastic parts.
8. Following situations are normal
■ The flow of refrigerant through the evaporator may create a boiling or gurgling sound.
■ In the rainy and high humidity weather, moisture may form on the outside of fridge or lid
gaskets. You can wipe damp surfaces with a dry cloth.
■ The temperature on the back panel may be high (particularly in summer) due to heat
emission of the condenser.
■ The temperature on external surface of the compressor may be high when compressor
is running.
■ The compressor may cause a high hum or pulsating sound when it is at starting or
stopping step.
■ It's normal to hear metal hit noise from compressor when the refrigerator isbumped.

6
9. Technical Specifications
MODEL 40 L
CLIMATIC CATEGORY T/ST/N/SN
PROTECTIVE CLASSIFICATION OF ELECTRIC
SHOCK RESISTANCE
III
RATED VOLTAGE DC (V) 12/24V
DC FUSE (A) 15A
TOTAL INPUT POWER (W) 45W
RATED CURRENT FOR DC(A) 3.75A/1.875A
REFRIGERANT (g) 32 g
N.W (kg)
15.5 kg

PNI Summer P40
MANUAL DE UTILIZARE
FRIGIDER / CONGELATOR AUTO CU COMPRESOR

2
1. Caracteristici generale:
• Compresor de inalta eficienta si modul de conversie cu fiabilitate ridicata si durata
lunga de viata.
• Izolație fara fluor cu o buna performanta de conservare a caldurii si consum redus de
energie
.
•
Alimentare la 12Vdc, 24Vdc si 110-240VA, ce faciliteaza utilizarea atat in masina cat
si acasa.
•
Protectie la pornire cu intarziere compressor.
•
Racire rapida pana la -20°C(la o temperature ambientala de 25°C).
•
Sistem inteligent pentru protectia bateriei.
•
Capac cu deschidere in ambele directii.
• Control electronic al temperaturii
.
2. Instructiuni de siguranta
-- Atentie: Opriti functionarea frigiderului daca acesta este umed. Instalarea sursei de
alimentare intr-o barca trebuie realizata de catre personal calificat
.
-- Asigurati-va ca alimentarea se realizeaza conform specificatiilor dispozitivului. Pe
eticheta de pe frigider este afisata tensiunea la care se alimenteaza acesta.
-- Nu introduceti dispositive electronice in frigider.
-- In timpul transportului nu inclinati frigiderul mai mult de 45° si manevrati-l cu grija.
-- Frigiderul necesita spatiu in jurul acestuia pentru a permite aerului sa circule liber:
Spate: 20cm
Lateral: 10cm
-- Dispozitivul trebuie pozitionat in spatiu bine ventilat si uscat departe de surse de
caldura (precum aragaz, fum, abur) si ferit de lumina directa a soarelui.
-- Este recomandat sa utilizati dispozitivul pe o suprafata plana. Unghiul mare de
functionare este de 30°.
-- Nu scufundati frigiderul in apa.
-- Inainte de prima utilizare este recomandat sa curatati frigiderul cu o carpa moale umezita
si cu putin detergent neutru, apoi stergeti cu o carpa moale uscata.
(Atentie: Componentele electronice pot fi curatate doar cu uscat)
-- Nu lasati copiii sa se joace cu dispozitivul, sa se urce sau sau sa stea pe acesta. Pot
sa defecteze frigiderul si sa se raneasca.

3
3. Moduri de functionare.
3.1 Alimentare: 12Vdc, 24Vdc sau 110~240Vac (cu adaptor)

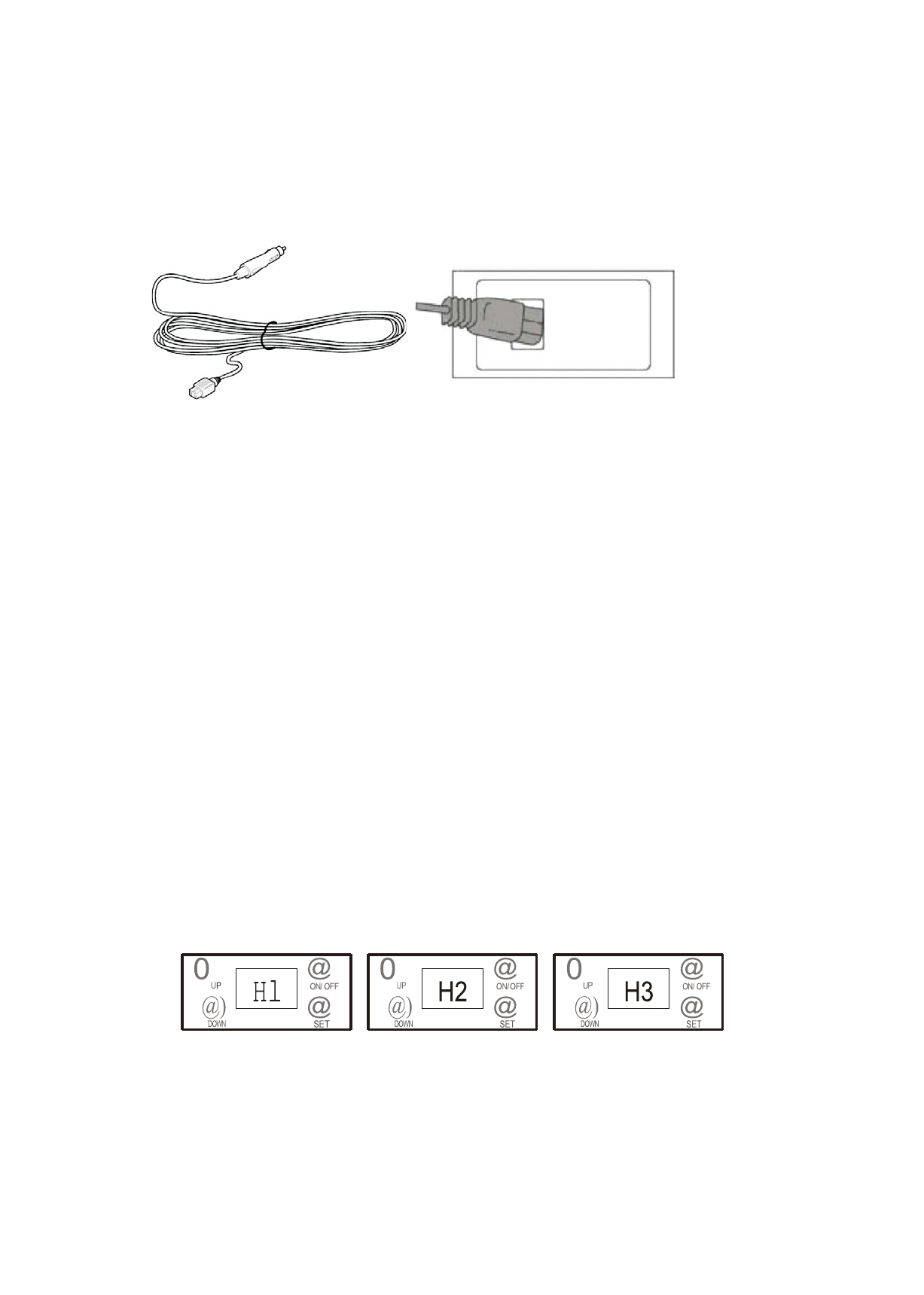

3.2 Cablu de alimentare:
3.3 Functionare dispozitiv:
--ON/OFF: apasati butonul ON/OFF timp de 3 secunde pentru a porni frigiderul.
Apasatu butonul ON/OFF timp de 3 secunde pentru a opri frigiderul.
-- Apasatu butonul UPsauDOWNpentru a ajusta temperatura. Apasati butonul
UP pentru a creste temperatura sau butonul DOWN pentru a scadea temperatura.
-- Butonul “SET”: Apasati butonul "SET" pentru a activa modul economic:
1. ECO (Mod economisire energie)
2. HH (Mod racire rapida)
-- Indicator LED:
1. Indicator alimentare: LED rosu: compresorul este oprit.
2. Indicator alimentare: LED verde: compresorul functioneaza.
3. Indicator ECO: LED rosu: modul de racire rapida este activ.
4. Indicator ECO: LED verde: modul de economisire energie este activ.
-- Protectie baterie: Selectand functiile H1, H2 sau H3 alegeti nivelu de protective al bateriei.
Cand dispozitivul este pornit, apasati butonul "SET" timp de 3 secunde, apoi selectati unul
din modurile:
H1: Protectie scazuta.
H2: Protectie medie
H3: Protectie ridicata (implicit din fabrica)
Cand frigiderul este alimentat la masina, este recomandat ca acesta sa fie setate pe
nivelul H3 (H). Nivelele H2 (M) si H1 (L) sunt recomandate atunci cand frigiderul este
alimentat de la o baterie suplimentara. Daca pe ecran este afisat “F1”, trebuie sa modificati
nivelul de protectie de la H3 la H2 sau H1.
La majoritatea autovehiculelor, alimentarea prizei de bricheta se opreste odata cu
oprirea motorului. Dar la unele autovehicule aceasta continua sa functioneze. Daca
frigiderul continua sa functioneze dupa oprirea motorului, este recomandat sa setati nivelul
de protectie baterie pe nivelul H3 (H), altfel bateria masinii poate fi descarcata complet.

4
4. Intrebari frecvente
• Frigiderul nu functioneaza:
-- Verificati sursa de alimentare.
-- Verificati daca conexiunea dintre priza si stecher este corecta.
-- Siguranta poate fi arsa.
-- Verificati daca frigiderul este pornit.
-- Frigiderul poate fi in stadiul de pornire si compresorul are pornire
intarziata
.
•
Alimentele au inghetat:
-- Temperatura este setata prea jos.
•
Se aude un zgomot de apa curgand:
Este normal, datorita circulatiei agentului frigorific.
•
Afiseaza pe ecran codul “F1”:
-- Modificati nivelul de protective de la H3 (H) la H2 (M) sau H1 (L).
•
Afiseaza pe ecran codul “F2”:
-- Ventilatorul a intrat in protectie. Opriti dispozitivul si reporniti dupa 30 minute.
Daca eroarea F2 persista, contactati producatorul.
•
Afiseaza pe ecran codul “F3”:
-- Compresorul a intrat in protectie. Opriti dispozitivul si reporniti dupa 30 minute.
Daca eroarea F3 persista, contactati producatorul.
•
Afiseaza pe ecran codul “F5”:
-- Modulul de control al compresorului a intrat in protectie. Opriti dispozitivul si
reporniti dupa 30 minute. Daca eroarea F5 persista, contactati producatorul
.
•
Afiseaza pe ecran codul “F7” / “F8”:
-- Eroare senzor de temperatura. Reporniti dispozitivul. Daca eroarea persista,
contactati producatorul.
5. Depozitare alimente
• Congelator (sub -20°C)
-- Carnea trebuie taiata si impachetata strans.
-- Daca depozitati alimente deja inghetate, puneti-le direct in congelator.
-- Nu depozitati alimente proaspete impreuna cu cele congelate.
-- Nu depozitati fructe sau legume in congelator, deoarece .
-- Nu depozitati recipiente din sticla sau bauturi imbuteliate, deoarece pot sa explodeze.
•
Frigider (0°C ~10°C)
-- Oua, unt, lapte si bauturi imbuteliate pot fi depozitate in frigider.
-- Fructele si legumele se depoziteaza in compartimentul inchis.
-- Mancarea calda trebuie racita inainte de introducerea in frigider.
-- Alimentele trebuie impachetate in pungi separate, si aranjate in asa fel incat sa
permita circularea aerului rece printre acestea.

5
6. Dezghetarea
■ Dupa o perioada de functionare, gheata se depune pe peretii congelatorului, acest lucru
reduce puterea de racire si creste consumul de energie. De aceea trebuie sa dezghetati
congelatorul dupa o perioada de timp.
■ Deconectati dispozitivul de la alimentare si deschideti capacul. Folositi o spatula pentru
dezghetare pentru a desprinde gheata (deasemeni, puteti lasa capacul deschis si lasati
gheata sa se topeasca). Apoi folositi un prosop de bucatarie sa strangeti apa. Dupa ce ati
sters apa si acesta este uscat, puteti introduce alimentele inapoi si porni dispozitivul.
Nota: Nu folositi obiecte metalice ascutite pentru dezghetare.
Acestea pot deteriora dispozitivul.
7. Curatare si intretinere
Opriti frigiderul cand doriti sa il curatati!
■ Folositi o carpa moale umezita pentru a curata suprafele interioare si cele exterioare .
■ Folositi un detergent neutru pentru a curate petele, si apoi stergeti cu o carpa moale.
■ Daca dispozitivul nu este folosit o perioada de timp, acesta trebuie dezghetat, curatat si
depozitat intr-un loc bine ventilat si cu capacul intredeschis
.
NOTA: Nu stropiti frigiderul cu apa in timpul curatarii deoarece poate sa reduca
prorietatile de izolare si deteriorarea componentelor si corodarea partilor metalice.
■ Nu folositi detergenti ce contin substante corozive sau delicvescente (precum praf de
curantare, inalbitor, praf de sapun, substante alcaline, benzen, benzina, acizi,
apa fierbinte etc.) pentru curatarea partilor exterioare, garniturilor capacului si partilor din
plastic.
8. Urmatoarele situatii sunt normale
■ Circulatia agentului frigorific prin vaporizator poate crea un sunet de fierbere sau curgere.
■ In contitii de umiditate, poate aparea umezeala pe suprafetele exterioare ale frigiderului
sau pe garnitura capacului. Stergeti suprafetele cu o carpa uscata
.
■ Partea din spatele frigiderului poate deveni fierbinte (mai ales pe timpul verii) datorita
emisiilor condensatorului
.
■ Temperatura compresorului poate fi ridicata atunci cand acesta este in functiune .
■ Compresorul poate cauza un zumzet sau un sunet pulsatoriu cand porneste sau se
opreste.
■ Cand frigiderul este zdruncinat, compresorul poate scoate sunete metalice.

6
9. Speficicatii tehnice
CAPACITATE 40 L
CATEGORIE CLIMATICA T/ST/N/SN
CLASA DE PROTECTIE LA SOC ELECTRIC
III
TENSIUNE NOMINALA DC (V) 12/24V
SIGURANTA (A) 15A
PUTERE MAXIMA (W) 45W
CURENT NOMINAL DC (A)
3.75A/1.875A
AGENT FROGORIFIC (g)
32 g
GREUTATE (kg)
15.5 kg

PNI Summer P40
HASZNÁLATI UTASÍTÁS
HŰTŐSZEKRÉNYFAGYASZTÓ KOMPRESSZORRAL

2
1. Általános jellemzők:
• Nagy hatékonyságú kompresszor, magas megbízhatóság és hosszú élettartamú átalakítás.
• Fluoridmentes szigetelés, jó hőszigeteléssel és alacsony energiafelhasználással.
• Tápellátás 12Vdc, 24Vdc és 110-240VA, ami egyszerűen használható mind az autóban, mind
otthon.
• Indítási védelem kompresszor késleltetéssel.
• Gyors lehűlés -20 ° C-ra (25 ° C környezeti hőmérsékleten).
• Intelligens akkumulátor-védelmi rendszer.
• A fedelet mindkét irányban nyissa fel.
• Elektronikus hőmérsékletszabályozás
.
2.Biztonsági utasítások
-- Vigyázat: Kapcsolja ki a hűtőszekrényt, ha nedves. A tápegység felszerelését
szakképzett személyzetnek kell elvégeznie.
- Győződjön meg róla, hogy az áramellátás a készülék specifikációinak megfelelően
történt. A hűtőszekrény címkéjén látható a feszültség, amelyen táplálják.
- Ne tegyen be elektronikus eszközöket a hűtőbe.
- Tilos a hűtőszekrényt 45 ° -nál nagyobb mértékben billenteni szállítás közben, és
óvatosan kezelje.
- A hűtőszekrény körülötte van szükség ahhoz, hogy a levegő szabadon
áramolhasson: Vissza: 20cm
Oldalsó: 10cm
-- A készüléket jól szellőztetett és száraz helyen, hőforrásoktól távol kell elhelyezni (pl.
Tűzhely, füst, gőz) és közvetlen napfénytől.
- Javasoljuk, hogy a készüléket sima felületen használja. A magas működési szög 30 °.
- Ne merítse a hűtőszekrényt a vízbe.
- Az első használat előtt ajánlatos a hűtőszekrényt egy kevés semleges tisztítószerrel
nedvesített puha ruhával tisztítani, majd puha, száraz ruhával törölni.
(Figyelem: Az elektronikus alkatrészek csak szárazon tisztíthatók)
- Ne hagyja, hogy a gyerekek játszanak az eszközzel, másszanak vagy üljenek rajta.
Károsíthatják a hűtőszekrényt, és megsérülhetnek.

3
2. Működési módok.
3.1 Tápellátás: 12Vdc, 24Vdc vagy 110~240Vac (cu adaptor)
3.2 Tápkábel :
3.3 Eszköz működtetése:
--ON/OFF: nyomja meg az ON / OFF gombot 3 másodpercig a hűtőszekrény
bekapcsolásához.
A hűtőszekrény kikapcsolásához nyomja meg az ON / OFF gombot 3
másodpercig.
- Nyomja meg az UP vagy DOWN gombot a hőmérséklet beállításához. Nyomja
meg az UP gombot a hőmérséklet növeléséhez, vagy a DOWN gombot a
hőmérséklet csökkentéséhez.
- "SET" gomb: Nyomja meg a "SET" gombot a gazdaságos üzemmód
aktiválásához:
1. ECO (energiatakarékos üzemmód)
2. HH (gyors hűtés üzemmód)
LED jelző:
1. Tápellátás jelző: Piros LED: A kompresszor ki van kapcsolva.
2. Tápellátás jelző: Zöld LED: Kompresszor működik.
3. ECO jelző: Piros LED: A gyors hűtés üzemmód aktív.
4. ECO jelző: Zöld LED: Energiatakarékos üzemmód aktív.
-- Akkumulátor védelem: Válassza ki a H1, H2 vagy H3 funkciót az akkumulátorvédelem
szintjének kiválasztásához. Ha az eszköz be van kapcsolva, nyomja meg a "SET" gombot
3 másodpercig, majd válassza ki az egyik módot:
H1: Alacsony védelem.
H2: Közepes védelem
H3: Nagy védelem (gyári alapbeállítás)
Ha a hűtőszekrényt bekapcsolja a gépkocsira, ajánlatos H3 (H) szintre állítani. A H2
(M) és a H1 (L) szinteket akkor ajánljuk, ha a hűtőszekrény egy extra akkumulátorral
működik. Ha megjelenik az "F1", akkor meg kell változtatnia a védelmi szintet a H3-ról H2-
re vagy H1-re.
A legtöbb gépkocsi esetében a motor leállása esetén a könnyebb áramellátás
kikapcsol. De egyes autókon továbbra is működik. Ha a hűtőszekrény továbbra is működik
a motor kikapcsolása után, célszerű az akkumulátor védettségét beállítani a H3 (H)
állásban, különben az autó akkumulátora teljesen lemerülhet.
