Dear customer,
Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read
all the instructions in this user‘s manual.

EN - 1
08/2016
Copyright © 2016, Fast ČR, a. s.
CONTENTS
PART 1: SAFETY WARNINGS............................................................................................................................ 2
PART 2: PRODUCT OVERVIEW......................................................................................................................... 3
PART 3: INSTALLATION.................................................................................................................................... 4
 Location..............................................................................................................................................................................................4
 Reversing the door swing............................................................................................................................................................4
 Door space requirements ............................................................................................................................................................8
 Levelling the unit............................................................................................................................................................................8
 Cleaning before use.......................................................................................................................................................................8
 Before using your unit...................................................................................................................................................................8
 Interior accessories.........................................................................................................................................................................9
PART 4: OPERATION....................................................................................................................................... 10
 Switching on your unit ..............................................................................................................................................................10
 Noise inside the unit!.................................................................................................................................................................. 10
 Tips for keeping food in the unit............................................................................................................................................ 10
PART 5: CLEANING ......................................................................................................................................... 11
 Defrosting.......................................................................................................................................................................................11
 Cleaning the Interior and the exterior of the unit ...........................................................................................................11
 Cleaning tips..................................................................................................................................................................................11
PART 6: MAINTENANCE ................................................................................................................................. 12
 Care when handling / moving your unit.............................................................................................................................12
 Servicing .........................................................................................................................................................................................12
 Switching of for long periods of time................................................................................................................................... 12
PART 7: TROUBLE SHOOTING ...................................................................................................................... 13
 Warm tips........................................................................................................................................................................................ 13
PART 8: TIPS FOR ENERGY SAVING............................................................................................................... 14
PART 9: INFORMATION SHEET ...................................................................................................................... 15

EN - 2
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 1: SAFETY WARNINGS
1) WARNING—Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
2) WARNING—Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
3) WARNING—Do not damage the refrigerant circuit.
4) WARNING—Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
5) The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
6) This appliance can be used by children aged from 8 years and above and persons with reduce physical
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
7) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
8) Please abandon the refrigerator according to local regulators for it use ammable blowing gas and
refrigerant.
9) Please according to local regulations regarding disposal of the appliance for its ammable refrigerant and
blowing gas. Before you scrap the appliance, please take o the doors to prevent children trapped.
10) This appliance is intended to be used in household.
11) Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT
SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

EN - 3
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 2: PRODUCT OVERVIEW
temperature control box assembly
R glass shelf assembly
small tray
large fray
vegetable basket shelf glass
vegetable basket
adjustable foot
*All images in this instruction manual are for indication only; please refer to your individual unit fordetails.

EN - 4
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 3: INSTALLATION
Location
When selecting a position for your unit you should make sure the oor is at and rm, and the room is well
ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator.
Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures
may also cause the unit not to perform properly.This unit is not designed for use in an outdoor installation. Do
not drape the unit with any covering.
When installing the unit, ensure that 10cm of free space is left at both sides, 10cm at the rear and 30 cm at the
top of the unit. This will allow cold air to circulate around the wine cooler and improve the eciency of the
cooling process.
Reversing the door swing
Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner
1) Remove the right top hinge cover.
right top hinge cover
2) Remove the screws xed the top-hinge with cross-slot screwdriver.
two screws

EN - 5
08/2016
Copyright © 2016, Fast ČR, a. s.
3) Remove the hinge shaft sleeve and the door block to the other side.
hinge shaft sleeve
door block
A. Remove the nut with sleeve. Take o the washer then remove the axes to the other side and xed.

EN - 6
08/2016
Copyright © 2016, Fast ČR, a. s.
4) Disassemble the screws xed in the bottom hinge assembly with cross slot screwdriver and remove the
adjustable foot
adjustable foot bottom hinge assembly
NOTE:
The refrigerator incline angle less 45°.
5) Replace the bottom hinge to the other side then x it with screws.
bottom hinge assembly adjustable foot
6) Install the two screws on the right and Remove the left top hinge cover
left top hinge cover two screws

EN - 7
08/2016
Copyright © 2016, Fast ČR, a. s.
7) Install the left top hinge cover on the right and Remove the two screws
two screws
left top hinge cover

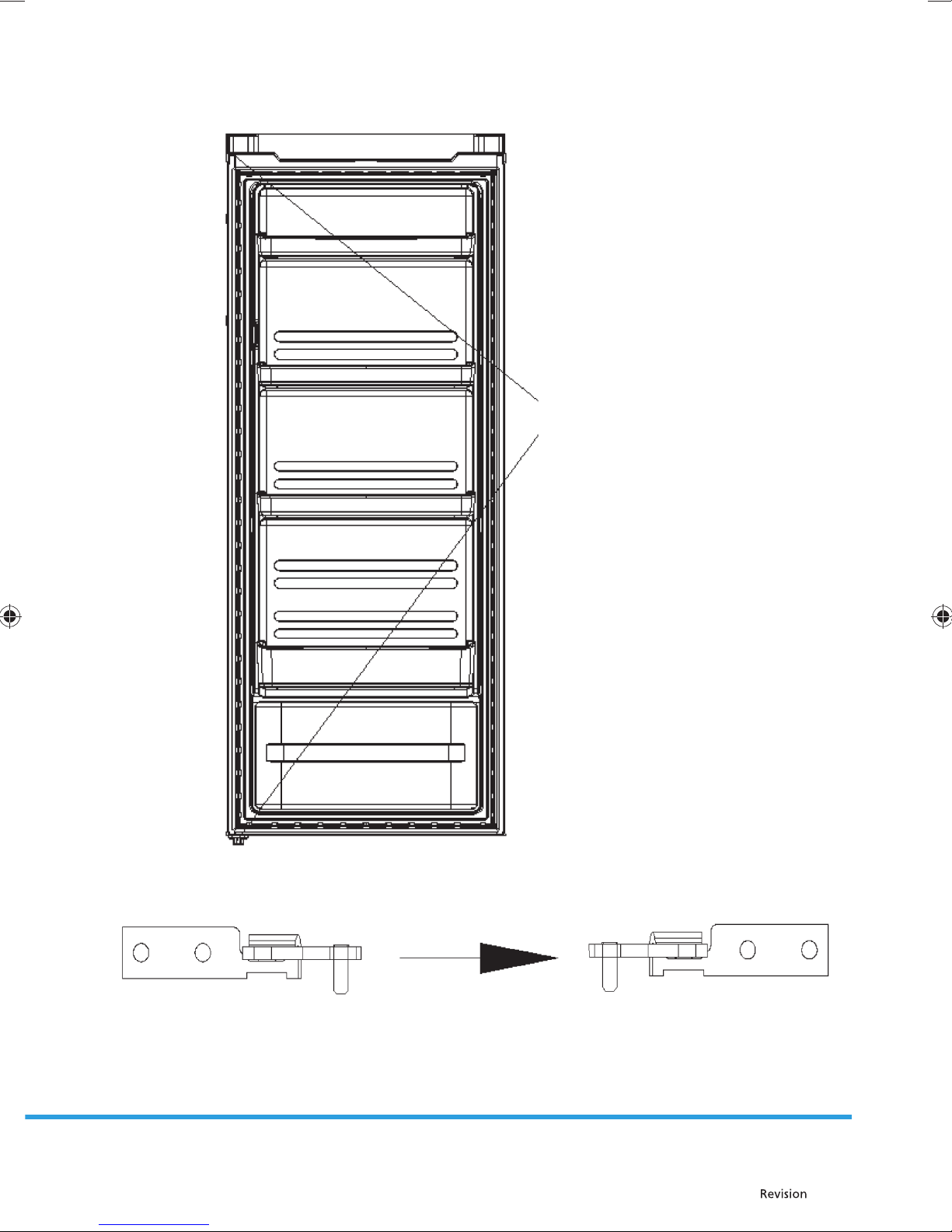

8) Install the top-hinge. set the top door right position, x the top-hinge and the cover.
9) Install the left top hinge cover on the left
right top hinge cover

EN - 8
08/2016
Copyright © 2016, Fast ČR, a. s.
Door space requirements

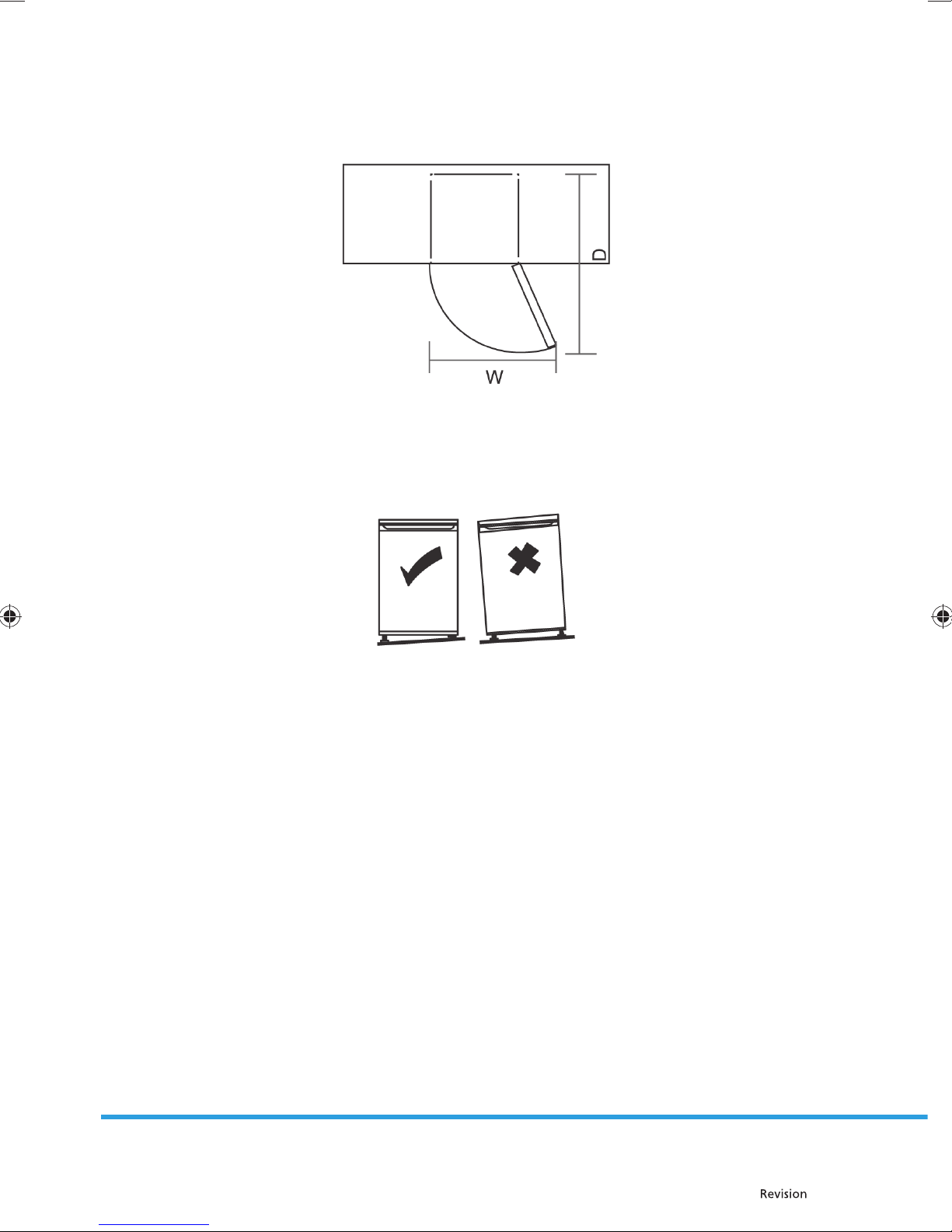

The unit’s door must be able to open fully as shown.
W×D≥902×1052mm
Levelling the unit
To do this adjusts the two levelling feet at the front of the unit.
If the unit is not level, the door and magnetic seal alignments will not be covered properly.
Make sure that the foot touches the ground before use.
Look down from the top, clockwise and counterclockwise loosening, tightening.
Cleaning before use
Wipe the inside of the unit with a weak solution of bicarbonate soda.Then rinse with warm water using a damp
sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in
the unit. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning
section.
Before using your unit
Do not damage the power cord under any condition so as to ensure safety use, do not use when the power
cord is damaged or the plug is worn.
Do not put ammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to
the product or re accidents.
Do not place ammable items near the refrigerator to avoid res.
This product is household refrigerators and shall be only suitable for the storage of foods.
According to national standards, household refrigerators shall not be used for other purposes, such as storage
of blood, drugs or biological products.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to
allow it time to fall to the correct temperature. Your unit should not be overlled.

EN - 9
08/2016
Copyright © 2016, Fast ČR, a. s.
• Before Plugging in
You must check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit.
Interior accessories
Various glass or plastic storage shelves are included with your appliance - dierent models have dierent
combinations.
You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit
and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be
swivelled upwards or downwards and removed.
Please do the same in reverse to insert the shelf at a dierent height.
In order to make the most of the volume of the fresh food storage compartment and frozen-food
storage compartment, the user can remove one or more shelves, drawers out of the appliance,
according to your daily use.

EN - 10
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 4: OPERATION
Switching on your unit
• The temperature selector knob is located on the right hand sidewall of the refrigerator interior
Setting“Min”: Less Cool Temperature
Setting“Med”: Normal Operation (adequate for most situations)
Setting“Max”: Coolest Temperature
• During high ambient temperatures e.g. on hot summer days. It may be necessary to set the thermostat
to the Coolest setting (position “Max”).This may cause the compressor running continuously in order to
maintain a low temperature in the cabinet.
• For the rst time you install your refrigerator, set the thermostat knob at “Med”.
Give your refrigerator time to cool down completely before adding food. It is the best to wait 24 hours
before adding food. The thermostat knob controls the temperature.
Noise inside the unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should
be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more
pronounced since the introduction of CFC free gases. This is not a fault and will not aect the performance of
your unit. This is the compressor motor working, as it pumps the refrigerant around the system.
Tips for keeping food in the unit
• Cooked meats/shes should always be stored on a shelf above raw meats/shes to avoid bacterial transfer.
Keep raw meats/shes in a container which is large enough to collect juices and cover it properly. Place
the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept
cool.
• To prevent transfer of favors and drying out, pack or cover the food separately. Fruit and vegetables do not
need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal
temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We
recommend that you only open the door when you need to put food in or take food out.

EN - 11
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 5: CLEANING
Defrosting
NOTE THIS UNIT DOES NOT HAVE AN AUTO DEFROST SYSTEM
For Defrost refer to following instructions:
Defrost the refrigerator whenever the layer of frost on the surface of the evaporator reaches 3 or 4 mm. When
defrosting, remove all food and the ice cube tray and set the thermostat to the“OFF”position. Put the drip tray
under the evaporator to collect any melted water.
After the frost has melted, discard the water and dry up the interior of the refrigerator. The refrigerator can then
be restarted by turning its thermostat to the desired setting.
Cleaning the Interior and the exterior of the unit
• Remove all the shelves and the salad bin. To remove the salad bin rst remove the lower door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using
a damp sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the
door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using
asoft brush attachment
Cleaning tips
Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe
of any moisture residue. If the problem continues, please contact a qualied technician for assistance.

EN - 12
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 6: MAINTENANCE
Care when handling / moving your unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding
the edges of the top surface.
Servicing
The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under
no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons
may cause injury or serious malfunction. Contact a qualitative technician.
Switching of for long periods of time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and
clean the appliance, leaving the door ajar to prevent unpleasant smells.

EN - 13
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 7: TROUBLE SHOOTING
The following simple issues can be handled by the user. Please call the after-sale service department if the
issues are not settled.
Inoperation Whether the refrigerator is plugged and connected to power;
Low voltage;
Failure power or tripping circuit
Odor Odorous foods should closely wrapped;
Whether foods are rotten;
Whether the interior shall be cleaned.
Long-term operation of
compressor
It is normal that refrigerator operates for longer time in summer when the
ambient temperature is higher;
Do not put too much food in the refrigerator at one time;
Do not put foods until they are cooled;
Frequent opening of refrigerator door.
Illuminating light does not
shine
Whether the refrigerator is connected to power, whether the illuminating
light is damaged.
The refrigerator door cannot
be properly closed.
The refrigerator door is stuck by food packages;
Too much food;
Tilt refrigerator.
Loud noises Whether the food is leveled, whether the refrigerator is balanced;
Whether the refrigerator parts are properly placed.
Warm tips:
• The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the
radiation of the condenser, and it is a normal condition.
• Condensation: Condensation condition will be detected on the exterior surface and door seals of the
refrigerator when the ambient humidity is large, this is a normal condition, and the condensation can be
wiped away with a dry towel.
• Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.

EN - 14
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 8: TIPS FOR ENERGY SAVING
Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close
it as soon as possible.
Every now and then check if the appliance is suciently ventilated (adequate air circulation behind the
appliance).
In normal temperature conditions, please arrange the thermostat at the middle setting.
Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.
Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.
If it is the outer condenser, the rear wall should be always clean free of dust or any impurities.
• The appliance should be located in the coolest area of the room, away from heat producing appliances or
heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces
the compressor to run longer. Foods that cool too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.
• This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
• Liners interfere with cold air circulation, making the appliance less ecient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as
needed at one time, and close the door as soon as possible.

EN - 15
08/2016
Copyright © 2016, Fast ČR, a. s.
PART 9: INFORMATION SHEET
INFORMATION SHEET: Philco
Philco brand:
Brand Philco
Model identication PTL 2352
Type of appliance 3) 1
Energy eciency class
(A... low electricity consumption to G high electricity consumption) A++
Electricity consumption per 365 days 1) kWh 93
Total available volume: l 235
of which: refrigerator part l 235
of which: freezer part l -
Star mark for the freezer area -
Frost free Space for refrigeration
Storage time after shut-o (temperature rise time) [hrs.] -
Freezing capacity kg/24h -
Climatic class 2) ST/N/SN
Voltage 220-240v/50Hz
Noise level 4) dB (re 1pW) 40
Dimensions cm (h x w x d) cm 142 x 55 x 55
Weight kg 41
Built-in appliance no
1) Electricity consumption in kWh / year is based on the results of a normalised test carried out over a period
of 24 hours. Actual electricity consumption depends on the use and location of the appliance.
2) SN: ambient temperatures from +10 °C to +32 °C
ST: ambient temperatures from +18 °C to +38 °C
N: ambient temperatures from +16 °C to +32 °C
3) 1 = Refrigerator without low temperature areas
7 = Refrigerator/freezer with low temperature areas *(***)
8 = Box freezer
4) Noise level according to European norm EN 60704
NOTE:
All the here mentioned data is subject to change.

EN - 16
08/2016
Copyright © 2016, Fast ČR, a. s.
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED
PACKAGING MATERIALS
Dispose of packaging material at a public waste disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES
The meaning of the symbol on the product, its accessory or packaging indicates that this
product shall not be treated as household waste. Please, dispose of this product at your applicable
collection point for the recycling of electrical & electronic equipment waste. Alternatively in some
states of the European Union or other European states you may return your products to your local
retailer when buying an equivalent new product. The correct disposal of this product will help save
valuable natural resources and help in preventing the potential negative impact on the environment
and human health, which could be caused as a result of improper liquidation of waste. Please ask
your local authorities or the nearest waste collection centre for further details.The improper disposal
of this type of waste may fall subject to national regulations for nes.
For business entities in the European Union
If you wish to dispose of an electrical or electronic device, request the necessary information from
your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary information about the correct disposal
method from local government departments or from your seller.
This product meets all the basic EU regulation requirements that relate to it.
Changes to the text, design and technical specications may occur without prior notice and we reserve the
right to make these changes.
Czech is the original version.
Manufacturer address: PHILCO, Praha 10, Černokostelecká 2111, CZ-10000; CZECH REPUBLIC
