PARTS MANUAL PN 9915353 and MICROFICHE PN 9916183 10/99
INDY 340 DELUXE
Model #S00LD3AS
Rev. 01
ÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓ
ÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓ
ÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓ
ÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓ
ÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓ
ÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓÓ



TABLE OF CONTENTS
INDY 340 DELUXE S00LD3AS
Parts Manual
B
BATTERY BOX A12. . . . . . . . . . . . . . . . . . .
BLOWER HOUSING & RECOIL C5. . . . . . .
BRAKE A13. . . . . . . . . . . . . . . . . . . . . . . . .
C
CARBURETOR C9. . . . . . . . . . . . . . . . . . .
CHAINCASE B5. . . . . . . . . . . . . . . . . . . . .
CRANKCASE C2. . . . . . . . . . . . . . . . . . . . .
CYLINDER C3. . . . . . . . . . . . . . . . . . . . . . .
D

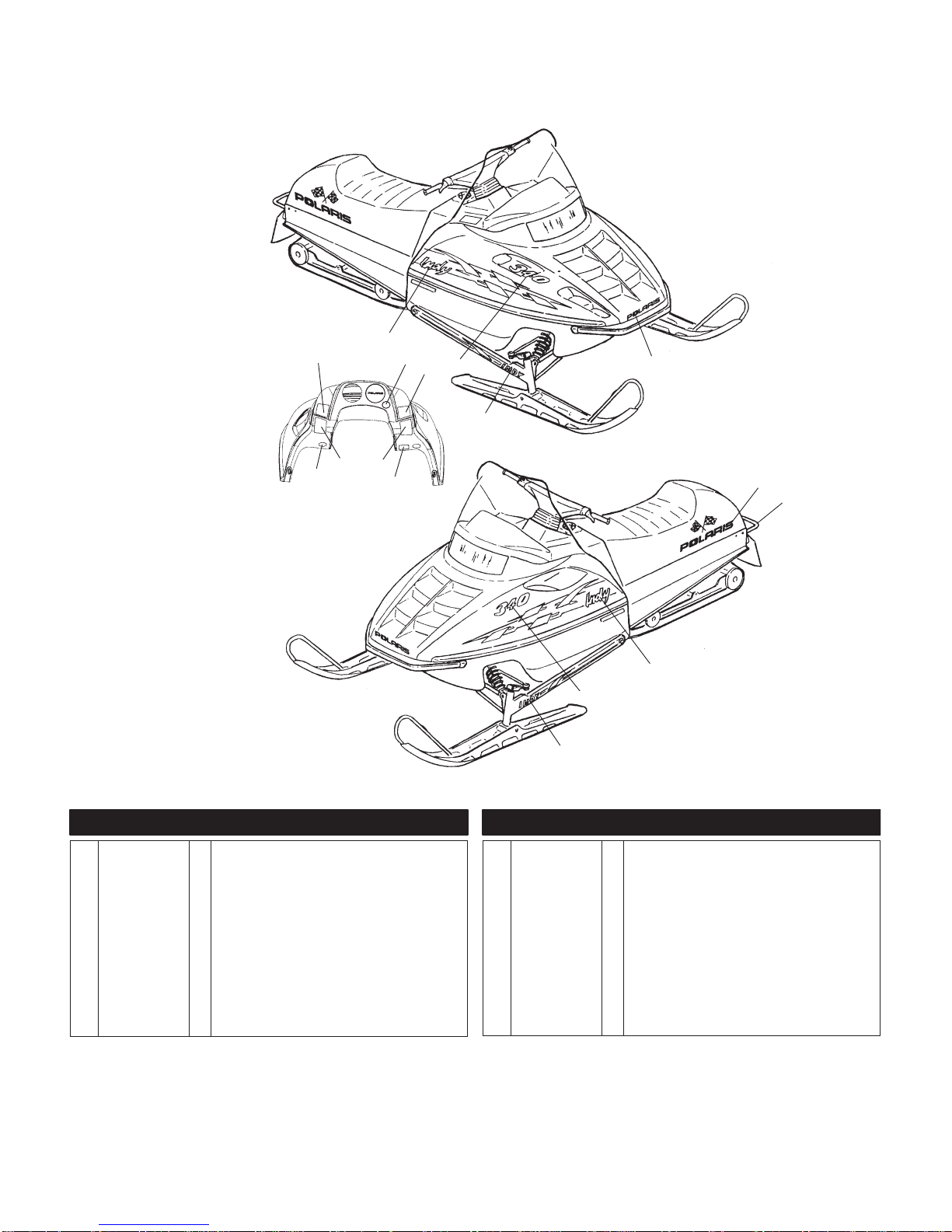

DECALS A11. . . . . . . . . . . . . . . . . . . . . . . .
DRIVE CLUTCH B11. . . . . . . . . . . . . . . . . . .
DRIVE TRAIN B6. . . . . . . . . . . . . . . . . . . . .
DRIVEN CLUTCH B12. . . . . . . . . . . . . . . . . .
E
ENGINE MOUNTING B13. . . . . . . . . . . . . . .
EXHAUST SYSTEM B14. . . . . . . . . . . . . . . .
F

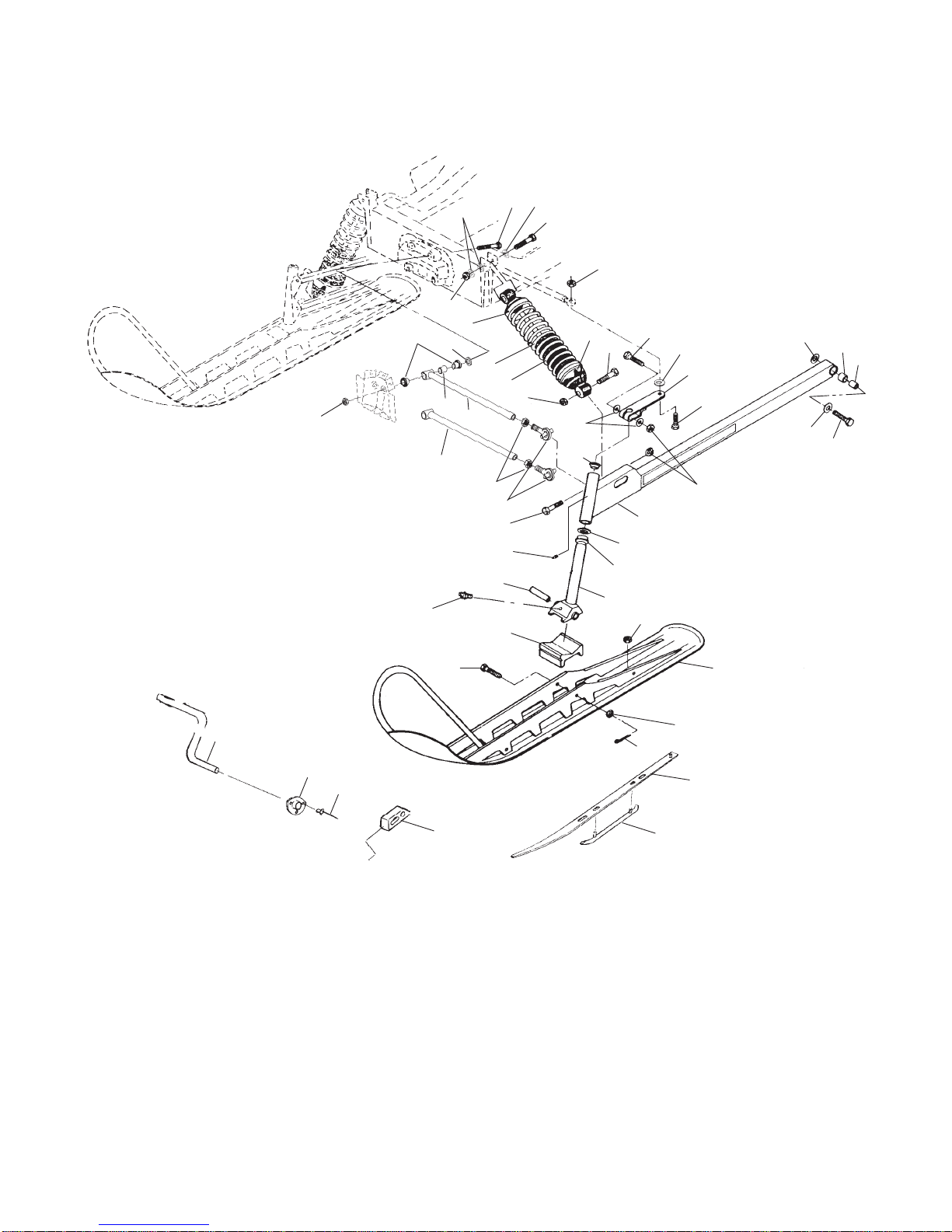

FRONT SUSPENSION and SKI B1-2. . . . . . . .
FRONT TORQUE ARM B9. . . . . . . . . . . . . .
FUEL PUMP C6. . . . . . . . . . . . . . . . . . . . . .
H

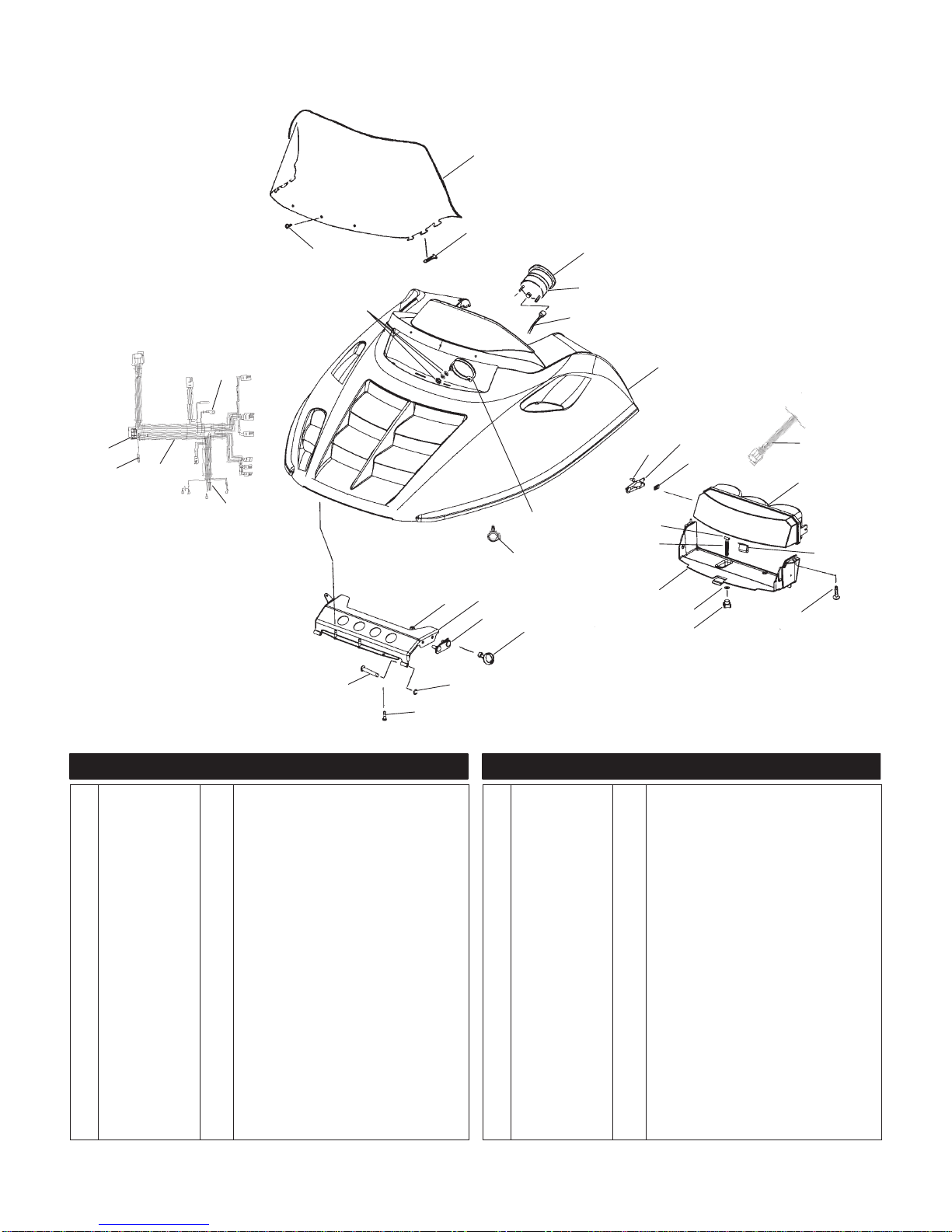

HOOD ASSEMBLY A9-10. . . . . . . . . . . . . . . . .
M
MAGNETO C8. . . . . . . . . . . . . . . . . . . . . . .
N
NOSEPAN and CONSOLE A7-8. . . . . . . . . . .
O
OIL PUMP C7. . . . . . . . . . . . . . . . . . . . . . .
OIL TANK/AIR BOX C1. . . . . . . . . . . . . . . .
P
PART NUMBER INDEX C11-D1. . . . . . . . . . . . . .
PISTON and CRANKSHAFT C4. . . . . . . . . .
R
RAIL MOUNTING (SUSPENSION) B8. . . . .
REAR TORQUE ARM B10. . . . . . . . . . . . . . .
S
STARTING MOTOR C10. . . . . . . . . . . . . . . .

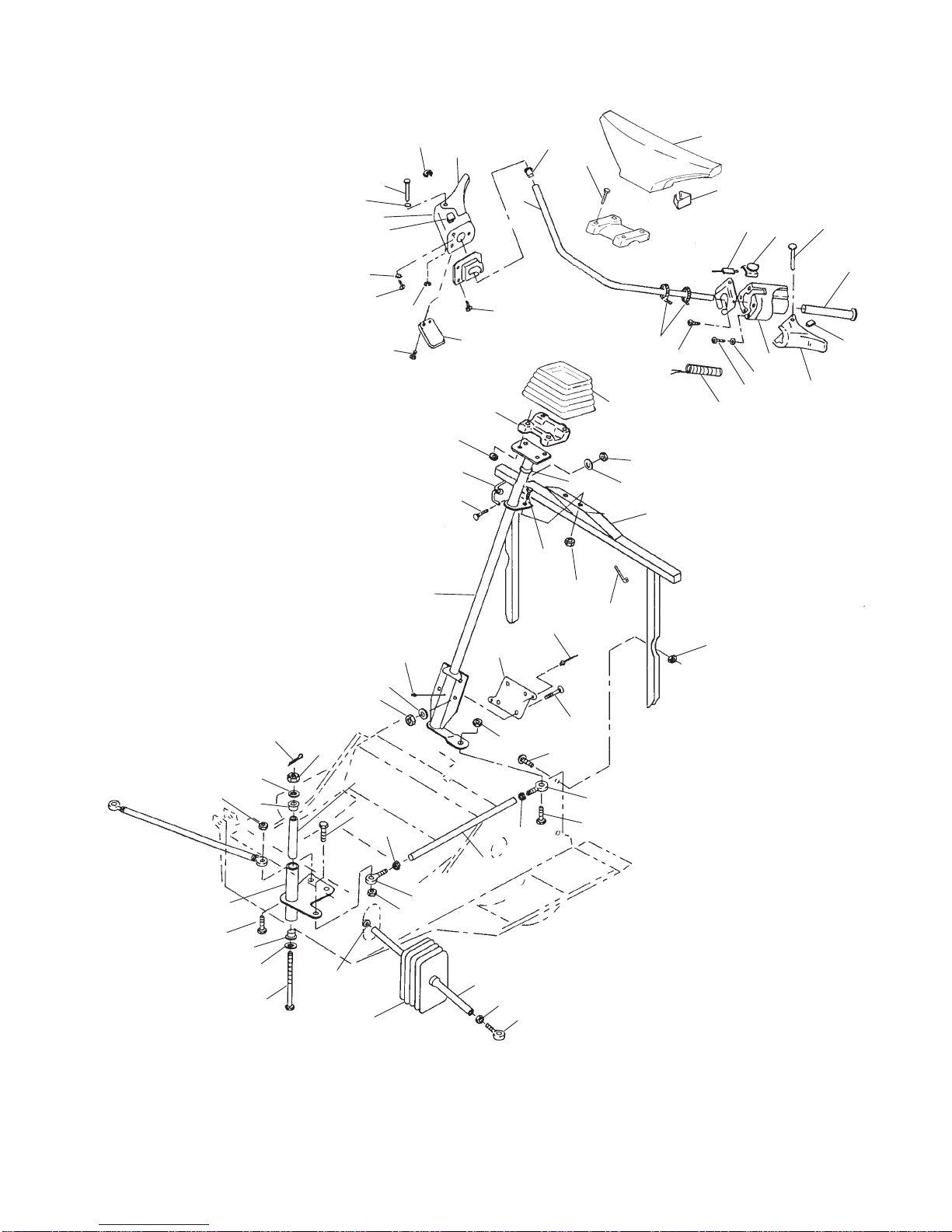

STEERING B3-4. . . . . . . . . . . . . . . . . . . . . . .
SUSPENSION B7. . . . . . . . . . . . . . . . . . . .
T

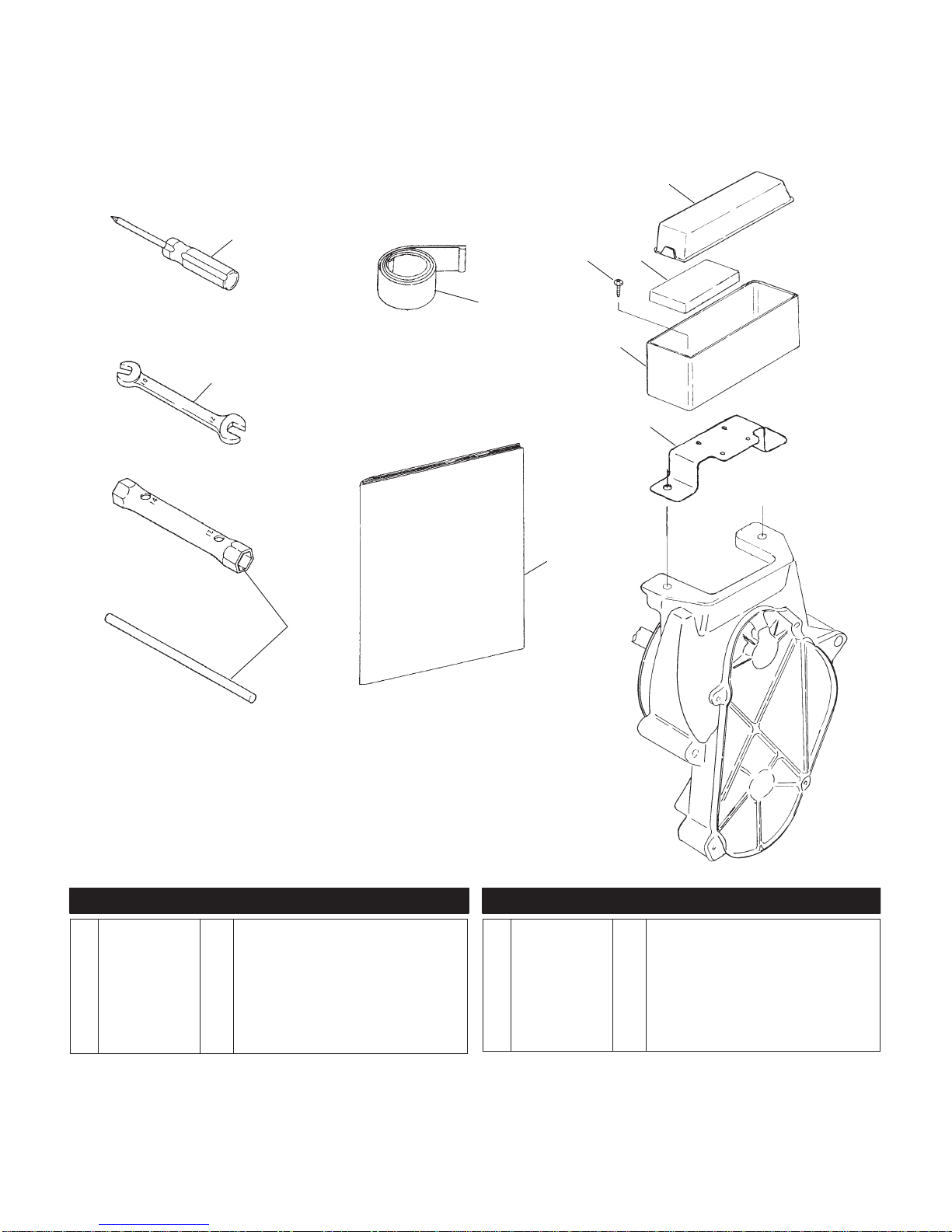

TOOL KIT A14. . . . . . . . . . . . . . . . . . . . . . .
TUNNEL and SEAT A5-6. . . . . . . . . . . . . . . .
The illustrations used in this Parts Manual are for reference to replacement parts only. This manual is not to be used for assembly.

2000 INDY 340 DELUXE SPECIFICATIONS
BRAKES
Type Mechanical Disc
CAPACITIES
CoolantCapacity(qts.)
Chaincase Oil Capacity (oz.)
Dry Weight (lbs.)
Fuel Tank Capacity (US/lmp. Gal.)
Gearcase Oil Capacity (oz.)
Height(in.)
Length (Incl. skis)
Oil Capacity (qts.)
Ski Center Distance (in.)
Ski Length (in.)
Ski Width (in.)
Width (in.)
N/A
9
417
8.8/7.3
N/A
45
105
2
37
40
5.5
42.5
CHAINCASE
Drive Chain Length
Drive Shaft Sprocket
Reverse Transmission
SprocketRatio
66P 3/4
9T (2)
Accessory
17/41
DRIVE CLUTCH
Center Distance (in.)
Clutch Offset (in.)
Clutch Type
Clutch Weight
RingGear
Spider
SpringColor
11.03
21/32
P-90
10
Standard
Cast
Silver/Gold
DRIVEN CLUTCH
Covers
Diameter(in.)
Helix Angle
Spring Position
Spring Type
None
9.5
36.5°
A-1
Silver
ENGINE SPECS
Engine Model Number
AlternatorOutput
Bore X Stroke (mm)
Displacement (cc’s)
Carburetion/Throttle Body
CarburetorModel
Cooling
Cylinders
Electric Start
Ignition Timing Dynamic Deg. BTDC
Ignition Type
Oil Injection
Spark Plug Type (RFI)
Spark Plug Gap (in.)
EC34-2PM052
12V180W
62.3x55.6
339
2 Mikuni
VM30SS Slide
Fan Air
2
Accessory
26.5°@3000RPM
CDI
Yes
NGKBR8ES
.028
ELECTRICAL
Headlight Type
Headlight(watts)
IndicatorLight
Thumbwarmer
Handwarmers
Halogen
High2x37.5/Low60/12V
HiBeam/Accessory/Oil/Brakes
Standard
Standard
GRAPHICS
Backrest Pad Color
Belly Pan Color
Front Shock
Front Springs Color (340)
Grab Bars Color
HandlebarCover
Headlight Pod Color
HoodColor
Hood Accent Colors
Snow Flap Color
Nosecone-Top/BottomColor
RearRack(Cargo)Color
Rear Idler Wheel Color
Seat Color
Ski Color
TunnelColor
Tunnel Stripe Color
Windshield (Size & Color)
Windshield Base Color
N/A
Red
Black
Indy Red
N/A
Black Molded
N/A
Indy Red
ProcessBlue/White/Black/NewPurple
“C”/ScreaminYellow
Black/Silver Logo
N/A
N/A
Indy Red
Black
Black
Unpainted
N/A
Mid/Smoke
Black Band
SUSPENSION
Front Type
Front Travel (in.)
Radius Rods (Adj. or Lub.)
Shock/SpringAdj.
TorsionBar
Rear Type
Front Torque Arm Limiter
Rear Torque Arm Limiter
Rear Travel (in.)
Shock:
Front Track
Rear Track
Springs:
Front Torque Arm
Rear Torque Arm
Rear Torque Arm Spring Dia.
38 Lite
7.00
Adjustable
Nitrex/Fixed
Accessory
Xtra Lite
Adjustable
Fixed
10
Nitrex
Nitrex
Coil
Torsion
.406
TRACK
TrackConstruction
Track Length Overall (in.)
TrackPattern
Track Width (in.)
LugHeight
Polyester
121
Block
15
.66″
PolarisIndustries Inc.reservesthe rightto make changesin designandspecifications and/ortomake additionsor improvements toits products withoutnotice.

2000 POLARIS SNOWMOBILE PUBLICATION NUMBERS
MODEL MODEL # OWNER’S MANUAL
& SUPPLEMENT PARTS MANUAL PARTS MICROFICHE ASSEMBLY INSTRUCTIONS
Indy 340 Deluxe S00LD3AS 9915247 & 9915355 9915353 9916183 9915357

A5
TUNNEL and SEAT
INDY 340 DELUXE S00LD3AS
3
4
6
5
7
8
910
11
12
13
14
15
16
17
18
19
2
1
23
24
2526 28
28
27 27
629
30
32
33
34
35
36
38
39
23
23
39
23
41
42
23
43
44
45
46
23
20
21
22
31
37
22
40

A6
TUNNEL and SEAT
INDY 340 DELUXE S00LD3AS
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 8450061-600 AR Line,Fuel
2 7052095 1 Fitting,90 Degree
3 2511245 1 Cap,Gas w/Gauge
4 2682512
2682513 1 1Cushion, Seat (Incl. 7-11) Cover, Seat
5 7558302 2 Washer
6 7542122 5 Nut,Nylok
7 7511840 4 Screw
8 5430423 1 Lens
9 5433341 1 Housing,Taillight
10 4030045
4030024 1 1Bulb,Brakelight Bulb, Taillight
11 2460399 1Harness,Taillight
12 7515111 2 Screw
13 7555798 2 Washer, Nylon
14 7052243 1Pick-Up,Fuel w/Filter
15 7080402 2Ring,Compression
16 2520179 1Tank, Fuel (Incl. 1,2,14-17)
17 7052023 1Fitting,Outlet, Double
18 7080307 1Clamp,Hose, Green
19 8350019-600 AR Line,Fuel
20 7080138 1Cable Tie
21 5220520-067 1Bracket, Stand
22 7621453 8 Rivet
23 7661637 84 Rivet
24 5410021 1 Grommet
25 1012939 1 Tunnel (Incl. 38,41)
26 5222452-067 2Bracket, Console/Seat Mount
27 7670021 3Nut,Speed
28 7512193 5Bolt,Carriage
29 5222330-067 1Strap, Gas Tank
30 5420126 1Cushion,TankHold-Down
31 7661836 15 Rivet,Semi-Tubular
32 5224766-067 1Bumper, Rear
33 7621418 5 Rivet
34 5410394 1 Flap, Snow, Silver
35 7512252 4 Screw
36 2670133 2 Reflector, Red
37 7661837 34 Rivet,Semi-Tubular
38 5241670-067
5241671-067 1 1Pad, Rear Suspension Mount, LH Pad, Rear Suspension Mount, RH
39 1011830
1011826 1 1Footrest,LH Footrest,RH
40 1011792-067
1011793-067 1 1Support, Trailing Arm, LH Support, Trailing Arm, RH
41 5211705-067 2Pad,Suspension Mount, Front
42 5810502 1Pad, Air Box
43 1012587-067 1 Bulkhead
44 7080416 4 Plug,Hole
45 7080399 1Bushing,Open/Close
46 5630924 1Mount,RadiusRod
7/99

A7
NOSEPAN and CONSOLE
INDY 340 DELUXE S00LD3AS
123
8
910
7
5
11
13
14
15
16 17
19
20
21
22 65
64
63
48
49
47
46
45
52 51
50
62
55
60
58 59
56
23
38
36
35
34
33
31
32
30
28
27
26
24
6
25
57
12
29
29
33
54
23
37
57
18
40
61
57
32
4
5
23
43
39
44
41
42
23
23
23
53

A8
NOSEPAN and CONSOLE
INDY 340 DELUXE S00LD3AS
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7512018 2 Screw
2 4060122 1 Regulator, LR9
3 5210650 1 Sink,Heat
4 4060104 1 Rectifier, LR-4, LR-2
5 2200188
7080661 1 1Kit - Choke Control Cable,Choke Control
6 4110061 1 Switch,Ignition,E.S.
7 7078194 1 Decal - Fuel Shut-Off
8 5410374 2 Seal
9 5431211-070 1 Louver, Intake, Basic
10 5810458 1Foam,Intake
11 5431636-293 1 Console
12 4110195
4040014
5430967
1
1
1
Switch, Rocker
Indicator, Acc.
Plug,Indicator Hole
13 7547034 1Nut,Ignition
14 5410378 2Cap, Ignition Key
15 7080229 1Nut, Choke Slide
16 7571610 1 Washer
17 7517468 4 Screw
18 7558301 4 Washer, Flat
19 7621336 6 Rivet
20 7555727 6 Washer
21 5431214-070 1 Cover, Console, Inner, Basic
22 5410425 1Strap, Tool Compartment
23 7621467 50 Rivet
24 5810478 1Tape, Foil
25 7670067 2Clip, Dart
26 5810482 1Tape, Foil
27 7621457 10 Rivet,Pop
28 5431252
5431253 1 1Cover, Shock, LH Cover, Shock, RH
29 7558212 18 Washer, Flat
30 5431230-293 1Nosepan,RH
31 5810477 1Tape, Foil
32 7621472 8 Rivet
33 5810475 1 Tape, Foil
34 5243631-067 1Screen,Front
35 5431154-293 1Nosepan,Center
36 7670040 6Fastener, U-Type Clip
37 5810509 1Tape, Foil
38 2635010-067 1Hinge,Lower
39 5224434-293 1Bumper, Front
40 7515102 2 Screw
41 7080430 4 Plug,Button
42 7512164 2 Screw
43 5222611-067 2 Plate,Front Bumper Reinforcement
44 5431250-293
5431251-293 1 1Cap, Bumper End, LH Cap, Bumper End, RH
45 5431229-293 1Nosepan,LH
46 5410582 1Plug, Clutch Hole
47 2670071 2Reflector, Amber
48 7621601 2Rivet, Cherry Mate
49 5431501 2Strap,HoodLatch
50 5222332-067 1Support,Clutch Guard
51 7621449 4Rivet,Cherry
52 5211249-067 1Plate, Clutch Guard
53 5432302 1 Clip
54 4020139 1 Clip,Rosebud
55 5222339-067
5222340-067 1 1Bracket, Pan Brace, LH Bracket, Pan Brace, RH
56 7542122 4Nut,Nylok
57 7621479 6Rivet,Bulbex
58 5810476 1Tape, Foil
59 5222345-067
5222346-067 1 1Bracket,Bumper Brace, LH Bracket,Bumper Brace, RH
60 5222356-067 1Bracket,Support, Radius Rod
61 5811078 1Shield,Nosepan DrainHole
62 5224440 1Pin, Clutch Cover
63 7075350 1Decal - Engine and Clutch
64 5243761 1Guard,Clutch
65 7080311 1Pin, Clutch Cover
7/99

A9
HOOD ASSEMBLY
INDY 340 DELUXE S00LD3AS
1
23
89
7
6
12 5
20
11
13
17 16
15
18
19
24
25
26
22
23
14
32
21
4
14
28
31
30
29
27
10
24
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 5433389 1 Windshield, Mid, Smoke
2 5410970 4 Retainer,Windshield
3 3280303 1 Speedometer
4 3280209 1 Cushion,Rubber
5 3280275 1 Cable,Speedometer
6 2632095-293 1 Asm.Hood
(Includes Foam, Foil, Warn. Decals)
7 7515107 2 Screw
8 1011944-067 2 Mount,Headlight
9 7670057 2 Nut, U-Type Speed
10 2460636 1Headlamp,Harness
11 2431008
4030048
2870448
1
2
1
Headlamp,3 Bulb
Bulb, High Beam
Bulb
12 3280157
3280156
3280158
2
2
2
Washer, Flat
Washer, Split Lock
Nut
13 7670040 1Fastener, U-Type Clip
14 7517441 7 Screw
15 7080887 1 Knob,Headlight Adjust
16 7558301 1Washer, Flat
17 5432669 1Mount,Headlamp
18 7041308 1Spring,Headlight Adjust
19 7517746 1Bolt, Tee, Adjuster
20 3280210 1Bracket,Speedo/Tach.
21 7542122 4Nut,Nylok
22 5242252-067 1Hinge,Upper
23 1012637 2Hinge, Upper Stud Plate
24 4020139 3Clip,Rosebud
25 7710474 2Ring,Retaining
26 7661647 2Pin,Retaining
27 4020063 1Housing,Pack
28 2460648 1Harness,Main
29 4020133 1Housing,Socket
30 4020057 1 Housing
31 4020092 1 Terminal, Ring
32 7621509 3 Rivet
7/99

A10
HOOD ASSEMBLY
INDY 340 DELUXE S00LD3AS
9
8
7
15
11
13
12
10
14
6
4
5
3
1
2
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7512103 1 Bolt
2 7080414 1 Cable, Hood Retainer
3 7542122 1 Nut,Nylok
4 7555806 4 Washer, Flat
5 7670017 4 Nut,Push
6 5243932 1 Deflector, Air
7 5243629-067 1 Screen,Hood, Upper
8 5243628-067 1 Screen,Hood, Center
9 5243627-067 1 Screen,Hood, Lower
10 7670082 12 Clip, U-Type Speed
11 5811772 1Foam, Hood, LH
12 5811563 1Foil, Hood, RH
13 5811773 1Foam, Hood, RH
14 7670040 3Fastener, U-Type Clip
15 5243630-067 1Screen,Hood, Side
7/99

A11
DECALS
INDY 340 DELUXE S00LD3AS
1
9
12
15
11
13
45
2
16
6
3
7
10
LH
RH
8
14
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
2201585 1Kit - Hood Decals, ’00 Indy 340 Deluxe
(Incl.1-5,7-10,12,13,16)
1 7078370 1 Decal - Caution, English
2 7078202 1 Decal - Hood Side, “Indy”, RH
3 7078315 1 Logo - 45th Anniversary
4 7077441 1 Decal - Caution, French
5 7078341 1 Decal - “340”, RH
6 7078204 1 Decal - “Indy”, Trailing Arm, RH
7 7075438 1 Decal - “NO PASSENGER” Warning
8 7077439 1 Decal - Warning, French
9 7077438 1 Decal - Warning, English
10 7078399 1Decal - Electric Start
11 7078203 1Decal - “Indy”, Trailing Arm, LH
12 7078198 1Decal - “340”, LH
13 7078201 1Decal - Hood Side, “Indy”, LH
14 7076360 1Decal - Track/Seat, LH/RH, Eng/French
15 7077546
2200891 2 1Decal - “POLARIS”, Flags, Seat Kit - Decal Application Solution
16 7078197 1Decal - Hood Center, “POLARIS”
7/99

A12
BATTERY BOX
INDY 340 DELUXE S00LD3AS
1
2
4
6
15
9
10
11
13
8
12
3
7
14
5
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 4140006 1 Battery
2 2450022 1 Strap,Battery
3 2200361 1 Kit - Battery Bolt
4 2460306 1 Cable,Battery
5 7621472 6 Rivet
6 1011828-067 1 Box,Battery
7 5410346 1 Insulator, Cable
8 4010072 1 Cable, Starter, Black
9 3083211 1 Switch, Magnetic
10 2434008 1Breaker, Circuit
11 7541925 2Nut,Nylok
12 4010074 1Cable,Starter, Black
13 7571602 2 Washer
14 7512018 3 Screw
15 5810317 2 Pad, Fuel Tank Bracket
7/99

A13
BRAKE
INDY 340 DELUXE S00LD3AS
2
35
4
7
89
10
12
13
14
15
11
18 1
17
16
19
20 8
6
1
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7080613 1 Cable,Brake
2 5220211-067 1 Bracket,Brake
3 7555806 2 Washer, Flat
4 7515440 2 Screw
5 7552603 4 Washer, Spring Lock
6 7072088 1 Decal - Brake, Silver
7 5240240-067 1 Bracket, Brake, Top Mounting
8 1930559 4 Bushing
9 7542425 2 Nut
10 5020695 2 Spacer, Alignment
11 7041147 1Spring,Brake Return
12 5630305 1Caliper,Stationary
13 1930592 1Pad,Brake
14 1930588 1Puck,Moveable Brake
15 1930593 1Caliper, Brake
16 7512240 1 Bolt
17 5332795 1 Bushing
18 7542122 1 Nut,Nylok
19 7080316 1 Clevis
20 7515478 2 Screw
1/98

A14
TOOL KIT
INDY 340 DELUXE S00LD3AS
1
2
3
5
4
6
7
8
9
10
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
3083409 1Kit - Tool (Incl. 1-3)
1 ––––––– 1 Screwdriver
2 ––––––– 1 Wrench,10-12 Spanner
3 ––––––– 1 Box Wrench,Special
4 9915247
9915355 1 1Manual,Owner’s,’00 Snowmobile Supplement, Owner’s Manual, ’00 340
Deluxe
5 7080287 1 Strap,Emergency Starter
6 5430719 1 Cover, Tool Box
7 5811051 1 Foam, Tool Box
8 7512017 4 Screw
9 5430716 1 Box, Tool
10 5242355 1Bracket, Tool Box Mount
1/98

B1
FRONT SUSPENSION and SKI
INDY 340 DELUXE S00LD3AS
23
4
39
3837
536
36
35
8
9
10 12
11
13
10
14
15
16
17 18
20
21
19
28
29
30
31
32
44
43
40
41
42
4
3
34 33
1
22
23
1
4
7
24
25
26
27
4
4

B2
FRONT SUSPENSION and SKI
INDY 340 DELUXE S00LD3AS
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 7555806 6 Washer, Flat
2 7515417 4 Screw
3 7515415 8 Screw
4 7542439 12 Nut, Nylok
5 7041788 2 Shock,IFS
6 7517583 2 Screw
7 7555976 2 Washer
8 5220326-067 2 Arm,Steering
9 7515528 5 Screw
10 7555721 4 Washer
11 5410382 2 Pivot,Rubber, Trailing Arm Ext.
12 5010187 2 Bushing
13 7512557 2 Screw
14 1823136-067
1823137-067 1 1Arm, Trailing, LH Arm, Trailing, RH
15 7556509 2 Bushing
16 3574208 2 Bushing,Flanged
17 6230073-067 2Shaft,Spindle
18 7542324 6Nut,Nylok
19 1820333-067 2 Ski
20 7542438 2 Nut
21 7661209 2 Pin,Cotter
22 1011829-067 2Plate, Skag
23 1820318-067 2 Skag
24 5410384 2 Slide
25 7621477 6 Rivet
26 5410383 2 Bushing
27 5243397-067 1 Bar, Sway
28 7515462 2 Screw
29 5521231 2 Stop,Rubber
30 7080306 2Fitting,Lubrication w/Ball
31 5010158 2 Bushing
32 7080433 2 Fitting,Lubrication
33 7060157 4Rod End, RH, Wide Bore
34 7542520 4Nut, Jam
35 3573909 2Bushing,Flange
36 7555832 4 Washer
37 5210953 2 Retainer, Spring Bottom
38 7041261-067 2Spring,Compression
39 5220225 2Retainer, Spring Coil, Top
40 7555797 4Washer, Flat
41 5431486 8Bushing,RadiusRod Pivot
42 5010252 4 Bushing
43 1820658-067 2 Rod,Radius, Upper
44 1820660-067 2Rod,Radius, Lower
7/99

B3
STEERING
INDY 340 DELUXE S00LD3AS
57
6
4
21
19 59
3
21
7
910
11
12 13 14
15
16
17
18
20
23
24
25 27
29
22
30
31
32
34
35
36
37
38
40 37
42
43
44
46 37
35
39
47
48
49
5051
44
43
36
53
54
55
56
24
21
19
58
41
58
52
45
37
2
28
26
28
18
22
33
33
35

B4
STEERING
INDY 340 DELUXE S00LD3AS
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 4110106 1 Switch, Auxiliary Shut-Off
2 5431592 2 Block,Throttle/Brake
3 7555730 2 Washer
4 7661624 1 Pin,Retaining
5 7710503 1 Ring,Retaining
6 2010147 1 Leverw/Heater
7 5224841-067 1 Handlebar
8 5431096 2 Plug,Overflow
9 7517238 4 Screw
10 5432903 1 Pad,Handlebar
11 7080799 4Clip,Handlebar Pad
12 4110105 1Switch,Brakelight
13 4110104 1Switch,Dimmer
14 7661617 1Rivet, Semi Tubular
15 5432634 2Grip,Handlebar
16 7670044 1Clip, “U” Type Speed
17 5430602 1Lever, Brake
18 7555727 2 Washer
19 7511848 6 Screw
20 2460313 2 Heater, Grip
21 7512465 2Screw,Socket/Set
22 7080138 5Cable Tie
23 5432827 1Boot,Steering Post
24 7542122 5Nut,Nylok
25 7558302 1 Washer
26 7080804 2 Cable Tie
27 1011863-067 1Hoop,Steering
28 7542103 6Nut,FLEXLOC
29 7515101 2 Bolt
30 7661637 2 Rivet
31 5222421 1 Bracket,Bolt Retainer
32 7512377 4Bolt,Carriage
33 7542439 3Nut,Nylok
34 7512298 4Bolt,Carriage
35 7060166
7060167 3 3Rod End, LH Rod End, RH
36 7515528 3 Screw
37 7542424
7542401 3 3Nut, LH Nut
38 5333816-067 1Rod, Drag Link
39 7542411 1Nut, FLEXLOC
40 5132136-067 2Tie Rod
41 5411652 2Boot, Tie Rod
42 7512572 1 Bolt
43 7555817 2 Washer, Flat
44 5630371 2Bushing,Center Steering
45 1820776-067 1Steering,Center
46 7515434 1 Bolt
47 5333009 1 Spacer
48 7542503 1 Nut
49 7661203 1 Pin,Cotter
50 7542303 4Nut,FLEXLOC
51 7558402 4Washer, Flat
52 7080433 1Fitting,Lubrication
53 1822589-067 1Post,Steering
54 7512193 1Bolt,Carriage
55 5224442-067 1Ring,Mount Recoil
56 5630187-067 2Block,Handlebar
57 5432261 1Holder, Wire
58 7511858 2 Screw
59 7710401 1 Ring,Retaining
7/99

B5
CHAINCASE
INDY 340 DELUXE S00LD3AS
12
3
4
56
8
7
910 11 12 13
14
15
16
18
17
21 6
5
22 19
20
2
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
1 ––––––– 1 Asm.,Jackshaft
(See Drive Train Pg. B6, Ref. 13)
2 3610030 2 Seal, Oil
3 7515551 1 Screw
4 7542404 1 Nut
5 3514309 2 Bearing,Ball
6 7718406 2 Ring,Retaining
7 1332213
3553002
–––––––
5630123
7558702
7662210
1
1
1
1
1
1
Tightener, Gearcase
Bearing,Chaincase Idler
Block, Tightener
Wheel,Idler
Washer, Thrust
Pin, Chain Tightener
8 3221093 1 Sprocket, 17T, 3/4W
9 7571620 1 Washer, Spring
10 7542811 1Nut, FLEXLOC
11 7661401 1Pin,Cotter
12 5410277 1Gasket,Chaincase
13 5630968 1Cover,Chaincase
14 7512242 4 Screw
15 7515350 1 Bolt
16 7571618 1 Washer, Spring
17 3222101 1Sprocket,41T, 3/4W
18 3221113 1Chain,Silent, 66P
19 7542451 1Nut,Nylok
20 7052115 1 Plug
21 5132158 1 Chaincase
22 7515477 1 Screw
7/99
