4 | UNPACK AND PREPARE
Unpack and Prepare
What's in the box
Before installing your new TV, check you have everything needed.
In the box you will find:
A. 32" HD TV with Built-in DVD Player
B. Remote Control
C. AAA Batteries
D. 12V Car Adaptor
E. Mini AV Cable
F. TV Stands
G. Screws for TV Stands
H. Warning Sheet
I. TV Toppling Safety Message
J. Quick Start Guide
K. Warranty Certificate
L. General Safety Warnings
M. User Manual
You will need:
• Phillips-head screwdriver (for stand installation)
• Antenna cable (to watch live TV)
D
FG
H
IJKL
M
E

UNPACK AND PREPARE | 5
Important Tips
• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.

6 | UNPACK AND PREPARE
Unless you are wall-mounting the TV, you will need to
attach its stand/legs.
1. Lay the TV face-down on a soft, flat surface (like the
sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the
underside of the TV.
3. Attach the stands to the TV at the installation points
using the screws provided. (Grab a screwdriver for
this bit). Make sure the legs are facing away from
each other (not leaning inwards).
Attaching the stand
• This TV is heavy! We recommend asking someone
to help you lift it.
• Unplug the TV from the power outlet before
installing or removing the stand.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for
securing the TV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.
1
2
3

UNPACK AND PREPARE | 7
200mm
Back of the TV
100mm
Wall-mounting the TV
The TV comes with holes on the back panel for use with
wall-mounting brackets (bracket not included).
Use four standard M6*10mm screws (or longer,
depending on the mounting bracket) to wall-mount this TV
(screws are not included).
• Unplug the TV from the power outlet before
wall-mounting.
• Contact a professional for assistance with
wall-mounting the TV.
Required
• VESA Mounting
Bracket
• 4 x M6*10mm
screws (or longer
as required)
The screws in the package are for securing the TV stand
only. If you are wall-mounting the TV, consult a qualified
installer for advice on bracket support and wall support.

8 | UNPACK AND PREPARE
Connect to power
Make sure the TV is switched off at the power outlet
until you have finished connecting your cables.
Don't forget to plug in the TV
to the power outlet. Leave
the power switched off until
installation is finished.
Connect to 12V power source
12V car adaptor
(plug into the DC IN
socket on the TV)
12V power outlet

UNPACK AND PREPARE | 9
Free-to-air TV in HD (High Denition)
High Definition (HD) channels
provide the best viewing quality and
are available with a digital antenna
connection.
Connect your antenna
Antenna cable not included.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels

10 | CONTROLS AND CONNECTIONS
Controls and Connections
Buttons on the TV
Get to know your TV
DVD Slot
1
3
4
6
5
2
1. STANDBY : switch the TV on or to standby.
2. VOL - / VOL + : decrease/increase the volume
level.
3. CH - / : select the previous channel. Play or
pause playback (in DVD mode).
4. MENU : enter the settings menu.
5. SOURCE : change the input source.
6. CH + / : select the next channel. Eject a disc
from the DVD player.
On/Standby light and
Remote sensor
STANDBY
VOL+ VOL-
CH /
+CH-/
SOURCE MENU

CONTROLS AND CONNECTIONS | 11
Ports on the TV
1HDMI (ARC)
SOUND
COMPUTER
All-digital connection between the TV and any HDMI device.
Supports High Definition (HD). Requires a HDMI cable (not
included).
2USB
STORAGE
»PVR record and pause live TV
»Play your stored media files (supported file codecs and
extensions may vary)
»Software updates
3MINI AV IN
SOUND
You can use this to connect your DVD player. Supports Standard
Definition (SD) picture quality. (AV Cable not included).
4COMPONENT IN
You can use this to connect your DVD player. Supports High
Definition (HD) picture quality. This also requires a component
cable (not included).
5Headphone Jack
SOUND
Connect to your headphones, amplifier or audio device, using an
AUX cable (not included).
2 3 41 65

12 | CONTROLS AND CONNECTIONS
7 8
612V Power
POWER
You can connect the supplied 12V car adaptor to this socket and
the car's cigarette lighter socket.
7
DIGITAL
AUDIO OUT
(OPTICAL)
SOUND
Connect an external digital audio device. Use an Optical cable (not
included) to connect the unit with an amplifier, soundbar or other
audio decoding device for digital audio signal output.
8ANTENNA IN
FREE-TO-AIR
TV
Connect your antenna for live TV. (Antenna cable not included.)

REMOTE CONTROL | 13
Setup
Insert two AAA size batteries according to the polarity
markings (+ / -) inside the compartment. Make sure the
batteries are correctly aligned and properly pushed into
place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not
intend to use it for a long time.
• When discarding used batteries, follow any guidelines
for recycling and disposal of batteries that apply in
your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to
extreme heat.
Remote Control
AAA size
batteries
included

14 | REMOTE CONTROL
Using the Remote Control
To use the remote, point it towards the remote sensor at
the front of the TV. The remote will not operate if its path
is blocked.

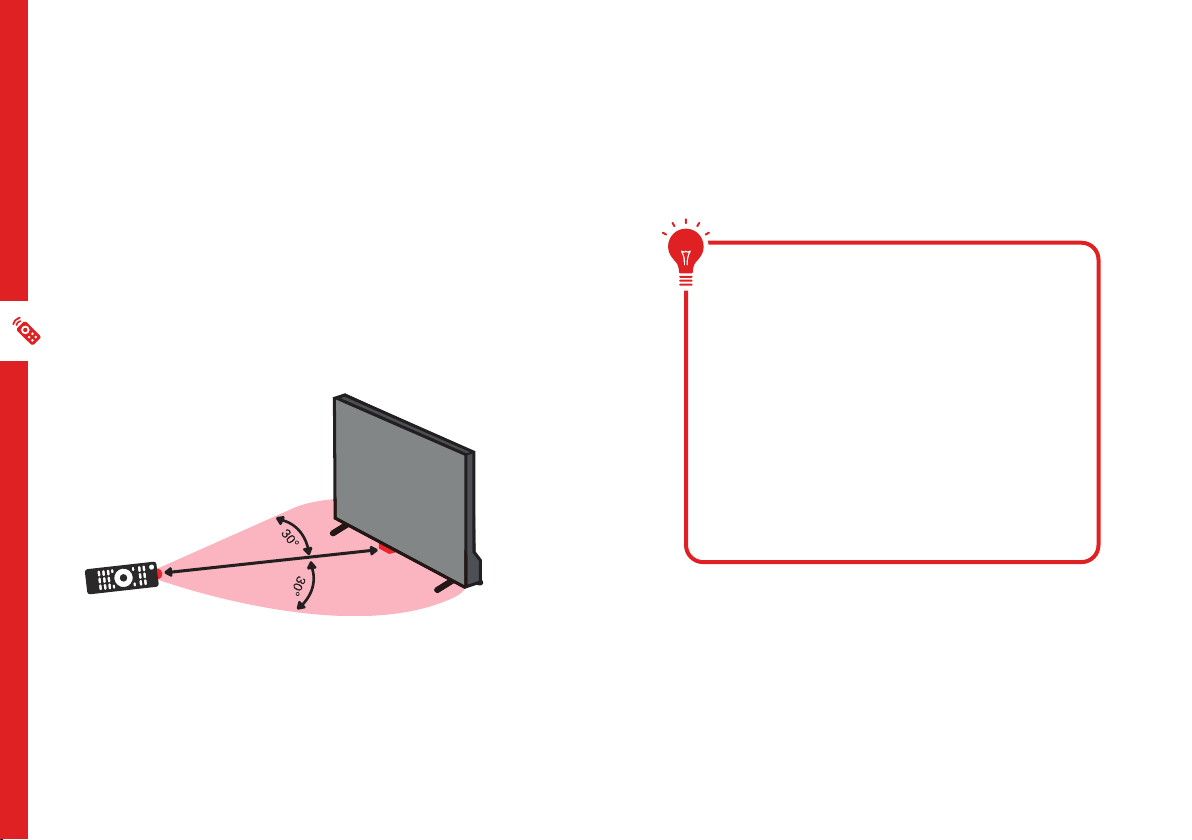

The remote has a range of up to about 5 metres from the
TV at an angle of up to 30 degrees to either side of the
sensor, as illustrated below.
Image is an
example only.
Remote sensor
location on TV
may vary.
5m
Remote Hints and Tips
• Do not drop, step on or otherwise
impact the remote control. This
may damage the parts or lead to
malfunction.
• Do not place objects between the
remote control and the remote sensor.
• Do not use this remote control while
simultaneously operating a remote
control for other devices.

REMOTE CONTROL | 15
STANDBY: Switch the TV to On or Standby.
/GOTO: Jump to a different chapter of the DVD.
/ANGLE: View DVD playback from different
angles, if the DVD has this feature.
FAV: Press to display your favourite program in DTV
mode.
TEXT: Switch between TV and Teletext mode.**
SUBTITLE: Enable/disable subtitles.
SIZE/ZOOM: Change the picture size.
MEDIA: Select USB mode.
: PLAY/PAUSE in TIMESHIFT and USB mode.
REC/D.SETUP: Record program in DTV mode /
Display the DVD setup menu.
: Stop playback.
MENU: Display the main TV menu.
/ / / : Press the UP/DOWN/LEFT/RIGHT
buttons to navigate the on-screen menus and adjust
the system settings.
OK: Display the channels list (DTV).
Buttons and Functions
TV/RADIO / EJECT: Switch between TV or radio
/ Eject a disc (DVD).
/A-B: Repeat selected DVD scenes.
/REPEAT: Repeat playback of a selected
chapter, title, or the entire DVD.
SLEEP: Set the TV sleep timer.
FREEZE: Hold the picture temporarily.
SUBPAGE: Manually jump to the previous or next
subpage of Teletext.**
ASPECT: Change the size of the image on your
screen.
: Move fast forward.
: Move fast backward.
/INDEX: Play next file./ Display the recorded
programs list (DTV).
: Play the previous file.
TITLE/EXIT: Exit from the main TV menu
displayed on the screen; Display the DVD title
menu.

16 | REMOTE CONTROL
SOURCE: Switch the input source.
/MUTE: Mute the sound. Press again or
press VOL+ to restore the sound.
VOL +/-: Turn the volume up/down.
DISPLAY: Display information of the current
program.
NUMBER BUTTONS (0-9): Press to select a
TV channel directly when watching TV.
-/--: Switch the digits.
AUDIO/LANG: Switch the available sound-
track language (DTV/DVD).
GUIDE/D.MENU: Launch the TV Guide
(DTV); display the main disc menu.
CH +/-: Change to the next or previous
channel.
: Return to the previous channel.
S-MODE: Cycle through the different
sound modes.
P-MODE: Cycle through the different
picture modes.
** Teletext is no longer available in Australia.

ON-SCREEN SET UP | 17
First Time Setup menu
When you turn the TV on for the first time, the First Time
Setup menu will appear.
Follow the prompts using the / / / / OK buttons to
select your preferences. You will be able to adjust:
Usage Mode
Country Auto Tuning
If you make an error, you can update your preferences in
the settings menu later.
On-Screen Set Up
Make sure equipment is properly connected (as shown on pages
11-12) before connecting the TV to power.
On/Standby light is RED in
standby mode.
On/Standby light is OFF
when the TV is on.
Make sure the TV is plugged in at
the power socket and switched
on. Press the (STANDBY)
button to turn on the TV.

18 | TV SETTING MENUS
Once you have programmed any
settings, the unit will retain them in
its memory until you change them,
even after turning the TV off.
TV Setting Menus
Menu Navigation Buttons
Function Remote Button
Display the main menu
Select different sub-menus /
Enter a sub-menu
Select preferred option /
Adjust a value /
Return to the previous menu
Exit a menu
Press the MENU button to display the TV settings menu.
See the guide below for all the other buttons you'll need
to use to adjust and change your settings.
Menus Index
Channel (DTV and ATV) 20
• Auto Tuning
• ATV Manual Tuning
• DTV Manual Tuning
• Program Edit
• Schedule List
• Signal Information

TV SETTING MENUS | 19
Lock 25
• System Lock
• Set Password
• Channel Lock
• Parental Guidance
• Key Lock
• Hotel Mode
Sound 23
• Sound Mode:
• Treble, Bass
• Balance
• Auto Volume Level
• SPDIF Mode
• Audio Delay
• AD (Audio Description) Switch
Time 24
• Clock
• Time Zone
• Sleep Timer
• Auto Standby
• OSD Timer
Picture 22
• Picture Mode
• Contrast
• Brightness
• Colour
• Tint
• Sharpness
• Colour Temp
• Noise Reduction
• HDMI Mode
• Aspect Ratio
• Low Power Mode
Setup 27
• Language
• TT Language
• Audio Languages
• Subtitle Language
• Hearing Impaired
• PVR File System
• Blue Screen
• First Time Installation
• Reset to Defaults
• Shipping Condition
• Sotware Update (USB)
• Usage Mode
• HDMI CEC
• System Information

20 | TV SETTING MENUS
Channel (DTV and ATV)
Option Description
Auto Tuning Automatically tune all available free-to-air TV channels. Adjust settings (default settings are set for Australia). Press
OK or to start scanning.
ATV Manual
Tuning
Manually select and tune analog TV channels. Use / to adjust settings and begin scanning.
(Analog TV is no longer supported in Australia.)
DTV Manual
Tuning Manually select and tune digital TV channels. Use / to select the broadcast channel. Press OK to start tuning.
Program Edit See the next page for more information.
Schedule List Manage schedules. Press / to highlight the desired program. Press GOTO to de-schedule the program,
REPEAT to schedule the program or A-B to edit schedule of the program.
Signal
Information Display current signal information (DTV mode only).
