PORTAMIX MEGA HIPPO Quick guide





Con-Treat 1300 044 625
Important Safety Instructions
Important instructions and warning notices are allegorized on the machine by means of symbols:
DANGER –EXPLOSION
Do not use electric motor if explosive or flammable fumes are present or are caused by
mixing action. A compressed air powered motor should be used and adequate ventilation
provided.
Some products may give off harmful fumes when being mixed. Ensure adequate ventilation
is provided. Accurately follow the safety instructions of the material supplier.
Before you start working, read the operating instructions of the machine.
Work concentrated and carefully. Keep your workplace clean and avoid dangerous
situations.
PortaMix® Hippo® motors are fitted with a RCD safety device for your protection.
The manufacturer shall not be in any way liable for any injury, damage or motor failure if
the mixing unit is used for purposes or products for which is was not designed, or if safety
and operational instructions have not been followed.
No liability for the operation or service life of motors not supplied by the manufacturer is
accepted.
The use of the mixing unit does not guarantee the performance of materials mixed.
In order to protect the user, take the following precautions:
Wear ear protection
Wear goggles
Wear protective gloves
DO NOT operate the mixer on an unstable or insecure surface
DO NOT operate the mixer on a sloping surface or on scaffolding
The PortaMix® Hippo® is a rotary mixing device. Operators must ensure that any loose
clothing and long hair is firmly tied back. Keep well clear of mixing shafts whilst in
operation




Con-Treat 1300 044 625
Mixing Motor Specifications
Model Number:
EHR32/2.4P
EHR32/2.4P-110V
Rated Voltage:
230V
110V
Power Input:
1800W
1800W
Rated Current:
7.9A
Frequency:
50 –60Hz
Spindle Connection:
M16
Protection class:
II
Degree of protection:
IP20
Net weight:
6.9KG
Interference suppression:
EN 55014 and EN 61000
Speed One
120rpm
Speed Two
410rpm
The EHR 32/2.4P is made in protection class II. For FI-protection purposes the machine can only be run
with a GFCI (PRCD). For this reason, the machine is standard equipped with a PRCD switch integrated in
the cord which allows connecting the unit directly onto the main.
Safety Instructions
Safe work with the machine is only possible if you read this operating instruction completely and
follow the instructions contained strictly.
Additionally, the general safety instructions of the leaflet supplied with the tool must be observed.
Prior to the first use, the user should familiarize themselves with the correct operating procedures.
If the connecting cable is getting damaged or cut during the work, don’t touch it, but instantly pull
the plug out of the socket. Never use the machine with damaged connecting cable.
Do not use the tool in an environment with danger of explosion.
Do not carry the tool at its cable, and always check the tool, cable and plug before use. Have
damages only repaired by specialists. Only insert the plug into the socket when the tool switch is off.
Modifications of the tool are prohibited.
Unplug and switch the machine off if it is not being used e.g.: when attaching or removing the motor
or mixing paddle.
Switch the machine off if it stops for whatever reason. This way, you avoid that it starts suddenly and
not under supervision.
Do not use the machine if one part of the housing is damaged or in case of damages on the switch,
cable or plug.
While working always lead the line cord and extension cord to the back away from the machine.
Electric tools have to be inspected visually by a specialist in regular intervals.
Do not touch rotating parts
During use, the user must wear goggles, ear protectors and protective gloves.




Con-Treat 1300 044 625
Electrical Connection
Before starting the machine check the correspondence between voltage and frequency according to
the data mentioned on the identification plate. Voltage differences from + 6 % and –10 % are
allowed.
The motor is made in protection class II.
Only use extension cables with a sufficient cross-section. A cross-section which is too small could
lead to an excessive power loss and to an overheating of motor and cable.
Recommended minimum cross sections and maximum cable lengths
Mains voltage
Cross section in sq. mm
1.5mm
2.5mm
110V
10m
30m
230V
10m
30m
Switching On and Off
Switching-on:
Plug motor into the power source
Set the inline circuit breaker
Press the on/off switch on motor
Switching-off:
Release the on/off switch
This will trip the inline circuit breaker eliminating accidental start-up
Changing Gears
The machine is equipped with a mechanical two-speed gearbox. Select the required speed by pressing-in,
shifting and engaging. The position of the lower speed is in direction of the working spindle. Change the
speed only when the machine is not running, and support the speed-changing by slightly rotating the
work spindle.
Speed One
120rpm (Loaded Speed)
Speed Two
410rpm (Loaded Speed)
Attention!
Never apply force when changing gear.
Change the gear only when the motor is stopped.
Never use tools, such as hammers or pliers to change the gear.




Con-Treat 1300 044 625
Care and Maintenance
Before the beginning of maintenance or repair works you have to disconnect the plug from the mains.
Repairs may be executed only by appropriately qualified and experienced personnel. After every repair
the machine has to be inspected by an electric specialist. Due to its design, the machine needs a
minimum of care and maintenance. However, the following points always have to be observed:
Always keep the power tool and the ventilation slots clean.
During work, please pay attention that no particles get inside the machine.
In case of failure, a repair has to be carried out by an authorised service workshop.

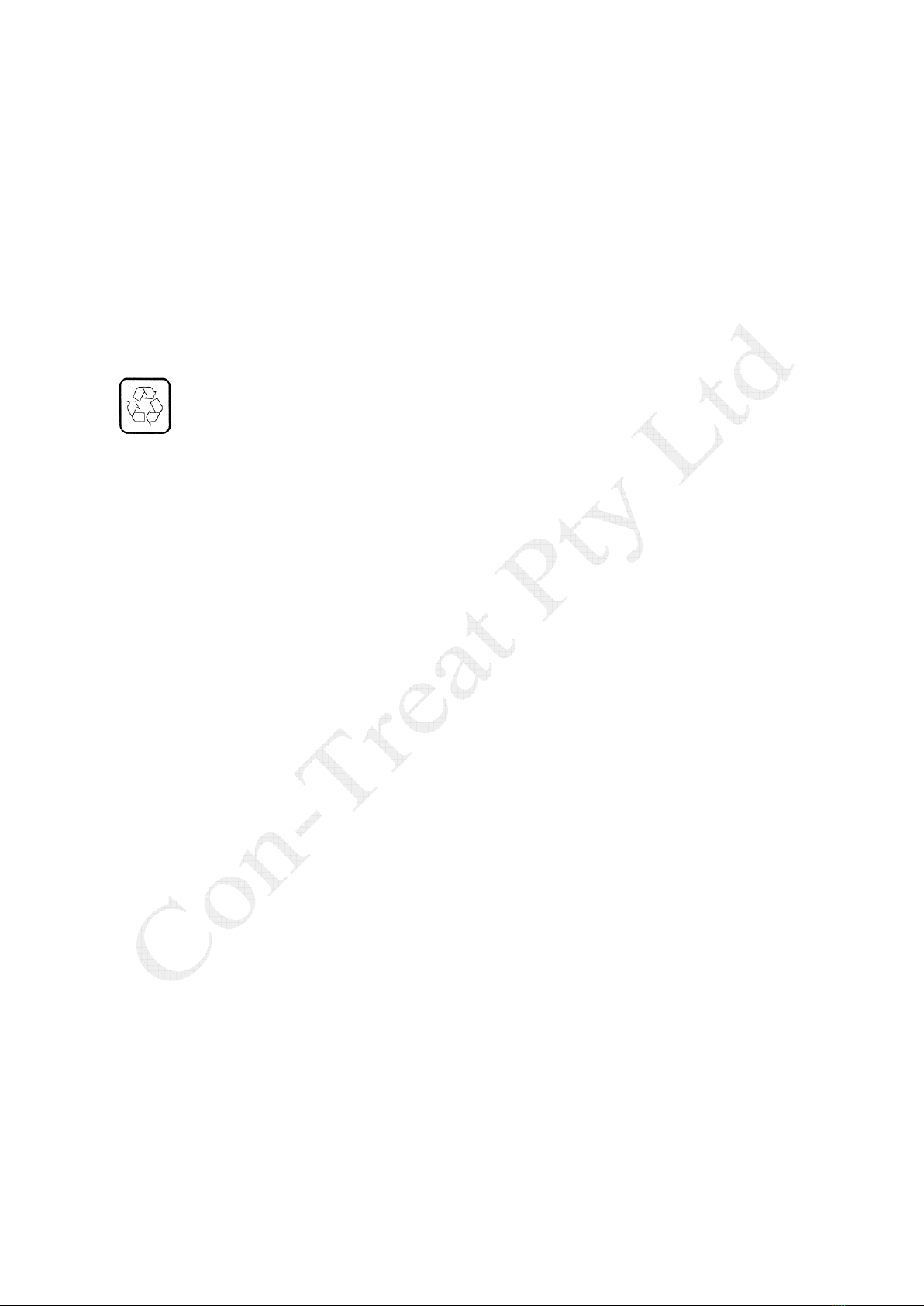

Environmental Protection
Raw material recycling instead of waste disposal
In order to avoid damages on transportation, the power tool has to be delivered in sturdy packing. The
packing as well as the tool and its accessories are made of recyclable materials and can be disposed
accordingly.
The tool’s plastic components are marked according to their material, which makes it possible to remove
environmental friendly and differentiated because of available collection facilities
Only for EU countries
Do not dispose of electric tools together with household waste material!
In observance of European Directive 2012/19/EU on waste electrical and electronic
equipment and its implementation in accordance with national law, electric tools that have
reached the end of their life must be collected separately and returned to an
environmentally compatible recycling facility
Noise Emission / Vibration
The indication of noise emission is measured according to DIN 45 635, part 21. The level of acoustic
pressure on the work place could exceed 85 dB (A); in this case protection measures must be taken
Wear ear protectors!
The typical hand-arm vibration is below 2.5 m/s².
Measured values determined according to EN 60 745
Vibration emission value ah 0,8 m/s2
Uncertainty K 0,1 m/s2
The declared vibration emission level represents the main applications of the tool. However if the tool is
used for different applications, with different accessories or poorly maintained, the vibration emission
may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool
is switched off or when it is running but not actually doing the job. This may significantly reduce the
exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as:
maintain the tool and the accessories, keep the hands warm, organisation of work patterns.




Con-Treat 1300 044 625
Dust Protection
Dust from material such as paint containing lead, some wood species, minerals and metal may be
harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases
to the operator or bystanders.
Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunction
with additives for wood conditioning (chromate, wood preservative). Material containing asbestos must
only be treated by specialists.
Where the use of a dust extraction device is possible it shall be used.
To achieve a high level of dust collection, use an appropriate industrial vacuum cleaner together with
this machine.
The work place must be well ventilated.
The use of a dust mask of filter class P2 is recommended
Warranty
According to our general terms of delivery for business dealings, suppliers have to provide to companies
a warranty period of 12 months for redhibitory defects (to be documented by invoice or delivery note).
Damages due to natural wear, overstressing or improper handling are excluded from this warranty.
Damages due to material defects or production faults shall be eliminated free of charge by either repair
or replacement.
Complaints will be accepted only if the tool is returned in non-dismantled condition to the manufacturer
or an authorized PortaMix® Hippo® service center
Declaration of Conformity
EN 60 745
According to the regulations 2011/65/EU, 2004/108/EC, 2006/42/EC




Con-Treat 1300 044 625
Mixer Operation –Model PMH80
Before starting work please ensure:
The mixer is on a firm surface.
The motor unit is firmly held in the clamp by tightening the clamp nut.
The mixing shaft is firmly tightened onto the motor spindle.
The mounting column is secured in position by the lock pin.
The motor unit must be turned off before:
Changing Gear
Making any adjustment to the machine
Dispensing mixed material
Manually cleaning canister or mixing shaft.
Keep hands and other objects well clear of mixing canister and helix whilst machine is
operating.
Operating Hints
Best results are achieved when:
Dry ingredients are added gradually while the mixer is running.
Mixing instructions are accurately followed.
The mixing helix is totally immersed in the mix.
Mixing Methods
Read material manufacturers mixing instructions before mixing.
DO NOT mix ignitable or toxic materials. Ensure adequate ventilation is provided.
For Dry Materials To Be Mixed With Liquids
1. Measure the correct amount of liquids into the mixing canister. Wet the sides of the canister.
2. Run the mixer on low speed.
3. Gradually add the dry ingredients to the liquid. A 20-25 kg bag of dry ingredients should take about
20-30 seconds to pour into the mixing canister in a consistent flow.
4. Do Not Dump Product In All At Once Or A Lumpy Mixture Will Result.
5. When three quarters of the dry ingredients have been added to the liquid, the mixer can then be run
on high speed.
6. Add the rest of the ingredients. Ensure That The Mixing Helix Is Totally Covered. It may be
necessary to select a mixing shaft with a shorter helix to mix a small batch, or a larger helix to mix a
full batch. This will ensure thorough mixing.
For Wet Pre-Mixed Products
1. Pour product to be mixed or blended into mixing canister
2. Ensure That The Mixing Helix Is Totally Covered. It may be necessary to select a mixing shaft with a
shorter helix to mix a small batch, or a larger helix to mix a full batch. This will ensure thorough
mixing.




Con-Treat 1300 044 625
3. Pour product to be mixed or blended into mixing canister
4. Select the best speed according to material being mixed. Turn mixer on.
5. When mixing is complete, unplug power supply from motor unit.
6. To dispense mixed material, release the tilt lock by pushing the tilt lock lever down, and tilt the
canister cradle. Hold the cradle handle firmly to ensure a controlled pour.
Along Side Mixing
Small quantities of material may be mixed “alongside” in an alternative container
Remove mount column from carrier and reverse it to face the rear of the machine.
Secure it in the column by inserting the lock pin at the appropriate height.
Canister Removal
The canister may be removed from the cradle by undoing the pin bolt and lifting the canister out.
Liner Option
The Mega Hippo has a canister option, PH704, which allows the use of a liner. This liner can be used for
mixing all the products that the Mega Hippo is designed to mix. The liner is particularly designed for
mixing very abrasive materials or resins and epoxy materials that require solvent based cleaning
products.
To fit or remove the liner, remove the motor mount from the mixer, complete with the motor and helix.
Lift out or install the liner into the canister.
Dust Extraction
The Mega Hippo canisters and liners are supplied with a dust extraction port for attaching a dust
extraction hose. The dust port will a standard 50mm diameter taper hose cuff.




Con-Treat 1300 044 625
PMH80 Exploded Diagram




Con-Treat 1300 044 625

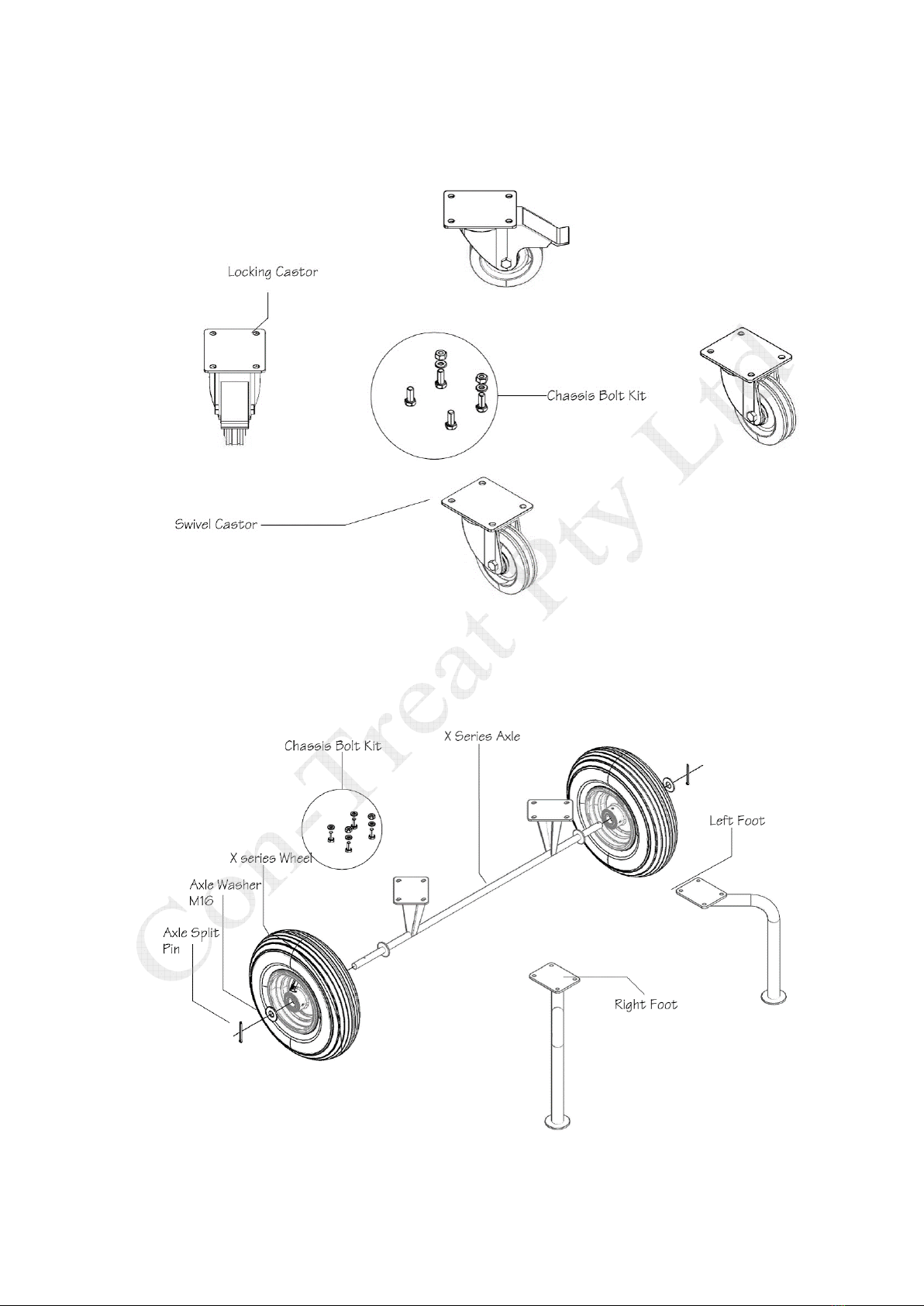

PH400 F Series Wheel Kit
PH500 X Series Wheel Kit




Con-Treat 1300 044 625
Mega Hippo Mixing Station –Module A
PMH80
PORTAMIX Hippo Mega Module Including:
Canister
Motor
TW225 Helix
TW225D Helix
PMH80/RL
PORTAMIX Hippo Mega –Rimless Module Including:
Canister
Liner
Motor
TW225 Helix
TW225D Helix
Wheel Kit –Module B
PH400
F Series Castor Kit
PH500
X Series Pneumatic Wheels & Feet Kit
Accessories
EHR32/2.4P/M16
Motor M16 Short –240V
EHR32/2.3P-110V
Motor M16 Short –110V
PH703
Standard Mega Canister –with pour control
PH704
Rimless Mega Canister
PH705
Liner for Rimless Canister
TW225
Half Batch Helix
TW225D
Full Batch Helix
583723
2”Dust Connection Cuff
415758
5m 2”Dust Exhaust Hose with Cuffs




Con-Treat 1300 044 625
MANUFACTURED BY:




Änderungen vorbehalten
Ersatzteilliste
4
230V
1
3
4
5
10
11 13
22
31
32
33
34
36
36
38
39
40
40
41 42
43
44
45
46
47
48 52
57
58
59
60
61
62
63 64
65
66
67
68
69
EHR 32/2.3 A
9
35
56
50
49
56 54
55
71
37
72
03/12
17
18
5
5
1234
24
23
28
26
7
25
3
51
2
1
2
4
3




No. Description Ref.-No. pc. Price No. Description Ref.-No. pc. Price
€/pc. €/pc.
1 rotor complete 7154F100 1 37 gearbox seal 82000057 1
2 stator complete 7154A150 1 38 notched pin plug 5x16 80200580 1
3 motor housing 80900042 139 gearbox housing 74521400 1
4 air guiding ring 71540140 140 grooved ball bearing 6000 80410020 2
5 brush holder complete 80201199 241 needle bearing RNA 4900 80420001 1
642 disc for needle bearing 85000017 1
7 carbon brush 80700019 243 grooved ball bearing 6005 2RS 80410061 1
844 locking ring 47/1,75 80201336 1
9 corrugated spring washer B4 80201385 445 grooved ball bearing 6006 2RS 80410071 1
10 self tapping screw ZM4x12 80201180 446 disc for ball bearing 6006 71540426 1
11 grooved ball bearing 6000 2Z 80410021 147 locking ring 55/2 80201338 1
12 48 intermediate shaft 1 13 Z. 71521490 1
13 bearing cap 83000031 149 coupling wheel 7154F550 1
14 50 coupling half 71540560 1
15 51 intermediate wheel 1 28 Z. 71521470 1
16 52 fitting key, hardened 5x5x10 71540495 1
17 cap for motor housing 7742A240 1 53
18 self tapping screw HC 4,8x45 80201267 454 pressure wahser 1 71540607 1
19 55 lock washer 9 80201361 1
20 56 spring washer 28x12,2x1 80200713 4
21 57 coupling complete 77526493 1
22 anti parasit condenser 80500010 158 intermediate shaft 2 12 Z. 71521500 1
23 switch box 73420631 159 fitting key A5x5x28 80200602 1
24 switch ETA 80600119 160 gear block 39/25 Z. 71521440 1
25
connecting cable PRCD w. austr. plug 7333F262 1 61 coupling bolt complete 71521520 1
26 cable screwing 80600170 162 gear changer complete 71540545 1
27 63 intermediate shaft 3 12 Z. 71521510 1
28 self tapping screw HC 5,5x38 80201292 464 intermediate wheel 2 31 Z. 71521480 1
29 65 work spindle 77523420 1
30 66 spindle wheel 71540430 1
31 end shield of gearing 7152B610 1 67 fitting washer 25/35x0,1 80200512 1
32 locking ring 28/1,2 80201333 168 fitting key B6x6x20 80200606 1
33 grooved ball bearing 6001 2Z 80410031 169 locking ring 24/1,2 80201326 1
34 locking ring 11/1 80201320 170
35 self tapping screw HC 5,5x38 80201292 471 pressure washer 2 71540606 1
36 needle sleeve HK 0810 80420110 372 grease compartment barrier 80900111 1
EHR 32/2.3 P A - 230 V



