Powermat PM-KSE-2000S User manual

ORIGINAL INSTRUCTIONS
USER MANUAL
electric mower
PM-KSE-2000S / 2500S / 2600S

2
Table of Contents
WARNING / INFORMATION SYMBOLS .............................................. ........................................... 3
APPLICATION OF THE DEVICE ................................................ .................................................. ............... 4
TECHNICAL DATA ................................................ .................................................. ................................ 4
DESCRIPTION OF THE DEVICE ................................................ .................................................. ................................. 5
Model: PM-KSE-2000S ........................................... .................................................. ............................ 5
Model: PM-KSE-2500S + PM-KSE-2600S ..................................... .................................................. ...... 6
SAFETY ................................................. .................................................. ................................ 7
SAFETY RULES ................................................ .................................................. .................... 7
Other hazards ................................................ .................................................. ......................... 8
PRELIMINARY OPERATIONS ................................................ .................................................. ........................... 8
OPERATING THE DEVICE ................................................ .................................................. ......................... 8
INSTALLATION ................................................. .................................................. ............................................... 9
Mower handles assembly ............................................... .................................................. ................ 9
CUTTING HEIGHT ADJUSTMENT ............................................... .................................................. ............. 9
USE ................................................. .................................................. ................................... 10
Connecting an extension cable ................................................ .................................................. ................ 10
Attaching the grass catcher .............................................. .................................................. ............... 10
Fastening the cutting knife ............................................... .................................................. ................ 10

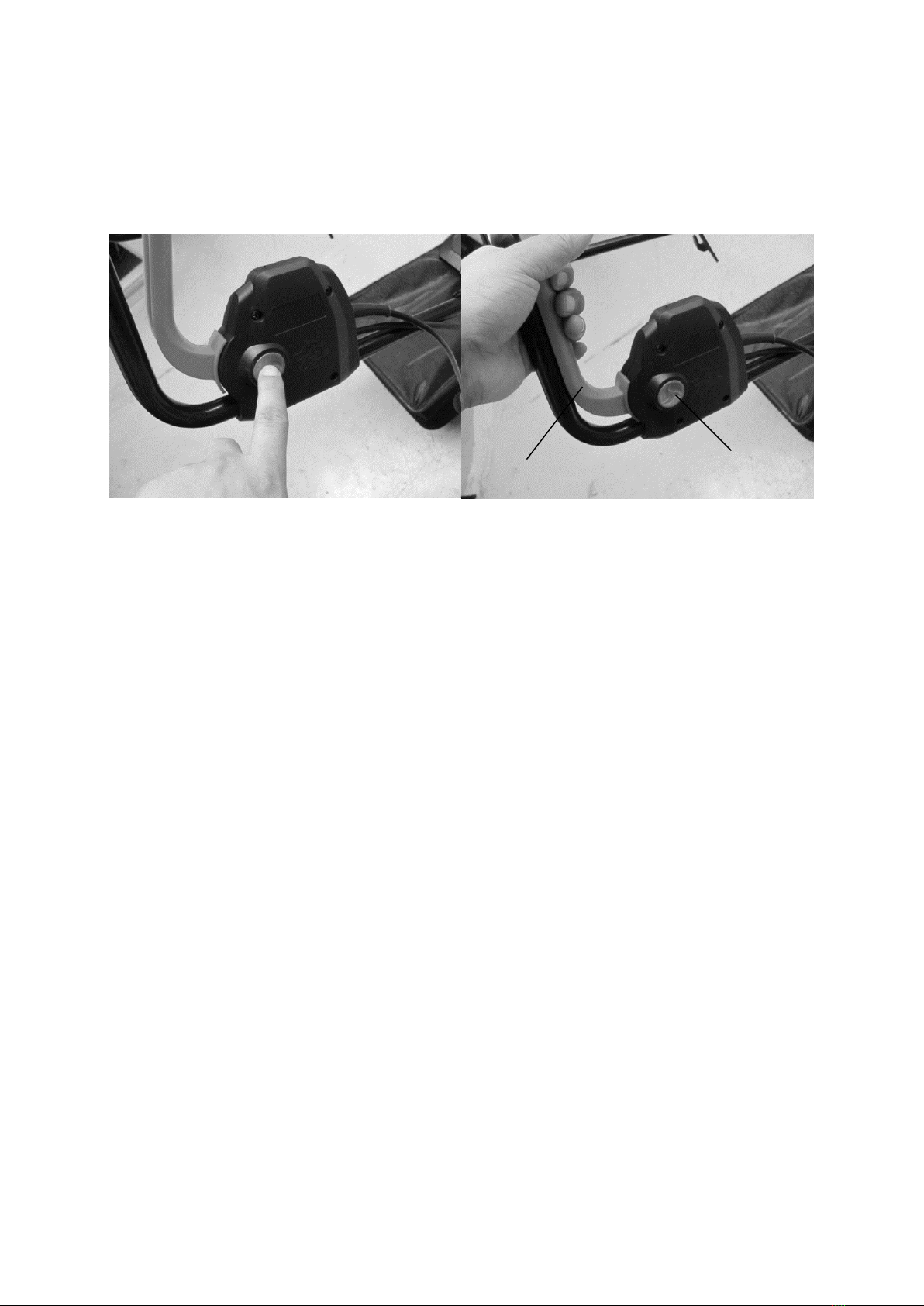

Starting the mower ................................................ .................................................. ..................... 11

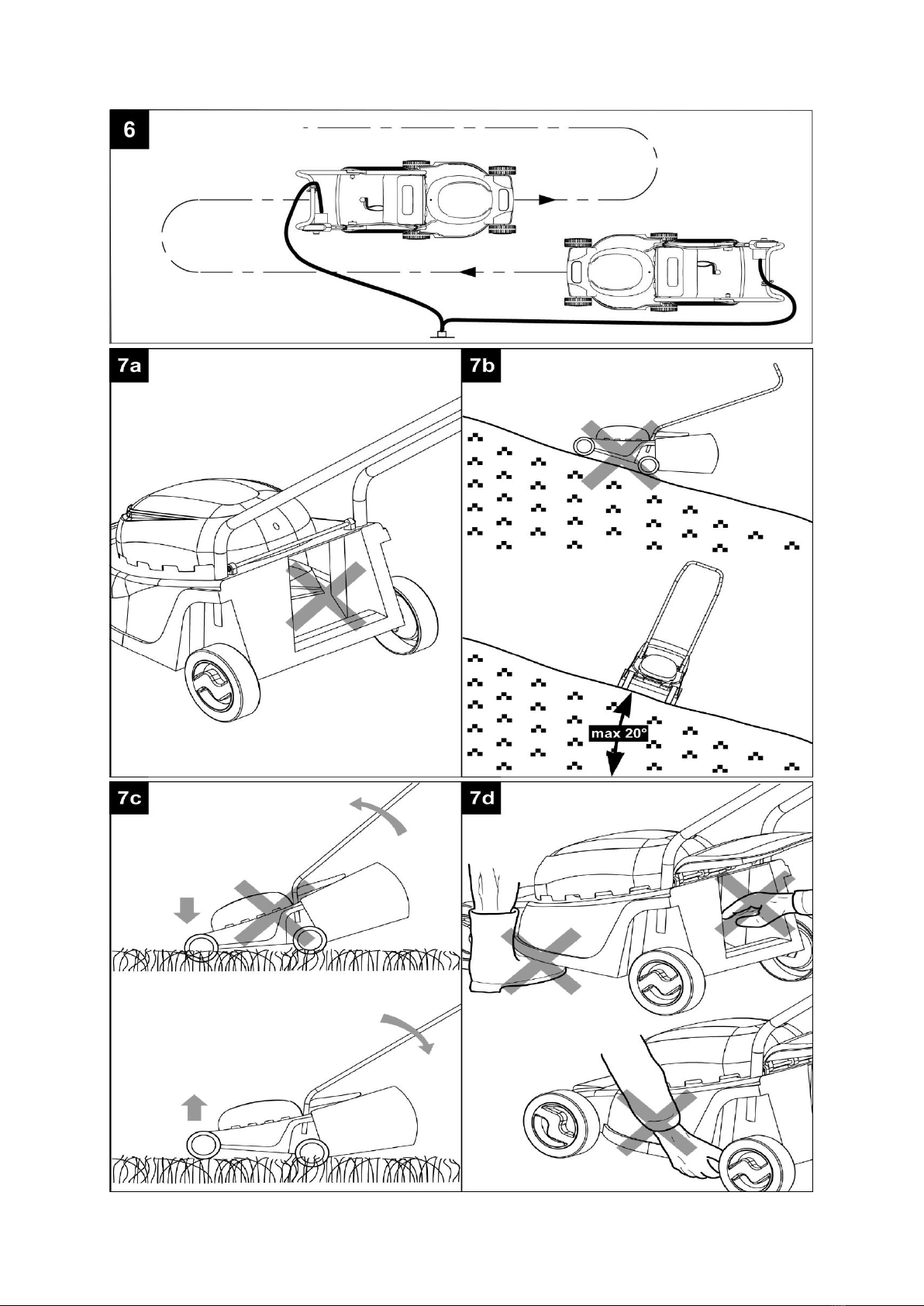

The mowing process (Fig. 6). .................................................. .................................................. ................ 11
Notes on correct use (Fig. 7a - 7d). .................................................. ... 11
MAINTENANCE AND SERVICE ............................................... .................................................. ...................... 13
Maintenance ................................................. .................................................. ................................... 13
Service ................................................. .................................................. ............................................. 13
Storage ................................................. .................................................. ............................. 13
DECLARATION OF CONFORMITY ................................................ .................................................. .................... 13
EXPLODED VIEW DIAGRAM ............................................... .................................................. ..... 14

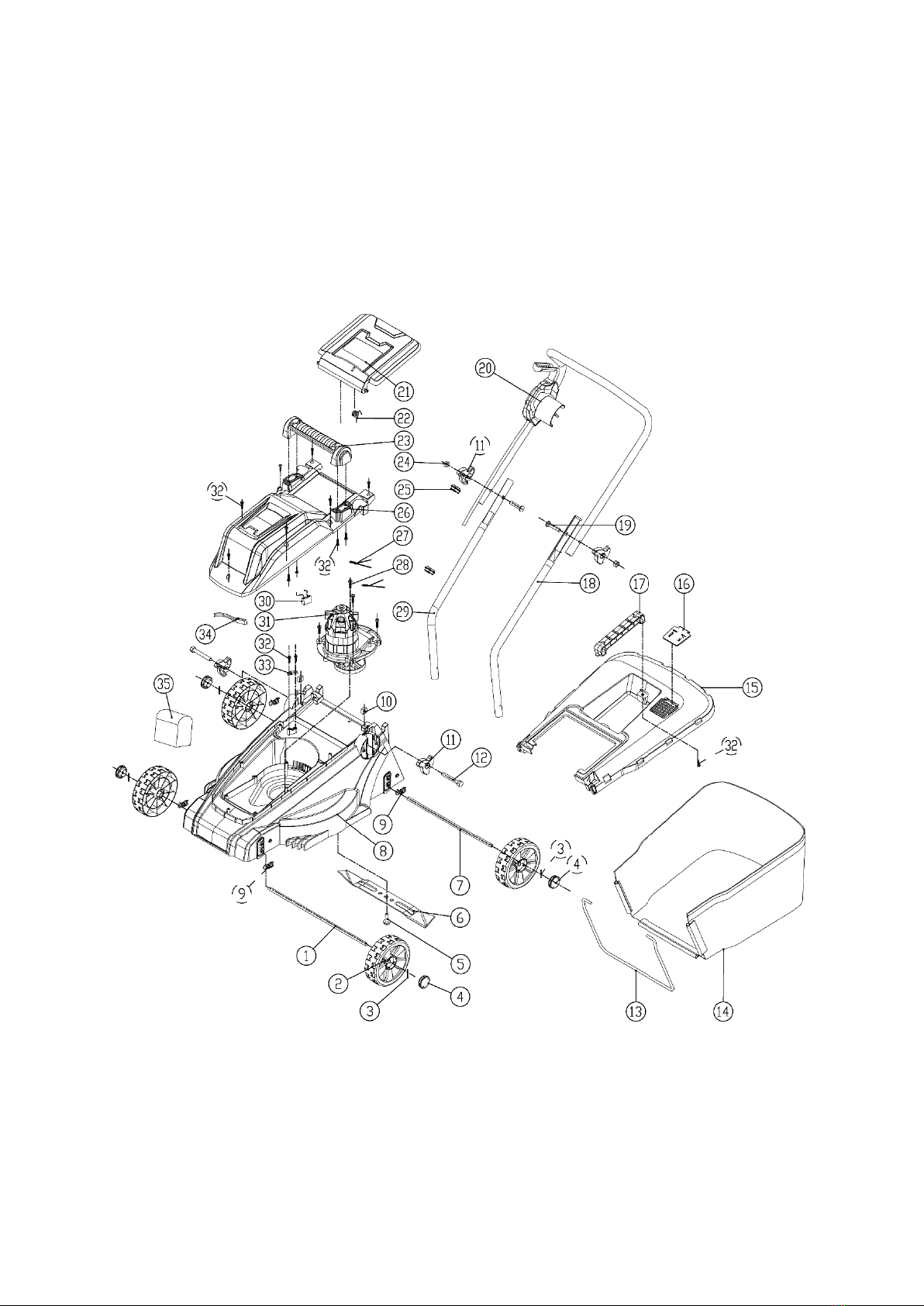

PM-KSE-2000S - General construction .......................................... .................................................. .......... 14
PM-KSE-2000S - Power switch .......................................... .................................................. ...... 15

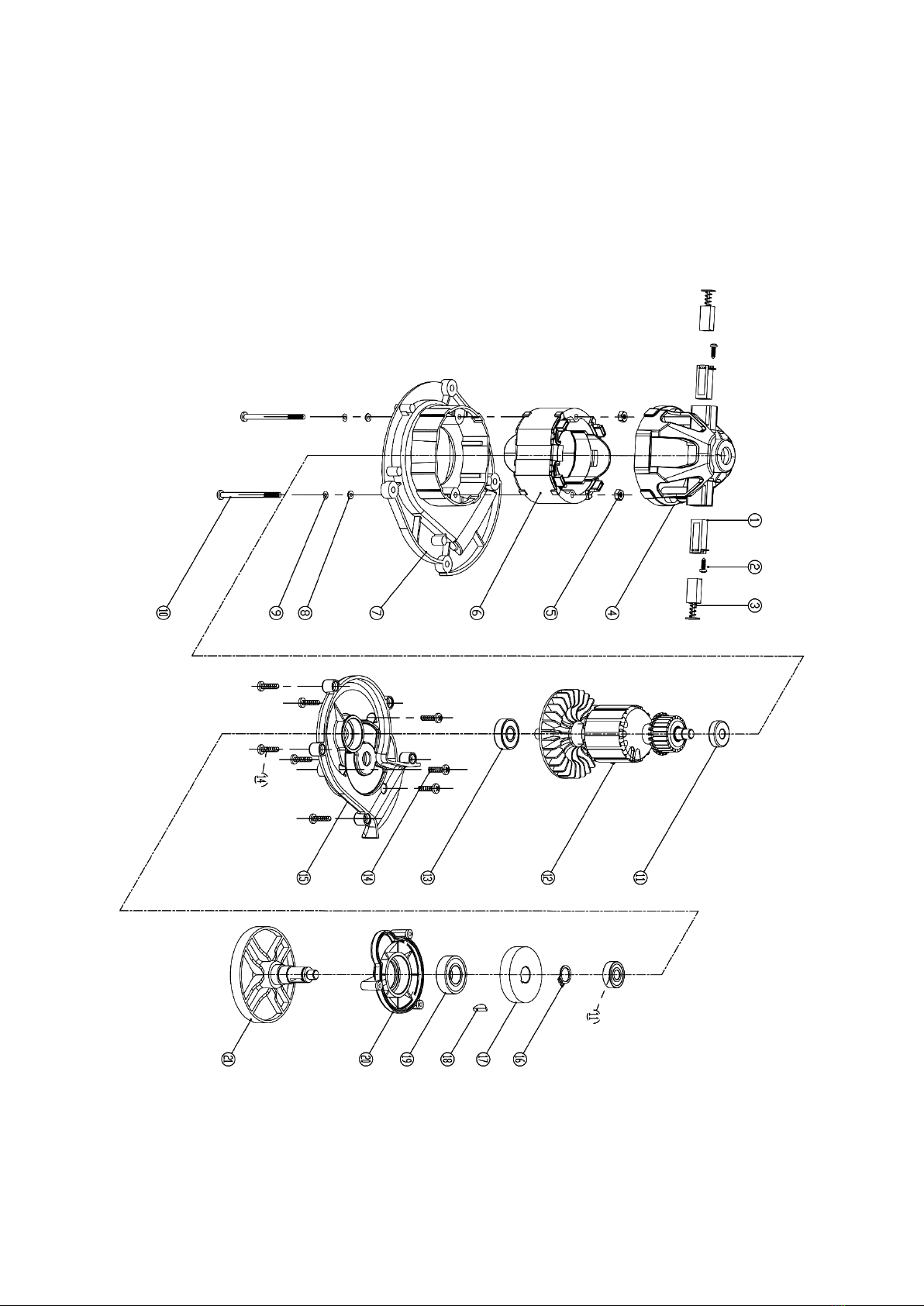

PM-KSE-2000S - Engine ........................................... .................................................. .......................... 16

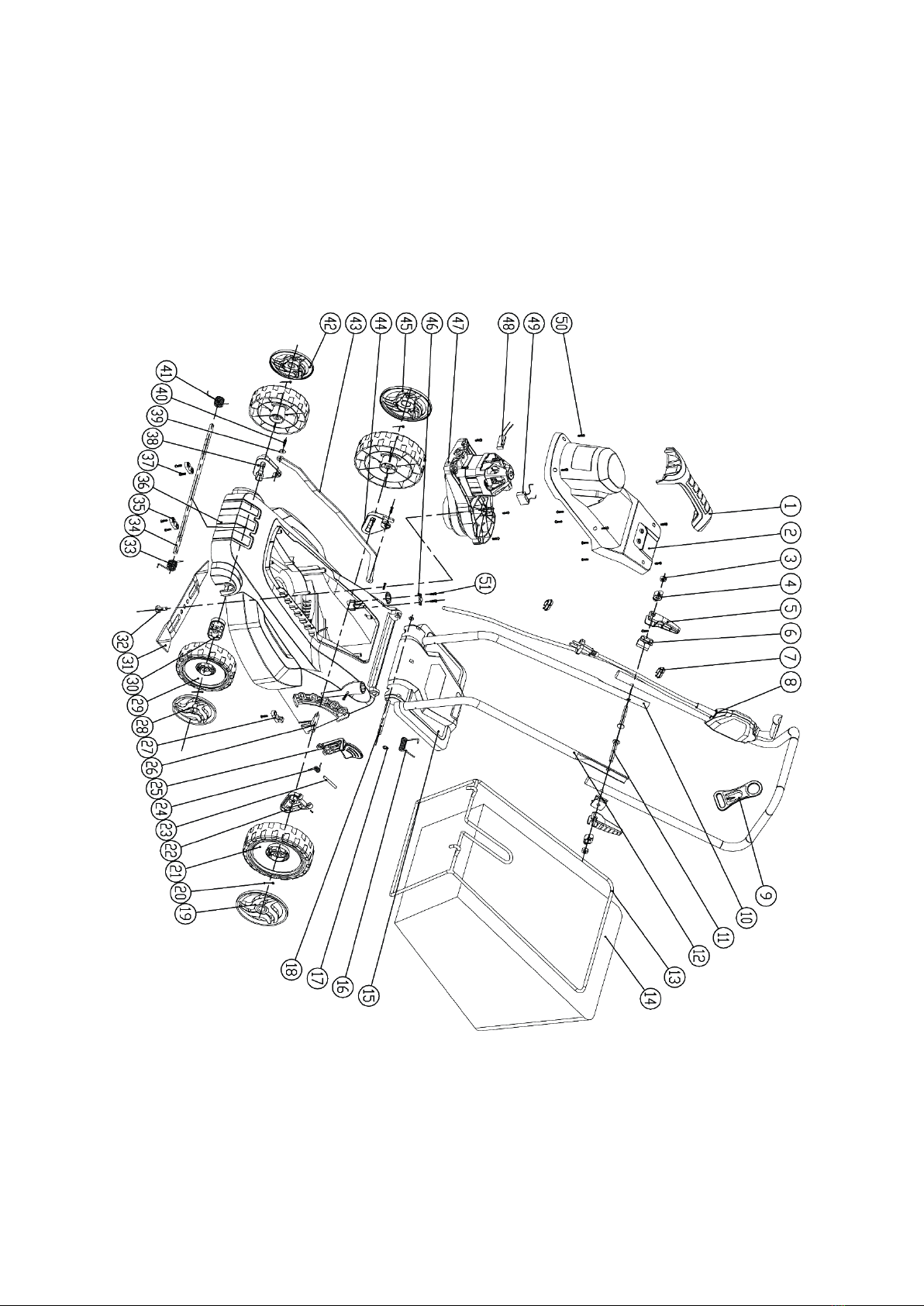

PM-KSE-2500S / 2600S - General construction ........................................ ................................................. 17

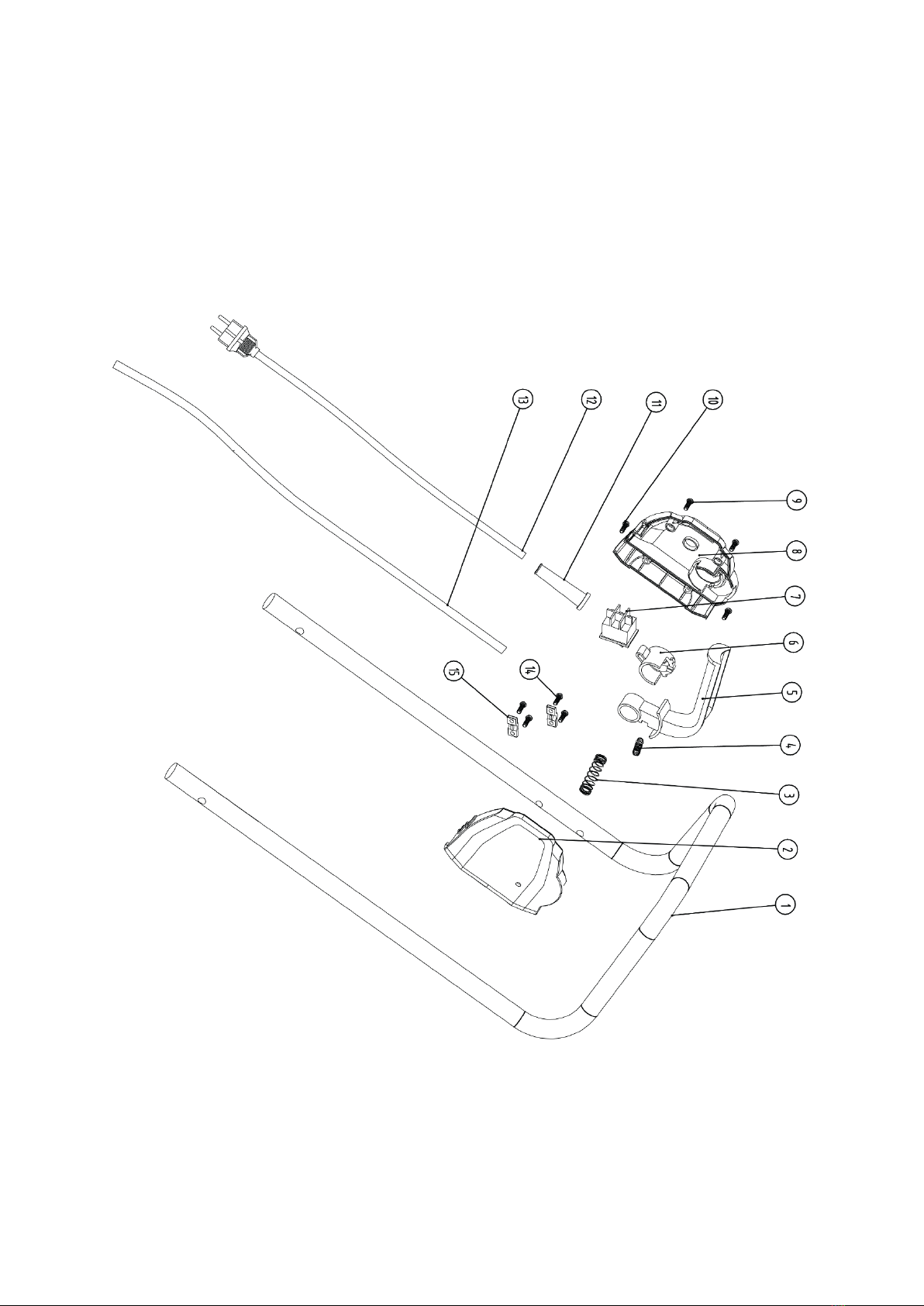

PM-KSE-2500S / 2600S - Power switch ........................................ ............................................. 18
PM-KSE-2500S / 2600S - Engine ......................................... .................................................. ............... 19
DISPOSAL OF USED DEVICES ............................................... .................................................. ....... 19
MANUFACTURER'S DATA ................................................ .................................................. ........................... 19

3
SYMBOLS ABOUT SHOOTING / INFOR MACYJNE SYMBOLS ABOUT SHOOTING / INFOR MACYJNE SYMBOLS ABOUT SHOOTING / INFOR MACYJNE SYMBOLS ABOUT SHOOTING / INFOR MACYJNE
WARNING: In front of using
read the instruction manual and
recommendations carefully
safety.
Keep the instructions.
WARNING: No third parties should WARNING: No third parties should
be near the working mower.
WARNING: Do not expose to rain or WARNING: Do not expose to rain or
other precipitation. WARNING: Clean the area before WARNING: Clean the area before
starting work.
WARNING: Disconnect the device from the network WARNING: Disconnect the device from the network
supply, in front of
proceeding to maintenance and
cleaning.
WARNING: No work allowed from
raised flap to the basket.
WARNING: In case of splitting either WARNING: In case of splitting either
damage cable
pull out the plug from the mains
socket.
WARNING: Do not mow on slopes WARNING: Do not mow on slopes
WARNING: Keep a safe distance from WARNING: Keep a safe distance from
bystanders during work. WARNING: Wear headphones and WARNING: Wear headphones and
safety goggles.
WARNING: For items rejected during WARNING: For items rejected during
work.
WARNING: Protective footwear should WARNING: Protective footwear should
be used.
WARNING: Keep hands and feet away from WARNING: Keep hands and feet away from
knife blades.
WARNING: Wear protective gloves.WARNING: Wear protective gloves.
WARNING: Keep hands and feet away WARNING: Keep hands and feet away
from moving and rotating parts. Protection class II
WARNING: Danger of damage to the power cord. Keep the mower's power cord at a safe WARNING: Danger of damage to the power cord. Keep the mower's power cord at a safe
distance from the blade and always watch it.

4
APPLICATION OF THE DEVICE
The device is used for mowing lawns, it is suitable for private use in home gardens and plots. However, not on public
squares, in parks, on sports fields or on farms and forestry.
Attention! Due to the danger to the user, the mower cannot be used for trimming scrubs, hedges, shrubs, for cutting Attention! Due to the danger to the user, the mower cannot be used for trimming scrubs, hedges, shrubs, for cutting
and shredding creepers or for mowing on roofed roofs or in balcony boxes or for cleaning (vacuuming) paths or as a
shredder for shredding tree fragments and hedges. The mower cannot be used as a tiller and for leveling unevenness
such as mole mounds.
Any use that deviates from the one described in this manual is not for the intended purpose of the device. The user /
owner, not the manufacturer, is responsible for any damage or injury caused by improper use or changes in the
device's design. As part of continuous improvement of its products, the manufacturer reserves the right to make minor
differences in this manual, which you should pay attention to.
The device may only be repaired and maintained at an authorized service center.
TECHNICAL DATA
Model PM-KSE-2000S PM-KSE-2500S PM-KSE-2600S
Power 230V ~ 50Hz
Maximum power 2000W 2500W 2600W
sales 3100 rpm 3300 rpm 3200 rpm
Cutting width 320mm 380mm 400mm
Cutting height 25/45 / 60mm 25/38/51/65 / 75mm
Degrees of height adjustment 3 5
Basket capacity 30L 35L 35L
Sound pressure level L pA K = 3 dB (A) Sound pressure level L pA K = 3 dB (A) Sound pressure level L pA K = 3 dB (A) 81,1dB (A)
Sound power level L wA K = 3 dB (A) Sound power level L wA K = 3 dB (A) Sound power level L wA K = 3 dB (A) 93,7dB (A)
Declared sound power level L wA Declared sound power level L wA
K = 3 dB (A)
96dB (A) 96dB (A) 96dB (A)
Net weight 8,4kg 11,5kg 12,8kg

5
DESCRIPTION OF THE DEVICE
Model: PM-KSE-2000S
Lp. name of the element Lp. name of the element Lp. name of the element Lp. name of the element
1. Power switch lever 6. Grass basket
2. Power switch lock 7. Road wheel
3. Top handle 8. Engine housing
4. Fastening screw (star) 9. Tailgate
5. Bottom handle 10. Power socket 10. Power socket

6

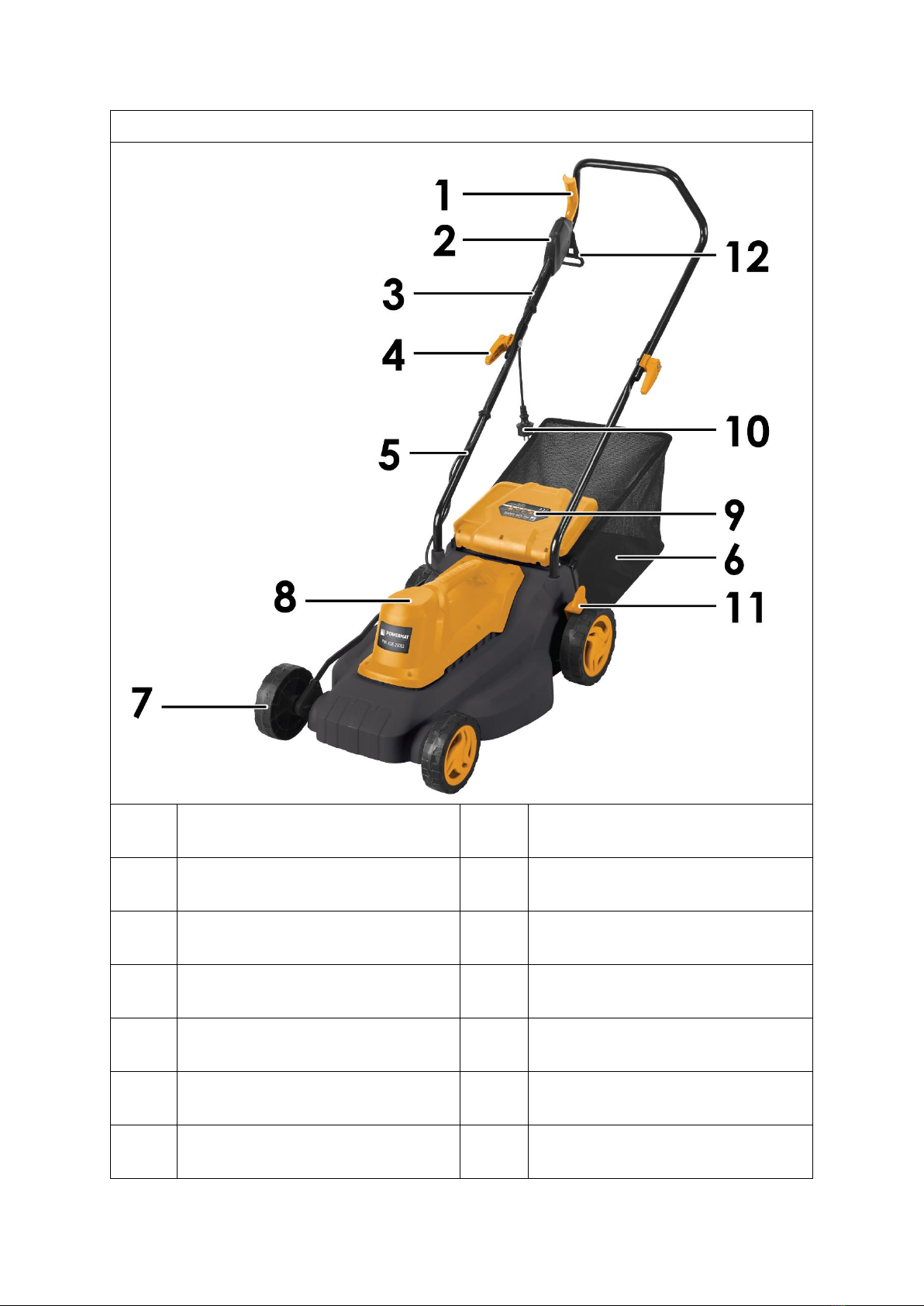

Model: PM-KSE-2500S + PM-KSE-2600S
Lp. name of the element Lp. name of the element
1. Power switch lever 7. Road wheel
2. Power switch lock 8. Engine housing
3. Top handle 9. Tailgate
4. Fastening screw with pressure clamp 10. Power supply plug
5. Bottom handle 11. Height adjustment lever
6. Grass basket 12. Cable strain relief

7
SECURITY
Before starting work, carefully read the operating manual of the electric mower hereinafter referred to as the mower.
Keep it for later reference. The manufacturer is not liable for damages resulting from failure to comply with these
instructions.
The greatest danger occurs when performing the following prohibited activities:
and) Use of the mower by children and people with limited manual skills, and) Use of the mower by children and people with limited manual skills,
physical and mental.
b) Use of the mower under the influence of alcohol, drugs or other intoxicants. b) Use of the mower under the influence of alcohol, drugs or other intoxicants.
c) Use the mower for purposes other than the mowing instructions described in the operating manual, when other people c) Use the mower for purposes other than the mowing instructions described in the operating manual, when other people
in particular children or pets are nearby.
d) Use of the mower by persons not acquainted with the user's manual. d) Use of the mower by persons not acquainted with the user's manual.
e) Using the mower without proper, protective attendant clothing and e) Using the mower without proper, protective attendant clothing and
Footwear.
f) Using the mower with damaged guards or the casing and without properly mounted ones f) Using the mower with damaged guards or the casing and without properly mounted ones
safety devices.
SAFETY RULES
• Read the user manual carefully before operating the device.
• The device is intended for trimming lawns.
• Wear suitable protective clothing during work.
•Keep your hands and feet away from moving parts.
• Be careful not to run over the power cord when mowing.
• Check the condition of the device and power cable before starting. If any of the elements is
damaged, replace it before starting work.
•Attention! After switching off the device, the cutting blades rotate for some time.
• Never turn on the device if it is lying on its side.
• Before mowing, remove stones and other objects from the lawn that could damage the device.
• Keep a stable position during work.
•Keep unauthorized persons and animals away from the workplace.
• The device may not be operated by children or persons under the influence of alcohol, drugs or
other intoxicants.
•Before connecting the device to the mains, make sure that the technical specifications of the network
correspond to the data on the rating plate of the device.
• Never carry the device by the power cord.
•Disconnect the device from the power supply before moving it to another location.
•Do not use the device for purposes other than those intended.
•Never work with the basket removed and the outlet lid open.
• Before emptying the basket turn off the mower and wait for the cutting blades to stop rotating.

8
• Before starting the machine, make sure that the cutting blade is not blocked and can rotate freely.
• Before cleaning and maintaining the device, disconnect it from the power supply and wait until the
cutting blades stop rotating.
• Work only in well-lit places.
•If a hard object hits the machine while mowing, switch off the mower and check whether any of the
components has been damaged.
• If the device vibrates abnormally, turn off the mower and check that no damage has occurred.
•Check the condition of the device regularly and replace worn parts.
• Never use the device during rain or in high humidity.
• Never mow wet grass.
• Use only extension cords intended for external use.
Other threats
Even when the power tool is operated according to the instructions, there is always a risk of danger. Depending on
the design and construction of the power tool, the following hazards may appear:
•Lung damage if a suitable dust mask is not used.
•Hearing damage if you do not wear appropriate ear protection.
•Negative impact on health due to vibration of the arms and hands, when the device is used for a long time or
in the wrong way and without maintenance.
PRELIMINARY OPERATIONS
and) Open the packaging and then pull out the device. and) Open the packaging and then pull out the device.
b) Remove the protective foil and transport protection (if any). b) Remove the protective foil and transport protection (if any).
c) Check if the package contains disassembled parts and keys. c) Check if the package contains disassembled parts and keys.
d) Check that the device and accessories have not been damaged during transport. d) Check that the device and accessories have not been damaged during transport.
e) Save the packaging. e) Save the packaging.
ATTENTION! The device and packaging are not for fun! Keep out of the reach of children, danger of
swallowing or suffocation.
OPERATING THE DEVICE
Before connecting the device to the mains, make sure that its parameters correspond to the parameters given on the
device's rating plate. Do not connect the device to a higher voltage network than required by the device, it may cause
electric shock and damage to the device. Connecting to a lower voltage network may damage the motor of the
device.

9
ASSEMBLY
Mower handles assembly
1. Secure the lower handles to the mower housing with screws / or screw nuts 1. Secure the lower handles to the mower housing with screws / or screw nuts
star (depending on the model)
2. Connect the upper part of the handle with the lower part using star-bolted screws. 2. Connect the upper part of the handle with the lower part using star-bolted screws.
CUTTING HEIGHT ADJUSTMENT
Attention! Before changing the cutting height, always pull the plug out of the power socket.
1. To increase the cutting height, move the cutting height lever to the rear 1. To increase the cutting height, move the cutting height lever to the rear
mower parts.
2. To reduce the cutting height, move the cutting height levers w 2. To reduce the cutting height, move the cutting height levers w
the front of the mower.
ATTENTION! For mowers without central height adjustment, the front and rear axles must be raised or lowered
separately.

10
USE
Connecting an extension cord
After connecting the power cord, hang the extension cord from the
cable holder to secure the plug from being pulled out of the power
outlet.
Attaching the grass catcher
To attach the grass catcher, raise the rear kalpa, apply the basket as in the picture above, then lower the tailgate.
Fastening the cutting knife
•With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).With a hex key ( AND) you can tighten / unscrew the screw ( B) securing the cutting knife ( C).
• When assembling the knife, be sure to fit it properly in the mounting holes.
Always use work gloves when assembling / disassembling the cutting knife.
