Prestige RGGE-06EMCKS User manual

FORM NO. G11-500 REV. 1
Supersedes Form No. G11-500
GAS FURNACES
RGGE- SERIES
Models with Input Rates
from 60,000 to 120,000 BTU/HR
[17.58 to 35.16 kW]
(U.S. & Canadian Models)
Equipped with
Comfort Control
2
System
™
• Serial communication enabled
• Increased system reliability and efficiency
• 28 on-board diagnostic and operating codes
•
Active Protection™ with homeowner
“Call for Service” alert
• Dual 7-segment LED display
RHC-TST550CMMS
Modulating Furnace Thermostat
90 PLUS COMMUNICATING
MODULATING DOWNFLOW
GAS FURNACES EQUIPPED
WITH THE COMFORT
CONTROL2SYSTEM AND
CONTOUR COMFORT CONTROL
®
The Rheem Prestige Series
™90 Plus High Efficiency line of downflow gas
furnaces are designed for utility rooms, closets, or alcoves, attics or crawl
spaces.
The design is certified by CSA.
Features
■The Comfort Control
2
System™ provides over 28 on-board diagnostics
and fault history codes by detecting system and electrical problems. “Call
for Service” alert notification is sent to the thermostat to alert the home-
owner of required service.
■Serial Communication Enhanced – When installed with a Serial Communi-
cating Condensing Unit and user interface control (RHC-TST550CMMS)
500 Series thermostat this unit offers 4 or 2 wire installation, auto-configura-
tion, and diagnostic messaging with full communicating capability.
■Heat exchanger is constructed of all stainless steel for maximum corro-
sion resistance and thermal fatigue reliability.
■Modulating Function: when used with a modulating or communicating
thermostat, modulation rate between 40% and 100% of total capacity.
■Two-stage Function: when used with a two-stage thermostat, furnace oper-
ates at 40% on first stage, and stages up to 65%, then 100% for second
stage.
■Multistage Function: when used with a single-stage thermostat, furnace
functions as a three stage furnace operating at 40%, 65% and 100% of
total capacity.
■Reduced firing rates, electrically efficient ECM2+ motor, and solid doors
provide the ultimate in quiet operation.
■Low speed constant fan.
■Constant temperature rise for superior comfort.
■Seven segment LED for system diagnostics.
■Diagnostic history for troubleshooting.
■Two-speed induced draft motor.
■Direct spark ignition with remote sense.
■Top electrical connections, left or right gas and condensate drainage con-
nections on downflow models.
■Optional indoor or outdoor combustion air.
A variety of cooling coils and plenums designed to use with the Rheem
Prestige Series
™90 Plus gas furnaces are available as optional accessories.
✝A.F.U.E. (Annual Fuel Utilization Efficiency) calculated in accordance with Department of Energy test
procedures.

2 Rheem Heating, Cooling and Water Heating

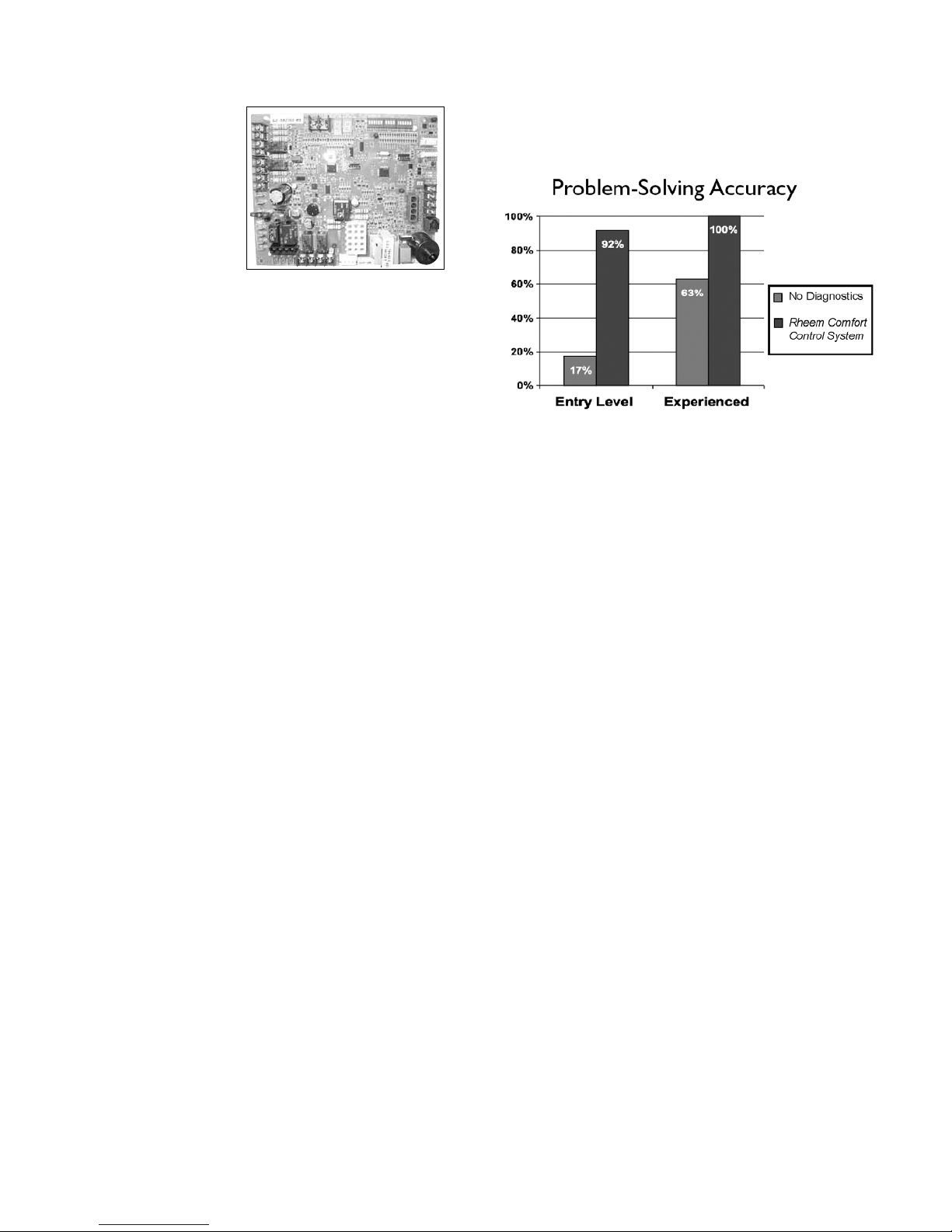

■The Rheem Dual 7-Segment LED Display easily shows sys-
tem operating status codes and diagnostic codes.
■The Status Indication
System Diagnostics feature
thermostat communication
capability and built-in diag-
nostics. The thermostat com-
munication capability and
alerts the homeowner to any
necessary service require-
ments. Faster, more accurate
service is provided by the
built-in diagnostics, by provid-
ing the HVAC professional
with dependable information.
■The fault recall feature will allow for the last six fault-codes
to be displayed, and will retain these codes even if power
failure occurs.
■In order to save time and money, replacement automotive
style fuses can be utilized instead of replacing the entire
control board.
FEATURES & BENEFITS OF THE COMFORT CONTROL2SYSTEM
™

Rheem Heating, Cooling and Water Heating 3
STANDARD EQUIPMENT
Completely assembled and wired; heat exchanger; primary: 409 and aluminized
409 stainless steel, secondary: 29-4C stainless steel; induced draft; pressure
switches; redundant modulating main gas control; blower compartment door
safety switch; solid state time on/off blower control; limit controls; manual shut-
off valve; 100% safety lock out; cool fan off delay; one hour automatic retry;
power and self-test diagnostics; flame sense current diagnostics; electronic air
cleaner connections; humidifier connections; humidifier on/off delay, dehumid-
ification connection; low speed continuous fan option; transformer; direct drive,
ECM variable speed blower motor. (Please note: a thermostat is not included as
standard equipment. See “Accessories”).
OPTIONAL EQUIPMENT
NOTE: Furnace is not listed for use with fuels other than natural or L.P.
(propane) gas.
All models can be converted by a qualified distributor or local service dealer to
use L.P. (propane) gas without changing burners. Factory approved kits must
be used to convert from natural to L.P. (propane) gas and may be ordered as
optional accessories from a parts distributor.
For L.P. (propane) operation, refer to Conversion Kit Index Form.
Fossil Fuel Kits for use with heat pumps.
Communicating Thermostat System
WARNING
THIS FURNACE IS NOT APPROVED
OR RECOMMENDED
FOR USE IN MOBILE HOMES

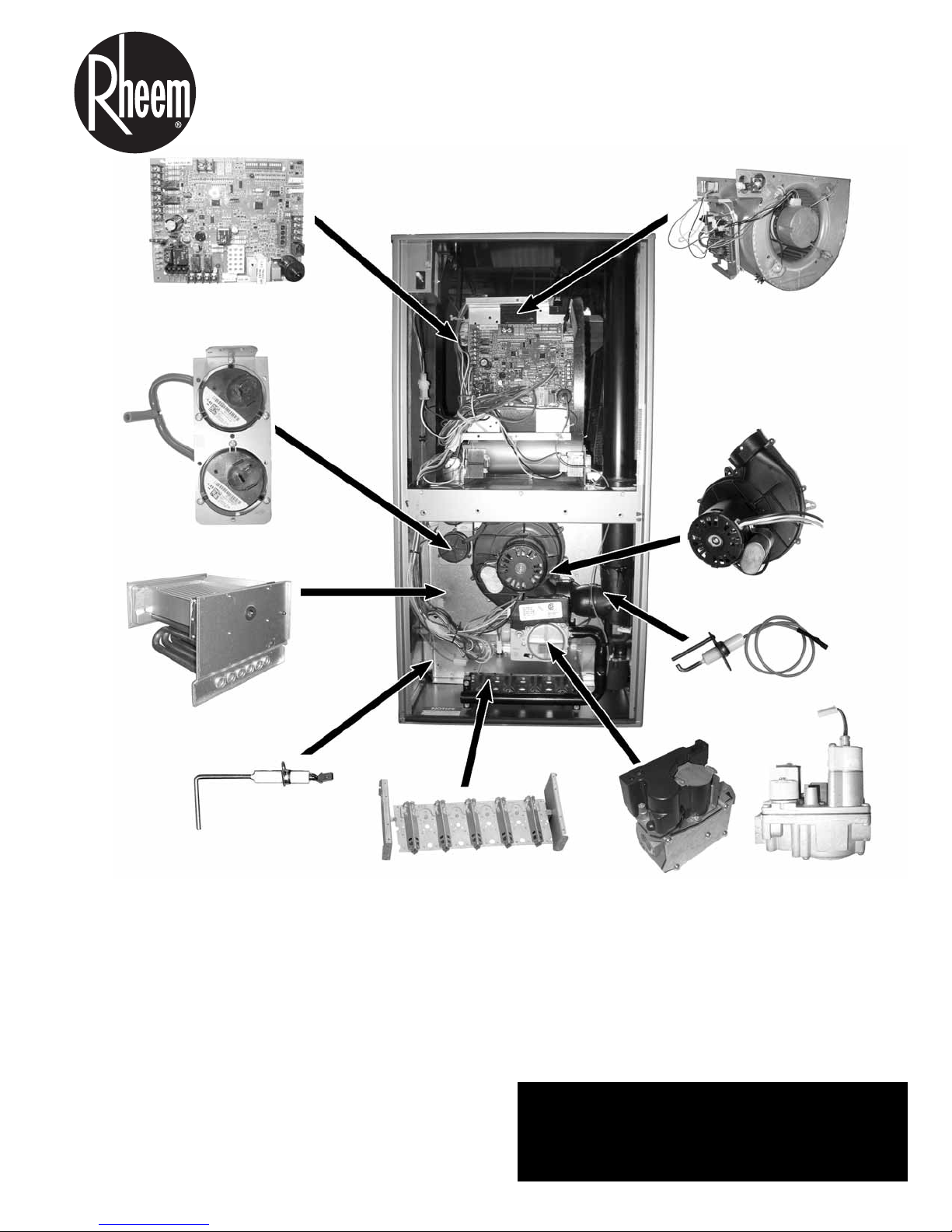

PRIMARY AND SECONDARY
HEAT EXCHANGER
IN-SHOT
BURNERS
PRESSURE
SWITCHES
BLOWER ASSEMBLY WITH
ELECTRONIC COMMUTATED
MOTOR
DRAFT
INDUCER
INTEGRATED
FURNACE CONTROL
GAS VALVES
PRESTIGE SERIES™ 90 PLUS HIGH EFFICIENCY
MODULATING DOWNFLOW GAS FURNACE
REMOTE
SENSOR
DIRECT
SPARK
IGNITION
(HG FUEL CODE)
(HA FUEL CODE)
OR

4 Rheem Heating, Cooling and Water Heating
BEFORE PURCHASING THIS APPLIANCE, READ IMPORTANT ENERGY COST AND EFFICIENCY INFORMATION AVAILABLE
FROM YOUR RETAILER.
PHYSICAL DATA AND SPECIFICATIONS—DOWNFLOW MODELS
U.S. and Canadian Models
MODEL IDENTIFICATION
MODEL NUMBERS RGGE-06EMCKS RGGE-09EZCMS RGGE-10EZCMS RGGE-12ERCMS
INPUT–MAXIMUM (BTU/HR) [kW] 60,000 [17.58] 90,000 [26.38] 105,000 [30.77] 120,000 [35.17]
HEATING CAPACITY–MAXIMUM [kW] 54,720 [16.03] 83,160 [24.37] 95,865 [28.09] 110,880 [32.49]
INPUT–MINIMUM (BTU/HR) [kW] 24,000 [7.03] 36,000 [10.55] 42,000 [12.31] 48,000 [14.07]
HEATING CAPACITY–MINIMUM [kW] 21,888 [6.41] 33,264 [9.75] 38,346 [11.24] 44,352 [12.99]
HEATING EXT. STATIC PRESSURE [kPa] 0.12 [.029] 0.15 [.037] 0.20 [.049] 0.20 [.049]
BLOWER (D X W IN.) [mm] 11 x 7 [279 x 178] 12 x 11 [305 x 279] 12 x 11 [305 x 279] 11 x 10 [279 x 254]
ECM MOTOR HP [W] 1/2 [373] 1 [746] 1 [746] 1 [746]
UNIT AMPS 8.7 12.0 12.0 12.0
HEATING CFM–MAXIMUM [L/s] 795 [375] 1195 [564] 1395 [658] 1595 [753]
HEATING CFM–MINIMUM [L/s] 320 [151] 515 [243] 600 [283] 685 [323]
COOLING CFM–RANGE [L/s] 600-1200 [283-566] 1200-2000 [566-944] 1200-2000 [566-944] 1200-2000 [566-944]
MAXIMUM EXT. STATIC PRESSURE [kPa] 0.80 [0.20] 0.80 [0.20] 0.80 [0.20] 0.80 [0.20]
TEMPERATURE RISE RANGE °F [°C] 40-70 [22.2-38.9] 40-70 [22.2-38.9] 40-70 [22.2-38.9] 40-70 [22.2-38.9]
RETURN AIR CABINETS–RXGR- C17B C21B C21B C24B
FILTER SIZE (IN.) [mm] BOTTOM 153/4x 25 [400 x 635] 191/4x 25 [489 x 635] 191/4x 25 [489 x 635] 223/4x 25 [578 x 635]
MAX OUTLET AIR TEMPERATURE °F [°C] 180 [82.2] 180 [82.2] 190 [87.8] 195 [90.6]
APPROX. SHIPPING WEIGHT (LBS.) [kg] 127 [57.6] 158 [71.7] 162 [73.5] 170 [77.1]
AFUE 91.2% 92.3% 91% 92.2%
RGGE-07EMCKS
92.3%
75,000 [21.98]
69,000 [20.22]
30,000 [8.79]
27,600 [8.09]
0.12 [.029]
11 x 7 [279 x 178]
1/2 [373]
8.7
995 [470]
430 [203]
600-1200 [283-566]
0.80 [0.20]
40-70 [22.2-38.9]
C17B
153/4x 25 [400 x 635]
180 [82.2]
133 [60.3]
15MAXIMUM OVERCURRENT PROTECTION 15 15 15 15
153/4x 25 [400 x 635]
FILTER SIZE (IN.) [mm] SIDE 153/4x 25 [400 x 635] 153/4x 25 [400 x 635] 153/4x 25 [400 x 635] 153/4x 25 [400 x 635]
R G G E 07E CM K S
Rheem Gas
Furnace
Downflow
Modulating
Prestige
Series
™
90 Plus
Gas Furnace
Design
Series
E –
Communicating
Heating Input
Designation
Variations
C= Single/
Multi Zone
Blower Size
M= 11 x 7
[279 x 178 mm]
R= 11 x 10
[279 x 254 mm]
Z= 12 x 11
[305 x 279 mm]
Heat/Cool
Designation
K= 600-1200 CFM
[283-566 L/s]
M= 1200-2000 CFM
[566-944 L/s]
Fuel Code
S= U.S. or
Canadian
Natural Gas
Electric
Ignition
06E
07E
09E
10E
12E
[ ] Designates Metric Conversions
Electric
Ignition–
NOx Models
06N
07N
09N
10N
12N
Input
BTU/HR
60,000 [17.6 kW]
75,000 [22.0 kW]
90,000 [26.4 kW]
105,000 [30.7 kW]
120,000 [35.2 kW]

Rheem Heating, Cooling and Water Heating 5
DOWNFLOW MODELS
MODEL
RGGE- A B C D E F LEFT SIDE
MINIMUM CLEARANCE (IN.) [mm]
RIGHT
SIDE BACK TOP FRONT VENT
06 171/2[445] 1611/32 [415] 155/86[397] 2 [51] 165/8[422] 137/8[352] 0 0 0 1 [25] 2 [51] 0
09 21 [533] 1927/32 [504] 193/16 [487] 2 [51] 201/8[511] 173/8[441] 0 0 0 1 [25] 2 [51] 0
10 21 [533] 1927/32 [504] 193/16 [487] 2 [51] 201/8[511] 173/8[441] 0 0 0 1 [25] 2 [51] 0
12 241/2[622] 2311/32 [593] 225/86[575] 2 [51] 235/8[600] 207/8[530] 0 0 0 1 [25] 2 [51] 0
07 171/2[445] 1611/32 [415] 155/86[397] 2 [51] 165/8[422] 137/8[352] 0 0 0 1 [25] 2 [51] 0
[ ] Designates Metric Conversions
Illustration
A084901.S01D
Illustration
A084901.S01A
Illustration
A084901.S01C
Illustration
A084901.S01B

6 Rheem Heating, Cooling and Water Heating
BLOWER PERFORMANCE DATA—RGGE MODELS
MODEL
RGGE-
BLOWER SIZE
(D x W)
IN. [mm]
ICM
MOTOR H.P.
[W]
BLOWER
SPEED
(SELECTED W/DIP
SWITCHES)
CFM [L/s] AIR DELIVERY
EXTERNAL STATIC PRESSURE
INCHES WATER COLUMN [kPa]
09 12 x 11
[305 x 279]
1
[746]
HIGH
MED-HI
MED
LOW
2000 [944]
1600 [755]
1400 [661]
1200 [566]
0.1 [.02]-0.8 [.20]
06 11 x 7
[279 x 178]
1/2
[373]
HIGH
MED-HI
MED
LOW
1200 [566]
1000 [472]
800 [378]
600 [283]
10 12 x 11
[305 x 279]
1
[746]
HIGH
MED-HI
MED
LOW
2000 [944]
1600 [755]
1400 [661]
1200 [566]
12 11 x 10
[279 x 254]
1
[746]
HIGH
MED-HI
MED
LOW
2000 [944]
1600 [755]
1400 [661]
1200 [566]
07 11 x 7
[279 x 178]
1/2
[373]
HIGH
MED-HI
MED
LOW
1200 [566]
1000 [472]
800 [378]
600 [283]
[ ] Designates Metric Conversions

Rheem Heating, Cooling and Water Heating 7
CONTRACTOR BENEFITS:
• Multi-Purpose Thermostat-Setup, Control & Diagnostics
• Auto-Configuration – No Manual Settings Required in the Field
• System History – More Accurate Diagnostics
• Easy Installation – Requires only 4 wires
• Diagnostic Messages (Service Access to Fault Codes)
• Blower Adjustment in Heat and Cool
• Programmable Fan
• USB Interface for contractor contact information and thermostat
programming
HOMEOWNER BENEFITS:
• Scrolling System Status
• De-Humidification Control
• Humidification Control
• Heat/Cool/Auto Change-over
• Outdoor Temperature Display
• Backlight On/Off
• Intelligent Scheduling Ramp-Up/Program Anticipation
• Audio Notifications On/Off
• Air Filter, UV Lights & Humidifier Maintenance Reminder
• Temperature Offset
• Continuous Fan (Hi, Med, Lo)
*PROGRAMMABLE THERMOSTAT ACCESSORIES:
Adapter Plate = F61-2600
Remote F1451328 and F1451378 Sensor
*Available through PROSTOCK®.
[ ] Designates Metric Conversions
RHC-TST550CMMS
THERMOSTATS
RECOMMENDED MODULATING FURNACE THERMOSTAT
ACCESSORIES—DOWNFLOW
PLENUM DATA FOR “A” COILS
Plenum adapters are required in some instances for use
on downflow applications when plenum and furnace size do
not match.
VENT TERMINATION KITS CONCENTRIC: HORIZONTAL/
VERTICAL =
RXGY-E03A (US & Canadian Installations)
HORIZONTAL TWO PIPE: RXGY-D02, RXGY-D03, RXGY-D04
(US Installations)
RXGY-D02A, RXGY-D03A, RXGY-D04A (Canadian Installations)
RXGY-G02 (US Only)
NEUTRALIZER KIT: RXGY-A01
COMBUSTIBLE FLOOR BASE: RXGC-B17
RXGC-B21
RXGC-B24
EXTERNAL FILTER RACK: RXGF-CC
*Filter racks are shipped without filters.
Filters shipped with furnace may be used or a suitable 1" [25.4 mm] filter.
FOSSIL FUEL KIT: RXPF-F02
LP KIT: (Available through PROSTOCK®)
U.S./Canadian = RXGJ-FP27 (HA & HB Fuel codes only).
U.S./Canadian = RXGJ-FP07 (HG & HH Fuel codes only).
Note: See Form Number C11-206 for MultiFlex®coil data.
FURNACE
WIDTH
IN. [mm]
PLENUM
WIDTH
IN. [mm]
PLENUM ADAPTER
UPFLOW
COIL
PLENUM
171/2[445] 161/4[413] RXAA-C186 RXAL-B16BU
171/2[445] 201/4[514] RXAA-C173 RXAL-B20BU
171/2[445] 215/8[549] RXAA-C187 RXAL-B21BU
171/2[445] 251/4[641] RXAA-C174 RXAL-B25BU
21 [533] 221/4[565] RXAA-C176 RXAL-B22BU
241/2[622] 251/4[641] RXAA-C177 RXAL-B25BU
21 [533] 251/4[641] RXAA-C175 RXAL-B25BU
21 [533] 215/8[549] RXAA-C188 RXAL-B21BU
241/2[622] 215/8[549] RXAA-C187 RXAL-B21BU
FILTER RACK FILTER SIZES* INCHES [mm]
MODEL RGGE- RXGF-CC
06 (2) 12 x 20 [305 x 508]
07 (2) 12 x 20 [305 x 508]
09 (2) 12 x 20 [305 x 508]
10 (2) 12 x 20 [305 x 508]
12 (2) 14 x 20 [305 x 508]

ACCESSORIES—DOWNFLOW (con’t.)
FOR HIGH ALTITUDES:
RGGE HIGH ALTITUDE FIELD CONVERSION KITS:
MODEL INPUT (KBTU) KIT NO.
RGGE-06 60,000 None Needed
RGGE-07 75,000 RXGY-F23
RGGE-09* 90,000 RXGY-F24
RGGE-10* 105,000 RXGY-F25
RGGE-12* 120,000 RXGY-F26
*5000 ft. & above only (except where noted).
OPTION CODE FOR HIGH ALTITUDE: None Available - Kit must be
purchased
NOTE: High altitude kits do NOT include additional burner orifices. If
a burner orifice change is necessary, they must be ordered
through PROSTOCK®. See Installation Instructions for
more information.
CAUTION: Always follow National Fuel Gas Code (NFGC) guidelines
when converting furnaces for high altitudes.
For all installations above 2000 ft. the burner orifice size must
be recalculated and verified. A burner orifice change may still be
required. See Installation Instructions for more information.
Manifold gas pressure reduction methods may NOT be used on
these models. The only method permitted on modulating furnace
models is to recalculate the burner orifice size. See Installation
Instructions for more information.
ALTERNATE (LEFT SIDE) CONDENSATE DRAIN KIT:
RXGY-H01 (All Models)
[ ] Designates Metric Conversions
Before proceeding with installation, refer
to installation instructions packaged
with each model, as well as complying
with all Federal, State, Provincial, and
Local codes, regulations, and practices.
Rheem Heating,
Cooling and
Water Heating
P.O. Box 17010, Fort Smith, AR 72917
“In keeping with its policy of continuous progress and product improvement, Rheem reserves the right to make changes without notice.”
PRINTED IN U.S.A. 2-11 DC FORM NO. G11-500 REV. 1
Supersedes Form No. G11-500
GENERAL TERMS OF LIMITED WARRANTY*
Rheem will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
period stated, in accordance with the terms of the limited
warranty.
Primary and Secondary Heat Exchanger ......Limited Lifetime
Conditional Unit Replacement
(Registration Required) ..............................Limited Lifetime
Limited Parts ..............................................Ten (10) Years
*For Complete Details of the Limited Warranty, Including Applicable Terms
and Conditions, See Your Local Installer or Contact the Manufacturer for
a Copy.
