ProScan PLDED3257A-B User manual

32" LED Television
PLDED3257A-B
I
I
I
I
I
I
I
I
I
I
I
I
W
W
W
.
T
U
V
.
C
O
M
I
I
I
I
I
I
I
I
I
I
I

1
Contents
Contents
Caution
Safety Information
Unit and Accessories
Product Feature
Introduction
1. Front View
2. Rear View
Basic Operation
OSD Menu
1. Picture menu
2. Sound menu
3. Channel menu
4. Parental Control menu
5. Setup menu
6. Others menu
Simple Troubleshooting
2
3
4
4
5-10
5
6
11
12-19
12-13
14
15
16-17
18
19
20
21
3. Remote Control 7-8
ANTENNA 9
PC 9
AV EQUIPMENT 10

2

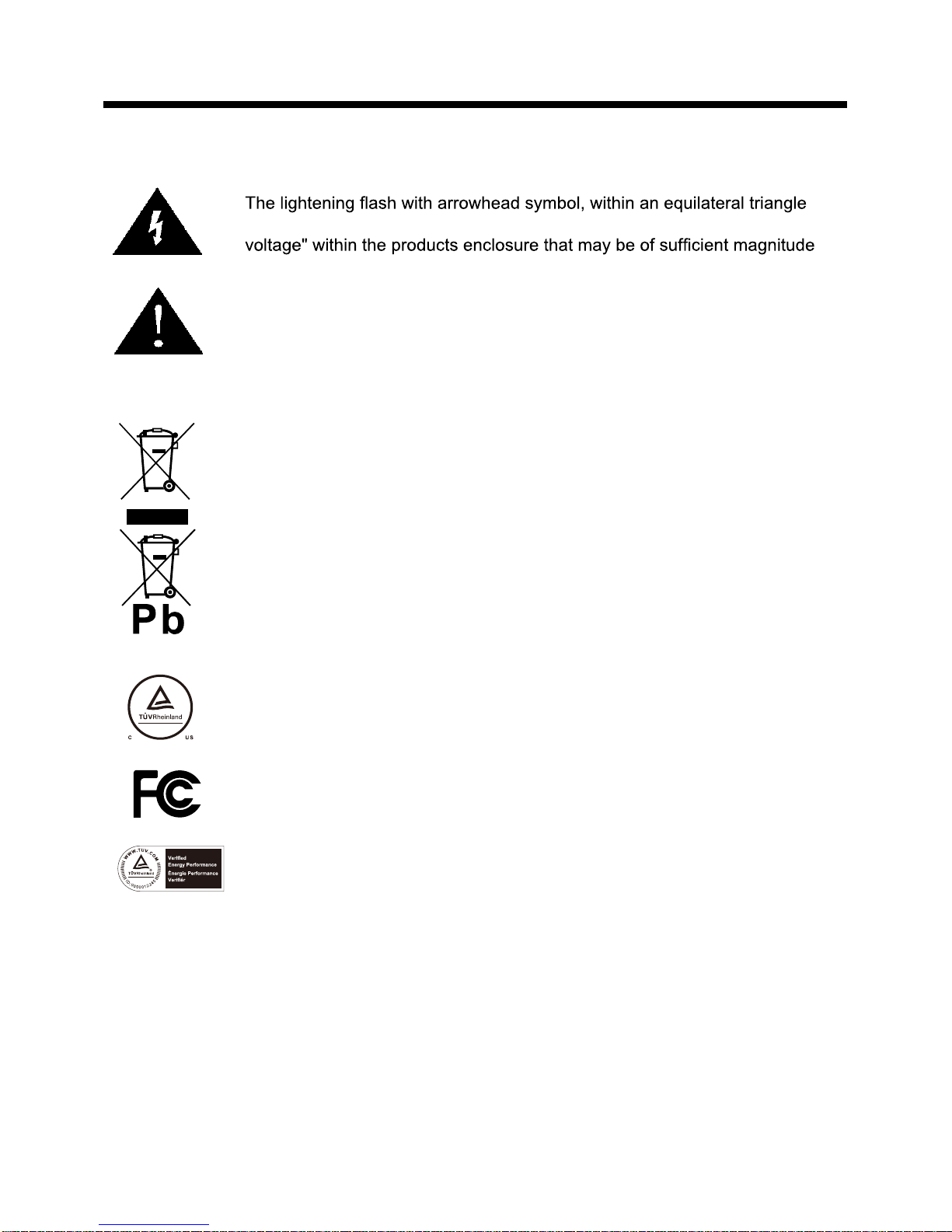

Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.
This unit complies with Enegy Prrformance directives.

3

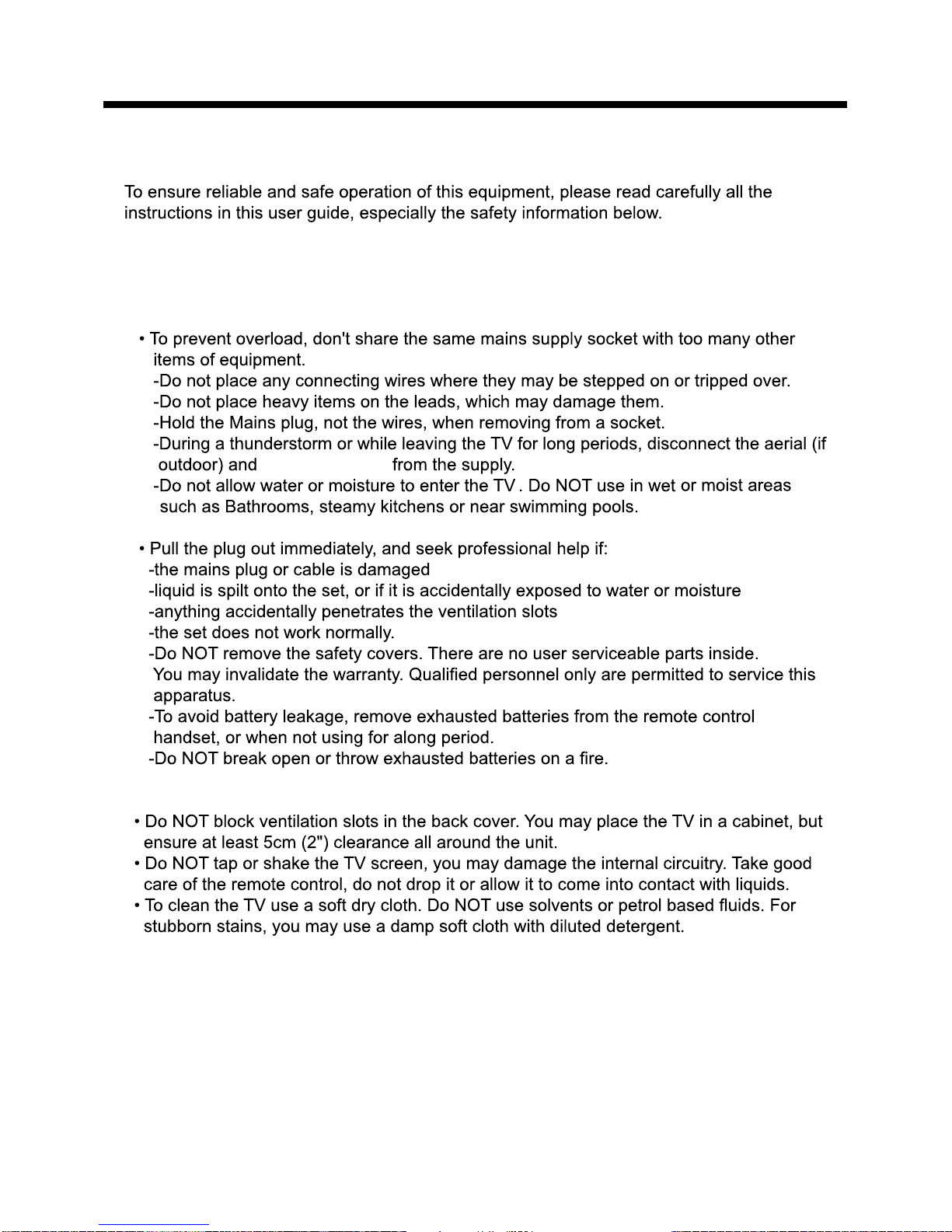

Safety Information
Safety Information
Electrical safety
Physical safety
the power cable

4

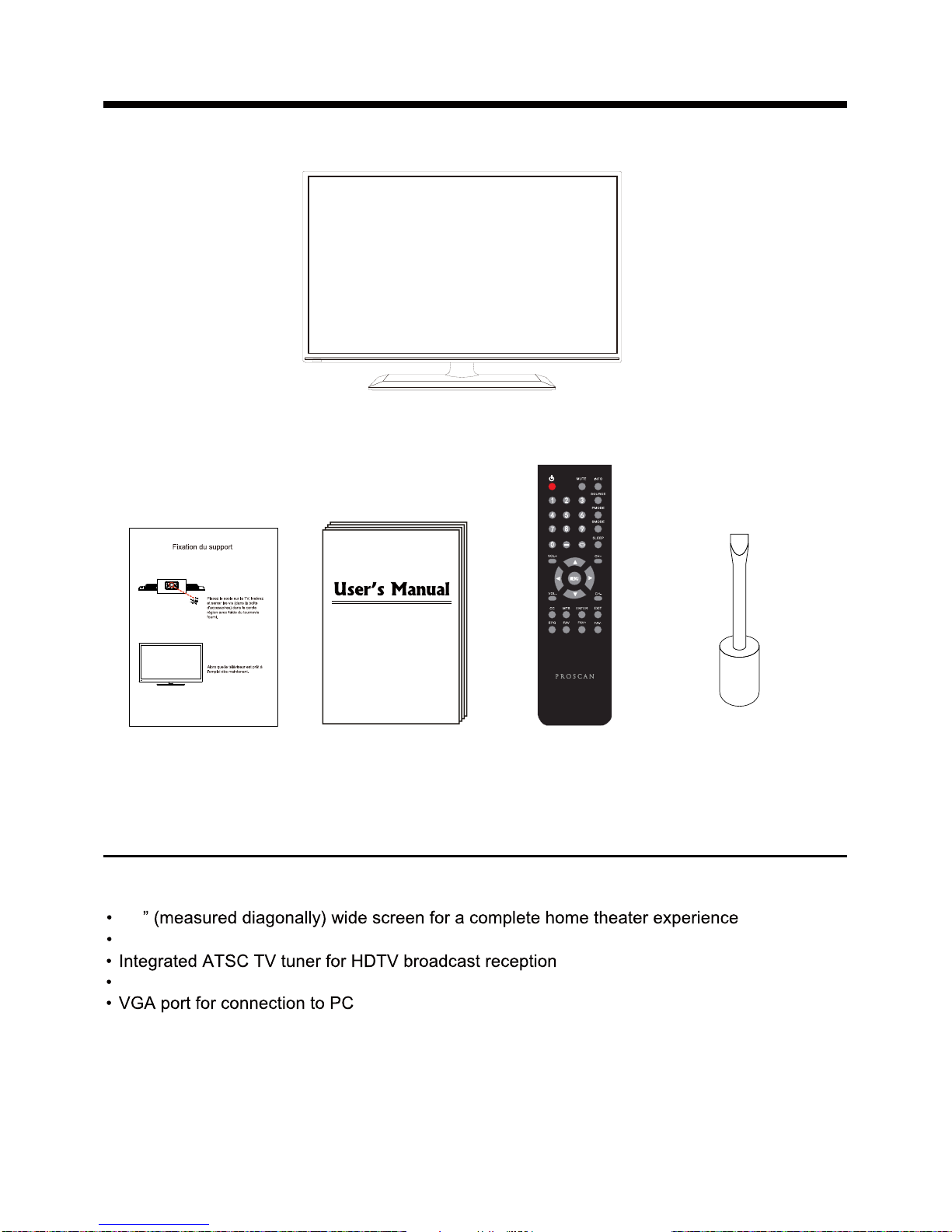

Unit andAccessories and Product Feature
Unit andAccessories
TV set
User's Manual Remote Control and
Batteries (AA x2)
Product Feature
32
Three HDMI inputs ports for true digital connections
Stand Installation Guide
1366 x 768 native resolution
Screw-driver

5
Introduction
Introduction
1. Front View
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Orange) Power on mode
2). The functions of the buttons:
SOURCE: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER:
NOTE: The SOURCE key on the TV in the OSD menu and
has comfirmed the key role.
Turn on/standby the TV set.
Press INPUTbutton on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or / button on remote control to select the
input source, press ENTER button on the remote control
or VOL+ on the TV to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Power Indicator
Remote Control window (Keep clear) 1 2 3 4 5
1
2
3
4
5

6
Introduction

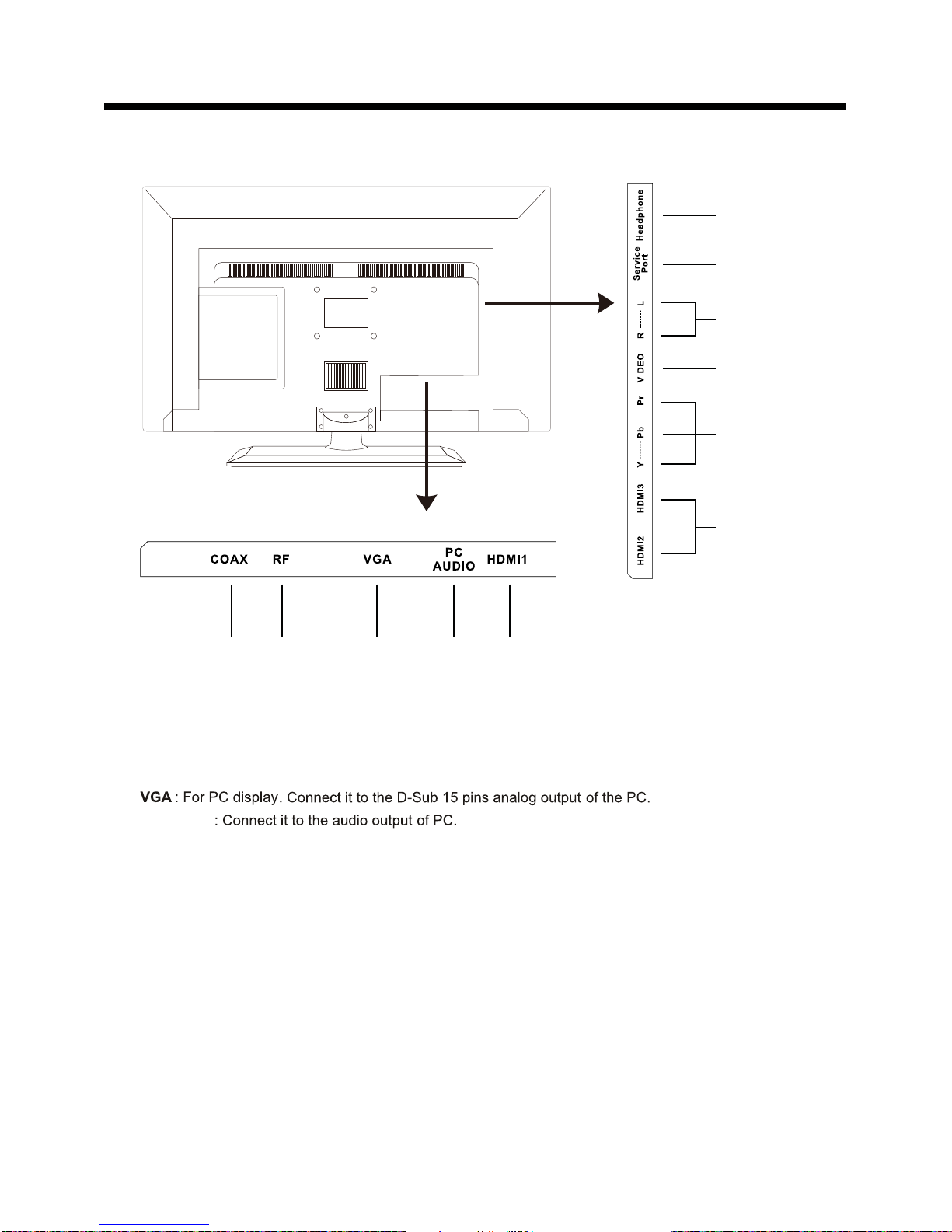

2. Rear View
10). Headphone out : Connect it to your headphone or audio equipments.
3).
2). RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
1). COAX : Digital audio output.
7). YPbPr : Connect them to the component video output of video device.
: Connect it to the HDMI output of video device.
5). HDMI1/2/3
L/R in : Connect them to audio output of video device.
9).
VIDEO : Connect it to video output of video device.
8).
6).
Service Port: For service use only.
4).
1 2 3 4 5
5 9 106 7 8
PC AUDIO

7
Introduction
3. Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote
control may not work correctly if it is operated out of range or out of angle.
CC: Press to display the closed caption.
MTS: Press to select the audio channels.
FAV
FAV+/-: Quickly switch favorite channel among favorite list.
: Press to add or remove favorite channel.
EPG: Press to enter the EPG menu directly.
Thumbstick( ): Allows you to navigate the
on-screen menus and adjust the system settings to your
preference.
ENTER: CONFIRM button.
MENU: Press to display the OSD menu.
EXIT: Press to exit the OSD menu.
VOL+/-: Press to adjust the volume.
CH+/-: Press to scan through channels.
SLEEP: Shutdown timer.
Number Buttons: Choose channel directly.
Select channel 5, Press button "5";
Select channel 62, Press button "6", then press button
"2" in 2 seconds;
Select channel 151, Press button "1", and press button
"5" in 2 seconds, and press button "1" in 2 seconds;
Select channel 5-1, Press button "5", and press button
"- / - -" in 2 seconds, and press button "1" in 2 seconds;
PMODE: Press repeatedly to cycle through the available
video picture modes.
SMODE: Press to cycle through the different sound
settings.
(RETURN): Return to the previous channel viewed.
POWER(red button): Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
SOUCRE: Press to display the input source menu.
INFO: Display the information of current mode. 1
4
14
18
10
5
12
15
19
16
20
13
2
3
6
7
8
9
17
11
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.

8
Introduction
Installing Batteries
1. Open the battery compartment cover on the back of the remote control.
2. Insert two 1.5V AA size batteries observing the polarity markings inside the battery
compartment. Don’t mix different types or used batteries with new ones.
3. Close the cover.
- Used batteries should be disposed properly.

9
Introduction
ANTENNA
Note:
Input impendance:75 unbalanced.
STEPS:
PC
It is recommended that theTV and computer are off before making any of the connections.
1.Connect theVGA and audio cable.
2.Connect the power cord.
3.Power on theTV, switch to PC mode.
4.Power on the PC.
An Indoor antenna
CATV net

10
Introduction

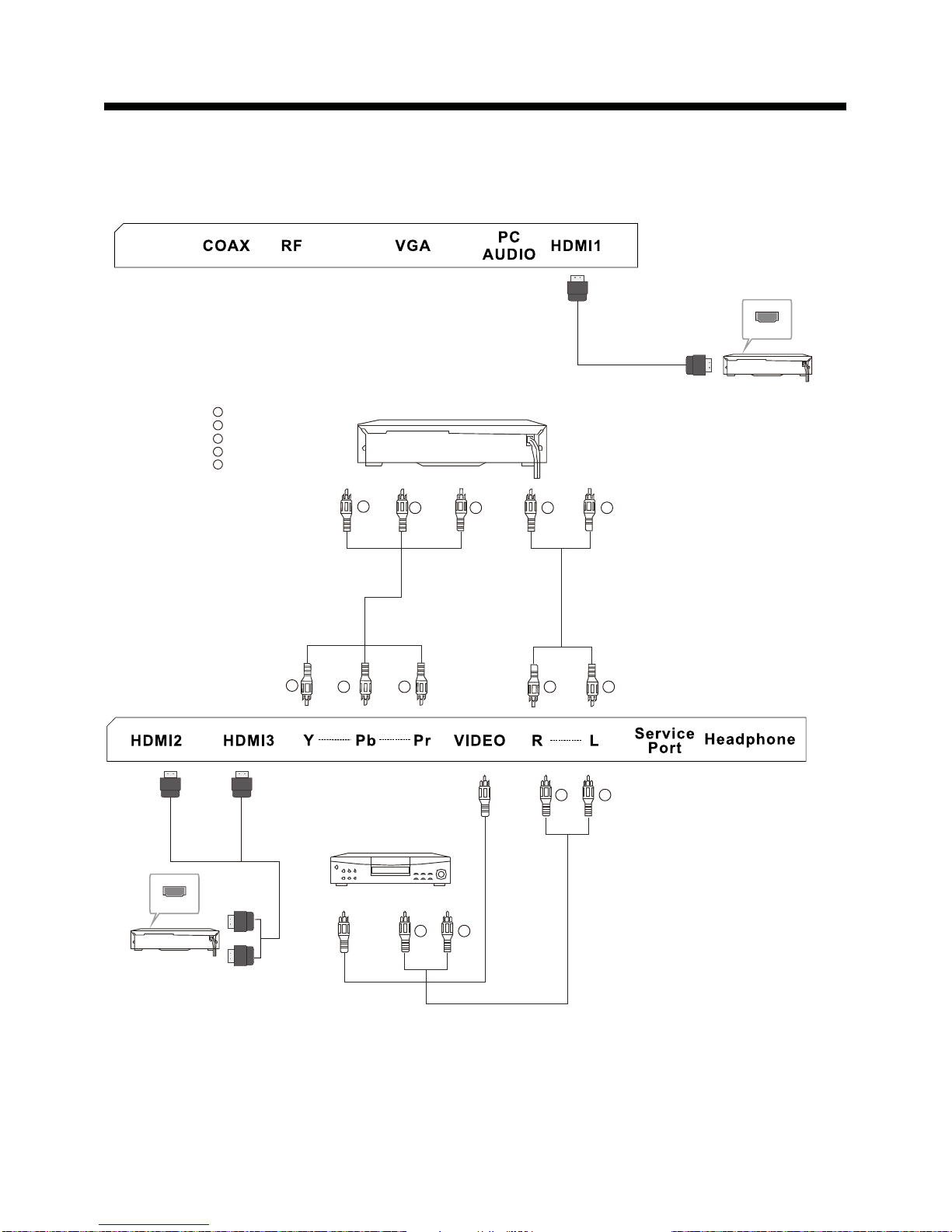

AV EQUIPMENT
You can use the input terminals on the TV set as follows.
HDMI
HDMI
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
RBlue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
GBRW
R
W
R
W
R
GBR
TOAUDIO OUTPUTS
V ID E O E Q U IP M E N T TO VIDEO
OUTPUTS
W
R
The television's inputs can be connected to the following types of equipment: VCR, DVD player,
camcorder, video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.

or press button to enter the submenu.
button to select the function item, press button to adjust/setup,
11
Power on/off
1. Connect to the power supply with the power cord, and turn on the switch.
2. -To turn on the TV
Press button on the TV or remote control.
-To turn off the TV
Press button on the TV or remote control.
Input Source select
Press SOURCE button on theTV set or remote control to display input
source menu, and use CH+/- button on the TV set or button
on remote control to select the input source, press ENTER button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Use button to select the main menu, and press ENTER button to enter the submenu.
Use button to select.
In the submenu, use
* (Press MENU button to return to the upper menu.)
* (Press
* IF no buttons are pressed,the menu will close automatically after about 10 seconds.
EXIT button to exit the menu display.)
Main menu
Sound
Channel
Parental
Setup
Others
Submenu
(Picture menu
for example)
Guide - This guide shows the keys (buttons) on the remote
control for selecting the items to setup in the OSD menu.
Press MENU button to display the OSD menu as below:
Basic Operation
Basic Operation
Press OK button

Press button to enter the Picture Settings menu.
OSD Menu
12
1. Picture menu
Description
Picture mode: Select between Dynamic, Standard,
Movie, and User .
When picture mode is set to user,the following setting
can be mannally adjusted.
You may select the picture mode directly by pressing
the PMODE button on the remote control.
Picture Settings:
Screen Size: Select the display aspect ratio till the picture is fit onto the screen. The options
are different according to different input source.
PC Settings: If the video input signal comes from your PC, you may adjust the Vertical Position,
Horizontal Position, Clock, Phase or even perform an Auto adjustment.
Contrast: Control the difference between the bright and
dark regions of the screen picture.
Brightness: Adjust brightness of the picture.
Color: Adjust color of the picture.
Tint: Control the fresh tones to make them appear natural when analog TV or NTSC - system.
Sharpness: Set the amount of fine detail in the picture.
Color Temp: Select the color temperature between Normal, Cool and Warm. That your feel
comfortable.
OSD Menu
Auto Adjust: Press ENTER button to automatically adjust
Clock, Phase, H-Position and V-Position settings. In order
to get a good result, you should open a “filling the screen”
picture before executing.
Clock: Adjust the pixel clock frequency.
H/V Position: Adjust the transverse/vertical position of
the screen.
Phase: Adjust the phase of the ADC sampling clock
relative to the sync signal, until a stable image is obtained.
Reset: Press ENTER button to reset the settings.

OSD Menu
13
Dynamic Contrast: Select the dynamic contrast mode
between Off, Low, Medium and High.
Film Mode: Activate or deactivate the Film Mode.
Noise Reduction: If the broadcast signal received is
weak, you can select the DNR option to reduce the video
noise level between Off, Low, Medium and High.
MPEG Noise Reduction: Select the MPEG Noise
Reduction option to reduce the picture noise level
between Off, Low, Medium and High.
Advanced Picture Settings: Press button to enter the Advanced Picture Settings.
OSD Menu

OSD Menu
14
2. Sound menu
Description
Sound Mode: Select your desired sound mode as
follow: Dynamic, Standard, Soft and User.
You may select the sound mode directly by pressing
the SMODE button on the remote control.Only in User
mode, the following settings can be manually adjusted.
Bass: Low frequency intensity.
Treble: High frequency intensity.
Balance: The level of sound coming from the left or right
speaker.
Surround Mode: Press Enter to select Activate or deactivate the Surround function.
OSD Menu
Sound Settings: Press button to enter the Sound Settings menu.
AVL: Press Enter to select Activate or deactivate the Auto Volume Limited function.
Analog Sound: Select the Analog Sound mode between Stereo, Mono and SAP.
Digital Sound: Select the Digital Sound laguage,between English,Frerch and Spanish.
Digital Audio Output: Select the Digital Audio Output mode between PCM, RAW and off.
Equalizer Settings: Press button to enter the Equalizer Settings menu.
Use button to select the item, and use button
Use button to select the mode between User, Off,
Rock, Pop and Jazz.
You could press button to enter the bottom item to
adjust the equalizer by yourself when you select
the User mode.
to adjust.

OSD Menu
15
Description
3. Channel menu
Channel List: Display the channel list.
Favorite List: Display the favorite channel list.
Channel Settings: Press > button to display the Channel Settings menu.
Signal Type: Allow you to select antenna between Air and Cable.
It will search analog channels first, then digital channels. The
receivable channels will be stored automatically.
* Before execute auto channel search, please confirm your
antenna type is Air or Cable. Wrong setting of Signal Type
maybe cause finding no channel.
Auto Channel Search: Press ENTER button to start auto channel search.
Press button to select the item, and press ENTER
button to change the setting.
Skip: Set the channel to be skipped when using CH+/CH- to
view channels.
Favorite: Set the channel to your favorite list.
Label: Rename label of the channel.
OSD Menu
Cable

OSD Menu
16
4. Parental Control menu
OSD Menu
Description
V-CHIP: Press button to enter the V-CHIP menu.
You must enter the password to gain access to the Parental Control menu. The default password
is 0000. You may modify the following options:
TV Rating: Use buttons to select the desired rating and press button to block or
unblock rating.
* The TV rating compose of two aspects: age-based and content-based.
Movie Rating: The Movie rating (MPAA) is used for
original movies rated by the Motion Picture Association
of America (MPAA) as broadcasted on cable TV and
not edited for television.
Use button to select G, PG, PG-13, R, NC-17 or X.
G: General Audiences. Movie is appropriate for all ages.
PG: Parental Guideance Suggested. May contain material not
suited for younger viewers.
PG-13: Contains content that may not be appropriate for viewers
under the age of 13.
R: Restricted. Contains adult content, no one under 17 admitted
without parent.
NC-17: No one 17 and under admintted.
X: Adults only.
US V-CHIP: Press button to enter the US V-CHIP menu.

OSD Menu
17
OSD Menu
English Rating: Select among: C, C8+, G, PG,
14+ and 18+.
French Rating: Select among: G, 8ans+,
13ans+, 16ans+ and 18ans+.
Canada V-CHIP: Press button to enter the Canada
V-CHIP menu.
Block UnRated Show: Activate or deactivate the Block UnRated Show function.
Downloadable Rating: Setting the Downloadable Rating in DTV mode when the program
has the rating information.
Clear Downloadable Data: Clear the downloadable data of the TV.
Change password: Change the password, at first you should
enter the correct old password then enter the new password
twice to confirm it.
Keypad Lock: Invalidate the buttons one the TV set.
Source Lock: Invalidate the source input you select.
Press to select the source you want to lock,then press
ENTER to set it to lock.If anyone want to use this source,the
password is needed.
Note: Do not forget the password.
Note:The two operations above only valid when playing the downloadable data stream.

OSD Menu
18
Description
5. Setup menu
OSD Menu
Closed Caption: Press button to enter the Closed Caption (CC)menu.
Caption Display: Activate or deactivate the Caption
Analog Caption Type: Allow you to select the basic
selection among: CC1, CC2, CC3, CC4, CC5, CC6,
Digital Caption Type:Allow you to select the advanced
selection among: Service1, Service2, Service3 Service4,
Digital CC Preset: Select the Digital CC Preset between Default and Custom.
Digital CC Style: Setting the Digital CC Style.
Menu Language: Select OSD menu language.
Clock: Press button to enter the Clock menu.
CC7 and CC8.
Service 5 and Service 6.
Time zone: Select the time zone for the TV.
Auto Clock: Activate or deactivate the Auto Clock
Setup Time: Set Auto Clock to Off, then you can set the time manually .
Note: In the case of loss of power, the clock setting will be lost.
Day of Week:Display the day of week.
Daylight Saving Time: Activate or deactivate the Daylight Saving Time function for the TV.
function.
If set it to ON , the TV will sync the local clock according
to the DTV broadcasting time automatically. Otherwise
you can set the time manually.
displaying.
