ProScan PLDEDV3292A User manual

Model: PLDEDV3292A-B

*
SAFETY PRECAUTION
CAUTION
•
•
•
WARNING:
PLACEMENT INFORMATION
SAFETY INFORMATION
RATING PLATE LOCATION
FCC STATEMENTS
WARNING:
1
CAUTION MARKING WAS LOCATED AT THE REAR
OF THE APPARATUS.

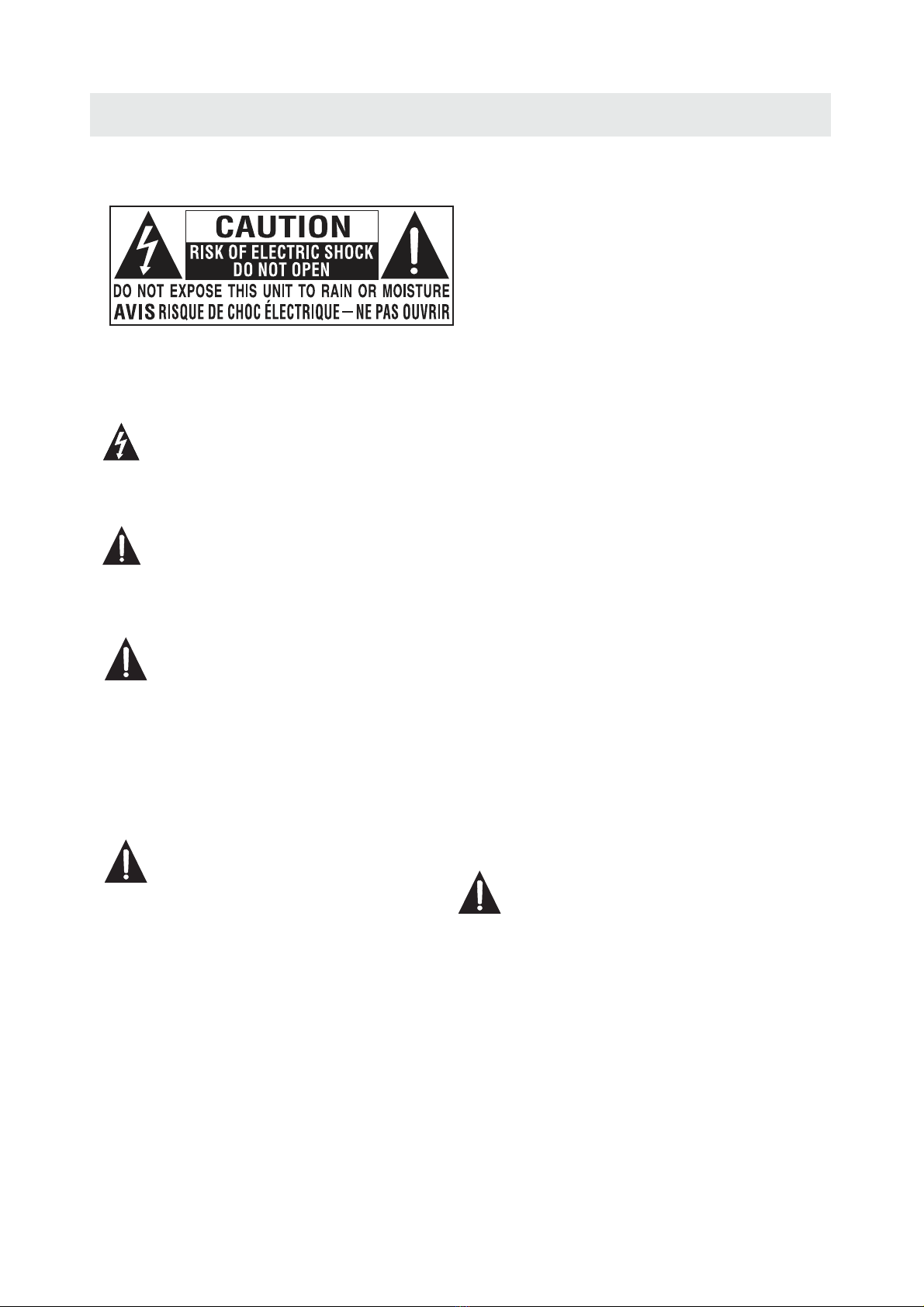

WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK，DO NOT REMOVE COVER（OR BACK）
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle,is intended to
alert the user to the presence of uninsulated
“dangerous voltage”within the product's enclosure
that may beof sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral
Triangle is intended to alert the user to
The presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
•
•
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
TO REVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO
NOT PLACE OBJECTS FILLED WITH LIQUIDS ON
OR NEAR THIS UNIT.
SHOULD ANY TROUBLE OCCUR, DISCONNECT
THE AC POWER CORD AND REFER SERVICING
TO A QUALIFIED TECHNICIAN.
Do not use this unit in places that are extremely
hot, cold, dusty or humid.
Do not restrict the airflow of this unit by placing it
somewhere with poor airflow, by covering it with
a cloth, by placing it on bedding or carpeting.
When connecting or disconnecting the AC power
cord, grip the plug and not the cord itself. Pulling
the cord may damage it and create a hazard.
When youare not going to use the unit for a long
period of time, disconnect the AC power cord.
The rating plate is located on the rear of the unit.
NOTE: This unit has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation.
This unit generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communication. However, there
is no guarantee that interference will not occur in a
particular installation. If this unit does cause harmful
interference to radio or television reception, which
can be determined by turning the unit off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the unit and
receiver.
-Connect the unit into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications to this
unit not expressly approved by the party responsible
for compliance could void the user authority
to operate the unit.
•
•
•
•

IMPORTANT SAFETY INSTRUCTIONS
2
1)Read these instructions.
2)Keep these instructions.
3)Heed all warnings.
4)Follow all instructions.
5)Do not use this apparatus near water.
6)Clean only with a dry cloth.
7)Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
8)Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (Including amplifiers) that
produce heat.
9)Do not defect the safety purpose of the
polarized or grounding-type plug.
A polarized plug has two blades with one
wider than the other.
A groundingtype plug has two blades
and a third grounding prong.
The wide blade or the third prong is
provided for your safety.
If the provided plug does not fit into your
wall outlet, consult an electrician for
replacement of the obsolete outlet.
10)Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
11)Only use attachments / accessories specified
by the manufacturer.
12)Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use caution when
moving the cart / apparatus combination to
avoid injury from tip-over.
13)Unplug this apparatus during lightning
Storms or when unused for long periods of
time.
14)Refer all servicing to qualified service
personnel. Servicing is required when the
apparatushas been damaged in any way,
such as the power cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
15)To prevent electric shock, ensure the grounding
pin on the AC cord power plug is securely
connected.

ACCESSORIES
Please check and identify the supplied accessories.
............................................................................................................ .........
................................................................................................................
...........................................................................................................
GETTING STARTED
USING THE REMOTE CONTROL
BATTERY REPLACEMENT
CAUTION : Danger of explosion if battery is incorrectly replaced.
NOTES
WARNING :
3
x 2
x 1
x 1
x 1
Remote control ..................................................................................................................
Remote control
Battery(AA)
Warranty Card
Instruction Manual
·Point the remote control at the remote sensor located on the unit.
·When there is a strong ambient light source, the performance of the infrared remote sensor
·may be degraded, causing unreliable operation.
·The recommended effective distance for remote operation is about 16 feet (5 meters).
When the batteries become weak, the operating distance of the remote control is greatly
reduced and you will need to replace the batteries.
·If the remote control is not going to be used for a long time, remove the batteries to avoid
damage caused by battery leakage corrosion.
·Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or
rechargeable (NICKEL-CADMIUM) batteries.
·Always remove batteries as soon as they become weak.
·Weak batteries can leak and severely damage the remote control.
Do not dispose batteries in a fire. Batteries may explode or leak.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Base stand and 4 screws ........................................................................................... x 1
Screw driver ................................................................................................................ x 1

CONTROL REFERENCE GUIDE
BACK VIEW
FRONT VIEW
1.Color Screen
2.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red: The unit is in STANDBY.
Light in blue:The unit is turned ON.
3.Remote Sensor
Do not block this sensor or the
remote control will not work.
4. Speakers
6
1.Power cord
2.Coax OUT Jack
3.TV ANTENNA Terminal
4.VGA IN Jack
5.PC AUDIO IN Jack
6.HDMI IN Jack
7.Service Port
8.AUDIO OUT Jack
(Audio out- This connection is for sending out
analog audio signal to the 2nd equipment.Red
is for Right Channel, white is for Left Channel.)
9.AV (VIDEO/ AUDIO R/L) IN
10.COMPONENT IN Jack
11.Headphone Jack
COAX RF VGA PC
AUDIO HDMI1 HDMI2 HDMI3 Service Port Headphone
R
AUDIO OUT
LAUDIO IN COMPONENT
VIDEO RL
AV
YPbPr
100-240V~
3241
4

CONTROL REFERENCE GUIDE
7
BACK VIEW
Press to select the input source of the TV,
and then, press to confirm.
VOL-
VOL+
CH-
CH+
MENU
SOURCE
STANDBY
1. VOL+ Button
2. VOL- Button
3. CH+ Button
4. CH- Button
5. MENU Button
6. SOURCE Button
7. STANDBY Button
8.
Press to eject a disc.
Press this start pause or resume playback of
a disc.
9. Disc Slot
Insert discs to disc slot.
Note: When inserting a disc, please
take note of the indication of direction
around the disc slot for operation.
(Right direction: put the mirror side of
the disc facing yourself)
VOL+
VOL+
VOL-
VOL-
CH+
CH+
CH- MENU SOURCE
SOURCE
STANDBY
STANDBY
8
9

CONNECTIONS
CONNECTING A TV ANTENNA / CABLE / S A TELLITE
To view television channels correctly, a signal must
be received from one of the following sources:
- An indoor or outdoor aerial antenna
- A cable system
- A satellite system
For receiving over-the-air TV broadcasts, we
recommend that you use an external fixed antenna.
Should you require the use of a temporary antenna,
please ensure that you purchase an antenna with
sufficient ability to receive in weak signal areas.
Only when you are in close proximity to a transmitter
will a temporary antenna reproduce a signal as
strongly as a fixed antenna.
To connect to other equipment such as a VCR, camcorder, satellite system or cable, etc.
CONNECTING AN A/V DEVICE
NOTE
CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)
VIDEO OUTPUT
Connecting to a VCR / Video Game System / Camcorder
AUDIO VIDEO OUT
NOTE
To connect A/V devices such as a VCR, video game system or camcorder.
Connect the AUDIO / VIDEO cable (not included) as shown.
Make sure you connect the cable from the other equipment (and ) to this unit
Please refer to the user manual
for the other equipment for
more information.
Satellite, cable or TV antenna
cable to TV ANTENNA
terminal (cable not included)
To AUDIO / VIDEO
IN jacks
To AUDIO / VIDEO
OUT jacks
8
(AV in)

CONNECTIONS
CONNECTING A HIGH-DEFINITION (HD) SOURCE USING CONNECTION
NOTE
COMPONENT
High-Definition (HD) Devices with component video output must be connected to the Y input.
Connect the component video cable and audio cable (not included) as shown.
Make sure you connect the component video cable and audio cable from the other equipment
When connecting a DVD player to the television,
the picture resolution is solely dependent upon
the resolution supported by the DVD player attached.
DVD player resolutions vary from 480i to 1080p.
and this television can support DVD players up to
a maximum resolution of 1080p.
PbPr
* May require a subscription
for receiving HD channels,
check with your cable/satellite
service provider for details.
To COMPONENT
VIDEO OUT jacks
CONNECTING A HIGH-DEFINITION (HD) SOURCE USING HDMI CONNECTION
HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection
for use with DVD players, DTV, set-top boxes and other digital AV devices. HDMI was developed to provide
the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface
(DVI) in one specification. HDCP is used to protect digital content transmitted and received by
DVI-compliant or HDMIcompliant displays.
HDMI has the capability to support standard, enhanced or high-definition video plus standard to
multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of
up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and
connectors), and communication between the AV source and AV devices such as DTVs.
To HDMI
IN jack To HDMI
jackOUT
To COMPONENT
VIDEO IN jacks
AUDIO IN jacks
To COMPONENT AUDIO
OUT jacks
Connect the HDMI cable (not included) as
shown:
Make sure you connect the cable from the
source equipment () to this unit
().
HDMI OUT
HDMI IN
HDMI CABLE
(NOT INCLUDED)
（COMPONENT OUT and AUDIO OUT）to the unit COMPONENT IN.
COMPONENT IN
9
To COMPONENT

CONNECTIONS
CONNECTING A
AUDIO - PC OUT
VGA AUDIO - PC IN
PC
VGA
Connect the 15-pin D-SUB PC/VGA connector
from your computer to the 15-pin D-SUB PC/VGA
input on this unit using a monitor cable and an
audio cable (not included) as shown.
Make sure you connect the cable from the computer
( and ) to this unit
( And ).
TO PC Connector
TO AUDIO OUT jacks
NOTE
• Insert the power plug fully into the socket outlet
If the power plug is loose it could generate heat and
cause fire
Do not touch the power plug with a wet hand
This may cause electrical shock
Do not use any power cord other than that provided
with this TV This may cause fire or electrical shock
Do not damage the power cord
A damaged cord may cause fire or electrical shock
•Do not move the TV with the cord plugged in the
socket outlet.
•Do not place a heavy object on the cord or place
the cord near a high-temperature object.
•Do not twist the cord, bend it excessively, or stretch it.
•Do not pull on the cord. Hold onto the power plug body when disconnecting cord.
•Do not use a damaged power plug or socket outlet.
.
(,
.)
.
(.)
. (.)
.
().
•
•
•
connected to prevent electrical shock.
Ensure that the power plug is easily accessible.
Ensure the earth pin on the power plug is securely
•
•
10

CONNECTIONS
Connection to a Home Theater Audio System
For BEST audio performance
Connecting to a Home Theater System
Dolby Digital can deliver optimal 2 channel
stereo or surround sound with five discrete
full range channels plus a sixth channel for
a subwoofer.
Enjoy optimal sound reproduction from your
system with a Dolby Digital amplifier that
incorporates a digital coaxial input. Connect
an optional digital cable directly to the
television’s Coax audio output to listen
through all inputs except VGA.
（The VGA does not support digital audio）
How To Setup Digital Output
Press the MENU button on the remote control
Press the right ► arrow button to select SOUND
and Press ENTER to enter the submenu.
Press the down ▼ arrow button to highlight
Digital Audio Output and press ◄► to
change setting from PCM, Raw or Off.
11
Coax
SPDIF OUT

WALL MOUNT INSTALLATION
INSTALLING REMOVING THE BASE STAND
WARNING
/
:The
LED Display is very fragile and must be protected at all t imes when removing t he b ase
Stand
Be sure that no hard or sharp object or anything that could scratch or damage the LED display comes into
contact with it Do NOT exert pressure on the front of the unit at any time because the screen could crack
1 Disconnect all cables or cords connected to the unit
2Lay the unit down on a flat surface with the back side facing up Please make sure to place a soft
cushioned material such as a pillow or thick piece of foam beneath the screen
3To remove the base stand loosen screws off the holes then pull downwards to release
the base stand
,
.
. .
..
. .
.,
MOUNTING ON THE WALL
NOTE
Remove the base stand before mounting the unit on the wall.
This unit is VESA-compliant, and is designed to be wall-mounted with a VESA-compliant 8”x4”
(200mm x 100mm) mounting kit designed for flat-panel TVs (not supplied). Mount this unit according to
the instructions included in the mounting kit.
Length of screw should not exceed 10 mm.
12
8”
4”
.
M4

INITIAL SETUP
When you turn on your television set for
the first time, be sure to place it on a solid
stable surface.
To avoid danger, do not expose the TV
to water, or a heat source
(e.g. lamp, candle, radiator).
Do not obstruct the ventilation grid
at the rear and be sure to leave sufficient
gaps around the unit.
PUTTING THE UNIT ON A PROPER PLACE
TURNING THE UNIT ON FOR THE FIRST TIME
After you have initially connected your TV
antenna or cable,
turn the television ON.
13
A screen will display asking you to run a
Initial Setup menu to search and receive
available local digital channels.
It is where you will select Menu Language
and choose your Signal Type between
Air and Cable.
After that , you can choose Auto Channel Search
and then it will search analog channels first,
then digital channels.
Before execute auto channel search, please
confirm your antenna type is Air or Cable.
Wrong setting of Signal Type maybe cause
finding no channel.

14
1. Press the button on the remote control.
2.
and select any of them using the button or
the button.
ource
Note:
Before watching please ma ke sure all necessary
cables and devices are connected.
ENTER
Use or button to select the optionsthe
(The screen will change to your desired s).
(TV,AV,YPbPr, HDMI1,HDMI2,HDMI3,PC)
Main MENU
Press MENU to display the main menu or return to the previous menu or close the main menu.
Press ◄/► to high light the desired menu icon, and press ENTER to select.
If no buttons are pressed, the menu will close automatically after about 10 seconds.
Main Menu Description
Picture Menu
Adjust your picture settings.
The operations are slightly different among
different source.
Sound Menu
Adjust the sound settings.
TV SETUP

TV SETUP
15
Channel Menu
Customize your channel settings.
Parental Control Menu
Set program rating control.
Setup Menu
Select closed caption options, language
and time.
Other Menu
Set the OSD blue background, whether auto
power off if no signal or no operation, clear
all user settings, etc.
ENTER

TV SETUP
16
Picture Menu
Press ▲/▼ to highlight one of the following options, then press ENTER or ► to enter next
submenu to adjust it. Press EXIT to clear on-screen menu or MENU back to the previous
menu.
Picture Settings
Adjust the picture quality including brightness, contrast, color, tint, sharpness.
Screen Size
Press ◄/► to select the display aspect ratio till the picture is fit onto the screen.
The operations are different according to different input source.
PC Settings
The item is available only for PC DB15 input mode.
Color Temperature
Press ◄/► to select the color temperature that you feel comfortable.
Cool Gives white colors a blue tint.
Normal Gives white colors a neutral tint.
Warm Gives white colors a red tint.
Advanced Picture Settings
The Item is some special picture feature.

TV SETUP
17
Picture Settings
When Picture Mode is set to User, the following setting can be manually adjusted.
Press PMODE shortcut button on the remote control to select picture mode directly.
Picture Mode
Highlight the item and Press ◄/► to select Standard/ Movie/ User/ Dynamic.
Standard Produces a highly defined image in a normally lit room.
Movie Produces a highly defined image in gentle lit room.
User Select to customize picture setting.
Dynamic Produces a highly defined image in a bright lit room.
Highlight the item and press ►, and a process bar appears, then press ◄/► to adjust the value.
Tint is available when analog TV or NTSC-system AV.
Press MENU to back the Picture Settings menu.
Brightness
Adjust darkness of black sections in the picture.
Contrast
Adjust the white level of the picture.
Color
Adjust the color intensity of the picture.
Tint
Adjust the hue( Red, Green, Blue) of the picture.
Sharpness
Object edges are enhanced for picture detail.
