FREEZER
USER’S MANUAL
Model : PUF80WH
To ensure proper use of the appliance and your safety, please read the
following user manual completely before operating this appliance.
Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LED clock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances
Thank you for purchasing our product and thank you for placing your
confi dence in us.
Read this manual carefully before using. Follow instructions and
keep it for future reference.
Follow the operating instructions and safety notices in this manual.
If any trouble arise, do not fi x it yourself or hand it to the after sales
service centre which have not been authorised. Please contact the
local authorised service centre.
This freezer is designed and approved for use with fl ammable
R600a hydrocarbon refrigerant.
R600a refrigerant is better for the environment.
R600a is an eco-friendly hydrocarbon refrigerant.
The appliance is specifi cally constructed for domestic
use and is therefore suitable for the refrigeration and storage
of frozen foods and the production of ice-cubes.
The appliance has not been designed or manufactured for
professional use. Teco declines all responsibility for damage
deriving from improper use of the appliance. The freezer
has undergone the necessary tests on the tightness of the
refrigeration circuit and complies with the safety regulations
for electrical appliances.
WARNING ICON
This symbol indicates information concerning your personal
safety
CAUTION ICON
This symbol indicates information on how to avoid damaging
the appliance
FLAMMABLE ICON
R600a WARNING LABEL
CAUTION
R600a
WARNING
TABLE OF CONTENTS
Safety precautions................................................1 - 2
Name of parts and usage...................................... 3
Installation instructions.......................................... 4
Transporting the appliance ................................... 5
Operating instructions .......................................... 6
Defrosting ............................................................. 7
Maintenance ......................................... ................ 8
Disconnection of the appliance ............................ 9

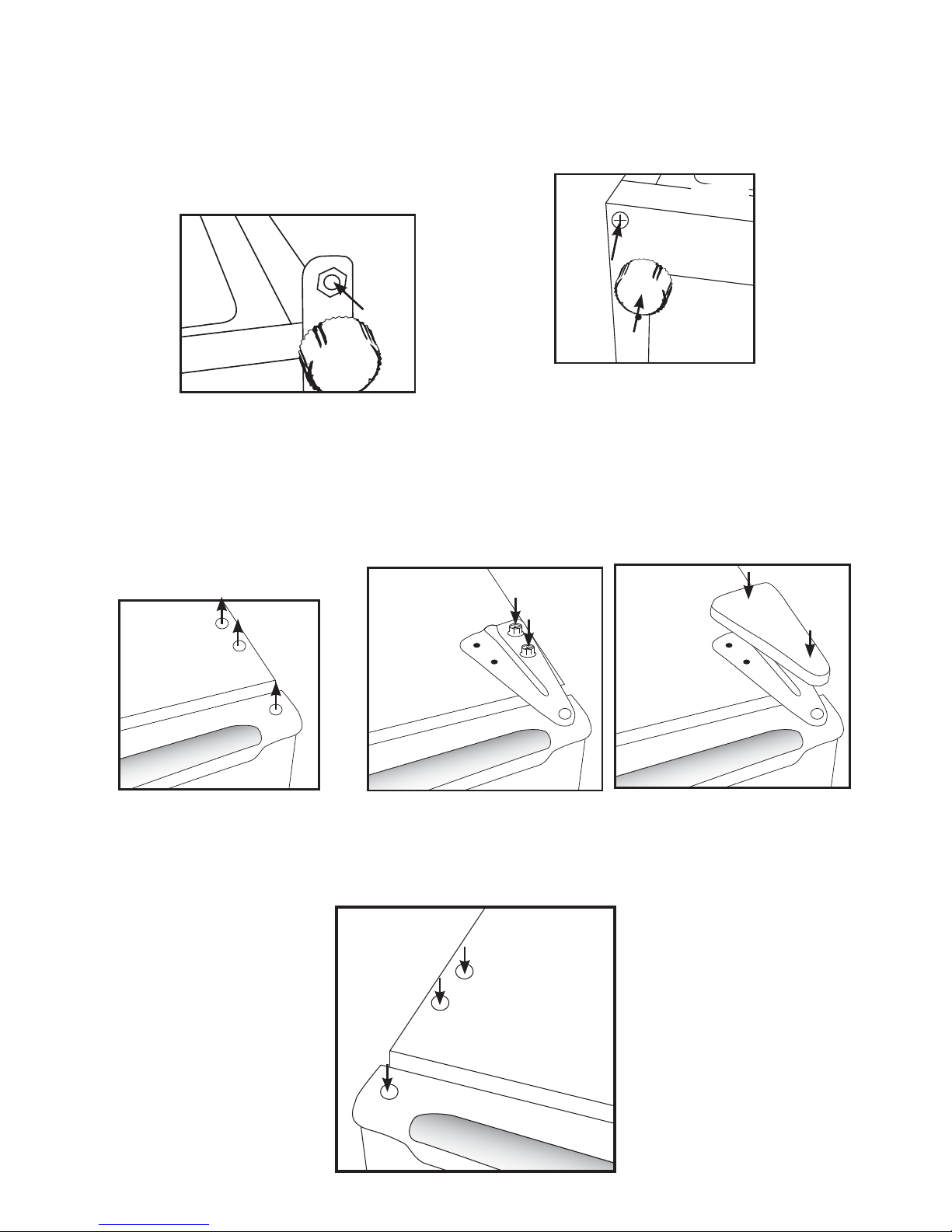

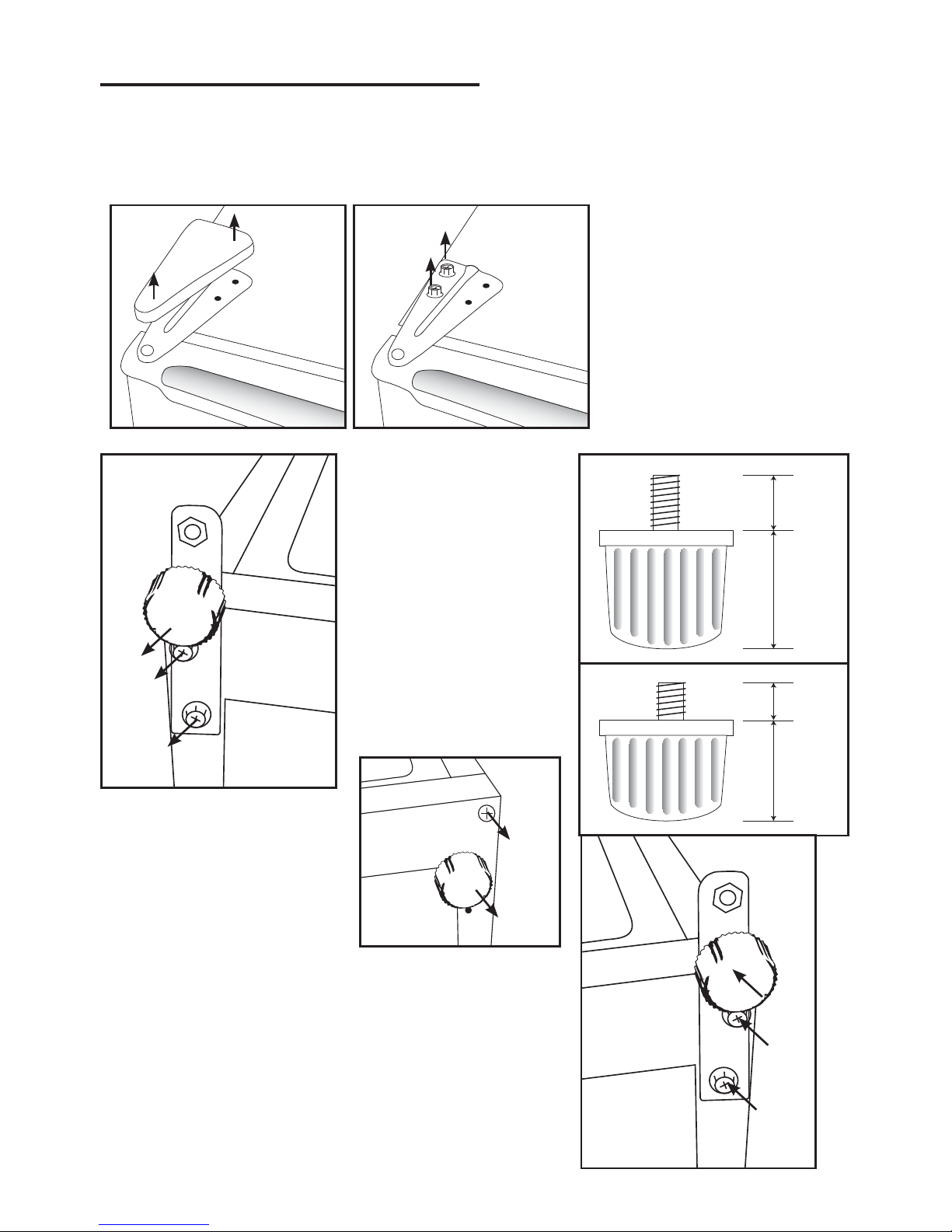

Reversing the door ........................................... 10 - 11
Troubleshooting ................................................ 12 - 13
Repairs, service & warranty .................................13
Specifi cations ...................................................... 14
R600a Iso-butane Refrigerant
Hydrocarbon refrigerants have excellent refrigerant
properties and minimal low global warming potential and
no ozone depletion potential.
This appliance contains a small quantity of fl ammable, non-
synthetic R600a refrigerant:
Hydrocarbon refrigerants cannot be ‘retrofi tted’ to the appliance
that has not been designed and approved to use that type of
refrigerant.
Ensure that the tubing of the refrigerant circuit is not damaged
during transportation and installation.
Leaking refrigerant may cause eye injuries or could ignite.
The room for installing the appliance must be at least 1m3 per 8g
of refrigerant. The amount of refrigerant in the appliance can be
found on the rating plate attached to the appliance.
Risk of fire
If the refrigerant circuit should become damaged. Avoid
open fl ames and sources of ignition. Disconnect the appliance
from the mains power. Thoroughly ventilate the room in which
the appliance is situated for several minutes.
SAFETY PRECAUTIONS
Instructions
The refrigeration system behind and inside the freezer
contains refrigerant. Do not allow any sharp objects to come
in contact with the refrigerant system.
Keep ventilation openings, in the appliance enclosure or
in the built in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
Do not damage the refrigerant circuit, do not use electrical items or fi re
equipment nearby, and open all windows to provide good ventilation.
Do not use electrical appliances inside the food storage compartments
of the appliance unless they are the type recommended by the
manufacturer.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
WARNING
WARNING
WARNING
1
by a person responsible for their safety.
Young children should be supervised to ensure that they do not
play with the appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualifi ed
persons in order to avoid a hazard.

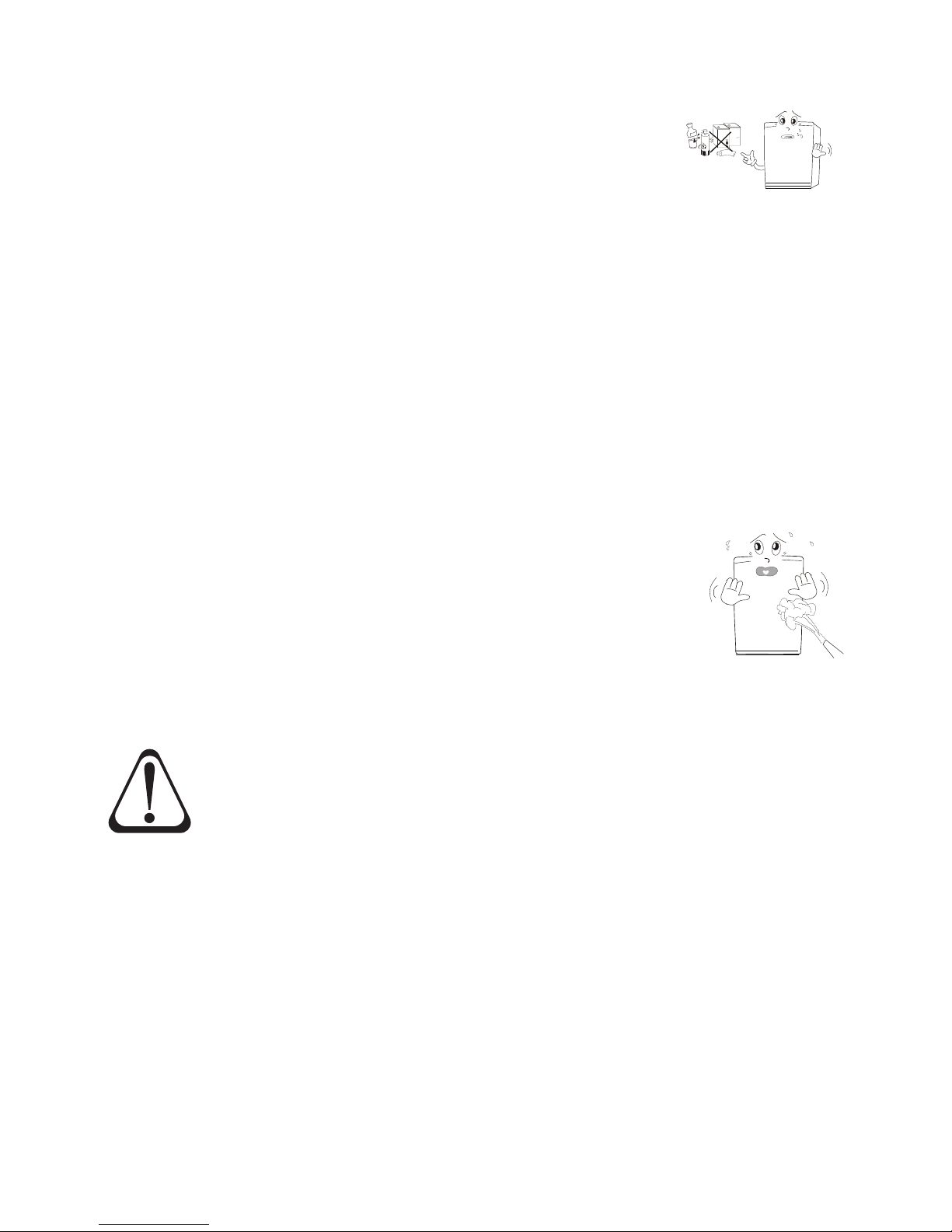

When disposing of the appliance, do so only at an
authorised waste disposal centre.
Don’t store infl ammable materials such as ether,
benzene, LP gas and glue etc in the freezer.
Please remove all the doors before you dispose your freezer
and leave the shelves in place to prevent access by children.
Do not expose to fl ame.
Please keep the appliance away from substances which could
cause ignition.
Before obtaining access to electrical terminals, all electrical supply
circuits must be disconnected.
The freezer is designed to operate on a single phase
power supply within a voltage range of 220~240V/50Hz.
Don’t splash water on the rear of the appliance,
for it may cause malfunction or electric shock.
Containers with fl ammable gases or liquids can leak at
low temperature. There is a risk of explosion.
Do not store any container with fl ammable materials such
as spray cans in the freezer.
Do not operate any electrical appliance in the freezer (e.g.
electric ice cream makers, mixers etc.).
Before cleaning the appliance, always switch off the appliance
and unplug it, or pull the house fuse or switch off the circuit
breaker.
Safety of children
Packaging (e.g. wraps, polystyrene) can be dangerous for children. There
is a risk of suffocation. Keep packaging materials away from children.
Remember to dispose of old appliances in accordance with local laws.
Pull out the mains plug, cut off the mains cable, break or remove spring or
bolt catches if fi xed and ensure that children cannot lock themselves in the
appliance when playing (there is risk of suffocation) or involve themselves
in other dangers, for children cannot recognize the hazard present in
household appliances themselves. Therefore, it is very important for
parents to make adequate supervision and never let children play with the
appliance.
WARNING
2

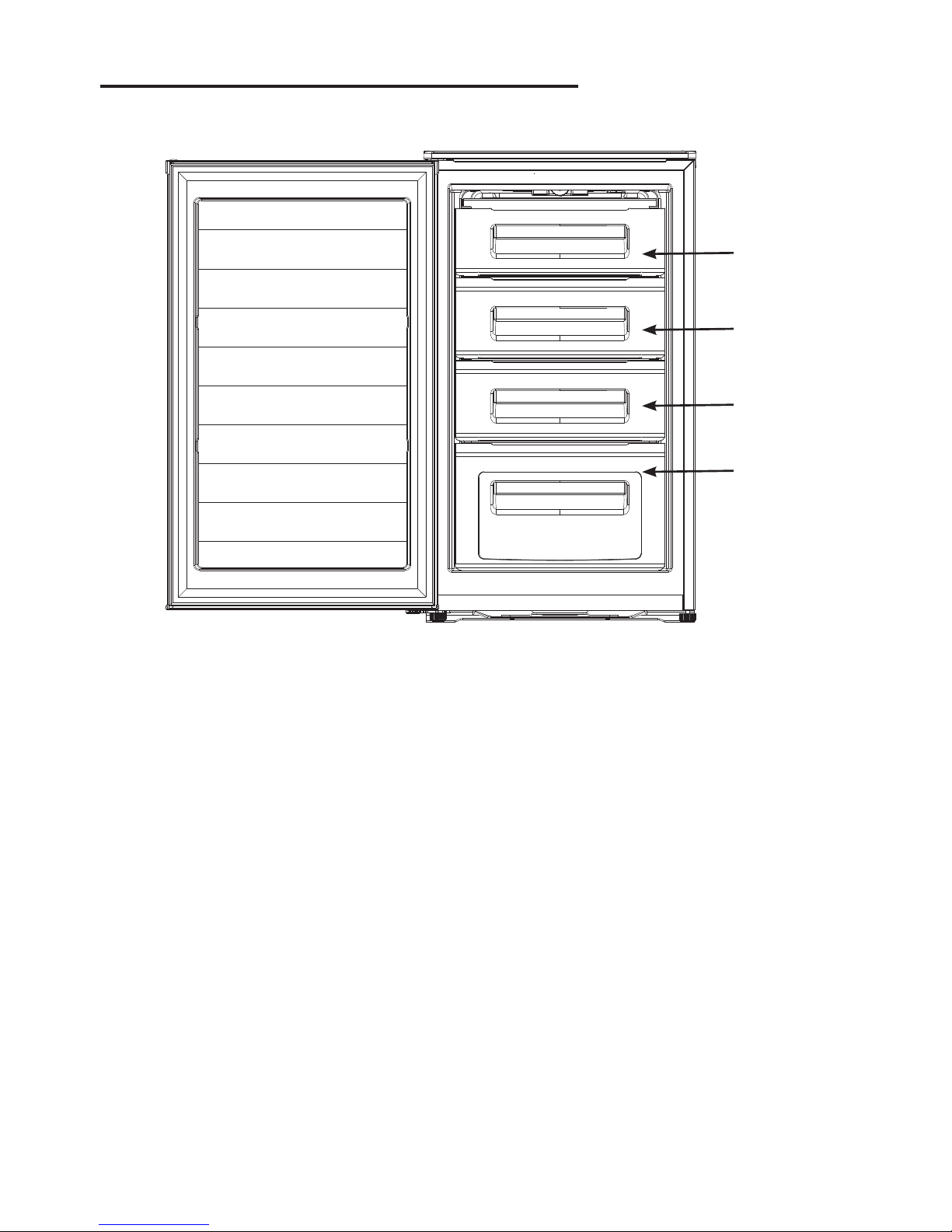

NAME OF PARTS AND USAGE
1. Small Food Compartment Drawer
2. Large Food Compartment Drawer
The freezer you purchased is subject to continuous improvement,
which may not be completely consistent with the manual, however the
functions and operating methods will not change.
If you use the freezer for the fi rst time, remove any adhesive tapes.
Do not pull or push the drawers forcefully during use in case of damage.
3
1
1
1
2
PACKING LIST
Check the packing list that all items have been included.
Note: Product specifi cations are subject to change without prior notice.
4
Model TVF81WMCCBC
Small Food
Compartment
Drawer
Large Food
Compartment
Drawer
User manual
Warranty
Information
3 pieces
1 piece
1 copy
1 copy
Part No.
(see pg.3)
1
2

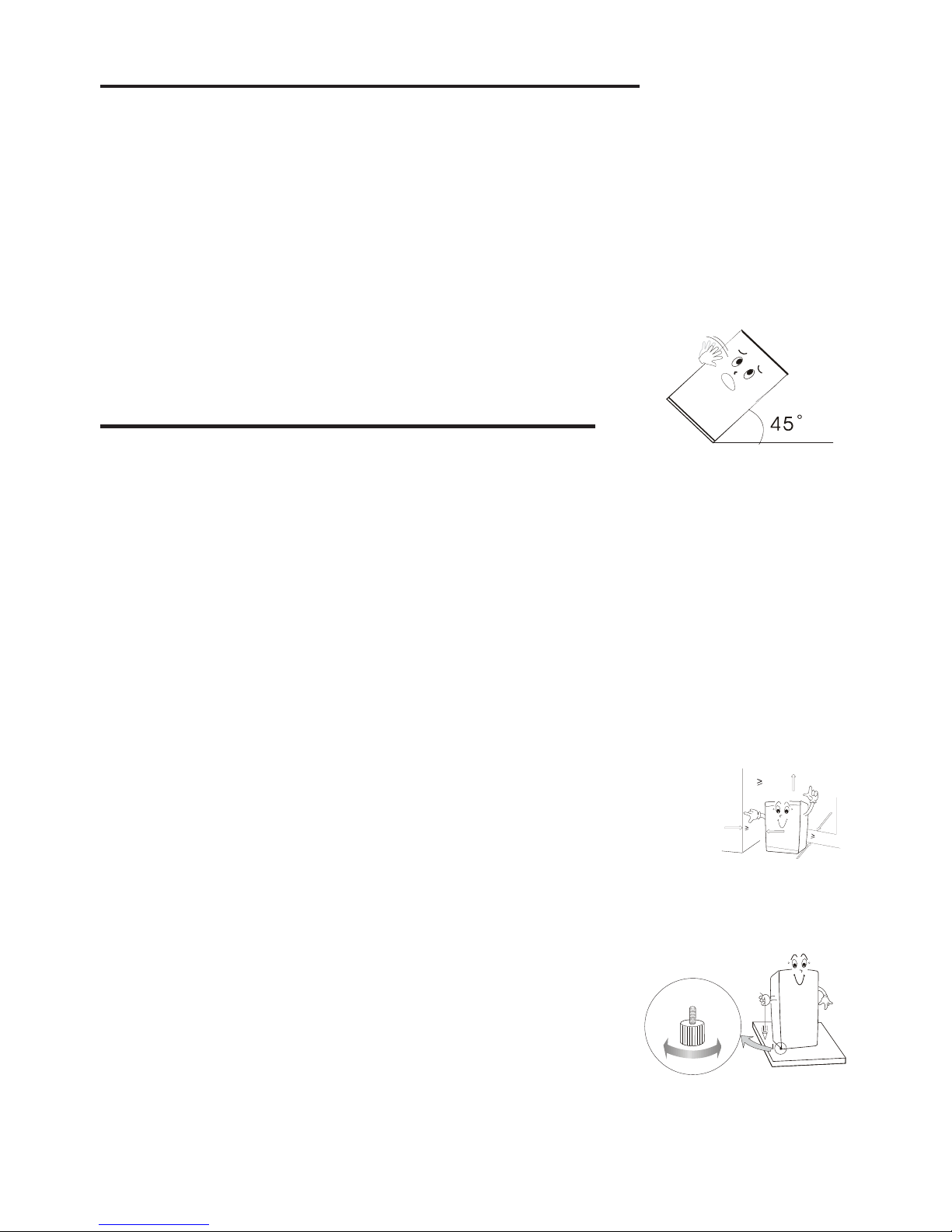

TRANSPORTING THE APPLIANCE
1.The appliance must be transported only in a vertical position. The
packing must be intact during the transportation.
2. When unpacking and re-packing the appliance, please memorise the
position of each accessory of the appliance when unpacking it. When
re-packing the appliance for transportation, ensure all accessories are
secured before transportation.
3. Do not lift or pull the door during transportation
INSTALLATION INSTRUCTIONS
1. When moving the appliance, do not tilt >45 degrees (the angle of the
vertical direction). Please avoid strong vibration and impacts that could
cause damage to the appliance.
2. The freezer should be located on a fi rm and fl at surface. An uneven
surface may cause excess operating noise or vibration.
(a) The noise may be increased if the fl oor is not fi rm.
(b) If the appliance is to be positioned on carpet fl ooring and heat
emitted from the appliance is a concern, place a solid sheet
under the appliance.
3. Choose a location which is not exposed to sunlight, high
temperature or humid, as humidity may cause staining.
4. It is recommended a clearance of at least 100mm away
from objects and walls on both sides and back. Ensure the
clearance above the appliance is not less than 200mm and 160° clear for
the door to swing open.
5. If the appliance is unstable, rotating either of the
front two legs in a clockwise direction will raise the
appliance.
6. When adjusting the front legs, ensure the
appliance slopes backwards slightly for keeping the door closed.
7. Remove all internal packaging before operating.
200mm
100mm
100mm
5

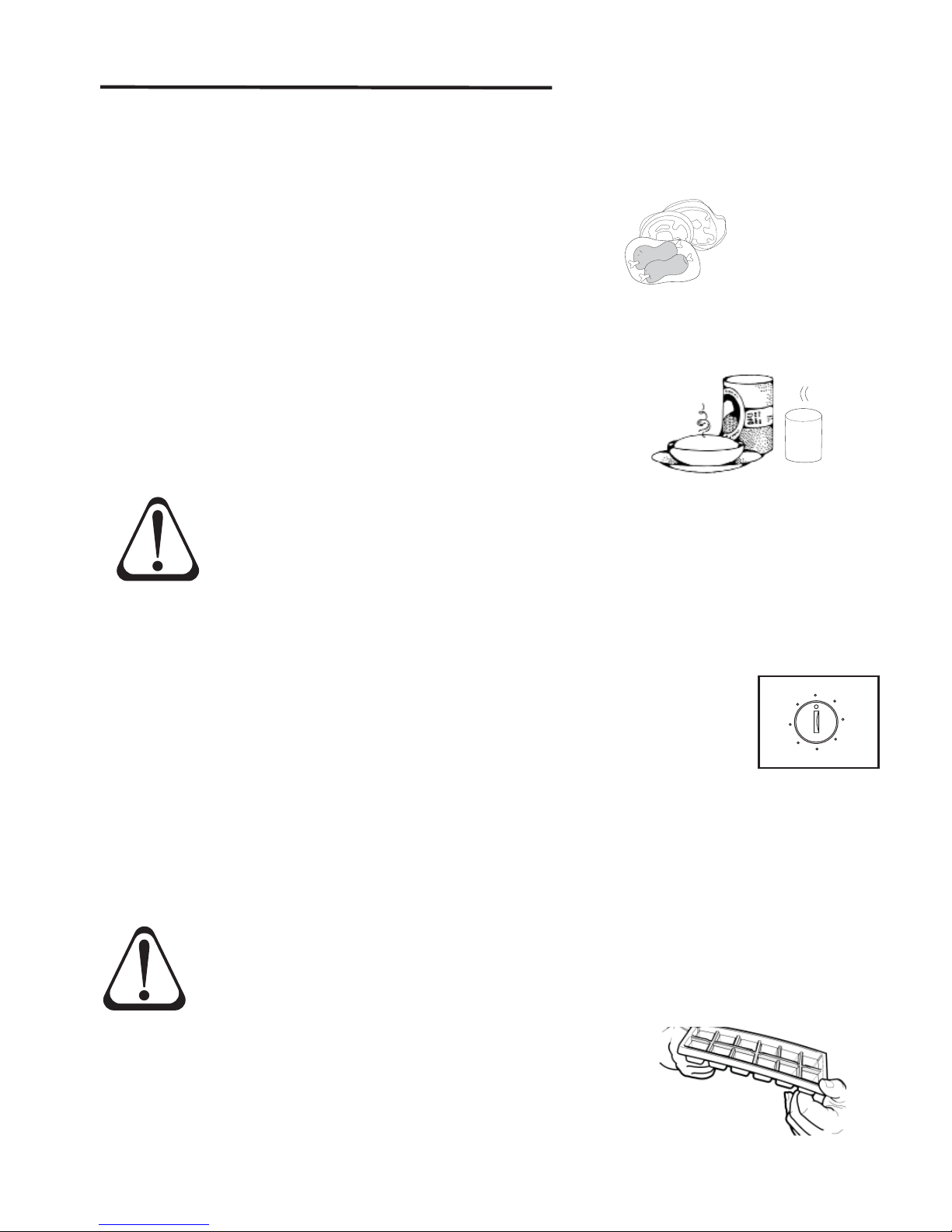

OPERATING INSTRUCTIONS
PLACEMENT OF FOOD
1. There should always be some space between
items inside for air circulation.
2. Food should be kept in sealed packaging to
avoid becoming dry or spoilt.
3. Hot food should be cooled down before placing
into the appliance. Otherwise, the interior
temperature and power consumption will increase.
4. Reduce opening the door frequently.
This will increase the appliance effi cienûıy and reduce
power consumption.
Do not use any electronic equipment inside the appliance.
The temperature of freezer can be controlled manually by adjusting the
thermostat dial located at rear. However, the number shown on the dial
does not directly represent the temperature. Instead, the
larger the number is, the lower the interior temperature will be.
0 stands for off (refrigeration system only). Turn the dial to
position 4 for normal use, turn it to position 4-7 if a lower interior
temperature is required; alternatively, to increase the interior temperature
select position 4-1. The fi rst time you turn the unit on set the temperature
control to the maximum position, using a coin or fl athead screwdriver.
After 24 to 48 hours, adjust the temperature control to the setting that best
suites your needs.
Do not store objects which are costly or subject to temperature
variations. e.g. medication or chemicals.
ICE MAKING
To make ice cubes, fi ll the ice tray with potable water
and place it in the freezer. To remove ice cubes
easily, run water on the tray before gently twisting and
inverting the tray.
WARNING
6
WARNING
OFF
1
2
3
4
5
6
7
DEFROSTING
Heavy frost will effect the refrigerating process or internal temperature of
the appliance and increase the power consumption. Thus, defrosting is
required if the frost is >5mm thick. Defrosting is a manual process. Please
follow these steps:
1. Switch off and disconnect the appliance.
2. Remove all food from the ice box and freezer compartments.
3. Remove the freezer drawer.
4. Open the door and wait for the ice to defrost.
5. When de-icing, a scraper or plastic utensil may be used. Never use
metal instruments or electrical appliances to de-ice the ice box.
6. To speed up the defrosting process, you can place a bowl of hot water
in the compartment and close the door.
7. When defrosting is complete, clean the appliance.
8. Replace the shelf and food before restoring power.
Do not use an electric heater or hair dryer to increase the
defrost process. It may destroy the cooling system.
ENERGY SAVING TIPS
1. Adjust the temperature control to a setting that is acceptable for the
storage of the food. This will reduce the power consumption.
2. Only open the door when required. Frequently opening the door will
increase power consumption.
3. Maintain good air circulation within the freezer.
CAUTION
7
MAINTENANCE
The appliance should be maintained and cleaned frequently. For your
safety, pull the plug out of the socket before cleaning.
1.Interior and exterior maintenance
Clean the interior of the appliance with clean water and wipe it dry
with a piece of dry cloth.
Cleansers such as soap powder, abrasive cleaning powder, alkali
cleansers, chemical cloth, thinners, alcohol, acid petroleum products
and hot water should not be used to clean the freezer as they
may damage the painted cover and plastics.
2. Smearing can age the interior plastic components, so remove it as soon
as possible.
3. Wipe the door gasket clean, it is easy to damage the door gaskets if
polluted by stains, e.g. oil, sauce, etc.
4. Please check the points below after maintenance:
(1) Is there any damage or loss of the power lead?
(2) Can the power plug be inserted into the power socket correctly?
(3)Is the power plug and/or lead heating up?
Please remove the gasket from the door before disposing. The
disposed apparatus should be handled by professionals, as it
may be harmful to the environment. If disposal is necessary,
please contact your local authorities for correct method of
disposal. Dispose of all packaging in a responsible manner in
accordance with local council regulations.
8
CAUTION
DISCONNECTION OF THE APPLIANCE
If a power failure occurs, even in summer, the freezer could store food
normally for some time.
1. Power failure
During a power failure, do not put additional food in the appliance and
reduce opening the door frequently.
Place several ice cubes into each freezer drawer if power failure is
anticipated beforehand, and place it in the top of the freezer.
2. Power failure during vacation
Before departure of short vacation, remove any items that could spoil if a
power failure occurs. Ensure the door is closed fi rmly.
If going on a long vacation, remove all items, defrost the appliance,
clean and wipe dry the internal of the appliance, prior to disconnecting
the power and leave the door open.
3. Storage of appliance
If the freezer will be stopped for a long period of time (storage),
remove all items, defrost the appliance, clean and wipe dry the internal
of the appliance, unplug the appliance from the power outlet. The door
should be kept open in order to prevent unpleasant odours.
After unplugging the appliance from the power outlet,
please leave at least 5 minutes before reconnection.
9
WARNING
REVERSING THE DOOR
Follow these steps to reverse the door from the supplied position.
Step 1. Remove the cover from the door hinge and
remove the two screws holding the hinge bracket.
10
Step 3. Carefully tilt
the freezer back so
the under side can be
accessed. Remove the
adjustable leg and the
two (2) bolts. Remove
the hinge.
25mm
±2mm
15mm
20mm
±2mm
10mm
Step 2. Lift the door from
the hinge. Place the door
in a safe location to avoid
scratches or damage.
Step 4. Remove the frame
screw from the upper right
corner (refer to Step 7) and
unscrew the adjustable leg.
Ensure the two bolt holes
are accessible.
NOTE: The
adjustable foot
attached to the hinge
(fi gure marked L on
right) is designed to
be used only with the
hinge. It is shorter
than the adjustable
leg on the opposite
side (fi gure marked H
on right).
Step 5. Fasten the bracket to the
right side of the freezer. Do not
tighten completely to enable slight
adjustments to the door once in
place. Fasten the adjustable leg.
Step 1a Step 1b
Step 3
Step 4
Step 5
H
L
11
Step 9. Place the hinge on the right side and align
the holes before screwing in bolts. Do not tighten
bolts completely until after aligning the door and
ensuring proper seal between the door and the
freezer.
Step 10. Once the door is in place and all bolts (top hinge bracket and bottom
hinge bracket) are securely tightened, insert caps on left side of the freezer and
door.
Step 8. Remove the caps
covering the bolt holes
and door from the right top
side. Place the door onto
the bottom hinge pin.
Step 7. Fasten the
adjustable leg and frame
screw into the left side of
the freezer.
Step 6. The hinge pin must be removed
and relocated onto the opposite side
of the bracket. Remove the nut and
washers, relocate the pin, then fasten.
The hinge pin should now be pointing
upward for the door to fi t onto.
Step 6
Step 7
Step 8
Step 9a Step 9b
Step 10
TROUBLESHOOTING
The following cases are not malfunctions:
1. Moisture may form as condensation on the outside of the appliance
during humid conditions. To remove excess moisture, wipe clean.
2. The fl ow of refrigerant through the pipeline coil could cause gurgling,
similar to water boiling. This is the normal function of the appliance.
3. It is normal that the sides of the appliance will get warm as a result of
the refrigeration system operation.
4. Do not place objects on top of the appliance which are magnetic,
heavy, or fi lled with water.
5. The appliance operation could cause electrical interference to electrical
equipment.
SYMPTOM: The freezer does not work.
SUGGESTION: It may not be connected to the power supply (plug, power
failure or blown fuse) and switched on. Check that the temperature dial is
not set to 0 position.
SYMPTOM: The freezer does not work effi ciently as expected.
SUGGESTION: It may be caused by heavy frost on the ice box
compartment, by a warm temperature setting or by frequently opening the
door, or low voltage.
SYMPTOM: It makes an unusual noise.
SUGGESTION: It may be caused by an unbalanced appliance or unstable
surface, vibration from an object on top of, behind or beside the appliance.
SYMPTOM: The compressor keeps working for a long period.
SUGGESTION: The environment temperature may be too high. The doors
may be opened frequently or even left open. The temperature control knob
setting in (4-6) position may increase the working time of compressor.
Large amounts of warm food recently placed in the appliance.
SYMPTOM: Unpleasant odours.
SUGGESTION: Interior may need cleaning. Some foods produce strong
odours, some containers can also cause odours. Food should be packed
tightly before being put inside the appliance. Please check whether there
is any spoilt items left in the appliance.
12
SYMPTOM: Heavy frost occurs in the ice box compartment.
SUGGESTION: Make sure the door is fully closed.
SYMPTOM: Freezer temperature is too cold.
SUGGESTION: Check the position of the temperature dial located at rear.
REPAIRS, SERVICE & WARRANTY
It is hazardous for anyone installing, removing, altering, repairing,
servicing, testing or certifying the gas system of a gas device (i.e.
charging, discharging or breaking into the refrigeration system that uses
hydrocarbon refrigerants).
Only an 4XDOLILHG6HUYLFH7HFKQLFLDQ can carry out servicing or repairs to
this appliance. In Queensland the authorised person must hold a Gas
Work Authorisation for hydrocarbon refrigerants, before carrying out
servicing or repairs which involve the removal of covers.
Individuals will need to hold appropriate refrigeration/air conditioning
competencies and also training in hydrocarbon refrigerants. This type of
authorisation is provided to individuals only.
IF SERVICE IS REQUIRED:
If you have a problem, and the problem persists after you have made the
checks mentioned above, contact:
&XVWRPHU&DUH'HSDUWPHQW
Complete and retain the following information:
Name of retailer: _________________________________
Date of purchase: ________________________________
Model No. : _____________________________________
Serial No. : _____________________________________
MFG code: _____________________________________
Please retain proof of purchase for warranty claims.
13
SPECIFICATIONS
14
Model PUF80WH
Climate class T
Classifi cation of
installation and use
Class 1
Indoor use only
Rated Total Gross
Volume (L) 81
Voltage (V) 230
Frequency (Hz) 50
Noise Level (dB) 39
Refrigerant type R600a
Dimensions
(mm)
IP rating
Height
Width
Depth
845
494
546
IPX0
Net Weight (Kg) 29
Max. Ambient
Operating temp (oC) 43
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact the
Customer &DUH Department.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out charge.
The appliance must be accessible for the service technician to
perform any necessary repair. If your appliance is installed in
such a way that a service technician is concerned that damage will
be caused to the appliance or your kitchen, then he will not
complete a repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in front
of the appliance, like plinths. Or any installation other than the
one specified by the manufacturer has been completed.
IMPORTANT: The manufacturer operates a policy of continuous
improvement and reserves the right to adjust and modify its
products without prior notification.
Think Appliances Pty Ltd.
416-424 Barry Rd
Coolaroo VIC 3048
Sales Telephone
1300 132 824
Service Telephone
1800 444 357
Website
www.thinkappliances.com
Table of contents
Other Prossimo Freezer manuals
