Prossimo PCF150WH User manual

CHEST FREEZER
USER GUIDE
PCF150WH
PCF200WH
Thank you for buying this high quality appliance

This handbook is designed to help you through each step of owning your new appliance,
from installation to use.
Please read through this handbook carefully before you start using your appliance, as we
have endeavoured to answer as many questions as possible, and provide you with as
much support as possible.
If, however, you find something missing or not covered, please contact our Customer Care
Centre, using the number at the back of this handbook, who will be only too happy to help
you.
Our policy is one of constant development and improvement, therefore we cannot
guarantee the strict accuracy of all our illustrations and specifications, changes may have
been made subsequent to publishing.
WARNING: When positioning the appliance ensure the supply cord is not trapped or
damaged.
WARNING: Do not locate extension sockets or charging transformers/power supplies
adjacent to the compressor as they could overheat.

Index
BEFORE USING YOUR APPLIANCE............................................. 2
Safety Instructions..................................................................................2
Warnings................................................................................................2
Installation..............................................................................................3
OPERATING YOUR APPLIANCE .................................................. 4
Parts of the Appliance............................................................................4
Temperature Adjustment/Operation.......................................................5
Food Storage in the Appliance...............................................................5
DEFROSTING AND CLEANING..................................................... 6
Defrosting and Cleaning.........................................................................6
TROUBLE SHOOTING AND TECHNICAL DATA.......................... 6
Trouble Shooting....................................................................................6
Trouble Shooting guide..........................................................................7
Technical Data .......................................................................................8
Wiring Diagram.......................................................................................8
CUSTOMER CARE......................................................................... 9
1

Before Using Your Appliance
Safety Instructions
After installation make sure that the power cable is not trapped underneath appliance.
Please read this booklet thoroughly before installing and switching on the appliance.
The manufacturer accepts no responsibility for incorrect installation and use.
If this appliance is to replace an old one equipped with a lock, break or remove the lock as a
safety measure to avoid children becoming trapped inside.
This model contains refrigerant isobutene (R600a). Caution is required since isobutene is
flammable. It is essential to ensure that refrigerant pipelines are not damaged during
transportation and installation of the appliance. Should the pipes become damaged – do not
use the appliance until you have been advised to do so by a service engineer.
Do not damage the refrigerant circuit. In the event that the refrigerant circuit is damaged,
avoid open flames or ignition sources and ventilate the room in which the unit is placed – do
not use the appliance until you have been advised to do so by a service engineer.
Do not allow children to play with the appliance. Children must never sit in the drawers or
hang from the door.
Do not plug this appliance into an extension lead.
Do not use old or damaged power supply cables.
Do not twist, bend or trap the cable. Cables should also be kept clear of heat sources.
When plugging in the appliance, always make sure that your hands are dry.
Your old appliances contain insulation gases and refrigerant that must be disposed
of properly. Please contact your local authority for information about recycling Centre’s
Do not dispose of this appliance with household waste.
Warnings
WARNING: This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they do not
play with the appliance.
Do not defrost the appliance with other electrical devices (i.e. hair dryer) or any artificial
means and do not use sharp metal objects to remove the ice on the freezer, as this could
cause damage to the refrigerant system.
Do not operate any electrical appliances inside the refrigerator or freezer.
WARNING: Do not place bottles (glass or plastic) containing liquids (especially
effervescent liquids) into the freezer as they could cause the bottle to burst
during freezing.
WARNING: Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
WARNING: Do not damage the refrigerant circuit.
WARNING: Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
Do not touch the cooling surfaces while the appliance operates, especially with wet
hands, because the skin may stick to cold surfaces.
Do not eat ice which has just been removed from the freezer as this can cause
freezer burns to the hands and tongue.
2

Installation
Install and level the appliance on a floor able to take its weight and in a place suitable for its
size and use.
Insert the plug into a socket which is appropriate. This appliance has a plug already fitted – if
the plug is not suitable for your socket we suggest that you call an authorized electrician for
assistance. If the plug is damaged in any way – do not attempt to use it. It must be replaced
with a new plug.
Do not install the appliance in direct sunlight and close to heat sources. Do not allow the
appliance to be exposed to rain.
Choose a well-ventilated area. There should be at least 10 cm of open space along the sides,
top, and back of the freezer.
Before switching on place the appliance in an upright position and wait at least three hours
without moving the appliance. This will give the refrigerant circuit time to settle and operate
efficiently.
Install the appliance in a dry and well-ventilated place. The appliance is for use in places
within the temperature ranges defined according to the climatic class given on the Data
Label located on the back of the product. The appliance may not operate consistently if it is
suited for extended periods of time below the cold end of the climate class temperature
range for which the appliance is designed.
If the appliance is installed next to another refrigerator or freezer, observe the minimum
distance of 10cm to avoid condensation.
The manufacturer is not responsible for failure to complete installation as described
in this guide.
Leveling the appliance.
To adapt to the more complex terrestrial environment, the user can adjust
height of adjustable feet above ground。
Two or more people required for this process

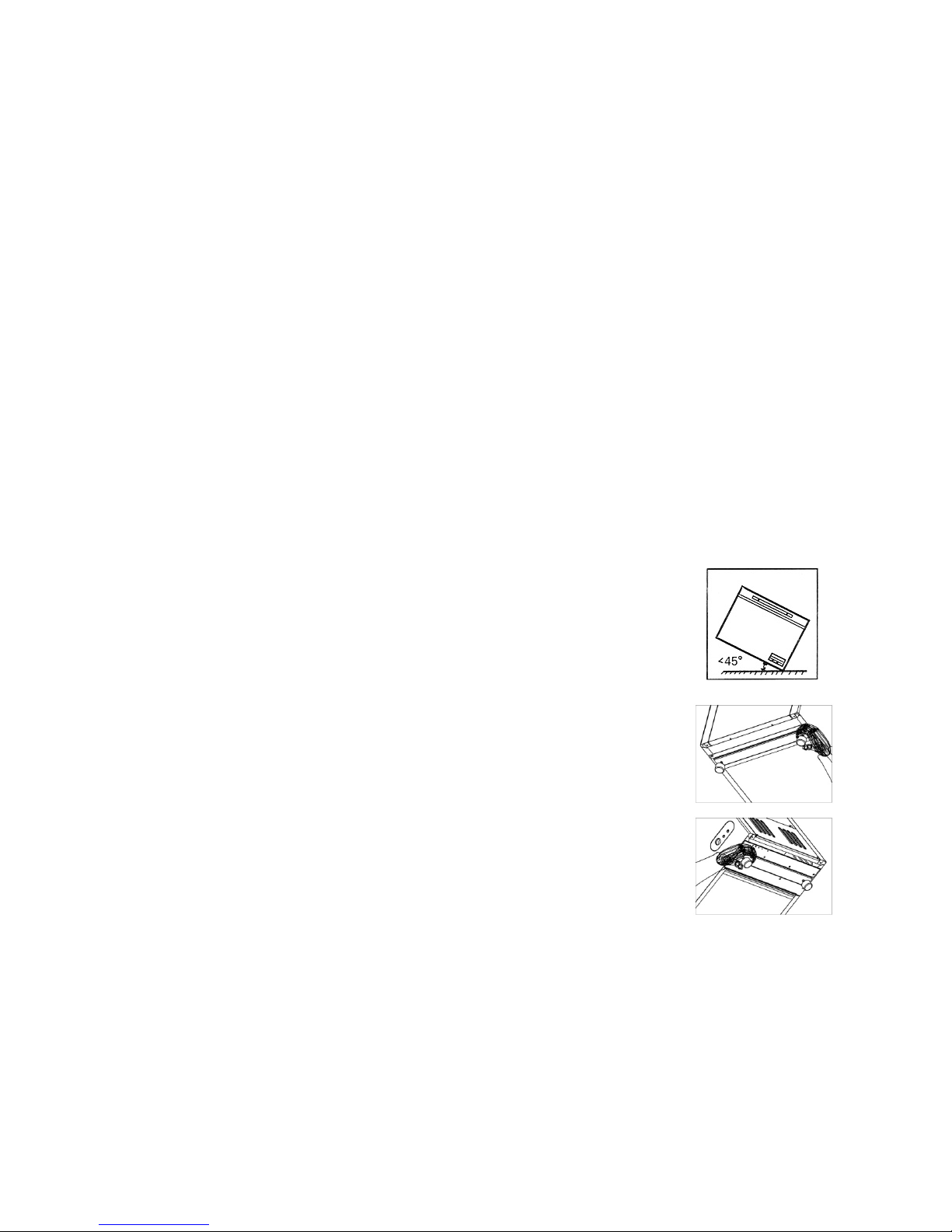

Tip the unit to one side (Caution: ¾ foot clearance from the floor to the
top of the unit. DO NOT exceed more than a 45º angle between the
ground and the unit).
You adjust the adjustable feet clockwise to lower the freezer from
the ground distance. (When the adjustable feet freezer stent is fully fit at
the end of, the device apart from the ground level 30MM.
When counter clockwise adjustment adjustable foot, freezer apart from
the ground level can be increased. (Maximum height above ground is
50MM)。
This appliance is intended for use in households but is not intended to be used
in applications such as;
Staff kitchen areas in shops, offices and other working environments;
Farm houses and by clients in hotels, motels and other residential type
environments;
Bed and breakfast type environments;
Catering and similar non-retail applications;
Operating voltage for your fridge is 220-240 V at 50Hz

Operating Your Appliance
Parts of the Appliance

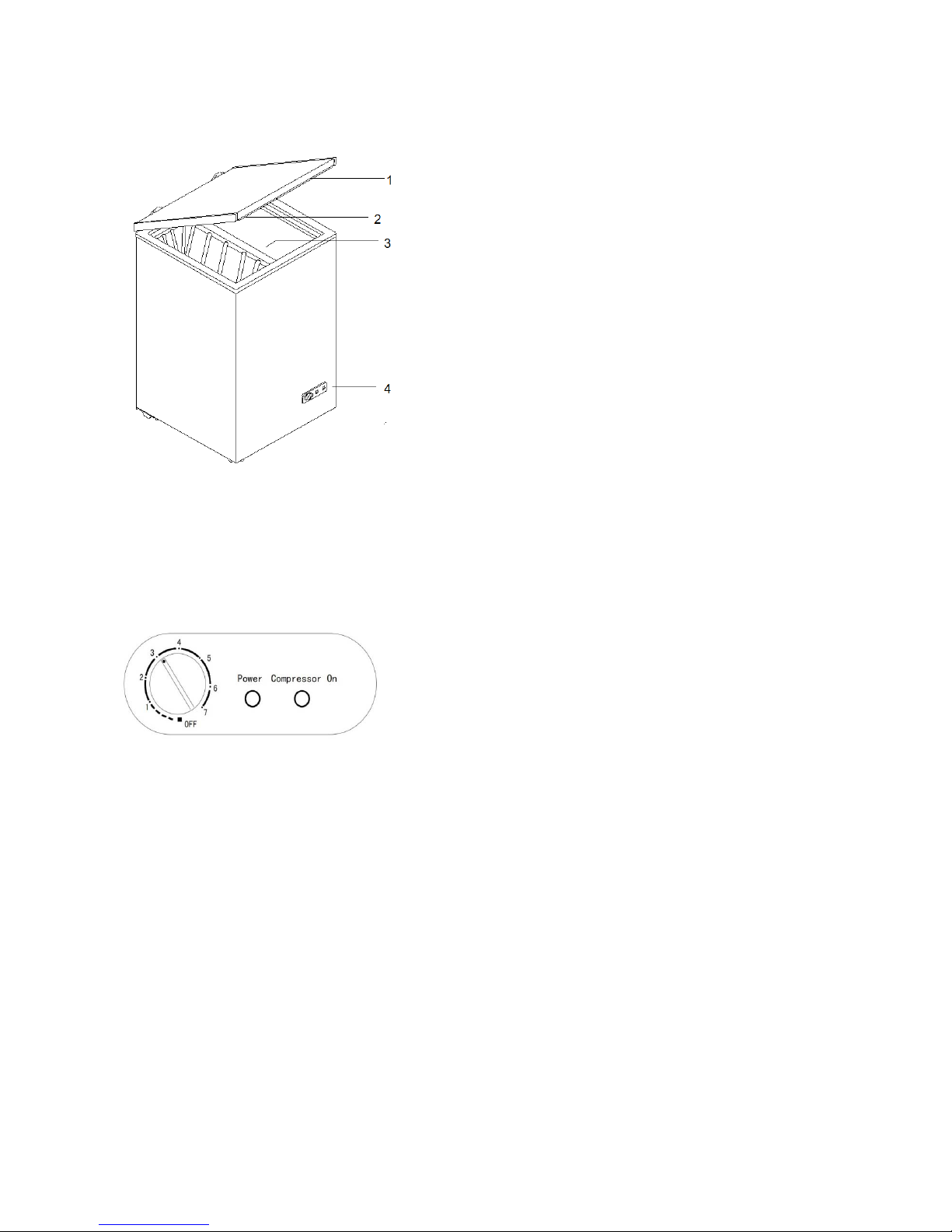

1. Lid
2. Seal
3. Basket (If Supplied)
4. Control Panel
The function of the panel:
Your refrigerator has one control for regulating the
temperature. The temperature control is located on
the lower right hand corner.
The first time you turn the unit on, turn the
temperature control knob in a clockwise direction to
the maximum setting "7" and run for at least 2 hours
before putting frozen foods inside. This will ensure
the cabinet is thoroughly chilled before food is put in.
The range of the temperature control is from position "1" the warmest to "7" the coldest.
Adjust the temperature control to the setting that best suits your needs. The setting of “4”
should be correct for home or office refrigerator use.
To turn the refrigerator off, turn the temperature control to "OFF".
Green light: Power on
Red light: Compressor On
NOTE:
Turning the temperature control to "OFF" position stops the cooling cycle but does not shut
off the power to the refrigerator.
If the unit is unplugged, lost power, or turned off; you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
Large amounts of food will lower the cooling efficiency of the appliance.
If you choose to change the thermostat setting, adjust thermostat control by one numerical
increment at a time. Allow several hours for temperature to stabilize between adjustments.
4

Temperature Adjustment/Operation
The appliance temperature can be adjusted by turning the thermostat on the Control Panel.
The thermostat should be adjusted according to different environment temperature and the and
the quantity of food being stored by adjusting the knob of the thermostat. The knob rotates
clockwise from”1” to “7” .The setting should be reduced down in summer (anti-clockwise
rotation) and up in winter (clockwise rotation). The thermostat is set to a certain point before
leaving the factory, this is the optimum setting for the product.
If a large amount of fresh food is placed in the appliance for freezing the thermostat should be
turned up for a period of 4-6 hours, after this period it should be returned to its initial setting.
The green lamp is a power indicating lamp. When the power is on, the lamp will be on.
Once power is cut off, wait for at least 5 minutes before plugging in again to avoid damaging the
compressor or the system.
Food Storage in the Appliance
This freezer is a 4 star rated ( ) appliance.
The use of a freezer is for freezing fresh food and storing frozen food for long periods of time
and making ice cubes.
Do not put fresh or warm food with frozen food side by side as it can thaw the frozen food.
While freezing fresh food (i.e. meat, fish etc.) divide them into smaller portions, this will allow
you to defrost only the food you need.
For storing frozen food; the instructions shown on frozen food packages should always be
followed carefully, if no information is provided food should not be stored for more than 3
months from the purchased date.
When buying frozen food; ensure that these have been frozen at suitable temperatures and
that the packing is intact.
Frozen food should be transported in appropriate containers to maintain the quality of the food
and should be placed into the freezer as soon as possible.
If a package of frozen food shows signs of humidity and abnormal swelling it is probable that it
has been previously stored at an unsuitable temperature and that the contents have
deteriorated. Do not use this food, dispose of it as soon as possible.
The storage life of frozen food depends on the room temperature, thermostat setting, how often
the door is opened, the type of food and the length of time required to transport the product from
the shop to your home. Always follow the instructions printed on the package and never exceed
the maximum storage life indicated.
5

Defrosting and Cleaning
Defrost twice a year or when a frost layer of around 7 mm (1/4") has formed. To start
defrosting procedure switch off the freezer at the socket outlet and pull out the mains plug.
All food should be wrapped in several layers of newspaper and stored in a cool place (e.g.
fridge or larder).
Containers full of warm water may be placed carefully in the freezer to speed up the
defrosting.
Do not use pointed or sharp edged objects such as knives, forks to remove the frost.
Never use hairdryers, electrical heaters and other similar electrical appliances for defrosting.
When defrosting has finished, sponge out any defrost water which collects at the bottom of
the freezer and dry the interior thoroughly.
You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy
water.
Do not wash your freezer by pouring water into it.
Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.
Make sure that your freezer remains unplugged while cleaning.
Once defrosting/cleaning has been completed, plug in the appliance and return to its
temperature setting.
Trouble Shooting
The following problems are not causes of breakdown:
Problems Causes and resolutions
There is a sound of liquid flowing in the freezer It is the sound of refrigerant flowing in the
circulating pipeline of the refrigerating system,
this is normal
Too noisy The freezer is not installed in a level ground,
change the position
The refrigeration system does not work for a
long time but the inside temperature is very
low
It is an indicator of good insulation and low
cooling retention, this is normal.
6

Trouble Shooting Guide
Trouble Possibilities Cheek up Solutions Remarks
The fuse is broken Check the fuse Replace the fuse
The connection
between plug and
socket is not good
Check the socket Repair or replace
the socket
Power is off
The circuit of input and
output is out of use
Make sure that
the power is on
Check the circuit with
electric instrument
If it is necessary
please contact
after-sales
service
for repair
Compressor
does not
work
The thermostat knob is not in the
proper position
Check the
thermostat
Rotate the
thermostat to the
proper position
Ask for
professional help
Frost on the
evaporator
is too thick
Check whether
the frost is thicker
than 6-8mm
Defrost regularly
The door is being
opened too frequently
Reduce the times
of opening
The
temperature
inside is too
high
Too much food has
been stored at once
Take out some of
the food
The ambient
temperature is too
high .while
the thermostat
indicates
a small number
Make sure
whether
the knob is
indicating at the
“5-6”(or deeper)
Adjust the
thermostat knob
The thermostat
knob on”2-4”is
better(or proper)
Compressor
keeps on
working
The
temperature
inside is OK
The thermostat does
not work
Replace the
thermostat
Ask for
after-sales
service
The floor is not level Make sure that
the freezer is
level
Put pad under the
castors
The screw in fan or condenser is loose The screw is
loose
Rotate the fixed
screw
Too noisy
The refrigerating circuits touch each
other
Separate them
7

Technical Data
Model
Item PCF150WH PCF200WH
Climate classification SN/T SN/T
Anti-shock safety
classification I I
Rated voltage 220-240V 220-240V
Rated frequency 50Hz 50Hz
Power input 56W 72W
Power consumption
(kW•h/24h) 0.88 0.99
Refrigerant R600a 54g 58g
Weight 34.5kg 38.5kg
3
4
5
6
2
1
7

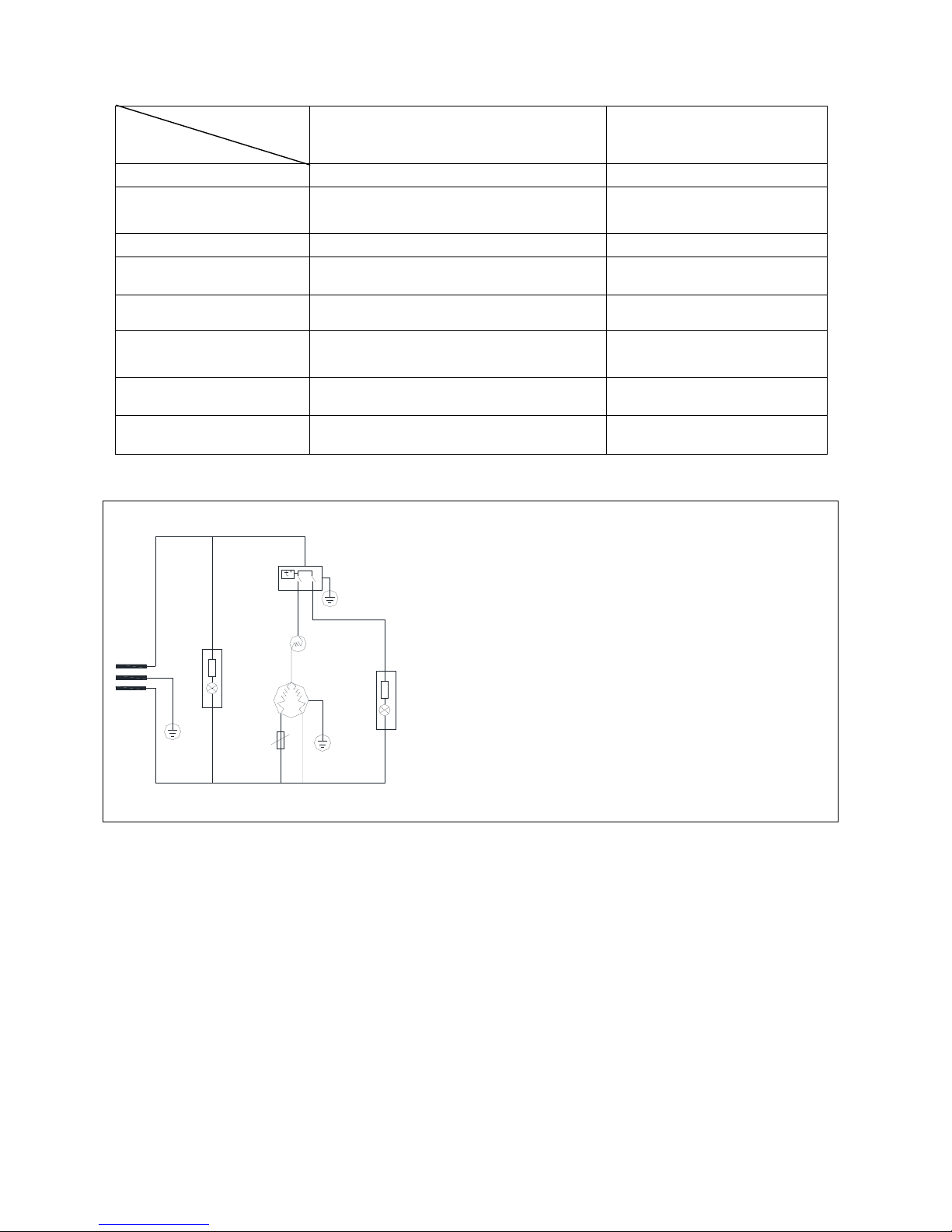

1.POWER PLUG 2.GREEN LAMP
3. 3.THERMOSTAT4.MOTORPROTECTOR
5. 5.COMPRESSOR 6.STARTER
7. 7.REDLAMP
8

CUSTOMER CARE
Please keep this handbook in a safe place.
Please fill in the model number and serial number in the spaces provided below as they will
assis call.
1800
Enter appliance numbers here for future reference:
t us should you need to
444 357
These numbers can be found on your appliances.

IMPORTANT: If your appliance appears not to be operating
correctly, then you should disconnect it from your mains supply
and then contact the Customer Service Department.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
t nder guarantee and
e problem is not the result of an appliance fault, then you may be liable for the
o
he appliance must be accessible for the service technician to perform any
complete a repair.
MPORTANT: The manufacturer operates a policy of continuous improvement and
if an engineer is asked to attend whilst the product is u Please note tha
finds that th
cost of the call ut charge.
T
necessary repair. If your appliance is installed in such a way that a service
technician is concerned that damage will be caused to the appliance or your
kitchen, then he will not
This includes situations where appliances have been tiled in, sealed in with sealant,
have wooden obstructions placed in front of the appliance, like plinths. Or any
installation other than the one specified by the manufacturer has been completed.
I
reserves the right to adjust and modify its products without prior notification.

Think Appliances Pty Ltd.
416-424 Barry Rd
Coolaroo VIC 3048
Sales Telephone
S
1300 132 824
ervice Telephone
1800 444 357
Website
www.thinkappliances.com
