Pure Reliability CENTURY COLOUR 2500L PR-2001 User manual

CENTURY COLOUR
2500L
PR-2001
This product manual contains important information about the safe installation
and use of this projector. Please read and follow these instructions carefully
and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
No. 571, Yingbin Road, Dashi Panyu, Guangzhou, 511430 China
http://www.pr-lighting.com

INDEX
SECTION PAGE
SAFE USAGE OF THE PROJECTOR 3
CONSTRUCTION 4
FITTING THE LAMP 4
POWER SUPPLY – MAINS 4
OPERATION 5
STAND-ALONE MODE 5
XLR CONNECTIONS AND TERMINATOR 6
MASTER/SLAVE MODE 7
CONTROLLER MODE - DMX OPERATION 7
DMX CONTROL CHANNEL FUNCTIONS 9
MAINTENANCE 11
KEEPING THE PROJECTOR CLEAN 11
TROUBLESHOOTING 11
TECHNICAL DATA 12

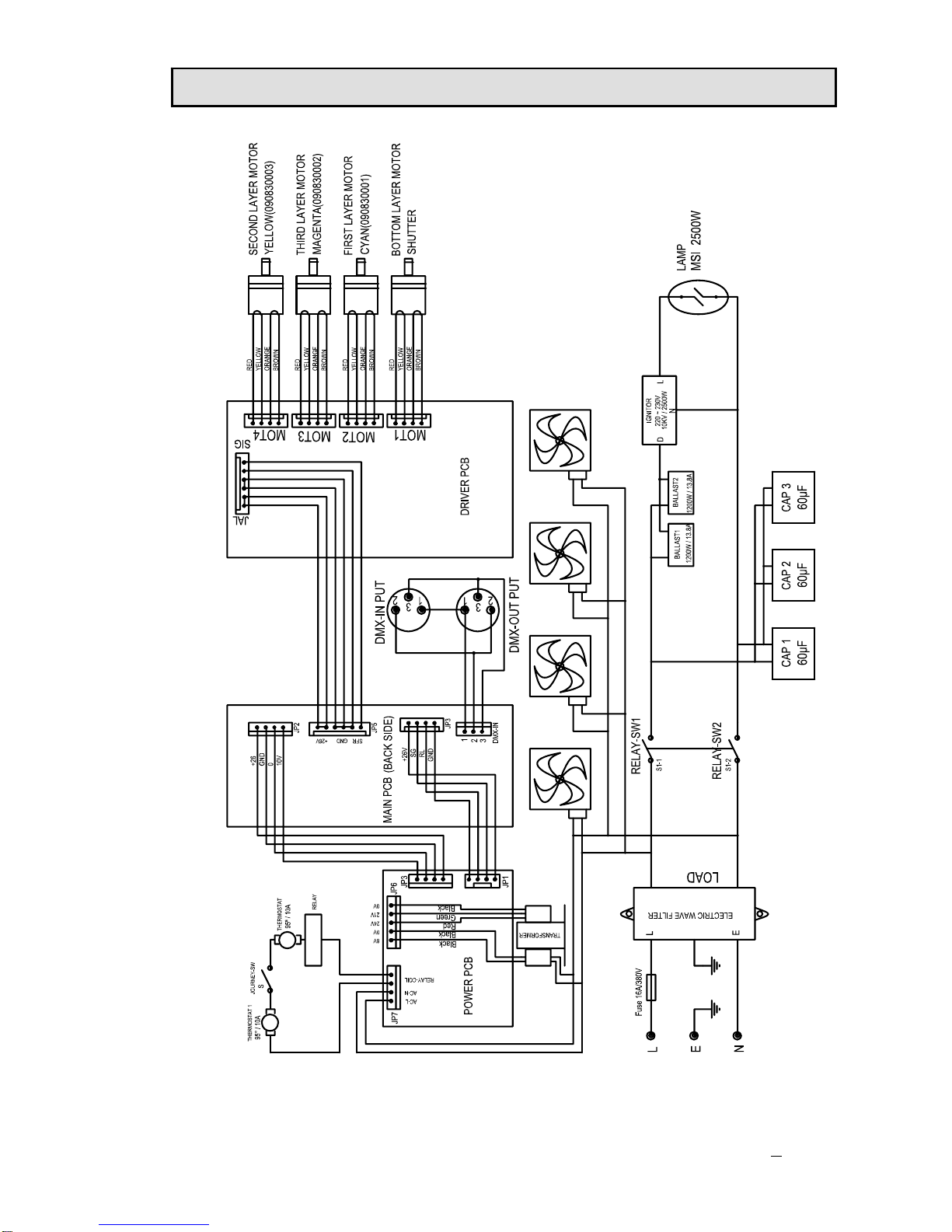

ELECTRICAL DIAGRAM 13
COMPONENT ORDER CODES 14
Please note that as part of our ongoing commitment to continuous product development, specifications are
subject to change without notice. Whilst every care is taken in the preparation of this manual we reserve the
right to change specifications in the course of product improvement. The publishers cannot be held responsible
for the accuracy of the information herein, or any consequence arising from them.
Every unit has been tested completely and packed properly by the manufacturer. Please make sure the packing
and / or the unit is in good condition before installation and use. Should there be any damage caused by
transportation, consult your dealer and do not use the unit. Any damage caused by improper use will not be
assumed by the manufacturer and / or dealer.
ACCESSORIES
THESE ITEMS ARE PACKED TOGETHER WITH THE PROJECTOR
Power-cord (1 PCS)
Barndoors (1 SET)
XLR plug (1 PCS)
XLR socket (1 PCS)
This manual (1 PCS)
INTRODUCTION
Thank you for purchasing the Century Colour 2500L, PR-2001.
This product manual contains important information about the safe installation and use of
this projector. Please read and follow these instructions carefully and keep this manual in a
safe place for future reference.
The Century Colour is an innovative projector with an elegant housing made from high
quality aluminiun-alloy with an epoxy paint finish. The Century Colour complies to CE norms
and standards and uses international protocol DMX 512.
The Century Colour features full CYM colour mixing with high resolution stepper motors, and
an independent adjustable linear mechanical dimmer 0-100%. The protection against dust
and liquid is very high, IP 44, and guarantees perfect functioning even in unfavourable
weather conditions. The angle of inclination of the projector-head is adjusted easily from 0°
to 90°. It is an ideal luminaire to light up buildings, exhibitions or for artistic applications.
2/14 Century Colour 2500L EN.doc

SAFE USAGE OF THE PROJECTOR
The following points are important for safety as well as for the smooth installation and
performance of the unit.
When unpacking and before disposing of the package check there is no transportation
damage before using the projector. Should there be any damage caused by transportation,
consult your dealer and do not use the unit. Keep the package well for your possible future
transportation.
The projector is intended for outdoor use and is rated at IP44. Install only in level locations.
Keep this device away from dry and excessive moisture.
The projector is not designed or intended to be mounted onto inflammable surfaces.
The projector is only intended for installation, operation and maintenance by qualified
personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that all the cooling fans run normally and no ventilation slots are
blocked.
Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle and / or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector. Only use the lamp with the specified type and rating.
It is essential that each projector is correctly earthed and that electrical installation
conforms to all relevant standards.
Do not connect this device to any dimmer pack.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug.
Never pull out the plug by tugging the power-cord.
Keep the lamp clean. Do not touch the lamp glass with bare hands.
The lamp used in this projector is a high power discharge lamp. After being switched off
don’t attempt to restart the projector until the lamp has cooled, this will require approx 15
minutes. Switching the lamp on and off at short intervals will reduce the life of both the lamp
and the projector. Occasional breaks in operation will prolong the life of both the lamp and
the projector.
Never run the projector without a lamp.
There are no user serviceable parts inside the projector, do not open the housing and never
operate the projector with the covers removed.
Always disconnect from the mains, when the device is not in use or before cleaning it
or before attempting any maintenance work.
If you have any questions, don’t hesitate to consult your dealer.
3/14 Century Colour 2500L EN.doc

CONSTRUCTION
FITTING THE LAMP
Position the projector-head in vertical position and lock it via the locking knobs.
Remove the projector-head cover by loosening the 4 retaining-clips.
Open the dichroic-colour-filter bracket by undoing the 2 M4 knurled-screws.
Insert the lamp in the lamp-holder, and ensure the little bubble on the lamp is at a right
angle (90°) to the beam path. Keep the lamp clean during installation.
Tighten the 2 M3 lamp fixing screws manually. Do not overtighten.
Close the dichroic-colour-filter bracket and reinstall the projector-head cover. Make sure
that all screws and retaining-clips are tightened.
Note: The MSI series are high pressure lamps with external igniters ( ). Care should
always be taken when handling these lamps. Always read the manufacturers "Instructions
for use" enclosed with the lamp.
POWER SUPPLY - MAINS
Use the plug provided to connect the mains power to the projector paying attention to the
voltage and frequency marked on the panel of the projector. It is recommended that each
projector is supplied separately so that they may be individually switched on and off. It is
recommended that the projector connect to the mains using a 3-pin 16A plug.
IMPORTANT
It is essential that each projector is correctly earthed and that electrical installation
conforms to all relevant standards. Power consumption of the Century Colour 2500L is
2800W at 220V.
4/14 Century Colour 2500L EN.doc

When the power is switched on, the projector automatically starts to run the programmes of
self test. After finishing these, the projector is ready for operation.
Remove the cover of the control panel, you will see the DIP switches with numbers from 1 to
4, 3 rotary DIP switches for setting the start address and an LED display as shown in the
figure below.
When the status LED is illuminated the projector is receiving a DMX signal. If the status LED
is off which means no DMX signal is being received, check your DMX cables and connectors.
Press the RESET button to reset the DMX start address and functions, and the status LED
will flash.
Without connecting the controller, setting the DIP
switch as shown right, the projector will run in stand-
alone mode.
In stand-alone mode, you should only set the values of
the rotary DIP switches with the tens and units, and
then press the RESET button. After 30 seconds, the
apparatus will run automatically the selected one
program of the 15 built-in programmes. (How to set the
rotary DIP switches, please refer to “auto programmes
table” below.)
AUTO PROGRAMMES TABLE
In stand-alone and master/slave mode, by setting the 2 rotary DIP switches as shown in the
following table, the unit will run whichever of the 15 programmes that have been set.
TENS UNITS PROGRAMS FUNCTIONS
0 1 1 Slow change colours from red to magenta to yellow
0 2 2 Slow change colours from red to magenta to yellow to
white
0 3 3 Slow change colours from green to cyan to yellow
0 4 4 Slow change colours from green to cyan to yellow to
white
0 5 5 Slow change colours from blue to cyan to magenta
0 6 6 Slow change colours from blue to cyan to magenta white
0 7 7 Slow change all colours in sequence
0 8 8 Slow change all colours and white in sequence
0 9 9 Medium-speed change all colours
1 0 10 Medium-speed change all colours and white in sequence
1 1 11 Medium to fast change all colours and white in sequence
1 2 12 Medium to fast change all colours in sequence
1 3 13 Fast change all colours and white in sequence
1 4 14 Basic colours (in 6 seconds)
1 5 15 Basic colours and white (in 6 seconds)
STAND-ALONE MODE
OPERATION
5/14 Century Colour 2500L EN.doc

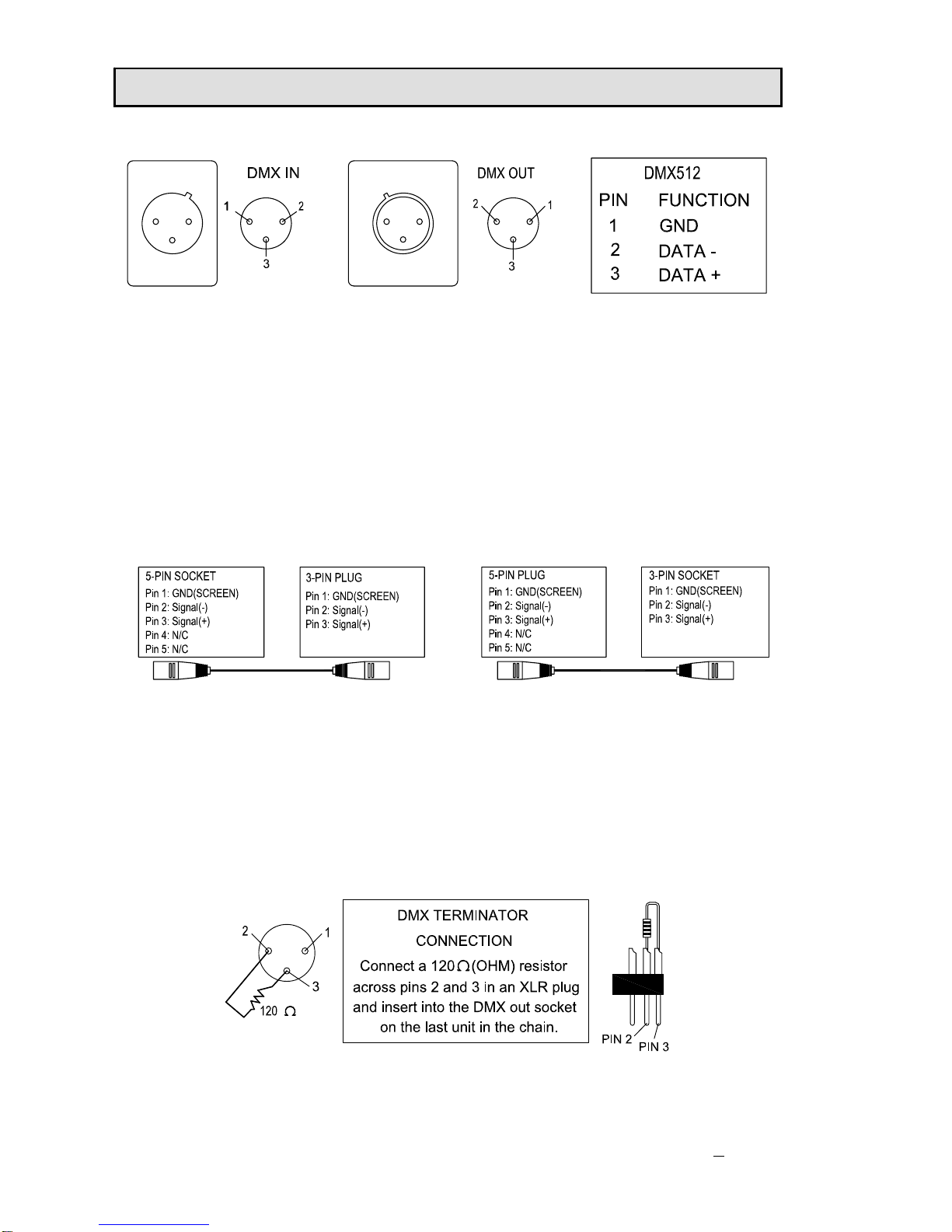

XLR CONNECTORS AND TERMINATOR
XLR CONNECTORS
Connection between controller and projector and between one projector and another must
be made with 2 core screened cable, with each core having at least a 0.5mm diameter.
Connection to and from the projector is via cannon 3-pin XLR plugs and sockets which are
included with the projector. The XLR's are connected as shown in the table above.
Note: Care should be taken to ensure that none of the connections touch the body of the
plug or each other. The body of the plug is not connected in any way. The Century Colour
accepts digital control signals in standard DMX512 (1990) format.
5-PIN AND 3-PIN CONVERSION
Century Colour uses 3-pin XLR plug / socket. If your controller uses 5-pin XLR plug / socket,
you should convert 5-pin plug / socket into 3-pin socket / plug as shown below.
DMX TERMINATOR
In the Controller mode or Master/Slave mode, the DMX output has to be connected with a
DMX terminator at the last fixture in the chain. This prevents electrical noise from disturbing
and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω(ohm) resistor connected
across pins 2 and 3, which is then plugged into the output socket on the last projector in the
chain. The connections are illustrated below.
6/14 Century Colour 2500L EN.doc

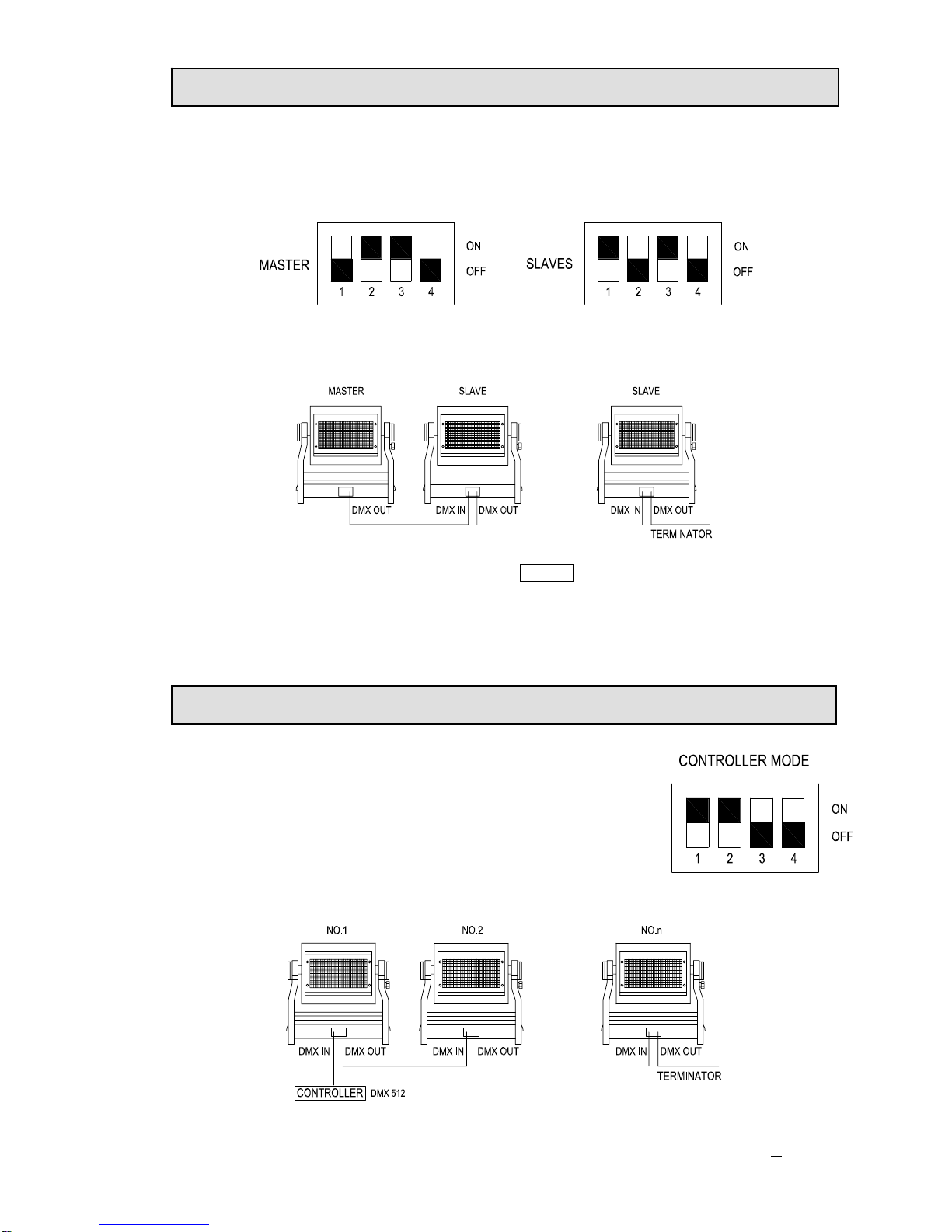

MASTER/SLAVE MODE
Many luminaires can run synchronously by linking them with each other in the master/slave
mode.
Select one luminaire as the master, and set the DIP switches as shown in the figure below.
Regard the other luminaires as the slaves, and set their DIP switches as shown in the figure
below.
Connect the master’s output to the first slave’s input with an XLR-XLR control cable, and
connect the first slave’s output to the second slave’s input with an XLR-XLR control cable.
The rest may be deduced by analogy. Eventually connect the last slave’s output to a DMX
terminator as shown below.
In master/slave mode, you should only set the value of the tens and units of the rotary DIP
switches of the master, and then press the RESET button. After 30 seconds, all the
luminaires will run automatically and follow whichever one of the 15 automatic programs
selected. (How to set the rotary DIP switches, please refer to “auto programmes table”
above.)
You can easily differentiate the master from the slaves. The master’s status LED is off and
the slaves’ status LEDs are constantly on.
CONTROLLER MODE – DMX 512 OPERATION
Century Colour uses international standard DMX 512 protocol.
You may use a controller to control many luminaires by setting

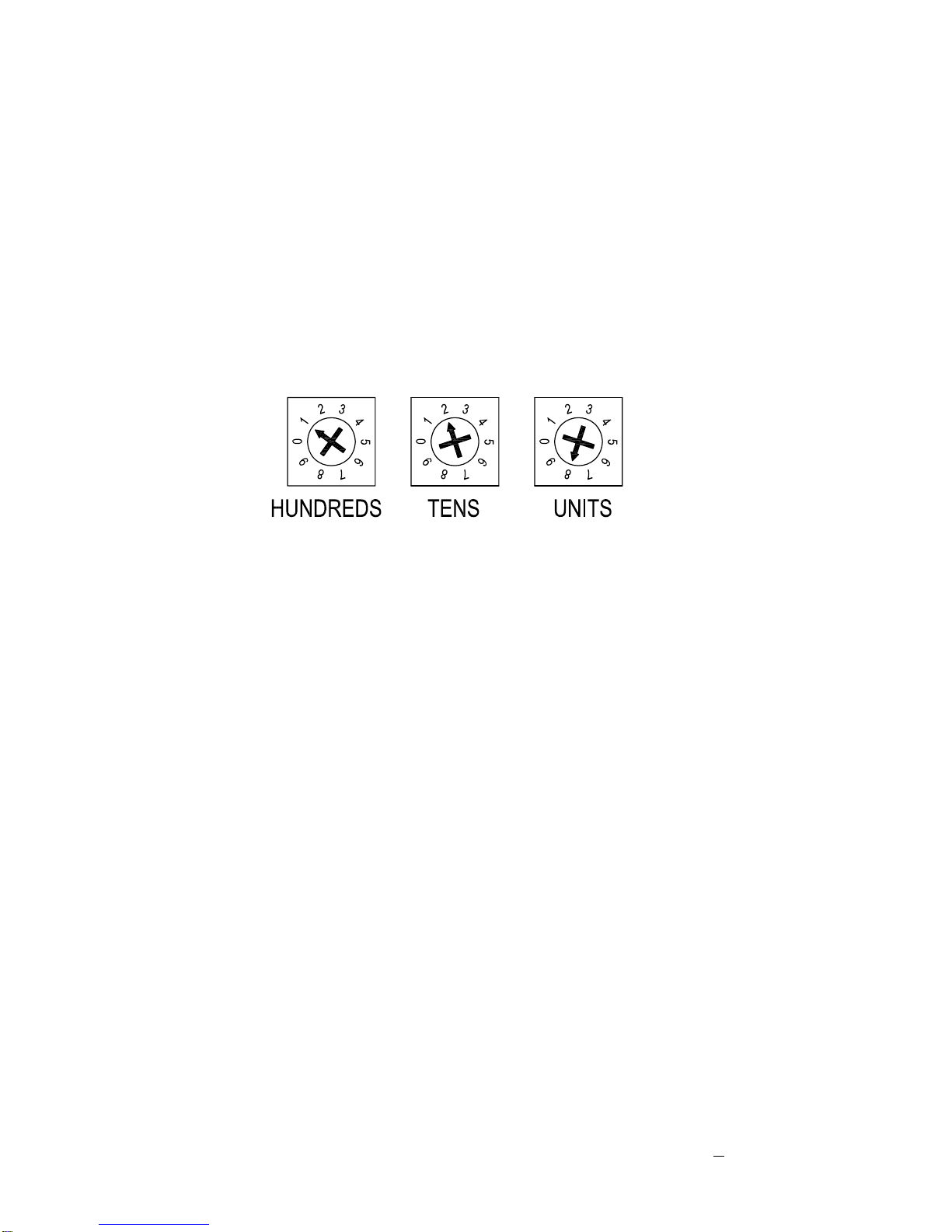

the rotary DIP switches. (For details please refer to “DMX start
address setting via the 3 rotary DIP switches”.)
Set the DIP switches as shown in the figure on the right. Now, all
the luminaires will work under the controller.
Connect the controller’s output to the first luminaire’s input, and
connect the first luminaire’s output to the second luminaire’s
input. The rest may be deduced by analogy. Eventually connect the last luminaire’s output to
a DMX terminator as shown below.
7/14 Century Colour 2500L EN.doc

REMOTE RESET CONTROL
8/14 Century Colour 2500L EN.doc
In controller mode, set the DIP switches as shown in the figure on
the right, the channel 7 will be actived. Now, all the luminaires will
work under remote reset control.

DMX CONTROL CHANNEL FUNCTIONS
The Century Colour has 7 channels. They are shown in the following table.
ITEM CHANNELS DMX
VALUE PERCENTAGE DESCRIPTION
0-63 0%-25％Slow speed
64-127 25%-50% Medium speed
128-191 50%-75% Medium to high speed
1 Motor speed
adjust 192-255 75%-100% High speed
2 Cyan 0-255 0%-100%
White to cyan continuous
change
3 Yellow 0-255 0%-100%
White to yellow continuous
change
4 Magenta 0-255 0%-100%
White to magenta
continuous change
5 Dimmer 0-255 0%-100%
Shutter to open continuous
change
0-25 0%-10% White
26-51 10%-20% Cyan
52-77 20%-30% Yellow
78-103 30%-40% Magenta
104-129 40%-50% Blue
130-155 50%-60% Red
156-181 60%-70% Green
182-207 70%-80%
Slow change colours in
sequence
208-233 80%-90%
Medium-speed change
colours in sequence
6 Auto colours
changing
234-255 90%-100%
Fast change colours in
sequence
0-127 0%-50% Lamp on
128-191 50%-75% Remote reset
192-250 75%-98% Lamp on
7 Remote reset
control 251-255 98%-100% Lamp off
Channel 6 must be at DMX level 0 (i.e. 0%) in order to use channel 2, 3 and 4.
9/14 Century Colour 2500L EN.doc

DMX START ADDRESS SETTING VIA THE 3 ROTARY DIP SWITCHES
Each Century Colour 2500L must be given a DMX start address so that the correct projector
responds to the correct control signals. This DMX start address is the channel number from
which the projector starts to “listen” to the digital control information being sent out from the
controller. The Century Colour 2500L has 7 channels, so set the No. 1 projector’s address to
001, No. 2 projector’s address to 008, No. 3 projector’s address to 015, No. 4 projector’s
address to 022, and so on.
The display shows the DMX start address after the projector is switched on. (If you have
already set the DMX start address and saved it, the display will show the last setting.)
Any DMX start address may be set in this way, the start address number is comprised of 3
digits, the first is the hundreds, the second is the tens and the third is the units, so for
example, a DMX start address of 19 is represented as 0 (no hundreds) 1 (one ten) 9 (nine
units). In a similar way the DMX start address of 128 would be represented by 1 (one
hundreds) 2 (two tens) 8 (eight units). Simply turn the rotary dip switches to represent the
DMX start address in hundreds, tens and units.
The figure shows an example of a DMX start address of 128.
10/14 Century Colour 2500L EN.doc

MAINTENANCE
If the lamp becomes damaged or deformed in any way it must be replaced. If the light from
the lamp appears dim this would normally indicate that it is reaching the end of its life and it
should be changed at once, old lamps run to the extremity of their life can explode. If the
projector does not function, check the fuse in the projector base, it should only be replaced
by the same specified value. Should these be damaged call a qualified technician before
replacement. The projector has thermal protection device that will switch off the projector in
case of overheating, should this operate, check that the fans are not blocked, and if they are
dirty clean them before switching on the projector again. Check that the fans are operational,
if not call a qualified technician.
Any maintenance work should only be carried out by a qualified technician.
KEEPING THE PROJECTOR CLEAN
To ensure the reliability of the projector it should be kept clean. It is recommended that the
fans should be cleaned every 15 days. The dichroic colour filters should also be regularly
cleaned to maintain an optimum light output. Do NOT use any type of solvent on dichroic
colour filters.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke
or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics.
A soft cloth and typical glass cleaning products should be used in cleaning.
Do not use any organic solvent, e.g. alcohol, to clean the housing of the projector.
TROUBLESHOOTING
PROBLEM RESOURCE
The projector does not start Check that the fuse is not blown.
Check that the lamp is ok.
The projector switches on but does
not answer to commands Check the rotary DIP switch is correctly set. Check the XLR cable is good.
The projector only functions
intermittently Check the fan is working and not dirty.
The beam appears dim Check the lamp is not at the end of its life.

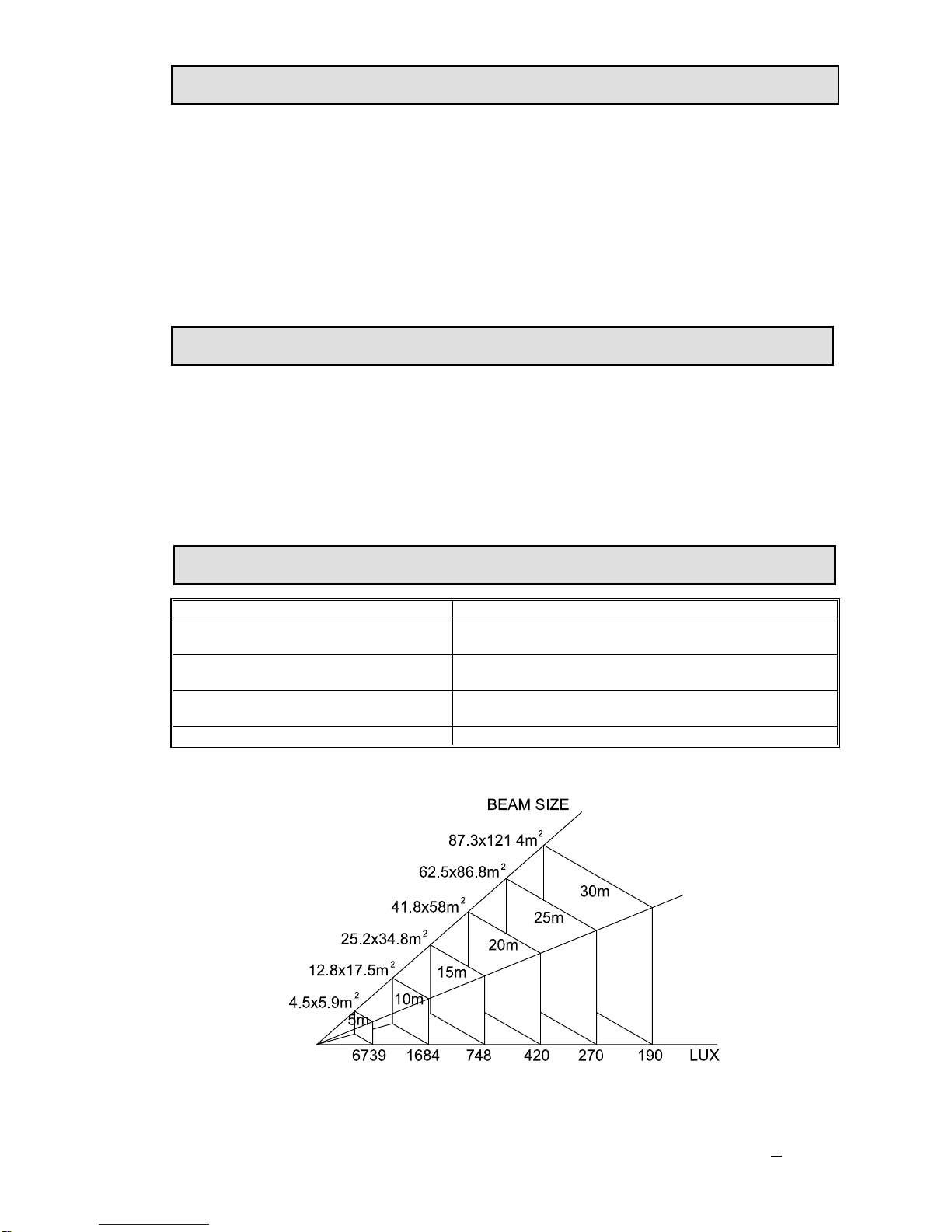

LIGHT OUTPUT
11/14 Century Colour 2500L EN.doc

TECHNICAL DATA
Power supply: 230V AC 50Hz
Optional: 240V, 220V AC 50/60Hz
Power consumption: 2800W at 220V
Lamp: MSA2500 DE, double ended
Colour temperature: 5600°K
Manufacturers Rated Lamp life: 2000 Hours
Protocol: Standard DMX 512
Running mode: Stand-alone, Master/Slave, and DMX Controller
DMX channels: 7 channels
Colours: 3 basic colours, CYM continuous colours mixing, white, black-out
Beam coverage: 60° x 45°
Tilt angle: Adjustable from 0° to 90°
Net weight: 70 kg
Others: Linear dimming from 0-100%, thermal cut-off, digital display
12/14 Century Colour 2500L EN.doc

ELECTRICAL DIAGRAM
13/14 Century Colour 2500L EN.doc

NAME PART NO. QUANTITY REMARK
TRANSFORMER 040030022 1 200V/220V/50Hz
IGNITOR 040090004 1 230V/50Hz
BALLAST 040070033 2 230V/50Hz
RELAY 192010009 1 230V/20A
FILTER 193020001 10A
THERMOSTAT 190010054 1 95℃/10A
THERMOSTAT 190010035 1 120℃/16A
FUSE 270041008 1 RT14-20A
FAN 030060022 4 230V/22W
LAMP 100050024 1 MSA 2500 DE
CAPACITOR 140010018 3 60µF/AC 370V
MOTOR 030040029 4 17HS1013L
CYAN 090830001 4 DICHROIC COLOUR
FILTER
MAGENTA 090830002 4 DICHROIC COLOUR
FILTER
YELLOW 090830003 4
DICHROIC COLOUR
FILTER
MAIN PCB 230030260 1
CONTROL PCB 230030261 1
POWER PCB 230030264 1
If ordering dichroic colour filter replacements remember the part no. refers to 1 piece. The
century colour 2500L uses 4 pieces of each colour.
PR LIGHTING LTD.
No. 571 Yingbin Road, Dashi, Panyu, Guangzhou, China
Post-Code: 511430
TEL: [phone]
FAX: [phone]
14/14 Century Colour 2500L EN.doc
COMPONENT ORDER CODES
P/N: 320040043
Last Revision: 23:08:2006
