Pyle PUCWM11 User manual
PUCWM11
Instructions
Manual
Single Tub Washing Machine
ACCESSORIES
1. WATER INLET HOSE
2. INSTRUCTION MANUAL
Dear Customer :
We would like to take this opportunity to thank you for purchasing
this mini single tub washing machine. This item utilizes modern industrial
design principles for customers’ satisfaction. Please take some time to
read the Instruction Manual before attempting to use your new single tub
washing machine.

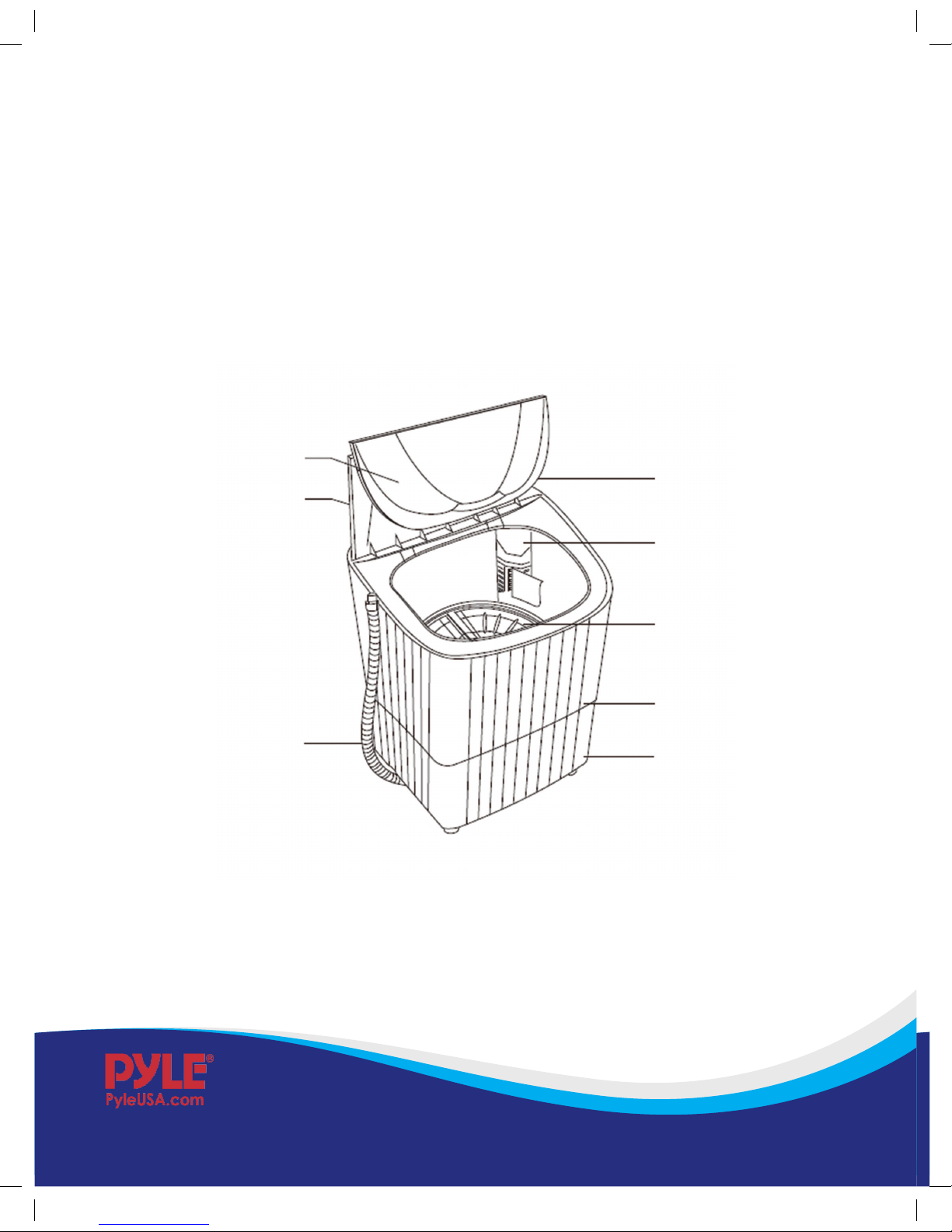

PARTS IDENTIFICATION
LID COVER
WATER SUPPLY INLET
DRAIN HOSE
WASH TIMER
(Select within the coverage of
15mins.)
OVERFLOW FILTER FLOW
(Where the water ows out
when overow)
PULSATOR
POLYMER CABINET
POLYMER BASE
INSTALLATION
1.Placetheunitonaleveledoorandinawell-ventilatedplace.
2.Donotinstallonaweakorroughooring.
3. Make sure to connect the green earth wire located at the back of the unit to any
grounded object. Do not connect the grounding wire on a water pipe or gas pipe.
4. Lay down the drain hose.
5. Use the water inlet hose provided to connect to a faucet/tap (water supply) into
the washtub water supply inlet.
6. Adjust the level of water according to the clothes type and quantity.
7. Set the wash timer to desired setting will tum on the washing machine.
WASHING PROCEDURE
Washing :
1. Set the wash selector to Gentle or Normal. Please see Table 1 for wash mode.
2. Insert water hose to Inlet or prepare a pall of water (If no water Is available from
faucet)tollwashtubhalfway.
3. Put the detergent depending on the water volume and detergent package
indication.
4. Set the Wash Timer knob to 1 minute to dissolve the detergent.
5. Put clothes one by one in the washtub and push it towards the bottom. Continue
adding water up to desired level.
6. Set the Wash Timer to appropriate setting. Refer to Table 1.
Rinsing :
•Rinseclothesbyfollowingthewashingprocedure.Butthistime,donotputa
detergent.
Washing Suggestions :
1.Whenwashingheavilysoiledcottonorlinenclothes,washthemrstinaclean
waterfor2-3minutesthendrainthedirtywater.Proceedwiththeusualwashing
procedure. This process will improve the washing effect and reduce detergent
consumption.
2.Addsmallamountofdetergentoncuffs,collarsandotherseriouslysoiled
places and rub them by hand or with a laundry brush.
TABLE 1.WASH MODE AND WASH/RINSE TIME
1. Pull out the power cord and hang it on the hook on the side of the washing
machine.
2. Thoroughly drain out the water from the wash tub.
3. Turn the Wash Selector to Normal position.
4. Clean the washing machine and hang the drain hose to the hook on the side of
the machine. 3.Uselowfoaming/high--densitylaundrypowderorliquid
detergent for more
effective washing.
4. Use of warm (not hot or boiling) may improve washing effect.
5. Remove the water supply inlet hose and remove the water from it and place
hose nside the wash tub.
6. Let the machine air dry in a ventilated place before putting back the Lid Cover.
7.Whenthewashingmachinehasbeenusedforsometime,somefabricnaps
mayaccumulateunderneaththepulsator.Ifthispiles-up,itmayaffectthe
normalrunningoftheroll-stick.Tocheckandcleanthis,takeoutthepulsator
by unscrewing it carefully. Clean the pulsator by subjecting it by running water
and brushing it lightly. Do not use steel brush. Clean the base of the wash tub
also for any fabric naps. Return the pulsator to its proper position. It is
suggested that you clean it once a month.
MAINTENANCE AFTER USE
LEVEL OF SILK WOOL COTTON,HANG COTTON & HEMP
Soiled Mode Chemical Light
Soiled
Cotton,Linen,
Normal Seriously Soiled
Wash Time
(Minutes)
2-5Minutes 5-10Minutes 10-15Minutes

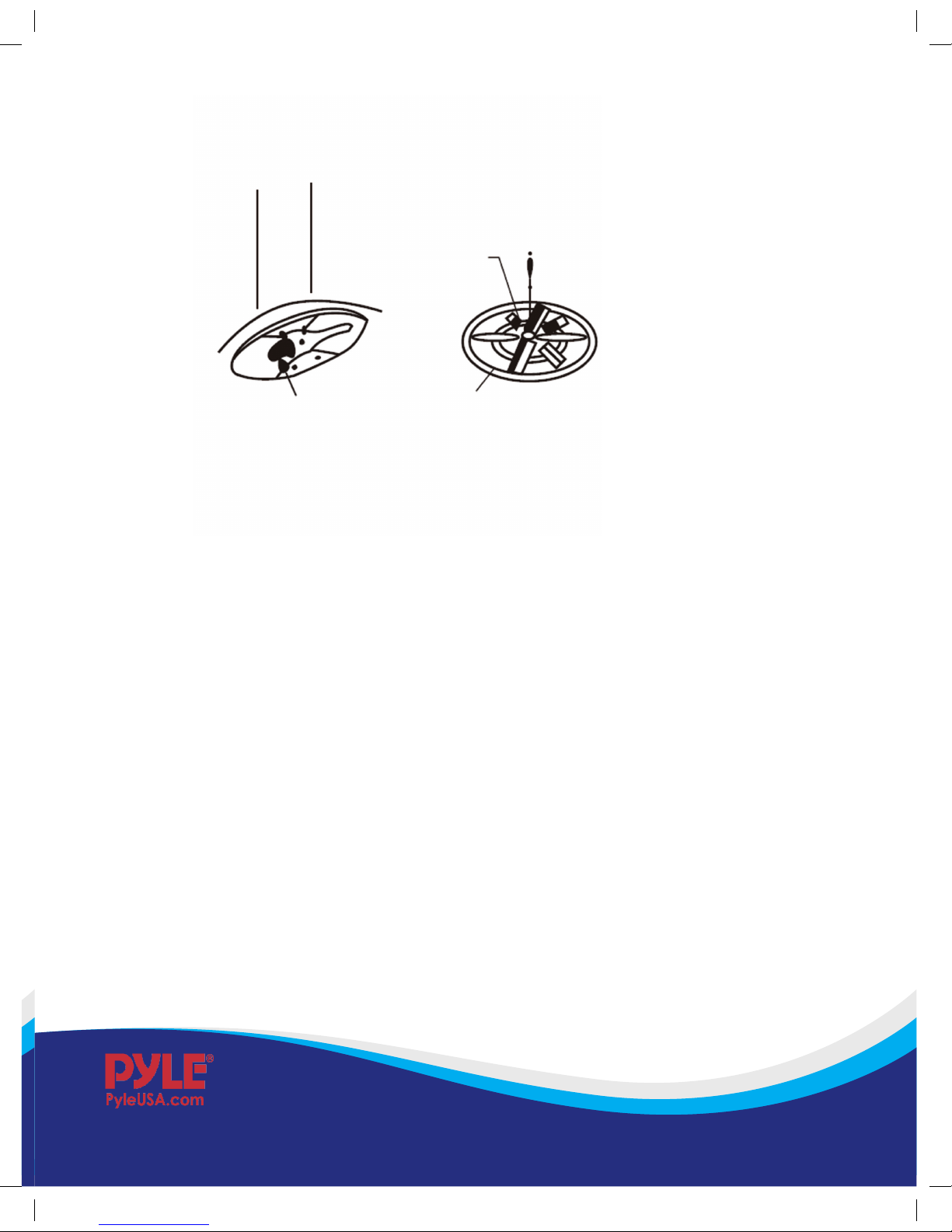

Pulsator screwed circle, please take it out
Roll stick side
Fabric with nap please take it out
Notice :
1.Thepowercordofthismachineisspeciallyinstalled.Ifdamage,unplugit.
Do not attempt to open the wire connect box by yourself. Call for a service
technician to
xit.
2.Ifthereisabnormalnoiseandvibration,pleasestopthemachineimmediately.
Callforservicetechniciantoxit.
3. Always turn the Wash Timer gently to its proper direction (clockwise).
4.Donotpourboilingwaterorwater60○C and above. This will deform polyester
and other plastic parts.
5.Keepthewashingareafromanyobstructions,especiallyduringwashing
operation.
6. Do not go beyond washing rated capacity.
7. Do not put any heavy objects on the washing machine.
8.Donotuse/putanystrongacid,alkalineandotherorganiccompounds.
Connected patch
with ground
Yellow & Green
White
Black
Grey
Grey
Grey Purple
Purple
Knob of choice
Capacitor
Main Circular
Resistance
CircularSub-
Resistance
Motor Blue
Yellow
Yellow
Red
Red
Soft
Timer of Washing
PROBLEM POSSIBLE CAUSE REPAIR
PULSATOR Power Failure (Blackout) Insert Plug
STOP Plug is loosely connected Call service technician to put back the V-Belt
RUNNING V-Belt drops off Call service technician to tighten pulley screw
Loose pulley Remove foreign object immediately
Jammed pulsator due to foreign matter Call service technician to adjust gap between
them
ABNORMAL Friction between pulsator and wash tub Remove foreign object immediately
NOISE Pulsator is jammed due to foreign matter Call service technician to put back the V-Belt
VIBRATION V-Belt too tight Call service technician to put back the V-Belt
PULSATOR Slackened of worn-out V-Belt Replace V-Belt
RUNS AT ABNORMAL Call service technician to tighten the V-Belt and
screws
SPEED Loose motor xing screws Call service technician to x the machine
MAINTENANCE AFTER USE
CIRCUIT
DIAGRAM
*Specication & appearance are subject to change without notice.
WARNING!
•Thisapplianceisnotintendedforusebypersons(includingchildren)
withreducedphysical,sensoryormentalcapabilities,orlackof
experienceandknowledge,unlesstheyhavebeengivensupervision
or instruction concerning the use of the appliance by a person
responsible for their safety.
•Childrenshouldbesupervisedtoensurethattheydonotplaywiththe
appliance.
