Quasar SP2724, SP2724U User manual

Color Television
Operating Instructions SP2724USP2724
TQB2AA0376 10131
PRINTED IN USA
For assistance, please call: 1-800-211-PANA (7262)
or send e-mail to: consumerproduct[email protected]

2
T ABLE OF C ONTENTS
Table of Contents
Congratulations...................................................3
Customer Record...............................................3
Care and Cleaning.............................................3
Specifications.....................................................3
Remote Control..................................................3
Installation............................................................4
Television Location............................................4
Optional Cable Connections..............................4
AC Power Supply Cord......................................4
Cable / Antenna.................................................4
Cable Connection..............................................4
Antenna Connection..........................................4
Optional Equipment Connections ......................5

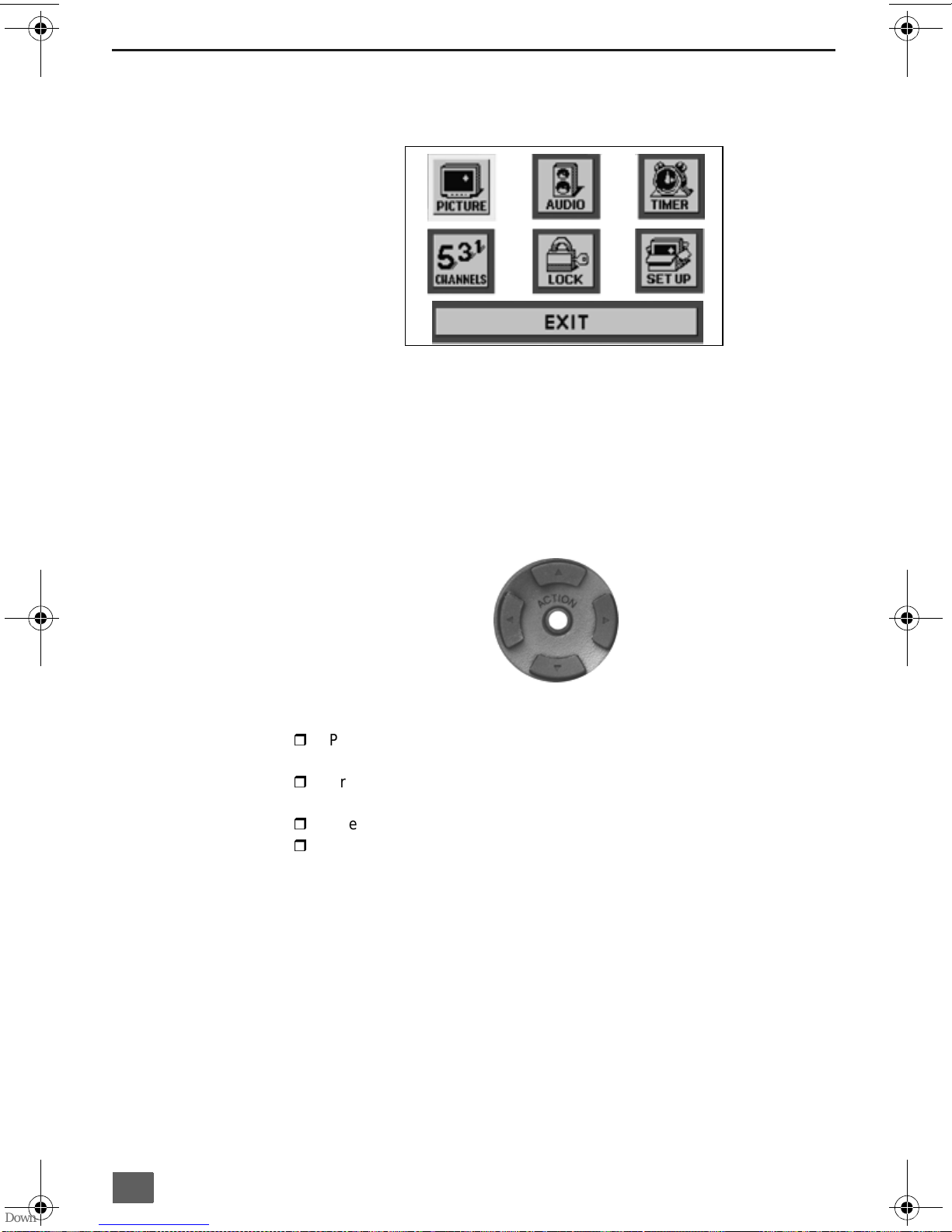

Main Menu............................................................6
ACTION Button..................................................6
CH / VOL Buttons..............................................6

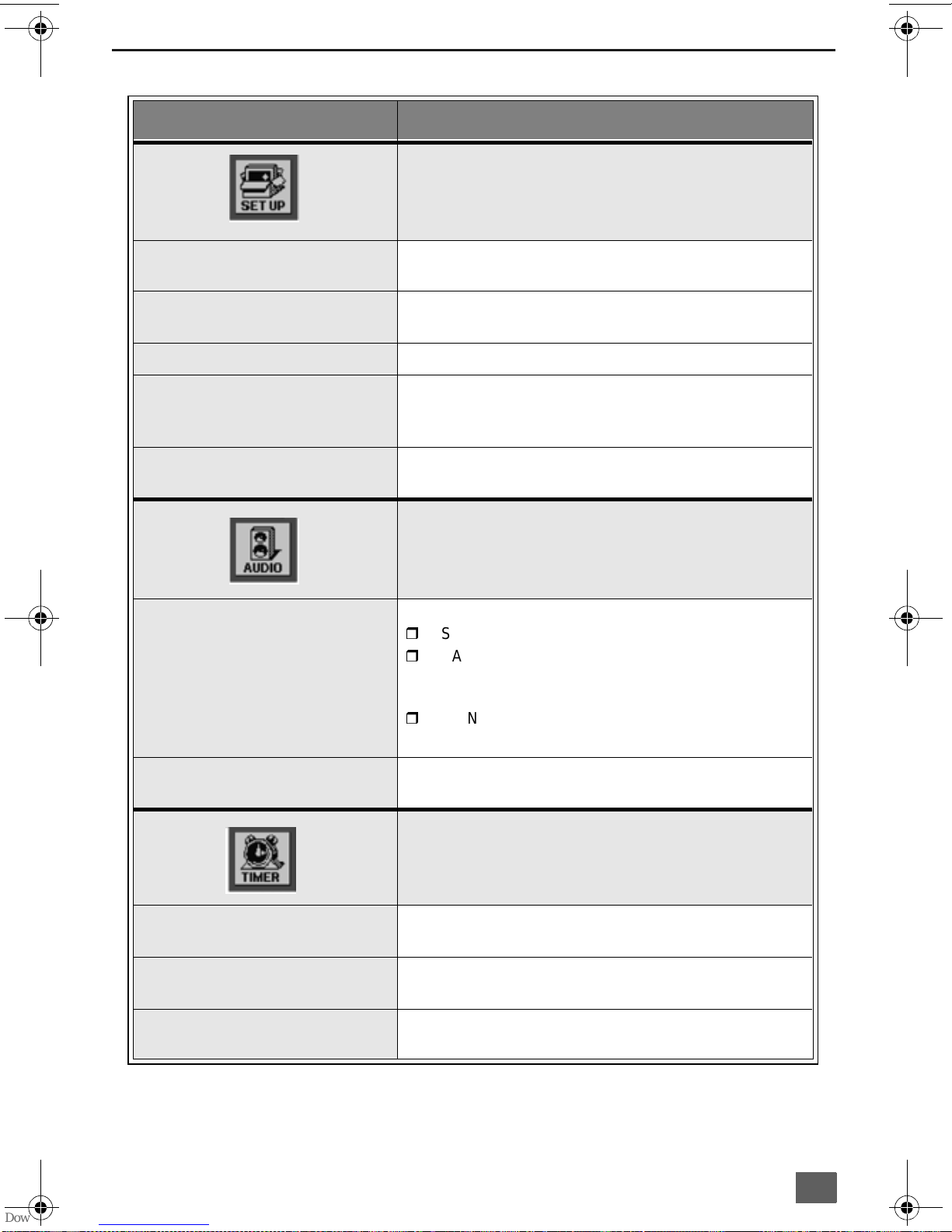

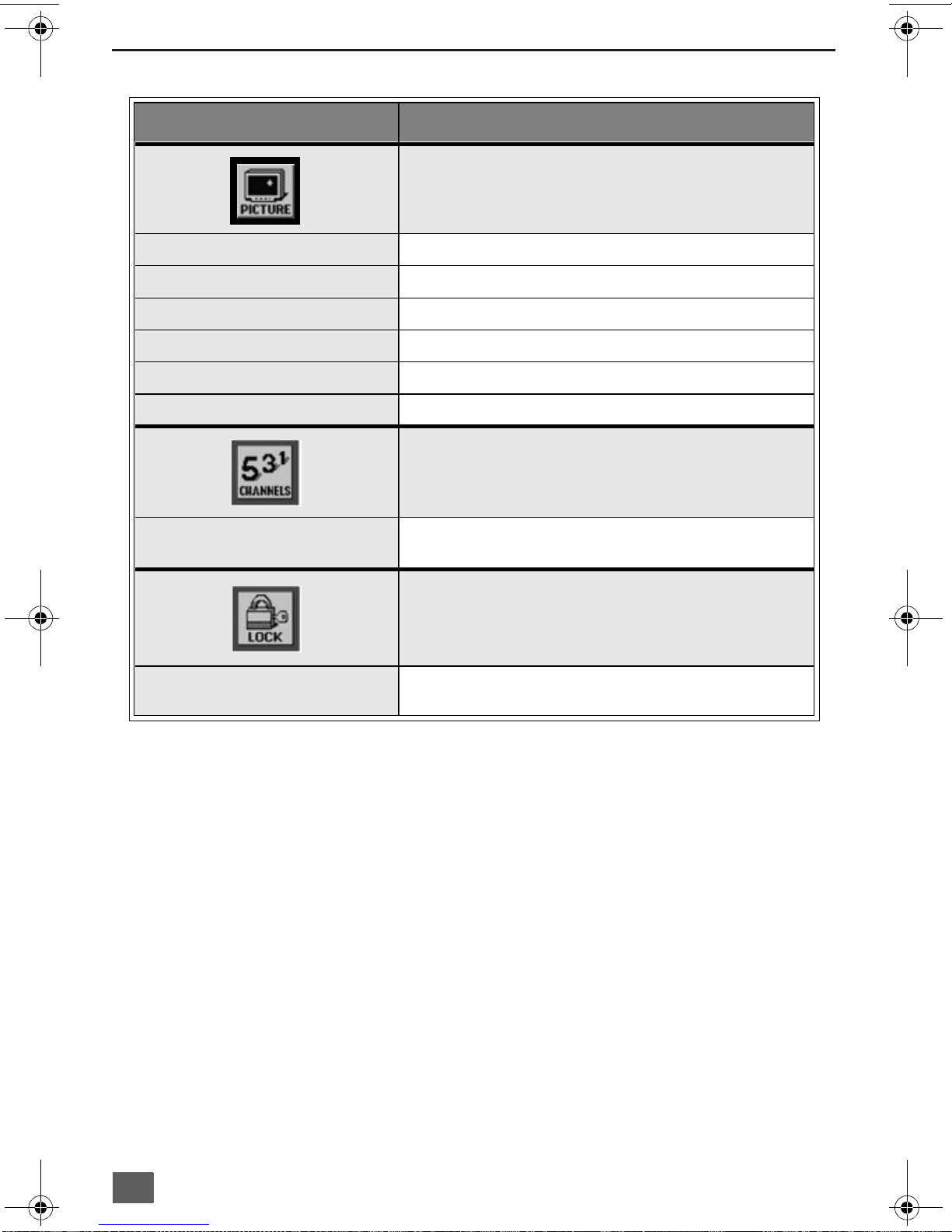

Main Menu Feature Chart....................................7
Special Features..................................................9
Languages.........................................................9
Timer..................................................................9
Sleep Timer .......................................................9
Program Timer...................................................9
CH CAP (Channel Caption).............................10

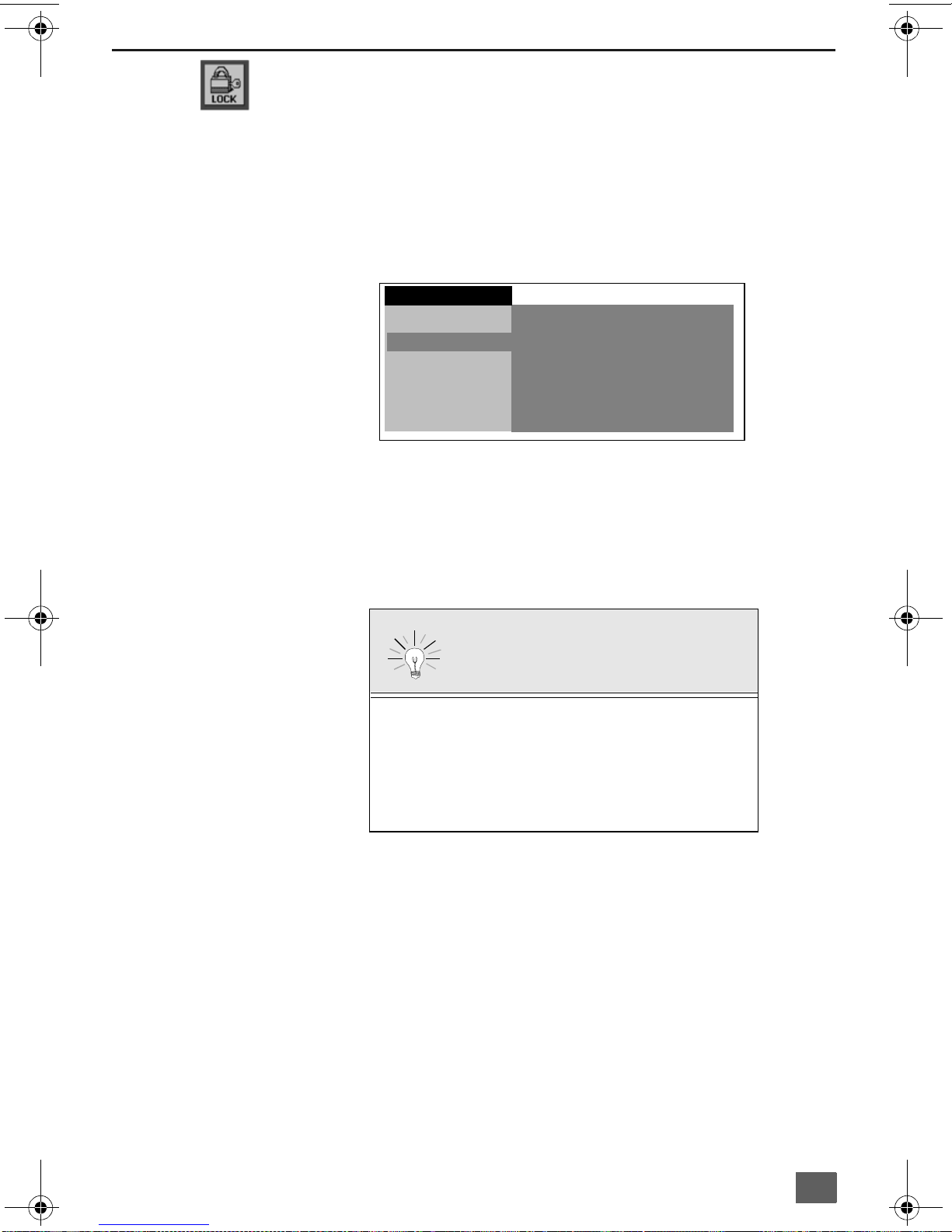

LOCK...............................................................11
Lock Mode (Lock and Unlock).........................11
Troubleshooting Chart......................................12
Safety Instructions
WARNING:To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are in
the papers with the appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to persons.
WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
Read these instructions completely before operating TV.
Contents are subject to change without notice or obligation.
Copyright 2001 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.
0376E PROD.fm Page 2 Tuesday, February 27, 2001 3:36 PM

3
C ONGRATULATIONS
Congratulations
Your new TV features a solid state chassis that is designed to give you many
years of enjoyment. It was thoroughly tested and tuned at the factory for best
performance.
Customer Record
The model and serial number of this product are located on the back of the
TV. You should note the model and serial number in the space provided and
retain as a permanent record of your purchase. This will aid in identification
in the event of theft or loss. Product registration is available for U.S.
customers at: www.prodreg.com/panasonic
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
• Use a mild soap solution or window cleaner with a soft clean
cloth. DO NOT USE ABRASIVE CLEANERS.
• Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
• Use a soft cloth dampened with water or a mild detergent
solution. Do not use benzene, thinner, or other petroleum
based cleaners.
• Avoid excessive moisture and wipe dry.
Specifications
Specifications are subject to change without notice or obligation.
Remote Control
The Remote Control Quick Reference Guide is located within the package
provided with this TV.
Power Source
SP2724/U (1.8A) 120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
S-Video Input Jacks S-Video (Y-C) Connector
0376E PROD.fm Page 3 Tuesday, February 27, 2001 3:36 PM

4
I NSTALLATION

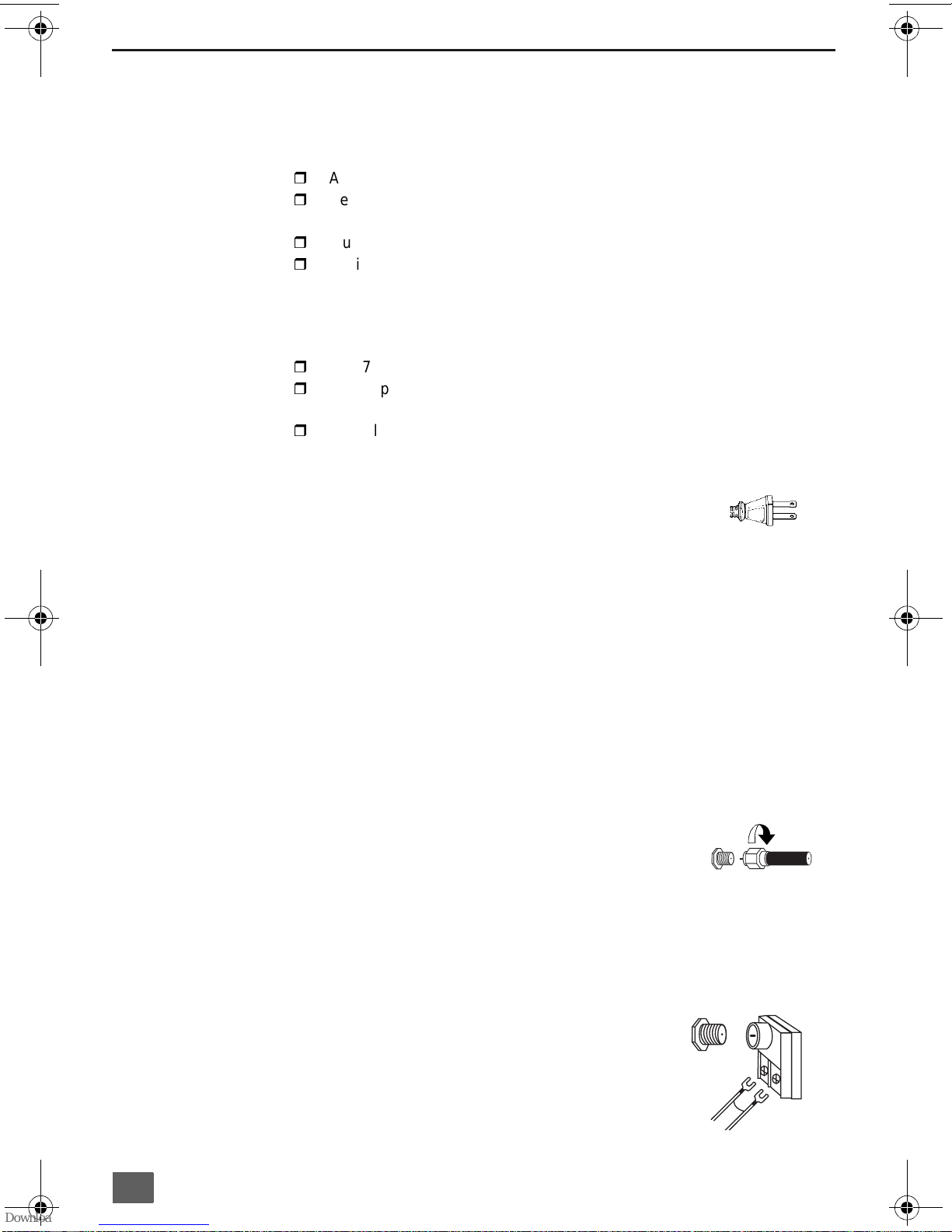

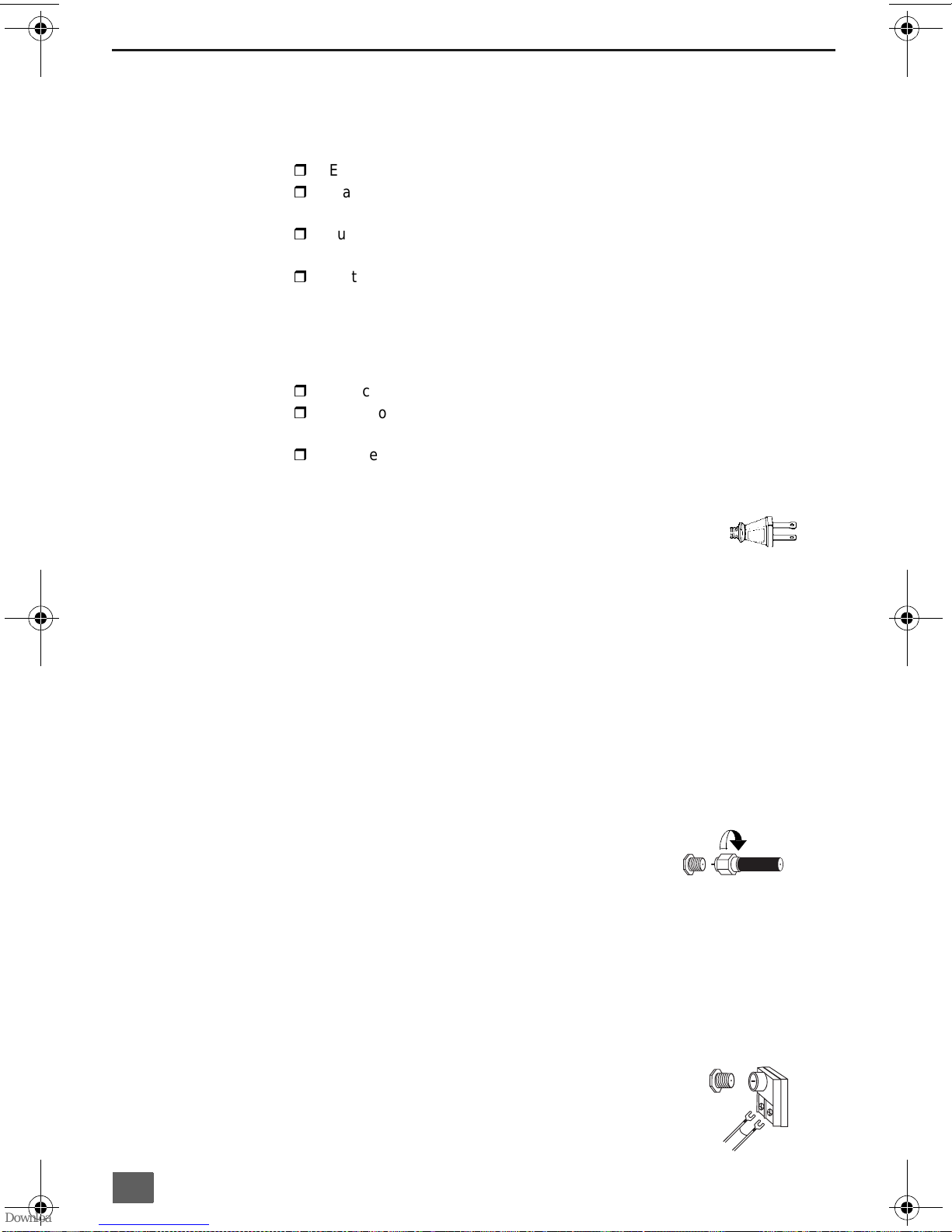

Installation
Television Location
This unit is intended to be used with an optional stand or entertainment
center. Consult your dealer for available options.
r Avoid excessive sunlight or bright lights, including reflections.
r Keep away from excessive heat or moisture. Inadequate ventilation
may cause internal component failure.
r Fluorescent lighting may reduce Remote Control transmitting range.
r Avoid magnetic equipment, including motors, fans, or external speakers.
Optional Cable Connections
Shielded audio and video cables should be used between components. For
best results:
r Use 75-ohm coaxial shielded cables.
r Use appropriate input and output connectors that match your
component connectors.
r Avoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF
AC OUTLET AND FULLY INSERT. DO NOT USE A
PLUG WITH A RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADE CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER,
CRIMPED, BENT OR PINCHED, PARTICULARLY AT PLUGS,
CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT
FROM THE APPARATUS.
Cable / Antenna
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local
cable company.
Note: A cable converter box may be required for
proper reception. Check with your local cable
company for compatibility requirements.
Antenna Connection
• For proper reception of VHF/UHF channels, an external
antenna is required. For best reception an outdoor antenna
is recommended.
• Antenna Mode must be set to TV.
Note: Cable Mode is preset at the factory.
Antenna users must change to TV Mode
in the SETUP Menu.
Polarized plug
75 Ohm VHF/UHF
on back of TV
Incoming Cable from
Cable Company
Incoming Cable from
Home Antenna
0376E PROD.fm Page 4 Tuesday, February 27, 2001 3:36 PM

5
I NSTALLATION
Optional Equipment Connections
VCRs, video disc players, video game equipment, and DSS equipment can
also be connected to the video input connection. (See your
equipment manual).
Procedure
r Connect equipment as shown to rear Audio/Video input jacks.
r Select the Video mode by pressing TV/VIDEO button.
r Operate optional equipment as instructed in equipment manual.
IMPORTANT INFORMATION REGARDING USE OF VIDEO
GAMES, COMPUTERS, DSS OR OTHER FIXED IMAGE
DISPLAYS.
The extended use of fixed image program material can cause a
permanent “shadow image” on the picture tube. This background
image is viewable on normal programs in the form of a stationary
fixed image. This type of irreversible picture tube deterioration can
be limited by observing the following steps:
A. Reduce the brightness/contrast setting to a minimum viewing
level.
B. Do not display the fixed image for extended periods of time.
C. Turn the power off when not in actual use.
Note: The marking or retained image on the picture tube resulting
from fixed image use is not an operating defect and as
such is not covered by Warranty. This product is not
designed to display fixed image patterns for extended
periods of time.
L
R
AUDIO OUT
VIDEO OUT
VCR
ANT INPUT
CABLES NOT SUPPLIED
OUTPUT
TERMINALS ON BACK OF TV
ANT L
R
AUDIO
INPUT
S-VIDEO
S-VIDEO OUT
VIDEO
