1. EVB Kit Introduction
1.1 EVB Top and Bottom View

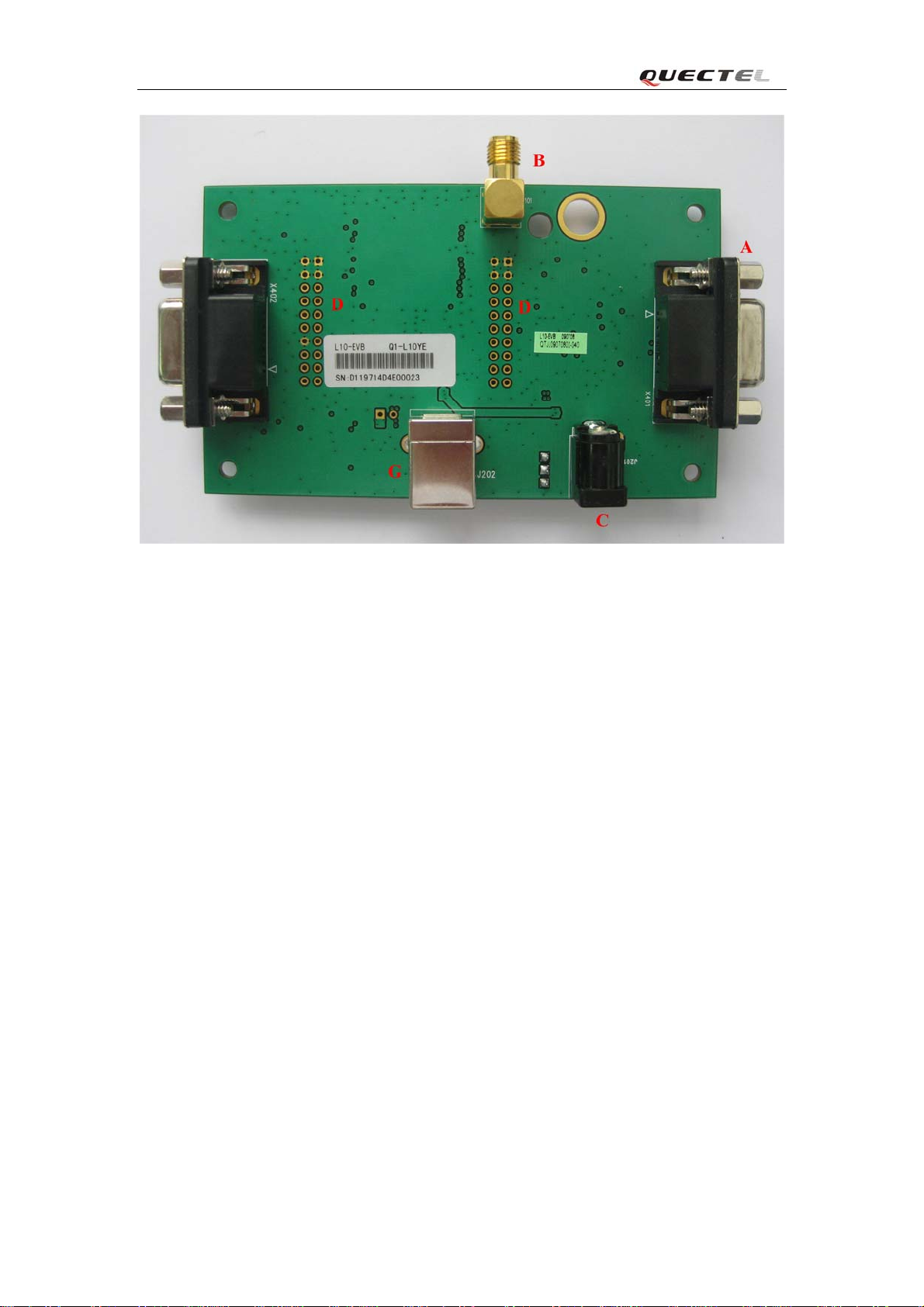

EVB top view
L10_User_Guide_V1.00 -3-

EVB bottom view
A: UART port
B: Antenna interface
C: Adapter interface
D: Test points
E: L10 Module
F: POWER switch
G: USB interface
H: STANDBY button
I: RESET button
J: Indication LEDs
L10_User_Guide_V1.00 -4-

1.2 EVB Accessories
EVB accessories
A: GPS active antenna (3.3V)
B: DC5V/2A power adapter
C: Serial port cable (USB 2.0)
D: USB cable
L10_User_Guide_V1.00 -5-

1.3 EVB and Accessories

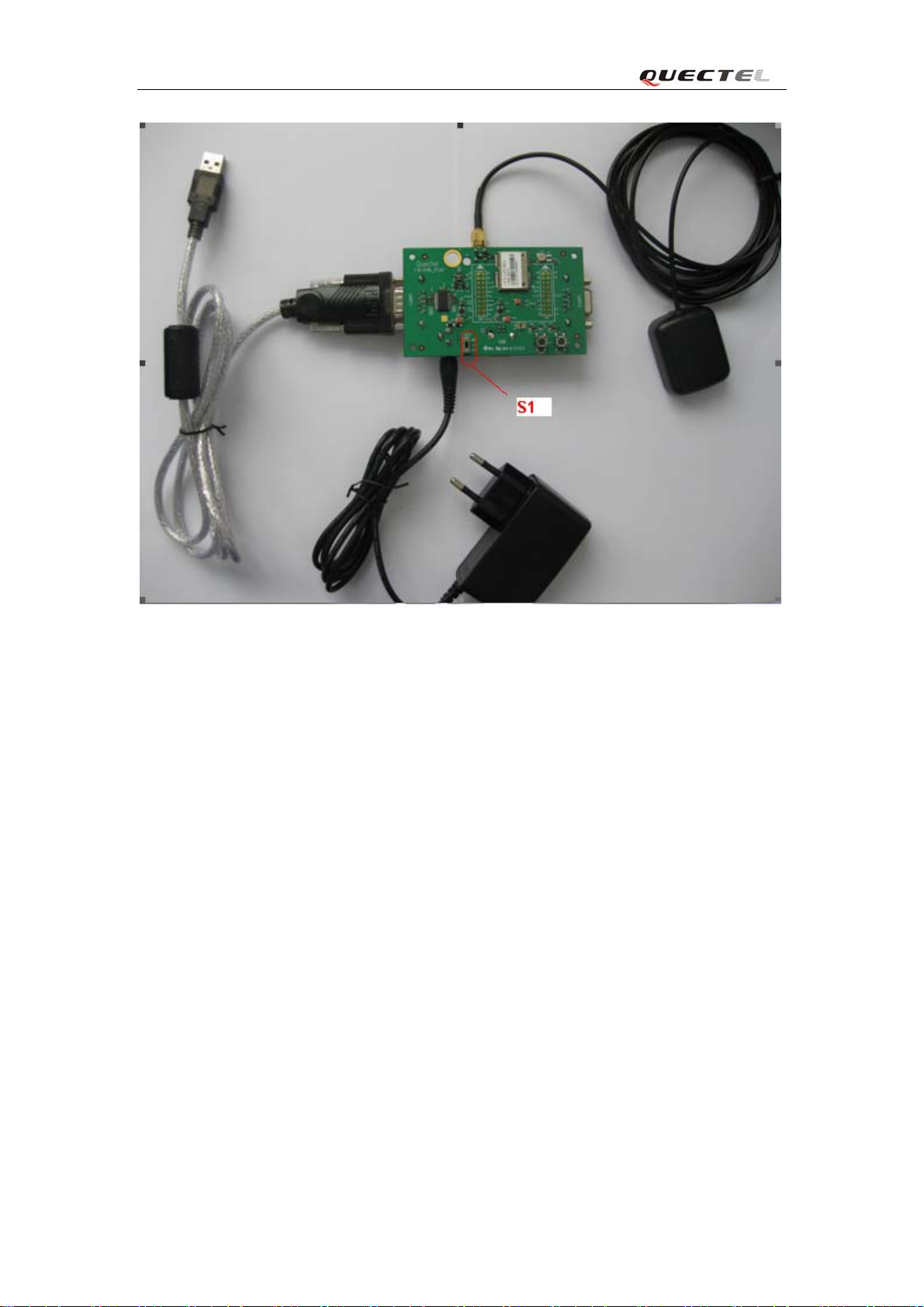

When USB to RS232 cable is used, the EVB and its accessories are equipped as shown in Figure
12.
EVB and accessory equipments with serial cable
2. Operational description
2.1 Tune on the module
L10_User_Guide_V1.00 -6-

switching the “S1” switch to ON state；and the module is tuning on successfully.
2.2. L10 features
2.2.1 General specification
The L10 GPS module brings the high performance of the MTK positioning engine to
the industrial standard. The module supports 210 PRN channels. With 66 search
channels and 22 simultaneous tracking channels, it acquires and tracks satellites in
the shortest time even at indoor signal level. This versatile, stand-alone receiver
combines an extensive array of features with flexible connectivity options. The
embedded FLASH memory provides capacity for storing user-specific configuration
settings and allows for future updates. L10 advanced jamming suppression
mechanism and innovative RF architecture provides a high level of immunity for
jamming, ensuring maximum GPS performance.
L10_User_Guide_V1.00 -7-

The L10 is an SMD type module with the compact 22.4mm x 17.0mm x 3.0 mm form
factor, which can be embedded in customer applications through the 28-pin pads. It
provides all hardware interfaces between the module and customer’s board.
zThe UART port can help to develop customer’s application easily.
zThe USB port is available for faster data transmission and more flexibility
zThe antenna interface supports passive and active antenna.
2.2.2 Hardware Specification
The L10 GPS module brings the high performance of the MTK positioning engine to the
industrial standard. The module supports 210 PRN channels. With 66 search channels and 22
simultaneous tracking channels, it acquires and tracks satellites in the shortest time even at indoor
signal level. This versatile, stand-alone receiver combines an extensive array of features with
flexible connectivity options. The embedded FLASH memory provides capacity for storing
user-specific configuration settings and allows for future updates. L10 advanced jamming
suppression mechanism and innovative RF architecture provides a high level of immunity for
jamming, ensuring maximum GPS performance. The module supports location, navigation and
industrial applications including autonomous GPS C/A, SBAS (including WAAS, EGNOS,
MSAS), DGPS (RTCM), and AGPS.
The L10 is an SMD type module with the compact 22.4mm x 17.0mm x 3.0 mm form factor,
which can be embedded in customer applications through the 28-pin pads. It provides all hardware
interfaces between the module and customer’s board.
zThe UART port can help to develop customer’s application easily.
zThe USB port is available for faster data transmission and more flexibility
zThe antenna interface supports passive and active antenna.
The PCB of M10 is 4 layers.
2.2.3 Software and other specifications
Feature Implementation
Power supply Single supply voltage: 3.0V – 4.3V typical : 3.3V
Power consumption
(passive antenna)
zAcquisition 43mA
zTracking 38mA
zStandby TBD
Receiver Type zGPS L1 1575.42MHz C/A Code
z66 search channels, 22 simultaneous tracking channels
Sensitivity zCold Start (Autonomous) -147 dBm
L10_User_Guide_V1.00 -8-

zReacquisition -160 dBm
zHotstart -160dBm
zTracking -165dBm
Time-To-First-Fix zCold Start (Autonomous) 35s average
zWarm Start (Autonomous) 35s average
zHot Start (Autonomous) <1.2 s
zEPO,BEE 5 ~10s
zSUPL 5 ~10s
Position Accuracy zWithout Aid 3.0 m 2D-RMS
zDGPS 2.5m
Max Update Rate z10Hz
Accuracy of 1PPS Signal zTypical accuracy 61 ns
zTime pulse adjustable from 1ms to 999ms, default 100ms
Velocity Accuracy zWithout Aid 0.1 m/s
zDGPS 0.05m/s
Acceleration Accuracy zWithout Aid 0.1 m/s²
zDGPS 0.05m/s²
Dynamic Performance zMaximum Altitude 18,000 m
zMaximum Velocity 515 m/s Maximum
zAcceleration 4 G
UART Port zUART Port: two lines TXD1 and RXD1
zSupports baud rate from 4800bps to 115200bps.
zUART Port is used for NMEA outputting or inputting , PMTK
private messages inputting and firmware upgrade
USB Port zSupport USB 2.0 full-speed compatible
zUSB Port is used for NMEA outputting or inputting , PMTK
private messages inputting and firmware upgrade
Temperature range zNormal operation: -40°C ~ +85°C
zStorage temperature: -45°C ~ +125°C
Physical Characteristics Size:
22.4±0.15 x 17±0.15 x 3.0±0.1mm
Weight: about 2.2g
Firmware Upgrade Firmware upgrade over UART port or USB port
2.2.4 Solution of L10
The hardware solution is MT3329; The software solution is MTK Release GPS AXN.
MT3329
L10_User_Guide_V1.00 -9-

2.2.5 Mechanical architecture

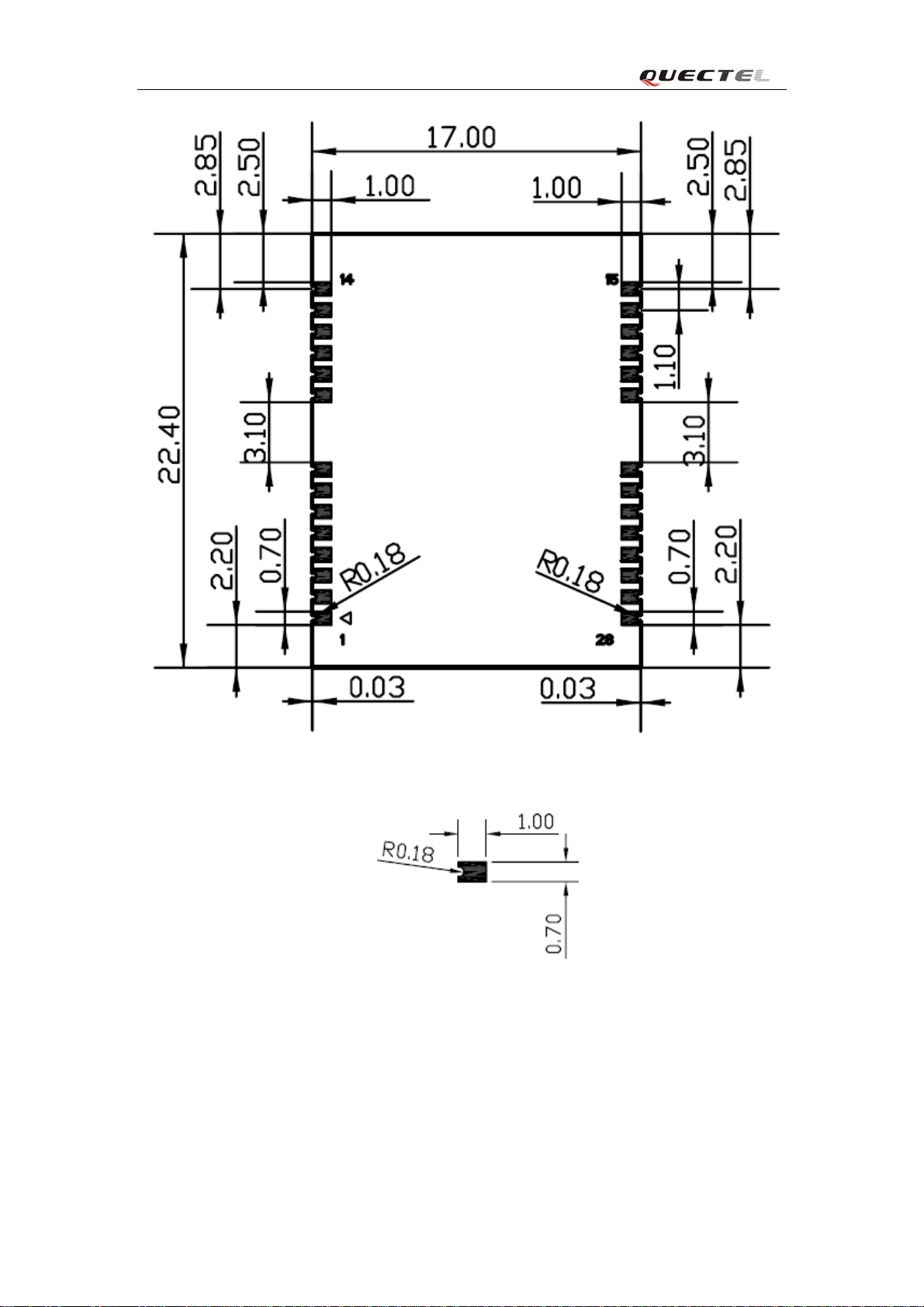

L10 Top view and Side dimensions（Unit:mm）
L10_User_Guide_V1.00 -10-

L10 Bottom dimensions（Unit:mm）
PAD Bottom dimensions（Unit: mm）
L10_User_Guide_V1.00 -11-

3. GPS Protocol
Please see the document of L10_GPS_Protocol.
4. Compliance with FCC Regulations
FCC Section 15.21 Information to the user
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Section 15.19 Labelling requirements
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
When the L10 is integrated into a final product, the FCC ID label must be visible through a window
onthefinaldeviceoritmust bevisiblewhenan accesspanel，doororcoveriseasily removed.If not,
a second label must be placed on the outside of the final device that contains the following text：

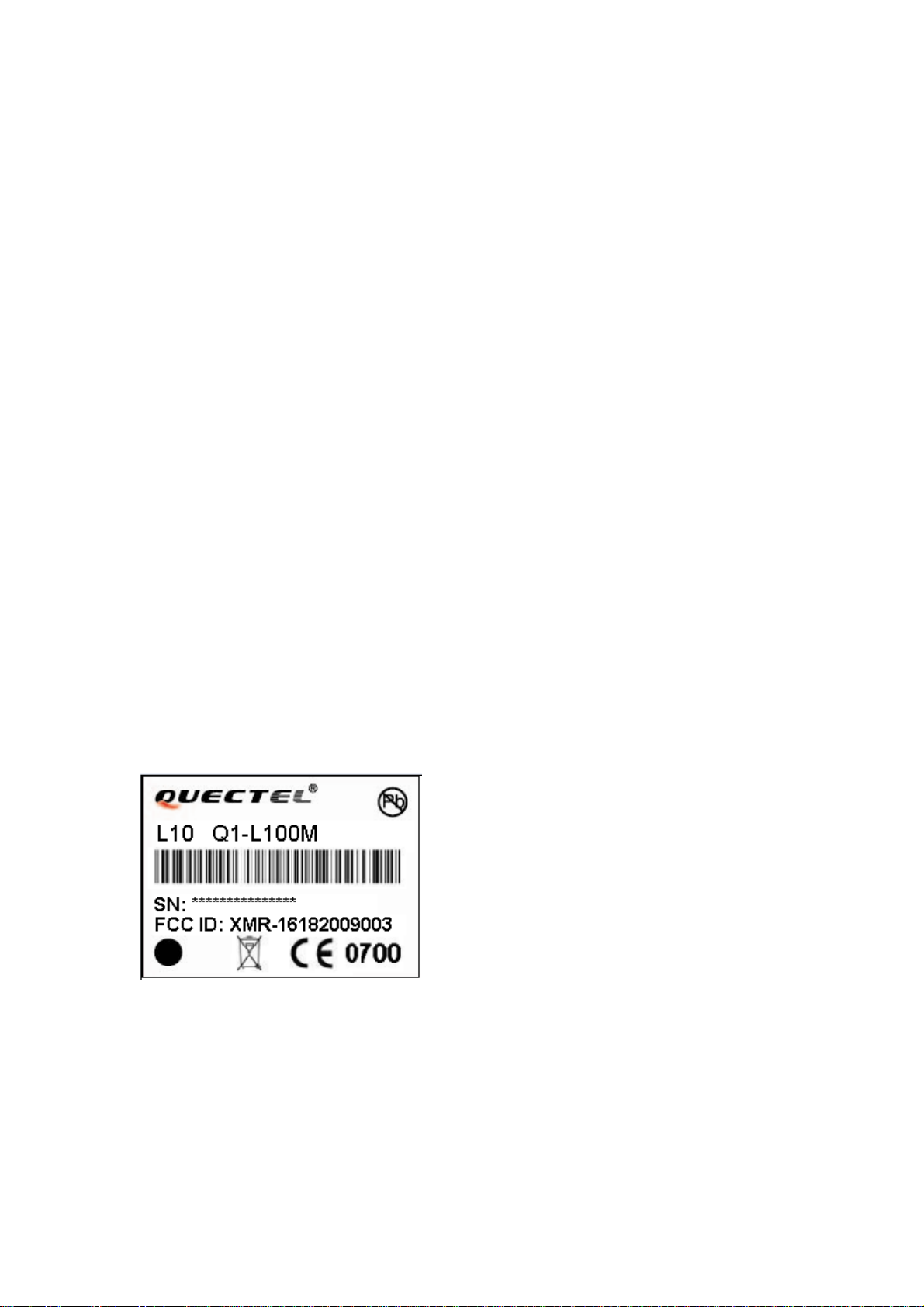

“Contains FCC ID：XMR-16182009003 ” L10 FCC label is shown as：
