RCF MX 9502 User manual

USER MANUAL
MX 9502
MX 9504
-DXT 9000 – EVACUATION /
PAGING AUDIO SYSTEM
-MX 9502 – MX 9504
MAIN UNITS WITH AMPLIFIERS

ENGLISH
TABLE OF CONTENTS
SAFETY PRECAUTIONS
NOTES ABOUT AUDIO SIGNAL CABLES
DXT 9000 SYSTEM DESCRIPTION
MX 9502 – MX 9504 MAIN UNIT DESCRIPTION
19” RACK INSTALLATION

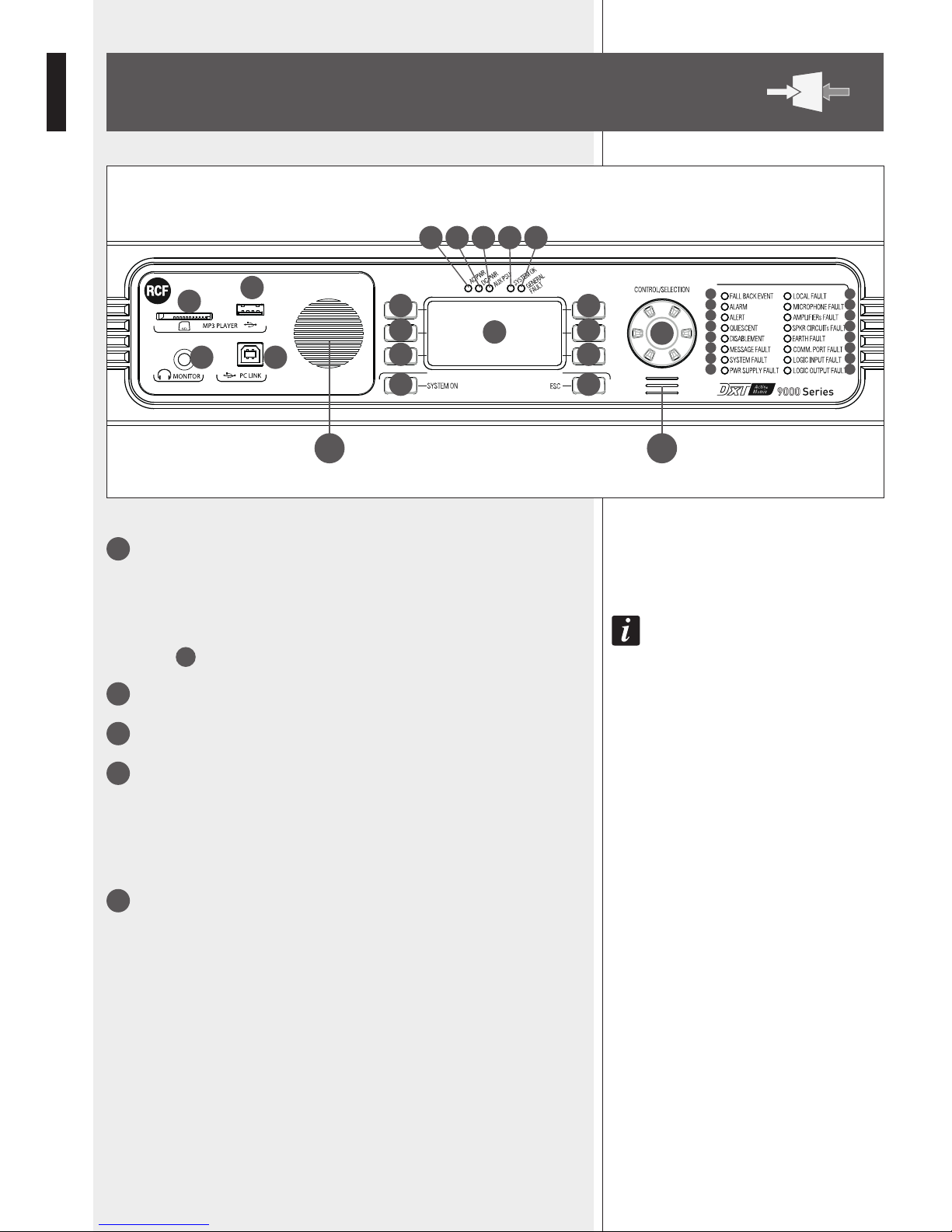

FRONT PANEL
REAR PANEL
LOUDSPEAKER CONNECTION
MAIN MENU AND ACCESS LEVELS
EVENT MENU
DISABLE-SURV MENU
AUDIO SET MENU
- AUDIO SET > INPUTS SUBMENU
- AUDIO SET > OUTPUTS SUBMENU
- AUDIO SET > MP3 & MONIT SUBMENU
- AUDIO SET > ROUTN PROG SUBMENU
- AUDIO SET > RTNG & PRST SUBMENU
- AUDIO SET > ZONE VOL SUBMENU
INFO MENU
SYS LOG MENU
SYS CONFIG MENU
- SYS CONFIG > ZONE-GRP SUBMENU
- SYS CONFIG > PAG CONS SUBMENU
- SYS CONFIG > GPI-VOX SUBMENU
- SYS CONFIG > GPO SUBMENU
- SYS CONFIG > REM-N&D SUBMENU
- SYS CONFIG > SETTINGS SUBMENU
DISPLAY LISTS
DISPLAY TEXT MESSAGES
INTERNAL JUMPER SETTINGS
CONNECTION EXAMPLE
GUIDANCE ON THE MEASUREMENT
OF THE SPEAKER LINE IMPEDANCE
SPECIFICATIONS
APPENDIX
4
5
6
10
11
12
16
21
22
24
24
26
26
31
32
33
34
35
35
36
37
37
38
41
43
44
45
46
47
49
50
52
56
58

4
ENGLISH
IMPORTANT
WARNING
SAFETY PRECAUTIONS
IMPORTANT
Before connecting and using this product, please read this instruction manual carefully and keep it
on hand for future reference.
The manual is to be considered an integral part of this product and must accompany it when it
changes ownership as a reference for correct installation and use as well as for the safety precautions.
RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.
WARNING: To prevent the risk of re or electric shock, never expose this product to rain or humidity.
This device is intended for indoor use only.
SAFETY PRECAUTIONS
1. All the precautions, in particular the safety ones, must be read with special attention, as they
provide important information.
2.1 PRIMARY POWER SUPPLY FROM MAINS
-The mains voltage is sufciently high to involve a risk of electrocution: never install or connect this
product when its power cord is plugged in.
-Before powering up, make sure that all the connections have been made correctly and the voltage
of your mains corresponds to the voltage shown on the rating plate on the unit, if not, please
contact your RCF dealer.
-This apparatus can be connected to either TT or TN earthing arrangements only.
-The metallic parts of the unit are earthed by means of the power cord. An apparatus with CLASS
I construction shall be connected to a mains socket outlet with a protective earthing connection.
-This apparatus shall be connected to a facility equipped device to protect against earth faults,
appropriately sized for the type and power of the installed line (RCD).
-Protect the power cord from damage. Make sure it is positioned in a way that it cannot be stepped
on or crushed by objects.
-To prevent the risk of electric shock, never open this product: there are no parts inside that the
user needs to access.
-The mains plug is used to disconnect the device and it shall remain readily operable.
2.2 SECONDARY (/ EMERGENCY) POWER SUPPLY THROUGH BATTERIES
-The apparatus operating voltage is 48 V dc (therefore, it is necessary to connect in series several
batteries having a lower nominal voltage, example: 4 x 12 V, 2 x 24 V).
-Always use rechargeable batteries, which need to be chosen according to the maximum possible
load.
-Verify the polarity of batteries is correct.
-Do NOT short-circuit batteries (i.e. connecting the 2 opposite poles together with metallic wires).
-The 48 V dc plug is used to disconnect the device and it shall remain readily operable.
-The 48 V dc power supply does not go beyond the fact that there are dangerous voltages inside
the unit.
-Throw empty batteries away according to your country laws about ecology and environment
protection.
3. Make sure that no objects or liquids can get into this product, as this may cause a short circuit.
This apparatus shall not be exposed to dripping or splashing. No objects lled with liquid (such as
vases) and no naked sources (such as lighted candles) shall be placed on this apparatus.
4. Never attempt to carry out any operations, modications or repairs that are not expressly described
in this manual.
Contact your authorized service centre or qualied personnel should any of the following occur:
-The product does not function (or functions in an anomalous way).
-The power cord has been damaged.
-Objects or liquids have got into the product.
-The product has been subject to a heavy impact.
5. If this product is not used for a long period, disconnect its power cord and batteries.
6. If this product begins emitting any strange odours or smoke, switch it off immediately and
disconnect its power cord and batteries.

5
ENGLISH
NOTES ABOUT AUDIO SIGNAL CABLES
7. The terminals marked with the symbol are HAZARDOUS LIVE and their connection is to be
made by an INSTRUCTED PERSON or the use of ready-made cables is required.
8. Do not connect this product to any equipment or accessories not foreseen.
For suspended installation, only use the dedicated anchoring points and do not try to hang this
product by using elements that are unsuitable or not specic for this purpose.
Also check the suitability of the support surface to which the product is anchored (wall, ceiling,
structure, etc.), and the components used for attachment (screw anchors, screws, brackets not
supplied by RCF etc.), which must guarantee the security of the system / installation over time, also
considering, for example, the mechanical vibrations normally generated by transducers.
To prevent the risk of falling equipment, do not stack multiple units of this product unless this
possibility is specied in this user manual.
9. RCF S.p.A. strongly recommends this product is only installed by professional
qualied installers (or specialised rms) who can ensure correct installation and certify
it according to the regulations in force.
The entire audio system must comply with the current standards and regulations
regarding electrical systems.
10. Supports and trolleys
The equipment should be only used on trolleys or supports, where necessary, that are recommended
by the manufacturer.The equipment / support / trolley assembly must be moved with extreme caution.
Sudden stops, excessive pushing force and uneven oors may cause the assembly to overturn.
11. Mechanical and electrical factors need to be considered when installing a professional audio
system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage,
frequency response, etc.).
12. Hearing loss
Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that
leads to hearing loss is different from person to person and depends on the duration of exposure. To
prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed
to these levels should use adequate protection devices.
When a transducer capable of producing high sound levels is being used, it is therefore necessary to
wear ear plugs or protective earphones.
See the technical specications in loudspeaker instruction manuals to know their maximum sound
pressure levels.
13. Do not obstruct the ventilation grilles of the unit. Situate this product far from any heat sources
and always ensure adequate air circulation around the ventilation grilles.
14. Do not overload ampliers. Check that amplier outputs are not shorted.
15. Never force the control elements (keys, knobs, etc. ).
16. Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts
of this product.
Use a dry cloth.
To prevent the occurrence of noise on microphone / line signal cables, use screened cables only and
avoid putting them close to:
-Equipment that produces high-intensity electromagnetic elds.
-Mains cables.
-Loudspeaker lines.
WARNING:
Any change made by unauthorized
personnel to the product and / or
the system (in which it is installed
and congured, including rack
cabinet and wiring) may invalidate
the CE marking (certication EN54-
16: 2008) and also the product
warranty.

6
ENGLISH
RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH HAS BEEN
MADE TO GUARANTEE RELIABILITY AND HIGH PERFORMANCE.
DXT 9000 is a monitored digital paging / evacuation system in compliance with EN 54-16
and ISO 7240-19 that allows a completely scalable and versatile range of congurations
and solutions.
It features a double-ring topology approach: a rst simple ring for the small and medium
size systems and a second larger ring supported by a main unit with router (MU 9186/R)
for large and extra-large applications, always plug & play and easy-congurable.
For instance, a small system can be designed by using only one MX 9502 / MX 9504
main unit, which already includes all the necessary controls and two 250 W (MX 9502)
/ four 125 W (MX 9504) class D power ampliers (having 100 V / 70 V constant voltage
loudspeaker lines).
A system that requires a higher output power or a larger number of zones can be obtained
by adding one or more system ampliers model UP 9501 (1 x 500 W), UP 9502 (2 x 250
W) or UP 9504 (4 x 125 W) to the MX 9502 / MX 9504, connected through the dedicated
RCF FLEXCOM data-link port.
MU 9186 is another main unit model similar to MX 9502 / MX 9504, but without internal
power ampliers.
Since data wiring may have critical connections, for instance due to cable type and length,
RCF FLEXCOM bus can adapt the data communication speed to the wiring characteristics
and available data band.
Only a few devices are necessary to design the simplest and the most complex projects,
centralized or distributed: no matter if a supermarket or a theatre, an airport or a shopping
centre, a fast-food or an underground, a school or a hospital.
DXT 9000 SYSTEM DESCRIPTION
100 V / 70 V LINES
100 V / 70 V LOUDSPEAKERS
MX 9504
100 V / 70 V LINES
100 V / 70 V LOUDSPEAKERS
100 V / 70 V LOUDSPEAKERS
MX 9504
UP 9501
100 V / 70 V LINES

7
ENGLISH
Diagnostic functions and fault reporting meet all evacuation system requirements.
Wiring is limited to a twin pair J-type re-rated cable for most of connections and to a four-
pair J-type re-rated cable to link paging microphones.
The system conguration can be edited on the main unit front panel (for small systems),
but it can also be made through a local or remote PC, by using a dedicated graphic user
interface software.
The dual power supply allows both AC and DC operation.
The ‘RCF D+ Class’ power amplier technology and recover-fall-back built-in facility make
the DXT 9000 a highly secure, reliable and safe system.
Each DXT 9000 unit is equipped with an RS 485 serial port to be used for the dedicated
system programmable remote controls. Noise detection devices work on RS 485 port as
well.
Two pre-recorded messages can be simultaneously played and sent to the DXT 9000
network from main units, which can store both emergency messages (to a checked
dedicated memory) and routine messages (on separated SD cards).
Another SD/USB support is used as MP3 player (to play background music).
The Ethernet port (on main units) allows to get the complete remote control of the whole
system.
DXT 9000 devices have programmable logic inputs and outputs, checked by the system
itself or by the connected security/emergency devices, such as re alarm systems.
Each component has its own digital address.
DXT 9000 includes high quality digital components already in use for RCF professional
audio systems, obtaining high performances and qualifying the DXT 9000 system for
installations in places that require a very good sound reproduction, such as theatres and
auditoriums.
DXT 9000 SYSTEM COMPONENTS
-MX 9502 Main unit including two 250 W class D ampliers inside
-MX 9504 Main unit including four 125 W class D ampliers inside
-MU 9186 Main unit (no power ampliers inside)
-MU 9186/R Main unit with router (no power ampliers inside)
-UP 9501 Unit with a single 500 W class D amplier
-UP 9502 Unit with two 250 W class D ampliers
-UP 9504 Unit with four 125 W class D ampliers
-BM 9804 Paging microphone with zone selection
-BM 9802 Paging microphone with zone selection through numeric keyboard
-BE 9808 Additional 8-zone keyboard for paging microphones
-TS 9918 Remote level control and programme selector

8
ENGLISH
100 V / 70 V LOUDSPEAKERS LINES

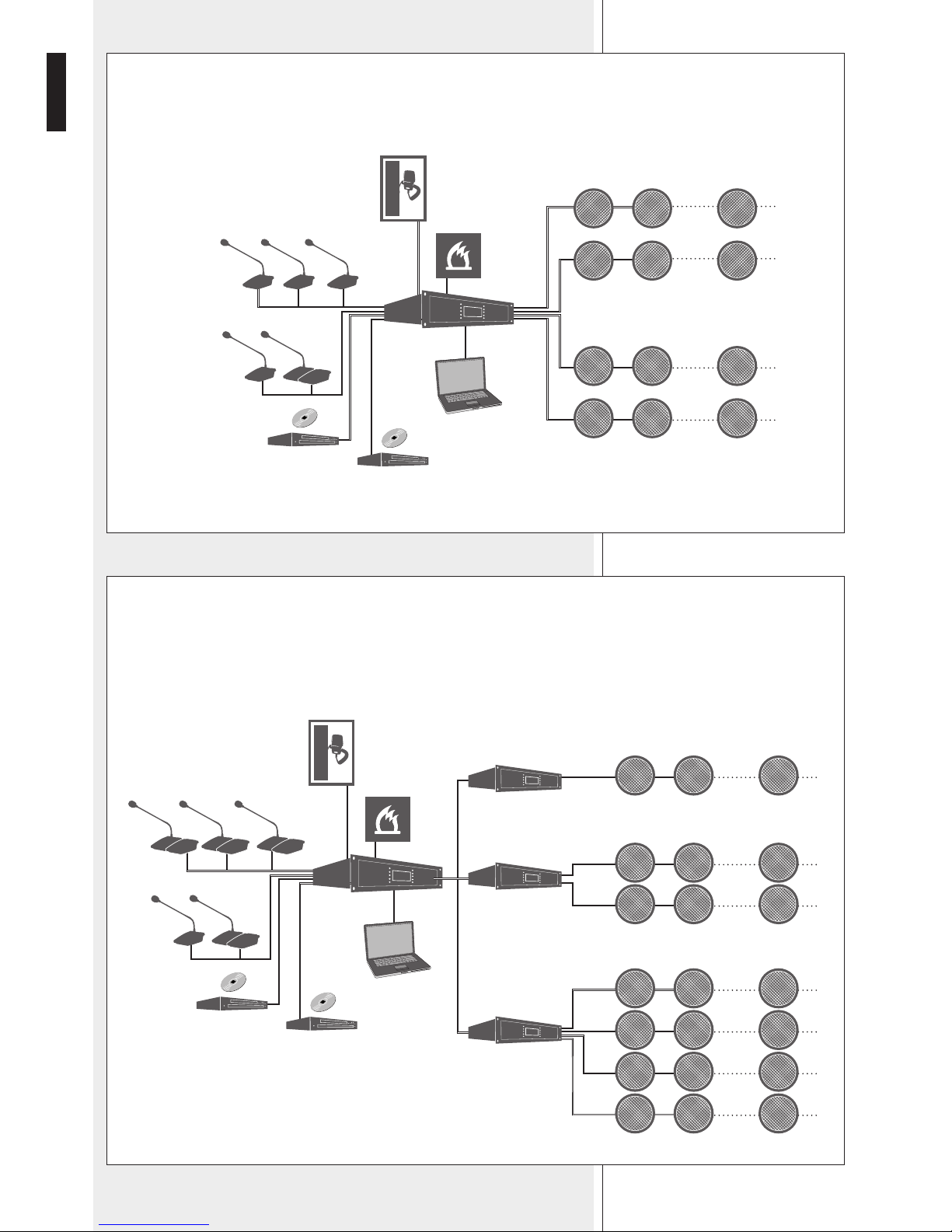

EXAMPLE: SYSTEM WITH MX 9504 MAIN UNIT
EXAMPLE: SYSTEM WITH MU 9186 MAIN UNIT
FALLBACK
EMERGENCY
MIC.
PAGING MIC.
BM 9802
BM 9804
+ BE 9808
MUSIC SOURCES
FIRE ALARM
SYSTEM
MX 9504
PC
FALLBACK
EMERGENCY MIC.
PAGING MIC.
BM 9802
BM 9804
+ BE 9808
MUSIC SOURCES
FIRE ALARM
SYSTEM
MU 9186
PC
100 V / 70 V LOUDSPEAKERS LINES
UP 9501
UP 9502
UP 9504

9
ENGLISH
100 V / 70 V LOUDSPEAKER LINES
UP 9502
UP 9501
EXAMPLE: SYSTEM WITH NETWORK
100 V / 70 V LOUDSPEAKERS LINES
UP 9502
FALLBACK
EMERGENCY MIC.
PAGING MIC.
BM 9802
BM 9804
+ BE 9808
MUSIC SOURCES
FIRE ALARM
SYSTEM
MU 9186/R
PC
FALLBACK
EMERGENCY
MIC.
PAGING MIC.
BM 9802
BM 9804
+ BE 9808
MUSIC SOURCES
FIRE ALARM
SYSTEM
MU 9186/R
PC

10
ENGLISH
MX 9502 and MX 9504 are main units with audio inputs and outputs, a pre-recorded
message player, control / surveillance functions, MP3 player.
The MX 9502 model has two (class D) 250 W ampliers, the MX 9504 model has four
(class D) 125 W ampliers. Amplier outputs are for 100 V / 70 V loudspeaker lines.
MX 9502 / MX 9504 main units can drive several low-impedance loudspeakers and allow
to directly add and connect UP 9500 series ampliers.
A UP 9501 can be set as ‘spare’ that automatically replaces an internal faulty one of a
main unit.
MAIN FEATURES
-Congurable digital matrix.
-MX 9502: two internal (class D) 250 W ampliers
-MX 9504: four internal (class D) 125 W ampliers
-100 V / 70 V outputs for loudspeakers
-Fully monitored as according to the EN 54-16 and ISO 7240-19 standards.
-The zone conguration is virtual and can be set after the system installation.
-Two bus inputs for paging microphones.
-FALL-BACK input to connect an independent dedicated EVAC paging microphone.
-Digital signal processor on both inputs and outputs. A compressor can be inserted on
the AUX and MAIN inputs.
-Evacuation messages (with priority) are stored to a checked and protected internal
memory. Two messages (for evacuation, routine communications or advertisements)
can be played simultaneously (to different zones).
-SD slot for cards with routine messages that can be triggered from GPI or the internal
timer.
-MP3 player (with USB port and SD card slot) for background music.
-The BGM1 analogue audio input can be alternatively replaced by the MP3 player and
the PAGING IN 2 input by the AUX INPUT. This can be made by using software presets.
-AUX and MONITOR audio outputs.
-Graphic user interface to set all system parameters directly from a PC through USB port.
-Front panel control with LCD.
-RCF-FLEXCOM technology digital Audio Bus to connect ampliers (UP 9501, UP 9502,
UP 9504).
-12 GPI logic inputs (8 monitored and 4 optical) and 8 GPO logic outputs (relays).
-RS 485 serial port (screw terminals) for interfacing and monitoring.
-ETHERNET port (RJ 45 connector) for local area network (LAN) applications, local and
remote system conguration.
-Optional programme selector and level remote control.
-AC and DC power supply.
MX 9502 – MX 9504 MAIN UNIT DESCRIPTION

11
ENGLISH
19” RACK INSTALLATION
BLOCK DIAGRAM
Fix the MX 9502 / MX 9504 main unit to the front side of a 19” rack cabinet through 4
screws.
Internal ampliers have forced ventilation controlled by a thermostat, so main units can
be stacked without spaces or ventilation panels.
Air ventilation is horizontally, so it is necessary to keep open the lateral sides.
Rack cabinets shall have:
-At least an IP 30 rating.
-A door with glass (or a thin metal mesh), through which the warning and emergency
light indications are clearly visible (according to regulations).

12
ENGLISH
FRONT PANEL
1SYSTEM ON: button: press and hold to turn the main unit on (when off).
This button also works as fault acknowledge: press it to remove the displayed fault
indication.
The SYSTeM ON buTTON dOeS NOT TurN The MaiN uNiT Off. TOSwiTch The MaiN uNiT Off, Make Sure The
48 V dc pOwer SupplY (baTTerieS) iS NOT preSeNT aNd uSe eiTher The prOper SOfTware fuNcTiON Or The
MaiN pOwer
52
SwiTch ON The rear paNel.
2ESC (‘Escape’) button: press to quit the displayed menu.
3Six buttons to select the respective functions shown on the display.
4CONTROL / SELECTION: rotary encoder and push-button to select.
Turn the encoder clockwise to scroll the menu downwards or increase the selected
parameter value.
Turn it counterclockwise to scroll the menu upwards or decrease the selected parameter
value.
Press to select.
5Display (LCD)
1 2
11 19
13 21
16 24
12 20
15 23
14 22
17 25
18 26
33
33 54
33
28
27
29 30
7 8 9 106
31a31b

13
ENGLISH
6÷ 26 LEDs
No. SILK SCREEN COLOUR INDICATION (WHEN LIT) FURTHER INFORMATION
6AC PWR Green The mains power (AC) is present and the
respective fuse is intact.
If the LED is off, the mains power is not
available (or out of range).
7DC PWR Green 48 V dc power supply is present and the
respective fuse is intact.
If the LED is off, 48 V dc is not available (or
out of range).
8AUX PSU Green The main unit is turned on and its stand-by
power supply unit operates properly.
9SYSTEM OK Green No detected faults:
the entire system is operating properly.
The LED is lit when no faults are detected
on any system device.
10 GENERAL FAULT Yellow
One or more faults have been detected,
including problems on power supply, so it
can be lit even if the AC PWR 6and
DC PWR 7green LEDs are off.
The LED gets lit even in case of failure of
any peripheral unit.
If a logic input (GPI) is set to obtain a fault
remote indication of an external device,
a possible problem is indicated by the
GENERAL FAULT LED.
11 FALL BACK EVENT Red
An emergency announcement (with
highest priority) is in progress through the
FALL BACK INPUT 32 .
12 ALARM Red
The evacuation message is currently
played. This LED also indicates the play
of a message from a microphone or an
external source activated as EMERGENCY
(GPI set to EMERG).
13 ALERT Yellow
The alert message is currently played. This
LED also indicates the play of a message
from a microphone or an external source
activated as ALERT (GPI set to ALERT).
14 QUIESCENT Green The device is switched on but not playing
any audio signal.
It simply indicates an idle state, as there is
no audio signal.
15 DISABLEMENT Yellow One or more device inputs, outputs or
peripherals are disabled.
This LED is lit only in case of one or more
circuits and/or devices used for evacua-
tion/emergency are disabled.
In the case, for example, of a non-monito-
red paging microphone, its disabling will
not make the LED get lit.
16 MESSAGE FAULT Yellow Main unit emergency message player fault.
Faulty memory or problems on the audio
path (the internal message player is
not properly linked to the system audio
outputs).

14
ENGLISH
No. SILK SCREEN COLOUR INDICATION (WHEN LIT) FURTHER INFORMATION
17 SYSTEM FAULT Yellow Internal microprocessor reset.
After rebooting, the LED will be off,
but the reset event will remain in the
SYSTEM / FAULT LOG.
18 PWR SUPPLY
FAULT Yellow
Power supply fault (internal power
supply, internal boards or external
power supply).
A logic input (GPI) needs to be
linked to the logic output of the
external power supply unit and set to
EXTERNAL EVENT FAULT.
A possible external power supply unit
fault is displayed as EXTERNAL PSU
FAULT.
19 LOCAL FAULT Yellow
Main unit local fault. This LED gets lit
even in case of main power fault.
This LED is lit in the faulty device only.
For instance, if a SLAVE unit is faulty
and the MASTER unit is properly
operating, this LED is lit on the SLAVE
unit only, while the SYSTEM FAULT
17 LED is lit on both MASTER and
SLAVE units.
If a logic input (GPI) is set to signal a
possible fault of an external system,
this will be indicated by the LOCAL
FAULT LED (only in the unit where the
logic input has been activated).
20 MICROPHONE
FAULT Yellow
An emergency paging microphone
(among those connected to FALL
BACK 32 or PAGING 1 41 / PAGING
2 42 inputs, if set to EMERGENCY in
the software) is faulty.
On SLAVE units, it only indicates of
the paging microphones connected to
the FALL BACK input.
21 AMPLIFIERs FAULT Yellow One or more ampliers are faulty.
22 SPKR CIRCUITs
FAULT Yellow One or more loudspeaker lines are faulty.
23 EARTH FAULT Yellow Loudspeaker line earth leakage. Earth leakage < 50 kΩ

15
ENGLISH
No. SILK SCREEN COLOUR INDICATION (WHEN LIT) FURTHER INFORMATION
24 COMM. PORT
FAULT Yellow Hardware / RS 485 serial port (for linking to a re alarm system) fault.
This indication depends on either a
broken / short-circuited cable or no
data transmission (for example, due
to a damaged serial port) or remote
device unavailable.
25 LOGIC INPUT
FAULT Yellow
GPI fault. The LED gets lit when
the logic input is monitored and its
respective line is open or shorted.
A logic input (GPI) needs to be
monitored when linked to a re alarm
system (to activate pre-recorded
messages remotely).
26 LOGIC OUTPUT
FAULT Yellow
GPO fault. The LED gets lit when the
logic output is monitored and its
respective line is open or shorted.
A logic output (GPO) needs to be
monitored when linked to a re alarm
system (for example, to signal an
audio system fault to the re alarm
system).
27 MP3 player SD card slot.
28 USB port (type A) for USB ash drives (MP3 player).
29 MONITOR: 6.3 mm jack input (TRS) for headphones.
30 PC LINK: USB port (type B) to connect a PC that can be used to congure and
manage the system.
31aInternal loudspeaker (monitor).
31bInternal buzzer for fault alert (or evacuation message in progress).
It can be muted by pressing the SYSTEM ON 1button.

16
ENGLISH
32 FALL BACK INPUT: monitored audio input (balanced, ‘line’ level, for removable
connector) to be used for emergency announcements. This input can be used even in case
of software crash.
REAR PANEL
For monitoring purposes, the two CMD contacts should normally be powered by 24 V dc
(voltage available from the 24 V DC 49 output.
FALL BACK input state depends on presence and polarity of the voltage at the two CMD
contacts.
STATE Voltage at the CMD contacts Description
COMMAND KO No voltage The FALL BACK INPUT is not connected
IDLE 24 V dc, direct polarity The FALL BACK INPUT is connected, but
inactive
ACTIVE 24 V dc, reverse polarity The FALL BACK INPUT is activated
AUDIO
– Audio signal (cold)
+ Audio signal (hot)
GND Audio signal ground
CMD
–Activation and monitoring contacts
of the FALL BACK audio input.
+
AC VOLTAGE SELECTOR
AND FUSE INSIDE,REFER
TO INSTRUCTION MANUAL
WARNING
TO REDUCETHE RISK
OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
SERIAL NUMBER
GENERAL PURPOSE OUTPUTS
1234 567 8
+-+-+-+-+-+-+-+-
RELAY OUTPUTS (contact load 0,3A - 24V DC)
BGM 3AUX INPUT
GND
PAGING IN 2 PAGING IN 1
FALL BACK INPUT
CMD
GND
AUDIO
GENERAL PURPOSE INPUTS
Max 100 mA
1234 567 8 9101112
PHOTO-COUPLED INPUTSMONITORED INPUTS
24V DC
ROUTINE MESSAGES ETHERNET
MADE IN ITALY
MOH
MONITOR OUT
AUX OUT
MAIN IN BGM 2 BGM 1
GND
GND 28V GND
BUS IN BUS OUT
FLEXCOM BUSCTRL RS485
1234 1234
MX
2x250W MASTER UNIT
POWER 115/230V ~ 50-60Hz - 60 W max48 V 15 A max
EN54-16
COMPLIANCE STICKER
MAX OUTPUT POWER 500W RMS
MINIMUM LOADIMPEDANCE
70 V (20 ) - 100V (40 )
+-+-+-+-+-+-+-+-
Series
SPEAKER LINE OUT
LINE A1 LINE A2
- + - + - + - +
LINE B1 LINE B2
SPARE AMP BUS
INPUT
- + - +
OUTPUT
MX 9502
MX 9504
AC VOLTAGE SELECTOR
AND FUSE INSIDE,REFER
TO INSTRUCTION MANUAL
WARNING
TO REDUCETHE RISK
OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
SERIAL NUMBER
GENERAL PURPOSE OUTPUTS
1234 567 8
+-+-+-+-+-+-+-+-
RELAY OUTPUTS (contact load 0,3A - 24V DC)
BGM 3AUX INPUT
GND
PAGING IN 2 PAGING IN 1
FALL BACK INPUT
CMD
GND
AUDIO
GENERAL PURPOSE INPUTS
Max 100 mA
1234 567 8 9101112
PHOTO-COUPLED INPUTSMONITORED INPUTS
24V DC
ROUTINE MESSAGES ETHERNET
MADE IN ITALY
MOH
MONITOR OUT
AUX OUT
MAIN IN BGM 2 BGM 1
GND
GND 28V GND
BUS IN BUS OUT
FLEXCOM BUSCTRL RS485
1234 1234
MX
1x125W MASTER UNIT
POWER 115/230V ~ 50-60Hz - 60 W max48 V 15 A max
EN54-16
COMPLIANCE STICKER
MAX OUTPUT POWER 500W RMS
MINIMUM LOADIMPEDANCE
70 V (20 ) - 100V (40 )
+-+-+-+-+-+-+-+-
Series
SPEAKER LINE OUT
LINE ALINE B
- + - + - + - +
LINE C LINE D
SPARE AMP BUS
INPUT
- + - +
OUTPUT
50 48
525153b 53a
49545556
45 44 43 42 41 40 37 36 35
33
34
4647
39 38 32
50 48
52
51
49545556
45 44 43 42 41 40 37 36 35
33
34
4647
39 38 32
53d 53b53c 53a

17
ENGLISH
33 MONITOR OUT audio output (RCA connector).
34 AUX OUT audio output (RCA connector).
35 BGM 1 audio input (dual RCA connector) for a ‘line’ level signal (i.e. CD / MP3
player, tuner).
36 MOH (‘Music On Hold’): parallel output of the BGM 1 35 input that can be
connected , for example, to a phone system to get the ‘Music On Hold’.
37 BGM 2 audio input (dual RCA connector) for a ‘line’ level signal (i.e. CD / MP3
player, tuner).
38 BGM 3 audio input (dual RCA connector) for a ‘line’ level signal (i.e. CD / MP3
player, tuner).
The TwO chaNNelS (lefT / righT) Of STereO SigNalS ON bgM 1
35 , bgM 2 36
aNd bgM 3
38
iNpuTS are Mixed iN MONO iNSide The deVice. The TwO chaNNelS (lefT / righT) Of The SigNal ON bgM 1
35
iNpuT are direcTlY SeNT TO The MOh
36
parallel OuTpuT, which iS STereO.
39 AUX INPUT balanced audio input (removable connector).
+ Hot
– Cold
GND Ground
+ Hot
– Cold
GND Ground
40 MAIN IN balanced audio input (removable connector).
MaiN iN caN haVe The ‘VOx’ fuNcTiON eNabled, which auTOMaTicallY deTecTS The audiO SigNal
preSeNce wheN abOVe apredefiNed ThreShOld.

18
ENGLISH
41 PAGING IN 1 input (RJ 45 connector) to link paging microphones.
42 PAGING IN 2 input (RJ 45 connector) to link paging microphones.
pagiNg 1 aNd pagiNg 2 iNpuT piNS:
PIN PIN
1 Audio signal (+, hot) 5 Audio signal ground
2 Audio signal (–, cold) 6 Power supply + 28 V dc
3 Digital and power supply ground 7 RS 485 A (+)
4 Audio signal ground 8 RS 485 B (-)
RJ 45 socket RJ 45 plug
43 ETHERNET port (RJ 45 socket)
44 ROUTINE MESSAGES: slot for SD cards including routine (non-emergency)
message audio les.
45 CTRL RS485: RS 485 serial port (removable connector).
+ RS 485 A (non-inverting)
– RS 485 B (inverting)
GND RS 485 (reference ground)
28V Power supply + 28 V dc
GND Power supply ground

19
ENGLISH
A B
470 Ω 10 kΩ
46 FLEXCOM BUS IN: data bus input (removable connector).
47 FLEXCOM BUS OUT: data bus output (removable connector).
48 GENERAL PURPOSE INPUTS
12 logic inputs (removable connectors), of which the rst 8 are monitored and the last 4
with opto-isolators.
The lOgical iNpuTS 9 TO 12 caN be acTiVaTed bY cONNecTiNg The 24 V dc
49
OuTpuT TO each lOgic
iNpuT. pOSSible lOgic STaTeS: iNacTiVe / acTiVe.
LOGIC INPUT 1 ÷ 8 STATES:
SUGGESTED RESISTORS TO BE ADDED TO GET LINE MONITORING:
A B
GPI
(1-8)
STATE DETECTED RESISTANCE VALUE (R)
OPEN Open line or too high resistance R > 15 kΩ
SHORT Short-circuit or too low resistance R < 390 Ω
IDLE Used logic input, but inactive 3.4 kΩ < R < 15 kΩ
ACTIVE Activated logic input 390 Ω < R < 1.17 kΩ

20
ENGLISH
49 24 V DC: 24 V dc output, max. 100 mA.
50 GENERAL PURPOSE OUTPUTS
8 logic outputs (relay dry contacts, removable connectors).
Each logic output has two resistors that can be inserted by setting the respective jumper
(JP1 to JP8) to the AB position. These two resistors are necessary when the logic output
(GPO) is linked to a logic input (GPI) of another device and the line monitoring is
required.
The rst resistor (470 Ω) is used to get the ACTIVE state, the second (10 kΩ) to get the
IDLE state.
If a jumper is set to the BC position, the two resistors are overridden (the internal relay
contact is directly connected).
iNTerNal juMper SeTTiNg NeedS TO be carried OuT direcTlY bY eiTher rcf Or aN auThOriSed SerVice
ceNTre.
WARNING:
dO NOT direcTlY pOwer alOgic OuTpuT (
GPO
) wheN The reSpecTiVe iNTerNal juMper
iS SeT TO The
AB
pOSiTiON (iNSerTed reSiSTOrS), aS The Max. curreNT iS ONlY 25
mA
. ifThe juMper iS
SeT TO The
BC
pOSiTiON, The Max. curreNT iS 0.3 a.
MAX APPLICABLE VOLTAGE
: 24 V dc.
51 SPARE AMP BUS – INPUT
Input to link the spare amplier 100 V / 70 V output.
52 SPARE AMP BUS – OUTPUT
If the amplier is not faulty (and so the spare amplier is not inserted), this 100 V / 70 V
output is directly linked to the SPARE AMP BUS – INPUT 51 and can be used to
connect a dummy load.
53a(MX 9502) SPEAKER LINE OUT
Two 100 V / 70 V loudspeaker line outputs (LINE A1 and LINE A2) of the internal
amplier channel A (250 W).
53b(MX 9502) SPEAKER LINE OUT
Two 100 V / 70 V loudspeaker line outputs (LINE B1 and LINE B2) of the internal
amplier channel B (250 W).
53a(MX 9504) SPEAKER LINE OUT
100 V / 70 V loudspeaker LINE A output of the internal amplier channel A (125 W).
53b(MX 9504) SPEAKER LINE OUT
100 V / 70 V loudspeaker LINE B output of the internal amplier channel B (125 W).
53c(MX 9504) SPEAKER LINE OUT
100 V / 70 V loudspeaker LINE C output of the internal amplier channel C (125 W).
53d(MX 9504) SPEAKER LINE OUT
100 V / 70 V loudspeaker LINE D output of the internal amplier channel D (125 W).
GPO
B
C
JP 1 ÷ 8
10k
470 A
AC VOLTAGE SELECTOR
AND FUSE INSIDE,REFER
TO INSTRUCTION MANUAL
WARNING
TO REDUCE THE RISK
OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
SERIAL NUMBER
GENERAL PURPOSE OUTPUTS
1234 567 8
+-+-+-+-+-+-+-+-
RELAY OUTPUTS (contact load 0,3A - 24V DC)
BGM 3AUX INPUT
GND
PAGING IN 2 PAGING IN 1
FALL BACK INPUT
CMD
GND
AUDIO
GENERAL PURPOSE INPUTS
Max 100 mA
1234 567 8 9101112
PHOTO-COUPLED INPUTSMONITORED INPUTS
24V DC
ROUTINE MESSAGES ETHERNET
MADE IN ITALY
MOH
MONITOR OUT
AUX OUT
MAIN IN BGM 2 BGM 1
GND
GND 28V GND
BUS IN BUS OUT
FLEXCOM BUSCTRL RS485
1234 1234
MX
2x250W MASTER UNIT
POWER 115/230V ~ 50-60Hz - 60 W max48 V 15 A max
EN54-16
COMPLIANCE STICKER
MAX OUTPUT POWER 500W RMS
MINIMUM LOAD IMPEDANCE
70 V (20 ) - 100V (40 )
+-+-+-+-+-+-+-+-
Series
SPEAKER LINE OUT
LINE A1 LINE A2
- + - + - + - +
LINE B1 LINE B2
SPARE AMP BUS
INPUT
- + - +
OUTPUT
AC VOLTAGE SELECTOR
AND FUSE INSIDE,REFER
TO INSTRUCTION MANUAL
WARNING
TO REDUCE THE RISK
OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
SERIAL NUMBER
GENERAL PURPOSE OUTPUTS
1234 567 8
+-+-+-+-+-+-+-+-
RELAY OUTPUTS (contact load 0,3A - 24V DC)
BGM 3AUX INPUT
GND
PAGING IN 2 PAGING IN 1
FALL BACK INPUT
CMD
GND
AUDIO
GENERAL PURPOSE INPUTS
Max 100 mA
1234 567 8 9101112
PHOTO-COUPLED INPUTSMONITORED INPUTS
24V DC
ROUTINE MESSAGES ETHERNET
MADE IN ITALY
MOH
MONITOR OUT
AUX OUT
MAIN IN BGM 2 BGM 1
GND
GND 28V GND
BUS IN BUS OUT
FLEXCOM BUSCTRL RS485
1234 1234
MX
1x125W MASTER UNIT
POWER 115/230V ~ 50-60Hz - 60 W max48 V 15 A max
EN54-16
COMPLIANCE STICKER
MAX OUTPUT POWER 500W RMS
MINIMUM LOAD IMPEDANCE
70 V (20 ) - 100V (40 )
+-+-+-+-+-+-+-+-
Series
SPEAKER LINE OUT
LINE ALINE B
- + - + - + - +
LINE C LINE D
SPARE AMP BUS
INPUT
- + - +
OUTPUT
AC VOLTAGE SELECTOR
AND FUSE INSIDE,REFER
TO INSTRUCTION MANUAL
WARNING
TO REDUCE THE RISK
OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
SERIAL NUMBER
GENERAL PURPOSE OUTPUTS
1234 567 8
+-+-+-+-+-+-+-+-
RELAY OUTPUTS (contact load 0,3A - 24V DC)
BGM 3AUX INPUT
GND
PAGING IN 2 PAGING IN 1
FALL BACK INPUT
CMD
GND
AUDIO
GENERAL PURPOSE INPUTS
Max 100 mA
1234 567 8 9101112
PHOTO-COUPLED INPUTSMONITORED INPUTS
24V DC
ROUTINE MESSAGES ETHERNET
MADE IN ITALY
MOH
MONITOR OUT
AUX OUT
MAIN IN BGM 2 BGM 1
GND
GND 28V GND
BUS IN BUS OUT
FLEXCOM BUSCTRL RS485
1234 1234
MX
2x250W MASTER UNIT
POWER 115/230V ~ 50-60Hz - 60 W max 48 V 15 A max
EN54-16
COMPLIANCE STICKER
MAX OUTPUT POWER 500W RMS
MINIMUM LOAD IMPEDANCE
70 V (20 ) - 100V (40 )
+-+-+-+-+-+-+-+-
Series
SPEAKER LINE OUT
LINE A1 LINE A2
- + - + - + - +
LINE B1 LINE B2
SPARE AMP BUS
INPUT
- + - +
OUTPUT
