Rear view safety RVS-AC700 User manual

1
TM

Warning
1. This is a high precision product. Do not let it fall or get crushed.
2. Do not expose to strong, magnetic objects and electrical motors.
Avoid strong radio waves. Strong magnetic fields may cause the product
to break down or cause damage to images and sounds.
3. Never leave the product exposed to high temperatures and direct
sunlight.
4. Please choose branded MicroSD cards. Neutral cards are not guaran
teed to work normally.
5. Do not place Micro SD cards near strong magnetic objects to avoid
data loss.
6. n case of overheating, smoke, or unpleasant smell in the process of
charging, unplug your device immediately to prevent fire hazard.
7. While it is charging, keep the product out of children’s reach. Power
line may cause children accidental suffocation or electric shock.
8. Keep the device in cool, dry and dustproof places.
Preface
This product is a highdefinition digital motion video recording
device tailored to market demand. t has a variety of industryleading
features including digital video recording, photo shooting, audio record
ing, video display and a detachable battery, which makes it perfect for
vehicle data recording, photoshooting, outdoor sports, home security,
deepwater probing, etc., allowing you to film anytime, anywhere. t has
a variety of patents.
Multipurpose
REAR V EW SAFETY
2
ntroduction

►A waterresistant casing that allows you to film fascinating water
sports; waterresistant up to 30 meters under water
►High definition screen that displays and replays fascinating videos
recorded
►Detachable battery that is easy to replace and prolongs your camera’s
service life
►Video recording while charging
►Video recording with battery
►12megapixel HD wideangle lens
►HDM HD output
►Web camera
►Supports storage cards up to 32GB maximum
►Multiple video recording formats: 1080P/720P
►Records in MOV format
►Multiple photo shooting modes: Single Shot, Burst Mode
►Video encryption enabled
3
Reverse With Confidence™
Product Features

REAR V EW SAFETY
4

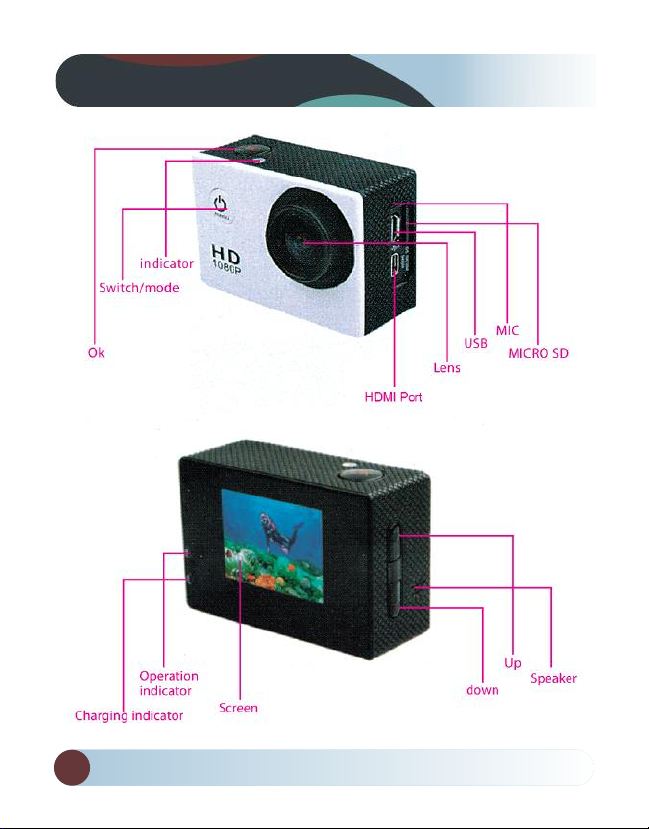

Picture of Product

5
Reverse With Confidence™

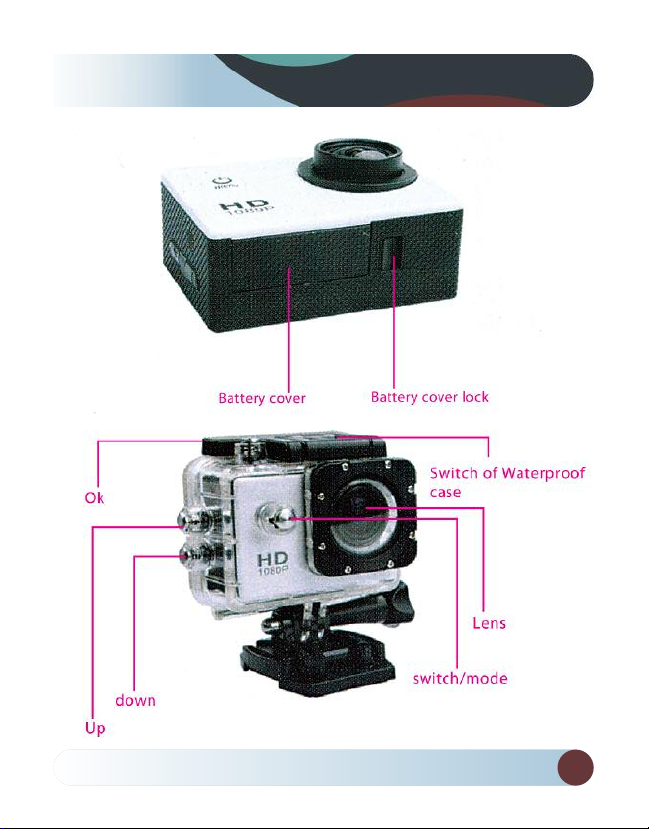

Picture of Product

REAR V EW SAFETY
6

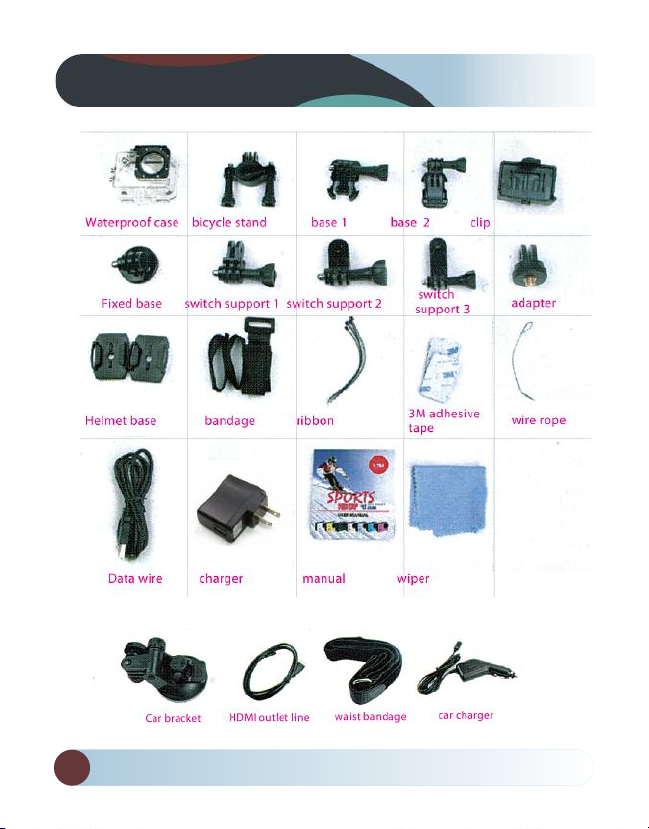

Accessories
Optional Accessories

7
Reverse With Confidence™
Picture of Product

1. Inserting Micro SD Card
Note: Please choose branded Micro SD card and format it on computer
before use. Neutral cards are not guaranteed to work normally.
2. Installing and Re oving Batteries
A. Press on battery cap to open it.
B. Correctly install battery into camera as indicated by +/ symbols
and direction of arrows marked on battery until it’s in place.
C. Battery Gauge: Please refer to diagram.
D. Remove Battery: Open cap to take battery out.
3. Charging
A. Charging can be done by either connecting AC700 to computer or
power adaptor.
B. AC700 can record video while charging (Switch into Vehicle
mounted Mode in “Menu”)
C. Charging of AC700 can be done even when it’s powered off.
4. Switching Ca era On and Off
A. Press and hold power switch for 3 to 5 seconds to turn it on/off.
B. Switch it on and off by turning display screen on and off.
5. Mode Switching
Switch between video recording/photo shooting/playback/menu by
pressing “Power OnOff” button,
6. How to record videos and configure recording settings
A. Video Recording
Switch to recording mode and there’ll be an icon in the upper left
of the screen. Press OK to start recording and the icon in the
upper left
REAR V EW SAFETY
8
Functions

corner will start to flash. Press “OK” again if you want to stop and the
icon will disappear.
B. Photo shooting & Settings
Switch the camera on and press “Mode” to select “Photo shooting
Mode”, there’ll be an icon in the upper left corner of display screen
and the camera is in photo shooting mode. Press “OK” to take photos.
Shooting Pattern: Single shot/Selftimer (2s/5s/10s)/Continous Shoot
ing
C. File Storage & Playing
After you are done recording, use a USB cable to export the videos
onto a computer to play. Alernatively you can take the Micro SD card
out and access the images data with a card reader.
9
Reverse With Confidence™
Operations

REAR V EW SAFETY
10
Specifications
Liquid Crystal Display (LCD) 1.5LTPS
Lens 170° A + HD wide-angle lens
Language Options English/German/French/Spanish/ talian/P
ortuguese/Chinese Traditional/Chinese
Simplified/Japanese/Russian
Resolution of Videos Recorded 1080P (1920*1080) 30FPS
720P (1280*720) 30FPS
VGA (848*480) 30FPS
QVGA (640*480) 30FPS
Video Format MOV
Compressed Format of Videos H.264
Resolution of Photos 12M/8M/5M
Storage MicroSD
Shooting Mode Single Shot/Selftimer (2s/5s/10s/Conti
nous Shooting)
Frequency of Optical Source 50Hz/60Hz
USB nterface USB2.0
Power Source nterface 5V2A
Battery Capacity 900MAH
Power Dissipation [email protected]
Recording Time 60 FPS/ About 50minutes, 30FPS/ About
70 minutes
Charging Time About 3 hours
Operating System (OS) Windows XP/Vista or above/Win7/MAC
Dimension 59.27*41.13*29.28
Note: Specifications could be subject to modification due to upgrading
or updating. Please regard the actual product as the standard form.
Note: For 1080 60 FPS recordings you will need to use a Class 6 or
higher Micro SD card.

11
Reverse With Confidence™
Warranty
One Year Warranty
Rear View Safety nc. warrants this product against material defects
for a period of one year from date of purchase. We reserve the right
to repair or replace any such defective unit at our sole discretion.
Rear View Safety nc. is not responsible for a defect in the system as
a result of misuse, improper installation, damage or mishandling of
the electronic components. Rear View Safety nc. is not responsible
for consequential damages of any kind.
This warranty is void if: defects in materials or workmanship or damages result from
repairs or alterations which have been made or attempted by others or the unautho
rized use of nonconforming parts; the damage is due to normalware and tear, this
damage is due to abuse, improper maintenance, neglect or accident: or the damage is
do to use of the Rear View Safety nc. system after partial failure or use with im
proper accessories.
Warranty Perfor ance
DUR NG THE ABOVE WARRANTY PER OD, SHOULD YOUR Rear View Safety
PRODUCT EXH B T A DEFECT N MATER AL OR WORKMANSH P, SUCH DEFECT
W LL BE REPA RED WHEN THE COMPLETE Rear View Safety NC. PRODUCT S
RETURNED, POSTAGE PREPA D AND NSURED, TO Rear View Safety NC.
OTHER THAN THE POSTAGE AND NSURANCE REQU REMENT, NO CHARGE
W LL BE MADE FOR REPA RS COVERED BY TH S WARRANTY.
Warranty Disclai ers
NO WARRANTY, ORAL OR WR TTEN, EXPRESSED OR MPL ED, OTHER THE
ABOVE WARRANTY S MADE W TH REGARD TO TH S Rear View Safety NC.
Rear View Safety NC. D SCLA MS ANY MPL ED WARRANTY OR MERCHANT
AB L TY OR F TNESS FOR A PART CULAR USE OR PURPOSE AND ALL OTHER
WARRANT ES N NO EVENT SHALL Rear View Safety NC. L ABLE FOR ANY N
C DENTAL, SPEC AL, CONSEQUENT AL, OR PUN T VE DAMAGES OR FOR ANY
COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FA LURE OF, OR DEFECT N ANY PROD
UCT NCLUD NG, BUT NOT L M TED TO, ANY CLA MS FOR LOSS OF PROF TS

RVS SYSTEMS
12
Disclaimer
Rear View Safety and/or its affiliates does not guarantee or promise
that the user of our systems will not be in/part of an accident or
otherwise not collide with an object and/or person. Our systems are
not a substitute for careful and cautious driving or for the consistent
adherence to all applicable traffic laws and motor vehicle safety
regulations. The Rear View Safety products are not a substitute for
rearview mirrors or for any other motor vehicle equipment mandated
by law. Our camera systems have a limited field of vision and do not
provide a comprehensive view of the rear or side area of the vehicle.
Always make sure to look around your vehicle and use your mirrors
to confirm rearward clearance and that your vehicle can maneuver
safely. Rear View Safety and/or its affiliates shall have no responsi
bility or liability for damage and/or injury resulting from accidents
occurring with vehicles having some of Rear View Safety products
installed and Rear View Safety and/or its affiliates, the manufacturer,
distributor and seller shall not be liable for any injury, loss or dam
age, incidental or consequential, arising out of the use or intended
use of the product. n no event shall Rear View Safety and/or its af
filiates have any liability for any losses (whether direct or indirect, in
contract, tort or otherwise) incurred in connection with the systems,
including but not limited to damaged property, personal injury
and/or loss of life. Neither shall Rear View Safety and/or its affiliates
have any responsibility for any decision, action or inaction taken by
any person in reliance on Rear View Safety systems, or for any de
lays, inaccuracies and/or errors in connection with our systems
functions.

13
Reverse With Confidence™
Notes

If you have any questions
about this produ t, onta t:
Rear View Safety, In .
1797 Atlanti Avenue
Brooklyn, NY 11233
800.764.1028
