Sapphire III (Base) amplifier features:
• 4-channel networked audio power amplifier.
• SSA globally innovative patented technology.
• Built-in Digital Signal Processor.
• Dante network technology.
• Hi-Fi sound quality.
• Over 90% ultra-high system efficiency during DC-AC power conversion.
• 1U (44.5mm) ultra-thin case, only weigh 4.9kg.
• Special energy flow technology which allows load energy return to primary power supply.
• No fan and low noise design.
• User interface to control on-board processing functions.
• Overload and over-temperature self-protection systems.
• 4-channel balanced input: 4 x XLR/4 x balanced 1/4" TRS.
• 1000 Watts rated output power:
4 x 250 Watts @ 4 Ohms;
2 x 500 Watts @ 8 Ohms (Bridge Mode).
• 2000 Watts maximum output power：
4 x 500 Watts @ 4 Ohms;
2 x 1000 Watts @ 8 Ohms (Bridge Mode).
Welcome
Congratulations on your purchase of a Sapphire power amplifier with groundbreaking SSA technology. Our passion is to
make a difference by offering innovative power amplification technology for the music industry. All the products
featuring our proprietary SSA technology deliver a new statement for maximum sound quality. The implementation of
advanced SSA technology dramatically reduces weight and size while increasing output power, reliability, thermal
efficiency and sonic fidelity.
What makes SSA technology so advanced?The most recent evolution in audio amplification was the invention of the
Class-D topology. With the application of Class-D, amplifiers became smaller, louder and more efficient. However,
the sonic quality needs to be improved—not until now. The first ever single-stage inverter was born and its technology
was patented in USA and worldwide. This single-stage power conversion has revolutionized the power conversion
industry. Named as Class-SSA technology (Single Stage Switching Class A) , this new topology delivers higher efficiency
than Class-D and better audio fidelity performance than all other amplifier topologies. SSA technology allows the
amplifier to operate at very low temperatures, and does not require massive heat sinks or bulky fans to cool the unit.
Products with SSA technology yield the highest audio resolution and efficiency available.
Boasting performance unmatched by Class-A, Class-AB and Class-D topologies, Class-SSA stands out through
features such as:
• A single stage power conversion instead of the traditional DC-DC power supply, rectifier, filtering and
amplifier stages.
• Zero crossover distortion.
• System isolation via a high frequency transformer.
• True bidirectional energy flow which allows inductance load energy return to primary power supply.
• ZVS, ZCS soft switching — to maximize the system efficiency.
• Over 90% ultra-high system efficiency during DC-AC power conversion.
6
Sapphire III
（Base）Power Amplifier

Sapphire III Base Digital Signal Processor (DSP)
In order to provide users with comprehensive ability to process signals in different environments, Sapphire III Base is
equipped with high quality digital signal processor. Functions can be controlled, edited, saved and called through PC
application. For more specific information, please refer to the user manual for the application.
Effects that the Digital Signal Processor in Sapphire III Base can be implemented:
• 85 milliseconds of system delay.
• 10 milliseconds of high-resolution time/phase calibration delay.
• Isolated EQ in 5 frequency bands which control Q value in each channel independently.
• Limiter with adjustable threshold and release time.
• Frequency adjustment of two-way frequency divider.
The Sapphire III Base supports Bridge Mode (A/B, C/D) and also supports Dante™Audio/Analog Audio input whose
volume can be controlled via User Interface.
�
Control Parameters and control effects of DSP in Sapphire III Base power amplifier:
�
Time/phase calibration delay
The time/phase calibration delay function provides output delay with short-time fine adjustment. It is mainly used for
phase adjustment of speakers in narrow space. The adjustment range is 0 ~ 10 millisecond with 0.01 millisecond
increment.
�
System Delay
System delay can provide longer output delay up to 85 millisecond. It is used for the adjustment of long-distance
speaker systems such as outdoor concert or larger indoor space. Delay time can be adjusted with 0.1 millisecond
increment.
�
5-frequency-band parameters equalizer (EQ)
Sapphire III Base has a 5-frequency-band parametric equalizer. The default frequency bands are set as 100, 500, 1k, 2k
and 4k Hertz. Each frequency band has following functions:
• -15dB to +15dB attenuation.
• “Quality factor” (Q value) peak regulation of specific frequency from 0 ~ 16.
• Each frequency band has enable/disable function.
�
Limiter
If the limiter is enabled, the total volume of output signal can be controlled and the peaks that higher than the setting
threshold can be inhibited. The Limiter offers 3 control parameters:
• RMS time constant from 1 ~ 100 dB/s.
• Attenuation from 5 ~ 23 dB/s.
• Threshold adjustment from -24 ~ +24 dB.
�
Two-way Crossover
The audio stream is input through Dante™channel 1 or analog input channel A. At the output of the crossover,
channel A will output the low frequency signals while channel B will output high frequency;
The audio stream is input through Dante™channel 3 or analog input channel C. At the output of the crossover,
channel C will output the low frequency signals while channel D will output high frequency;
Gain of each output can be set among the range -10dB ~ +10dB.
�
Bridge Mode
In Bridge Mode, Sapphire III Base is used as a two-channel power amplifier which doubles the power output. Bridge
Mode can be switched from a hardware switch located at the rear panel of the power amplifier. Sapphire III Base will
follow the switch settings when starting up. In Bridge Mode, Dante™channel 1 or analog input channel A will be
mapped to channel A/B, while Dante™channel 3 or analog input channel C will be mapped to channel C/D. Other
audio input will be ignored.
�
A2-way crossover is available in Bridge Mode. In this configuration, Sapphire III Base can be considered as a
two-channel power amplifier. In this mode, channel A/B will output the low frequency signals while channel C/D will
output high frequency.
7
Sapphire III
（Base）Power Amplifier

Sapphire III Base Digital Signal Processor (DSP)
Input volume control
Sapphire III Base accepts the volume from the front panel knob settings as the default volume setting when starting up.
These settings will control the input volume of the ADC. The software control panel can override these settings. For
example, when it is difficult or inconvenient to adjust the volume knob of a remote power amplifier manually, the
volume can be set by software user interface to adjust the volume in a range of –∞to 0 dB. In practical applications,
volume knobs are generally set to the maximum setting and controlled remotely via the UI.
�
Input selection
Sapphire III Base can accept any of the audio streams from Dante™network or other analog audio inputs. Input
selection will determine which signal will be sent to DSP and output. Input selection operates on 4 channels
simultaneously, so it cannot be “Mixed and Matched”. The default input is the analog audio stream input in the factory
configuration.
Dante™ Network
Sapphire III Base features the Dante™Ethernet protocol. Sapphire III Base can input/output audio signals base on
existing standard Cat-5 shielded twisted pair and other network hardware. Sapphire III Base implements 4-in/4-out and
also the control of DSP or other configuration through Dante™ network.
This manual will not fully introduce Dante™, but only cover the steps that needed to start and operate Sapphire III
(Base) in Dante™ network. Dante™ network can be set base on following information:
• A Sapphire III (Base).
• A PC or Mac that can meet the software/hardware environment requirements.
• The Dante™ controller application.
• The Dante™ Virtual Sound card application.
• Cat-5/6 cable and switch or other hardware connected to the desired network.
Connect to the Dante™ network
Sapphire III (Base) has 2 Ethernet ports which are connectable to Dante™network. For systems contain more than 1
Sapphire III (Base) units, other configurations are unnecessary for “Daisy Chain” connection.
Install Dante™virtual sound (DVS) card
Dante™ Virtual Sound card is an authorized third party application running on PC. The latest version of DVS can be
purchased at www.audinate.com. Please follow the instructions to complete installation. For further information about
FAQs and basic operations please check the Audinate website.
Install Dante™Controller
Dante controller can be downloaded from www.audinate.com for free. Please follow the instructions to complete
installation. For further information about the software, FAQs and basic operations please check the website.
To use Dante™controller
After the DVS card is completely installed, Sapphire III （Base）can connect to PC through Cat-5 shielded twisted pair.
A moment after Dante™controller is started, the virtual sound card driver in PC will be displayed as a device on the
network. To connect Sapphire III (Base) and other Dante™devices to network, Dante™controller is used for channel
connections between DVS and Sapphire III (Base).
PC can provide Sapphire III (Base) with audio signal via DVS and can support streaming of audio from Media Players,
Digital Audio Workstations and Mixer/DJ software. A connection can be considered as complete when the output of
“Transmitter” through routing virtual sound card connects to the input of “Receiver” in Sapphire III Base, and a green
check mark is seen at the intersection of the connection matrix.
Please note: The analog audio input of Sapphire III (Base) can also be used as a signal source on Dante™Network, and
can be routed to another Sapphire III (Base) or Dante™devices. Thus, the analog input of Sapphire III (Base) can be
used as a signal source of Dante™network, and can be routed to other Sapphire III (Base) or Dante™devices. For
example: in a small club, mixer outputs an audio signal to a Sapphire III (Base) power amplifier, then assigns the audio
signal to Sapphire III (Base) in other places to drive multiple remote speakers. It is important to note that multi-channel
audio stream can be remote transmitted through the Dante™ network with low delay and no loss of audio quality.
8
Sapphire III
（Base）Power Amplifier

Signal & Limit LED:
LED lights in blue indicates input signal is received. Reduce the input gain is the red LIMIT LED flashing. The red LIMIT
LED constantly light indicates an overloaded input gain, overheating protection, overload protection or speaker
failure.
Rack Ears:
Secure the unit into a rack with four screws.
Level Controls:
Adjusts the input level. To increase signal gain, rotate the knobs clockwise. To reduce the gain, rotate the knobs
counter- clockwise.
ON/OFF(Standby) Button:
The amplifier is on when the button is pressed in. When the button is pushed out, the amplifier is off (standby).
Power On & Standby LED:
When the ON/OFF button is pressed in (power on), the LED will light in blue. The LED will light in red, when the ON/OFF
button is pushed out (standby).
Front Panel
Sapphire III
Sapphire III Base
LED Display state:
• Input signal: Blue.
• Clipping/maximum power: Flashing red.
• Overheating, overloading, failure: Constantly lighted red.
-∞
0dB
-∞
0dB
-∞
0dB
-∞
0dB
4 Channels DSP Power Amplifier
Sapphire III
BRIDGE Mode LED:
The LED lights up constantly when apparatus is in Bridge Mode.
When a bridge connection is made
• When Channels A and B are bridge-connected (AMP MODE Switch is set to Bridge position), the CH A
level control adjusts the input levels of Channels A and B. In this event, the CH B level control cannot be used.
• When Channels C and D are bridge-connected (AMP MODE Switch is set to Bridge position), the CH C
level control adjusts the input levels of Channels C and D. In this event, the CH D level control cannot be used.
-∞
1 2 3 4 5 6
1
2
3
4
5
6
6A
6B
9
Sapphire III
（Base）Power Amplifier

Be sure to power off the amplifier before changing the AMP Mode switch setting.
Power Cord Socket:
Here is where you connect the detachable power cord included with your amplifier. Plug the other end of the power
cord into an AC outlet properly configured with the voltage required for your particular model. Be sure the AC outlet
can supply enough current to allow full power operation of all the amplifiers plugged into it. The outlet should be a
three-prong socket that matches the power cord.
Speakon Outputs:
Connect the amplifier to the speaker using professional cables with twist-locking plugs.
XLR Inputs:
Use XLR or 1/4" TRS balanced port to input signals.
Ethernet ports:
Use Cat-5 shielded twisted pair to connect amplifier with PC/network switch or connect amplifier with other amplifier.
AMP MODE Switch (BRIDGE/STEREO):
Switch mode between BRIDGE and STEREO.
Power switch:
Use this power switch to turn the unit on or off.
Rear Panel
Sapphire III
Sapphire III Base
Unplug the amplifier’s power cord from the outlet when the amplifier will be left unused for a long period of
time.
1
1
2
3
4
5
6B6A
2 3 4 5 6A6B
10
Sapphire III
（Base）Power Amplifier

Installations
Sapphire III(Base)
Manual
Warranty card
Acessories box contains:
●2 x Rack ears (w/ six screws).
●1 x power cord.
11
Sapphire III
（Base）Power Amplifier
Space between amplifiers
should be ≥10mm
Unpacking
Sapphire III (Base) has completed all the QC tests before leaving factory. Please open the packing carefully and
check if there is any damage caused during transportation process. If any, please contact the carrier immediately.
We strongly recommend you to keep the packing materials in case of potential transportation. In order to avoid
damages, please do not use other alterative packing materials to transport the apparatus.
Box shook contains following attachments:
•1 x Sapphire III(Base).
• 2 x Rack ears (w/ 6 screws).
• 1 x Power cord.
• 1 x Owner’s manual.
• 1 x Warranty card.
Caution:
Please read all the safety instructions in
this manual carefully before installation.
Setting up the apparatus
Please prepare the following materials before installation (Not provided):
• Input cable.
• Output cable.
• Straight screwdriver.
• Philips (Cross-type) screwdriver.
• Rack or cabinet to install the amplifier.
• Cat-5 shielded twisted pair.
Dimensions of Sapphire III (Base): Height: 44.5mm; width: 483mm; depth: 301mm.
Please use a standard 19 inch (483mm) rack to mount the amp. A single amplifier can be installed on a solid surface.
Multiple can be installed using stack installation.
Attention:
Fixed installation must be installed in the front and rear side of the amplifier.
Vertical space between amplifiers should be larger than 10mm as shown below.
Caution:
Any unauthorized changes or modifications can void user’s right of receiving warranty.

-∞ 0dB -∞ 0dB -∞ 0dB -∞ 0dB

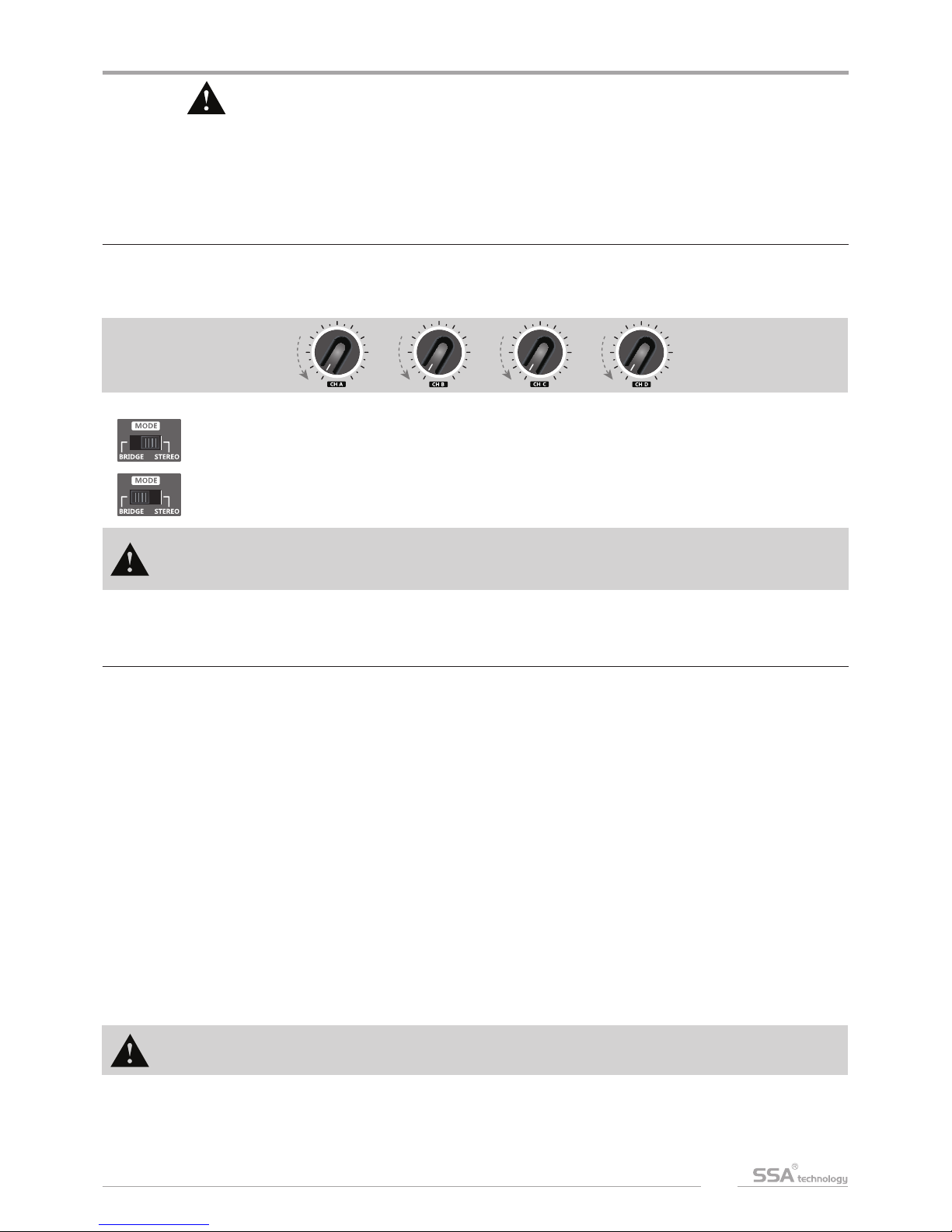

Getting Started
Important !
1. Make sure amplifier’s output connectors are plugged into speakers only using a speaker cable.
2. Before making connections to the amplifier or reconfiguring the routing of amplifier, turn down amplifier’s
control levels and switch off amplifier.
3. Before shutting down the audio system, turn off the amplifier first. While powering up your audio system,
turn on the amplifier last.
4. Save the shipping box, warranty card and packing materials.
Settings:
1. Make sure the power switch of amplifier is turned off.
2. Turn down all the level controls.
3. Determine which amplifier mode is used for the application：
A. Stereo Mode: Input A signal is routed to output channel A,
Input B signal is routed to output channel B.
B. Bridge Mode: Combines two channels and doubles the output power.
4. Set the amplifier mode switch to the application.
5. Refer to (Connections “Analog output connection”) for the speaker connection. Connect the amplifier output to
the speaker using correct speaker cable.
Power amplifier connections:
1. Be sure to switch off the power of the related equipment before making any connections.
2. Balanced cables are used to connect a mixer console (or the other signal sources) “MAIN OUTPUTS” to the
amplifier’s “INPUTS”. Please refer to (Connections “Analog input connection”).
3. Connect speakers with the output end of the power amplifier.
4. Connect the power amplifier to a PC or network switch with Cat-5 shielded twisted pair. The Sapphire III (Base) User
Interface on the PC can control the amplifier remotely. For further information, please refer to (Sapphire III (Base)
User Interface introductions). Information about installation and operation of software, please refer to the
instruction of the relevant software.
5. Setting up the system of power amplifier, please refer to (Setting Up System) section.
6. Plug all the sound system’s power cord into suitable AC outlets, properly grounded and with adequate current
supply.
7. Make sure the signal source is power up to deliver the right signal amplitude to the amplifier.
8. Turn on the power switch of amplifier. Verify that the POWER LED lights.
9. Turn up both level controls slowly on the amplifier (Stereo Mode). Then, music is heard and the signal LEDs light in
blue color.
Input A is used for bridged output channels A and B; Input C is used for bridged output channels C and D.
When in Bridge Mode, Input B and Input D are not connected.
* 8-ohm is the minimum speaker impedance of the amplifier in Bridge Mode *.
If the signal LEDs are flashing in red color, turn down either the level controls on the amplifier or the sourcing
signal’s output level controls, until the signal LEDs are no longer flashing and returned back to blue color .
12
Sapphire III
（Base）Power Amplifier

Connections
Make sure that the power amplifier is powered off before making any input or output connections. Please use high
quality audio cables which can minimize loss of signal integrity.
Analog input connection
Sapphire III (Base) uses XLR, 1/4"TRS to balance analog input. The polarity and connection of XLR, 1/4" TRS is shown
below:
connect to audio source
1/4" TRS Jack Pinout
Tip
Ring
Sleeve
Tip HOT
Ring COLD
Sleeve GND
XLR-M Pinout
Pin 1
Pin 1
HOT
Pin 2
Pin 2
COLD
Pin 3
Pin 3
GND
Analog output connection
Sapphire III (Base) uses professional cables to connect analog output to speaker. The polarity and connection of the
Spkeakon jack is shown below:
Connect to speaker
Speakon Pinout
2+
1+
1-
2-
2+ 2-
1- 1+
2+
1+
1-
2-
2+ 2-
1- 1+
2+
1+
1-
2-
2+ 2-
1- 1+
Speakon connectors are wired as follows:
Pin 1- to Pin 1-
Pin 1+ to Pin 1+
COLD
HOT
SpeakerSapphire III (Base)
SpeakerSapphire III (Base)
Stereo Mode
2+
1+
1-
2-
2+ 2-
1- 1+
2+
1+
1-
2-
2+ 2-
1- 1+
Speakon connectors are wired as follows:
Pin 2+ to Pin 1-
Pin 1+ to Pin 1+
COLD
HOT
SpeakerSapphire III (Base)
SpeakerSapphire III (Base)
Bridge Mode
13
Sapphire III
（Base）Power Amplifier

Connections
RJ45 Jack

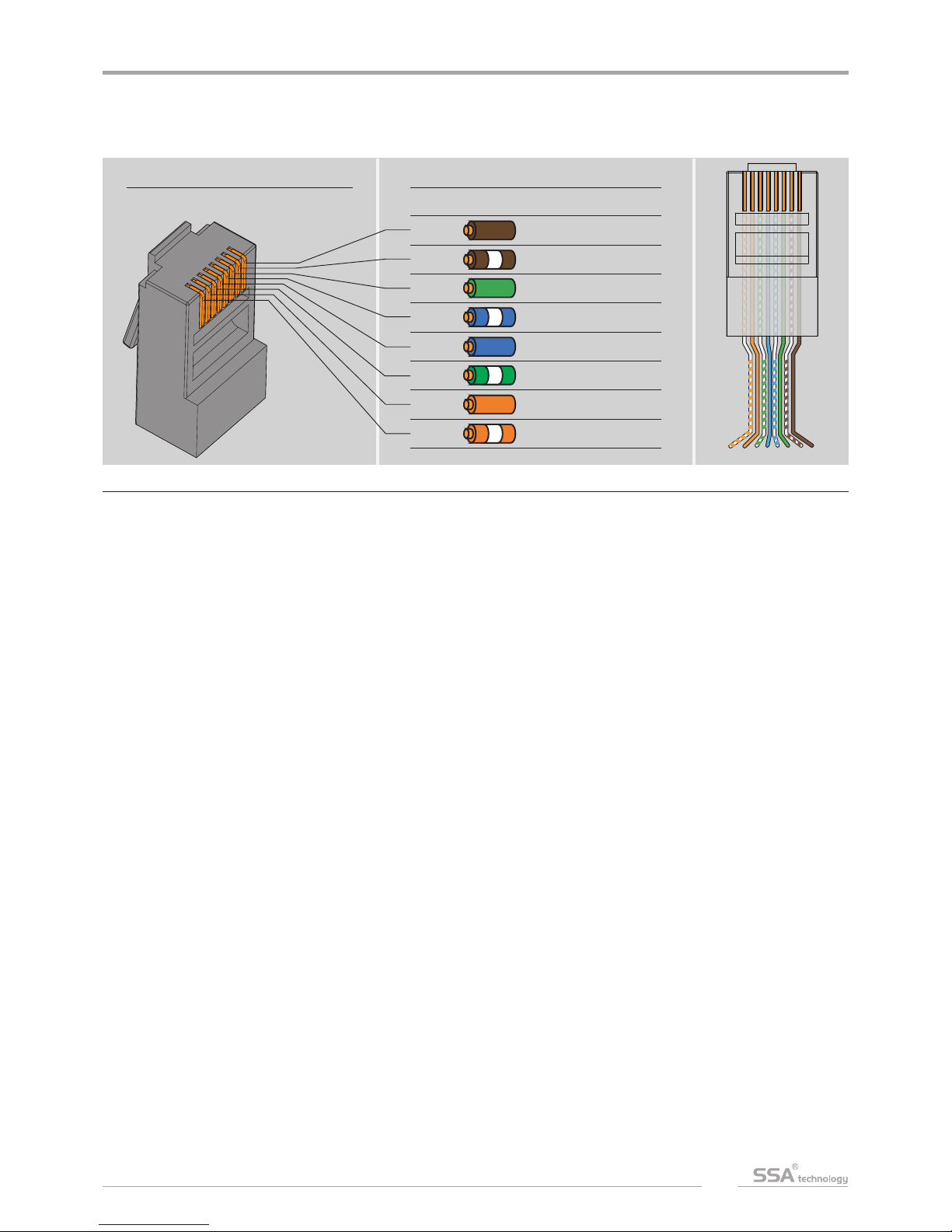

The power amplifier uses Cat-5 shielded twisted pair to connect to networks. RJ45 Jack has to meet the TIA/EIA-568-B
standard. The pin diagram is shown below:
Color code (TIA/EIA-568-B)Pin
ORANGE / WHITE1
ORANGE2
GREEN / WHITE3
BLUE4
BLUE / WHITE5
GREEN6
BROWN / WHITE7
BROWN8
RJ45 T568B Pin Connections
1 2 3 4 5 6 7 8
Pin Position
14
Sapphire III
（Base）Power Amplifier

Functions and Operations
1. Audio Selection
After entering the User Interface, computer will automatically scan the connected models. Please choose the
detected Sapphire III (Base) model and choose an input audio type (Dante Audio/Analog Audio).
Sapphire III Base User Interface Introductions
The following interface has been designed for the Sapphire III Base amplifier. This is only a brief introduction of the
software that related to connections of the power amplifier. For further information, please refer to introduction of
the software. The image shows below is an overview of the User Interface:
SCAN: Click manually to scan connected models.
Dante™ Audio: Dante™ audio input mode.
Analog Audio: Analog audio input mode.
15
Sapphire III
（Base）Power Amplifier
Click “BRIDGE A B” and/or “BRIDGE C D” button to enable BRIDGE mode. The selected one will be
highlighted. As the image shows on the left:
• “BRIDGE A B” is chosen: A and B are bridged. Channel A is used for bridged output. Channel B has
the same output with channel A. Channel B cannot be selected to operate independently.
• “BRIDGE C D” is chosen: C and D are bridged. Channel C is used for bridged output. Channel D has
the same output with channel C. Channel D cannot be selected to operate independently.
• If both “BRIDGE A B” and “BRIDGE C D” are not chosen, the system is in STEREO mode. Channel A, B, C
and D can be selected to operate as independent channels.
2. Channel Selection and Bridge
Click a channel button to choose the channel that needs operation. As the figure shown below, the selected
channel will be highlighted (CHA). Only one channel can be chosen at a time.

Sapphire III Base User Interface Introductions
16
Sapphire III
（Base）Power Amplifier
3. Master Gain and Channel Gain
Master Gain:
The Master Gain bar controls the gain of 4 channels simultaneously.
The control panel of Master Gain is shown on the right: Gain can be
controlled by sliding the button or by inputting a value in the gray box
in a range of -80 ~ 0 dB. All-channel mute can be realized by clicking
the MUTED button at the bottom of the control panel and cancelled
by clicking again.
Channel Gain:
The Channel Gain bar controls the gain of each channel respectively.
The control panel of Channel Gain is shown on the right: Gain can be
controlled by sliding the button or by inputting a value in the gray box
in a range of -80 ~ 0 dB. Single-channel mute can be realized by
clicking the MUTED button at the bottom of the control panel and
cancelled by clicking again.
(Highlighted MUTED button indicate that the system is muted.
Otherwise the system is not muted.)
4. Delay
The control panel of delay is shown on the right: The function value of
SYSTEM and PHASE can be controlled by sliding the button or by
inputting a value in the gray box.
(Threshold of the function value of SYSTEM is 0 ~ 85; Threshold of the
function value of PHASE is 0 ~10)

Sapphire III Base User Interface Introductions
17
Sapphire III
（Base）Power Amplifier
5. 5 BAND EQ
The control panel of 5 BAND EQ is shown on the
right: The G value can be modified by dragging
the gray dots in the coordinate within a range
of -15 ~15dB. G, F and Q value can be modified
by inputting a value in the gray boxes.
BP is BYPASS function. It can be switched on or
off in a certain frequency band by clicking the
on/off button.
Low Pass Filter and High Pass Filter can be
selected by clicking LPF or HPF. Only one of
them can be selected. Their performance can
be adjusted by dragging the button through
the bar.
6. Cross-Over
The control panel of the Crossover is shown on
the right: Click the switch on the bottom right to
turn on/off the Cross-Over function. The button
in the image shows “on” status. The Corner
Frequency can be regulated by dragging the
gray dots in the graph. It can also be regulated
by inputting a value in the gray box or clicking
the up/down buttons. Gain functions can only
be regulated by inputting values or up/down
buttons.
(The threshold of Corner Frequency is
10Hz ~ 20KHz; the threshold of Gain is -10 ~ 10.)
8. SAVE, LOAD, RECALL
As the image shows on the right:
SAVE: Save present settings to PC.
LOAD: Burn present settings to DSP.
RECALL: Restore present settings to default.
7. Limiter
The control panel of Limiter is shown on the
right: THRESHOLD, ATTACK and RELEASE can be
adjusted by inputting values in the gray boxes.
The range in the parenthesis is the range of
input values.

Audio Data Stream (Monodirectional)
Ethernet Data Stream (Bidirectional)
Audio Data Stream (Monodirectional)
Ethernet Data Stream (Bidirectional)
Setting Up System
18
Sapphire III
（Base）Power Amplifier
Analog Audio Input
(Mixer Console or Other Audio source)
Analog Audio output
(Speaker)
Analog Audio output
(Speaker)
Single power amplifier system (STEREO mode):
（Figure 1）
（Figure 2）
Digital Audio Input
(PC/Network Switch)
Analog Audio Input
(Mixer Console or Other Audio source)
Digital Audio Input
(PC/Network Switch)
Single power amplifier system (BRIDGE mode):
STEREO/BRIDGE mode
STEREO/BRIDGE mode can be selected through the switch on the rear panel or through the UI.
For Stereo mode connection (figure 1):
• Signal input from CH A, CH B, CH C, CH D and output from corresponding channel A, B, C, D.
For Bridge mode connection (figure 2):
• “Bridge A B”: Signal is sourced from CH A and output from channel A with doubled power,
channel B is disconnected.
• “Bridge C D”: Signal is sourced from CH C and output from channel C with doubled power,
channel D is disconnected.
This chapter is about the configuration of a set of power amplifiers using the Dante™network. Not only independent
connections can be set up, but also multiple power amplifiers can be connected as “Daisy Chain”. Sapphire III (Base)
connects to the network hardware devices using Cat-5 cable. Sapphire III (Base) implements 4-in, 4-out audio signals,
Digital Signal Processing and other configuration.
Audio signal inputs
Audio signals can be input from Dante™ audio input or analog audio input:
• If “Dante™ Audio” is chosen, PC/Network switch is used to input audio signals and control the amplifier remotely.
Ethernet ports ETH1/ETH2 can input/output signals simultaneously, as Dante™ is bidirectional.
• If “Analog Audio” is chosen, XLR is used as the input source. A PC can only control the internal functions via the UI.
As the images show below, a single power amplifier is used as an example:
• If “Dante™ Audio” is chosen, PC/Network switch is used to input audio signals and control the internal functions.
There is signal from the analog input.
• If “Analog Audio” is chosen, XLR is used to input audio signals. PC can control internal functions via the UI.

Audio Data Stream (Monodirectional)
Ethernet Data Stream (Bidirectional)
Audio Data Stream (Monodirectional)
Ethernet Data Stream (Bidirectional)
Audio Data Stream (Monodirectional)
Ethernet Data Stream (Bidirectional)
（Figure 5）
（Figure 4）
（Figure 3）
Setting Up System
19
Sapphire III
（Base）Power Amplifier
Analog Audio output
(Speaker)
Analog Audio output
(Speaker)
Input/output conversion of audio signals
Sapphire III (Base) power amplifier can implement the input/output conversion of analog/digital audio signal.
Digital audio input to digital audio output conversion:
Analog audio input to analog audio output conversion：
Analog audio input to Dante network data audio output conversion:
Analog Audio Input
(Mixer Console or Other Audio source)
Analog Audio Input
(Mixer Console or Other Audio source)
Switch
Dante network Digital Audio Output
(Dante network devices)
Digital Audio Input
(PC/Network Switch)

2
4
1
3
Analog Audio Input
(Mixer Console or Other Audio source)
Digital Audio Input
(PC/Network Switch)
Audio Data Stream (Monodirectional)
Ethernet Data Stream (Bidirectional)
（Figure 6）
5
Setting Up System
20
Sapphire III
（Base）Power Amplifier
Analog Audio output
(Speaker)
Analog Audio output
(Speaker)
Analog Audio output
(Speaker)
Analog Audio output
(Speaker)
Analog Audio output
(Speaker)
Setting up a multi power amplifiers system using “Daisy Chain” :
An amplifier system which contains multi Sapphire III (Base) power amplifiers can be configured as the figure shown
below. Analog signals are sourced from a mixer or other audio source through the XLR inputs, while digital signals are
input from a PC/Network switch through Ethernet port (ETH1/ETH2). Cat-5 cables are used for the connection between
Sapphire III (Base) power amplifiers. Signals are output from ETH1/ETH2 ports to the speakers that connected to
Sapphire III (Base) end to complete a simple Daisy Chain connection system. Signals are transmitted within the system
via Dante™. Users can easily remote control the whole system through the PC User Interface including DSP.
