Ricon S9922M User manual

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
1
RICON MOBİLE
S9922M Series LTE Router
USER MANUAL

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
2
R I C O N M O B I L E
S9922M Series LTE Router
©Ricon Mobile Inc.
Ahi Evran Cad. No:21, Polaris
Plaza Kat:8/40
Maslak / İstanbul / Türkiye
Website: http://www.riconmobile.com
Phone: [phone]
@Ricon Mobile Inc.(HQ)
460 Brant Street Unit 300 Burlington,
Ontario Canada
[phone]
@Ricon Mobile Inc. FZE
Ras Al Khaimah U.A.E.
Phone: [phone] (U.A.E)
@Ricon Mobile Inc. Ltd.
F5-Building 3, FengMenao Industrial Park,
Bantian Streets, Longgang District
Shenzhen 518129, China

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
3
Copyright © Ricon Mobile Inc. 2017 All rights reserved.
All information in this user manual is protected by copyright law. Whereby, no organization or individual shall
copy or reproduce the whole or part of this user manual by any means without written authorization from
Ricon Mobile Inc.
Trademarks and Permissions
is the trademarks and logos of Ricon Mobile Inc. Other trademarks and logos mentioned in this
manual belong to other organizations related. Ricon Mobile Inc. does not own the rights of other trademarks
and logos.
Caution
Due to product updates or functional upgrading, we may renew the content of this file.
All statement, information, suggestions etc. in this file do not compose any form of guarantee and we Ricon
Mobile Inc. reserves the right of final explanation.
A B O U T T H E D O C U M E N T
P U R P O S E
S9922M Router is designed and manufactured by Ricon Mobile Inc., it based on 3G/LTE cellular network
technology with industrial class quality. With its embedded cellular module, it widely used in multiple case like
ATM connection, remote office security connection, data collection. etc. This document introduced how to use
S9922M and its powerful features.
R E L A T E D V E R S İ O N S
The following table lists the product versions related to this document.
Model
Version
S9922M:
V30
Firmware Version starting from:
S9922M_APP_V7.0.2_T1_ricon_1710161204
Date of issue:
24.10.2019

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
4
CONTENTS
1. PRODUCT ......................................................................................................................................................7
1.1 OVERVIEW ....................................................................................................................................................7
1.2 FUNCTIONS & FEATURES...............................................................................................................................8
2. PRODUCT STRUCTURE...................................................................................................................................9
2.1 APPEARANCE ................................................................................................................................................9
3. GENERAL CONFIGURATION .........................................................................................................................11
3.1 PREPARATION.............................................................................................................................................11
3.1.1 SIM CARD INSTALLATİON ............................................................................................................................11
3.1.2 LOGGING IN TO THE WEB MANAGEMENT PAGE .........................................................................................11
3NETWORK CONFIGURATION .......................................................................................................................13
3.1 LAN SETTING ...............................................................................................................................................13
3.2 Wİ-Fİ SETTING .............................................................................................................................................14
3.3 WAN SETTING .............................................................................................................................................16
3.4 PARAMETER SETTING..................................................................................................................................18
3.5 NETWORK TYPE SETTING ............................................................................................................................20
3.6 DHCP SETTING.............................................................................................................................................21
4APPLICATIONS CONFIGURATION.................................................................................................................23
4.1 ICMP CHECK SERVICE ..................................................................................................................................23
4.2 DDNS CONFIGURATION...............................................................................................................................26
4.3 SNMP CONFIGURATION ..............................................................................................................................27
5.4 M2M CONFIGURATION ...............................................................................................................................28
5.5 TIMING SETTING .........................................................................................................................................29
5.6 VRRP CONFIGURATION ...............................................................................................................................30
6VPN CONFIGURATION.................................................................................................................................31
6.1 VPDN CONFIGURATION...............................................................................................................................31

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
5
6.2 TUNNEL CONFIGURATION...........................................................................................................................33
6.3 IPSEC CONFIGURATION ...............................................................................................................................35
6.3.1 PHASE1 CONFIGURATION ...........................................................................................................................35
6.3.2 PHASE2 CONFIGURATION ...........................................................................................................................37
6.3.3 IPSEC CONFIGURATION ...............................................................................................................................39
6.4 OPENVPN CONFIGURATION ........................................................................................................................40
7FORWARD CONFIGURATION .......................................................................................................................42
7.1 NAT CONFIGURATION .................................................................................................................................42
7.1.1 DNAT SETTING ............................................................................................................................................44
7.1.2 SNAT SETTING.............................................................................................................................................45
7.3.3 MASQ SETTING ...........................................................................................................................................46
7.3.4 DELETE NAT SETTINGS.................................................................................................................................47
7.2 ROUTING CONFIGURATION.........................................................................................................................48
7.3 QOS CONFIGURATION.................................................................................................................................49
8SECURITY CONFIGURATION.........................................................................................................................50
8.1 IP FILTER SETTİNGS......................................................................................................................................50
8.2 DOMAIN FILTER SETTİNGS...........................................................................................................................55
8.3 MAC FILTER SETTİNGS .................................................................................................................................57
9SYSTEM SETTINGS .......................................................................................................................................60
9.1 LOCAL LOG SETTİNGS ..................................................................................................................................60
9.2 REMOTE LOG SETTING ................................................................................................................................62
9.3 SYSTEM CLOCK SETTING..............................................................................................................................63
9.4 ACCOUNT SETTING......................................................................................................................................65
9.5 NETWORK TEST...........................................................................................................................................66
9.6 FILES SETTINGS............................................................................................................................................68
9.6.1 FİRMWARE SETTINGS..................................................................................................................................68

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
6
9.6.2 BACKUP SETTINGS.......................................................................................................................................69
9.6.3 FACTORY RESET SETTINGS...........................................................................................................................71
10 STATUS........................................................................................................................................................72
10.1 BASIC SYSTEM INFORMATION.....................................................................................................................72
10.2 LAN INFORMATION.....................................................................................................................................73
10.3 WLAN INFORMATION .................................................................................................................................74
10.4 MODEM INFORMATION..............................................................................................................................75
10.5 ROUTING INFORMATION ............................................................................................................................76

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
7
1. PRODUCT
1.1 OVERVIEW
RICON S9922M Series Router by Ricon Mobile Inc. Industrial grade quality, designed and
manufactured in accordance with 3G/LTE cellular network technology. With embedded
cellular module, ATM connection, remote office security connection, data collection etc. It
is widely used in many cases such as. Ricon Mobile S9922M series router provides
maximum service to customers while Zero touch-SMS installation minimizes the need for
field service with easy and automatic product installation service. The unique feature of the
S9922M Series Router is that it is online and redundant over the network between WAN,
WLAN, 3G/LTE network. This feature allows the S9922M series to provide maximum
network availability and reduce the likelihood of network failure to prevent losses due to
network failures. S9922M series routers are web-based and easily routed through CLI. In
addition, the Ricon Management System (RMS) successfully accomplishes the goal of
reducing the maintenance costs with the ability to access all the Ricon products in the
network and to access instant and statistical data on the web environment and manage
them 100%.
1

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
8
1.2 FUNCTIONS & FEATURES
⚫VPN support, GRE over IPSec, IPsec over PPTP/L2TP
⚫VPN Passthrough
⚫WAN port support PPPoE, static IP, DHCP client (Auto Link Backup)
⚫LCP/ICMP/flow/heartbeat check, ensure network usability
⚫SNMP network management, NTP support (Free MIBs)
⚫Local & remote firmware update
⚫Local & remote log check
⚫Supports DNS proxy and Dynamic DNS (DDNS)
⚫Supports timing operations
⚫Supports LED status indication
⚫VRRP (hardware resiliency)
⚫IPFix/Netflow Features (Traffic Monitor & Export) (Available with RMS)
⚫SMS Send/Receive
⚫Configuration vis SMS Commands with status replies
⚫Traffic Filtering (Domain, IP and Mac Address)
⚫Supports NAT/Routed traffic flow
⚫Tacacs+ compatible
⚫DHCP Relay (With Backup Server)
⚫DHCP Relay Option 43/60 Support for Wireless Management

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
9
2. PRODUCT STRUCTURE
2.1 APPEARANCE
Figure.1-S9922M Router appearance
2

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
10
A C C E S S O R I E S
Accessories name
Number
Note
S9922M Router
1 pcs
3G/LTE antenna
1 pcs
According to GSM Technology (3G/LTE)
Wi-Fi antenna
1 pcs
Optional
RJ45 cable
1 pcs
Mounting Kit
1 pair
Optional
Certificate and warranty card
1 pcs
+12V power adapter
1 pcs

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
11
3. GENERAL CONFIGURATION
3.1PREPARATION
3.1.1 SIM CARD INSTALLATİON
Prepare the SIM card which is in standard size, not the scissored mini card. Put the SIM card
into SIM card apparatus and push the SIM card to the SIM slot. Then attach the antennas.
Your router comes with two detachable antennas. These one external antenna is required
for proper 4G LTE service.
Only use power adapters compatible with the router and provided by a designated
manufacturer. Use of an incompatible power adapter or one from an unknown
manufacturer may cause the router to malfunction, fail, or could even cause a fire. Such
use voids all warranties, whether expressed or implied, on the product
3.1.2 LOGGING IN TO THE WEB MANAGEMENT
PAGE
The web-based configuration utility can be used for initial device installation, parameter
configuration, and function management through the browser.
Use ethernet port directly connected to S9922M router and computer, or transferred by a
switch. This method will temporarily interrupt the communication between the computer
under configuration and LAN, and the specific parameter configuration is shown as below:
IP address: 192.168.8.* (*indicates any integral between 2 to 254)
Subnet mask: 255.255.255.0
Default gateway: 192.168.8.1
3

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
12
Figure.2- Website preparation
Launch the browser and enter http://192.168.8.1 in the address bar. The login page appears.
Input the username and password then click Login.
•The default user name is admin.
•The default password is admin.
NOTE:
•The device’s default IP address is 192.168.1.1 and subnet mask is
255.255.255.0
•It is recommended that you use the automatically obtained IP addresses for
the computer and domain name system (DNS) server. If you manually
configure the computer IP address, you must set the DNS server IP address
to the device IP address. Otherwise, you will fail to log in to the web
management page.

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
13
3NETWORK CONFIGURATION
3.1 LAN SETTING
LAN settings are used to manage local area network units which are connected to a S9922M
Router, make them reach to the desired network or internet regarding the network topology.
Follow the steps below to change the existing LAN IP block or add another IP block. Enter the IP
block you have specified and click Save.
Host Name is your router’s name and IP1 is router’s LAN IP address.
N E T W O R K > L A N
Figure.3- Network>LAN
4

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
14
3.2 Wi-Fi SETTING
For a wireless connection, your router and computer, smartphone or tablet will need to
have the same Wi-Fi network name and security settings. Ricon recommends that you use
wireless security.
The default Wi-Fi network name and password appear on the Figure 4. Follow the steps
below to make Wi-Fi connection.
✓SSID; Set SSID is your Wi-Fi connection name.
✓Network mode; n, g, b.
-N: Specifications providing for up to 300 Mbps of network bandwidth. N also offers
somewhat better range over earlier Wi-Fi standards due to its increased signal
intensity, and it is backward-compatible with B/G gear.
-G: Support bandwidth up to 54 Mbps, and it uses the 2.4GHz frequency for greater
range.
-B: Supports bandwidth up to 11 Mbps and Uses radio signal frequency 2.4GHz.
✓Channel; There are 11 different channel selection options.
✓Bandwidth; 20mhz or 40mhz can be selected according to the specifications of the
devices you want to use in wireless network.
✓AP Isolate; Users connecting to your network can not access each other.
✓Broadcast Status; If you want the SSID to be hidden, select disable.
✓Security Mode and Algorithms; Disable, WPA, WPA2, TKIP, AES.
-Disable; Wireless network is connected to the network without password.
-WPA improved security, but is now also considered vulnerable to intrusion. WPA2,
while not perfect, is currently the most secure choice. Temporal Key Integrity
Protocol (TKIP) and Advanced Encryption Standard (AES) are the two different
types of encryption you’ll see used on networks secured with WPA2.
✓WPA Shared Key; Set is your Wi-Fi connection password.
✓WPA Renewal Interval; The number of seconds the wireless network needs to be
refreshed is entered here.
✓Single click Save icon to finish.

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
15
N E T W O R K > W L A N
Figure.4- Network>Wlan

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
16
3.3 WAN SETTING
An APN profile is a group of dial-up parameters related to an access point name (APN). You
can select an APN profile for the router to access the Internet via SIM card.
S9922M Router core function is connecting to a desired network (corporate or internet) by
cellular connection. Usually 3G/LTE network bandwidth is (Depending on the operators’
infrastructure) between 1～300Mbps
Single click “Mod” to access modem parameter settings section. After that you can set APN profile
of your SIM card.
✓Set APN, Username and Password (If you have PIN of SIM card you can set PIN disable)
✓Set Network Type to Edge, WCDMA,TDD-LTE, FDD-LTE or Auto
✓Click the Save icon to finish.

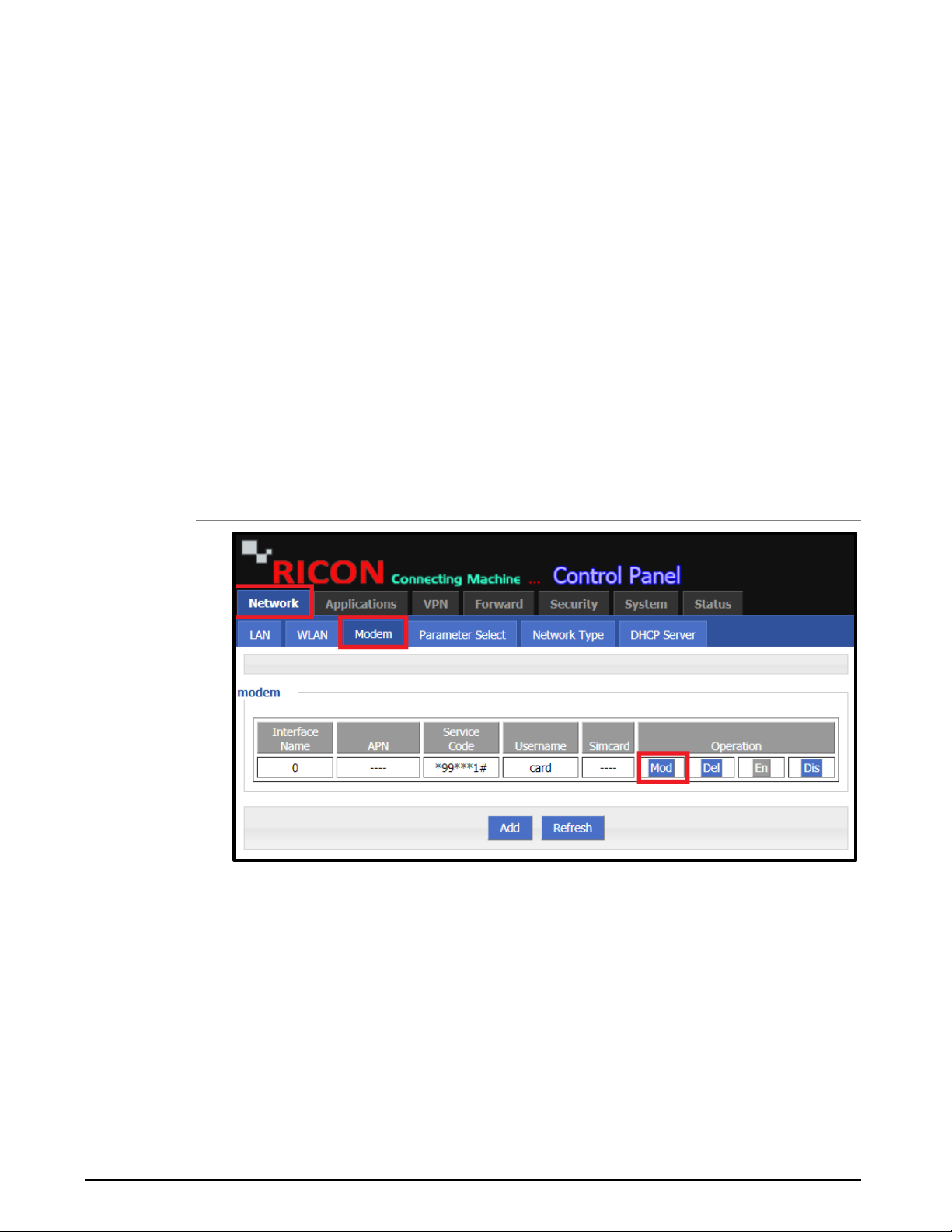

N E T W O R K > M O D E M > M O D
Figure.5- Network>Modem>Mod
In this screen you can see your Interface Name and APN list. You can Modify (Mod), Delete
(Del), Enable (En) and Disable (Dis) your APN profile.

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
17
Single click “Mod” to access modem parameter settings section. After that you can set APN profile
of your SIM card.
✓Set APN, Username and Password (If you have PIN of SIM card you can set PIN disable)
✓Set Network Type to Edge, WCDMA,TDD-LTE, FDD-LTE or Auto
✓Click the Save icon to finish.
N E T W O R K > M O D E M > M O D
Figure.6- Network>Modem>Mod

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
18
3.4 PARAMETER SETTING
The S9922M router can also log specific users or interfaces. To do follow the steps below.
N E T W O R K > P A R A M E T E R S E L E C T
Figure.7- Network>Parameter Select
✓Status; Enable must be selected for the entered parameters to be active.
Basic Settings;
✓Rule Name; Enter parameter name here.
✓Interval; Enter the time you want to log.
✓Retry Times; Enter retry times here.
✓Running Timeout; Enter the period of inaccessibility to the user or interface here.
✓Click the Save icon to finish.
Select an interface to check;
✓Interface Name; modem 0 and br0. Select the user-accessed interface.
✓Check Method; state or icmp.
•State; If you select state, the interface of your choice is logged.
•Icmp; If you select icmp, the logs of the specified user are kept.
✓Click the Add and Refresh icon to finish.

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
19
N E T W O R K > P A R A M E T E R S E L E C T > A D D
Figure.8- Network>Parameter Select> Add

S 9 9 2 2 M S E R I E S R O U T E R L T E S E R I E S U S E R M A N U E L
20
3.5 NETWORK TYPE SETTING
✓Default Route; modem, eth0, eth1.
•Modem; Select the modem if you want the device to access to internet via cellular.
•Eth0; Select the modem if you want the device to access the internet through the LAN
port and enter your default gateway here.
•Eth1; Select the modem if you want the device to access the internet via the LAN / WAN
port.
✓DNS Type; interface and custom.
•Interface; The DNS settingsof your internet provider service are assumed to be default.
•Custom; The DNS which you specify are considered valid.
✓Interface Name; modem and eth1. You must select the WAN port of your device.
✓Click the Save icon to finish.
N E T W O R K > N E T W O R K T Y P E
Figure.9- Network>Network Type
