ROBINHOOD RHII9SS User manual

Description: Robinhood Island Canopy
Model Number: RHII9SS

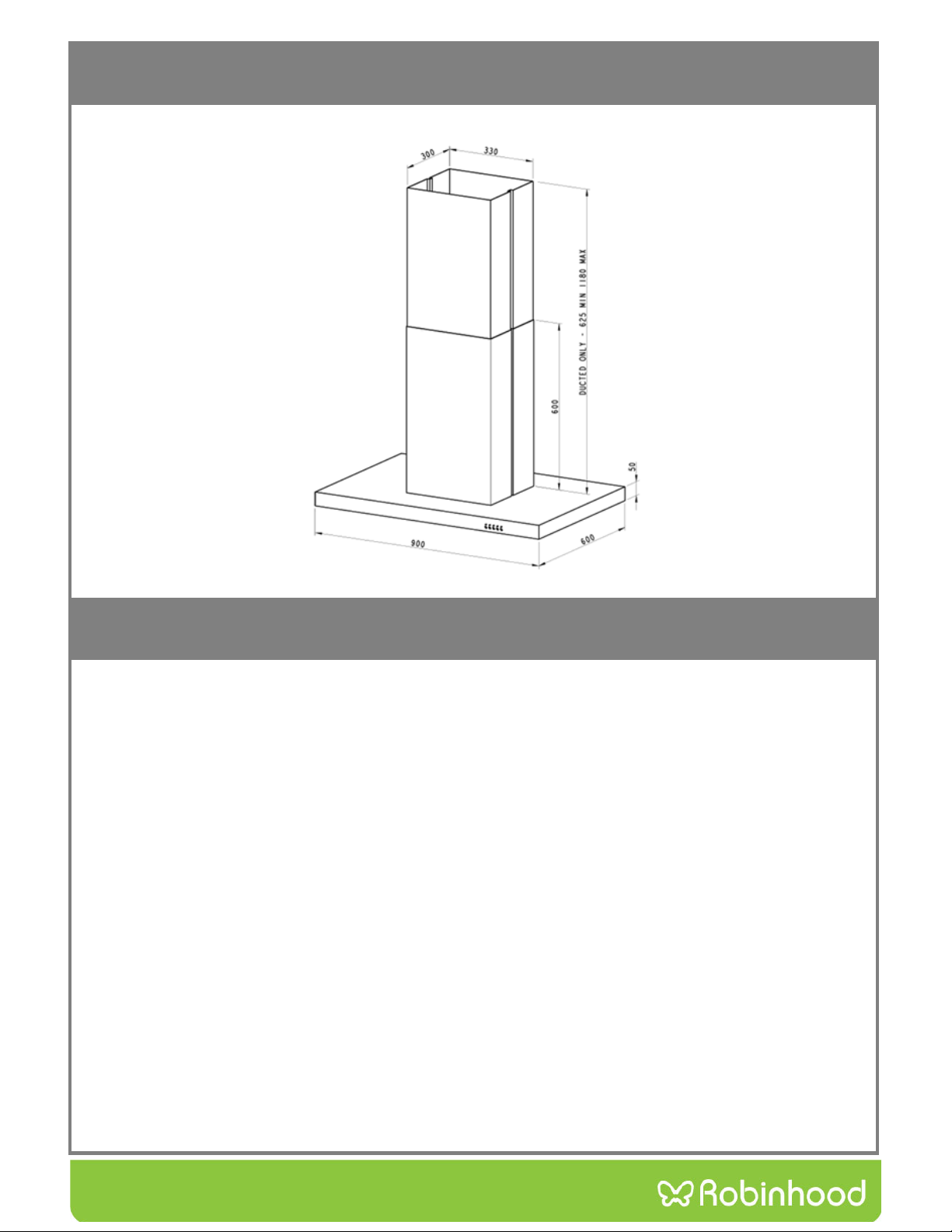

Generic model is shown, actual product may differ
All dimensions are in mm

Overview
Pre-Installation
Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and
every rangehood is tested and approved before it leaves the factory.
oPlease read prior to installation or operation
olways switch power off prior to installing, servicing or cleaning the appliance.
oNever use the appliance without filters.
oPlease read the notes on general cleaning, especially the filters.
oExhaust air must not be discharged into a heating flue or wall cavity, unless the cavity is designed for that
purpose.
oreas where the rangehood is installed that also have gas, oil or coal fired heaters, must be well ventilated to
prevent a partial vacuum in the room. This includes gas hobs. ( partial vacuum in the room could result in
too high a concentration of gas in the atmosphere).
oThe appliance is supplied with an approved power cable which must not be changed. If the supply cord of this
equipment is damaged, it must only be replaced by the manufacturer or its service agent or similarly qualified
person in order to avoid hazard.
Important:

Pre-Installation - continued
1. Before commencement unpack the canopy hood and check
that it functions correctly.
2. Use a plumb line to mark the centre of the cooking surface
on the ceiling.
3. Using the upper support frame as a template mark the four
holes on the ceiling. Ensure that the support frame front
edge is parallel with the bench top and that the plumb line
mark is central to the four mounting screw holes.
4. Drill holes in the ceiling at the points marked.
a When fitting to a 50mm truss drill a pilot hole through
the ceiling and the truss.
b If securing to any other ceiling type please use
appropriate fasteners and follow their instructions of
use carefully.
oCare and attention should always be taken when cooking with oils, alcohol, etc which give off flammable
vapours.
oPre-used oil is especially dangerous in this respect. Do not use uncovered electrical grill.
oTo avoid possible risks of fire always comply with the maintenance instruction below.
Attention
This appliance must be an earthed electrical connection, check that the socket has an earth connection and that the
voltage values correspond to those indicated on the rating plate inside the appliance. The power socket connection
is to be easily accessible after installation. When making the electrical connection, check that the socket has an
earth connection and that the voltage values correspond to those indicated on the rating plate inside the appliance.
The power socket connection is to be easily accessible after installation.
Installation
Planview
Before drilling any holes check that the area behind the surface
to be drilled is clear of any electrical cables, pipes etc. Fixing to
a solid joist or 50mm deep truss is recommended. Whenever
possible protect the hob top with cardboard or the like.
oThe canopy hood is designed for 2400mm ceilings.
oThe chimney is telescopic and is designed for hood installations between 600 to
750mm above the cooking surface.
oscertain the desired installation height of the canopy hood.
ony installation above 750mm will compromise the extraction performance.
oThe air outlet from the motor requires 150mm round ducting which requires
170mm diameter hole in the ceiling.

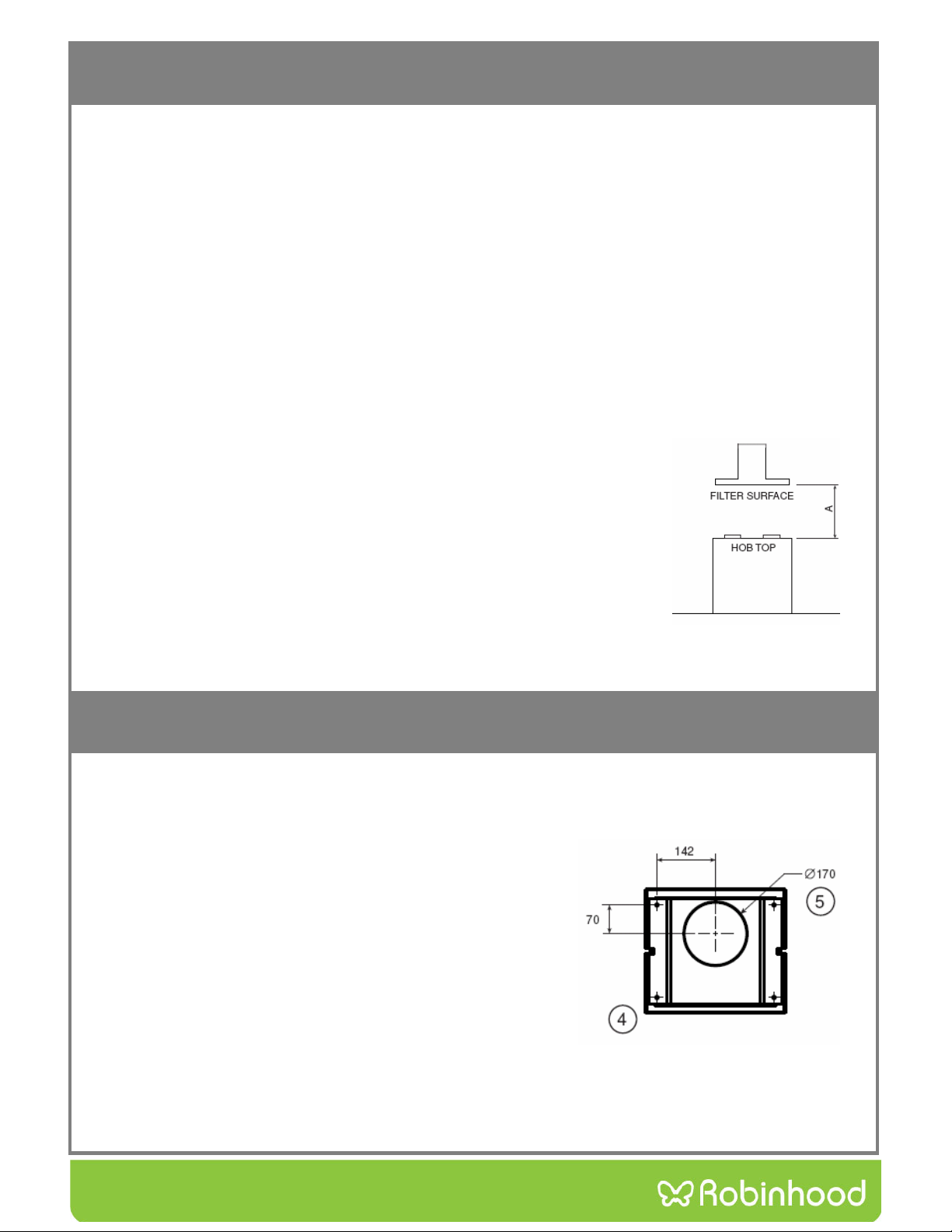

Height of Canopy Hood

Installation - continued
Operating Instr ctions
5. Fix the upper support frame to the ceiling using the screws
supplied.
6. For the ducting mark out and cut a Ø170mm hole in the ceiling.
Note that this hole is not central to the four mounting screw
holes.
7. Secure ducting to the top of the motor housing, use duct tape if
required. Solid ducting, galvanized or plastic is recommended.
Use flexi ducting only in difficult installations and if used ensure
that it is pulled tight. The smoother, straighter and shorter the
ducting the quieter and more efficient the canopy hood will
perform. Tape the power plug to somewhere near the top of the
ducting, this will enable easy access to the plug after
installation.Pre-Ins
8. Secure ducting to the top of the motor housing, use duct tape if
required. Solid ducting, galvanized or plastic is recommended.
Use flexi ducting only in difficult installations and if used ensure
that it is pulled tight. The smoother, straighter and shorter the
ducting the quieter and more efficient the canopy hood will
perform. Tape the power plug to somewhere near the top of the
ducting, this will enable easy access to the plug after installation.

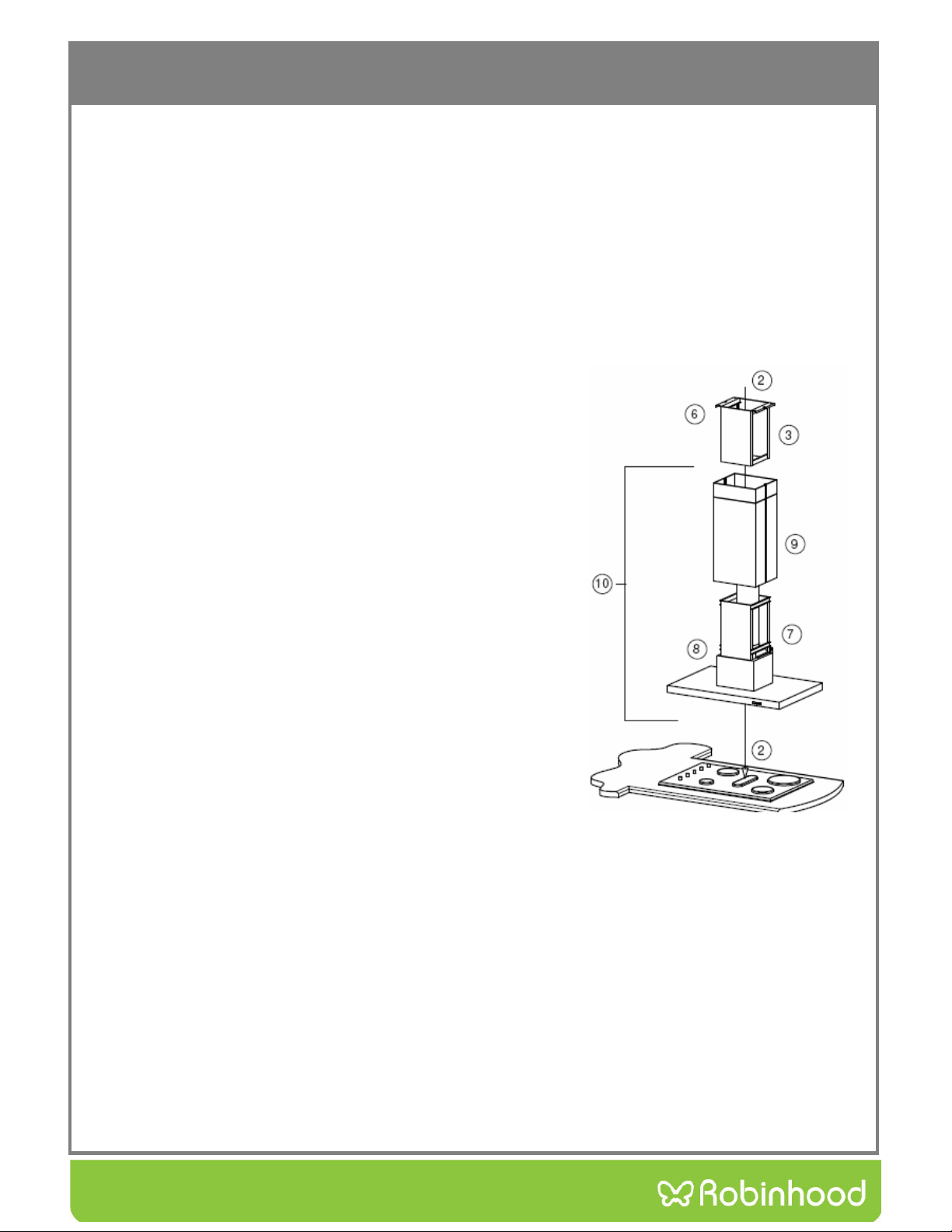

9. Secure the lower part of the support frame to the top of the
canopy hood using the screws provided.
10. Strip the plastic protective film off the two chimney pieces and
place these over the lower support frame. The lower chimney
will rest on top of the canopy hood and the upper chimney will
be extended and secured to the upper support frame. To ensure
that the upper chimney does not slip inside the lower chimney,
secure it so that the upper chimney is showing. Duct tape or two
screws/nails through the upper chimney securing holes will do
this.
11. Offer the canopy hood, lower support frame, chimneys and
ducting up to the upper support frame and secure in place with
the four screws provided. The dimension between the filters and
the cooking surface should be in line with those suggested in the
‘height of canopy hood’ section. n additional person will be
required for this operation or a simple support frame
manufactured to the correct dimensions will aid assembly of the
island canopy hood.
12. Finish assembling the ducting ensuring the path is as short,
straight and smooth as possible. Secure the lower chimney to
the canopy hood with the screws provided. These are accessed
from within the canopy hood and screw upwards into the lower
chimney flange. Connect to the power supply and switch on the
power to the canopy hood. Slide the upper chimney piece up to
the ceiling and secure in place with the four screws supplied.
Remove the transport tape that holds the oil cup in place under
the motor unit and fit the filters.

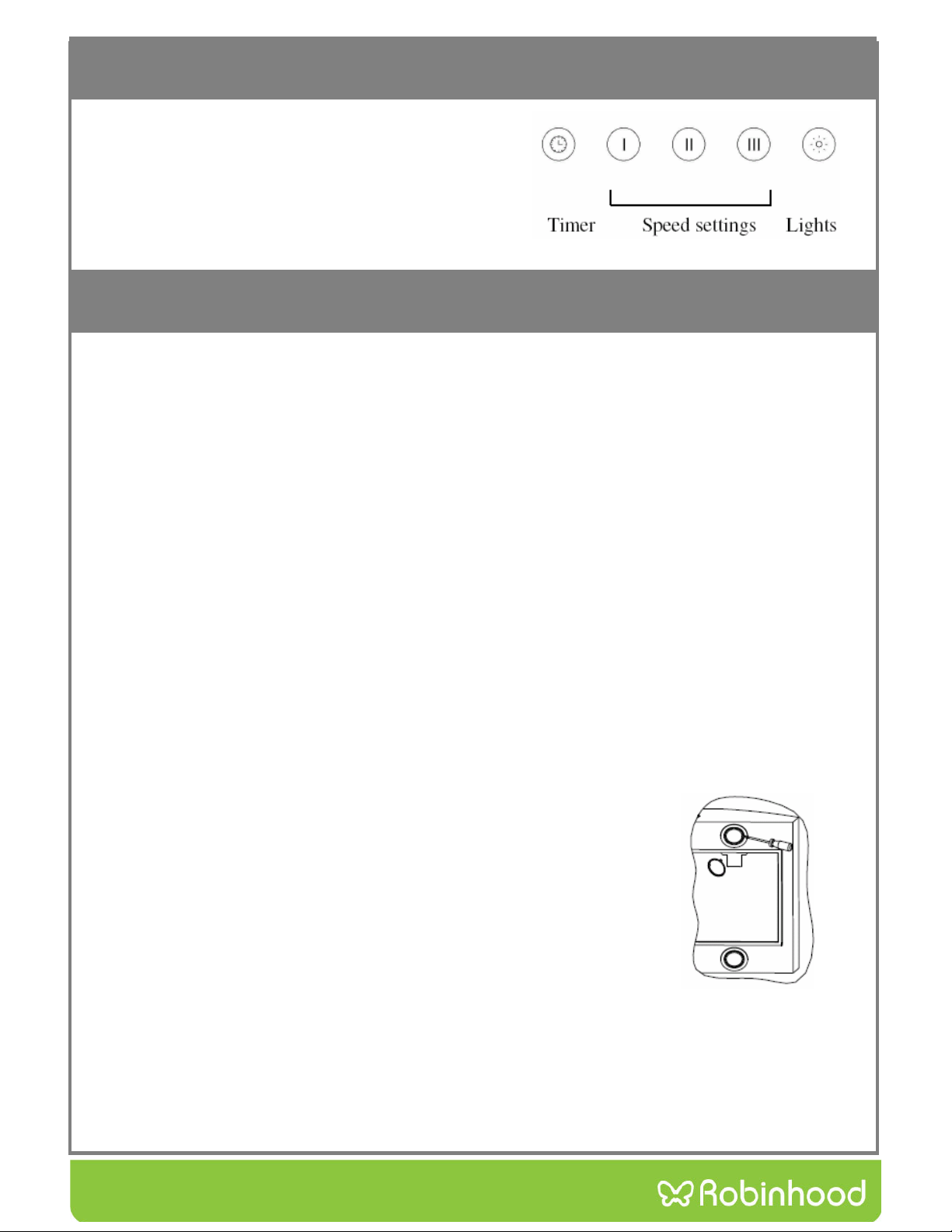

Operating Instr ctions
Timer switch: Canopy hood will remain on a low, mid or high
speed for 15 minutes to clear away all residual cooking odours
before switching off automatically.
Cleaning and maintenance
Parts and Accessories list
Uniduct Rangehood ducting is recommended for Robinhood Canopy Hoods.
Installation kit (Part no. 114481)
3 Filters (Part no. 114484)
Chimney Extn (Part no. 2197)
Switch off rangehood before cleaning or maintenance. To prevent surface damage never use abrasive or oil
based liquid cleaners. To clean the surfaces of the appliance, use mild detergent and warm water. In areas of
high humidity and coastal environments cleaning should be carried out frequently.
Warning: a b ild p of oil may occ r if the rangehood is not cleaned reg larly.
Filter Maintenance
To maintain efficient, the filter should be removed regularly (approximately monthly), and washed using hot
soapy water or the dishwasher.
Note: Some discolo ration of the frame may occ r if washed in the dishwasher.
Light Replacement
1. 4 x Halogen lamps 12 volts/10 watts – (Part no. 114313)
2. Switch off the power to rangehood.
3. Use a small bladed screwdriver to prise off the light cover taking
care not to damage the surrounding area.
4. Use a cloth to remove the bulb. Do not touch the bulb with fingers.
5. Replace with a new bulb using a cloth. “Snap” the cover back in
place.
General Maintenance

Cleaning & maintenance
oThis appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
oYoung children should be supervised to ensure that they do not play with the appliance.
oThere shall be adequate ventilation of the room when the rangehood is used at the same time as appliances
burning gas or other fuels.
oYou must read the details concerning the method and frequency of cleaning.
oThere is a fire risk if cleaning is not carried out in accordance with the instructions.
oDo not flambé under the rangehood.
oExhaust air must not be discharged into an existing flue which is used for exhausting fumes from appliances
burning gas or other fuels.
oThe minimum distance between the hob surface and the lowest part of the rangehood is 600mm. This distance
shall be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the gas hob specify a
greater distance, this has to be taken into account.
ottention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is
fulfilled.
oIf the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
Important safety information

Warranty Certificate (New Zealand)
Pre-Installation
New Zealand
Robinhood Ltd
Telephone: [phone]
Facsimile: 0800 276 246
Email: [e-mail]
www.robinhood.co.nz
A stralia
Robinhood PTY Ltd
Telephone: [phone]
Facsimile: 1800 628 577
Email: [e-mail]
www.robinhood.com.au
Terms and Conditions
The following conditions apply in respect of the warranty given in this certificate:
1. Robinhood Limited (“Robinhood”) warrants the following products against manufacturing defects and faulty materials,
under normal use and subject to the exclusions in this certificate, for a period of:
Rangehood – 24 months from date of original purchase for domestic use.
Unid ct – 12 months from date of original purchase for domestic use.
Ironing centre – 12 months from date of original purchase for domestic use.
“Original purchase”, when used in this certificate, means purchase by the customer directly from Robinhood Limited or
one of its approved suppliers.
2. This warranty is limited to the repair or replacement, at Robinhood’s option, within the warranty period of any
component part which Robinhood at its discretion determines to contain faulty materials or a manufacturing defect in
breach of this warranty. This warranty is subject to terms and conditions set out in this certificate.
3. The warranty only applies within New Zealand.
4. The customer must produce the original invoice or other purchase documentation as proof of the original purchase
date.
Warranty excl sions
1. The warranty does not apply where, in the opinion of Robinhood:
The defect is caused by misuse, wear and tear, dirt, fire or accidental damage.
The product has been repaired or serviced by an unauthorised person.
The product was not installed in accordance with Robinhood instructions.
The product was purchased overseas or was not designed for use in New Zealand.
The product was not used, cleaned or cared for in accordance with Robinhood’s instructions.
The product was used outdoors.
2. In addition, this warranty does not extend to damage or defects which in Robinhood’s opinion, directly or indirectly
arise from or are due to:
Exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;
Using inappropriate household cleaning products such as abrasive cream or powder cleansers, furniture polish, bleach,
mentholated spirits, drain cleaners, sugar soap, metal pads and strongly alkaline or acidic cleaners;
Heat damage, including from washing the product at high temperatures;
Impact or mishandling the product, including the impact caused by objects scraped along, thrown or dropped on the
product surface or excessive weight being placed on the product;
Structural or support changes in or affecting the building or the application where the product has been installed;
Failure to clean or maintain the product as recommended; or
any other causes specified in the product information as being excluded from this warranty.
3. Variations with the colour or gloss within the product or any ageing or fading of colour, shine or gloss level over time
are not covered by this warranty. The warranty does not cover visual imperfections or blemishes in the surface and
edges of the product that were not brought to your supplier’s attention at the time you inspected the product.
4. Costs incurred on installation or removal of a product, or any reinstallation of a product, or any associated costs, are
not covered by this warranty.
5. Robinhood will not be liable for consequential or indirect loss or damage whatsoever and however arising out of or in
connection with the supply, performance or removal of the product, including (but not limited to) loss of profit, loss of
revenue, loss of contract, lost of goodwill or increased cost of workings, even if due to the negligence of Robinhood or
any of its approved suppliers, employees or agents.
6. Charcoal filters and light bulbs are not covered by this warranty
7. This warranty and the statements contained in this certificate or other Robinhood documents given to you do not
exclude, restrict or modify the application of any term implied into this warranty by statute, provided that (to the
extent any statutory provision permits Robinhood to limit its liability for a breach of an implied condition or warranty)
Robinhood’s liability for such breach is limited to the payment of the cost of replacing the product, repairing the
product or acquiring an equivalent product.
8. Subject to clause 5, the obligations of Robinhood under this warranty are limited to those set out in this certificate,
and this warranty is expressly instead of all other warranties, express or implied, including any implied warranty of
merchantability or fitness for a particular purpose and notwithstanding any course of dealing between the parties or
custom and usage in trade to the contrary.
Should warranty service be required, please contact Robinhood:
Free Phone: [phone]
Free Fax: [phone]
Email: [e-mail]
Website: www.robinhood.co.nz
Terms and conditions are subject to change without notice

Warranty Certificate (A stralia)
Pre-Installation
New Zealand
Robinhood Ltd
Telephone: [phone]
Facsimile: 0800 276 246
Email: [e-mail]
www.robinhood.co.nz
A stralia
Robinhood PTY Ltd
Telephone: [phone]
Facsimile: 1800 628 577
Email: [e-mail]
www.robinhood.com.au
Terms and Conditions
The following conditions apply in respect of the warranty given in this certificate:
1. Robinhood warrants the following products against manufacturing defects and faulty materials, under normal use and subject to
the exclusions in this certificate, for a period of:
Rangehood – 24 months from date of original purchase for domestic use.
Unid ct – 12 months from date of original purchase for domestic use.
Ironing centre – 12 months from date of original purchase for domestic use.
“Original purchase”, when used in this certificate, means purchase by the customer directly from Robinhood ustralia Pty Ltd or
one of its approved suppliers.
2. This warranty is limited to the repair or replacement, at Robinhood’s option, within the warranty period of any component part
which Robinhood at its discretion determines to contain faulty materials or a manufacturing defect in breach of this warranty. This
warranty is subject to terms and conditions set out in this certificate.
3. The warranty only applies within the Commonwealth of ustralia.
4. The customer must produce the original invoice or other purchase documentation as proof of the original purchase date.
Warranty excl sions
1. The warranty does not apply where, in the opinion of Robinhood:
The defect is caused by misuse, wear and tear, dirt, fire or accidental damage.
The product has been repaired or serviced by an unauthorised person.
The product was not installed in accordance with Robinhood instructions.
The product was purchased overseas or was not designed for use in ustralia.
The product was not used, cleaned or cared for in accordance with Robinhood’s instructions.
The product was used outdoors.
2. In addition, this warranty does not extend to damage or defects which in Robinhood’s opinion, directly or indirectly arise from or
are due to:
Exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;
Using inappropriate household cleaning products such as abrasive cream or powder cleansers, furniture polish, bleach,
mentholated spirits, drain cleaners, sugar soap, metal pads and strongly alkaline or acidic cleaners;
Heat damage, including from washing the product at high temperatures;
Impact or mishandling the product, including the impact caused by objects scraped along, thrown or dropped on the product
surface or excessive weight being placed on the product;
Structural or support changes in or affecting the building or the application where the product has been installed;
Failure to clean or maintain the product as recommended; or
ny other causes specified in the product information as being excluded from this warranty.
3. Variations with the colour or gloss within the product or any ageing or fading of colour, shine or gloss level over time are not
covered by this warranty. The warranty does not cover visual imperfections or blemishes in the surface and edges of the product
that were not brought to your supplier’s attention at the time you inspected the product.
4. Costs incurred on installation or removal of a product, or any reinstallation of a product, or any associated costs, are not covered
by this warranty.
5. Robinhood will not be liable for consequential or indirect loss or damage whatsoever and however arising out of or in connection
with the supply, performance or removal of the product, including (but not limited to) loss of profit, loss of revenue, loss of
contract, lost of goodwill or increased cost of workings, even if due to the negligence of Robinhood or any of its approved suppliers,
employees or agents.
6. Charcoal filters and light bulbs are not covered by this warranty
7. This warranty and the statements contained in this certificate or other Robinhood documents given to you do not exclude, restrict
or modify the application of any term implied into this warranty by statute, provided that (to the extent any statutory provision
permits Robinhood to limit its liability for a breach of an implied condition or warranty) Robinhood’s liability for such breach is
limited to the payment of the cost of replacing the product, repairing the product or acquiring an equivalent product.
8. Subject to clause 5, the obligations of Robinhood under this warranty are limited to those set out in this certificate, and this
warranty is expressly instead of all other warranties, express or implied, including any implied warranty of merchantability or
fitness for a particular purpose and notwithstanding any course of dealing between the parties or custom and usage in trade to the
contrary.
Should warranty service be required, please contact Robinhood:
Free Phone: [phone]
Free Fax: [phone]
Email: [e-mail]
Website: www.robinhood.com.au
Terms and conditions are subject to change without notice
101961 iss. N
ECN 08 110
