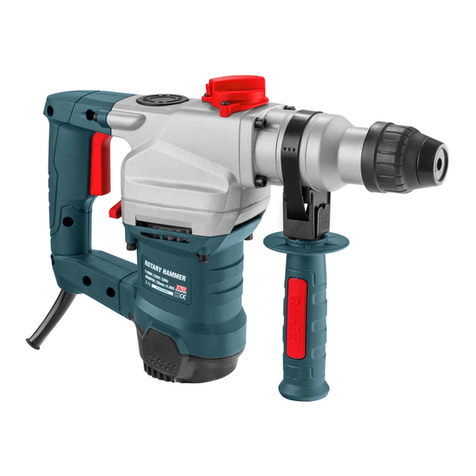

Ronix 2702 User manual

ROTARY HAMMER
2702

USER MANUAL 3
SPECIFICATIONS
WARNING!
The electric hammer chisel power tool noise output may exceed
85dB(A) at the workplace. In this instance, wear ear protection.
Wear safety-hearing protection
Wear Dust mask
Wear safety goggles
Wear safety shoes
Wear hard hat
SAVE THESE INSTRUCTIONS FOR REFERENCE
Frequency 230 50Hz
Hex Chuck Hex tting
Hex chuck 28mm
Voltage 230V 50Hz
Reversible No
Input power 1100 w(approx.)
Impact hammer action 850r/min(approx.)
Weight 4.6kgs(approx.)

ROTARY HAMMER
4
KNOW YOUR ELECTRIC CHISEL
POWER TOOL SAFETY
.GENERAL SAFETY RULES
WARNING!
Read all instructions Failure to follow all instructions listed
below may result in electric shock, re and/or serious injury.
The term “power tool” in all of the warnings listed below refers
to your mains operated (corded) power tool or battery operated
(cordless) power tool.
SAVE THESE INSTRUCTIONS
.WORK AREA
Keep work area clean and well lit. Cluttered and dark areas
invite accidents.
Do not operate power tools in explosive atmospheres, such as
in the presence of ammable liquids, gases or dust. Power tools
create sparks, which may ignite the dust or fumes.
Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.

USER MANUAL 5
.ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodied plugs and matching outlets will reduce
risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water
entering the power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling
or unplugging the power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
.PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the inuence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result
in serious personal injury.
Use safety equipment. Always wear eye protection. Safety
equipment such as dust mask, non-skid safety shoes, hardhat,
or hearing protection used for appropriate conditions will reduce
personal injury.

ROTARY HAMMER
6
Avoid accidental starting. Ensure the switch is in the OFF position
before plugging in. Carrying power tools with your nger on the
switch or plugging in power tools that have the switch ON invites
accidents.
Remove any adjusting key or wrench before turning the power
tool on. A wrench or key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
Dress properly. Do not wear loose clothing or jewellery. Keep
your hair, clothing and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly
used. Use of these devices can reduce dust related hazards.
.POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and
safer at the rate for which it was designed.
Do not use the tool if the switch does not turn it ON or OFF. Any
power tool that cannot be controlled with the switch is dangerous
and must be repaired.
Disconnect the plug from the power source before making any
adjustments, changing accessories or storing power tools. Such
preventive safety measures reduce the risk of starting the power
tool accidentally.
Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions

USER MANUAL 7
to operate the power tool. Power tools are dangerous in the
hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect
the power tools operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power
tools.
Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are
easier to control.
Use the power tool, accessories and tool bits etc., in accor-
dance with these instructions and in the manner intended for
the particular type of power tool, taking into account the working
conditions and the work to be performed. Use of the power tool
for operations different from intended could result in a hazardous
situation.
.SERVICE
Tool service must be performed only by qualied personnel.
Service or maintenance performed by unqualied personnel
could result in risk of injury.
When servicing a tool, use only identical replacement parts.
Follow instructions in the Maintenance section of this manual. Use
of unauthorized parts or failure to follow Maintenance instructions
may create a risk of electric shock or injury.

ROTARY HAMMER
8
.SPECIFIC SAFETY RULES
WARNING!
For your safety, do not plug in your Power tool until you have
read and understood this Owner’s Manual.
- WEAR EYE PROTECTION. Use face or dust mask along
with safety goggles. Use hearing protection, particularly during
extended periods of operation, wear safety shoes, wear hard
hat
- “Wear ear protectors with impact chisels. Exposure to noise
can cause hearing loss”
- DO NOT wear gloves, jewellery, neckties or loose clothing.
- DO NOT drill, cut or sand material too small to be securely
held.
- ALWAYS keep hands out of the path of the drill bit and saw
blade. Avoid awkward hand positions where a sudden slip could
cause your hand to move into the path of the drill bit or saw
blade.
- SECURE WORKPIECE. Use clamps or a vice to hold the work
when practical. It is safer than using your hand and it frees both
hands to operate the tool.
- MAKE SURE there are no nails or foreign objects in the part of
the workpiece to be cut drilled or sanded.
.SPECIFIC SAFETY RULES – CONT’D
- TO AVOID INJURY from accidental starting, always remove
the Plug from the electrical socket before installing or removing
a chisel bit.

USER MANUAL 9
DRILL SAFETY
- When using electric hammer chisel only use bits that are
congured with the correct slots for this chuck.
- BEFORE STARTING the operation, jog the chisel switch to
make sure the chisel bit does not wobble or vibrate.
- DO NOT USE y cutters or multiple-part hole cutters, as they
can come apart or become unbalanced in use.
- MAKE SURE the spindle has come to a complete stop before
touching the chuck or attempting to change the chisel bit also
beware that the bit will be hot, let it cool down before changing
as it could burn and cause injury.
- ALWAYS MAKE SURE THE CHISEL OR CHISEL IS FIRMLY
SEATED IN THE Hex CHUCK before starting the job in hand.
SYMBOLS
Some of the following symbols may be used on your tool. Please
study them and learn their meaning. Proper interpretation of
these symbols will allow you to operate the tool better and safer.
V volts
A amperes
Hz hertz
W watt
Kw kilowatts
F farads
microfarads
l litres
Kg kilograms
bar bars

ROTARY HAMMER
10
Pa pascals
h Hours
min minutes
s seconds
No load speed
./min or minˉ¹ Revolutions or reciprocations per minute
direct current
alternating current
² two-phase alternating current
2N two-phase alternating current with neutral
three-phase alternating current
3N three-phase alternating current with neutral
Rated current of the appropriate fuse-link in amperes
Time-lag miniature fuselink where X is the symbol for the
time/current characteristic, as given in EN 60127
protective earthing at earthing terminal, Class I tools
Diameter
0 Off position
Arrow
Warning symbol
alternating or direct current
splash proof construction
watertight construction
class II construction
IPXX IP symbol

USER MANUAL 11
ACCESSORIES & CARTON CONTENTS
.AVAILABLE ACCESSORIES
WARNING!
Use only accessories recommended for this electric hammer
chisel. Follow instructions that accompany accessories. Use of
improper accessories may cause injury to the operator or damage
to the cordless drill.
Do not use any accessory unless you have completely read the
instructions or Owner’s Manual for that accessory.
- Various chisels
CARTON CONTENTS
WARNING!
If any part is missing or damaged, do not plug the chisel into
the power source until the missing or damaged part is replaced.
Carefully unpack the tools see “Components chart” at right hand
side of this page.
NOTE:
See illustration of components on Page 11.
WARNING!
To avoid re or toxic reaction, never use gasoline, naphtha,
acetone, lacquer thinners or similar highly volatile solvents to
clean the tool.

ROTARY HAMMER
12
.CARTON CONTENTS – CONT’D
ASSEMBLY & OPERATION
WARNING!
Always make sure the power tool is isolated from the power
supply before tting any attachment Handle. See Always make
sure the xed handle is secure before any job takes place as a
loose handle could invite injuries.
Switching the chisel on/off
The chisel has an On/Off switch built in to the handle. Holding
the chisel with both hands simply squeeze the trigger and the
motor will start. To switch off release the trigger.
KEY Description QTY
A Rotary hammer 1
B Chisels 2
C Drill bits 3
D Oil key 1
E Carry case 1
ROTARY HAMMER

USER MANUAL 13
WARNING!
The electric hammer chisel continues for a few second after the
trigger has been release, be careful when putting it down.
Fitting a chisel bit into the Hex housing.
Put the bit into the hex housing and clamp the bit by turning
the stop lever half a turn anti clockwise. This will lock the bit in
place.
Do not use the chisel until you are satised the bit is secured.
This electric hammer chisel does not have reverse direction,
so always take care not to force the chisel in case the chisel bit
gets stuck. Always make sure you keep the chisel going in and
out to remove debris.
Trigger switch
3
1
132

ROTARY HAMMER
14
This chisel does not have torque facility. It is not recommended
to use any other bit other than masonry or chisels do not use
metal cutting drills, this could cause serious injury.
NOTE:
chiseling for an extended period of time may cause the chisel
motor to overheat. If the chisel gets hot, stop chiseling and allow
it to cool for at least 15 minutes.
.PRECAUTIONS ON USING ELECTRIC HAMMER CHISEL
1) Before using the electric hammer chisel always make sure
the oil supply is to the full level and the screw is tight.
2) This electric hammer chisel has a xed handle always make
sure the screws holding the handle are secure before operation
takes place. Always use both hands when using this chisel fail-
ure to adhere to this could invite injuries.
3) Safe operation, always make sure you have a stable posture
and safe footing before operating the electric hammer chisel.
4) When working at a high level, always make sure that no per-
son or persons are below you, as this could invite injuries to
those persons under you.
5) Before starting any job like breaking, chipping a wall, oor or
ceiling, thoroughly conrm that no items such as an electric ca-
ble, water pipe or conduit are buried inside as this could cause
injury or ooding.
6) Properly set the bit holder.
7) The bit can become very hot during operation exercise ex-
treme caution as this could cause injury.
8) Always wear protective safety glasses.
9) Always wear ear defenders or earplugs.

USER MANUAL 15
10) Always wear suitable dust mask.
11) Always wear protective footwear.
12) Always wear hardhat.
.INFORMATION ON HOW TO USE THE ELECTRIC HAMMER
CHISEL
Prior to operation
1) Power source
Ensure that the power source to be utilized conforms to the
power requirements specied on the product nameplate.
2) Grounding
This tool should be grounded while in use to protect the operator
from electric shock.
The tool is equipped with a three-conductor cord and grounding
type receptacle, the green (or green and yellow) conductor in the
cord is the grounding wire. Never connect the green (or green
and yellow) wire to a live or neutral terminal.
3) Power switch
Ensure that the power switch is in the off position before any
work is carried out on the chisel. If the plug is connected to a
power receptacle while the power switch is in the on position,
the power tool will start operating immediately this could invite
serious injury.
4) Extension cord
When the work area is away from the power source, use an
extension cord of sufcient thickness and rated capacity. The
extension cord should be kept as short as practicable.

ROTARY HAMMER
16
.HOW TO USE THE ELECTRIC HAMMER CHISEL
Place the bit you are going to use to do the job in hand as in
page 11.
1) Pull the trigger switch after applying the chisel bit tip to the
chiseling position.
2) It may be necessary to punch the bit against the crushing
position forcibly in order to begin the striking stroke. This is
not due to malfunction of the tool, it means that the safe guard
mechanism against no-load striking is working.
3) By utilizing the weight of the machine and by rmly holding
the hammer chisel with both hands, one can effectively control
the subsequent recoil motion.
Proceed at a moderate work rate, the use of too much force will
impair efciency.
CAUTION:
Sometimes the tool does not begin the striking stroke even when
the motor rotates this may be because the oil has become thick

USER MANUAL 17
Due to low temperature or has been standing idle for long pe-
riod. Run the chisel for approx 5 minutes to bring the oil tem-
perature up.
MAINTENANCE
.OIL FEEDING
CAUTION:
Prior to oil feeding, always disconnect the plug from the power
supply receptacle. Since an oil chamber is built in this electric
hammer chisel, it can be used for approximately 20 days without
supplying lubrication oil, assuming that the chisel is used contin-
uously 3-4 hours daily.
Feed oil into the oil tank as described below before using the
hammer chisel.
1) When the chisel is held upright look through the oil gauge
window to see if oil is visible, if no oil shows oil must be installed
before operating.
If chisel is used without oil this could seriously damaged the
chisel and forfeit any warranty given.
2) Before feeding oil, use the provided wrench to remove the oil
gauge (4). Be careful not to lose the rubber packing attached
below the oil gauge.
3) Check the oil level once daily, conrming that oil is lled.
4) After feeding oil, securely clamp the oil gauge.
NOTE:
Oil for the electric hammer chisel is sold separately, use Shell
oil ROTELLA 40 (engine oil) or equivalent, this is sold at most
shops or lling stations anywhere.

ROTARY HAMMER
18
.MAINTENANCE AND INSPECTION
1) Inspecting the tool
When using dull tool bits this can cause motor malfunction and
degraded efciency. Always replace dull bits with new ones
without delay when abrasion is noted.
2) Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are
properly tightened. Should any of the screws be loose, retighten
them immediately. Failure to do so could result in serious injury.
3) Maintenance of the motor
The motor unit winding is the very “heart” of the power tool.
Exercise due care to ensure the winding does not become
damaged and/or wet with oil or water.
4) Inspecting the carbon brushes
The motor employs carbon brushes that are consumable parts;
since an excessively worn carbon brush could result in motor
trouble, replace the carbon brush. Wear limiter (6) No of carbon
brush (7).
44
4mm
17mm
6
7

USER MANUAL 19
Always keep carbon brushes clean and ensure that they slide
freely within the brush holders.
.REPLACEMENT STEPS
The carbon brush can be removed by removing the cap cover
(9), cap rubber and brush cap in that order at the interior
To replace carbon brush reverse order of removal.
.INSTALLING BITS
Never hold the chuck body with one hand and use the chisel
power to the chisel body to loosen or tighten bits. You may
severely injure your hand.
WARNING!
Have you read “POWER TOOL SAFETY”, “DRILL SAFETY” and
“SYMBOLS” on pages 4,5 & 6 of this manual? If not, please do it
now before you operate this drill. Your safety depends on it!
Every time you use the drill you should verify the following:
1) Hex bit is secure.
2) Oil level is full.
3) Select to the function you want to do before you engage in
the proposed operation
4) All safety apparel. Safety Glasses Safety Shoes. Safety
Gloves. Ear Defenders and Safety Hat are being worn.
Failure to adhere to these safety rules can greatly increase the
chances of injury.
brush carton

ROTARY HAMMER
20
WARNING!
Be prepared for binding and bit breakthrough. When these situa-
tions occur, the chisel bit has the tendency to grab the workpiece.
This action will kick the chisel opposite to the direction of chisel bit
rotation and could cause loss of control when breaking through
material as you complete chiseling the hole.
If you are not prepared, this loss of control can result in possible
serious injury.
.GENERAL
When servicing, use only identical replacement parts. Use of
any other part may create a hazard or cause product damage.
DO NOT use solvents when cleaning plastic parts. Most plastics
are susceptible to damage from various types of commercial
solvents and may be damaged by their use. Use clean cloth to
remove dirt, dust, oil, grease etc.
Do not at any time allow brake uids, gasoline, petroleum-based
products,penetratingoils,etc.tocomeincontactwithplasticparts.
They contain chemicals that can damage, weaken or destroy
plastic.
DO NOT abuse power tools. Abusive practices can damage the
tool as well as the workpiece.
DO NOT attempt to modify tools or create accessories not
recommended. Any such alteration or modication is misuse
and could result in a hazardous condition leading to possible
serious injury. It will also void any warranty given.
