Russell Hobbs RHBM3201 (MB) User manual

Model Number:
RHBM3201
Family Built in Digital Microwave
User Guide
For Customer Services & Spare Parts please call0345 2097461
Opening times: Monday -Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
PLEASE RETAIN
FOR FUTURE REFERENCE

Page(s)
SAFETY INSTRUCTIONS
3-9
ABOUT YOUR MICROWAVE
10-11
PRODUCT INFORMATION
12
UNPACKING THE MICROWAVE
13
PRODUCT OVERVIEW
14

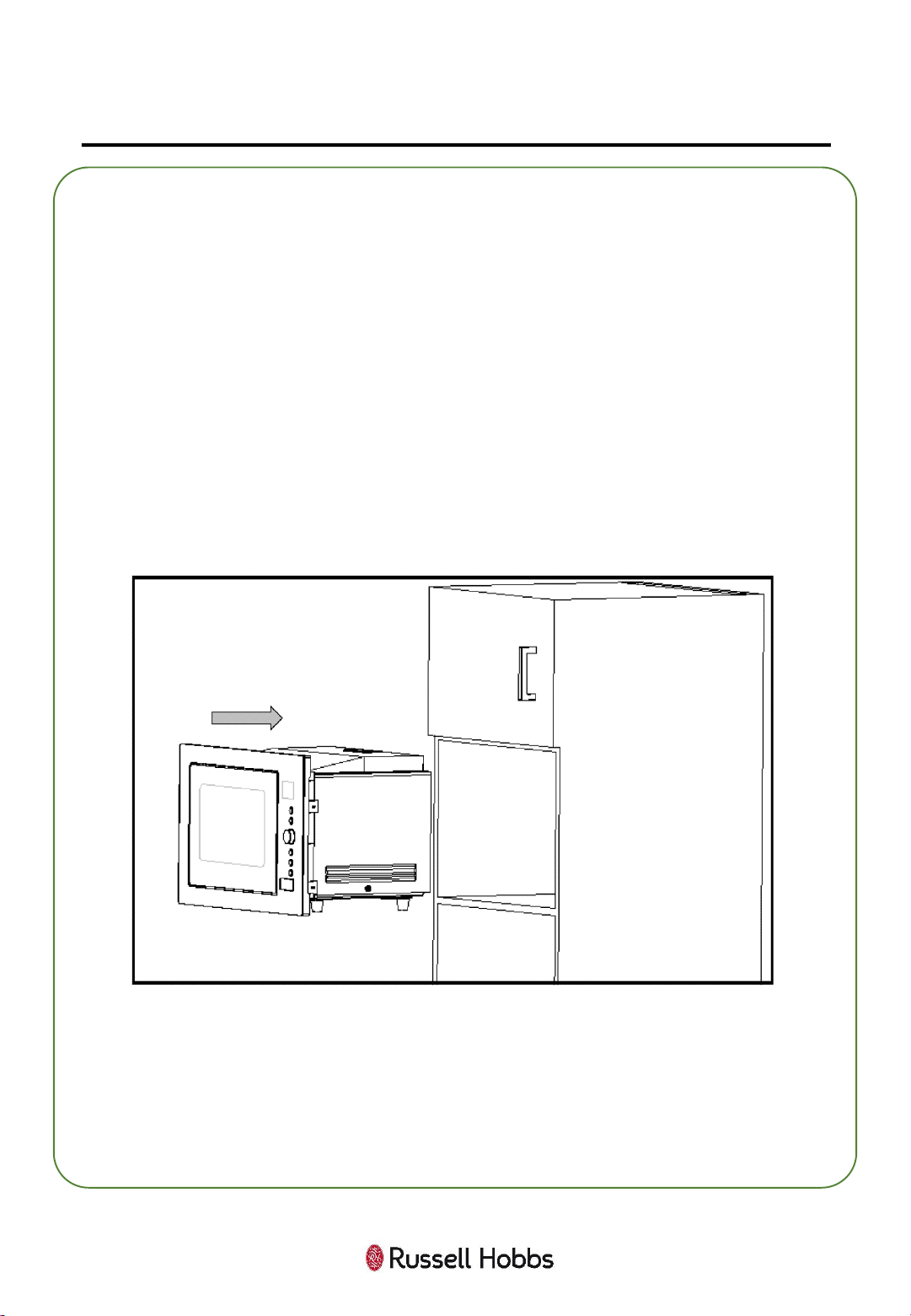

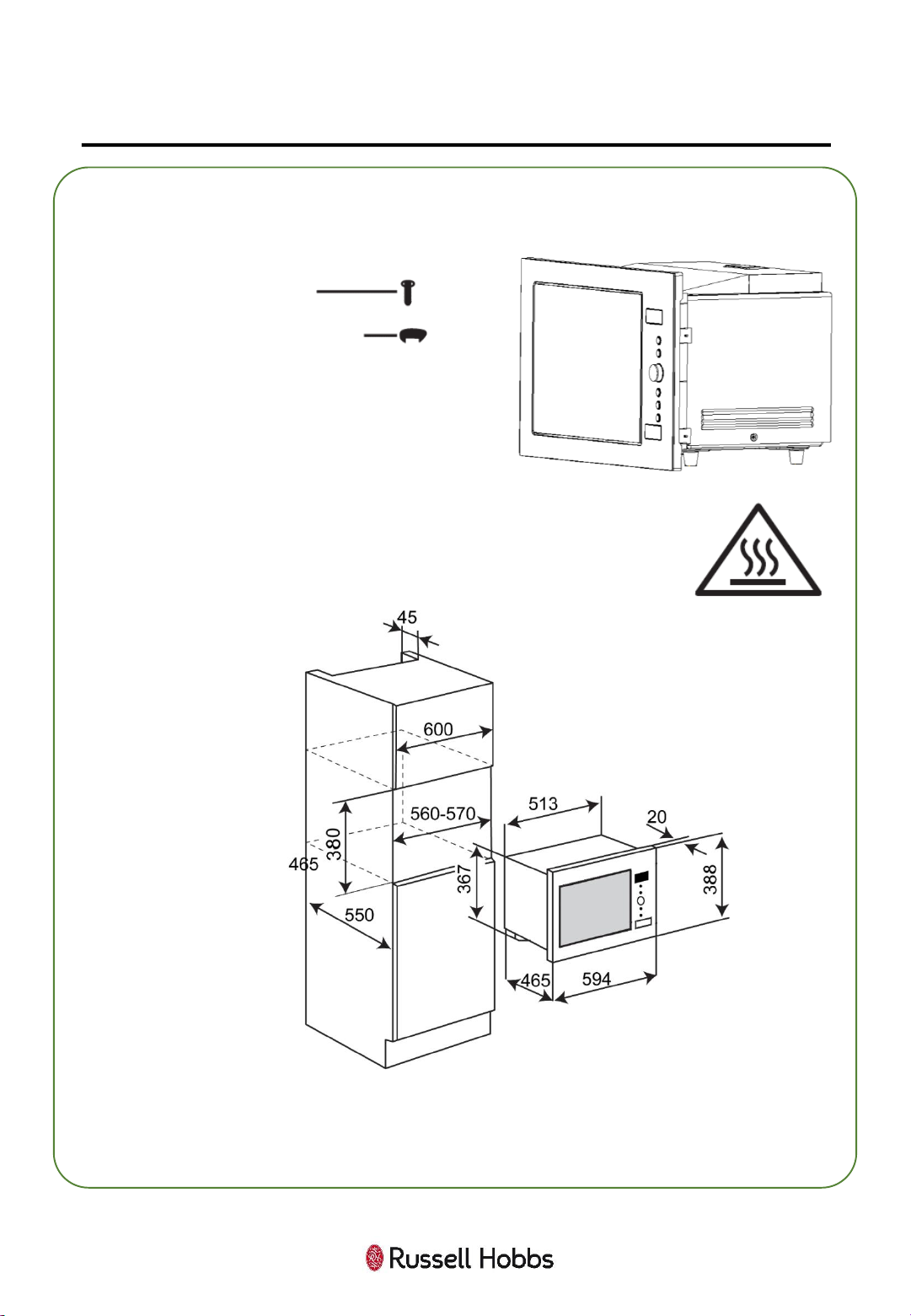

MICROWAVE OVEN INSTALLATION
15-21
TURNTABLE INSTALLATION
22-23
CONTROL PANEL
24
HOW TO USE THE MICROWAVE
25-36
COOKING TIPS
37
CLEANING THE MICROWAVE
38
PROBLEM SOLVING
39-42
GUARANTEE & CUSTOMER SERVICES
43
SPARE PARTS
44
CONNECTION TO THE MAINS SUPPLY
45-46
NOTES
47
DISPOSAL
48
CONTENTS
2
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk

3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•This appliance is intended to be used in the household
and general domestic applications. It is not intended to
be used in industrial or commercial applications.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervised.
•If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent
person.
•It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to microwave energy.
•Liquids and other foods must not be heated in sealed
containers since they are liable to explode.

4
SAFETY INSTRUCTIONS
WARNING:
•Aminimum clearance of 20cm is required between the
oven and the side walls and 0cm between the oven and
the back wall. Leave a minimum clearance of 30cm
abovetheoven.
•Use only cookware and utensils that are approved for
use in a microwave oven.
•When heating foodin plastic or paper containers, keep
an eye on the oven due to the possibility of ignition.
•This microwave is intended for heating food and
beverages only. The drying of food or clothing and
heating of warming pads, wheat bags, slippers, sponges,
damp cloth and similar is extremely dangerous and may
lead to risk of injury, ignition or fire.
•If materials inside the oven smoke or catch fire, keep the
oven door closed to stifle the flames, turn the oven off
at the wall switch, or shut the power off at the fuse or
circuit-breaker panel. If smoke is emitted , switch off or
unplug theappliance and keep the door closed in order
to stifle any flames.
•Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

5
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns. Do not
heat baby bottles with the teat left on. Remove it if
replacing the bottle back into the oven.
•Eggs in their shell and whole hard-boiled eggs should not
be heated in microwave ovens since they may explode,
even after microwave heating has ended.
•The oven should be cleaned regularly and any food
deposits removed.
•Failure to maintain the oven in a clean condition,
especially if liquid is left under the turntable, could lead
to deterioration of the surface that will adverselyaffect
thelife of theappliance that may result in a
hazardous condition.
•The microwave oven should be used freestanding only
and must not be built-in or used in a cabinet
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

6
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•To avoid fire, electric shock, or injury, never immerse the
microwave, cord, or plug in water or liquid.
•Do not use attachments not recommended by the
manufacturer. Only use thermometers approved for use
in microwaves.
•The appliance and its accessible parts may become hot
during use. Care should be taken to avoid touching
heating elements.
•Do not leave the microwave oven unattended while you
are using it.
•Do not use the microwave when it is empty. This could
damage the oven.
•Do not use metal pans, dishes with metal handles or
anything with a metal trim inside the microwave. Do not
use paper covered wire twist-ties on plastic bags.
•Never put objects into the openings on the outer case.
•Food containing a mixture of fat and water (for example,
stock) should stand for 30 to 60 seconds in the oven
after it has been turned off. This is to allow the mixture
to settle and to prevent it from bubbling when a spoon is
placed in it, or a stock cube is added.

7
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•When heating or cooking food or liquid, remember
that there are certain foods (such as, jam, Christmas
pudding, and mincemeat) which heat up very quickly.
•Do not cook any food surrounded by a membrane, such
as egg yolks, potatoes, chicken livers, sausages,
ready meals and so on without piercing them several
times with a fork.
•Do not try to deep-fry foods in this microwave oven.
•Do not overcook food.
•Please remember that as food or liquids heat up,
they will release steam or may be spitting. Never cover
any container fully, always leave a gap for steam to
escape.
•Do not use plastic containers when heating or cooking
foods that contain a lot of fat or sugar.
•Always have the glass tray and turntable support in
place when using the microwave oven.
•Do not cook fooddirectly on theglass tray. Put food on
a suitable plate or in a bowl before putting it in the oven.

8
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•When using the grill rack and baking tray, be aware that
these will become HOT during cooking as they aren’t
heatproof. Please use suitable oven gloves when
removing these.
•Do not use melamine dishes as they contain a
material which will absorb microwave energy. This may
cause the dishes to crack or burn, and will slow down
the cooking speed.
•Do not usethe microwave oven for heating utensils,
plates or dishes.
•Do not cook using a container with a restricted
opening, such as bottles, as they may explode.
•Before you clean your microwave oven, turn it off and
unplug it.
•Keep the inside of the oven clean. When food or
liquids stick to the oven walls, wipe with a damp
cloth. We recommend that you do not use harsh
detergent or abrasives.

9
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•On the right hand wall of the cavity is the wave
guide cover, microwaves are passed through this to
enable your food to cook. It is important that this
wave guide cover is kept clean at all times. To do
this wipe with mild detergent and water, then dry.
•You should clean the outside of the oven with a
damp cloth. Do not allow water to seep into the
ventilation openings.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
•If steam builds up insideor around the outsideof the
oven door, wipe with a soft cloth. This may happen
when the microwave oven is used in humid conditions.
•Regularly remove theglass turntable to clean it, wash
it in warm soapy water or a dishwasher. Regularly
clean the turntable support and oven floor. Simply
wipe the bottom surface of the oven with mild
detergent and water, then dry. You can wash the
turntable support in mild soapy water.

ABOUT YOUR MICROWAVE
10
Thank you for purchasing your Russell Hobbs microwave oven.
The Russell Hobbs RHBM3201 microwave has a sleek and stylish
contemporary design, boasting an attractive mirror finish door. As
well as an appealing look, this appliance also boasts impressive
functionality, with 1000 watts of microwave power providing quick
and convenient cooking in your home.
The RHBM3201 comfortably fits a standard size of dinner plate –up
to 12.5” diameter. It comes with a removable and dishwasher safe
glass turn-table for easy cleaning.
Pre-programmed auto cook menus, such as reheat, fish, and
popcorn, allow you to cook all your favourite foods at the push of a
button. What’s more, there’s automatic defrost settings meaning all
you have to do is input the weight of the food, and the microwave
selects the ideal defrost time, saving you time and effort. 5
microwave power levels enable tailoring of your cooking
experience.
Additional features include a handy digital clock and timer function,
and for added peace of mind, the RHBM3201 features a child safety
lock option.

ABOUT YOUR MICROWAVE
How do microwaves work?
Microwaves are high-frequency electromagnetic waves similar to
radio waves. While radio waves may vary in length from one metre
to many kilometres, microwaves are very short (less than 12.5
centimetres.)
Microwaves do not make any heat themselves but cause water
molecules in food to vibrate.
This vibration produces heat that cooks the food. This is why your
food will come out of the microwave piping hot, when your utensils
inside the oven stay much cooler. The microwaves do not stay in the
air or in the food when you open the microwave oven door.
The microwave oven will work using an ordinary household
electrical socket. Inside the microwave oven is the magnetron,
which turns the electrical energy into microwaves.
Microwaves cannot travel through metal, so the inside of the oven
is lined with metal. The door is lined with a fine metal mesh which
stops microwaves getting through. This means that when the
microwave oven door is shut, there is no possibility that
microwaves can be released.
11

12
PRODUCT INFORMATION
Rated Voltage 230-240V~/50Hz
Rated Output Power (Microwave) 950-1000W
Oven Capacity 32L*
*Internal volume is calculated by measuring maximum width,
depth and height. Actual capacity for holding food is less.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
Imported by
G2S Ltd
Wigan
WN2 4AY

Before you use your microwave oven
1. Remove all the packaging. Do not remove the small piece of card
from the right hand side of the cavity wall. This is called a wave-
guide cover and allows the microwaves to pass through to cook the
food.
Please ensure you keep this cover clean at all times by wiping with
a damp cloth. Do not remove/place in a dishwasher.
2. Check the oven after unpacking for any visual damage such as:
●A misaligned door
●Damage to the door
●Dents or holes in the door window and screen
●Dents in the inside
If you can see any damage do not use the oven, please contact
Product Care at www.productcare.co.uk or call 0345209
7461.
This microwave oven weighs approximately 14Kg so you must put it
on a horizontal surface that is strong enough to support this weight.
The oven must be placed away from high temperatures and steam.
Do not put anything on the top of the microwave oven.
UNPACKING THE MICROWAVE
13

14
PRODUCT OVERVIEW
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
1. Safety interlock latches
2. Door assembly and window
3. Glass turntable
4. Oven cavity
5. Microwave top
6. Wave guide cover (do not
remove)
7. Screen display
8. Control panel
9. Turntable coupling
10. Turntable ring
1
2
3
45
6
7
8
910

15
MICROWAVE OVEN INSTALLATION
•Place the oven as far away from radios and televisions as
possible. Using the oven may cause interference with the
reception.

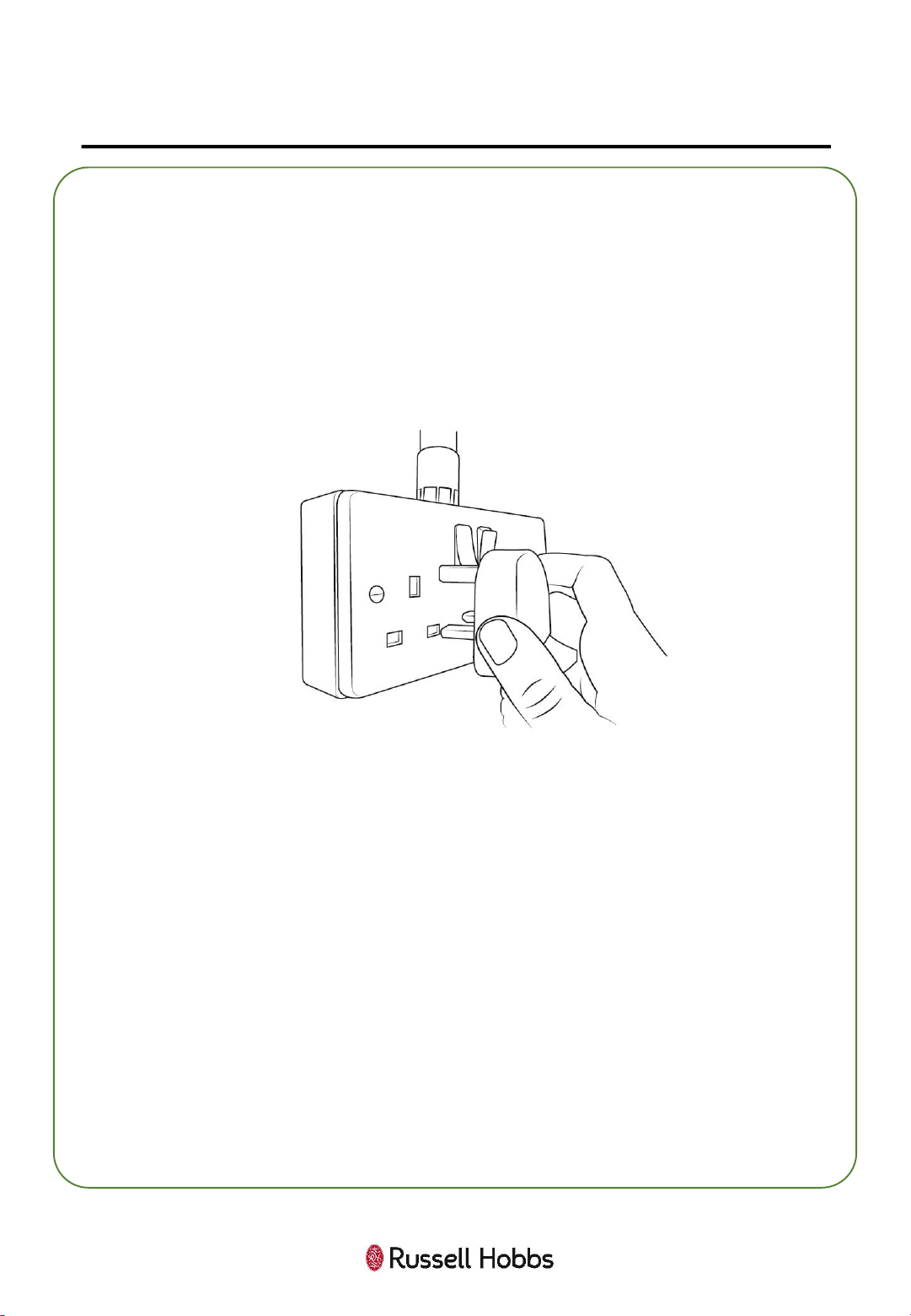

•Plug theoven into a suitable 13 amp mains socket, make
sure the voltage is the same as on the rating label (do not use
extension cables or mains socket adaptors.)
•The built-in cabinet should not have a rear wall behind the
appliance. Minimum installation height is 85cm.
•Measure the opening for the microwave and remove all loose
items, like the turntable, from the microwave
•Do not cover ventilation slots and air intake points.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk

16
MICROWAVE OVEN INSTALLATION
Important note:
This appliance must be correctly installed by a suitably qualified
person, strictly in accordance with the manufacturer’s instructions
Important note:
The manufacturer declines any responsibility for injury or damage,
to a person or property, as a result of improper use of installation
of this appliance.
Important note:
Heat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for a
prolonged period of time, then additional ventilation may be
required.
Important note:
Please consult with a qualified installer if you are in any doubt
about the ventilation that you will require.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk

17
MICROWAVE OVEN INSTALLATION
Do not obstruct
the ventilation
from the microwave
Important note:
This appliance must be correctly installed by a suitably qualified
person, strictly in accordance with the manufacturer’s instructions.
Installation components
SCREW
TRIM KIT PLASTIC COVER
Product dimensions (including frame kit)
Height: 388mm
Width: 594mm
Depth: 467mm
Aperture dimensions
Height: 380mm
Width: 560 -570mm
Depth: 550mm

18
MICROWAVE OVEN INSTALLATION
Aperture and ventilation requirements
•The diagram below shows the aperture and ventilation
requirements that you require to build the appliance into a
housing unit.
•Ensure that the rear panel of the furniture housing unit has
been removed.
•This oven may be installed without any additional ventilation
cut outs being made in the housing unit. However, the
ventilation cut shown in the diagram MUST be present,
otherwise the microwave oven may not function correctly.
•Do not cover the ventilation slots or air intake points.
All measurements are in millimetres (mm)

19
MICROWAVE OVEN INSTALLATION
Built in under requirements
Important: No other methods of building under the microwave
are sanctioned by the manufacturer
•The rear wall of the housing unit MUST be removed to allow
there to be the correct amount of ventilation
•The ventilation gaps below the support shelf and below the
worktop must be adhered to.
•An induction hob MUST NOT be fitted above the microwave.
•It is not necessary to have a storage drawer fitted underneath
the microwave: this is shown purely as an example in the
drawing above.
Warning: the microwave will get hot during operation: care
should be taken not to accidentally come into contact with the
outer surface.
All measurements are in millimetres (mm)

20
MICROWAVE OVEN INSTALLATION
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
Or visit us at www.productcare.co.uk
Prepare the cabinet
Step 1
Place the microwave into the housing unit and push the
microwave fully into the housing unit
Push the microwave fully into the housing unit
Important: do not trap or kink the power cord and make sure
that the oven is installed in the centre of the cabinet.
