Russell Hobbs RHMAF2504B User manual

Model Number:
RHMAF2504B
Family Combination Microwave
User Guide
PLEASE RETAIN
FOR FUTURE REFERENCE
For Customer Services & Spare Parts please call 0345 209 7461
Or visit us at mda.russellhobbs.com

Page(s)
Safety instructions 3-9
About your microwave 10-11
Product information 12
Unpacking the microwave 13
Product overview 14
Microwave oven installation 15-16
Glass plate installation 17-18
Control panel 19
How to use the microwave 20-30
Cooking tips 31
Cleaning the microwave 32
Problem solving 33-36
Guarantee & customer services 37
Spare parts 38
Connection to the mains supply 39-40
Notes 41-43
Disposal information 44
CONTENTS
2

3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent
person.
•It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to microwave energy.
•Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
•The appliance and its accessible parts may become hot
during use. Care should be taken to avoid touching
heating elements.
•Do not leave the microwave oven unattended while you
are using it.
•Do not use the microwave when it is empty. This could
damage the oven.
•This appliance is intended to be used in the household
and general domestic applications. It is not intended to
be used in industrial or commercial applications.

4
SAFETY INSTRUCTIONS
WARNING:
•This microwave is intended for heating food and
beverages only. The drying of food or clothing and
heating of warming pads, wheat bags, slippers, sponges,
damp cloth and similar is extremely dangerous and may
lead to risk of injury, ignition or fire.
•Do not use metal pans, dishes with metal handles or
anything with a metal trim inside the microwave. Do not
use paper covered wire twist-ties on plastic bags.
•Never put objects into the openings on the outer case.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge,
only if they are being supervised or have been given
instruction in the safe use of the appliance and
understand the hazards involved. Children should not
play with the appliance.
•Food containing a mixture of fat and water (for example,
stock) should stand for 30 to 60 seconds in the oven
after it has been turned off. This is to allow the mixture
to settle and to prevent it from bubbling when a spoon is
placed in it, or a stock cube is added.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

5
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•When heating or cooking food or liquid, remember
that there are certain foods (such as, jam, Christmas
pudding, and mincemeat) which heat up very quickly.
•Microwave heating of beverages can result in delayed
eruptive boiling, therefore care must be taken when
handling the container.
•The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.Do not
heat baby bottles with the teat left on.Remove it if
replacing the bottle back into the oven.
•Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
•Do not cook any food surrounded by amembrane, such
as egg yolks, potatoes, chicken livers, sausages,
ready meals and so on without piercing them several
times with afork.
•Do not try to deep-fry foods in this microwave oven.
•Do not overcook food.
•When heating foodin plastic or paper containers, keep
an eye on the oven due to thepossibility of ignition.

6
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•If materials insidethe oven smoke or catch fire, keep the
oven door closed to stifle the flames, turn the oven off
at the wall switch, or shut the power off at the fuse or
circuit-breaker panel.If smoke is emitted , switch off or
unplugtheappliance and keep the door closed in order
to stifle any flames.
•Please remember that as food or liquids heat up,
they will release steam or may be spitting. Never cover
any container fully, always leave a gap for steam to
escape.
•Do not use plastic containers when heating or cooking
foods that contain alot of fat or sugar.
•Always have the glass tray and glass plate support in
place when usingthemicrowave oven.
•Do not cook fooddirectly on theglass tray. Put food on
asuitable plate or in a bowl before puttingit in the oven.
•When using the grill rack and baking tray, be aware that
these will become HOT during cooking as they aren’t
heatproof. Please use suitable oven gloves when
removing these.

7
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Do not use melamine dishes as they contain a
material which will absorbmicrowave energy. This may
cause thedishes to crack or burn, and will slow down
the cookingspeed.
•Use only cookware and utensils that are approved for
use in a microwave oven.
•Do not usethemicrowave oven for heatingutensils,
plates or dishes.
•Do not cook using a container with a restricted
opening, suchas bottles, as they may explode.
•Before you clean your microwave oven, turn it off and
unplug it.
•Keep the inside of the oven clean. When food or
liquids stick to the oven walls, wipe with a damp
cloth. We recommend that you do not use harsh
detergent or abrasives.

8
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•On the right hand wall of the cavity is the wave
guide cover, microwaves are passed through this to
enable your food to cook. It is important that this
wave guide cover is kept clean at all times. To do
this wipe with mild detergent and water, then dry.
•The oven should be cleaned regularly and any food
deposits removed. Failure to maintain the oven in a
clean condition could lead to deterioration of the
surface that could adversely affect the life of the
appliance and possibly result in a hazardous situation.
•You should clean the outside of the oven with a
damp cloth. Do not allow water to seep into the
ventilation openings.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
•If steam builds up insideor aroundtheoutsideof the
oven door, wipe with asoftcloth. This may happen
when themicrowave oven is usedin humid conditions.

9
SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING:
•Regularly remove theglass plate to clean it, wash it
in warm soapy water or a dishwasher. Regularly clean
theglass plate support and oven floor. Simplywipe
the bottom surface of the oven with mild detergent
and water, then dry. You can wash theglass plate
support in mild soapy water.
•Failure to maintain the oven in a clean condition,
especially if liquid is left under theglass plate, could
lead to deteriorationof thesurface that will adversely
affect thelife of theappliance that may result in a
hazardous condition.

ABOUT YOUR MICROWAVE
10
Thank you for purchasing your Russell Hobbs microwave oven.
Combining an air fryer, microwave, grill and convection oven, this
Russell Hobbs 25 litre Airfry microwave offers the versatility you need
in your kitchen, without losing space on your worktop. This 900W, 4-
in-1 microwave makes cooking your family favourites even easier
and healthier than before. With special air circulating technology this
microwave allows you to create your favourite dishes in less time and
with little to no oil. What’s more, this microwave brings a sleek look to
your kitchen with its mirror door finish, making it the perfect addition
to your space.
Cooking meals for family and friends or reheating large plates of food
becomes simple and easy with 900 watts of microwave power, 10 auto
cook menus and 9air fry settings.
The true fan assisted oven acts exactly the same as a conventional
oven which gives you the option of an extra cooking facility, for large
dinner parties and family gatherings. The combination aspect enables
you to combine microwave energy, a grill, and convection heating (fan
assisted) so you can heat, roast, crisp and brown. Ideal for cooking
lasagnes, pizzas, baked potatoes and cottage pies.
For added peace of mind, the RHMAF2504B enables a child lock to
be set, meaning cooking cannot be started or interrupted.
Cleaning is straight forward, simply wipe the exterior, interior and
wave guide cover with a damp soft cloth to maintain peak
performance.
In the unlikely event that you experience any issues with your
product, please make our friendly Customer Service team your first
point of call.

ABOUT YOUR MICROWAVE
How do microwaves work?
Microwaves are high-frequency electromagnetic waves similar to
radio waves. While radio waves may vary in length from one metre
to many kilometres, microwaves are very short (less than 12.5
centimetres.)
Microwaves do not make any heat themselves but cause water
molecules in food to vibrate.
This vibration produces heat that cooks the food. This is why your
food will come out of the microwave piping hot, when your utensils
inside the oven stay much cooler. The microwaves do not stay in the
air or in the food when you open the microwave oven door.
The microwave oven will work using an ordinary household
electrical socket. Inside the microwave oven is the magnetron,
which turns the electrical energy into microwaves.
Microwaves cannot travel through metal, so the inside of the oven
is lined with metal. The door is lined with a fine metal mesh which
stops microwaves getting through. This means that when the
microwave oven door is shut, there is no possibility that
microwaves can be released.
11

12
PRODUCT INFORMATION
Model number RHMAF2504B
Rated Voltage 230-240V ~ 50Hz
Rated Output Power (Microwave) 900W
Rated Grill Power 1000W
Rated Convection Power 2100W
Oven Capacity 25L
Glass plate Diameter 28.8cm
External Dimensions (H x W x D) 29.0 x 49.5 x 39.6 cm
Net Weight; Approx 16.5Kg
Number of Power Levels 5
Accessories Included
Glass plate support, Glass
plate, Higher grill rack, Lower
grill rack, Airfry tray and Wave
guide cover.

UNPACKING THE MICROWAVE
Before you use your microwave oven

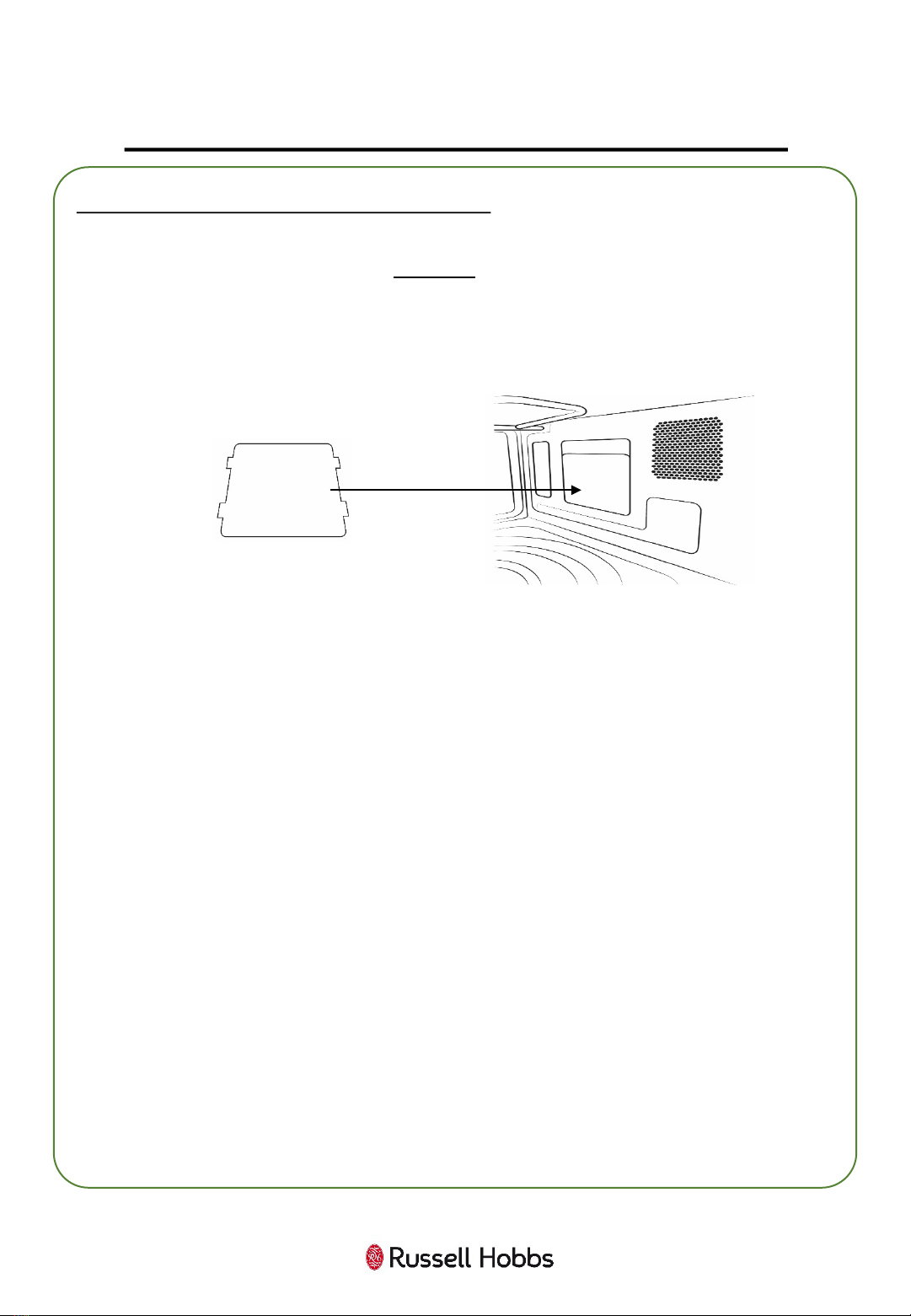

1. Remove all the packaging. Do not remove the small piece of card
from the right hand side of the cavity wall (Refer to the below
image). This is called a wave-guide cover and allows the microwaves
to pass through to cook the food.
Please ensure you keep this cover clean at all times by wiping with
adamp cloth.Do not remove/place in adishwasher.
2. Check the oven after unpacking for any visual damage such as:
●Amisaligned door
●Damage to the door
●Dents or holes in the door window and screen
●Dents in the inside
If you can see any damage do not use the oven, please contact
Customer Service team on 03452097461.
This microwave oven weighs approximately 16.5Kg so you must put
it on a horizontal surface that is strong enough to support this
weight.
The oven must be placed away from high temperatures and steam.
Do not put anything on the top of the microwave oven.
13

14

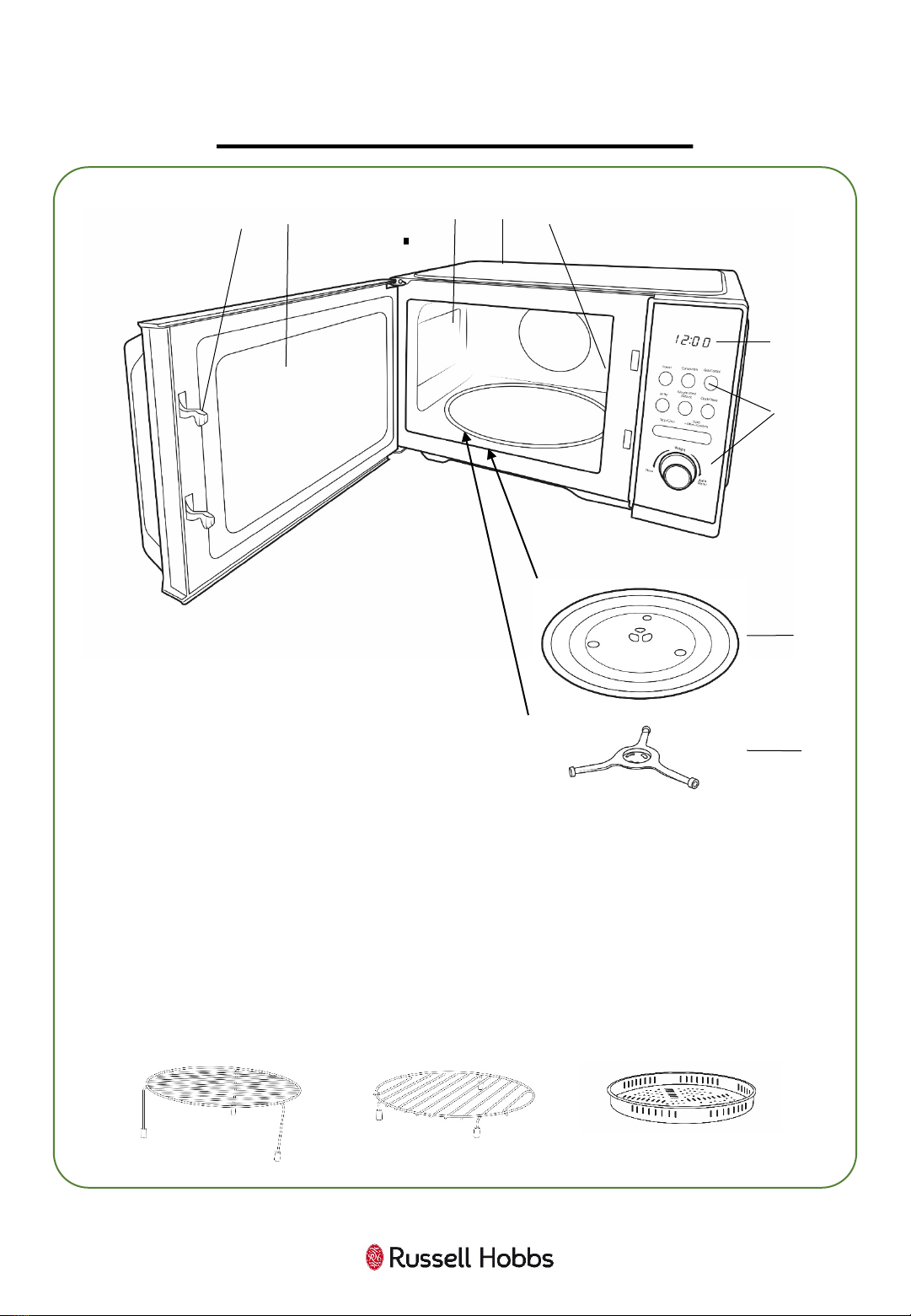

PRODUCT OVERVIEW
1. Safety interlock latches
2. Microwave window
3. Oven cavity
4. Microwave top
5. Waveguide cover
6. Screen display
7. Control panel –buttons and dial
8. Glass plate
9. Glass plate support
Grill racks to be used for grilling & convection cooking only.
Airfryer tray to be used for airfry only
12345
6
7
8
9

15
MICROWAVE OVEN INSTALLATION
•Place the oven as far away from radios and televisions as
possible. Using the oven may cause interference with the
reception.
•Plug theoven into a suitable 13 amp mains socket, make
sure the voltage is thesameas on the rating label (donot use
extension cables or mains socket adaptors.)
•The microwave oven should be used freestandingonly and must
not be built-in or used in a cabinet.
•Selecta level surface that provides enough space for theoutlet
vents.

16
MICROWAVE OVEN INSTALLATION
DO NOT obstruct
the ventilation
from themicrowave
Min 85cm
WARNING:
DO NOT install the oven over a cooker or other heat or steam
producing appliance as this will damage the microwave oven.
The minimum installation height is 85cm.
Aminimum clearance of 7.5cm is required between theoven and
any adjacent walls. Leave a minimum clearance of 30cmabovethe
oven.
30cm
7.5cm
7.5cm
7.5cm
This symbol means
“CAUTION: Hot Surface”

17

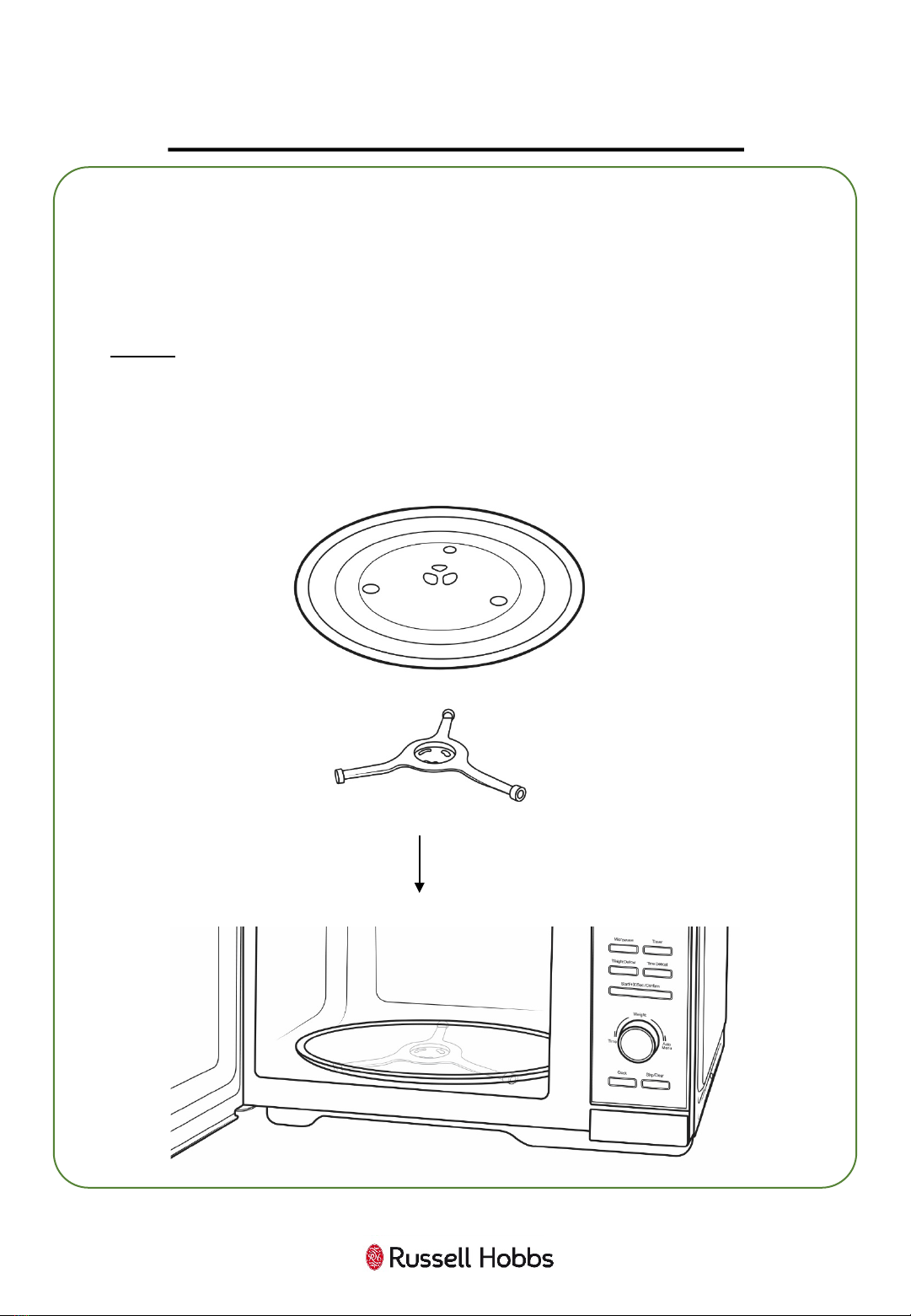

GLASS PLATE INSTALLATION
•Before first use, check that any securing tape and all packaging
has been removed from the glass tray and glass plate support.
•These parts must never be restricted from rotating.
•Never place theglass tray upside down.
•To assemble the glass plate, since the support is pre-fitted in the
cavity already, place the glass plate on top of the support.

The glass tray and glass plate support must always be used during
cooking(as shown below).
•Do not place the food directly onto the glass tray, always place
on or in suitable microwaveable cookware.
Please check that crockery is microwave safe before using.
•If the glass tray or glass plate support has been damaged in
any way, please contact our Customer Service team on 0345209
7461.
18
GLASS PLATE INSTALLATION

19
CONTROL PANEL
SCREEN DISPLAY
Cooking time, pow er, action indicators, and
clock time are displayed.
POWER
Press this button to select the microwave power.
CONVECTION
Press this button to use the convection function, an
element at the back of the unit is used for convection
cooking.
GRILL/COMBI.
Press this button to use the grill element, located on the
top of the cavity.
AIRFRY
Press this button to select airfry p o w e r.
WEIGHT/TIME DEFROST
Press this button for the defrost function.
CLOCK/TIMER
Press this button to set the clock or the timer.
STOP/CLEAR
Press the Stop/Clear button twice to clear everything.
START/+30 SEC./CONFIRM
Press this button to start the cooking process.
TIME/WEIGHT/AUTO MENU
This rotational dial is used for a number of functions.

20
HOW TO USE THE MICROWAVE
Turn on the power
Insert the plug into asuitable 13amp mains socket.
Note: Make sure the voltage is the same as on the rating label located on the
back of the microwave (do not use extension cables or mains socket
adaptors.)
The microwave oven will flash and beep. The oven will display "0:00"
Setting the clock (24 hour)
For example, if you want to set the time to 08:30 (am:)
1. Press the “Clock/Timer” button.
2. Turn the “Time/Weight/Auto Menu” dial clockwise until the display shows
'08:'.
3. Press the “Clock/Timer” button to confirm.
4. The display will show '8:00'. Set the minutes by turning the
“Time/Weight/Auto Menu” dial clockwise until the display shows '08:30'.
5. Press the “Clock/Timer” button to confirm.
The clock is now set and the colon will continue to flash.
Note:
•If the clock is not set, the microwave will not function when powered.
•During the process of clock setting, if you press “Stop/Clear”,the oven
will return to the previous setting, such as back to hours, from the
minutes selection.
•After step 4, if the “Clock/Timer” button isn’t pressed within 5
minutes, the microwave will go back to the previous status
automatically.
