S.O. ltd SO2000ST User manual

Samba Storm
Evaporative Air Cooler
S.O. Ltd
SO2000ST
Operating Instructions
Corn Alley and American Road
P.O. Box 232
St John‟s, Antigua, W.I.
Tel/fax; [phone]
Tel/Fax [phone]
www.s-o-ltd.com
The company reserves the right to change the product design and the specification
without prior notice.

Fault
Reasons
Remedy/Solutions
1.No Power
light
1 .No power.
2.Main PCB fault.
3. Fuse blown.
4. Control panel
faulty.
1. Check power
supply.
2. Change main
board
3. Change the fuse.
4. Change the panel.
2.The unit
runs
erratically.
1Power
fluctuations.
2.Possible
electrical
interference
3. Main PCB fault.
4. Check mode
unit is operating in
1. Check power
supply.
2. Move unit to
different location.
3. Change the main
PCB.
4. Check mode
switch position.
3. Display
normal. Low or
no air flow.
1. Fan has
stopped.
2. Pad or dust
screen blocked.
3. Fan is
damaged.
4. Main PCB
faulty.
1. .Check fan speed
switch. Check fan
cowling for
interference.
2. Clean/ change pad
or dust screen.
3. Change the fan.
4. Change main
PCB.
4. The unit
does not
work
1. Master control
board faulty.
2. Control panel
faulty.
1. Change the
master control board.
2. Change the panel.
5. Unusual
noises.
1. Debris inside
fan housing.
2. Fan loose.
3 .Motor fault.
1. Remove dust
screen and pad.
Remove items from
inside housing
2 .Check and tighten
fan.
3. Change the motor.
Preface 2
Basic principle of operation 2
Package Contents 2
Parts description 2
Control/Display panel and remote functions 3-5
Operation 5
Functions 5-6
Anion feature 6
Safety warnings 7
Cleaning 8
Specifications 9
Troubleshooting 10
Note: These instructions are for reference purposes only. If any
additional technical assistance is required, please contact S.O. Ltd or your
nearest S.O. Ltd distributor.
Content
Troubleshooting
10

Name
Unit
Model: SO2000ST
Max airflow
m3/h
3500
Power supply/Frequency
V/Hz
120/60
Power consumption
W
350
Style
Centrifugal
Water consumption
L/H
3-4
Water capacity
L
80
Dimension
L x M x H(mm)
620x440x1710
Net weight
Kg
34
Size of air outlet
L x H(mm)
460x260
Sound
dB(A)
54
Effective area
m2
20-30
Work current
A
3.3
Cleaning:
◆Dust screen
Remove retaining screw, press down the retainer clips and
pull the screen out. Wash screen with mild detergent and soft brush
or rinse with water.
◆Cooling pad
Unplug the air cooler. Remove the filter screen, then
carefully remove cooling pad from the back of the unit. Scrub pad
carefully with soft brush and rinse with water.
Note: Do not use high pressure water or strong detergents to clean
pad.
◆Water tank
Remove drain cover to drain water from the tank. Remove the
screen and pad. Rinse water tank with clean water. Once the dirty
water has drained refit drain cover and refill with clean water.
Suggestion: Change water everyday to avoid odors.
Thank you, for choosing the SO2000ST Samba Storm
evaporative air cooler.
Please note the appearance of the unit you have purchased
may vary from the one illustrated in this manual. This is due to
continual product development and will not affect the performance of
the unit.
Please read this instruction manual carefully before operating the unit.
The pump circulates water from the base tank and distributes it
evenly onto the cooling pad. The fan draws air from outside and
pulls it through the wet pad. As the hot air passes through the pad, it
is cooled by the evaporation of the water. This process produces
fresh, cool air. The excess water returns to the base tank where it is
re-cycled.
Evaporative air cooler unit 1 unit
Remote control 1 pc
Operator manual 1 pc
Power cord
清洗口
Remote control mount
Control panel
Drain
Remote control mount
Power cord
Preface
Specifications
Basic principle of operation
Package content

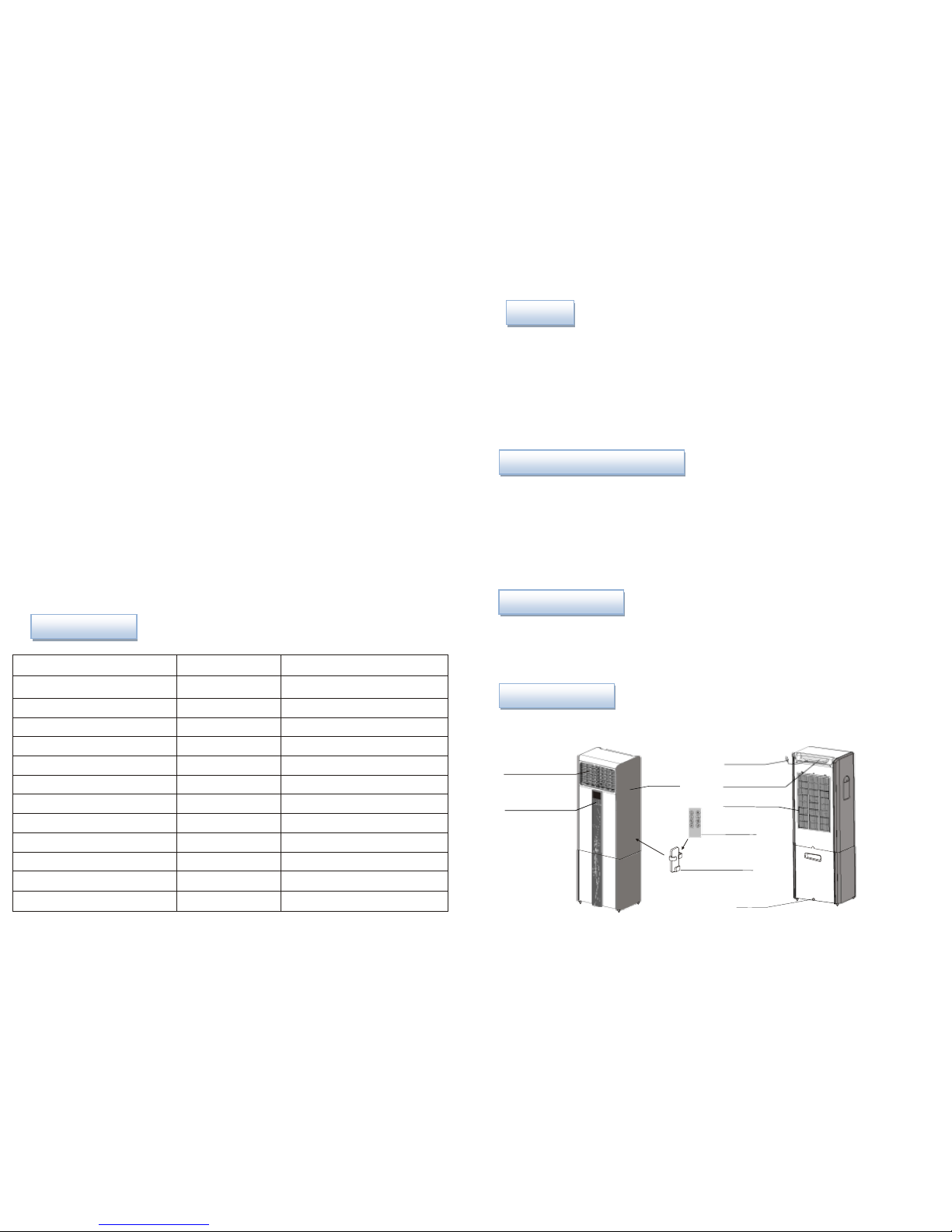

Part description
2
9
Air outlet
Side
handle
Remote control
Filter screen
Upper handle

Fan speed
Hr
Remote Control
Display &Control Panel
Power:Once the unit is plugged in the on/off switch will light in standby mode.
1. ON/OFF
Press „on/off‟button to turn on unit. The horizontal louvers will
open fully. The unit will run at low fan speed in normal fan mode
along with the left to right swing and cool functions on. The active
function icons should be lit. After approximately 30seconds the
unit will automatically adjust to high fan speed. You may adjust to
preset the fan speed during this 30second period and once the
pre-cooling time has expired the unit will automatically adjust to
your preset fan speed. You may also preset the mode you want
the unit to operate on, in this period. Press the on/off button again
and all the icons and functions will close except the for power icon.
The unit will stop after 25 seconds on low fan speed. T he
horizontal louvers will close and the machine will remain on
standby mode.
8. If water is sprayed or splashed on internal components unplug the
unit immediately. Remove dust screen and pad and dry out unit to
avoid damage or shock hazard.
9. Do not block the air inlet at the rear of the machine. Position at least
300mm from a wall and away from curtains. Do not block or restrict
the airflow from the diffuser.
10. Do not move the unit suddenly while it is operating as it will shut
off automatically. To reset, you open the water filler door and
close carefully.
11. Un-plug the machine when it is not in use.
Attention: To avoid shock hazard, Always disconnect power
before cleaning the machine. Do not allow the control
panel or main PCB to get wet.
12. If the power cord is damaged, to avoid any electrical hazard have it
replaced by the manufacturer, its service agent or a qualified
technician.
13. Take care when changing the battery for the remote:
(1) Always use the correct specification of battery and note the
position of the polarity.
(2) Protect the environment. Always dispose of used batteries
carefully. Check local authorities for correct procedure.
(3) If machine is not in use remove battery from remote.
14. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, unless they
have been given supervision or instructions concerning use of the
appliance by a person responsible for their safety.
15. Children should be supervised to ensure that they do not play
with the appliance.
g
2. Cooling
As the unit is turned on it goes into cooling mode (with adequate
water in the tank) The Cool button may be pressed to switch off
the cooling feature. Press the Cool button again and the unit will
return to cool mode.
(Attention: the cooling and humidifying function can not operate at
the same time. Press cool while on humidifying mode will not alarm)
Control/Display panel and remote functions
2. Cooling
As the unit is turned on it goes into cooling mode (with adequate
water in the tank) The Cool button may be pressed to switch off
the cooling feature. Press the Cool button again and the unit will
return to cool mode.
(Attention: the cooling and humidifying function can not operate at
the same time. Press cool while on humidifying mode will not
activate cooling mode and will set off the warning alarm)
8. If water is sprayed or splashed on internal components unplug the unit
immediately. Remove dust screen and pad and dry out unit to avoid
damage or shock hazard.
9. Do not block the air inlet at the rear of the machine. Position at least
300mm from a wall and away from curtains. Do not block or restrict the
airflow from the diffuser.
10. Do not move the unit suddenly while it is operating as it will shut off
automatically. To reset, you open the water filler door and close
carefully.
11. Un-plug the machine when it is not in use.
Attention: To avoid shock hazard, Always disconnect power before
cleaning the machine. Do not allow the control panel or
main PCB to get wet.
12. If the power cord is damaged, to avoid any electrical hazard have it
replaced by the manufacturer, its service agent or a qualified technician.
13. Take care when changing the battery for the remote:
(1) Always use the correct specification of battery and note the position of
the polarity.
(2) Protect the environment. Always dispose of used batteries
carefully. Check local authorities for correct procedure.
(3) If machine is not in use remove battery from remote.
14. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, unless they have been
given supervision or instructions concerning use of the appliance by a
person responsible for their safety.
15. Children should be supervised to ensure that they do not play with the
appliance.
Cleaning
Filter screen
Lock
3
The Unit
8
Cooling pad

Location
Green area
Uptown
Room with
A/C
Room with air
cooler
Quantity
of ion
100-200
ion S/CC
40-50 ion S/CC
0-20 ion S/CC
100000-500000
ion S/CC
Relations
May induce
headaches,
mygrain
May cause
Headaches,ins
omnia
May cause “A/C
diseases”
Very
Healthy.
◆Prevent “AC diseases” and enjoy better health
Prolonged exposure in A/C environments is unhealthy. Up to 80% of the air
is re-circulated. This indoor air pollution with a mixture of dust, germs,
bacteria, viruses and allergens can lead to headaches, fatigue, colds, flu
and other illnesses.
90% of sickness is caught indoors!
S.O. Ltd evaporative air coolers can produce 2 million ions per second,
and can significantly improve the quality of the air you breathe and
your health.
◆The ion function also reduces dust actively cleaning the air.
The air cooler has an (neg) - ion generator that discharges negatively
charged ions into the fresh air stream and around the room. Producing up to
2000000 –ions per cubic centimeter the Samba/Soca/Reggae Storm series
energizes, purifies and revitalizes the air make these units the healthy
alternative cooling system and your best choice.
Safety warnings
This unit has been manufactured to assure your personal safety.
Improper use can result in electric shock or fire hazard. Please
use this unit in accordance to the instructions in this guide book.
1. Do not over fill the air cooler water tank. Fill to the MAX level as
indicated. For the machine to operate in cooling mode do not allow the
water level to drop below the MIN level.
2. If the humidity is high the air cooler may be used in normal fan mode.
3. Do not tip or move the unit suddenly when the water tank is full.
Always unplug the unit and move carefully to avoid accidental
damage.
4. Do not rest objects on the unit while it is in operation. Do not block
or restrict the air inlet and outlet areas of the unit while is operating.
Keep unit away from hanging curtains or cloth items.
5. The water pump will not function if the “cooling” button is pressed with
no water in water tank.
6. Always unplug the air cooler before carrying out any cleaning or
maintenance.
7. Always use mild detergent and a soft damp cloth when cleaning the
outside surfaces of the air cooler.
3. Wind speed
With the unit switched on, press to adjust the fan speed, low,
medium and high. When the unit is in Humidifying mode the speed
is not adjustable and the machine will operate on the low fan speed
setting.
4. Left and right swing
The unit switched on, press to switch the horizontal/ left –right
oscillating feature on or off.
5. Up and down swing
The unit switched on, press to switch the vertical/ up - down
oscillating feature on or off.
6. Wind mode
When the unit is switched on it will operate in normal airflow mode.
Press the button again (Night mode) and the machine will run in
each of the selected fan speeds for 30mins, from the current speed
to the lowest and then go into sleep mode. Press again (Nature
mode) the fan will run through the three fan speeds randomly
(approx 10 seconds on each speed). Press again, to return to
normal mode.
7. Ion
This button turns the Ion generator/feature on or off as required.
8. Time
This air cooler has an adjustable time on and timeout timer.
With the unit in standby, press the time button to set the desired
start time for the unit to come on from 1 –9hours.
With the machine on you may press the same button to preset the
run on and stop time from 1 –9 hours. To cancel either function
press the On/Off to switch the unit off and return to standby.
9. Humidifying
Turn on the unit and press, to start or stop the humidifying feature.
When the unit is in humidifying mode the fan speed is not
adjustable. The unit will operate on low fan speed.
This unit has been manufactured to assure your personal safety.
Improper use can result in electric shock or fire hazard. Please use this
unit in accordance to the instructions in this guide book.
Safety warnings
7
4

◆Others
1. Starting the cooling function with the unit on, the unit will run
for 30 seconds on low speed before returning to normal.
2. The display light stays lit for 10 seconds.
3. Each unit has low water protection. When the unit detects low
water level the low water alarm will come on for 10 seconds.
If the unit is not refilled within another 20 seconds the alarm
will sound again and the water pump will be switched off. The
fan will continue to operate. Once the raised water level is
detected the unit will return to cooling mode.

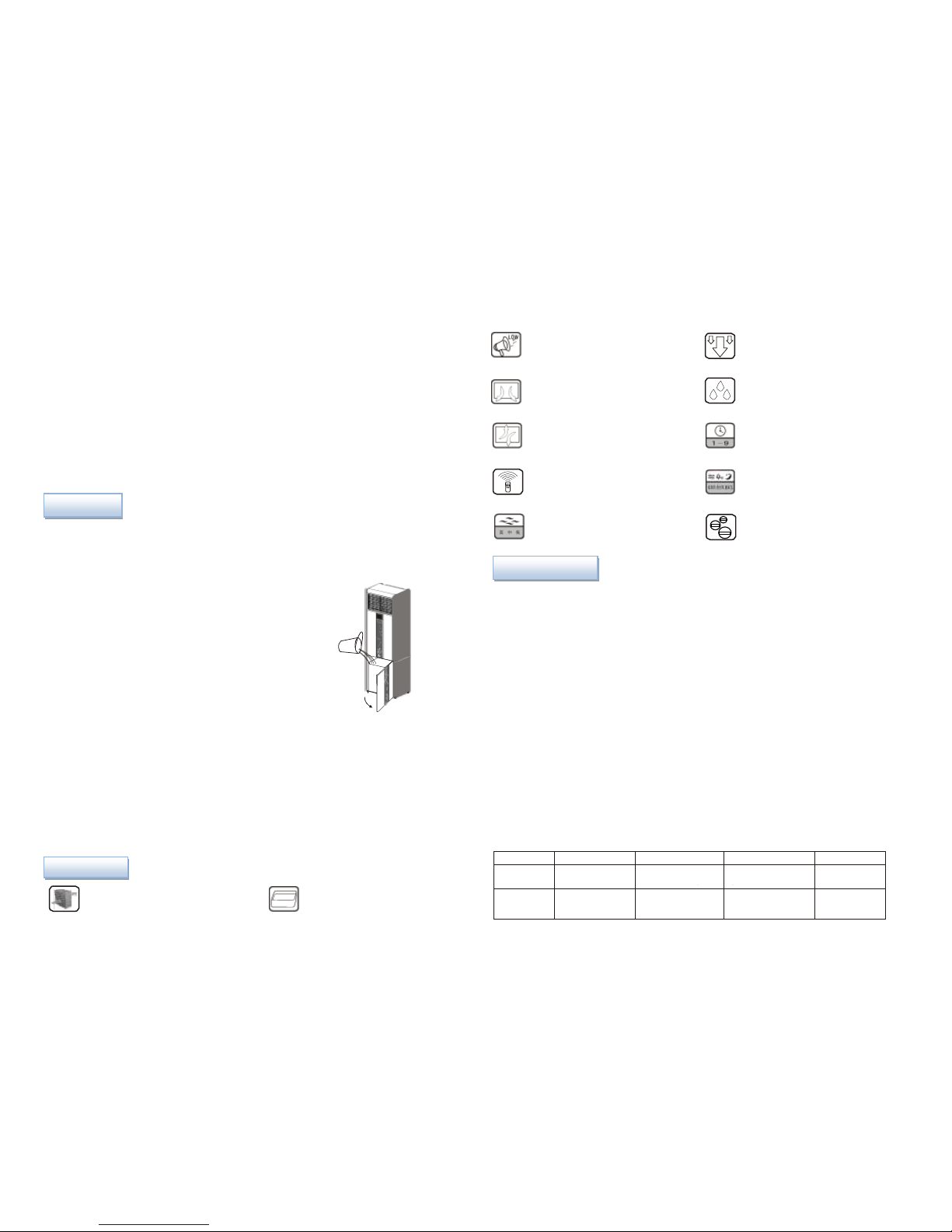

Operation
1. Open the package, take the air cooler out.
2. Open the water inlet at the left side of the machine (press gently to
open and to close). Check the water level indicator when filling the
water tank. When adding water, please note the following:
◆Do not splash water into motor or other Electronic
parts to avoid damage.
◆Add water to “MAX” level; Water will spill out if the
unit is overfilled.
◆Make sure to use clean running-water
New designed duct for super
silent airflow
Horizontal oscillating feature
for more comfort
Multi-angle Vertical adjustable
louvers for more comfort
Convenient and practical
remote control
More comfort with three air
speeds (Low, Mid & High)
An ion
◆What are Ions?
More effective cooling and
humidifying efficiency in
house than traditional AC
Independent humidifying
function, feel fresh in dry
weather.
Smart Time-on, Time-off
adjustable timer function
Several wind mode options,
feel more natural.
An ion to enhance, energize
and purify the quality of air.
◆When the water filler door is open all functions
are switched off. The unit will go back to standby
when the water filler door is closed and locked.
3. Turn on the power and the air cooler waits in
standby mode. Press ON/OFF button to start unit
4. Press ON/OFF button to stop the unit and return to standby mode.
5. This machine may be operated by remote control. The functions/icons
are the same as the control panel.
①Open the back cover of remote control and insert the
battery.(Check polarity is correct)
②The remote control has a useable range/distance of up
to 6 meters.
③There is a magnetic remote control holder on top of the unit.
A negative ion is an oxygen molecule with an extra electron. The Samba,
Soca and Reggae Storm air coolers all have –ion generators. When this
feature is used these air coolers supply a steady stream of negatively
charged ions into the airflow. Evaporative air coolers, through the
evaporation of water already produce 100% fresh air, this coupled with the
active oxygen of neg –Ions make these air coolers the Healthy choice for
your air conditioning requirements.z
◆An-ion the element of healthy life
Numerous scientific reports indicate that the negative ion content of
air significantly benefits your health. The –ion content of air found at the
beach, in the forest or a mountain is 1000 times that found in urban areas
and higher still than the air found in the office, home or car. Negative ions
prevent various airborne bacteria and reduce the transmission of allergens.
Many people have experienced exceptional health improvements form
negative ions.
Ion: abbreviation of anion S: quantity of anion CC: milliliter
New evaporative cooling pad,
Energy saving and
environmentally friendly
Large capacity water tank
Operation
Functions
◆What are Ions?
A negative ion is an oxygen molecule with an extra electron. The
Samba, Soca and Reggae Storm air coolers all have –ion
generators. When this feature is used these air coolers supply a
steady stream of negatively charged ions into the airflow.
Evaporative air coolers, through the evaporation of water already
produce 100% fresh air, this coupled with the active oxygen of neg
–Ions make these air coolers the Healthy choice for your air
conditioning requirements.
◆An-ion the element of healthy life
Numerous scientific reports indicate that the negative ion content
of air significantly benefits your health. The –ion content of air
found at the beach, in the forest or a mountain is 1000 times that
found in urban areas and higher still than the air found in the office,
home or car. Negative ions prevent various airborne bacteria and
reduce the transmission of allergens. Many people have
experienced exceptional health improvements form negative ions.
Ion: abbreviation of anion S: quantity of anion CC: milliliter
Location
Forest/waterfall
Mountain/ beach
Suburb
Park
Quantity
of ion
100000-500000
ion S/CC
100000-500000
ion S/CC
5000-50000
ion S/CC
1000-2000
ion S/CC
Relations
Automatically
cure
Sterilization
Enhance Human
Immunodeficiency
Basic need for
healthy life
6
5
Anion feature
