safety-kleen 90 Installation instructions

Part No. SK 816008
Date: February 23, 2011
MODELS 90, 91, and 94
MANUAL AQUEOUS
PARTS WASHERS
Support Manual
All rights reserved. The information in this document is proprietary and confidential. No part of this
publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means -
electronic, mechanical, photocopying, recording, or otherwise - without prior written permission of Safety-
Kleen Systems, Inc. and distribution hereof is strictly limited to authorized Safety-Kleen personnel and to
those purchasing the equipment.
Safety-Kleen Systems, Inc. 5360 Legacy Drive, Building 2, Suite 100 Plano, TX 75024

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 2of 14
TABLE OF CONTENTS
Sections Page No.
1.0 INTRODUCTION 3
2.0 PRODUCT DESCRIPTION 3
2.1 Applications 3
2.2 Definitions 4
2.3 Heater Pump Controller (HPC) & Heater Pump Module (HPM) 4
3.0 SPECIFICATIONS 5
3.1 Technical Specifications 5
3.2 Site Requirements 5
4.0 INSTALLATION 6
4.1 Tool Requirements 6
4.2 Unpacking 6
4.3 Pre-Installation 6
4.4 Assembly 6
5.0 TROUBLESHOOTING GUIDE 7
6.0 REPAIR PROCEDURES - LEVEL 1 and 2 9
6.1 Tool Requirements 9
6.2 Pump Doesn’t Work 9
7.0 LABEL PLACEMENT DRAWING 12

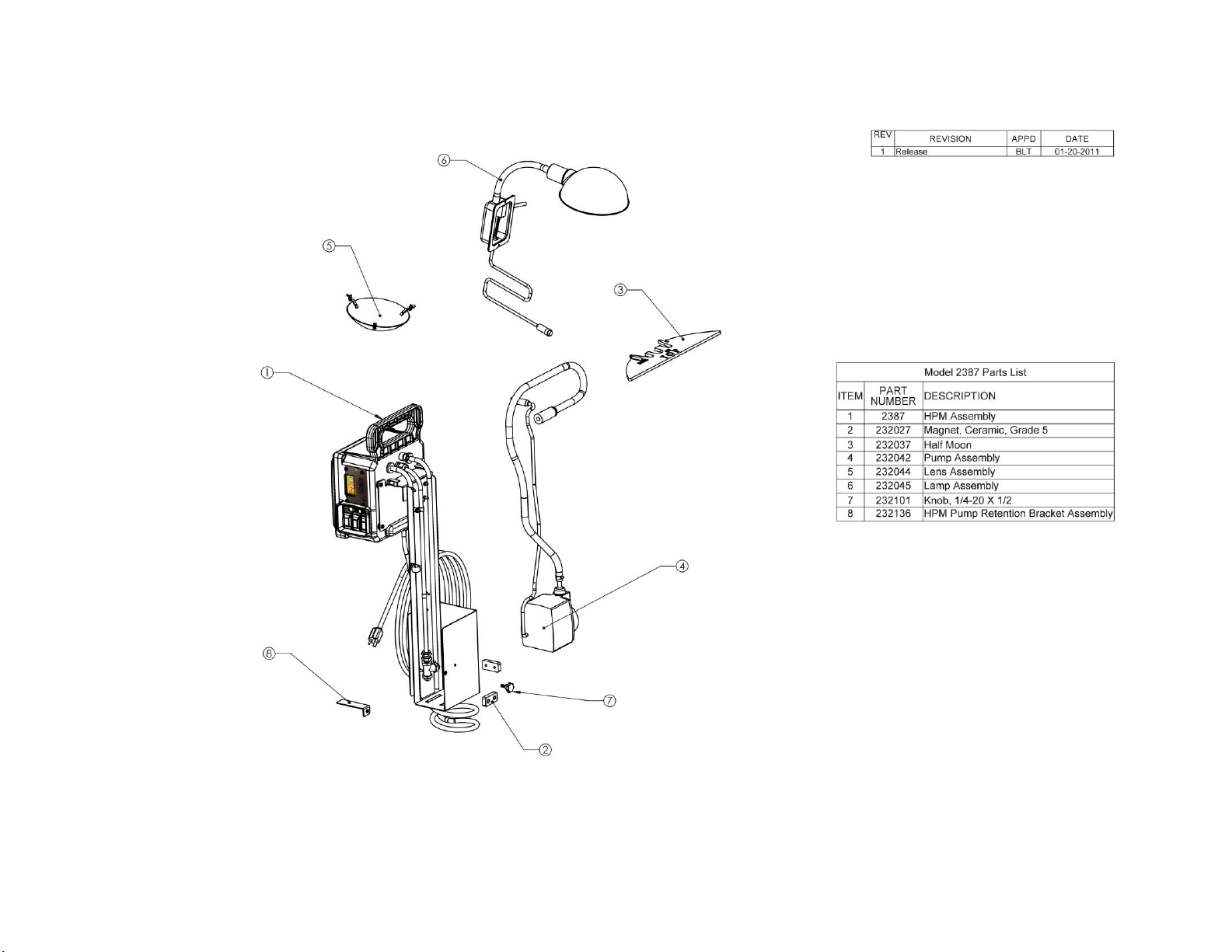

8.0 EXPLODED VIEW 13
8.1 Model 90, 91, & 94 13
8.2 Model 2387 14

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 3of 14
1.0 INTRODUCTION
Read this entire manual carefully before you use this equipment. This manual will
provide you with important information about the equipment and will instruct you on how
to use it safely.
Complete safety in the workplace is dependent upon proper handling and usage of this
equipment, and the proper handling and usage of the cleaning chemistry you use in it. It
is important that you carefully follow all Safe-Use Instructions, all operational directions
and procedures provided in this manual and carefully follow all instructions on the
Material Safety Data Sheet(s) (MSDS) and on all the labels.
NOTE: The MSDS for the cleaning chemistry will contain detailed information regarding
its use, health hazards, first aid, shipping, handling, storage as well as emergency and
environmental information.
2.0 PRODUCT DESCRIPTION
The Aqueous Sink-on-a-Drum parts washers (Models 90 and 94) include a sink with a
lid and fusible link which closes in the event of a fire. The sink is mounted on a 30-
gallon drum that contains water-based cleaning solution. The system also includes an
HPM (heater pump module) that pumps heated cleaning solution through a flexible
nozzle or a flow-through brush assembly. The sink-on-a-drum style parts washer is
available in two sizes with the Model 90 using a large stainless steel sink while the
Model 94 uses a small painted sink. The Aqueous Vat Parts Washer Model 91 is a
large, insulated parts washing tank.
These parts washers are designed as customer workplace devices. Typical applications
include automotive repair shops, service stations and manufacturing maintenance and
repair facilities for cleaning parts and/or assemblies using a water-based cleaning
solution.
2.1 Applications
Industry: Automotive or Industrial
Parts/hour: 1 to 50
Parts size: Small (~1 lb) Medium (1-20 lbs)
Parts soil: Light (oils, dusts) Medium (grease)
Cleanliness: General cleaning Maintenance parts
Do NOT add any chemistry to this unit including developers and gasoline. Do NOT use
to clean products dirtied with sulfur-based contaminants or industrial paints.

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 4of 14
2.2 Definitions
TERM
DESCRIPTION
GFCI
The abbreviation GFCI stands for “Ground Fault Circuit
Interrupter”. It is a safety device designed to cut the electrical
power in the circuit if there is any electrical current leakage to
ground.
Impeller
The portion of the pump that spins on a shaft to move the fluid.
Thermistor and
Thermistor Tee
The sensing probes in the fluid monitoring temperature. The two
thermistors in the SK #2387 are just behind the pump connected to
a clear plastic tee.
Volute
The portion of the pump that covers the impeller and where the
flexible discharge hose screws on.
2.3Heater Pump Controller (HPC) & Heater Pump Module (HPM)
The HPC models are obsolete, but can continue to be used until they malfunction.
These units are ETL listed in the U.S. and Canada and include:
•(SK #2370)
•(SK #2370.1)
•(SK #4760)
•(SK #2383)
The HPM Thermawave 507 (SK Part #2387) is the current model. This model is ETL
listed in the U.S. and Canada. It is identifiable by its gray metal or plastic control box.
(SK #2370) (SK #2370.1) (SK #2383) (SK #2387) (SK #2387)
Metal box Poly box

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 5of 14
3.0 SPECIFICATIONS
3.1 Technical Specifications
Model 90
Model 94
Model 91
Dimensions
Width:
36” (91.4 cm)
31” (78.7 cm)
51” (129.5 cm)
Depth:
26” (66.0 cm)
20” (50.8 cm)
24” (61.0 cm)
Height at sink:
36” (91.4 cm)
36” (91.4 cm)
36” (91.4 cm)
Height with lid open:
64” (162.6 cm)
56” (142.2 cm)
65” (165.1 cm)
Sink depth or freeboard:
8” (20.3 cm)
7” (17.8 cm)
11” (27.9 cm)
Weight Capacity
Weight of unit (empty)
88 lbs (40.0 kg)
67 lbs (30.4 kg)
275 lbs (125.0 kg)
Maximum weight of parts
25 lbs (11.4 kg)
25 lbs (11.4 kg)
250 lbs (113.6 kg)
Electrical
Grounded outlet
requirements
120V, 15A, 60hz 120V, 15A, 60hz 120V, 15A, 60hz
Total nominal usage
10.5A
10.5A
10.5A
Bulb wattage
40W
40W
40W
Heater wattage
1000W
1000W
1000W
Temperature
Operating temperature
120°F (48.9°C)
120°F (48.9°C)
120°F (48.9°C)
Maximum ambient
104°F (40°C)
104°F (40°C)
104°F (40°C)
Miscellaneous
Operation type
Manual
Manual
Manual
Range of pH
~9 to 10.5
~9 to 10.5
~9 to 10.5
Machine color
Blue and silver
Blue
Blue and silver
NRTL listings
cETLus
cETLus
cETLus
Flowrate
1 to 2 gpm
1 to 2 gpm
1 to 2 gpm
Pressure (maximum)
2 psi maximum
2 psi maximum
2 psi maximum
Sock filter rating
400 micron
400 micron
N/A
3.2 Site Requirements
Floor space width: 36” (91.4 cm) for sinks, 52” (132.1 cm) for vat
Floor space depth: 28” (71.1 cm) minimum
Height clearance: 66” (167.6 cm) minimum
Power requirement: 120V, 15A, 60Hz, dedicated circuit
Distance to outlet: 12’ cord, must be within eight feet of outlet
Work area: Sufficient lighting and floor should be level and smooth

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 6of 14
4.0 INSTALLATION
4.1 Tool Requirements
The following tools are recommended for installing the equipment at the customer
location:
•Two-wheel hand/drum truck
•Drum bolt-ring open-end with 15/16” socket wrench on other end
•Standard, straight blade screwdriver
•Phillips screwdriver
•Pliers
•Safety blade
•Outlet tester
4.2 Unpacking
Carefully remove all components of the equipment from their respective packaging and
shipping materials. Thoroughly inspect all components for any damage. If there is
damage, complete a Quality Non-Conformance (QNC) form.
4.3 Pre-Installation
Before installing the Model 90, 94, or 91 at the customer site, use the outlet tester, (SK
p/n 250421, Grainger p/n 3T885; Ideal brand p/n 61-035) and verify that the receptacle
intended for use is safe and properly wired. Notify the customer if the tester identifies
any wire conditions that are not correct as indicated on the tester’s label, and ask that
the receptacle be repaired or use an alternate location. Failure to follow this step may
cause damage to the HPM.
4.4 Assembly
Model 90 and 94 Sink-On-A-Drum Installation
1. Place a 30-gallon drum with aqueous solution into its location at the customer site.
2. Place the HPM into the drum.
3. Attach the half-moon to the HPM.
4. Place sink assembly onto the drum.
5. Install the spigot, hose, and brush assembly (SK #4791) through the back of the
sink.

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 7of 14
6. Connect the hose assembly from the sink to the hose from the pump.
7. Install the lamp assembly. (During repairs of HPM units, avoid reusing the existing
lamp to assure integrity of assembly)
8. Install a 40-watt bulb and clear lamp cover.
9. Plug the unit into the customer’s receptacle, turn it on and check for normal
operation. Wait for a few moments to confirm that the heater is raising the fluid
temperature.
Model 91 Vat Installation
1. Place the vat into its location at the customer site.
2. Fill the reservoir with 50 gallons of aqueous solution.
3. Place the HPM into the vat on the side panel compartment.
4. Connect the discharge hose from the pump to the fitting on the partition wall
assembly.
5. Place the partition wall assembly into the vat on the left side.
6. Connect the hose assembly from the vat to the quick connect fitting on the partition
wall assembly.
7. Install the lamp upright bracket onto the back panel of the vat.
8. Install the lamp assembly onto the upright bracket. (During repairs of HPM units,
avoid reusing the existing lamp to assure integrity of assembly)
9. Install a 40-watt bulb and clear lamp cover.
10.Plug the unit into the customer’s receptacle, turn it on and check for normal
operation. Wait for a few moments to confirm that the heater is raising the fluid
temperature.
5.0 TROUBLESHOOTING GUIDE
TOP ISSUES THAT CAN BE RESOLVED AT THE CUSTOMER
1. Check customer outlet for power Use Outlet Tester to confirm proper wiring
2. Circuit breaker switches are off Turn them on
3. Pump pulsing on and off Add 5 gallons water, press Test, press Reset
4. Pump “hums” but does not flow Check for debris at the impeller
5. Pump rattling Replace pump assembly (magnet issue)
6. Lamp flashing (nuisance tripping) Press GFCI Test, wait 5 sec, Press Reset
The above steps have resolved more than 95% of field
issues.
Your primary line of defense with the SK #2387 HPM is the
troubleshooting label that comes in every kit. Apply this label
to the sink or vat and inform the customer about these simple
troubleshooting tasks.
2007 to Present Poly Box SK #2387

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 8of 14
Problem
Possible Solutions
Lid is damaged
•Check for obstructions
•Do NOT replace lids with UL logo, instead replace the entire machine.
•If the ETL or UL logo is on the sink, replace the lid and reinstall the lamp.
Reuse the fusible link assembly if it is in suitable condition.
Fusible Link
Damage •Make sure that the lid moves freely without obstruction and that the
standpipe for the Model 90 (SK #2244) or the Model 94 (SK #2144) is in
place and the locknut is tight.
•If the standpipe is loose, tighten the locknuts SK #5515 using an
adjustable wrench.
•Remove any broken pieces of the old fusible link and replace it with a
new one. (Refer to instructions provided with the fusible link SK #2385)
No Power
•Reset the PUMP, LAMP, and HEAT circuit breakers on the control box.
•The Ground Fault Circuit Interrupt (GFCI) breaker has tripped. Press the
GFCI Reset button.
•Check if the electrical outlet is functioning properly by plugging in an
appliance that is known to work or by using an outlet tester.
Pump Doesn’t
Work •Check the PUMP circuit breaker ON/OFF position.
•Check power cord connection.
•Check if the electrical outlet is functioning properly by plugging in an
appliance that is known to work or by using an outlet tester.
Pump Pulsates
or No Solution •Check for low solution level by removing the crumb cup and strainer
basket in the sink. Add five gallons of water if low.
- Press the GFCI Test button.
- Wait five seconds for programming to reset.
- Press the GFCI Reset button.
•Check hoses for blockage or crimp. Check that sink is not sitting on the
hose from the pump and route through half-moon.
•If the hose and brush assembly is still clogged or damaged, use a wrench
to replace it. Make sure to point the spigot into the sink before checking
for operation.
•
If the pump still seems clogged or broken, refer to Section 6.2
Lamp Doesn’t
Turn On •Check the LAMP circuit breaker ON/OFF position.
•Try turning unit on and off again. (Momentary switch always points down)
- Flip the On/Off switch on the lamp.
- Push the Start/Stop button on the control box.
•Check power cord connection.
•Ensure the electrical outlet is functioning properly.
•
Replace bulb (do not use anything greater than a normal 40-watt bulb).
Light and/or
LED Flashing •If the unit is flashing for the first time, it may have read a fault code due to
electrical spike. Follow this procedure to reset it.
- Press the GFCI Test button.
- Wait five seconds for programming to reset.
- Press the GFCI Reset button.
•
If the flashing is persistent after resetting, replace the unit.
Drainage Issue
•Remove debris from crumb cup and/or strainer basket and dispose
according to local regulations.
•
Replace filter sock.

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 9of 14
Unit Leaks
•Check for a loose hose that may be leaking on the floor and re-route if
necessary
•
If the drum or vat is leaking, replace them as soon as possible.
Half Moon
•
If the tabs are broken or the half moon is lost, replace it with SK #232037
Lamp Damage
•If the lamp lens is cracked or broken, replace lens assembly (SK
#232044)
•If the switch tubing has fallen off, slide tubing over switch and re-crimp
with locking pliers. Machine is still operable without this extension switch,
but should be replaced as soon as soon as possible.
•If the cord is damaged (cut or worn), replace lamp assembly (SK
#232045) by unscrewing the quick connect and two screws/nuts on the
lid. Confirm the lamp works with a functional bulb.
Control Box
Damage
•If the control box or GFCI are damaged, the entire SK #2387 must be
replaced. Do NOT open the control box in the field!
6.0 REPAIR PROCEDURES - LEVEL 1 and 2
Before any repairs are made to the equipment, make sure to unplug or disconnect
all sources of electrical power.
•Level One Repairs are simple repairs that can be performed by most employees.
•Level Two Repairs are more difficult repairs that must be performed by qualified,
designated individuals.
•Level Three Repairs are defined in the Listing Refurbishment procedures. They
cannot be done in the field and are not included in this manual. Items such as
wiring modifications or similar electrical repairs not identified herein are prohibited
from field repair.
Note: All repairs must be completed using approved Safety-Kleen parts.
Note: No modifications/changes (repairs), except for those listed in this manual, may
be made without written approval from the Safety-Kleen R&D group.
6.1 Tool Requirements
Refer to the Vehicle Route Readiness Checklist for a list of tools that an individual will
need to complete repairs to Safety-Kleen equipment.
6.2 Pump Doesn’t Work
Identification
No solution flow when pump is turned on.
Diagnosis
Pump will not turn on
1. Make sure the machine is plugged into a working electrical outlet.
2. Plug in an Outlet Tester to ensure power is present at the outlet. Do not make any
repairs to a customer’s electrical outlet.

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 10 of 14
3. Ensure the pump cord is connected to the control
box (top rear)
4. With the unit plugged in, push the GFCI “Reset”
button and check for the red indicator light. If there
is no light, return the SK #2387 for GFCI
replacement.
5. Make sure that the pump circuit breaker “on/off”
switch is on. Check for pump operation again by
pressing the black push button or lamp switch.
•If the GFCI or pump circuit breaker trips unplug the pump cord from the control
box, press the GFCI “Reset” button, and switch the pump circuit breaker to the
“on” position.
•If the GFCI or pump circuit breaker trips again, the control box or GFCI is faulty.
Replace the unit.
6. Plug the pump electrical cord back into the control box (disconnected in step 5). If
the GFCI or pump circuit breaker trips, replace the pump.
Pump is running, but there is no solution flow, or pump is surging
1. If the pump is running, but no fluid is passing or pump is surging, check to make
sure that there is enough fluid in the drum.
•Add 5 gallons of water, if necessary
•Press the GFCI Test button, wait 5 seconds and then press the GFCI Reset
button
2. Check hoses for a blockage or crimp.
Level One Repairs
Freeing the Impeller:
1. Remove the sink assembly so that the HPM can be removed from the drum. Place it
on an absorbent wipe and on a flat hard surface. NOTE: BE CAREFUL, HEATER
MAY BE HOT.
2. Loosen the pump retaining screw and pump bracket, if
present.
3. Slide the pump from the main bracket.

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 11 of 14

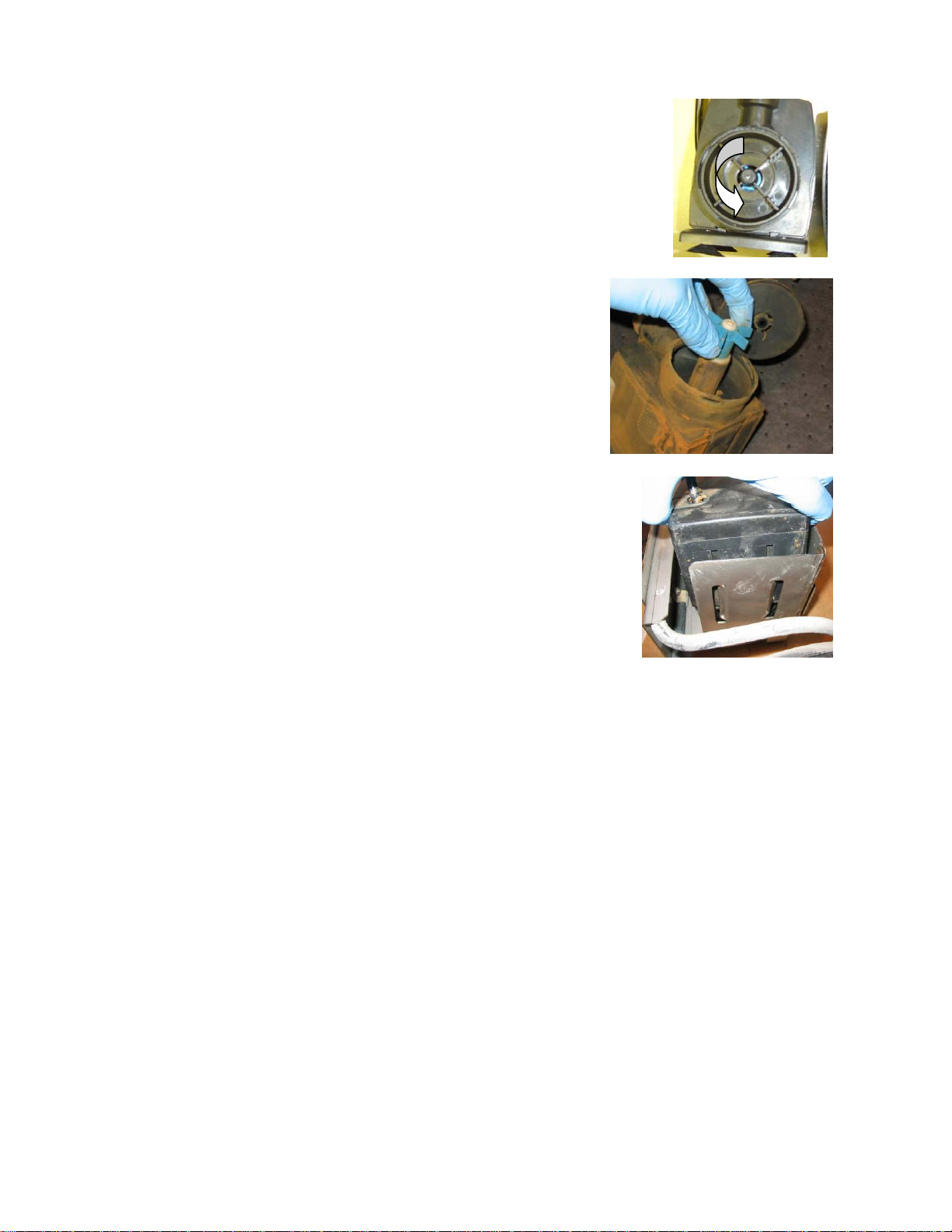

4. Remove the volute by turning it counterclockwise. Be careful
not to crack the ceramic shaft!
5. Remove the impeller. Thoroughly clean the debris
from the impeller, impeller well, and volute.
6. Reassemble all parts in the order they were removed.
Note: The pump shaft must be centered in the
bushings, in both the pump (at the bottom of the
impeller well) and on the volute.
7. Slide the pump into the main bracket. Ensure the pump
retention bracket is secured. Reconnect the pump
electrical quick connect. Retest pump.
8. If the unit will not pump fluid after cleaning the impeller,
replace the pump. If it does work, reattach the retaining
bracket with one screw.
Note: Return defective pump assemblies to your local DC for return to the manufacturer
and a warranty claim.

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 12 of 14

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 13 of 14

Safety-Kleen Systems, Inc. Models 90, 91, and 94 Manual Aqueous Parts Washers
Support Manual Page 14 of 14
