Saipa tiba User manual

TIBA
Owner's Manual
Second edition
SAIPA Company

2
All rights reserved. No part of this publication may be reproduced
in any material form (including photocopying or storing in any
medium by electronic means and whether or not transiently or
incidentally to some other use of this publication) without the
SAIPA Corporation permission exept in accordance with the
provisions of the copyright.

3
Preface
Thanks and congratulation for your
best choice in buying a new vehicle
from our company. Please read
carefully the owner's manual before
driving. This book includes valuable
and vital information regarding driving
and introduces the vehicle equipment
and components. Furthermore,
the maintenance procedure and
service time table of the vehicle are
instructed in the manual to provide
you a comfortable and relaxed driving
experience using TIBA.
The History of SAIPA Company
Iranian Corporation of Citroen
Automotive Manufacturing was
established in 1965 in a 240,000
square meters area with a 20,000
squaremetersbuildingand160million
Iranian Rials as initial Capital. Now, it
is extended to 415,000 square meters
as a central factory. This company
in its initial stage of establishment
started its activities by thirty persons
as its personnel. After a year, the
Company's personnel increased to
600personsamongthem150persons
were working in the assembly line.
OnJuly16, 1967, before rst production
supply into the market, the managing
director of the company requested a
registered mark of SAIPAC meaning
«SOCIETE ANONYMR IRANIENNE
DE PRODUCTION AUTOMOTIVE
CITROEN» with the word of «Djian»
for all models of automotives. In 1973,
the company received agreement of
the RENAULT Company of France
to produce RENAULT products.
Following the Ministry of Industry
and Mines agreement, the company
removed the word «Citroen» from
its registered mark to eliminate the
unconformity from its activities. Before
1985, the company's logo was the
logo of RENAULT and CITROEN. But,
after changing SAIPA'S production
policies and extending its activities to
produce various vehicle models, an
independent logo was mandatory to
be prepared. After numerous studies
of the respected and artful teacher, Mr.
MOMAYEZ, who designed the logos
of different companies such as Iranian
National Airline Organization, Tehran
Municipality, and so on, SAIPA'S
logo was designed by revealing of
Iranian Traditional Masonry which has
beautiful geometrical arrangement.
SAIPA products:
- 1968, production of different types of
«Djian» model.
- 1975, production of different types of
RENAULT models.
- 1986, license of producing NISSAN
pick-ups, which transferred from
ZAMYAD company to SAIPA.
- 1991, production of RENAULT 21
model.
- 1992, production of Pride model.
- 1996, design and production of pride
model.
- 1996, design and production of the
rst Iranian brand named «Caravan».
- 1999, production of «Xantia».
- 2001, design and production of
SAIPA 141, model.
- 2004, production of «RIO» model.
- 2010, design and production of new
platforms of SAIPA 111, 132, 141 and
131.

- Introduction
- Vehicle at a glance
- Introducing vehicle and its equipment
- Driving a vehicle
- Driving Tips
- Technical emergencies
- Vehicle maintenance
- Vehicle specications
- Index
- Index
1
2
3
4
5
6
7
8
9
10

1
CHAPTER 1- Introduction
- How to use the owner's manual ................................................8
- Break–in period .........................................................................8
Introduction

8
Introduction
How to use the owner's manual
The main goal of this manual is to
provide a better and easier facility
for operating the vehicle.
This manual can be used as an
auxiliary source in many cases. It
is recommended to read carefully
all the contents of this manual
to prevent injuries when driving
and accidents by considering its
cautions and warnings.
The gures shown in this manual
help you operate the vehicle as
best as possible.
It also noties you the technical
specications, important safety
points, and driving at different
conditions. You should follow
all the cautions, warnings, and
recommendations mentioned in
this manual.
Warning
The word "warning" implies the
cases which cause injuries in
different degrees resulting in
death.
Caution
The word "caution" implies
the cases which cause
serious injuries to the vehicle
passengers.
Attention
The word "attention" implies the
cases which cause damage to
the vehicle.
Break–in period
In break-in period (Initial period
of vehicle operation), there is no
special action necessary to take.
Onlybytakingintoaccountseveral
safety points and cautions in the
rst 1000 Km operation period,
you can improve the normal
operation conditions of your
vehicle. To do so, the following
points must be considered:
- When driving, do not overload
the engine.
- Do not drive at a constant
speed for a long time. Changing
the speed improves the engine
break-in conditions.
- Except in emergency, do not
slam on the brakes.
- When starting the engine and
ready to drive the vehicle do
not push the accelerator pedal
execessively.
1
Environment and vehicle
Whataretheenvironmental issues
that affect the environmental

9
Environment and vehicle
The ftieth principle of basic
law
Protecting the environment that
recent and future people should
have a developing social life in it,
is public duty in Islamic Republic
of Iran. Therefore, the economic
activities and the others, which
involve with pollution of environ-
ment or irreversible damages,
are forbidden.

2
CHAPTER 2- Vehicle at a glance
- Internal and external view of vehicle ….............................….. 10
- Dashboard……....…....……………................…........…...……. 11
Vehicle at a glance

12
1- Side view mirror
2- Head rest
3- Seat
4- Rear lamps
5- Fuel cap (ller lid)
6- Child lock (rear door)
7- Power window switch
8- Vehicle door
2
OWM01
Internal and external view of the vehicle

13
Dashboard Overview
1- Steering wheel
2- Horn
3- Digital clock
4- Hazard warning Flasher Button
5- Audio system
6- Glove box
7- Climate control knob
8- Transmission shift lever
9- Glass t location
10- Parking brake lever
11- Ashtray
12- Windshield wiper/washer lever
13- Ignition switch
14- Tilt wheel lever
15- Engine hood opener lever
16- Turn signal lever
2
OWM02
Dashboard Overview

3
Immobilizer system …………..……….........….........……....…... 16
Remote control system ……………………..........................…. 18
Doors lock ………………………..…..............….........……....... 20
Windows ………………..……............……...........................…. 23
Seats ……………...….......….............……..........................….. 25
Safety belts ………………………...............................….....….. 28
Airbag ……………………………………................…......….….. 39
Trunk lid ……………………………….....…................….….….. 43
Engine hood ……………………………..…....................….…... 45
Fuel door (ller lid) …..…………………......................…......…. 46
Steering wheel ………………………………....................…..… 49
Mirrors ………………………………………......................…..… 50
Passenger compartment lights ………………................…..…. 51
Interior equipment ………………………………...................…. 52
Antenna ……………………………………........................…..... 56
Introducing vehicle
and its equipment
CHAPTER 3 - Introducing vehicle and its equipment

16
Immobilizer system
Your vehicle is equipped electronically
with immobilizer system which
prevents the theft possibility. This
system works by an electronic
transmitter which is installed on the
ignition switch. Its receiver antenna
located on the ignition switch knob
communicates with the immobilizer
control unit (ICU). If you turn the
ignition switch to ON position, the
immobilizer system receives signals
from the switch transmitter and send
them to the immobilizer control unit
(ICU).
Itcontrolsyourswitchcodecorrectness
to let the electronically controlled unit
(ECU) ignite the engine.
Caution
If you start the engine by a key
other than the main one (regular or
undened key to the system), the
immobilizer system will not allow the
engine to be ignited. In this case, the
system will be locked for a minute,
and then you can start the engine by
the main key.
It is necessary to mention that the
starting numbers by the undened
keys will extend progressively the
waiting time of unlocking the system
by the main key.
- Blinking the key symbol light, when
the switch is OFF, indicates that the
immobilizer system is active.
- The electronic transmitter installed
on the switch is one of the main
components of the immobilizer
system. Notice that the key is not
subjected to temperatures higher
than 85ºC, pressure, shock, or
electromagnetic eld.
This will cause malfunction of the
switch and the system will not allow
the engine to be ignited.
3
OWM03
Immobilizer system

17

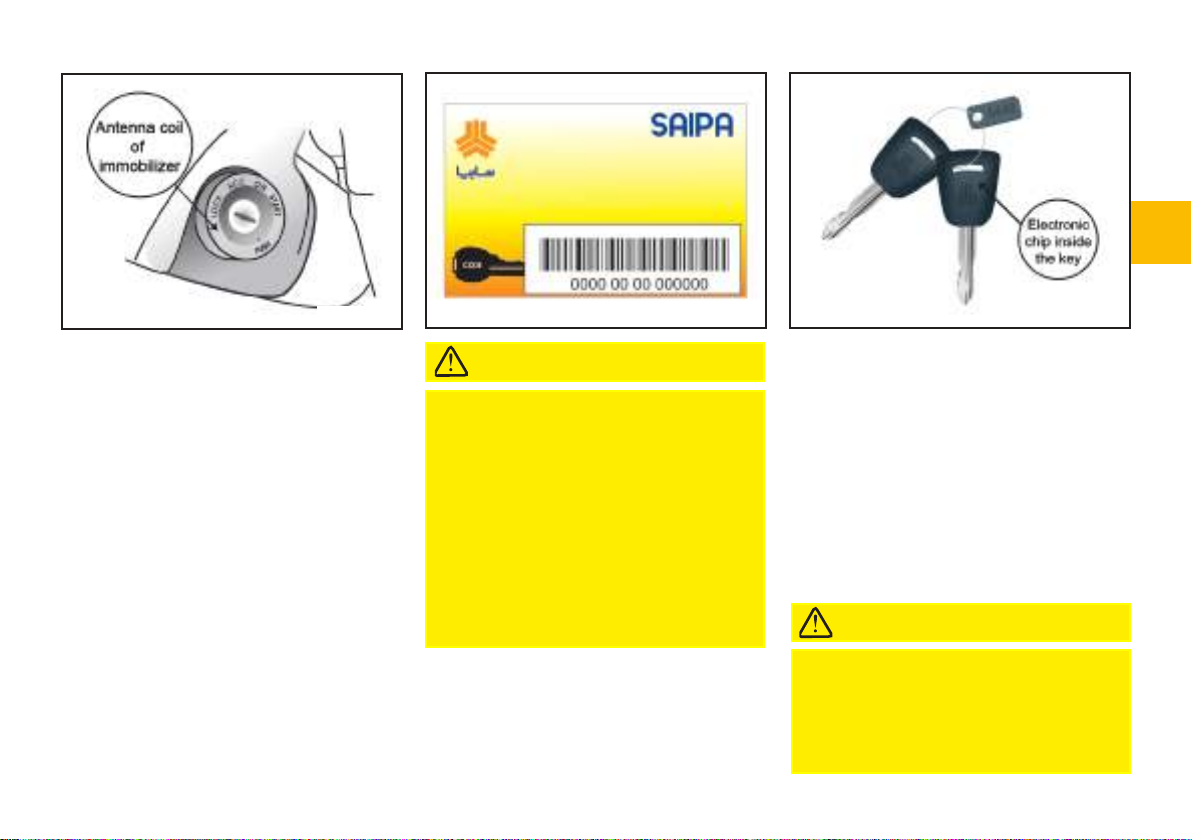

When starting the engine, rst turn
the key into ON position and then
try to start.
Caution
The key card includes the access
barcodetothesystem.Therefore,
in case of any trouble in the
system, you can use this code.
Keep the card in a safe place out
of the vehicle. This system does
not affect doors opening and
becomes active when starting
the engine.
In case of a key lost, consult
the authorized dealers of
SAIPA Company for a new key
programming to the system. It is
necessarytomentionthatthespare
key and its card are required to
program or match a new key to the
system. Therefore, it is important
to be careful for safe protection of
the spare key and its card.
Attention
If any unauthorized alteration or
maintenance of the system causes
any defect in different parts of the
vehicle, the guarantee will not cover
those defected parts.
3
OWM05 OWM06
OWM04
Immobilizer system

18

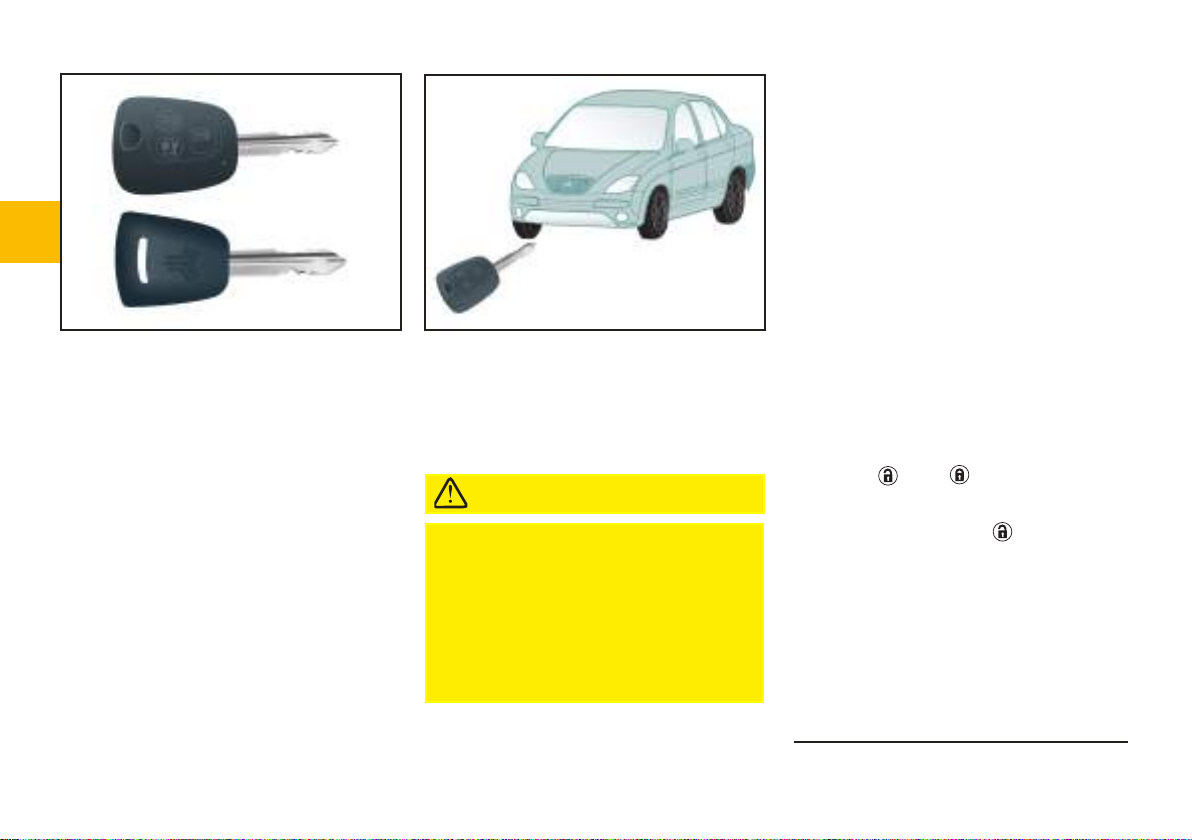

Keys:
Your vehicle is supplied by the
following keys:
1- A regular ignition key
2- An ignition key with remote
control.*
3- A tag of the key identication.
Remote control functions:*
1- Locking and unlocking doors
by remote control 
2- Vehicle nder
Caution
To prevent the damage of
the radio transmitter system
inside the ignition key, do
not subject it to the humidity,
high temperature, sun light, or
shock.
Remote control*
1- Locking and unlocking the
doors by the remote control
is carried out by pushing the
buttons and ifthedoorsare
locked, they will be unlocked by
pushing the button and button
vice versa.
*Depending on the vehicle model
3
OWM07 OWM08
Keys

19

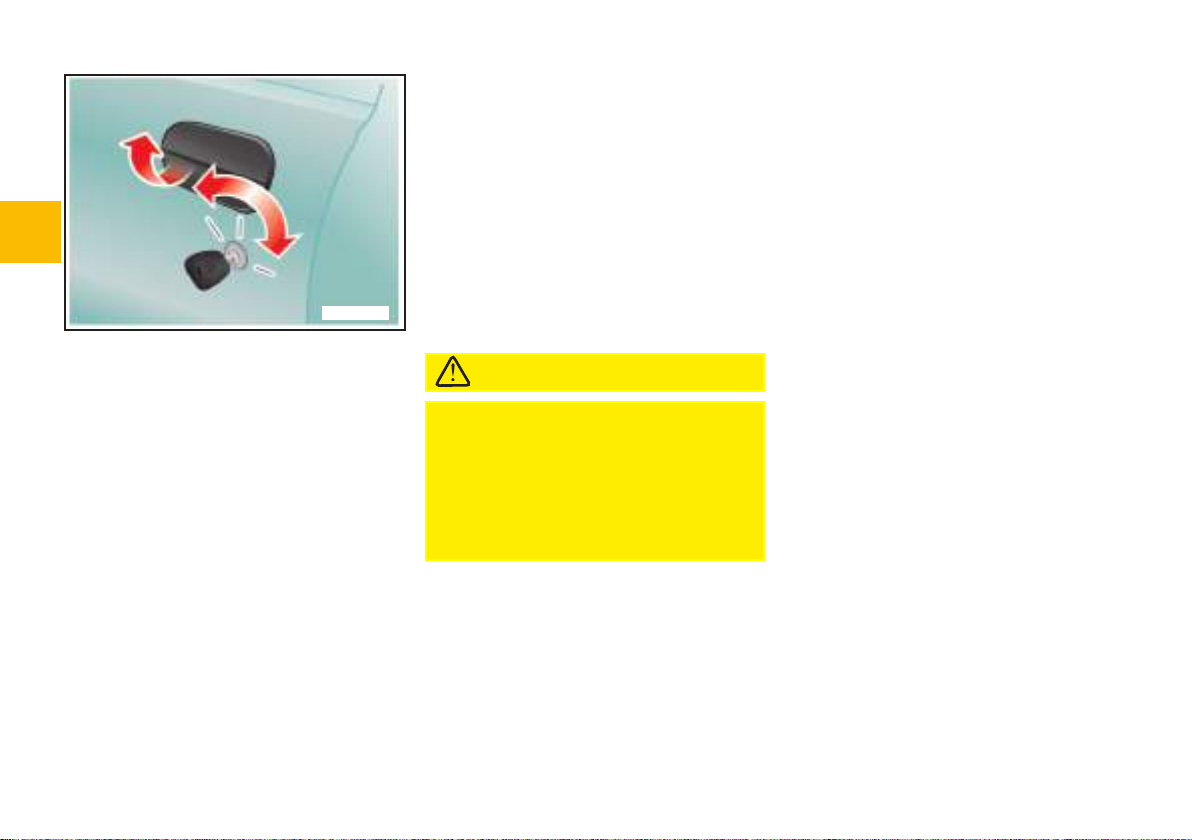

Attention
If one of the vehicle doors is left
open, the locking signal by the
remote control will not be effective.
When the doors are locked and the
unlock signal is sent by the remote
control, the doors will be locked
automatically and locking order is
issued by remote control if none
of them are opened within 15±2
seconds.
2- Vehicle nder
When the doors are locked, if
the button is pressed for two
seconds, the ashers will blink 27
times at 3Hz frequency.
Replacing the remote control
battery
If the indicator light on the remote
control is off or is not blinking, it is
required to replace the battery.
1-Using a screwdriver to open the
remote control screw and remove
the back cover.
2- As shown in the gure, remove
the old battery and replace the new
one properly.
3-Replace the back cover and
tighten the screw.
Caution
Use lithium coin batteries of
CR2016.
Warning
Do not use old batteries. The
central locking system works by
key,if the remote control battery
is dead. When replacing the
battery, be careful not to damage
the immobilizer system electronic
chip.
3
OWM09 OWM010
Keys

20
Door Locks
Locking and unlocking doors
by the key
- Front doors can be locked and
unlocked by the key.
- For unlocking the driver door
turn the key clockwise and for
locking turn it counter-clock
wise.
- After unlocking the door, pull
the handle to open the door.
Attention
When leaving the car, always
take the ignition switch with
yourself, pull the parking brake
handle, close the windows,
and lock the doors.
3
OWM011
