Saitek YOKE User manual

ENGLISH
GETTING STARTED 4
INTRODUCTION 6
INSTALLATION 6
IMPORTANT INFORMATION 8
ST PROGRAMMING SOFTWARE 8
FRANÇAIS
DÉMARRAGE 17
INTRODUCTION 19
INSTALLATION 19
INFORMATION IMPORTANTE 21
ST PROGRAMMING SOFTWARE 26
DEUTSCH
ERSTE SCHRITTE 31
EINFÜHRUNG 33
SOFTWAREINSTALLATION 34
WICHTIGE INFORMATIONEN 35
ST PROGRAMMING SOFTWARE 40
ITALIANO
AVVIO 44
INTRODUZIONE 46
INSTALLAZIONE 46
INFORMAZIONI IMPORTANTI 48
ST PROGRAMMING SOFTWARE 53
ESPAÑOL
PRIMEROS PASOS 57
INTRODUCCIÓN 59
INSTALACIÓN 60
INFORMACÍON IMPORTANTE 61
ST PROGRAMMING SOFTWARE 66

4
GETTING STARTED : YOKE

5
ENGLISH
GETTING STARTED : QUADRANT

6
INTRODUCTION
Congratulations on buying the Saitek Pro Flight Yoke System. The Pro Flight Yoke
features realistic controls congurable for all the major ight simulation software to
make your ying experiences more realistic.
FEATURES:
• 8-way point of view hat switch
• 6 x 2-way rocker switches
• 2 x Single-function buttons
• 3-position mode switch
• ST Programming Software (ST) allows gamers to congure their controls to suit their
preferred gaming style, and to save the congurations as personal proles.
INSTALLING THE FLIGHT YOKE AND THROTTLE QUADRANT

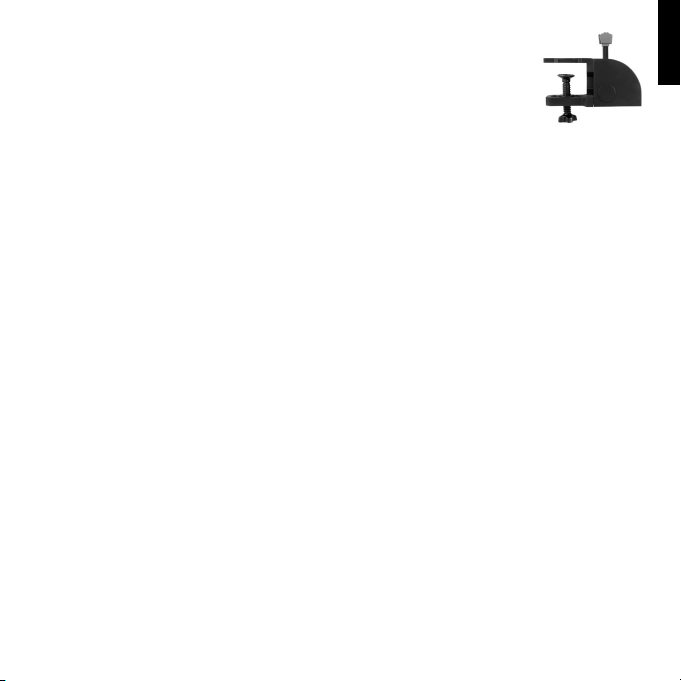

First, x the Flight Yoke to your table or desk by inserting
the prongs of the mounting clamp into the holes on the
yoke base and then tightening the screw mechanism
until the yoke is rmly attached (be careful not to
overtighten the screw as you may damage the

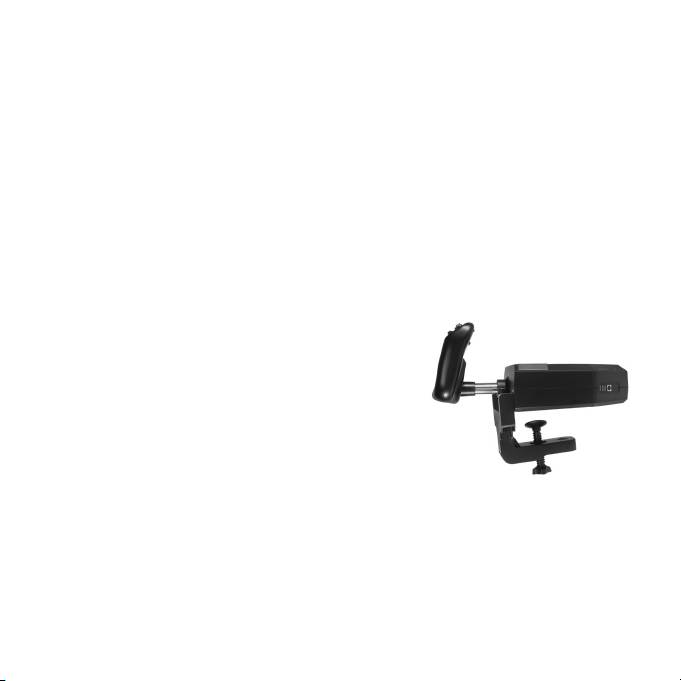

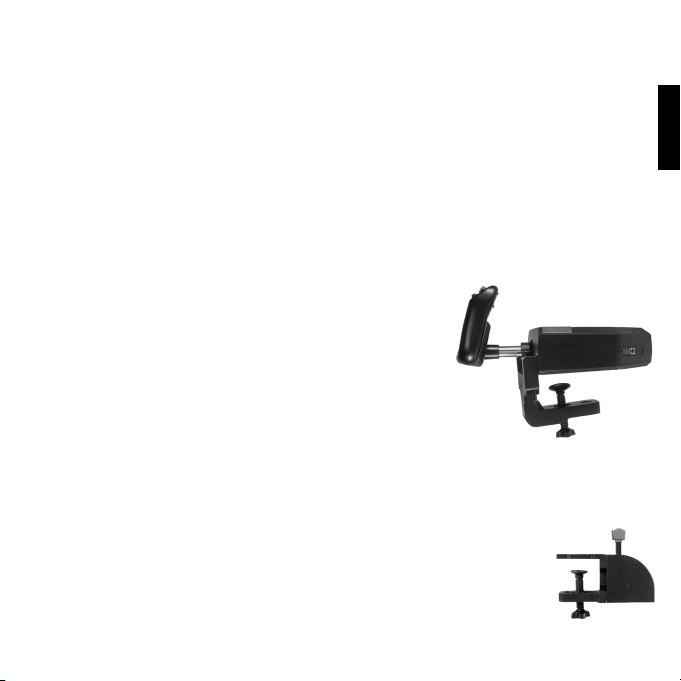

clamp). Next, screw the mounting plate to the Throttle Quadrant
using the four screws provided. You can screw the plate to one
of two sides of the quadrant depending on how you want to mount the quadrant - either in
front and below your table or on top of it. Please note that whichever way you choose to
mount the quadrant, ensure that as you look at the unit the rocker switches are at the bottom.
Now tighten the throttle unit clamp’s screw mechanism until it is rmly attached to your table.
You can also position the Throttle Quadrant on the left or right side of the Flight Yoke.
Now, connect the Throttle Quadrant to the Flight Yoke with the PS/2 connector provided. Your
Throttle Quadrant comes supplied with additional lever knobs to congure any combination of
throttle, aps,

7
ENGLISH
mixture or prop pitch and you can also buy additional quadrants to
link together for more complex multi-engined aeroplane congurations.
Use the integrated USB Hub on the side of the Pro Flight Yoke to easily
connect other parts of the Saitek Pro Flight range of products, such as
additional Pro Flight ThrottleQuadrants, Pro Flight Rudder Pedals or
other peripherals.
INSTALLATION FOR WINDOWS® 8, 8.1, 7, AND VISTA. INCLUDES ALL 32- AND 64-BIT VERSIONS
IMPORTANT: PLEASE INSTALL DRIVERS BEFORE INSTALLING SOFTWARE
DRIVER INSTALLATION
1. Visit Saitek.com to download the latest drivers and software for your operating system.
2. With device disconnected, follow the onscreen instructions to complete the installation.
3. At the Driver Setup screen, only when prompted, insert USB cable into one of your
computer’s USB ports, then click Next.
4. At the Driver Setup screen, click Next to test your controller.
5. When the Saitek Controller screen appears, test the controls to verify device operation.
After the test, click OK.
SOFTWARE INSTALLATION
1. In the Software Setup screen, click Next and a pop-up box will ask if you “want to trust
software from Saitek.” Click yes, then click Next.
2. After installation, you have the option to Run Prole Editor, which will show you the
programming environment. To skip the Prole Editor now, uncheck the box and click
Finish to complete installation.

8
IMPORTANT INFORMATION
Driver updates
From time to time there may be updates to the driver and programming software for this
product. You can check for the latest software updates by visiting the Saitek website (www.
saitek.com) and clicking on Downloads. A drop-down menu will appear. Select Drivers and
Software.
Enabling your controller in the game
Most games support game controllers, but typically default to the mouse and keyboard until
you go into the option menu within the game. The rst time you start a game after installing
your controller, go to the options menu within the main menu of the game and make sure
your controller is set up correctly. If you are having trouble working out how to do this, or if
you’re unsure whether the game itself supports game controllers, then please refer to the
user manual of that game for more help.
PROGRAMMING YOUR SAITEK PRO FLIGHT YOKE AND THROTTLE QUADRANT WITH SAITEK ST
SOFTWARE
The Saitek Pro Flight Yoke System’s buttons, controls and axes correspond to
commonly used functions in Microsoft FS9 and FSX according to the tables below.
As with any software, if you wish to change the function of a button or control, you will
need to change the settings of the game software.
CONFIGURINGYOURSAITEKPROFLIGHTYOKEANDTHROTTLEQUADRANTFORMICROSOFTFLIGHT
SIMULATOR 9 AND FSX
The Saitek Pro Flight Yoke System’s buttons, controls and axes correspond to commonly
used functions in Microsoft FS9 and FSX according to the tables below. As with any software,
if you wish to change the function of a button or control, you will need to change the settings
of the game software.

9
ENGLISH
Once you have done this, simply nd the command that you want to assign to your controller
from the list of commands, click it and then click the Change Assignment button. A window
will appear asking you to move the part of your controller that you
want to assign to that command - press/move the button/axis that you want to assign
to that command and then click OK.
Tip: You may nd that when you assign the levers on the quadrant to a command, that they
don’t appear to work when you test them in the game. If this happens then you must look in
the Sensitivities screen (Flight Simulator 2004) or the Calibration tab of the Controls screen
(Flight Simulator X) of the game, select the axis command in the list there and ensure that the
Sensitivity isn’t set too low (set the horizontal sensitivity slider control to around 70%).
PROGRAMMING YOUR SAITEK PRO FLIGHT YOKE AND THROTTLE QUADRANT WITH SAITEK ST
SOFTWARE
Introducing Saitek ST software programming software
Saitek ST software Programming Software is the software Saitek supplies to congure your
Saitek controller for enhanced functionality. ST delivers a powerful set of features, allowing
you to program your device with the ultimate conguration for total interaction. Despite a
level of sophistication previously unseen in the market, and because of the Saitek ST soft-
ware inside, the software remains simple and intuitive to use.
For a complete guide on how to program your Saitek controller, visit the Saitek website at
www.saitek.com or look at the help tab on your programming software menu.
Features of ST programming software:
• Quick and easy setup in any game
• Personalize the controller settings for your favorite games
• Congure your controller with an on-screen 3D model and interface
• Multiple setup option for each controller - ideal if a controller is used by several people and
you need more than one prole per device
• Program special moves with sophisticated timing features
• Special game setups available as ‘Proles’ from the Saitek website
• Download the latest version of Saitek ST software software from the Saitek website

10
FUNCTION OVERVIEW

11
ENGLISH

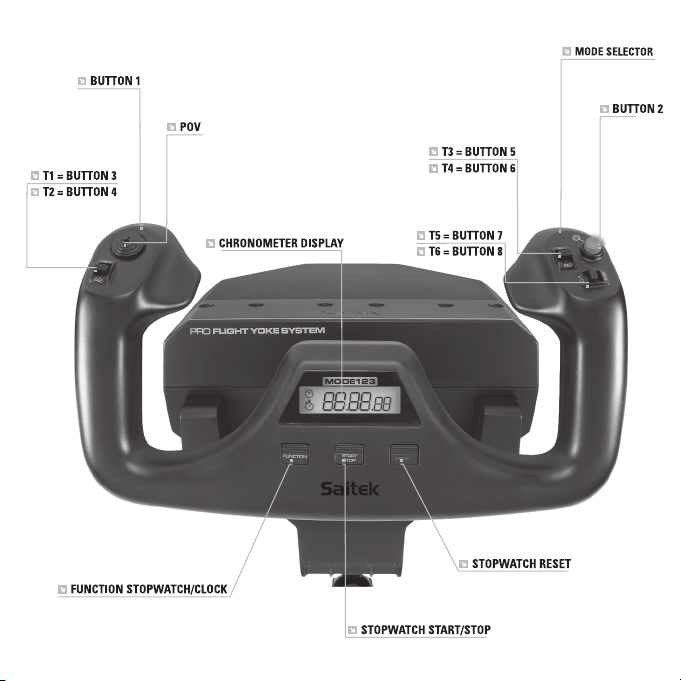

FLIGHT YOKE CONTROLS AND CORRESPONDING FUNCTIONS IN MICROSOFT FLIGHT SIMULATOR
Function Default function in FS9 and
FSX
Yoke axis X axis Ailerons
Y axis Elevator
Main Buttons Button 1 Brakes (apply/release)
T1 (button 3) Elevator trim down
T2 (button 4) Elevator trim up
T3 (button 5) Flaps retract incrementally
T4 (button 6) Flaps extend incrementally
T5 (button 7) Knee board display/hide
T6 (button 8) Landing gear up/down
Button 2 Views (cycle)
POV Panoramic viewing
Other Controls Mode switch Switches Mode when using Sai-
tek ST programming software
Clock Buttons Function Clock / stopwatch swap
Start/Stop Start/stop stopwatch
Reset Reset stopwatch

12
FUNCTION OVERVIEW

13
ENGLISH

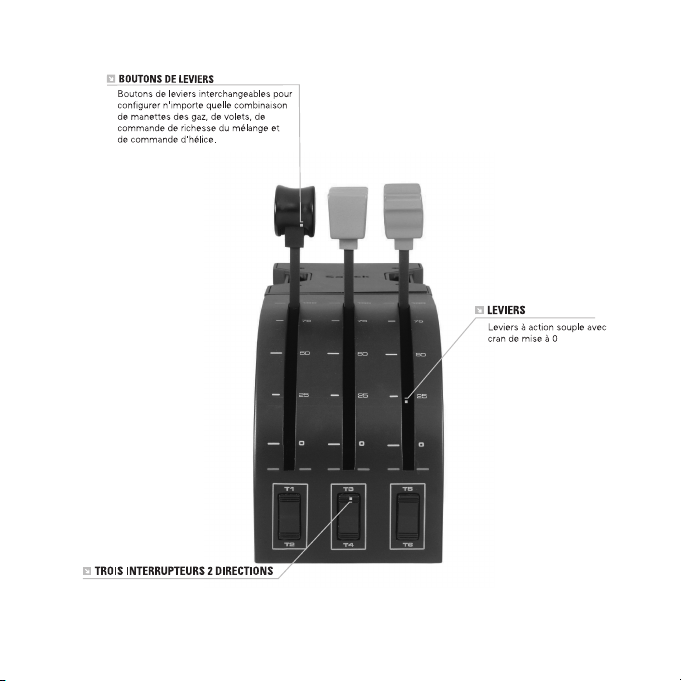

QUADRANT CONTROLS AND CORRESPONDING FUNCTIONS IN MICROSOFT FLIGHT SIMULATOR
Function Default function in FS9 and FSX
Quadrant Axis Z axis Throttle
Rx axis Flaps
Ry axis Spoiler
Axis buttons Z button Assignable in game
Rx button Assignable in game
Ry button Assignable in game
Toggle
switches
T1 (button 15) Assignable in game
T2 (button 16) Assignable in game
T3 (button 17) Assignable in game
T4 (button 18) Assignable in game
T5 (button 19) Assignable in game
T6 (button 20) Assignable in game
HOW TO ASSIGN PRO FLIGHT YOKE CONTROLS TO FLIGHT SIMULATOR FUNCTIONS
If you wish to change the controls or set up the additional buttons that have not been
assigned by Flight Simulator automatically, then you must use the Assignments (Flight
Simulator 2004) or Controls (Flight Simulator X) screen within the game. This is accessed
from the Settings menu within the game.
When you access the Assignments/Controls screen in Flight Simulator, ensure that the Saitek
Pro Flight Yoke is selected in the option labelled Joystick Type. If you wish to reassign any
of the axes on your controller, (the yoke itself or the levers on the throttle quadrant) you must
select Joystick Axes (Flight Simulator 2004) or Control Axes (Flight Simulator X) at the top of
the window. If you wish to reassign any of the buttons on your controller, you must rst select
the Buttons/Keys tab at the top of the window.

14
What is a Prole?
A Prole is a custom setup for improved gameplay - consisting of a set of commands that are
pre-assigned to the buttons or axes of your controller. Pre-written Proles are available on the
Product Companion Disk that accompanies this device or on the Saitek Website -
www.saitek.com. (Please check the website for new or improved Proles, which are added
regularly).
How do I program my controller?
After getting to know your controller, you can start creating your own personal Proles
with the Saitek ST software programming software. This software has virtually unlimited
programming capabilities and allows you to customize the controller to your exact gaming
needs.
The Prole Editor allows you to program the buttons on your controller to perform different
actions within your games - this is especially useful if the game you are using does not have
its own screen that allows reconguring of your buttons.
Getting Started
1. Double-click on the Saitek ST software icon the install left on your desktop.
2. In the Prole Editor, choose the control to which you wish to assign a keyboard command.
You do this by left-clicking on the control’s cell in the control list on the right of the screen.
3. With the cursor ashing, type in the key commands and then click on the green tick mark
when complete.
4. Repeat this procedure for all the buttons you would like to program and then click File,
Save at the top of the Prole Editor window.
5. Give the prole a name (it is recommended you name it after the game for which the
prole is intended) and then click Save.
6. To enable the prole either click the blue Prole Now icon at the top of the Prole Editor
or right-click on the controller icon in your taskbar and select the name of the prole from
the pop-up list of options.
7. You will notice that when a prole is loaded that the controller icon in your taskbar has a
green square behind it, indicating that a prole is currently loaded. If you wish to unload
a prole simply right-click on the controller icon and click Clear Prole from the pop-up
list of options.
If you require more detailed assistance with using the ST Programming Software, click on
Help at the top of the Prole Editor and then Manual.

15
ENGLISH
2-YEAR LIMITED WARRANTY
Mad Catz warrants this product to be free from defects in materials and workmanship for the
warranty period. This non-transferable, two- (2) year limited warranty is only to you, the rst
end-user purchaser. If a defect covered by this warranty occurs AND you provide proof of
purchase, Mad Catz, at its option, will repair or replace the product at no charge.
The Mad Catz two- (2) year limited warranty is available to North American and European
customers. Your sole and exclusive remedy is repair or replacement of your Mad Catz
product. In no event shall Mad Catz liability exceed the original purchase price of the product.
This warranty does not apply to: (a) normal wear and tear or abusive use; (b) industrial,
professional or commercial use; (c) if the product has been tampered with or modied.
NORTH AMERICA AND EUROPE
To receive warranty service, you must:
1. Obtain a Return Authorization Number from Mad Catz Technical Support via ONE of the
following methods:
a. Submit a Ticket at http://support.madcatz.com
b. Call the Mad Catz Tech Support Center nearest you:
- North America: 1-800-659-2287 (USA) or 1-619-683-2815 (outside USA)
- United Kingdom: 01633 928072
- Europe (outside UK): [phone]
- France: 01 82 88 01 80
- Germany: 089-21094818
- Spain: 93 181 63 94
Once you have your unique Return Authorization Number, do the following:
1. Ship the product to Mad Catz at your expense for service.
2. Enclose a copy of the original sales receipt showing a purchase date.
3. Enclose a full return address with daytime and evening phone numbers.
TECHNICAL SUPPORT
Online Support: http://support.madcatz.com
North American telephone, available Monday through Friday (excluding holidays):

16
1-800-659-2287 (USA only) or 1-619-683-2815 (outside USA).
United Kingdom telephone, available Monday through Friday (excluding bank holidays):
01633 928072.
European telephone (outside UK), available Monday through Friday (excluding bank
holidays): [phone].
CAUTIONS
- Use this unit only as intended.
- To prevent re or shock hazard, do not expose this unit to rain or moisture. Do not use
within 30’ of any water such as swimming pools, bathtubs, or sinks.
- To avoid electrical shock, do not disassemble. Refer servicing to qualied personnel only.
- Never insert objects of any kind, other than authorized items, into the product as they
may touch dangerous voltage points or short out parts that could result in re or electrical
shock.
- Stop using this unit immediately if you begin to feel tired or if you experience discomfort or
pain in your hands and/or arms while operating the unit. If the condition persists, consult a
doctor.
- Do not attempt to operate the unit in any way except with your hands. Do not bring the unit
in contact with your head, face, or near the bones of any other part of your body.
- Avoid prolonged use of this unit. Take breaks every 30 minutes.
- Route all cords so that they are not likely to be walked on or tripped over. Make sure that
cords are not placed in a position or areas where they may become pinched or damaged.
- Do not wrap cords around any part of anyone’s body.
- Do not allow children to play with cords.
- This product contains small parts that may cause choking if swallowed. Not intended for
use by children under 3 years of age.
EU DECLARATION OF CONFORMITY:
As required, certain of these products have been tested and conform to the requirements
of the European Union Directives 2002/95/EC, 2002/96/EC, and 2004/108/EC. Authorized
signatory of the manufacturer is Mad Catz, Inc., 10680 Treena Street, Suite 500, San Diego,
CA 92131.

FRANÇAIS
17
DÉMARRAGE : YOKE

18
DÉMARRAGE : QUADRANT

FRANÇAIS
19
INTRODUCTION
Flight Yoke System. Le Pro Flight Yoke est doté de contrôles réalistes, congurables pour les
principaux logiciels de simulations de vol pour rendre votre expérience de vol plus réaliste.
FEATURES:
• Interrupteur 2 directions
• 2 x Bouton de fonction unique
• Interrupteur 6x2 directions
• Interrupteur de Mode 3 positions
• Chronographe
INSTALLATION DU FLIGHT YOKE ET DU THROTTLE QUADRANT
Fixez tout d’abord le Flight Yoke à la table ou au bureau
en insérant les ergots du mécanisme de xation dans
les trous situés à la base du volant, puis vissez le
mécanisme de serrage jusqu’à ce que le volant soit fermement
attaché (prenez garde de ne pas trop serrer la vis pour ne pas
endommager la xation). Vissez ensuite la plaque de xation sur
le Throttle Quadrant à l’aide des quatre vis fournies. Vous pouvez
visser la plaque sur l’un des deux cotés de la manette en fonction de la conguration
de montage que vous avez choisie (que ce soit sous la table, devant vous ou sur le
dessus de celle-ci). Veuillez noter que quelque soit le type d’installation que vous choisirez, il
faudra vous assurez qu’en regardant la manette, les interrupteurs soient en bas.
Serrez maintenant le mécanisme de xation du Throttle Quadrant jusqu’à
ce qu’il soit fermement attaché à la table. Vous pouvez aussi positionner le
Throttle Quadrant à droite ou à gauche du Flight Yoke. Connectez à présent le
Throttle Quadrant à l’arrière du Flight Yoke avec le connecteur type PS/2 fourni.
Utilisez le hub USB intégré sur le coté du Pro Flight Yoke pour connecter
facilementles autres produits de la gamme Saitek Pro Flight, tel que des Pro Flight Throttle

20
Quadrant additionnels, un Pro Flight Rudder Pedals ou d’autres périphériques.
INSTALLATION POUR WINDOWS® 8, 8.1, 7, ET VISTA. COMPATIBLE AVEC TOUTES LES VERSIONS 32
ET 64-BIT
IMPORTANT : VEUILLEZ INSTALLER LES PILOTES AVANT D’INSTALLER LE LOGICIEL
INSTALLATION DES PILOTES
1. Allez sur Saitek.com pour télécharger les derniers pilotes et logiciels pour votre système
d’exploitation.
2. Lorsque l’appareil est déconnecté, suivez les indications afchées à l’écran pour terminer
l’installation.
3. Lorsque l’écran de Conguration du pilote s’afche, et uniquement quand cette action est
demandée, insérez le câble USB dans l’un des ports USB de votre ordinateur et cliquez
sur Suivant.
4. Lorsque l’écran de Conguration du pilote s’afche, cliquez sur Suivant pour tester votre
manette.
5. Lorsque l’écran de la manette Saitek s’afche, essayez les commandes pour vérier le
fonctionnement de l’appareil. Après le test, cliquez sur OK.
INSTALLATION DU LOGICIEL
1. À l’écran Conguration du logiciel, cliquez sur Suivant, une fenêtre pop-up vous deman-
dera si vous « souhaitez faire conance au logiciel de Saitek. » Cliquez sur oui, puis sur
Suivant.
2. Après l’installation, vous avez la possibilité d’Exécuter l’éditeur de prol, qui vous
montrera l’environnement de programmation. Pour passer l’Éditeur de prol maintenant,
décochez la case et cliquez sur Finir pour terminer l’installation.
