Samsung HT-J4100 User manual

5.1CH Blu-ray™
Home Entertainment System
User manual
HT-J4100
HT-JM41
This Nanum Gothic Eco font is provided by NAVER.
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/register

2 - English
Safety Information
●The slots and openings in the cabinet and in the back
or bottom are provided for necessary ventilation. To
ensure reliable operation of this apparatus, and to
protect it from overheating, these slots and openings
must never be blocked or covered.
- Do not place this apparatus in a confined space,
such as a bookcase, or built-in cabinet, unless
proper ventilation is provided.
- Do not place this apparatus near or over a radiator
or heat register, or where it is exposed to direct
sunlight.
- Do not place vessels (vases etc.) containing water
on this apparatus. A water spill can cause a fire or
electric shock.
●Do not expose this apparatus to rain or place it
near water (near a bathtub, washbowl, kitchen
sink, or laundry tub, in a wet basement, or near a
swimming pool, etc.). If this apparatus accidentally
gets wet, unplug it and contact an authorized dealer
immediately.
●This apparatus uses batteries. In your community,
there might be environmental regulations that require
you to dispose of these batteries properly. Please
contact your local authorities for disposal or recycling
information.
●Do not overload wall outlets, extension cords or
adaptors beyond their capacity, since this can result in
fire or electric shock.
●Route power-supply cords so that they are not likely
to be walked on or pinched by items placed on or
against them. Pay particular attention to cords at the
plug end, at wall outlets, and the point where they
exit from the apparatus.
●To protect this apparatus from a lightning storm,
or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will
prevent damage to the set due to lightning and
power line surges.
●Before connecting the AC power cord to the DC
adaptor outlet, make sure the voltage designation
of the DC adaptor corresponds to the local electrical
supply.
●Never insert anything metallic into the open parts
of this apparatus. Doing so may create a danger of
electric shock.
●To avoid electric shock, never touch the inside of this
apparatus. Only a qualified technician should open
this apparatus.
●Make sure to plug the power cord in until it is firmly
seated. When unplugging the power cord from a wall
outlet, always pull on the power cord's plug. Never
unplug by pulling on the power cord. Do not touch
the power cord with wet hands.
●If this apparatus does not operate normally - in
particular, if there are any unusual sounds or smells
coming from it - unplug it immediately and contact an
authorized dealer or service center.
●Maintenance of Cabinet.
- Before connecting other components to this
product, be sure to turn them off.
- If you move your product suddenly from a cold
place to a warm place, condensation may occur on
the operating parts and lens and cause abnormal
disc playback. If this occurs, unplug the product,
wait for two hours, and then connect the plug to
the power outlet. Then, insert the disc, and try to
play back again.
●Be sure to pull the power plug out of the outlet if
the product is to remain unused or if you are leaving
the house for an extended period of time (especially
when children, elderly, or disabled people will be left
alone in the house).
- Accumulated dust can cause an electric shock, an
electric leakage, or a fire by causing the power cord
to generate sparks and heat or the insulation to
deteriorate.
●Contact an authorized service center for information
if you intend to install your product in a location with
heavy dust, high or low temperatures, high humidity,
chemical substances, or where it will operate 24 hours
a day such as in an airport, a train station, etc. Failing
to do so may lead to serious damage of your product.
●Use only a properly grounded plug and wall outlet.
- An improper ground may cause electric shock or
equipment damage. (Class l Equipment only.)
●To turn this apparatus off completely, you must
disconnect it from the wall outlet. Consequently, the
wall outlet and power plug must be readily accessible
at all times.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE THE COVER (OR BACK). THERE ARE NO
USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage
is present inside. It is dangerous to
make any kind of contact with any
internal part of this product.
This symbol indicates that important
literature concerning operation and
maintenance has been included with
this product.

3 - English
Safety Information
●Do not allow children to hang on the product.
●Store the accessories (battery, etc.) in a location safely
out of the reach of children.
●Do not install the product in an unstable location such
as a shaky self, a slanted floor, or a location exposed
to vibration.
●Do not drop or strike the product. If the product is
damaged, disconnect the power cord and contact a
service center.
●To clean this apparatus, unplug the power cord from
the wall outlet and wipe the product using a soft,
dry cloth. Do not use any chemicals such as wax,
benzene, alcohol, thinners, insecticide, air fresheners,
lubricants, or detergent. These chemicals can damage
the appearance of the product or erase the printing
on the product.
●Do not expose this apparatus to dripping or splashing.
Do not put objects filled with liquids, such as vases on
the apparatus.
●Do not dispose of batteries in a fire.
●Do not plug multiple electric devices into the same
wall socket. Overloading a socket can cause it to
overheat, resulting in a fire.
●There is danger of an explosion if you replace the
batteries used in the remote with the wrong type of
battery. Replace only with the same or equivalent
type.
WARNING :
●TO PREVENT THE SPREAD OF FIRE,
KEEP CANDLES AND OTHER ITEMS
WITH OPEN FLAMES AWAY FROM THIS
PRODUCT AT ALL TIMES.
●This product contains chemicals known to the State of
California to cause cancer and reproductive toxicity.
●To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
FCC NOTES (for U.S.A)
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on.
If interference is present, the user is encouraged to try to
correct the interference by one or more of the following
measures:
●Reorienting or relocating the receiving antenna.
●Increasing the separation between the equipment and
receiver.
●Connecting this equipment to an outlet that is on a
different circuit than the one the receiver is connected
to.
●Consulting the dealer or an experienced radio/TV
technician for help.
This class B digital product meets all requirements
of the Canadian Interference - Causing Equipment
Regulations.
CLASS 1 LASER PRODUCT
This product is classified as a CLASS 1 LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
Complies with 21CFR 1040.10 except for deviations
pursuant to Laser Notice No. 50, dated June 24, 2007.
DANGER :
●VISIBLE AND INVISIBLE LASER RADIATION WHEN
OPEN. AVOID DIRECT EXPOSURE TO BEAM.
(FDA 21 CFR)
CAUTION :
●CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC
60825-1)
●THIS PRODUCT UTILIZES A LASER. USE OF
CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN THE COVER. DO NOT
REPAIR THE PRODUCT YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1
Important Safety Instructions
Read these operating instructions carefully before using
the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future
reference.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

4 - English
Safety Information
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including AV receivers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where it exits the
apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the
cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as when the power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has been
dropped.

5 - English
Contents
GETTING STARTED
6 Accessories
6 Speaker Components
6 Front Panel
7 Rear Panel
8 Remote Control
CONNECTIONS
9 Connecting the Speakers
11 Connecting to a TV and External Devices
SETTINGS
12 The Initial Settings Procedure

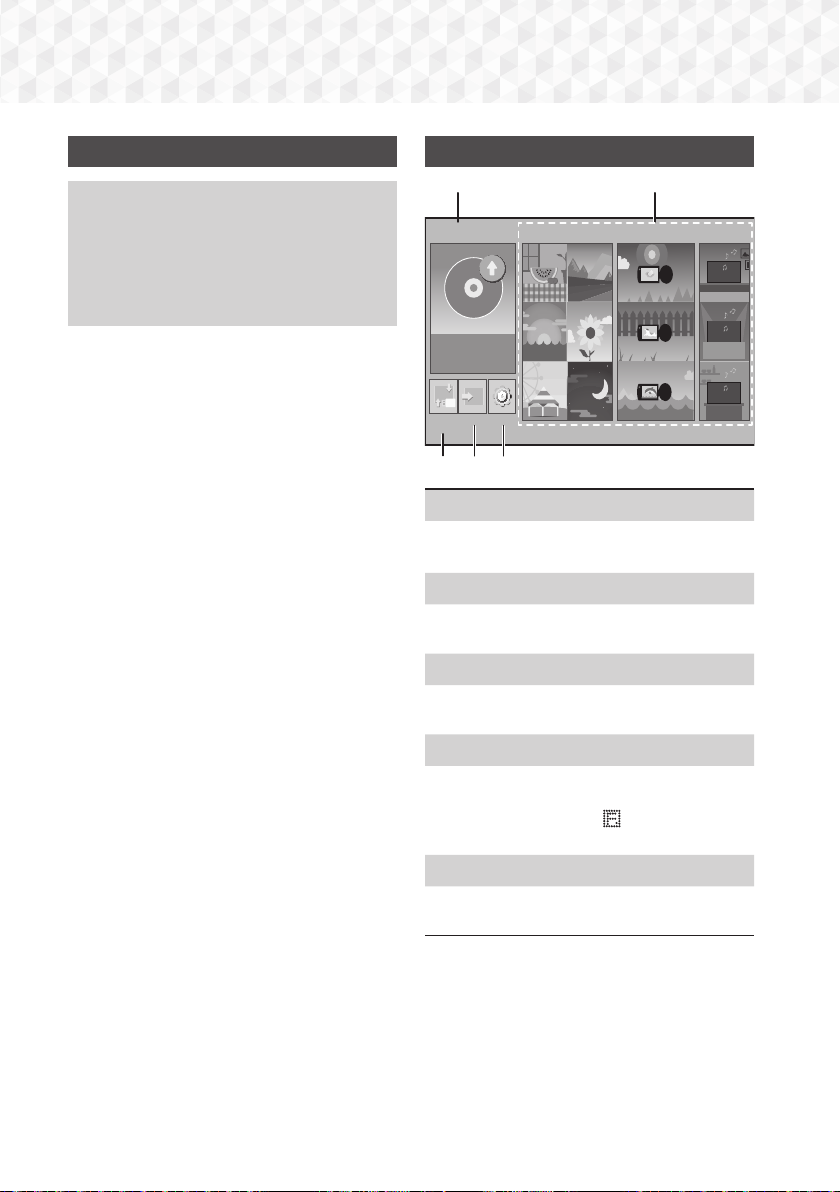

12 The Home Screen at a Glance
13 Accessing the Settings Screen
13 Settings Menu Functions
16 Radio Setup
17 Upgrading Software
PLAYING CONTENT
18 Switching the Source Device
18 Playing Commercial Discs
18 Playing a Disc with User Recorded Content
19 Playing Files on a USB Device
20 Controlling Video Playback
22 Playing a Pre-Recorded Commercial Audio Disc
22 Controlling Music Playback
24 Playing Photo Content
24 Using the Special Effects Remote Control
Buttons
APPENDIX
26 Additional Information
27 Disk and Format Compatibility
32 Troubleshooting
35 Specifications
36 Licenses
Contents
■ Figures and illustrations in this User Manual
are provided for reference only and may differ
from actual product appearance.

6 - English
Getting Started
Check the box for the accessories and speaker components listed or shown below.
Accessories
● Remote Control (AH59-02533A)
● Batteries (AAA size) (4301-000116)
● User Manual (AH68-02798A)
Power Cable (3903-000598) FM Antenna (AH42-00021A)
Speaker Components
Front x 2 Surround x 2 Center Subwoofer
Front Panel
DISPLAY ICONS
5V 0.5A
MIC 2MIC 1
FUNCTION
5V 0.5A
MIC 2MIC 1
STOP
5V 0.5A
MIC 2MIC 1
PLAY/PAUSE
5V 0.5A
MIC 2MIC 1
OPEN/CLOSE
5V 0.5A
MIC 2MIC 1
VOLUME
CONTROL
5V 0.5A
MIC 2MIC 1
POWER
5V 0.5A
USBREMOTE CONTROL SENSOR
DISPLAY
DISC TRAY
✎When the product is on, do not let children touch the product's surface. It will be hot.
✎To upgrade the product's software through the USB jack, you must use a USB flash drive.

7 - English
Getting Started
✎When the product displays a Blu-ray Disc menu, you cannot start the movie by pressing the
5V 0.5A
MIC 2MIC 1
/6
button on the product or the remote. To play the movie, you must select Play Movie or Start in the
disc menu, and then press the v button.
✎If you are playing content from a USB device on your TV through the home theater, you cannot select
the BD/DVD mode with the FUNCTION button. To select the BD/DVD mode, stop the content you are
playing on the TV, and then select the BD/DVD mode.
Rear Panel
SURROUND
SURROUND
COOLING FAN * FM ANTENNA
AUX IN
HDMI OUT
SPEAKER OUTPUT
CONNECTORS
POWER CORD EXTERNAL DIGITAL
AUDIO IN (OPTICAL)
* Connecting the FM Antenna
1. Connect the supplied FM antenna to the FM ANT Jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to
a wall or other rigid surface.
✎Maintain a minimum of 4 inches of clear space on all sides of the home theater to ensure adequate
ventilation.
Do not obstruct the cooling fan or ventilation holes.
✎This product does not receive AM broadcasts.

8 - English
Getting Started
Remote Control
Tour of the Remote Control
Turn the product on and off.
Adjust the volume.
Press numeric buttons to
operate options.
Press to skip backwards or forwards.
Selects the disc subtitle language.
Press to move to the Home screen.
Select on-screen menu items
and change menu values.
Return to the previous menu.
These buttons are used both for
menus on the product and also
several Blu-ray Disc functions.
Press to view the disc menu.
Press to use the Tools menu.
Press to play a disc or files.
Press to direct the audio signal to
the home theater speakers or TV
speaker. (See page 24)
Select the desired DSP/EQ audio
mode.
Press to record FM radio broadcasts.
Press to stop a disc or files.
Cut off the sound temporarily.
Press to search backwards or
forwards.
Press to pause playing.
Allows you to repeat a title,
chapter, track or disc.
Use to enter the Popup
menu/Title menu.
Select MONO or STEREO for radio
broadcasts.
Search for active FM stations and
to change channels.
Use to display the playback
information when playing
a Blu-ray/DVD disc or files.
To open and close the disc tray.
Press to exit the menu.
Press to select Home Theater's
mode. (BD/DVD, D. IN, AUX,
etc.).
Use to set a preset radio frequency.
TOOLS
RETURN
EXIT
INFO
SUBTITLE HOME REPEAT
123
78 9
DISC MENU TITLE MENU
0
POPUP
45 6
MUTE
MO/ST
TUNER
MEMORY
A B C D
TUNING
DOWN UP
VOLUME
-
+
DSP/EQTV SOUND
FUNCTION
Installing batteries in the Remote Control
✎Make sure to match the "+" and "–" ends of the batteries
with the diagram inside the compartment.
✎
Assuming typical usage, the batteries last for about one
year.
✎The remote control can be used up to approximately
23 feet from the product in a straight line.
Battery size: AAA

9 - English
Connections
This section describes various methods of connecting the product to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

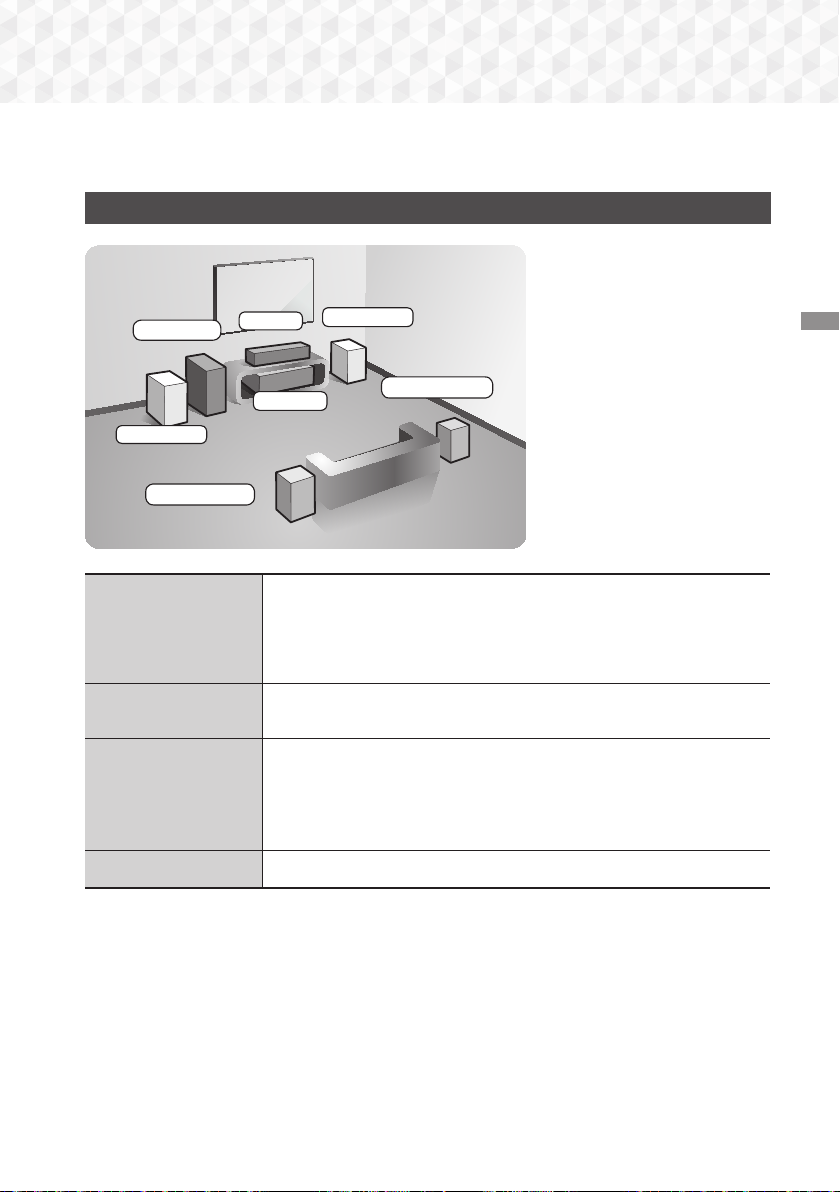

Connecting the Speakers
Surround (L)
Surround (R)
Product
Center
Subwoofer
Front (L)
Front (R)
Position of the product
Place it on a stand or cabinet shelf,
or under the TV stand.
Selecting the Listening Position
The listening position should be
located about 2.5 to 3 times the
TV's screen size away from the
TV. For example, if you have a 46
inch screen, locate the listening
position 115 to 138 inches (9.6 to
11.5 feet) from the screen.
Front Speakers
Place these speakers in front of your listening position, facing inwards (about
45°) toward you. Place the front speakers so that their tweeters will be at the
same height as your ear. Align the front face of the front speakers with the
front face of the center speaker or place them slightly in front of the center
speakers.
Center Speaker It is best to install the center speaker at the same height as the front speakers.
You can also install it directly over or under the TV.
Surround Speakers
Place these speakers to the side of your listening position. If there isn't enough
room, place these speakers so they face each other. Position them about 2 to
3 feet above your ear, facing slightly downward.
* Unlike the front and center speakers, the surround speakers are used mainly
for sound effects. Sound will not come from them all the time.
Subwoofer The position of the subwoofer is not so critical. Place it anywhere you like.
* The appearance of your speakers may differ from the illustrations in this manual.
* Each speaker has a colored label on its back or underside. Each cable has a single colored band near its end.
Match the band on each cable to the speaker label by color, and then connect the cable to the speaker. See
page 10 for exact instructions.
Connections

10 - English
Connections
Speaker Cable Connections
SURROUND
SURROUND
SURROUND
SURROUND
Front Speaker (R)
Subwoofer
Center Speaker
Surround
Speaker (L)
Front Speaker (L)
Surround
Speaker (R)
✎ If you place a speaker near your TV set, the screen color may be distorted because of the magnetic
field.
| CAUTION |
▶ If you want to install the speakers on the wall, fasten screws or nails (not provided) firmly to the wall
wherever you want to hang a speaker, and then, using the hole in the rear of each speaker, carefully
hang each speaker on a screw or nail.
▶ Do not let children play with or near the speakers. They could get hurt if a speaker falls.
▶ When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.
▶ Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands
or alien substances into the duct (hole) of the subwoofer speaker.
▶ Do not hang the subwoofer on the wall by the duct (hole).

11 - English
Connections

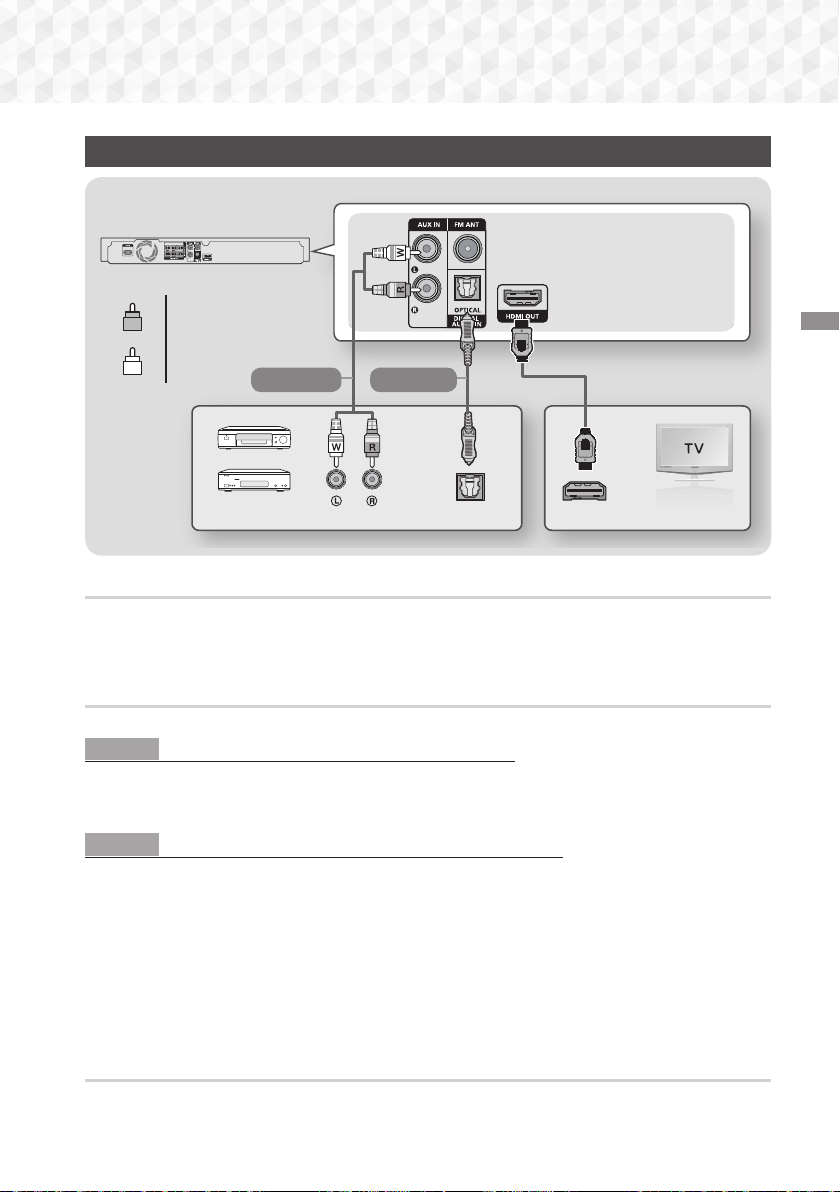

Connecting to a TV and External Devices
OPTICAL OUT
AUDIO OUT HDMI IN (ARC)
SURROUND
SURROUND
Method 1 Method 2
RRed
WWhite
External Devices
Connecting to a TV
Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN
jack on your TV. If the TV supports ARC, you can hear the audio from your TV through the home theater with
only this cable connected. See page 14 in this manual and the section on ARC in your TV's user's manual
for details.
Connecting to External Devices
Two methods of connecting external devices to your home theater are explained below.
Method 1 AUX IN : Connecting an External Analog Component
Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUDIO Out jack on
the external analog component.  Select the AUX mode.
● Be sure to match the colors on the cable plugs to the colors on the input and output jacks.
Method 2 OPTICAL : Connecting an External Digital Audio Component
Use to connect the digital audio output of digital signal components such as Cable Boxes and Satellite
Receivers (Set-Top-Boxes) to the home theater. Using a digital optical cable (not supplied), connect the Optical
Digital Audio In jack on the product to the Digital Optical Out jack of the external digital device using a digital
optical cable.  Select the D. IN mode.
✎
To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV.
✎This system supports Digital sampling frequencies of 32 kHz or higher from external digital
components.
✎This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not
supported.
Selecting an External Device to Use
To select an external device after you have connected it, press the FUNCTION button. Each time you press the
button, the mode changes in this order : BD/DVD ; D. IN ; AUX ; FM

12 - English
Settings
The Initial Settings Procedure
●The Home menu will not appear if you do not
configure the initial settings.
●The OSD (On Screen Display) may change in
this product after you upgrade the software
version.
●The access steps may differ depending on the
menu you selected.
1. Turn on your TV after connecting the product,
and then turn on the product. When you turn
on the product for the first time, the product
automatically displays the Setup Language
screen.
2. Press the ▲▼ buttons to select the desired
language, and then press the v button.
3. The TV Aspect Ratio screen appears. Press the
▲▼ buttons to select a TV aspect ratio, and
then press the v button.
You have four choices:
16:9 Original - For widescreen TVs. Displays
widescreen pictures in their original 16:9 format
and 4:3 pictures (the old, standard format) in
4:3 pillar box format with black bars on the left
and right.
16:9 Full - For widescreen TVs. Displays
widescreen pictures in their original 16:9 format
and expands 4:3 pictures to fill the 16:9 screen.
4:3 Letter Box - For older, standard screen,
analog TVs. Displays 4:3 pictures in full screen
and 16:9 pictures in letter box format that
retains the 16:9 aspect ratio but puts black bars
above and below the picture.
4:3 Pan-Scan - For older, standard screen,
analog TVs. Displays 4:3 pictures in full screen
and 16:9 pictures in Pan-Scan format that fills
the screen, but cuts off the left and right sides
of the picture and enlarges the middle vertically.
4. The "Initial settings completed." screen appears,
and then the Home screen appears.
✎If you want to display the Setup screen again
and make changes, select the Reset option.
(See page 15)
✎If you use an HDMI cable to connect the
product to an Anynet+ (HDMI-CEC)-compliant
Samsung TV and 1.) You have set the Anynet+
(HDMI-CEC) feature to On in both the TV
and the product and 2.) You have set the
TV to a language supported by the product,
the product will select that language as the
preferred language automatically.
The Home Screen at a Glance
PLAY DISC
Change
Device
Function
No Disc
Settings
PHOTOS VIDEOS MUSIC
1
3 4 5
2
1
PLAY DISC
The disc currently in the tray is displayed.
Press v to start playing the disc.
2 PHOTOS/VIDEOS/MUSIC
Play photos, videos, or music content from a
Disc or a USB device.
3
Change Device
Displays a list of external devices connected to the
main unit. Switch to the desired device.
4
Function
Use for switching to an external device or to the
radio. You can use the remote control’s FUNCTION
button and the main unit’s button for mode
switching.
5
Settings
Set various functions to suit your personal
preferences.

13 - English
Settings

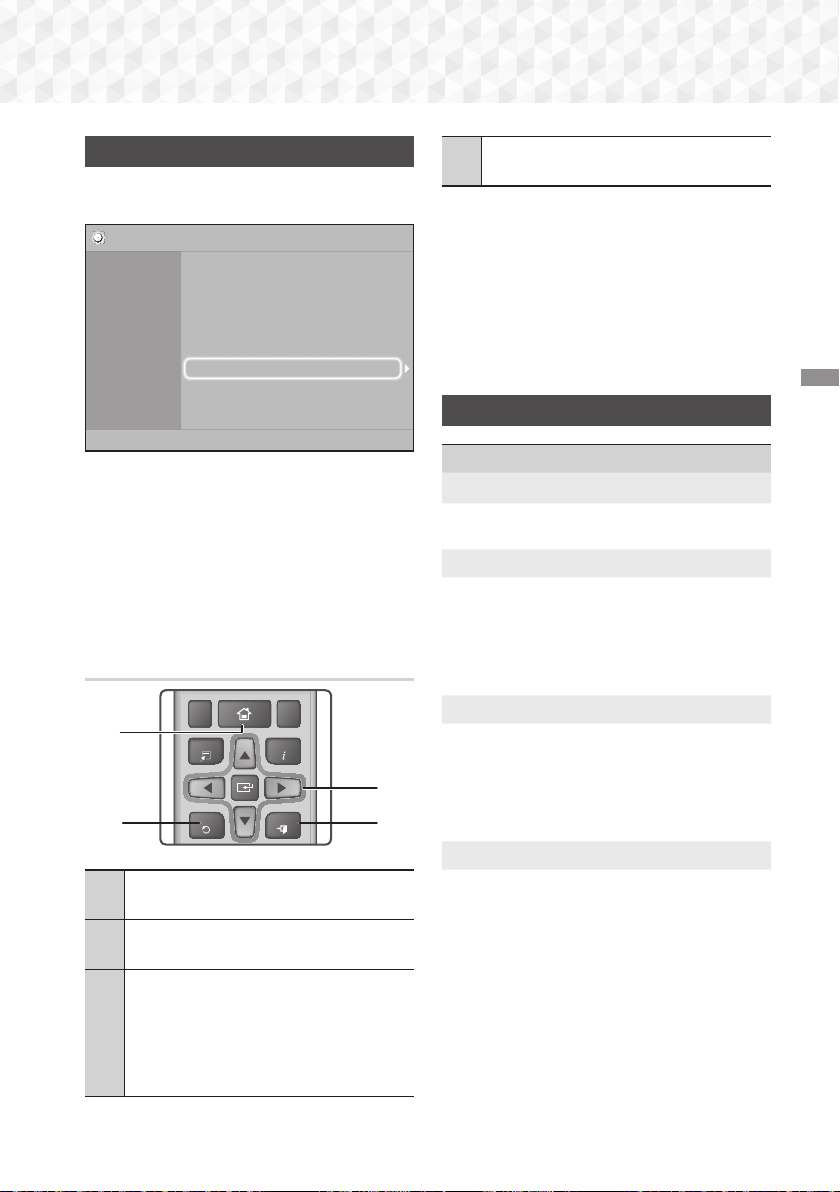

Accessing the Settings Screen
1. Select Settings on the Home screen, and then
press v. The Settings screen appears.
Settings
Sound
System
Language
Security
Support
TV Aspect Ratio : 16:9 Original
BD Wise : Off
Resolution : Auto
Movie Frame (24Fs) : Off
HDMI Color Format : Auto
HDMI Deep Color : Off
Progressive Mode : Auto
2. To access the menus, sub-menus, and options
on the Settings screen, please refer to the
remote control illustration. (See below)
✎If you leave the product in the stop mode for
more than 5 minutes without using it, a screen
saver appears on your TV. If the product is left
in the screen saver mode for more than 20
minutes, the power automatically turns off.

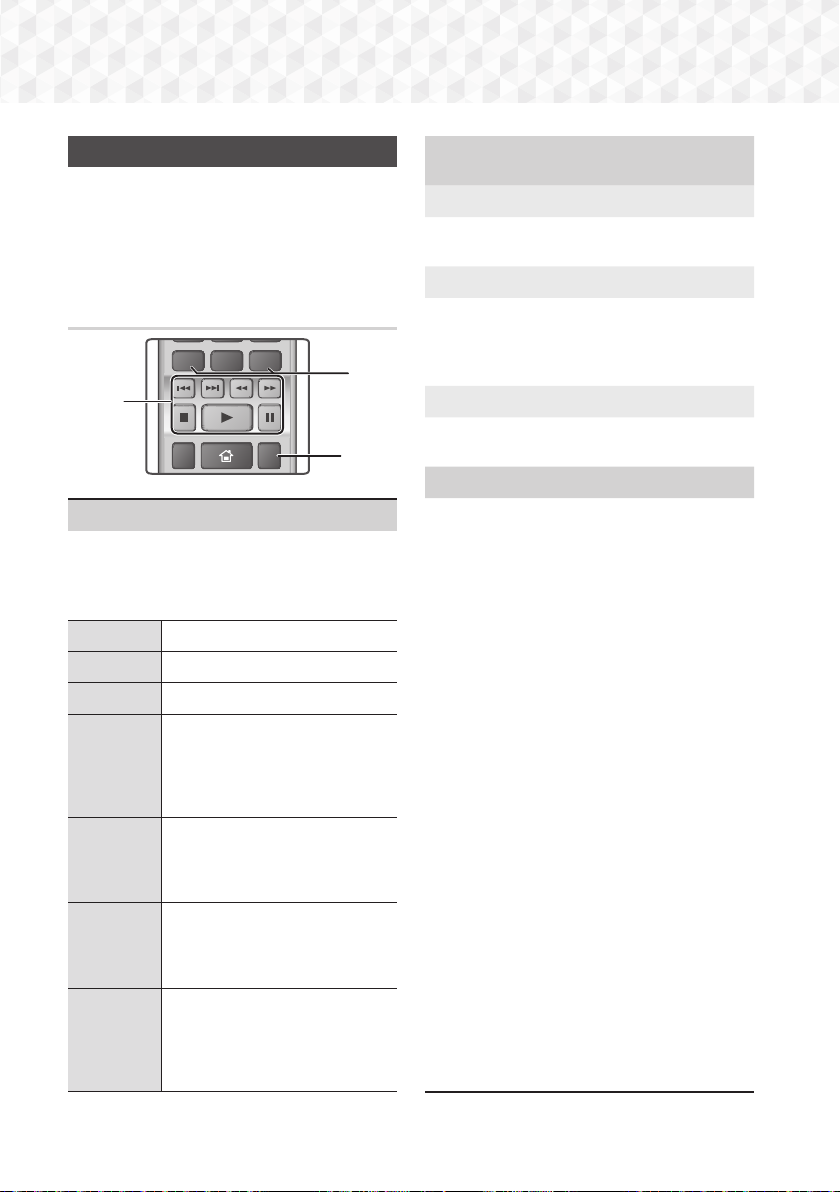

Buttons on the Remote Control Used for
the Settings Menu
TOOLS
RETURN
EXIT
INFO
SUBTITLE HOME REPEAT
123
78 9
DISC MENU TITLE MENU
0
POPUP
45 6
MUTE
MO/ST
TUNER
MEMORY
A B C D
TUNING
DOWN UP
VOLUME
-
+
DSP/EQTV SOUND
FUNCTION
2 4
3
1
1
HOME Button : Press to move to the Home
screen.
2
RETURN Button : Press to return to the
previous menu.
3
v (ENTER) / DIRECTION Button :
●Press ▲▼◀▶ to move the cursor or
select an item.
●Press the v button to activate the
currently selected item or confirm a
setting.
4
EXIT Button : Press to exit the current
menu.
Detailed Function Information
Each Settings function, menu item, and individual
option is explained in detail on-screen. To view an
explanation, use the ▲▼◀▶ buttons to select the
function, menu item, or option. The explanation will
usually appear on the bottom of the screen.
A short description of each Settings function starts
on this page. Additional information on some of the
functions is also in the Appendix of this manual.
Settings Menu Functions
TV Aspect Ratio
Lets you adjust the output of the product to the
screen size of your TV. (See page 26)
BD Wise
BD Wise is Samsung’s latest inter-connectivity
feature. When you connect a Samsung product
and a Samsung TV with BD Wise to each other
via HDMI, and BD Wise is on in both the product
and TV, the product outputs video at the video
resolution and frame rate of the Blu-ray/DVD Disc.
Resolution
Lets you set the output resolution of the HDMI
video signal to BD Wise, Auto, 1080p, 1080i,
720p, 480p. The number indicates the number
of lines of video per frame. The i and p indicate
interlaced and progressive scan, respectively. The
more lines, the higher quality.
Movie Frame (24Fs)
Setting the Movie Frame (24Fs) feature to Auto lets
the product adjust its HDMI output to 24 frames
per second automatically for improved picture
quality if attached to a 24Fs compatible TV.
●You can enjoy the Movie Frame (24Fs) feature
only on a TV supporting this frame rate.
●Movie Frame is only available when the product
is in the HDMI 1080p output resolution modes.

14 - English
Settings
HDMI Color Format
Lets you set the color space format for the HDMI
output to match the capabilities of the connected
device (TV, monitor, etc).
HDMI Deep Color
Lets you set the product to output video from
the HDMI OUT jack with Deep Color. Deep Color
provides more accurate color reproduction with
greater color depth.
Progressive Mode
Lets you improve picture quality when viewing
DVDs.
Sound
Speaker Settings
Lets you adjust the following speaker settings and
turn the speaker test on and off so you can test
the speakers.
Level
: Lets you adjust the relative loudness of
each speaker from 6dB to -6dB. For example,
if you like deep bass, you can increase the
loudness of the subwoofer by 6dB.
Distance
: Lets you adjust the relative distance
of each speaker from the listening position up
to 30 feet. The farther the distance, the louder
the speaker will be.
Speaker Test
: Lets you run the Speaker Test
function so you can test your adjustments. Setting
Speaker Test to On turns the Speaker Test on.
Setting it to Off turns it off.
Speaker Selection
Lets you select which speakers you want active,
either the TV's speakers or the home theater's
speakers.
Equalizer Mode
Set Equalizer Mode on to use the equalizer.
Equalizer Settings
Lets you set the equalizer.
✎Equalizer Settings only appears when
Equalizer Mode is On.
Audio Return Channel
Lets you direct the sound from the TV to the
Home Theater speakers. Requires an HDMI
connection and an Audio Return Channel (ARC)
compatible TV.
●If Audio Return Channel is set to on and you are
using an HDMI cable to connect the product to
the TV, digital optical input will not work.
●If Audio Return Channel is set to Auto and
you are using an HDMI cable to connect the
product to the TV, ARC or digital optical input is
selected automatically.
Digital Output
Lets you set the Digital Output to match the
capabilities of the AV receiver you’ve connected to
the product. For more details, please refer to the
digital output selection table. (See page 31)
Dynamic Range Control
Lets you apply dynamic range control to Dolby
Digital, Dolby Digital Plus, and Dolby TrueHD audio.

Auto: Automatically controls the dynamic range
of Dolby TrueHD audio, based on information
in the Dolby TrueHD soundtrack. Also turns
dynamic range control off for Dolby Digital and
Dolby Digital Plus.

Off: Leaves the dynamic range uncompressed,
letting you hear the original sound.

On: Turns dynamic range control on for all three
Dolby formats. Quieter sounds are made louder
and the volume of loud sounds is reduced.
Downmixing Mode
Lets you select the multi-channel downmix method
that is compatible with your stereo system. You can
choose to have the product downmix to Normal
Stereo or to Surround Compatible.
Audio Sync
When the product is attached to a digital TV, lets
you adjust the audio delay so that the audio syncs
with the video. You can set the delay between 0
and 300 milliseconds.

15 - English
Settings
System
Setup
Lets you re-run the Setup procedure. (See page
12)
Quick Start
You can turn on the power quickly by decreasing
the boot time.
✎
If this function is set to On, Standby power
consumption will be increased. (About 12W
~ 20W)
Anynet+ (HDMI-CEC)
Anynet+ is a convenient function that offers
linked operations with other Samsung products
that have the Anynet+ feature and lets you
control those products with one Samsung TV
remote. To operate this function, you must
connect this product to an Anynet+ Samsung TV
using an HDMI cable.
BD Data Management
Enables you to manage the downloaded contents
you accessed through a Blu-ray disc and stored on
a flash drive.
You can check the device's information including
the available storage size, delete the BD data, or
change the Flash memory device.
Language
Lets you select the language you prefer for the
On-Screen Menu, Disc Menu, etc.
●The selected language will only appear if it is
supported on the disc.
Security
The default PIN is 0000. Enter the default PIN to
access the security function if you haven't created
your own PIN.
BD Parental Rating
Prevents playback of Blu-ray Discs with a rating
equal to or above a specific age rating unless you
enter the PIN.
DVD Parental Rating
Prevents playback of DVDs with a rating above a
specific numerical rating unless you enter the PIN.
Change PIN
Changes the 4-digit PIN used to access security
functions.
Support
Software Upgrade
For more information about this function, see
page 17.
Contact Samsung
Provides contact information for assistance with
your product.
Reset
Reverts all settings to their defaults. Requires that
you enter your security PIN. The default security
PIN is 0000.

16 - English
Settings
Radio Setup
●To listen to the radio, you must connect the
supplied FM antenna.
Operating the Radio with the Remote
Control
1. Press the FUNCTION button to select FM.
2. Tune to the desired station.
●Preset Tuning 1 : Press the 5 button to
select PRESET, and then press the TUNING
UP, DOWN button to select a preset station.
- Before you can tune to preset stations, you
must add preset stations to the product's
memory.
●Manual Tuning : Press the 5 button to select
MANUAL, and then press the TUNING UP,
DOWN button to tune in to a lower or higher
frequency.
●Automatic Tuning : Press the 5 button to
select MANUAL, and then press and hold the
TUNING UP, DOWN button for a few seconds
to automatically search the band.
Selecting Mono or Stereo
Press the MO/ST button.
●Each time you press the button, the sound
switches between STEREO and MONO.
●In a poor reception area, select MONO for a clear,
interference-free broadcast.
Presetting Stations
Example : Presetting FM 89.10 into memory.
1. Press the FUNCTION button to select FM.
2. Press the TUNING UP, DOWN button to scroll
the FM frequencies, and then select <89.10>.
3. Press the TUNER MEMORY button (the yellow
C button at the bottom of the remote).
4. Press the TUNER MEMORY button again
within about 5 seconds. The station is stored in
memory.
✎If you press the
TUNER MEMORY button
repeatedly without changing the station, the
inputted station may be overwritten.
5. To preset another station, repeat steps 2 to 4.
●To tune in to a preset station, press the
TUNING UP, DOWN button.
✎To delete all Preset FM stations at once, press
the TITLE MENU button for about 5 seconds
in FM Manual mode until DEFAULT PRESET
appears on the display.
Recording FM Radio
You can record your favorite radio broadcast on a
USB storage device.
1. Insert a USB device into the USB jack on the
front of the product.
2. Press the FUNCTION button to select FM, and
then press the TUNING UP, DOWN button to
select the station you want to record.
3. Press the RED (A) button to start recording. The
recording process begins.
●The recorded time is displayed on the left and
the recording time still available, based on
the amount of free space in the USB storage
device, is displayed on the right.
4. Press the EXIT button to finish your recording.
The recording is stopped and saved as an .mp3
file at the same time. To play the recorded file,
refer to "Playing Files on a USB Device".
✎
The recorded file is saved in the Tuner folder
which is created automatically.
✎
Only the
H
I
G
H
-
E
N
D
V
A
C
U
U
M
T
U
B
E
S
O
U
N
D
5V 0.5A
(OPEN/CLOSE),
H
I
G
H
-
E
N
D
V
A
C
U
U
M
T
U
B
E
S
O
U
N
D
5V 0.5A
(POWER), EXIT,
MUTE, and VOLUME +/-, buttons are operable
while FM radio is being recorded.
✎If you don't press any buttons while recording,
the screen saver will be enabled.
✎Sound effects, such as DSP, EQ, etc., are not
recorded during FM radio recording.
✎The radio is recorded at a set, default volume
even if you change the volume or press the
MUTE button during the recording process.
✎If you remove the USB device or Power Cable
during the recording process, the portion of
the file which has already been recorded may
not play back.
✎Recording will not start if the remaining free
space in the USB storage device is less than
2MB.
✎If the USB device is removed or has insufficient
space (under 2MB), the appropriate message
is displayed and the recording stops.

17 - English
Settings
Upgrading Software
The Software Upgrade menu allows you to
upgrade the product’s software for performance
improvements or additional services.
●Never turn the product off or back on manually
during the update process.
●The update is complete when the product turns
off after restarting. Press the POWER button to
turn on the updated product for your use.
1. Visit www.samsung.com.
2. Click OWNERS & SUPPORT on the top right
of the page, and then select Manuals &
Downloads from the drop down that appears.
3. On the next screen, enter the product's model
number into the search field. As you enter
the model number, a drop down will display
products that match the model number.
4. Left click your product's model number in the
drop down list.
5. On the page that appears, select Downloads.
6. Find the Upgrade File (USB type) in the
Description column. Click the ZIP icon in the
Download File column on the right.
7. Click Send in the pop-up that appears. The file
downloads to your PC.
8. Unzip the zip archive to your computer. You
should have a single folder with the same name
as the zip file.
9. Copy the folder to a USB flash drive.
10. Make sure no disc is inserted in the product,
and then insert the USB flash drive into the USB
port of the product.
11. In the product’s menu, go to Settings > Support
> Software Upgrade.
12. Select By USB.
13. The home theater searches for the software on
the USB drive. When it finds the software, the
Update Request pop-up appears.
14. Select OK. The home theater turns off, turns
on, and then begins the upgrade. When the
upgrade is done, the home theater turns off.
15. Press the POWER button to turn on the home
theater.
✎There should be no disc in the product when
you upgrade the software using the USB Host
jack.
✎When the software upgrade is done, check
the software details in the Software Upgrade
menu.

18 - English
Playing Content
Your home theater can play content located on
Blu-ray/DVD/CD discs and USB devices.
Switching the Source Device
If two or more external devices are connected to the
main unit, you can use any of the three methods
described below to change the source device.
Method 1
From the Home screen, use the ▲▼◀▶ buttons to
move to Change Device, and then press v.
The Change Device popup window will appear. Use
the ▲▼ buttons to move to the desired device, and
then press v.
Method 2
If you move to PHOTOS, VIDEOS, MUSIC or other
file-based contents, a list of folders and files will
appear. Press the RED (A) button to display the
Change Device popup window, use the ▲▼ buttons
to move to the desired device, and then press v.
Method 3
When a device is connected for the first time, a
popup window appears. In the popup, you can
change the source device by using the ◀▶ buttons,
and then pressing v.
Playing Commercial Discs
1. Press the ^ button to open the disc tray.
2. Place a disc gently into the disc tray with the
disc’s label facing up.
3. Press the ^ button to close the disc tray.
Playback starts automatically.
4. If playback does not start automatically, press
the 6 button on the remote.
Disc Storage & Management
●Holding Discs
-Fingerprints or scratches on
a disc may reduce sound and
picture quality or cause skipping.
-Avoid touching the surface of a disc where data
has been recorded.
-Hold the disc by the edges so that fingerprints
will not get on the surface.
-Do not stick paper or tape on the disc.
●Cleaning Discs
-If you get fingerprints or dirt on a
disc, clean it with a mild detergent
diluted in water and wipe with a
soft cloth.
-When cleaning, wipe gently from
the inside to the outside of the disc.
-Disc Storage
`Do not keep in direct sunlight.
`Keep in a cool ventilated area.
`Keep in a clean protective jacket and store
vertically.
Playing a Disc with User Recorded
Content
You can play multimedia files you have recorded on
Blu-ray, DVD, or CD discs.
1. Place a user recorded disc into the disc tray with
the disc’s label facing up, and then close the
tray.
2. Use the ◀▶ buttons to select the type of
content you want to view or play - PHOTOS,
VIDEOS, or MUSIC - and then press the v
button.
OR
2
-1
. Select PLAY DISC from the Home screen. The
PLAY DISC screen appears. Use the ▲▼ buttons
to select the desired content type, Photos,
Videos, or Music.
3. A screen appears listing the contents of the
disc. Depending on how the contents are
arranged, you will see either folders, individual
files, or both.
4. If necessary, use the ▲▼◀▶ buttons to select
a folder, and then press the v button.
5. Use the ▲▼◀▶ buttons to select a file to view
or play, and then press the v button.

19 - English
Playing Content
6. Press the RETURN button one or more times to
exit a current screen, exit a folder, or to return
to the Home screen.
Press the EXIT button to return directly to the
Home Screen.
7. Go to pages 20~24 for instructions that
explain how to control playback of videos,
music, and pictures on a disc.
Playing Files on a USB Device
There are two methods you can use to play or view
multimedia files located on a USB device through
your product.
Method 1 : If you connect a USB device while
the product is turned on
1. The "New device connected." pop-up appears.
PLAY DISC
Change
Device
Function
No Disc
Settings
PHOTOS VIDEOS MUSIC
New device connected.
STORAGE DEVICE
Photos
Videos
Music
> Move " Enter ' Return
✎If the pop-up does not appear, go to Method
2.
2. Use the ▲▼ buttons to select Photos, Videos,
or Music and then press the v button.
Depending on how the contents are arranged,
you will see either folders, individual files, or
both.
3. If necessary, use the ▲▼◀▶ buttons to select
a folder, and then press the v button.
4. Select a file to view or play, and then press the
v button.
5. Press the RETURN button to exit a folder or the
EXIT button to return to the Home screen.
6. Go to pages 20~24 for instructions that
explain how to control playback of videos,
music, and pictures on a USB device.
Method 2 : If the product is turned on after
you connect a USB device
1. Turn the product on.
2. Press Change Device and select a USB device.
3. Use the ◀▶ buttons to select PHOTOS,
VIDEOS, or MUSIC on the Home screen, and
then press the v button.
4. If necessary, use the ▲▼◀▶ buttons to select
a folder, and then press the v button.
5. Select a file to view or play, and then press the
v button.
6. Press the RETURN button to exit a folder or the
EXIT button to return to the Home screen.
7. Go to pages 20~24 for instructions that
explain how to control playback of videos,
music, and pictures on a USB device.
✎If you insert a disc while playing a USB
device, the device mode changes to "Disc"
automatically.

20 - English
Playing Content
Controlling Video Playback
You can control the playback of video content
located on a Blu-ray/DVD disc or USB device.
Depending on the disc or contents, some of the
functions described in this manual may not be
available.
Buttons on the Remote Control used for
Video Playback
TOOLS
RETURN
EXIT
INFO
SUBTITLE HOME REPEAT
123
78 9
DISC MENU TITLE MENU
0
POPUP
45 6
MUTE
MO/ST
TUNER
MEMORY
A B C D
TUNING
DOWN UP
VOLUME
-
+
DSP/EQTV SOUND
FUNCTION
1
2
3
1 Playback related buttons
The product does not play sound in Search, Slow,
or Step mode.
●To return to normal speed playback, press the
6 button.
6Starts playback.
5Stops playback.
7Pauses playback.
Fast Motion
Play
During playback, press the 3 or
4 button.
Each time you press the 3 or 4
button, the playback speed will
change.
Slow
Motion Play
In pause mode, press the 4
button.
Each time you press the 4 button,
the playback speed will change.
Step Motion
Play
In pause mode, press the 7
button.
Each time you press the 7 button,
a new frame appears.
Skip Motion
Play
During playback, press the 1 or
2 button.
Each time you press the 1 or
2 button, the disc moves to the
previous or next chapter or file.
2 Using the disc menu, title menu, popup
menu, and title list
DISC MENU
During playback, press this button to display the
Disc menu.
TITLE MENU
During playback, press this button to display the
Title menu.
●If your disc has a playlist, press the GREEN (B)
button to go to the playlist.
POPUP MENU
During playback, press this button to display the
Popup menu.
3 Repeat Playback
1. During playback, press the REPEAT button
on the remote control.
2. Press the ▲▼ buttons to select Off, Title,
Chapter, All or Repeat A-B, and then press
the v button.
Ğ
Repeat A-B
1. Press the v button at the point where you
want repeat play to start (A).
2. Press the v button at the point where you
want repeat play to stop (B).
3. To return to normal play, press the REPEAT
button again.
4. Press the v button.
✎Depending on the disc, the screen may not
display all repeat options.
✎The screen may not display Chapter or
Title immediately. Continue to press the
▲▼ buttons until your choice is inside the
applicable field.
✎To return to normal play, press the REPEAT
button again, press the ▲▼ buttons to
select Off, and then press the v button.
✎The screen may not display Repeat A-B
immediately. Continue to press the ▲▼
buttons until Repeat A-B is inside the
applicable field.
✎You must set point (B) at least 5 seconds of
playing time after point (A).
