Samsung CS21S7 User manual

COLOUR
TELEVISION
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ENG
REMOTE CONTROL
ON-SCREEN MENUS
ENJOY GAME
ELECT

2
ENG

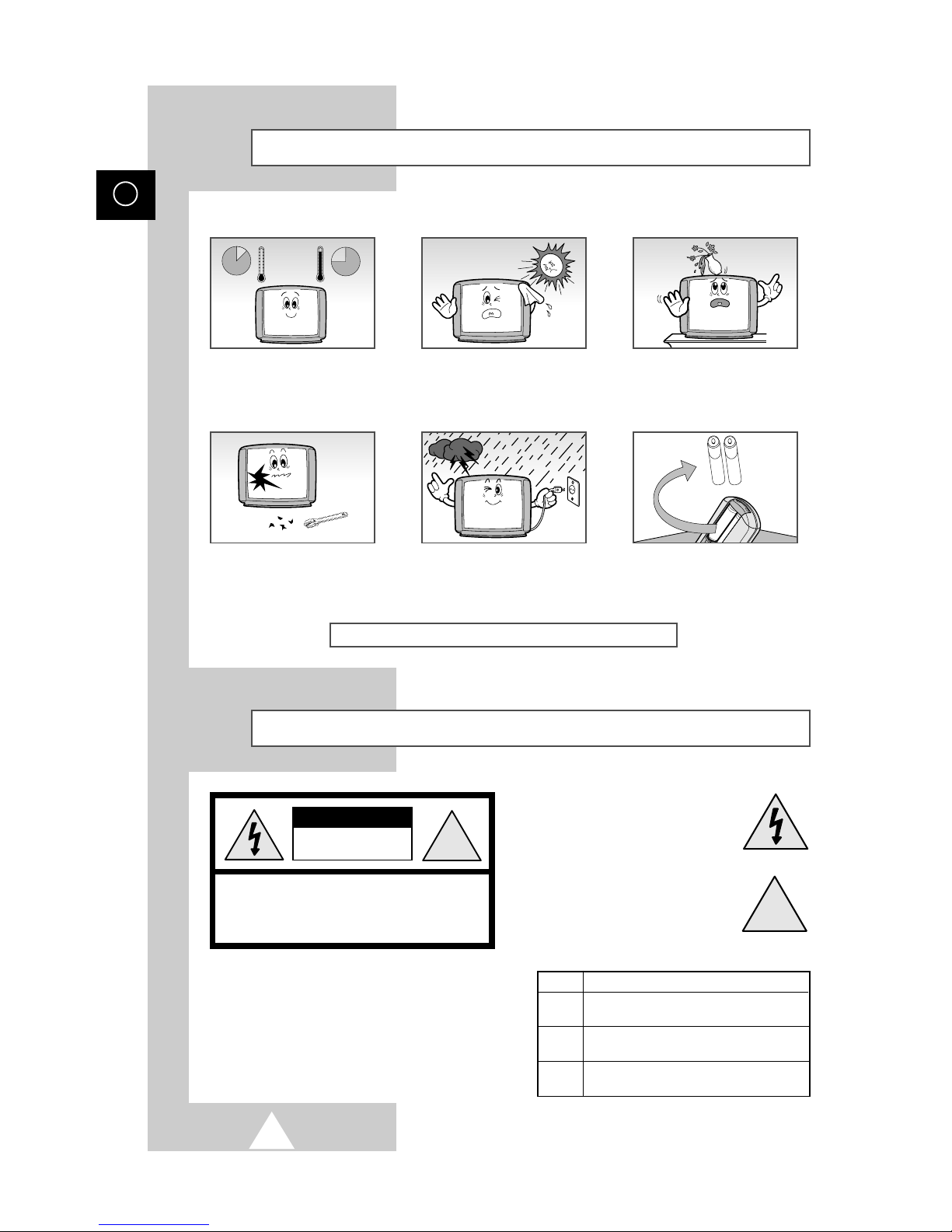

Safety Instructions
The following illustrations represent the precautions to be taken when using and moving your television.
5°
10%
HH
35°75%
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL ENVIRONMENTS
Caution
CAUTION: TO PREVENT ELECTRICAL SHOCK, DO
NOT REMOVE REAR COVER, NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
CAUTION
Do NOT expose the television to
extreme temperature conditions
(below 5°C and above 35°C) or to
extreme humidity conditions (less
than 10% and more than 75%).
Do NOT expose the television to
direct sunlight. Do NOT expose the television to any liquids.
If the television is broken, do not
try to repair it yourself. Contact
qualified service personnel.
During a storm conditions
(especially when there is lightning)
unplug the television from the
mains socket and aerial.
If the remote control is not used for
a long period of time, remove the
batteries and store it in a cool, dry
place.
Mode System
CZ PAL-B/G, D/K, I, SECAM-B/G,D/K, I,
NTSC4.43MHz
CW PAL-B/G, D/K, I, SECAM-B/G,D/K, I, L/L’,
NTSC4.43MHz
CS PAL-B/G, D/K, I, SECAM-B/G,D/K, I,
NTSC4.43/3.58MHz
WARNING: TO PREVENT DAMAGE WHICH MAY
RESULT IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
☛
The main voltage is indicated on the rear
of the TV set and the frequency is 50 or
60Hz.
The lightning flash and arrow head
within the triangle is a warning sign
alerting you of “dangerous voltage”
inside the product.
The exclamation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
!

3
ENG
Contents
◆PREPARING YOUR TELEVISION
■Safety Instructions ........................................................................................
■Caution .........................................................................................................
■Front Control Panel ......................................................................................
■Connection Panels .......................................................................................

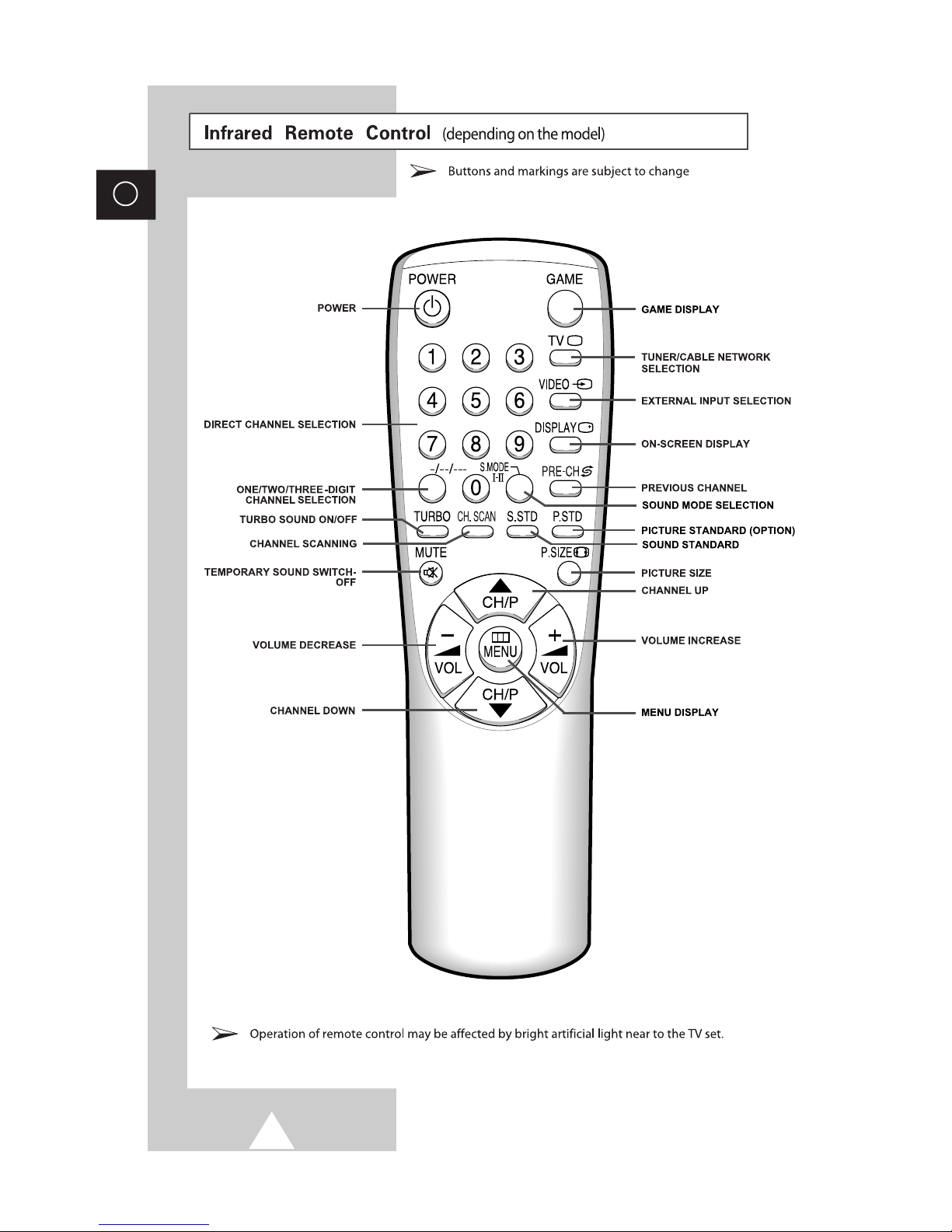

■Infrared Remote Control ...............................................................................
■Inserting the Batteries in the Remote Control................................................
■Connecting the Aerial (or Cable Television Network)....................................
■Switching Your Television On and Off...........................................................
■Placing Your Television in Standby mode.....................................................
■Plug & Play Feature.......................................................................................
■Viewing the Demonstration............................................................................
■Choosing Your Language..............................................................................
◆SETTING UP THE CHANNELS
■Storing the Channels Automatically...............................................................
■Storing the Channels Manually......................................................................
■Skipping Unwanted Channels .......................................................................
■Fine tuning Channel Reception.....................................................................
■Sorting the Stored Channels .........................................................................
◆USING THE TELEVISION
■Changing the Picture Standard .....................................................................
■Adjusting the Picture Settings .......................................................................
■Selecting the Picture Format.........................................................................
■Activation/Deactivation the Digital Noise Reduction Feature ........................
■Adjusting the Volume.....................................................................................
■Switching the Sound Off Temporarily............................................................
■Changing the Sound Standard......................................................................
■Adjusting the Sound Settings ........................................................................
■Extra Sound Settings.....................................................................................
■Enjoying the Woofer Sound...........................................................................
■Selecting the Turbo Sound............................................................................
■Selecting the Sound Mode ............................................................................
■Setting the Sleep Timer ................................................................................
■Setting and Displaying the Current Time.......................................................
■Setting the On/Off Timers, On Time Program and Volume ..........................
■Setting the Blue Screen Mode.......................................................................
■Activating the Childlock .................................................................................
■Enjoying Games............................................................................................
◆INFORMATION ON CONNECTIONS AND RECOMMENDATIONS FOR USE
■Connecting to the AV-1 or 2 Input/Outputs....................................................
■Connecting to the Rear S-VIDEO Input.........................................................
■Connecting to the Rear DVD Input................................................................
■Connecting to the RCA Input (AV2)...............................................................
■Connecting Headphones...............................................................................
■Viewing Picture From External Sources........................................................
■Automatic Degaussing to Remove Colour Patches.......................................
■Trouble Shooting: Before Contacting Service Personnel..............................
☛➢
Symbols
Press Important Note
■
Changing Channels ......................................................................................
■Pre Channel ..................................................................................................
■
Channel Scan ...............................................................................................
■Selecting a Channel Numbered Ten or Over .................................................
■Setting the Reminder ....................................................................................
2
2
4
5
6
7
7
8
9
10
11
12
13
14
16
17
18
20
21
21
22
22
23
23
24
25
26
26
27
28
29
30
34
34
35
36
36
37
37
38
38
39
39
19
19
19
19
32

4
ENG

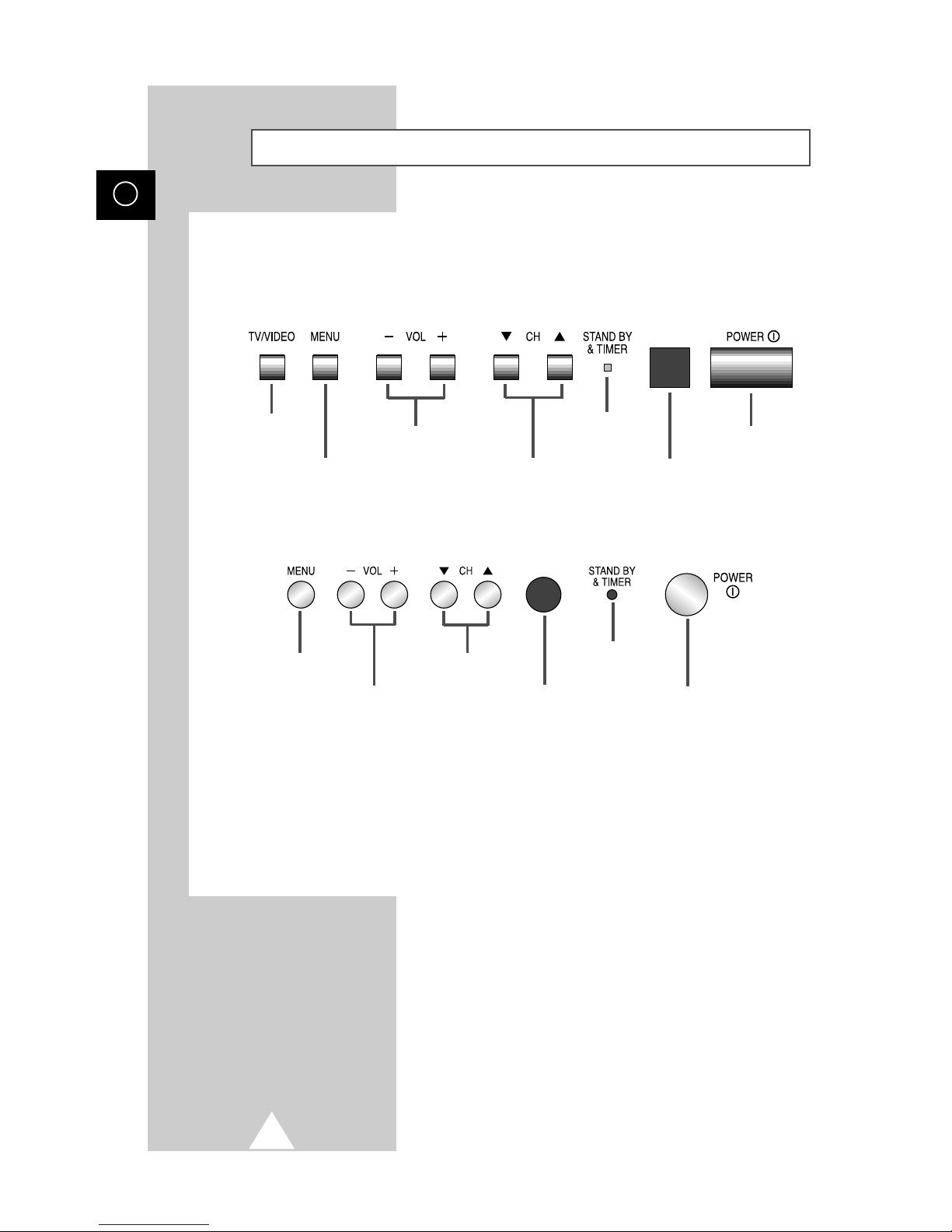

Front Control Panel (depending on the model)
➣ Buttons and markings are subject to change.
TV/VIDEO
SELECTION
MENU DISPLAY
VOLUME ADJUSTMENT
CHANNEL SELECTION
POWER
STAND-BY/TIMER
INDICATOR
REMOTE CONTROL SENSOR
MENU DISPLAY
VOLUME ADJUSTMENT
CHANNEL SELECTION
POWER
STAND-BY/TIMER
INDICATOR
REMOTE CONTROL SENSOR

5
ENG
Connection Panels
HEADPHONE JACK (OPTION)
INPUT 1
MONITOR
-OUT
INPUT 2
VIDEO
(MONO)
L-AUDIO-R
Side of TV
Rear of TV
RCA AUDIO/VIDEO
INPUT CONNECTORS
75 ΩCOAXIAL CONNECTOR
FOR AERIAL/CABLE NETWORK
Front of TV
HEADPHONE JACK
(OPTION)
RCA AUDIO/VIDEO
INPUT CONNECTORS
☛This figure shows the Standard Connector-jack panel.
The actural configuration on your TV may be different,
depending on the model.
DVD INPUT CONNECTORS
(OPTION)
S-VIDEO CONNECTOR
(OPTION)
RCA AUDIO/VIDEO
INPUT/OUTPUT CONNECTORS WOOFER SPEAKER CONNECTORS
(OPTION)

6
ENG

7
ENG
You must insert or replace the batteries in the remote control when
you :
◆Purchase the television.
◆Find that the remote control is no longer operating
correctly.
1Remove the cover of the remote control by pressing the symbol
( ) and pulling the cover in the direction of the arrow.
2Insert batteries, taking care to respect the polarities:
◆+on the battery with +on the remote control
◆ - on the battery with - on the remote control
3Replace the cover by pushing it in the direction of the arrow.
PRESS
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆An outdoor aerial
◆A cable television network
Plug the aerial or cable network input cable to the 75Ωcoaxial socket
on the rear of the television.
Inserting the Batteries in the Remote Control
Connecting the Aerial (or Cable Television Network)
PRESS
PRESS
Cable
Television
Network
Rear of TV

8
ENG

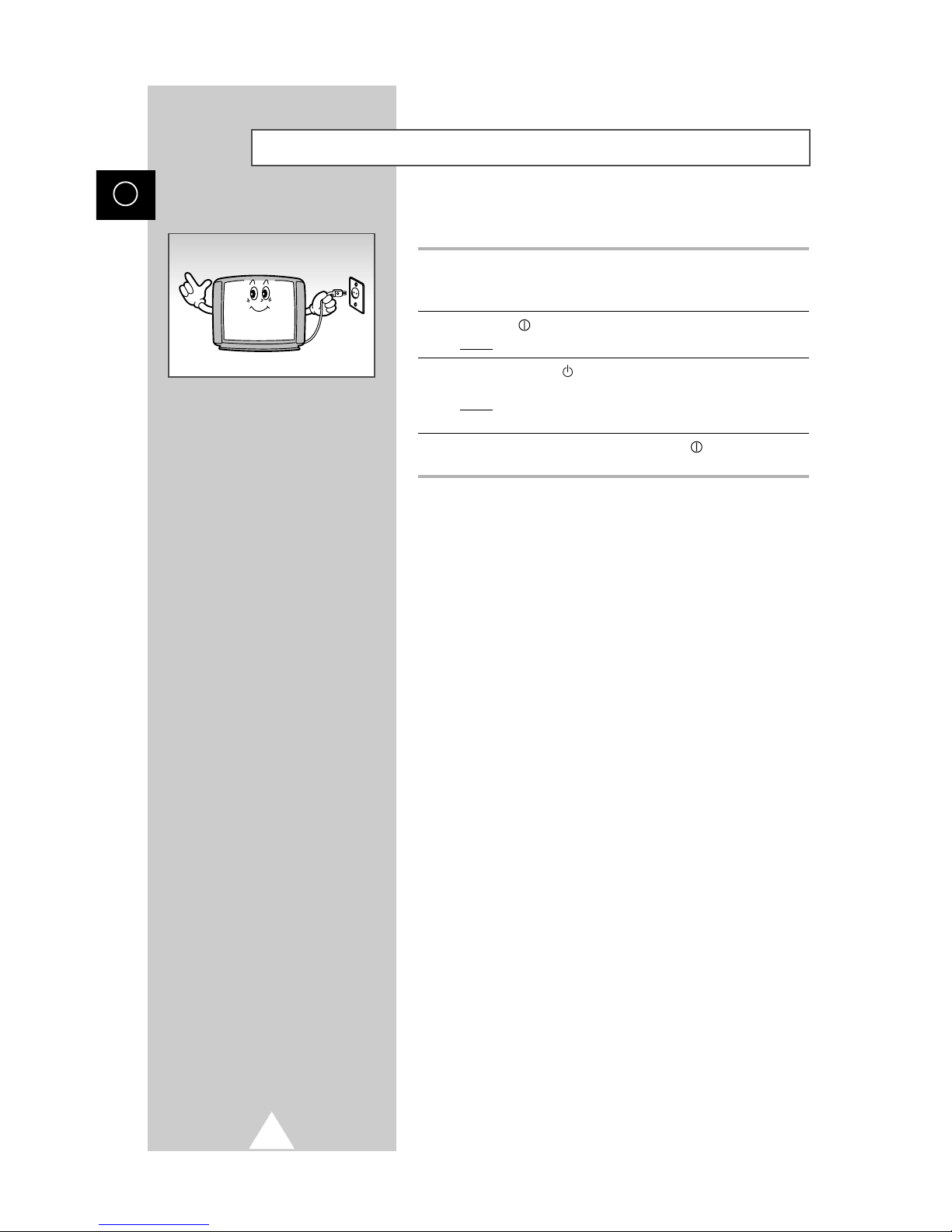

The mains lead is attached to the rear of the television.
1Plug the mains lead into an appropriate socket.
➢The main voltage is indicated on the rear of the TV set and
the frequency is 50 or 60Hz.
2Press the “”(ON/OFF) button on the front of the television.
Result: The Standby indicator lights up on the front panel.
3Press the POWER button on the remote control to switch the
television on.
Result: The programme that you were watching last is re-
selected automatically.
4To switch your television off, press the “”(ON/OFF) button
again on the front of the television.
Switching Your Television On and Off

9
ENG

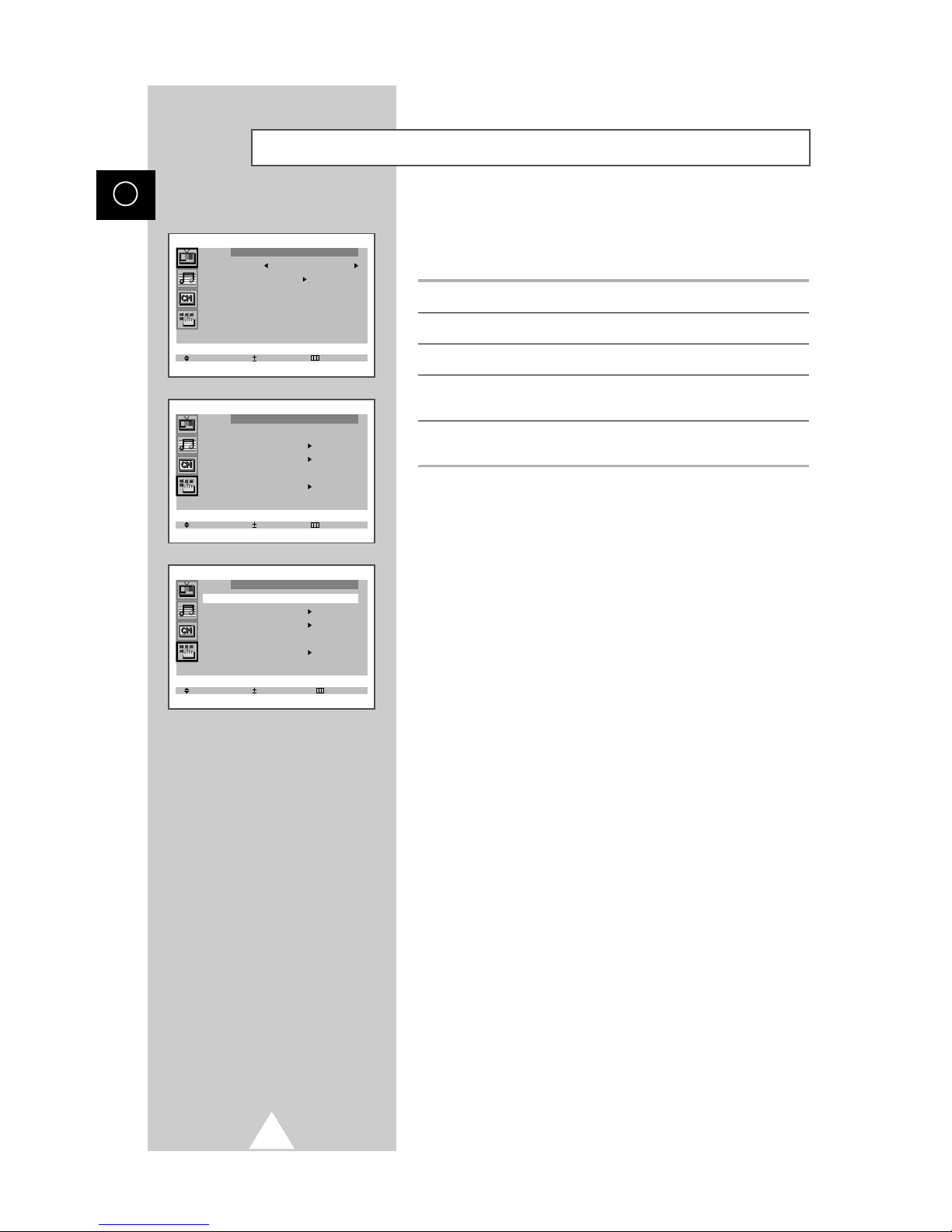

Placing Your Television in Standby mode
Your television can be placed in Standby mode, in order to reduce:
◆Power consumption
◆Wear of the cathode ray tube
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
The television is placed automatically in Standby mode when you
turn it on.
1Press the POWER button on the remote control.
Result: The screen is turned off and the Standby indicator on
the front of the television lights up.
2To switch the screen back on, simply press the POWER button
again on the remote control.
➣Do not leave your television in standby mode for long
periods of time (when you are away on holiday, for example).
In this case, you should switch it off completely.

10
ENG

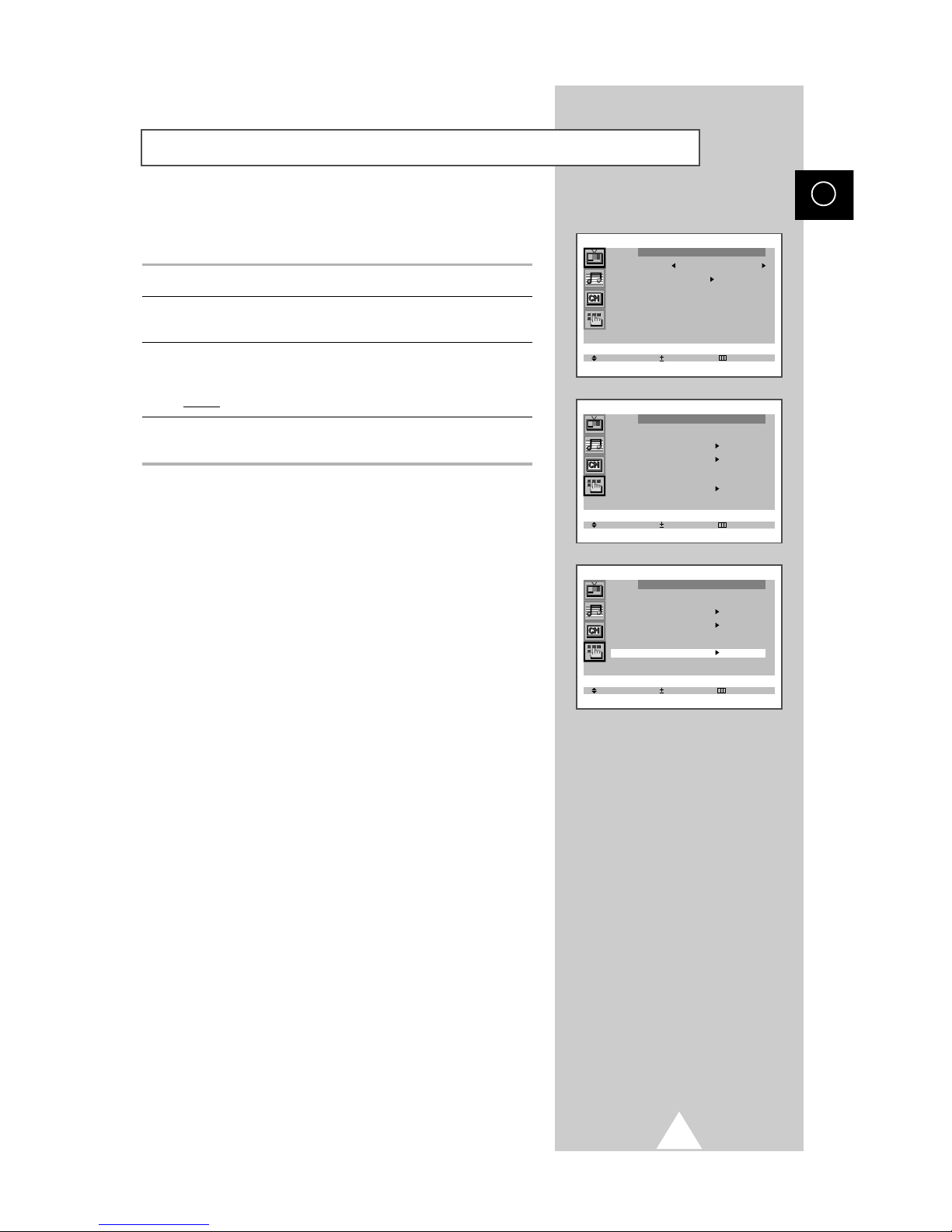

Plug & Play Feature
Plug & Play
Ant. Input : Check
Select Exit
Select Adjust Exit
Auto store
Area : ASIA W/EUROPE
Search : -/+
When the television is initially powered ON, three basic customer
settings proceed automatically and subsequently: setting the
language, channel and clock.
1If the television is in Standby mode (red light visible on the
television front panel), press the POWER button on the remote
control.
Result: The message “Plug & Play”is displayed. It flickers for a
little while and then the “Language”menu is
automatically displayed.
2Press the ▲or ▼button to select required language. Press the
MENU button to enter the language, and then the message “Ant.
Input : Check”is displayed.
➣If any language is not selected on the “Language”menu, the
“Language”menu will be displayed about 30 seconds later.
3Make sure that the antenna is connected to the TV. And then press
the +or –button.
Result: The “Auto store”menu is displayed.
4Select your country by pressing the +or –button. To search the
channels, select the “Search”by pressing the ▲or ▼button, and
then press the +or –button (refer to “Storing the Channels
Automatically”on page 13). Press the MENU button to skip.
Result: The “Time”menu is displayed.
5Press the +or –button to move to the hour or minute. Set the hour
or minute by pressing the ▲or ▼button (refer to “Setting and
Displaying the Current Time”on page 28).
6When you have finished, press the MENU button.
Result: The message “ENJOY YOUR WATCHING”is displayed,
and then the channel which has been stored will be
activated.
7If you want to reset this feature...
1Press the MENU button.
2Press the ▲or ▼button to select the “Function”, and then
press the +or –button.
3Select the “Plug & Play”by pressing the ▲or ▼button, and
then press the +or –button.
Result: The message “Plug & Play”is displayed.
Select Adjust Exit
Time
Sleep : Off
Clock : -- : -- am
Select Enter Exit
Function
Language : English
Time
Plug & Play
Blue screen : Off
Demonstration
Select Enter Exit
Function
Language : English
Time
Plug & Play
Blue screen : Off
Demonstration
Timer

11
ENG
Viewing the Demonstration
To become familiar with the various menus provided by your
television, you can view the inbuilt demonstration.
1Press the MENU button.
2Press the ▲or ▼button to select the “Function”and press the +or
–button.
3Press the ▲or ▼button to select the “Demonstration”and press
the +or –button.
Result: Each of the menu options is displayed in turn.
4When you wish to stop the demonstration, press any button on the
remote control.
Select Enter Exit
Mode Custom
Adjust
Digital NR : Off
Select Enter Exit
Function
Language : English
Time
Plug & Play
Blue screen : Off
Demonstration
Select Enter Exit
Function
Language : English
Time
Plug & Play
Blue screen : Off
Demonstration

12
ENG
Choosing Your Language
Select Enter Exit
Function
Language : English
Time
Plug & Play
Blue screen : Off
Demonstration
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1Press the MENU button.
2Press the ▲or ▼button to select the “Function”.
3Press the +or –button to select the “Language”.
4Select a particular language by pressing the ▲or ▼button
repeatedly.
5When you have finished, press the TV button or, press the MENU
button repeatedly to return to normal viewing.
Select Adjust Exit
Function
Language : English
Time
Plug & Play
Blue screen : Off
Demonstration
Select Enter Exit
Mode Custom
Adjust
Digital NR : Off

13
ENG

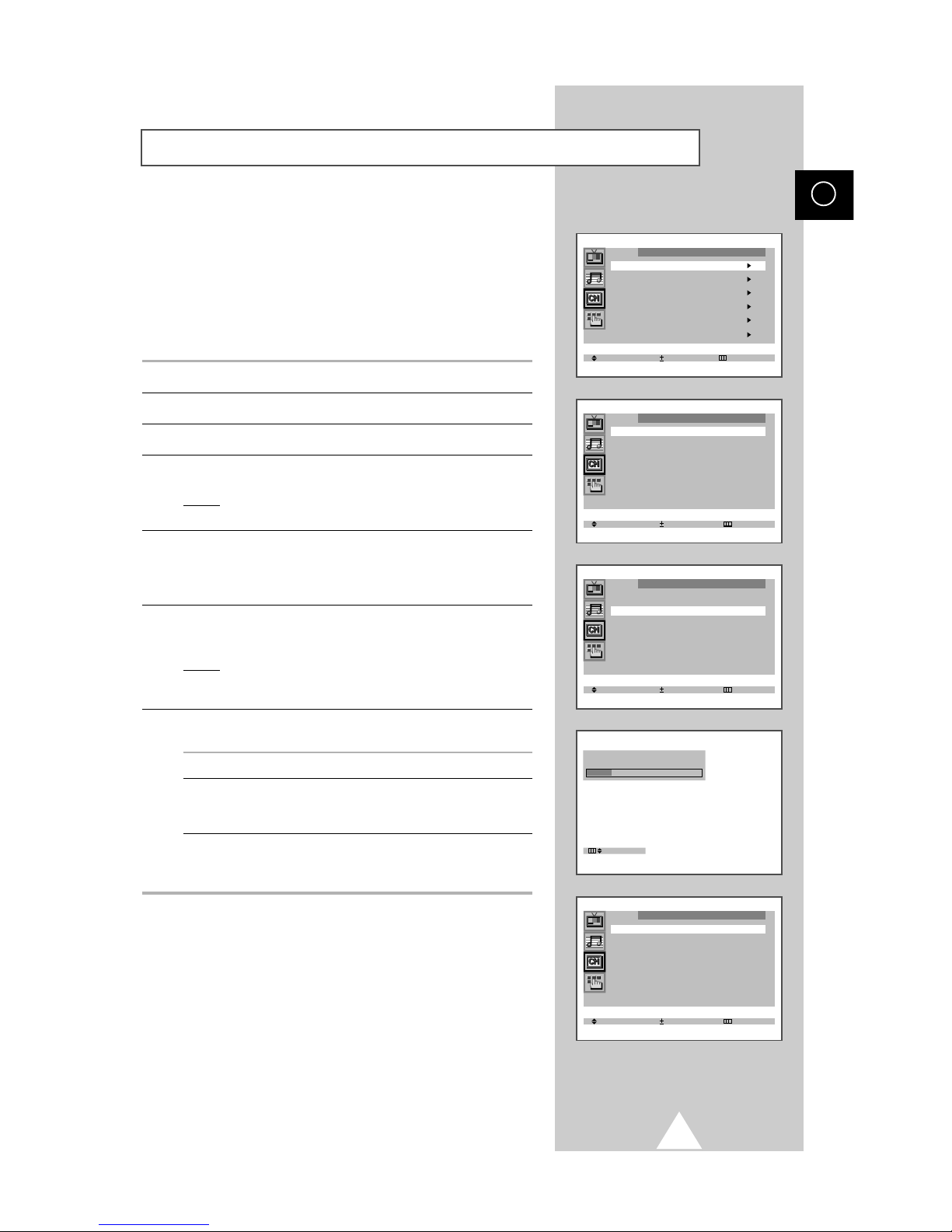

You can scan the frequency ranges available on your television and
in your area and store all the channels found automatically.
The channels are stored in the order in which they appear in the
frequency bands. It is possible that the automatically allocated
numbers may not correspond to those by which you wish to
identify the channels. If this is the case, refer to “Sorting the Stored
Channels” on page 18.
1Press the MENU button.
2Press the ▲or ▼button to select the “Channel”.
3Press the +or –button to select the “Auto store”.
4Press the +or –button again.
Result: The “Auto store”menu is displayed with the “Area”
selected.
5Select your country by pressing the +or –button. The following
countries are available: ASIA W/EUROPE - CIS E/EUROPE -
CHINA - HONGKONG U/K - AUSTRALIA - NZ/INDONESIA -
SOUTH AFRICA - AMERICA.
6Press the ▲or ▼button to select the “Search”and press the +or
–button.
Result: The horizontal bar is displayed, and then channels are
stored in an order which reflects their positions in the
frequency range. Finally, the search will end automatically.
7When searching and storing is complete, the “Sort”menu is
displayed.
To... Then...
Sort the stored channels Go to Step 4of the “Sorting
into the desired numerical order the Stored Channels”
procedure on page 18.
Exit the channel store function Press the MENU button
without sorting the channels repeatedly until the menus
disappear.
Select Search Exit
Auto store
Area : ASIA W/EUROPE
Search : -/+
Storing the Channels Automatically
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort
Select Adjust Exit
Auto store
Area : ASIA W/EUROPE
Search : -/+
Exit
P 8 C --
426 MHz 22 %
Select Adjust Exit
Sort
From : P 1
To : P---
Store : ?
Child Lock

14
ENG
When storing channels manually, you can choose:
◆Whether or not to store each of the channels found.
◆The number by which you wish to identify each stored
channel.
1Press the MENU button.
2Press the ▲or ▼button to select the “Channel”and press the +or
–button.
3Press the ▲or ▼button to select the “Manual store”and press the
+or –button.
Result: The “Manual store”menu is displayed with the “Color
system”selected.
4Press the +or –button repeatedly until the color is of the best
quality.
Result: The “Color system”is changed.
Auto ↔ PAL ↔ SECAM ↔ NT4.43 ↔ NT3.58 (option)
➣NT4.43 is a “trick”playback mode used by
special VCR’s to play PAL-recorded videos
in NTSC mode.
5Press the ▲or ▼button to select the “Sound system”and press
the +or –button repeatedly until the sound is of the best quality.
Result: The “Sound system”is changed.
BG ↔ DK ↔ I↔ M(option)
Storing the Channels Manually
Select Adjust Exit
Manual store
Color system : Auto
Sound system : BG
Search : 138MHz
Channel : S 6
Prog.No. : P12
Store : ?
Select Adjust Exit
Manual store
Color system : Auto
Sound system : BG
Search : 138MHz
Channel : S 6
Prog.No. : P12
Store : ?
➞
➞
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort
➞
➞
Child lock
Child lock

15
ENG
6If you... Press the...
Know the number ◆▲ or ▼button to select the “Channel”.
of the channel ◆+or –button to indicate the required
to be stored number.
Do not know the ◆▲ or ▼button to select the “Search”.
channel numbers ◆+or –button to start the search.
Result: The tuner scans the frequency range until the first
channel or the channel that you selected is received on
your screen.
7To assign a programme number to the channel, select the
“Prog.No.”. Press the +or –button until you find the correct
number.
8To store the channel and associated programme number, select
the “Store”and press the +or –button.
Result: “OK”is displayed.
9Repeat Steps 6to 8for each channel to be stored.
10 When you have finished manual storage, press the TV button or,
press the MENU button repeatedly to return to normal viewing
Storing the Channels Manually (continued...)
Select Adjust Exit
Manual store
Color system : Auto
Sound system : BG
Search : 138MHz
Channel : S 6
Prog.No. : P12
Store : ?
Select Adjust Exit
Manual store
Color system : Auto
Sound system : BG
Search : 138MHz
Channel : S 6
Prog.No. : P12
Store : ?
Select Adjust Exit
Manual store
Color system : Auto
Sound system : BG
Search : 138MHz
Channel : S 6
Prog.No. : P12
Store : OK
Select Search Exit
Manual store
Color system : Auto
Sound system : BG
Search : 138MHz
Channel : S 6
Prog.No. : P12
Store : ?

16
ENG
Select Adjust Exit
Add/Erase
P 0 : Added
P 1 : Added
P 2 : Added
P 3 : Added
Select Adjust Exit
Add/Erase
P 0 : Erased
P 1 : Added
P 2 : Added
P 3 : Added
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort

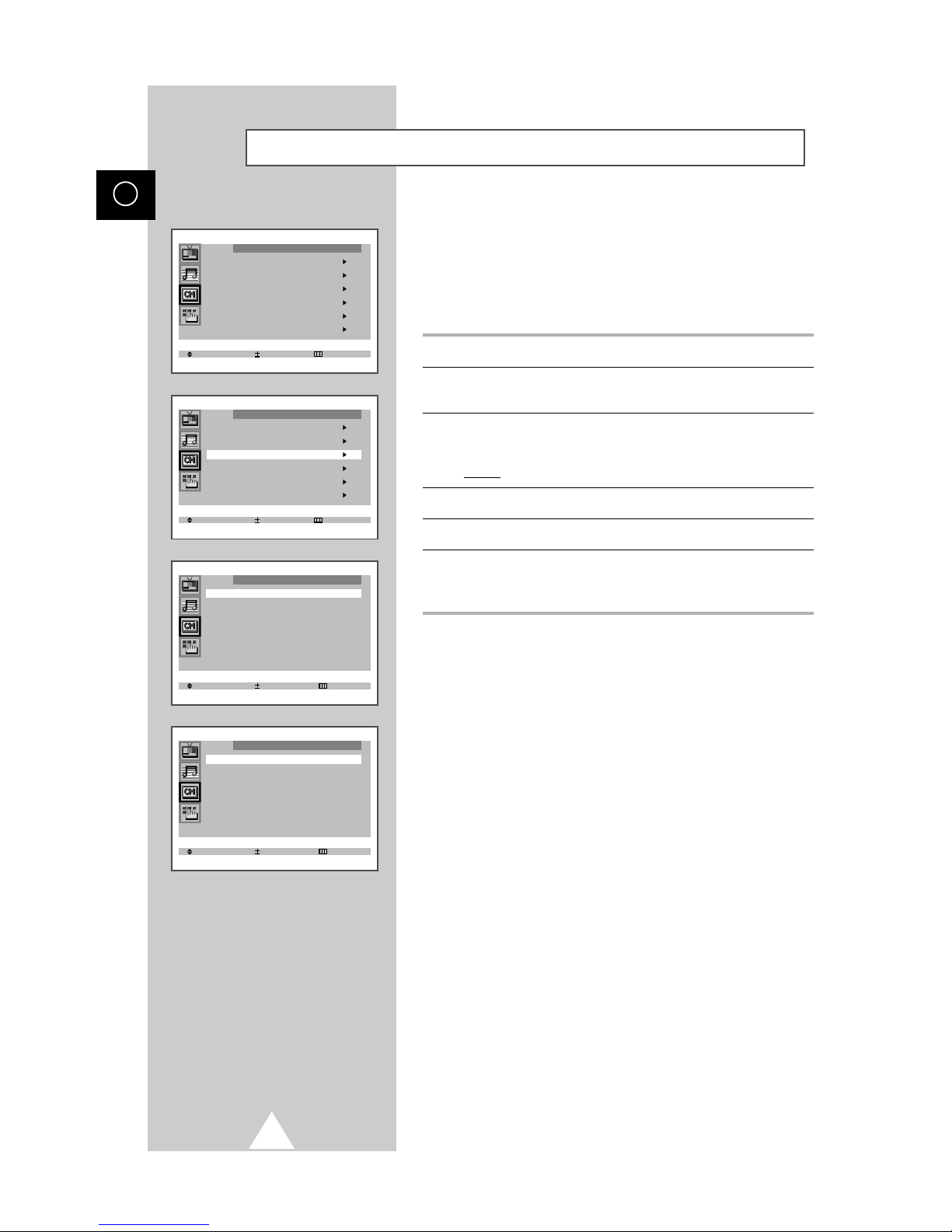

You can exclude the channels of your choice from the channel scan
operation. When you scan through the stored channels, those you
have chosen to skip are not displayed.
All channels that you do not specifically choose to skip are
displayed during scanning.
1Press the MENU button.
2Press the ▲ or ▼ button to select the “Channel”and press the +or
–button.
3Press the ▲ or ▼ button to select the “Add/Erase”and press the +
or –button.
Result: The “Add/Erase”menu is displayed.
4Press the ▲ or ▼button to select the required channel.
5To add or erase the desired channel by pressing the +or –button.
6When you have finished adding and erasing channels, press the
TV button or, press the MENU button repeatedly to return to normal
viewing
Skipping Unwanted Channels
Child lock
Child lock

17
ENG
If the reception is clear, you do not have to fine-tune the channel,
as this is done automatically during the search and store operation.
If however the signal is weak or distorted, you may have to fine-
tune the channel manually.
MENU button.
▲ or ▼ button to select the “Channel”and press the +or
▲ or ▼ button to select the “Fine tune”and press the +
The “Fine tune”menu is displayed with the “Tune”
selected.
4To... Press the...
obtain a sharp and ◆+or –button.
clear picture and Result: The horizontal bar’s
good sound quality cursor moves to the left
or right.
memorise adjusted ◆▲ or ▼button to select the “Store”.
picture or sound ◆+or –button.
Result: “OK”is displayed.
erase adjusted ◆▲ or ▼button to select the “Erase”.
picture or sound ◆+or –button.
Result: “OK”is displayed.
When you have finished, press the TV button or, press the MENU
button repeatedly to return to normal viewing.
Fine tuning Channel Reception
Select Adjust Exit
Fine tune
Tune : -/+
Store : ?
Erase : ?
Fine tune
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort
Select Adjust Exit
Fine tune
Tune : -/+
Store : OK
Erase : ?
1Press the
2Press the
–button.
3Press the
or –button.
Result:
Child lock
Child lock

18
ENG
You can exchange the numbers of two channels, in order to:
◆Modify the numeric order in which the channels have
been automatically stored.
◆Give easily remembered numbers to the channels that
you watch most often.
1Press the MENU button.
2Press the ▲ or ▼ button to select the “Channel”and press the +or
–button.
3Press the ▲ or ▼ button to select the “Sort”and press the +or –
button.
Result: The “Sort”menu is displayed with the “From”selected.
4Press the +or –button until the channel number that you wish to
change is displayed.
Result: The selected channel’s picture is displayed.
5Press the ▲ or ▼ button to select the “To”.
6Press the +or –button until the new number by which you wish to
identify the channel is displayed.
Result: The selected channel is exchanged with the one
previously stored to the chosen number.
Example: If you select “P 1”for the “From”and “P 3”for the “To”:
◆Channel 1 becomes channel 3.
◆Channel 3 becomes channel 1.
7To... Press the...
Confirm the exchange ◆▲ or ▼button to select the “Store”.
of channel numbers ◆+or –button.
Result: “OK”is displayed.
➣You can exchange other
channel numbers by selecting
“From”and returning to step 4.
8When you have finished sorting channels, press the TV button or,
press the MENU button repeatedly to return to normal viewing
Sorting the Stored Channels
Select Adjust Exit
Sort
From : P 1
To : P---
Store : ?
Select Adjust Exit
Sort
From : P 1
To : P 3
Store : ?
Select Adjust Exit
Sort
From : P 3
To : P 1
Store : OK
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort
Select Enter Exit
Channel
Auto store
Manual store
Add/Erase
Fine tune
Sort
Child lock
Child lock

19

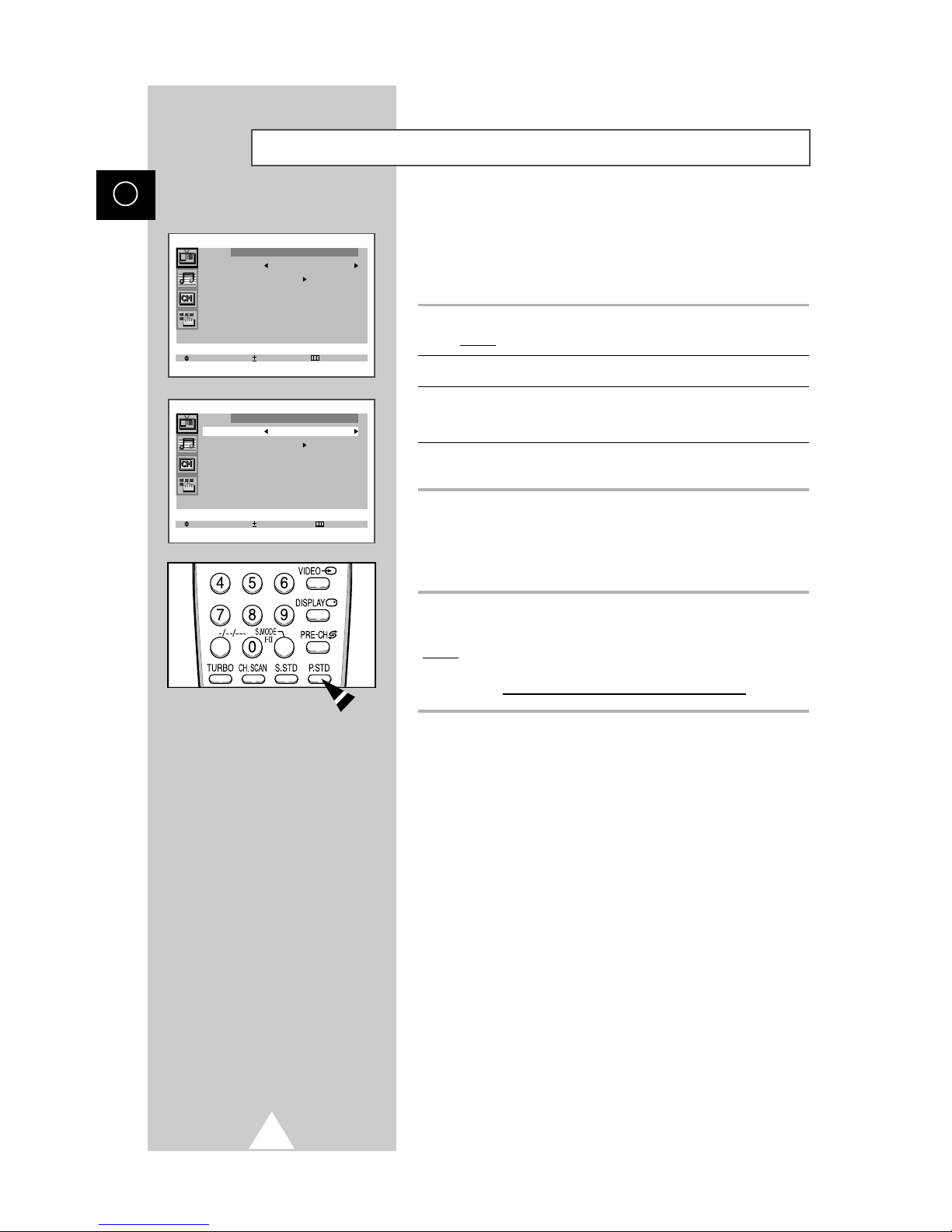

When using the numericbuttons toselectachannel stored at
programme position ten or higher, follow the instructions below.
1Press the button.
Result: The
symbol is displayed.
2
Example: To select channel 42, Press -/--/--- till "--" is displayed.
Onceyouhavestored the channelsonyourtelevision, youcan
switcheasilyfromone channel toanother using the remote
control.
To switch... Press...
To the next channel .
To the previous channel .
To another channel The numeric button(s) corresponding
to that channel.
Press PRE-CH (Pre Channel button) to switch repeatedly between last two
channels displayed. This can be done as many times as required.
Enter the two-digit channel number or three-digit channel number.
To select channel 187, Press -/--/--- till "---" is displayed. Then
press 1, followed by 8, followed by 7.
"--" or "---"
Changing Channels
Pre - Channel
Press CH.SCAN (Channel Scan button) for a 2 Second review of each new
added channel.
Channel Scan
Selecting a Channel Numbered Ten or Over
ENG
"-" or
Then press 4, followed by 2.

You can select the type of picture which best corresponds to your
viewing requirements. The following picture effects are available in
the order given:
◆Custom, Standard, Sports, Natural, Mild.
1Press the MENU button.
Result: The “Picture”menu is displayed.
2Press the +or –button to select the “Mode”.
3Press the +or –button repeatedly to cycle through the five
choices: Custom, Standard, Sports, Natural, Mild.
4When you are satisfied with the settings, press the TV button or,
press the MENU button repeatedly to return to normal viewing.
You can use your remote control to select the type of picture which
best corresponds to your viewing requirements.
To select the required picture effect, simply press the P.STD (Picture
standard) button on the remote control.
Result: The following picture effects are available in the order given:
Custom
↔ Standard ↔ Sports ↔ Natural ↔ Mild
20
ENG
Changing the Picture Standard
Select Enter Exit
Mode Custom
Adjust
Digital NR : Off
Select Adjust Exit
Mode Custom
Adjust
Digital NR : Off
➞
➞
These picture standards are saved for each channel.
