Samsung SDR-B85300 User manual

SDR-B85300
DIGITAL VIDEO RECORDER
User Manual

2_Overview of DVR
Overview of DVR
CONTENTS
OVERVIEW OF DVR
2
2Contents
3Safety Instruction
4Front Panel
5Rear Panel
6Remote Controller
7Install Hard Drive
8Connect external equipment
8Connect DVR
DVR BOOT UP
9
9System Initialization
9Startup Wizard

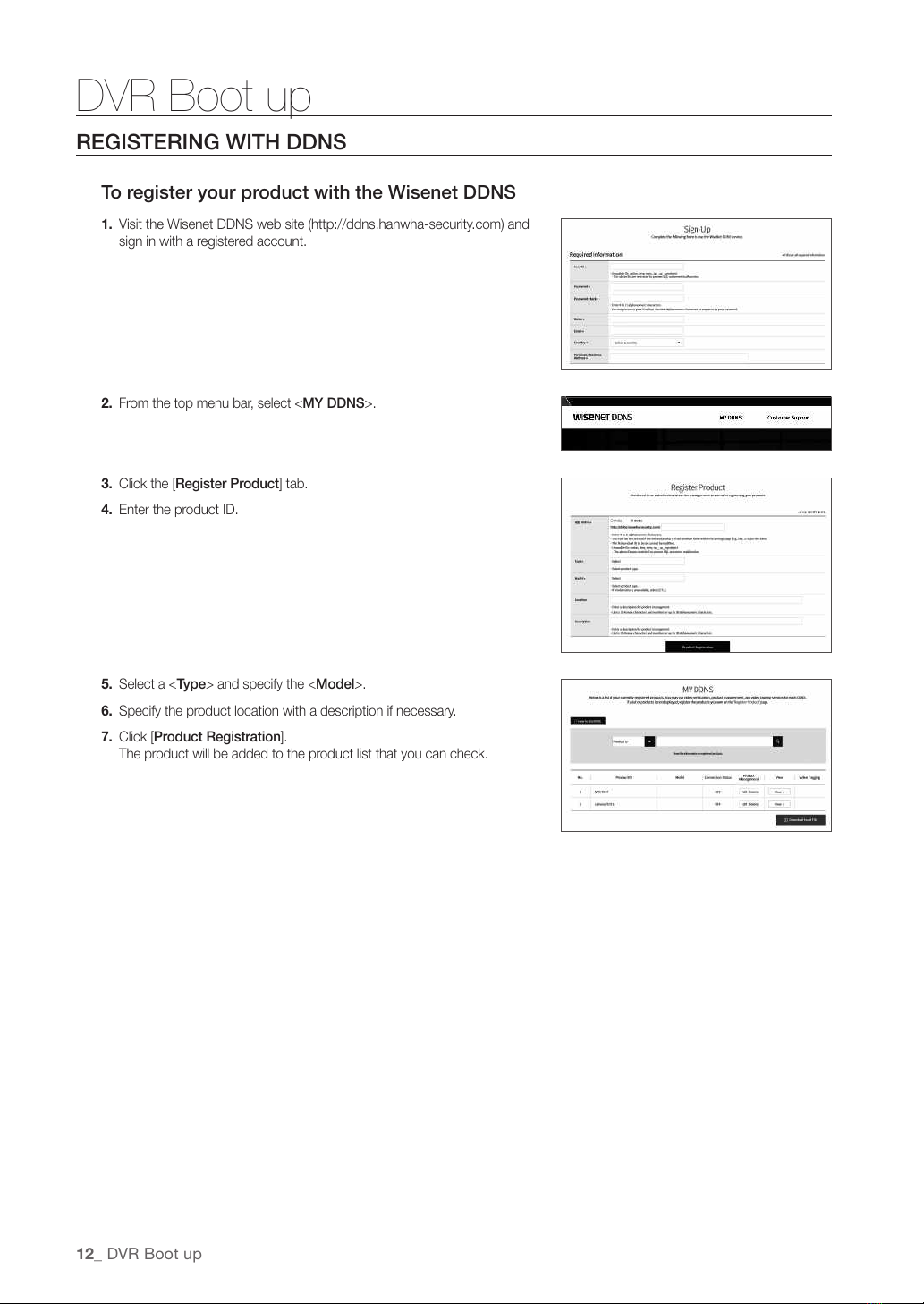

12 Registering with DDNS
13 Main Interface
DVR MENU
15
15 Popup Menu

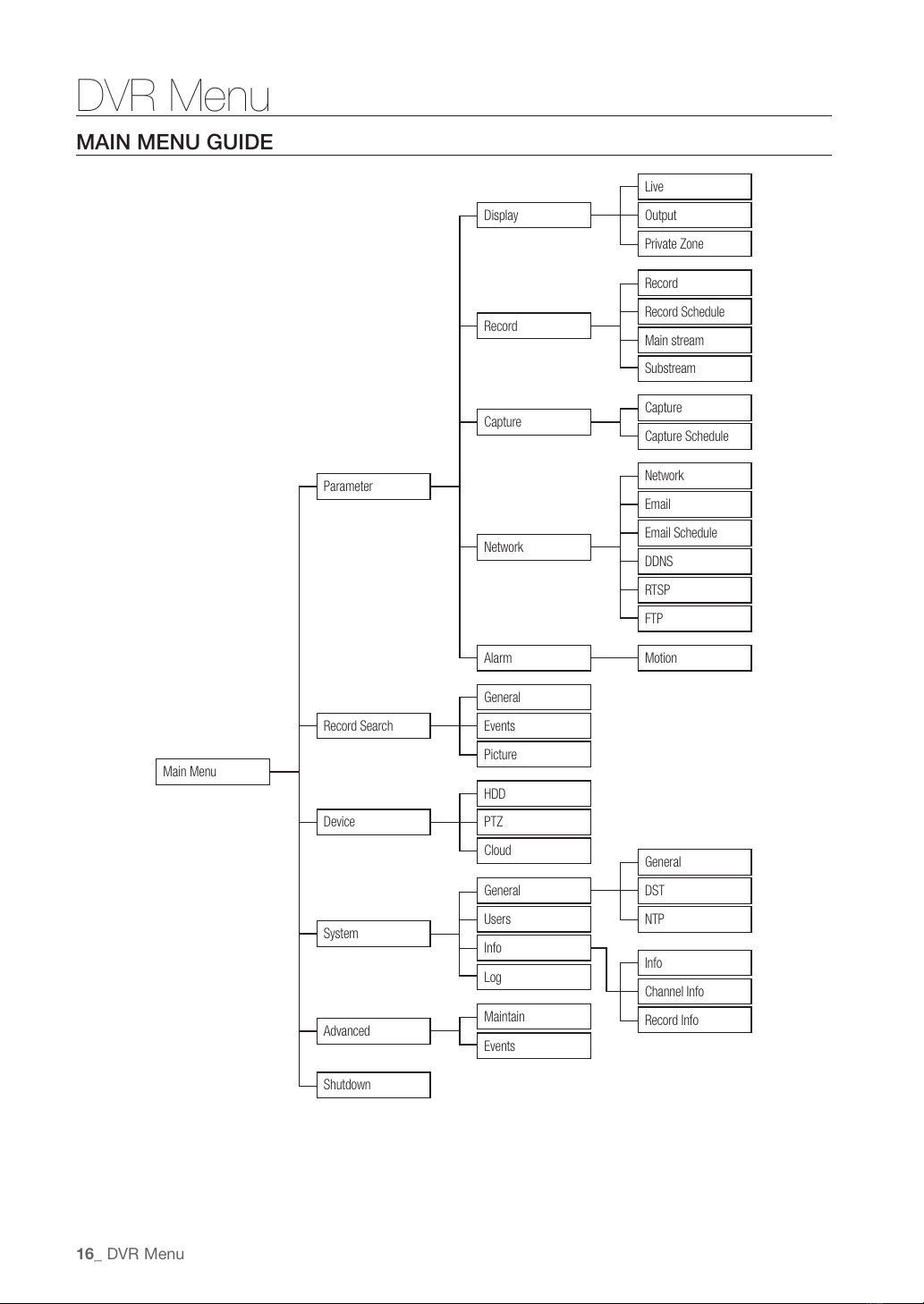

16 Main Menu Guide
17 Main Menu
23 Registering with DDNS
36 Menu Lock
36 Split Mode
36 Record Search
36 Mute
36 Start Sequence
WEB APPLICATION MANAGER
37
37 System Environment Requirements
41 Web Application Manager Login
41 Live Interface
MOBILE APP
53
53 Android Phones/Tablets
54 iPhone/iPad
APPENDIX
55
55 Troubleshooting
57 Specifications
59 Dimension
60 Open Source Announcement

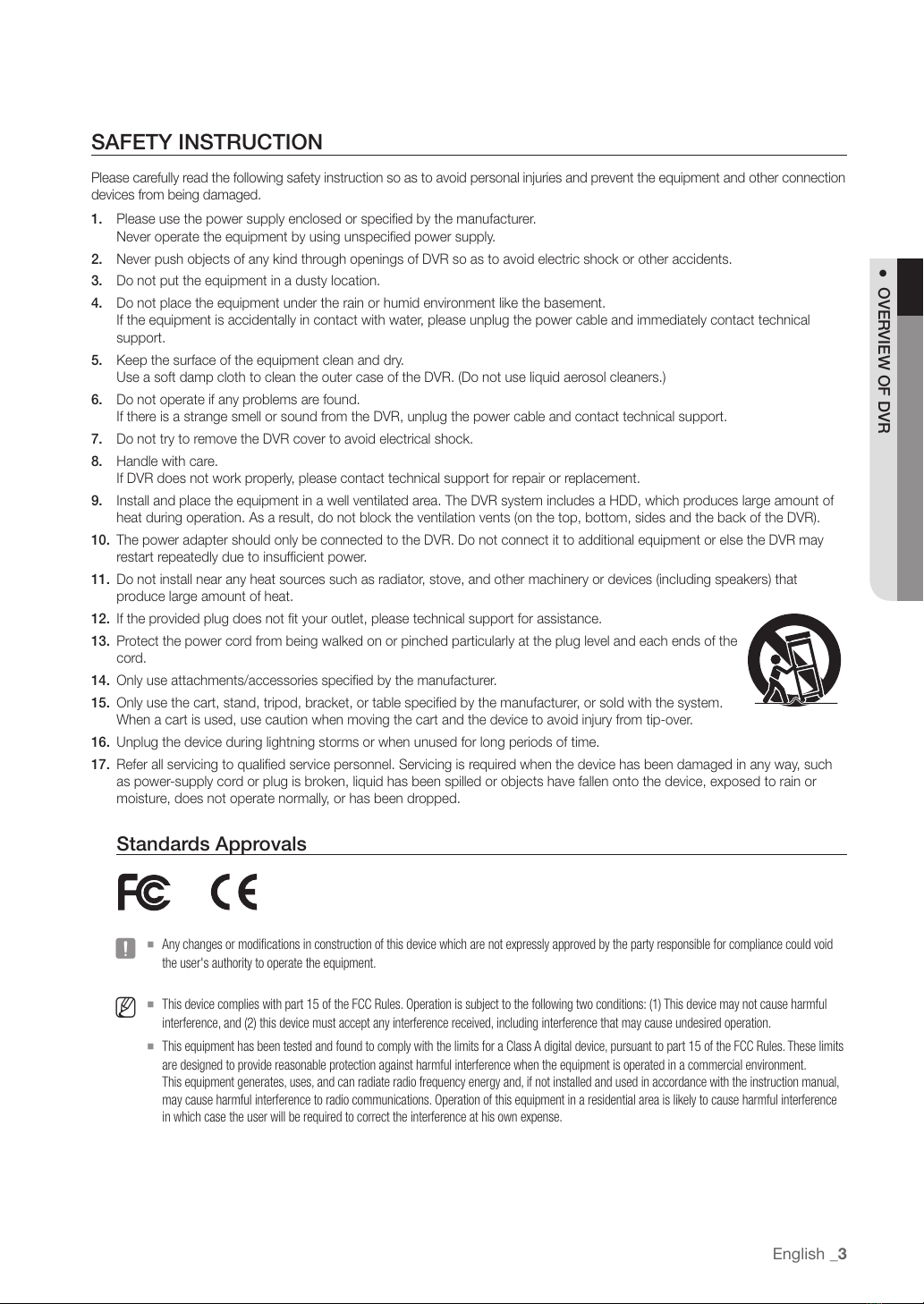

SAFETY INSTRUCTION
Please carefully read the following safety instruction so as to avoid personal injuries and prevent the equipment and other connection
devices from being damaged.
1. Please use the power supply enclosed or specified by the manufacturer.
Never operate the equipment by using unspecified power supply.
2. Never push objects of any kind through openings of DVR so as to avoid electric shock or other accidents.
3. Do not put the equipment in a dusty location.
4. Do not place the equipment under the rain or humid environment like the basement.
If the equipment is accidentally in contact with water, please unplug the power cable and immediately contact technical
support.
5. Keep the surface of the equipment clean and dry.
Use a soft damp cloth to clean the outer case of the DVR. (Do not use liquid aerosol cleaners.)
6. Do not operate if any problems are found.
If there is a strange smell or sound from the DVR, unplug the power cable and contact technical support.
7. Do not try to remove the DVR cover to avoid electrical shock.
8. Handle with care.
If DVR does not work properly, please contact technical support for repair or replacement.
9. Install and place the equipment in a well ventilated area. The DVR system includes a HDD, which produces large amount of
heat during operation. As a result, do not block the ventilation vents (on the top, bottom, sides and the back of the DVR).
10. The power adapter should only be connected to the DVR. Do not connect it to additional equipment or else the DVR may
restart repeatedly due to insufficient power.
11. Do not install near any heat sources such as radiator, stove, and other machinery or devices (including speakers) that
produce large amount of heat.
12. If the provided plug does not fit your outlet, please technical support for assistance.
13. Protect the power cord from being walked on or pinched particularly at the plug level and each ends of the
cord.
14. Only use attachments/accessories specified by the manufacturer.
15. Only use the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the system.
When a cart is used, use caution when moving the cart and the device to avoid injury from tip-over.
16. Unplug the device during lightning storms or when unused for long periods of time.
17. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such
as power-supply cord or plug is broken, liquid has been spilled or objects have fallen onto the device, exposed to rain or
moisture, does not operate normally, or has been dropped.
Standards Approvals
J
`Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
M
`This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
`This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
English _3
● OVERVIEW OF DVR

FRONT PANEL
DVR is short for Digital Video Recorder.
Type Key or indicator Identification Functions
a
Status lamp
Power indicator PWR If the "Yellow" indicator is on, DVR is getting power normally.
bHDD indicator HDD If the "Red" indicator flashes, the hard drive is being read or written to.
cIR port Receive IR signal from Remote Controller.
dUSB port USB USB USB port
Overview of DVR
4_Overview of DVR
PWR HDD
USB
a b
c d

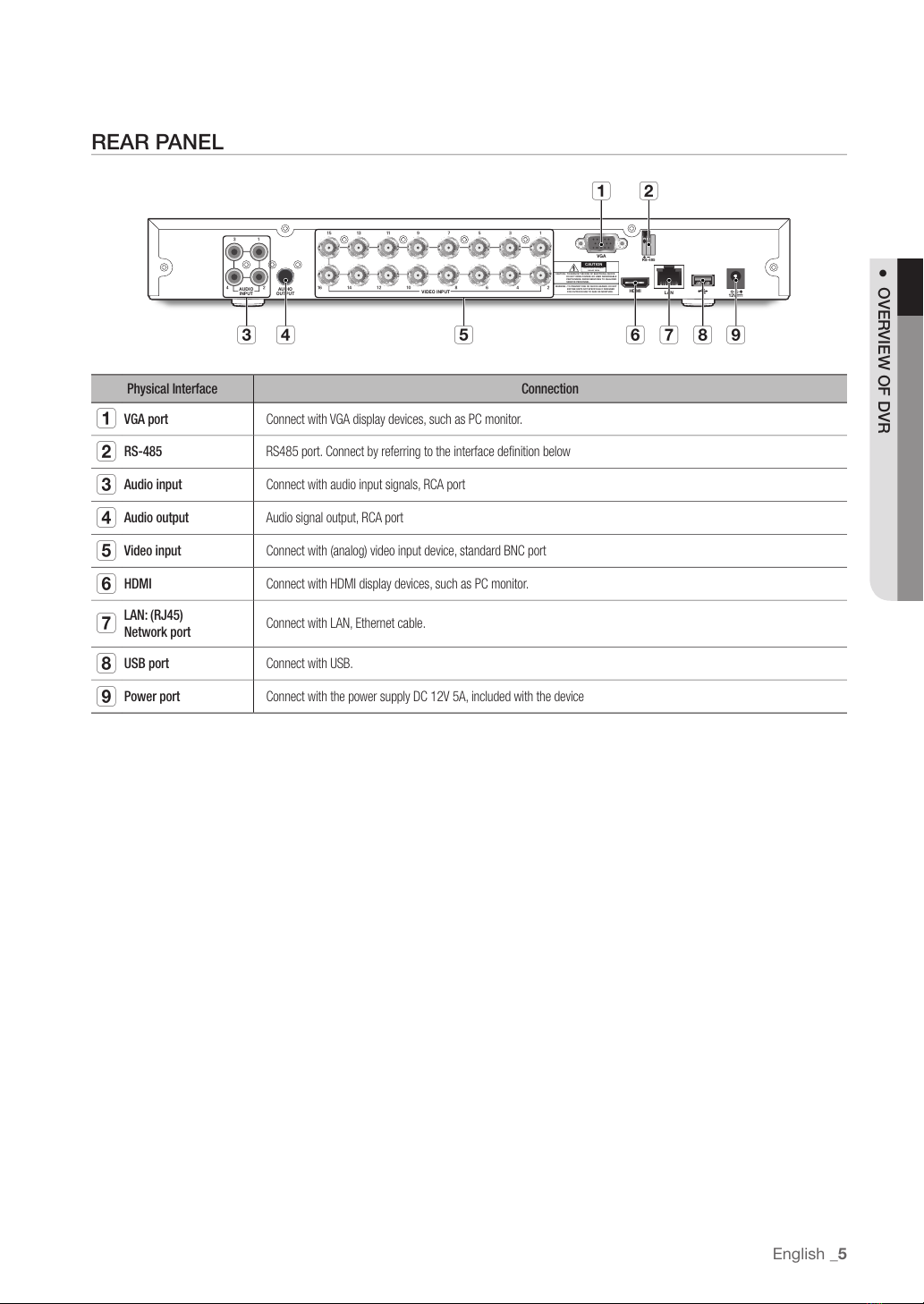

REAR PANEL
Physical Interface Connection
aVGA port Connect with VGA display devices, such as PC monitor.
bRS-485 RS485 port. Connect by referring to the interface definition below
cAudio input Connect with audio input signals, RCA port
dAudio output Audio signal output, RCA port
eVideo input Connect with (analog) video input device, standard BNC port
fHDMI Connect with HDMI display devices, such as PC monitor.
gLAN: (RJ45)
Network port Connect with LAN, Ethernet cable.
hUSB port Connect with USB.
iPower port Connect with the power supply DC 12V 5A, included with the device
English _5
● OVERVIEW OF DVR
HDMI
VGA
LAN
VIDEO INPUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
12V
RS-485
3 1
4 2
AUDIO
INPUT AUDIO
OUTPUT
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
ba
ec f gd h i

REMOTE CONTROLLER
Operation of remote controller
Overview of DVR
6_Overview of DVR
ALL
Multiple display mode
MUTE
Mute on/off
SEL
Select key/Edit key
Rewind key
Channel select 1-8; Numeric key
Record key
Enter into record search menu/Play key
MENU
Enter into Main menu/Exit
SUBMENU
Go to Submenu
Up arrow key, volume increase
Numeric key
Down arrow key, Volume decrease
Forward key
Stop manual record; stop playing
Pause/Step forward key
Left/Right key; Decrease/Increase parameter value of
control bar.

INSTALL HARD DRIVE
M
`HDD is pre-installed. If you want to replace hard disk drive, please refer to the following instruction. Please do not remove the hard drive when DVR
is operating.
Installation of Hard Drive
1. Using a screwdriver, remove the screws from the side and back
panels.
2. Remove the top cover.
3. Connect data and power cables of hard drive to the motherboard.
Mount the hard drive by mounting it onto the rack and connecting
the power and data cables.
4. Multiple groups of screw mounting holes are provided on the
bottom of the DVR. Screw the hard drive in place according to the
size of your hard drive.
HDMI
VGA
LAN
VIDEOINPUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
12V
RS-485
3 1
42
AUDIO
INPUT AUDIO
OUTPUT
CAUTION
RISKOFELECTRISHOCK
DONOTOPEN
CAUTION:TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICEPERSONNEL.
WARNING:TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSEUNITSNOT SPECIFICALLYDESIGNED
FOROUTDOORUSE TO RAIN OR MOISTURE.
PWR HDD
USB
PWR HDD
USB
PWR HDD
USB
English _7
● OVERVIEW OF DVR
HDMI
VGA
LAN
VIDEOINPUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
12V
RS-485
31
42
AUDIO
INPUT AUDIO
OUTPUT
CAUTION
RISKOFELECTRISHOCK
DONOTOPEN
CAUTION:TOREDUCETHE RISK OF ELECTRICAL SHOCK
DONOTOPENCOVERS. NO USER SERVICEABLE
PARTSINSIDE.REFER SERVICING TOQUALIFIED
SERVICEPERSONNEL.
WARNING:TOPREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSEUNITS NOT SPECIFICALL
YDESIGNED
FOROUTDOOR USE TO RAIN OR MOISTURE.

CONNECT EXTERNAL EQUIPMENT
Connect camera signal cable to video input port on the DVR via the BNC connectors. Connect your monitor to the DVR using the
VGA or HDMI video cable. Connect DVR to the power supply adapter provided. After all connections are completed, plug the DVR
in to perform function checks. Be sure that all audio/video I/O ports are connected properly.
CONNECT DVR
M
`Images may differ depending on the model.
`Camera’s shape can be different depending on AIO Kit you purchased.
`Power splitter differs depending on the number of camera connected.
Overview of DVR
8_Overview of DVR
HDMI
VGA
LAN
VIDEO INPUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
12V
RS-485
31
4 2
AUDIO
INPUT AUDIO
OUTPUT
CAUTION
RISKOFELECTRI SHOCK
DONOTOPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SER VICINGTO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSEUNITS NOT SPECIFICALL
YDESIGNED
FOROUTDOOR USE TO RAIN OR MOISTURE.
HDMI
VGA
LAN
VIDEO INPUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
12V
RS-485
3 1
4 2
AUDIO
INPUT AUDIO
OUTPUT
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLYDESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
RS-485

DVR Boot up

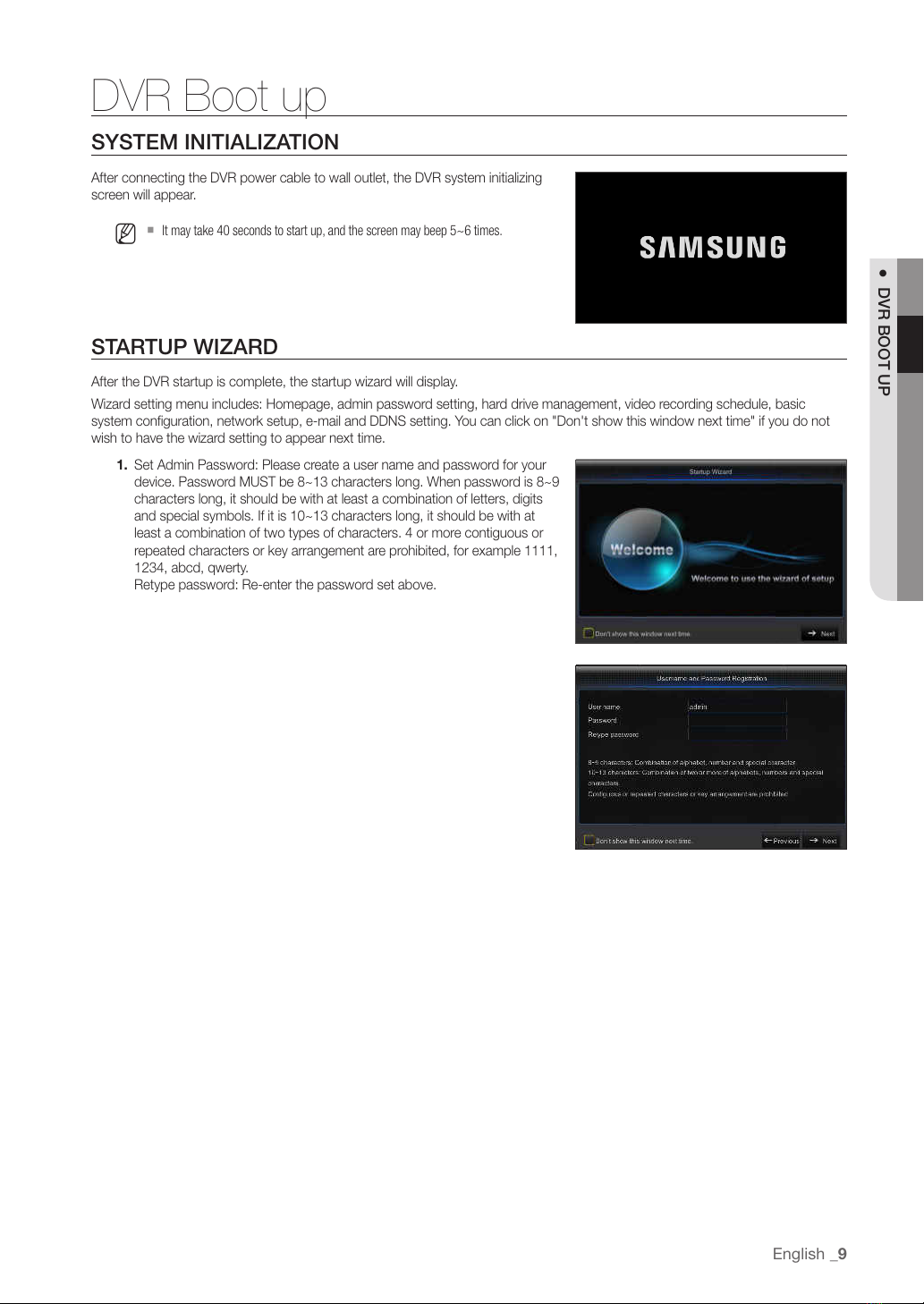

SYSTEM INITIALIZATION
After connecting the DVR power cable to wall outlet, the DVR system initializing
screen will appear.
M
`It may take 40 seconds to start up, and the screen may beep 5~6 times.
STARTUP WIZARD
After the DVR startup is complete, the startup wizard will display.
Wizard setting menu includes: Homepage, admin password setting, hard drive management, video recording schedule, basic
system configuration, network setup, e-mail and DDNS setting. You can click on "Don't show this window next time" if you do not
wish to have the wizard setting to appear next time.
1. Set Admin Password: Please create a user name and password for your
device. Password MUST be 8~13 characters long. When password is 8~9
characters long, it should be with at least a combination of letters, digits
and special symbols. If it is 10~13 characters long, it should be with at
least a combination of two types of characters. 4 or more contiguous or
repeated characters or key arrangement are prohibited, for example 1111,
1234, abcd, qwerty.
Retype password: Re-enter the password set above.
English _9
● DVR BOOT UP

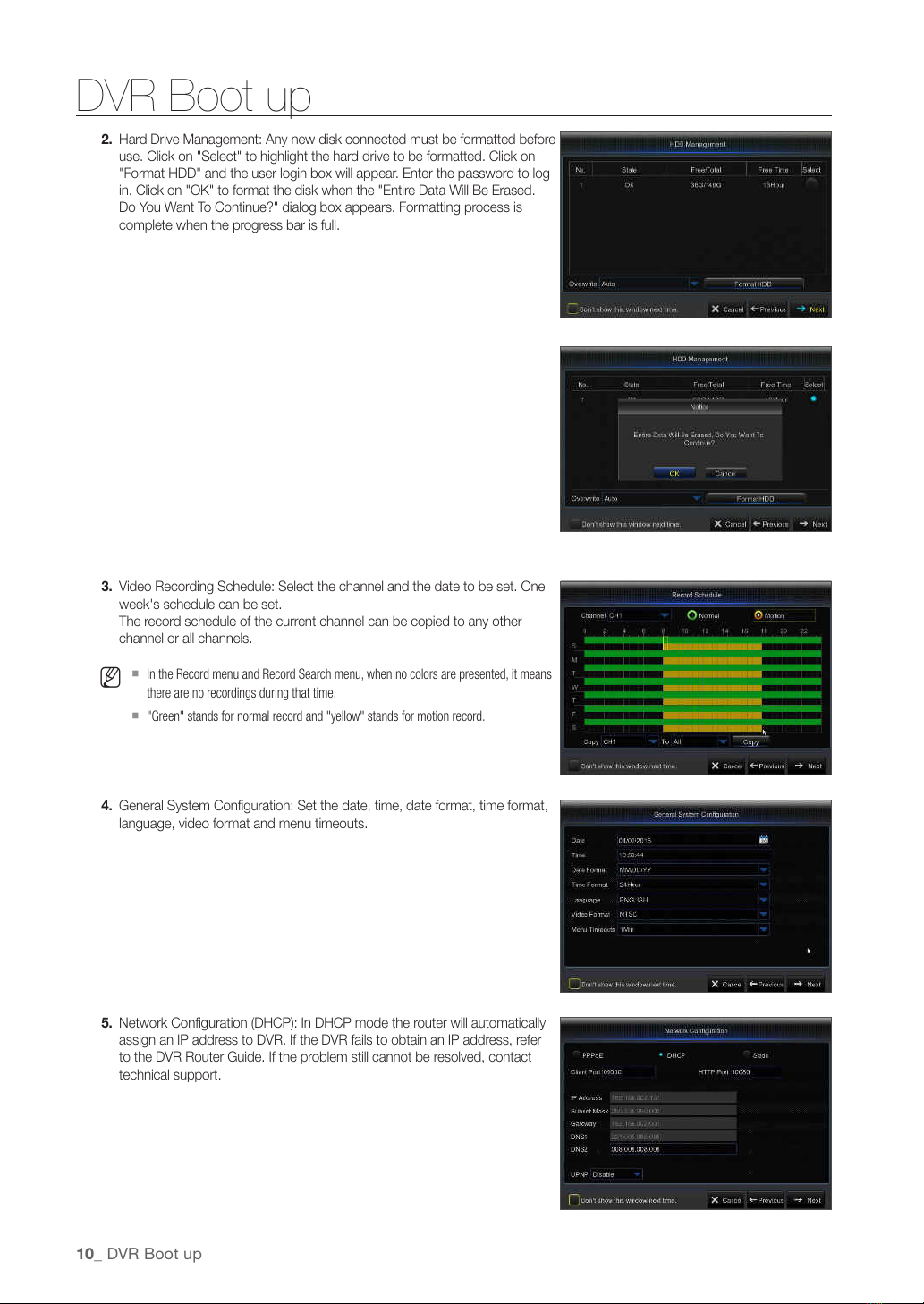

2. Hard Drive Management: Any new disk connected must be formatted before
use. Click on "Select" to highlight the hard drive to be formatted. Click on
"Format HDD" and the user login box will appear. Enter the password to log
in. Click on "OK" to format the disk when the "Entire Data Will Be Erased.
Do You Want To Continue?" dialog box appears. Formatting process is
complete when the progress bar is full.
3. Video Recording Schedule: Select the channel and the date to be set. One
week's schedule can be set.
The record schedule of the current channel can be copied to any other
channel or all channels.
M
`In the Record menu and Record Search menu, when no colors are presented, it means
there are no recordings during that time.
`"Green" stands for normal record and "yellow" stands for motion record.
4. General System Configuration: Set the date, time, date format, time format,
language, video format and menu timeouts.
5. Network Configuration (DHCP): In DHCP mode the router will automatically
assign an IP address to DVR. If the DVR fails to obtain an IP address, refer
to the DVR Router Guide. If the problem still cannot be resolved, contact
technical support.
DVR Boot up
10_DVR Boot up

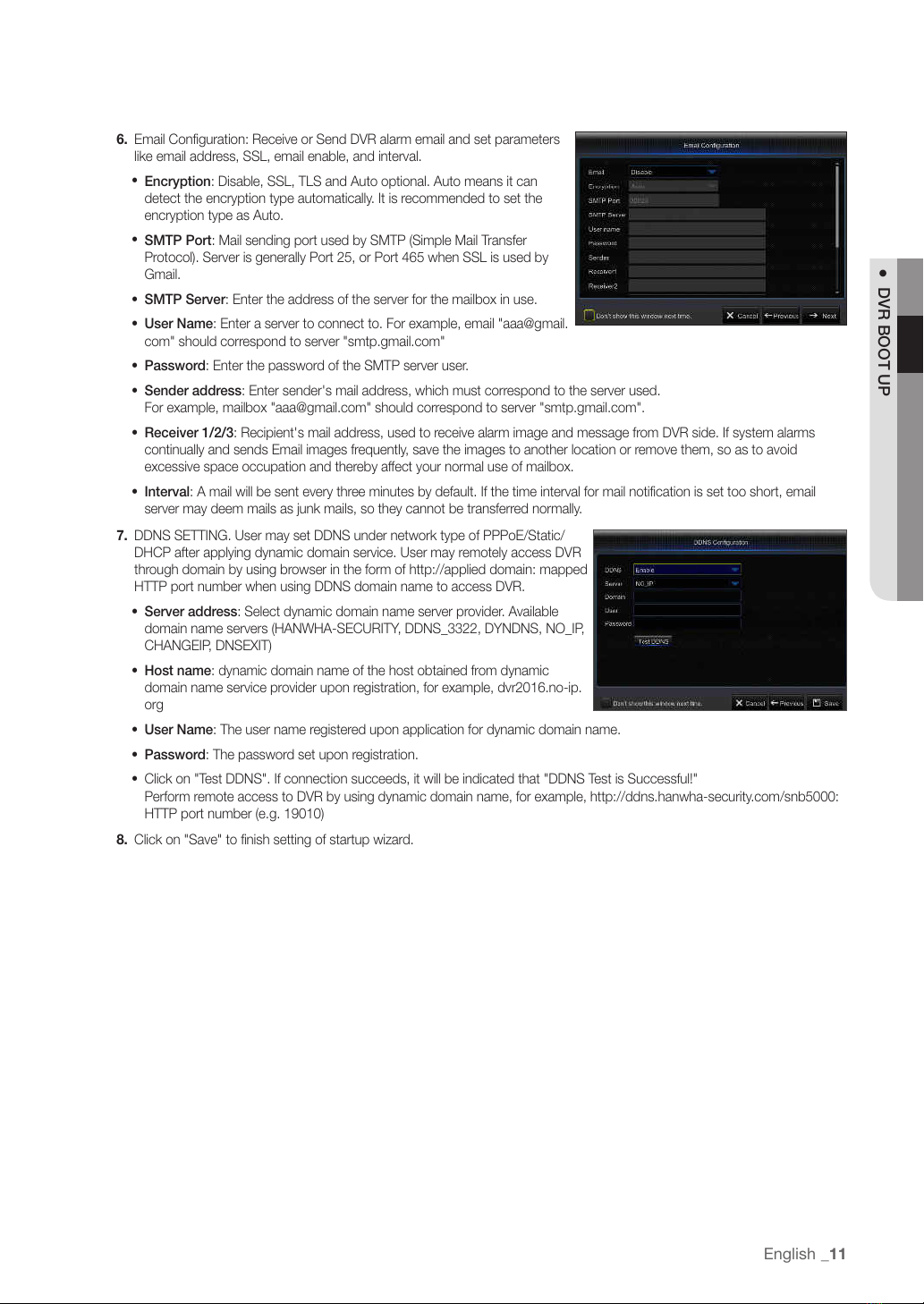

6. Email Configuration: Receive or Send DVR alarm email and set parameters
like email address, SSL, email enable, and interval.
•Encryption: Disable, SSL, TLS and Auto optional. Auto means it can
detect the encryption type automatically. It is recommended to set the
encryption type as Auto.
•SMTP Port: Mail sending port used by SMTP (Simple Mail Transfer
Protocol). Server is generally Port 25, or Port 465 when SSL is used by
Gmail.
•SMTP Server: Enter the address of the server for the mailbox in use.
•User Name: Enter a server to connect to. For example, email "aaa@gmail.
com" should correspond to server "smtp.gmail.com"
•Password: Enter the password of the SMTP server user.
•Sender address: Enter sender's mail address, which must correspond to the server used.
For example, mailbox "[email protected]" should correspond to server "smtp.gmail.com".
•Receiver 1/2/3: Recipient's mail address, used to receive alarm image and message from DVR side. If system alarms
continually and sends Email images frequently, save the images to another location or remove them, so as to avoid
excessive space occupation and thereby affect your normal use of mailbox.
•Interval: A mail will be sent every three minutes by default. If the time interval for mail notification is set too short, email
server may deem mails as junk mails, so they cannot be transferred normally.
7. DDNS SETTING. User may set DDNS under network type of PPPoE/Static/
DHCP after applying dynamic domain service. User may remotely access DVR
through domain by using browser in the form of http://applied domain: mapped
HTTP port number when using DDNS domain name to access DVR.
•Server address: Select dynamic domain name server provider. Available
domain name servers (HANWHA-SECURITY, DDNS_3322, DYNDNS, NO_IP,
CHANGEIP, DNSEXIT)
•Host name: dynamic domain name of the host obtained from dynamic
domain name service provider upon registration, for example, dvr2016.no-ip.
org
•User Name: The user name registered upon application for dynamic domain name.
•Password: The password set upon registration.
•Click on "Test DDNS". If connection succeeds, it will be indicated that "DDNS Test is Successful!"
Perform remote access to DVR by using dynamic domain name, for example, http://ddns.hanwha-security.com/snb5000:
HTTP port number (e.g. 19010)
8. Click on "Save" to finish setting of startup wizard.
English _11
● DVR BOOT UP

REGISTERING WITH DDNS
To register your product with the Wisenet DDNS
1. Visit the Wisenet DDNS web site (http://ddns.hanwha-security.com) and
sign in with a registered account.
2. From the top menu bar, select <MY DDNS>.
3. Click the [Register Product] tab.
4. Enter the product ID.
5. Select a <Type> and specify the <Model>.
6. Specify the product location with a description if necessary.
7. Click [Product Registration].
The product will be added to the product list that you can check.
DVR Boot up
12_DVR Boot up

MAIN INTERFACE
In real-time preview mode: right click on any area to access the desired menu. Right click on it to open a context menu, whose menu
items may vary depending on the specific condition, such as sign-in, sign-out, split screen mode and various operation conditions.
Left click on any channel to access shortcut menu, where operations such as image capture, recording and image zoom-in are
available.
The video recording marks are as shown below:
R
means Normal recording.
M
means Motion detection recording.
M
means Motion detection without recording.
Component Name Function
aCamera Type A means AHD camera. Absence of it means 960H camera.
bDate & Time Display current date and time
cChannel Name Display channel name
dSAMSUNG Logo The logo of SAMSUNG will display only when video is loss.
eImage Capture Make a snapshot of current video
fManual Recording Enable or disable manual recording
gQuick Playback Make playback of the last 5 minutes of the video
hElectronic Zoom-In Hold and drag mouse cursor to select a frame of current video to zoom in.
iChannel Color Setting Set hue, brightness, contrast and saturation of current channel.
jPTZ PTZ control.
English _13
● DVR BOOT UP
a b c d
efghij
k l m n o p q r s t A

Component Name Function
kMain Menu Access the main menu
lLock Sign out or access sign-in page.
m4-Channel Layout Display four channels of video.
n9-Channel Layout Display nine channels of video.
o12-Channel Layout Display Twelve channels of video.
p16-Channel Layout Display sixteen channels of video.
qN-Channel Layout Display 6/8/10/13/14 channels of video.
rScreen Mode Press this button to switch the screen mode in sequence.
sSound Adjust volume or mute.
tPlayback Access video retrieval page.
AInformation System Information.
M
`Channel layout is different depending on the model.
DVR Boot up
14_DVR Boot up

DVR Menu
POPUP MENU
After finishing system initialization, right click the mouse on preview interface or slide the mouse to the bottom of screen to enter
into Pop-up Menu. Now you could perform parameter setting and operate on Main Menu, Multi-screen, Record Search, Sequence,
Volume and Brightness settings.
The options in the pop-up menu may vary slightly according to different parameter settings and application environment. The options
in the menu will be explained in detail in the following chapters.
English _15
● DVR MENU

MAIN MENU GUIDE
Parameter
Record Search
System
Advanced
Shutdown
Display
Record
Capture
Network
Alarm
General
Users
Log
Info
Events
Maintain
Live
Output
Private Zone
Record
Record Schedule
Main stream
Substream
Capture
Capture Schedule
Network
Email
Email Schedule
DDNS
RTSP
FTP
Motion
General
DST
NTP
Info
Channel Info
Record Info
General
Events
Main Menu
HDD
PTZ
Cloud
Device
DVR Menu

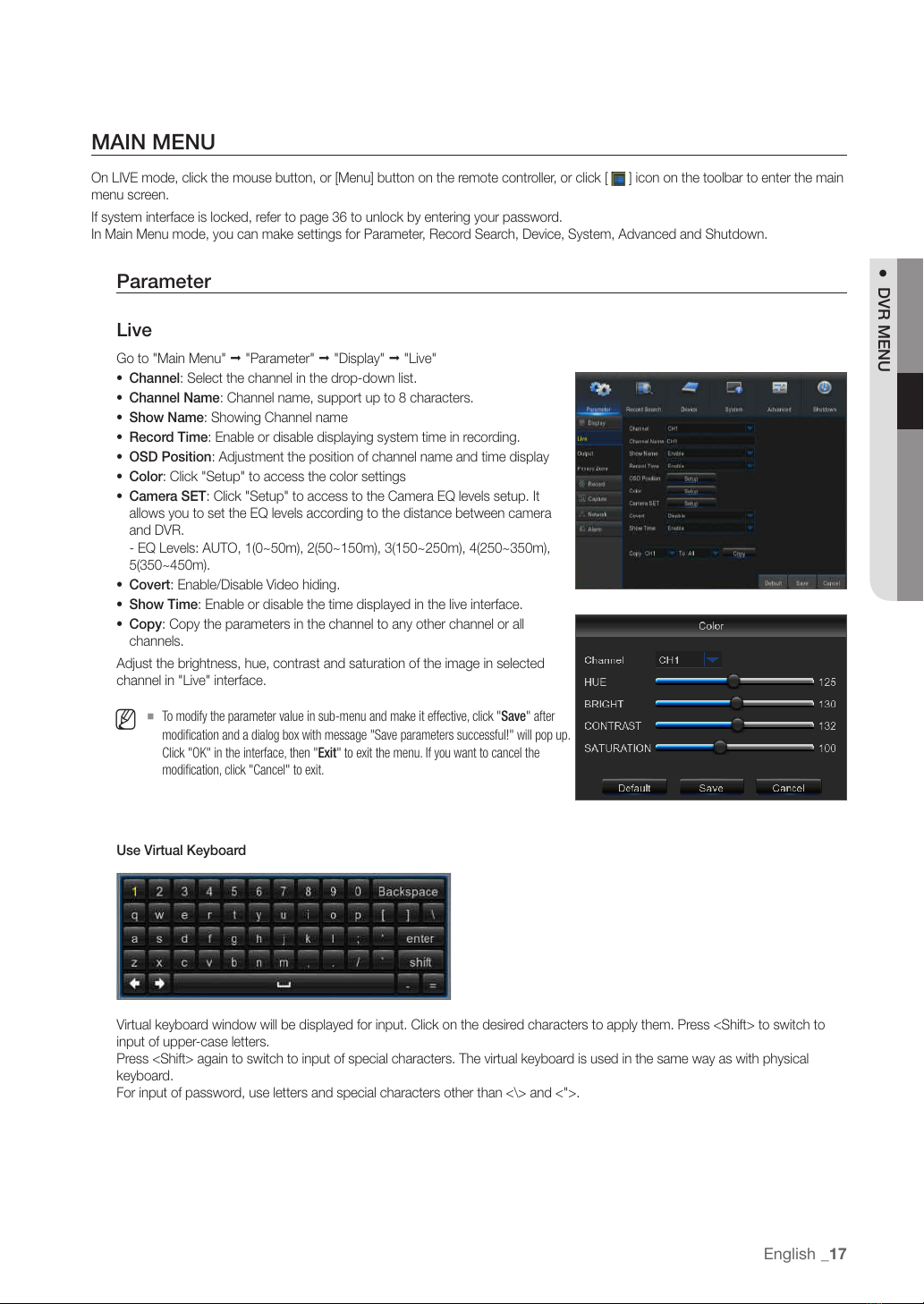

16_DVR Menu

MAIN MENU
On LIVE mode, click the mouse button, or [Menu] button on the remote controller, or click [ ] icon on the toolbar to enter the main
menu screen.
If system interface is locked, refer to page 36 to unlock by entering your password.
In Main Menu mode, you can make settings for Parameter, Record Search, Device, System, Advanced and Shutdown.
Parameter
Live
Go to "Main Menu" ; "Parameter" ; "Display" ; "Live"
•Channel: Select the channel in the drop-down list.
•Channel Name: Channel name, support up to 8 characters.
•Show Name: Showing Channel name
•Record Time: Enable or disable displaying system time in recording.
•OSD Position: Adjustment the position of channel name and time display
•Color: Click "Setup" to access the color settings
•Camera SET: Click "Setup" to access to the Camera EQ levels setup. It
allows you to set the EQ levels according to the distance between camera
and DVR.
- EQ Levels: AUTO, 1(0~50m), 2(50~150m), 3(150~250m), 4(250~350m),
5(350~450m).
•Covert: Enable/Disable Video hiding.
•Show Time: Enable or disable the time displayed in the live interface.
•Copy: Copy the parameters in the channel to any other channel or all
channels.
Adjust the brightness, hue, contrast and saturation of the image in selected
channel in "Live" interface.
M
`To modify the parameter value in sub-menu and make it effective, click "Save" after
modification and a dialog box with message "Save parameters successful!" will pop up.
Click "OK" in the interface, then "Exit" to exit the menu. If you want to cancel the
modification, click "Cancel" to exit.
Use Virtual Keyboard
Virtual keyboard window will be displayed for input. Click on the desired characters to apply them. Press <Shift> to switch to
input of upper-case letters.
Press <Shift> again to switch to input of special characters. The virtual keyboard is used in the same way as with physical
keyboard.
For input of password, use letters and special characters other than <\> and <">.
English _17
● DVR MENU

Output
Go to "Main Menu" ; "Parameter" ; "Display" ; "Output" to enter into the interface.
•Video Output: Live Output
•Sequence Mode: layout1, 4, 6, 8, 9, 10, 10-1, 12, 13, 13-1, 14
•SEQ Time: Sequence time is set 5 seconds by default. User may set it as
required up to 300 seconds
•VGA/HDMI Resolution: For VGA output or HDMI output, the optional
resolution includes 1024×768, 1280×1024, 1440×900, 1280×720,
1920×1080, 2560x1440, 3840x2160
•Transparency: Adjust menu transparency in the range of 0-128.
•Support Overscan: Support HDMI overscan
Private Zone
Go to "Main Menu" ; "Parameter" ; "Display" ; "Private Zone" to enter into the interface.
Privacy Zone is to block certain area(s) in the camera's field of view from recording in the selected channel.
1. Select the number of the zone(s) to be blocked (maximum of 4 zones can
be set for single channel)
2. Click "Setup" to adjust the position of the zone.
3. After finish setting, right click the mouse to return to the "Privacy Zone"
page.
4. Click "Save" to save the setting.
DVR Menu
18_DVR Menu

Record
Go to "Main Menu" ; "Parameter" ; "Record" ; "Record" to enter into the interface.
•Channel: Set the desired channel in the drop-down menu
•Record Switch: Enable/disable record
•Stream mode: Mainstream/Substream
•Pre Record: Enable to pre-record motion detection record.
Record Schedule
Go to "Main Menu" ; "Parameter" ; "Record" ; "Record Schedule" to enter recording schedule for the DVR.
Schedule interface
Select the channel and the date to be set.
One week's schedule can be set.
The record schedule of the current channel can be copied to any other channel
or all channels.
M
`In the Record menu and Record Search menu, when no colors are presented, it means
there are no recordings during that time;
`“Green” stands for normal record and “yellow” stands for motion record.
Mainstream
Go to "Menu" ; "Parameter" ; "Record" ; "Mainstream" to enter into the menu interface.
•Channel: Set the desired channel in the drop-down menu.
•Resolution: NTSC: 960x 480 / 1280x720 / 1920x1080 / 2560x1440
PAL: 960x576 / 1280x720 / 1920x1080 / 2560x1440
`Note: In AHD series, the supported record resolution includes 960H / 720P / 1080P /
2560x1440
•FPS: 1-15FPS
•Bitrate Control: Select either constant (CBR) / variable (VBR) bit rate.
•Bitrate Mode: Select default/custom bit rate.
•Bitrate: Bit rate setting
•Audio: Enable audio recording.
English _19
● DVR MENU

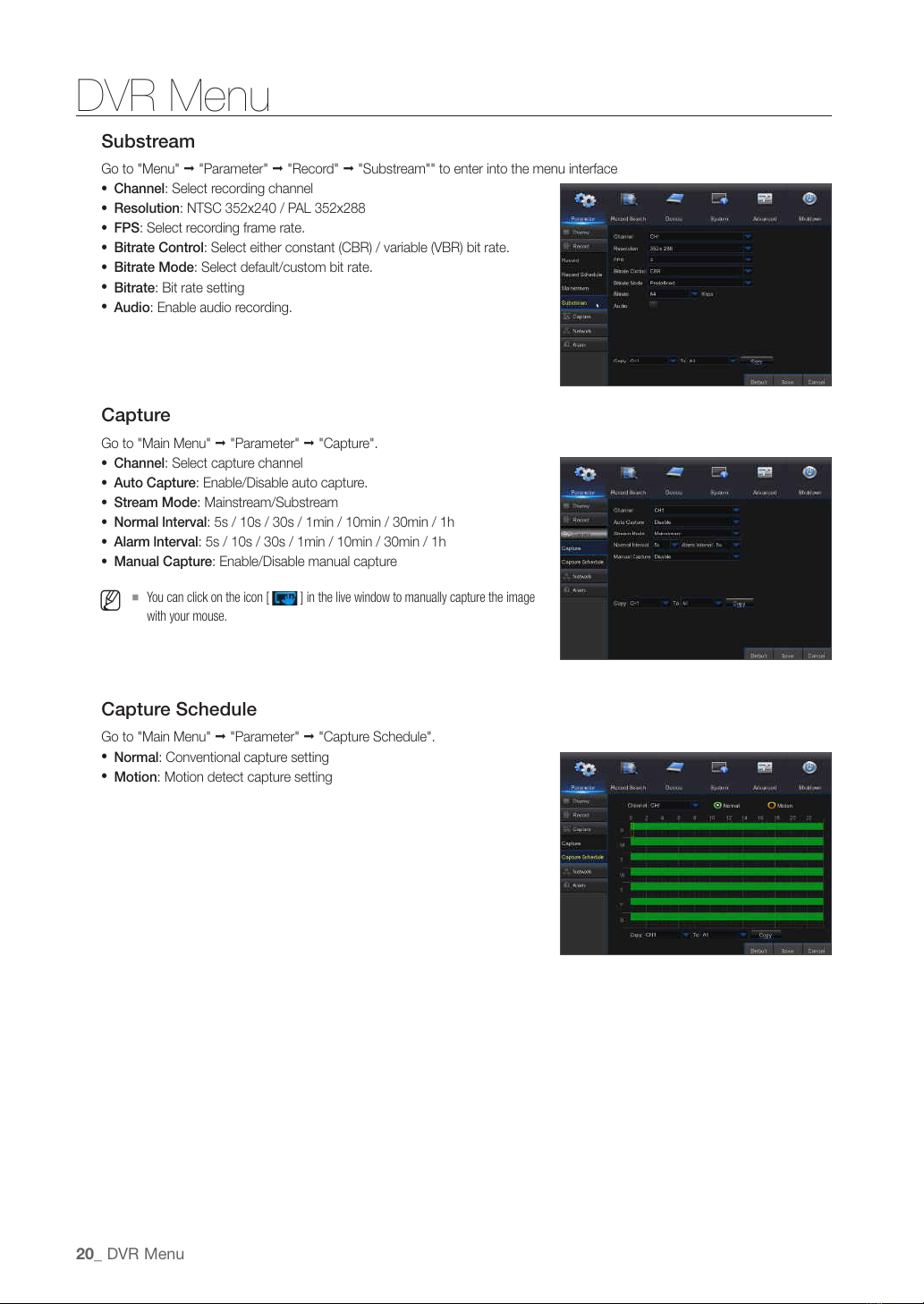

Substream
Go to "Menu" ; "Parameter" ; "Record" ; "Substream"" to enter into the menu interface
•Channel: Select recording channel
•Resolution: NTSC 352x240 / PAL 352x288
•FPS: Select recording frame rate.
•Bitrate Control: Select either constant (CBR) / variable (VBR) bit rate.
•Bitrate Mode: Select default/custom bit rate.
•Bitrate: Bit rate setting
•Audio: Enable audio recording.
Capture
Go to "Main Menu" ; "Parameter" ; "Capture".
•Channel: Select capture channel
•Auto Capture: Enable/Disable auto capture.
•Stream Mode: Mainstream/Substream
•Normal lnterval: 5s / 10s / 30s / 1min / 10min / 30min / 1h
•Alarm lnterval: 5s / 10s / 30s / 1min / 10min / 30min / 1h
•Manual Capture: Enable/Disable manual capture
M
`You can click on the icon [ ] in the live window to manually capture the image
with your mouse.
Capture Schedule
Go to "Main Menu" ; "Parameter" ; "Capture Schedule".
•Normal: Conventional capture setting
•Motion: Motion detect capture setting
DVR Menu
20_DVR Menu
