Samsung HL-T5687S - 56" Rear Projection TV User manual

TV/Video
• DLP®HDTV by Samsung
• Ultra slim bezel (0.6"), “piano black” cabinet
• Slim depth – fits where others won’t™
• Long lasting LED light engine provides stable light
output and ultra wide color gamut (spectrum)
• Built-in light sensor with beam current feedback
insures stable light output over the life of the TV
• Samsung Cinema Smooth™ 1080p light engine:
- Full HD 1920 x 1080p digital format converter
for all inputs
- Up to 10,000:1 contrast ratio with outstanding
colors and deep black levels
- Single-panel design—crystal-clear picture
without any possibility of convergence errors
- Smooth, film-like image and ultra-quiet
operation
• Analog and full digital NTSC/ATSC Tuners with
Clear QAM (digital cable)*
• Energy Star®Compliant (0.8 Watt standby)
• Hidden speaker system (DACS™)
• Game Mode enhances game console
performance
• 3D HD ready—Future-proof your HD experience
• RS232 port for system control
Audio
• 10w x 2
• SRS TruSurround XT™
Connections
• 3 HDMI inputs (High Definition Multimedia
Interface) with 480i/480p/720i/1080p/1080i input
support
• 2-component video inputs
(480i/480p/720p/1080i/1080p)
• 2 S-video inputs
• 2 A/V composite inputs
• USB 1.1
• PC (RGB) input with 1080p Input Support
Options
• Floor stand: TR500X3B

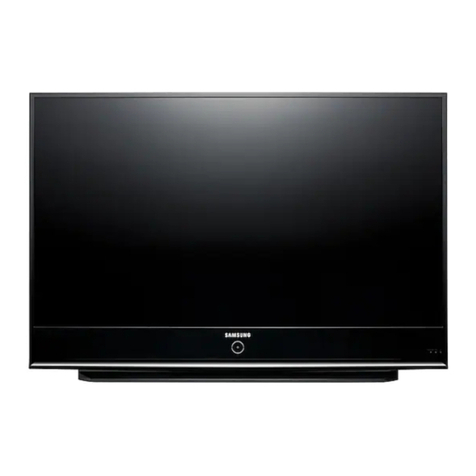

HL-T5687S
56" New Slim Depth LED Engine Widescreen DLP®
with 1080p HDTV Resolution
®
Enjoy more picture and less frame with
Samsung’s HL-T5687S DLP®HDTV. The piano
black bezel is just 0.6" wide; the set’s slim
depth lets it fit where others won’t™. The
energy-efficient 56" screen features a powerful,
long-lasting LED light engine that turns on
almost instantly. Full HD 1080p resolution and
Samsung Cinema Smooth™ technology deliver
a wide range of brilliant colors, with bright
images and crisp definition. The blackest
blacks, brightest whites and nuanced tones are
yours with a 10,000:1 dynamic contrast ratio.
Hidden speakers deliver clear, robust SRS
TruSurround XT™ sound. The 120Hz switching
speed and Game Mode keep gamers
marveling at the lifelike action, while making
this set future-ready. A wide range of audio,
video and HDMI™ inputs that allow digital
connectivity to Cable/Satellite boxes, Blu-ray
players, AV receivers, and more.
* limited reception varies by cable operator.
All on screen images are simulated pictures. DLP®is a trademark of Texas Instruments.
OFFICIAL HDTV OF THE NF
L

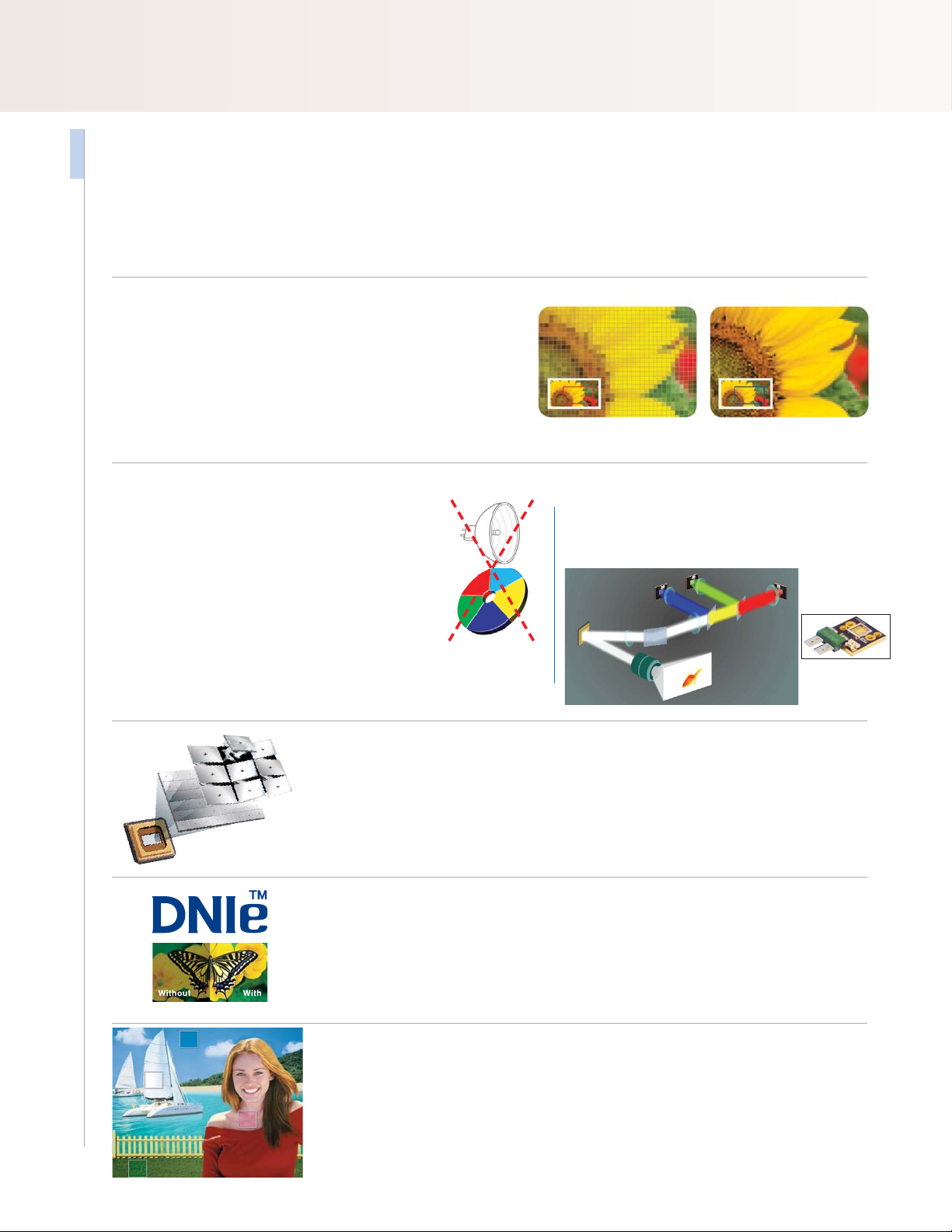

LED (Light Emitting Diode)
for modern color realization
LED replaces arc lamp & color wheel and realizes
beautiful color
– LED will last the life of the TV (No lamp to change)
– Samsung LED DLP TVs eliminate the need to replace
the consumable lamps every few years, and thus have
less impact on the environment and on one’s wallet.
– Ultra-Wide Color Gamut exceeds NTSC defined
color space
– More energy efficient than similar sized flat panel displays
– Ultra quiet (no color wheel noise)
Next Generation DLP Chips from Texas Instruments
Samsung employs a Texas Instruments DLP chip that is comprised of millions of microscopic
mirrors. The DLP chip is faster than any other HDTV technology, with the mirrors switching
on & off 15,000 times a second to deliver a razor-sharp picture for fast moving images.
When combined with Samsung’s new Cinema Smooth light engine, the result is a crisp,
bright picture with deep, rich colors that’s closer to film.
Samsung’s DNIe™– Digital Natural Image Engine
Samsung’s exclusive Digital Natural Image engine makes the sharpest and clearest images
possible, regardless of the profile of input signals. Five image processors and a six-times
density enhancer ensure the best picture from any source. Now in its sixth generation
(since 2002), DNIe guarantees the truest colors and highest contrast, while virtually eliminating
digital artifacts.
My Color Control
You can get the pink tones, the green of the grass and the blue of the sky just the way
you like, without affecting the other colors on the screen. The three major colors can be
adjusted to perfectly fit your taste. Self expression meets display perfection.
DLP tv
HL-T5687S 56" New Slim Depth LED Engine Widescreen DLP®
with 1080p HDTV Resolution
Green
Blue
Pink
Integrated HDTV Tuner
with the addition of a suitable UHF/VHF antenna delivers the world of free off-air DTV and HDTV local broadcast channels.
An additional QAM tuner decodes unscrambled digital cable signals.
Cinema Smooth™Light Engine
Samsung is the worldwide leader in creating light engines that harness
DLP HDTV technology from Texas Instruments. Samsung’s Cinema
Smooth light engine brings together the right optics, electronic circuitry
and replaceable light source to create a brilliant picture that’s more
lifelike and much closer to film. Now in its sixth year of evolution,
Samsung’s Cinema Smooth light engine delivers crisp, 1080p High
Definition resolution with high contrast and brightness, defined edges
and sharp detail.
Previous New
Color wheel
Arc lamp True advanced solid-state design—
high output, lower power consumption,
energy-saving high performance design
LED

HL-T5687S
Cinema Mode
Samsung’s Cinema Mode lets you see colors the way the director
intended, by matching them more closely to production standards.
This creates more accurate colors and natural skin tones when
viewing Hollywood movies on your TV—the perfect setting when
enjoying movies with the lights off.
Cinema Smooth™
Film Mode 3:2
Pull Down
Powered by Samsung’s Cinema Smooth
technology, 3:2 Pull Down corrects for
the artificial frames created when films
are converted to DVDs. The result is a
clearer image without the subtle motion
artifacts caused by 24-to-30 frames per
second video conversion.
Picture Format Size
Adjustment
Enjoy all your 4:3 aspect-ratio
programming in smooth, wide-screen
without black bars. Four pre-set aspect
ratio modes—Normal, Wide, Zoom 1
and Zoom 2—stretch your image to fill
the screen naturally.
Energy Efficient
Samsung DLP TVs are more energy efficient than many
flat panel TVs, resulting in significant utility savings over the life
of the TV.
Color Temperature Adjustments
Cool1, Cool2, Normal, Warm1, Warm2 selectable with
on-screen display.
3D Comb Filter
dramatically reduces edge image artifacts while improving
transition detail.
Previous Channel
returns to the previously viewed channel at the push of a button.
4:3 16:9 wide
Zoom 1 Zoom 2
Interlaced
Progressive
Cinema
Progressive
Game Mode
enhances dark areas, sharpens the picture, speeds up the image
processing response and enhances the sounds of your games.
Picture and sound quality optimized for the special needs of
gaming systems at the touch of a button.
Closed Caption
displays dialog that can be read along with encoded broadcast
TV programs and pre-recorded videos.
Non Volatile Memory
preserves audio, video and menu settings during power outages.
Auto Volume Leveler
keeps audio volume consistent during channel changing to
minimize static sound bursts.
Discrete IR Codes
This set is equipped with discrete IR codes for use with an
optional macro/programmable remote (see owners manual
for details).
Universal Remote Control
permits control of the TV, DVD, VCR and a Tuner/Receiver.
HDMI (High-Definition
Multimedia Interface)
addresses both pure digital audio and video
performance and simplifies connections from
the new generation set-top boxes, HD game
consoles, HD Blu-ray™ and DVD players by
reducing cable connections to one cable
and plug.
DTV and DVD
Compatible Connect
your DVD and DTV sources with two smart
component video (Y/Pb/Pr) inputs that accept
480p/720p/1080i/1080p signals.
PC
A Samsung HDTV using DLP technology
can also function as a high-quality XGA
PC monitor with 1080p compatibility.

Samsung Electronics America, Inc.
105 Challenger Road
Ridgefield Park, NJ 07660-0511
Tel [phone] • 1-800-SAMSUNG
www.samsung.com
Features
3D HD ready. The HLT generation of
Samsung DLP®HDTVs are capable of
displaying future 3D games, movies, and
other programming via 3D compatible
glasses and hardware.
SRS TruSurround XT™. TruSurround is a
patented SRS technology that solves the
problem of playing 5.1 multichannel con-
tent over two speakers. TruSurround deliv-
ers a compelling, virtual surround sound
experience through any two-
speaker playback system, including
internal television speakers and
headphones. It is fully compatible with all
multichannel formats up to 6.1 channels.
V-Chip1enables parental control for
channel and program blocking of TV
programs that incorporate the rating
code signal.
Specifications
DISPLAY PERFORMANCE
Video display rate: 120 Hz
Response time: 16 micro seconds
VIDEO
Display device: Single digital micro
mirror device
Pixel count:
1920 horizontal x 1080 vertical
Resolution: 1080p
Contrast ratio: 10,000:1
Channel coverage: VHF 2-13,
UHF 14-69, CATV 1-125 (up to 181
pre-selected channels), ATSC 1-69
AUDIO
Output power: 10Wx2
Speakers: 2
Sound effect system: TruSurround XT™
MTS stereo
Hidden speaker system (DACS™)
1080p input support
RS232 system control
POWER
Voltage, Line frequency: 100-120V
60Hz
Power consumption: 230 Watts
Standby power consumption: 0.8 Watt
HL-T5687S
56" New Slim Depth LED Engine Widescreen DLP®
with 1080p HDTV Resolution
Connections
HDMI (High-Definition Multimedia
Interface): 3
DVI Audio In: 1 (For HDMI port 3)
Component video input (Y,Pb,Pr): 2
S-Video input: 2
Composite input: 2 (RCA)
RF input: 2
Video Output: 1 (RCA)
Audio out: 2 (RCA L/R + Optical)
USB: 1
PC Input: 1 (Mini Jack)
Quality
Warranty: 1 year parts and labor
warranty, including lamp, with in-home
service backed by Samsung toll-free
support. 1-800-SAMSUNG
Energy Star®Compliant reduces
energy consumption by up to 25%
compared with standard TVs.2
Accessories
Universal Remote Control, User
Manual, Power Cord
Net dimensions and weight
(WxHxD)
TV (w/o foot): 50.4" x 34.9" x 13.4"
TV weight: 69.0 lbs.
TV (w/ foot): 50.4" x 34.9" x 14.0"
Shipping dimensions and
weight (WxHxD)
Carton: 55.1" x 39.9" x 18.5"
Carton weight: 88.8 lbs.
Order code
HLT5687SX/XAA
UPC
036725256903
Optional stand: (WXHXD)
TR500X3B
Net dimensions:
45.5"/50.75"/55.125" x 19.69" x 17.94"
Net weight: 76.3 lbs.
Shipping dimensions:
50.5" x 20.8" x 8.0"
Shipping weight: 84.7 lbs.
UPC: 036725296190
Order code: TR500X3B/XAA
1Feature dependent upon broadcasting of information
by local off-air TV and cable channels.
2As an Energy Star®partner, Samsung has
determined that this product meets the Energy Star®
guidelines for energy efficiency. Energy Star®is a
registered trademark of the U.S. Environmental
Protection Agency.
Design and specifications are subject to change
without notice. Non-metric weights and measure-
ments are approximate.
DLP, and the DLP logo are registered trademarks
or trademarks of Texas Instruments.
HDMI, the HDMI logo and High Definition Multimedia
Interface are trademarks or registered trademarks
of HDMI Licensing LLC.
SRS TruSurround XT is a registered trademark of
SRS Labs, Inc.
DNIe™, Cinema Smooth™ and fits where others
won’t™ are trademarks of Samsung Electronics
Co., Ltd.
©2007 NFL Properties LLC. All NFL-related
trademarks are trademarks of the National
Football League.
©2007 Samsung Electronics America, Inc. All
rights reserved Samsung is a registered trademark
of Samsung Electronics Co., Ltd. All product and
brand names are trademarks or registered trade-
marks of their respective companies.
107-SS Printed in USA.
For more information on digital TV technology
please visit www.samsung.com/dtvguide
