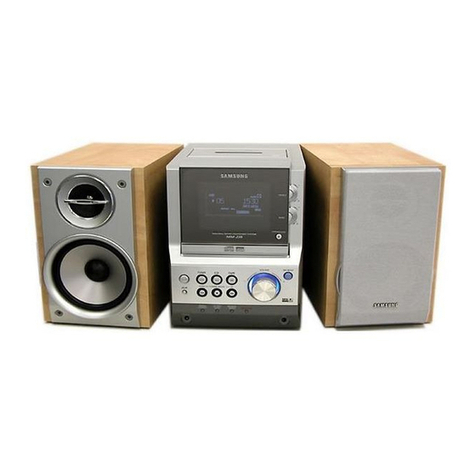

Samsung MM-E430D User manual

DVD MICRO COMPONENT SYSTEM
user manual
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
MM-E430D

2English
English 3
Safety Information
Safety Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
CAUTION : TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
This symbol indicates important
instructions accompanying the product.
WARNING
• To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION
• Apparatus shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall be placed on
the apparatus.
• The Mains plug is used as a disconnect device and shall stay
readily operable at any time.
• This apparatus shall always be connected to a AC outlet with
a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be
pulled out from the mains socket, therefore the mains plug
shall be readily operable.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
• INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
Wiring the Main Power Supply Plug (UK Only)
IMPORTANT NOTICE
The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin
face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same
colour as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should
obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug
to a main socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.
IMPORTANT
The wires in the main lead are coloured in accordance with the following code: BLUE = NEUTRAL
BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed
as follows:
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE
or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured
BROWN or RED.
WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND
YELLOW.

2English
English 3
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and
picture quality or cause skipping.
Be especially careful not to scratch discs when
handling them.
Holding discs
• Do not touch the playback side of the disc.
• Hold the disc by the edges so that
fingerprints will not get on the surface.
• Do not stick paper or tape on the disc.
Disc Storage
• Do not keep in direct sunlight
• Keep in a cool ventilated area
• Keep in a clean Protection jacket.
Store vertically.
✎NOTE
`Do not allow the discs to become contaminated with dirt.
`Do not load cracked or scratched discs.
Handling and Storing Discs
If you get fingerprints or dirt on the disc, clean it with a
mild detergent diluted in water and wipe with a soft cloth.
• When cleaning, wipe gently from the inside to the
outside of the disc
✎NOTE
`Condensation may form if warm air comes into contact with
cold parts inside the product. When condensation forms inside
the product, it may not operate correctly. If this occurs, remove
the disc and let the product stand for 1 or 2 hours with the
power on.
Safety Information
License
• Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.
• ABOUT DIVX VIDEO: DivX® is a digital video format created by
DivX,LLC,a subsidiary of Rovi Corporation. This is an official DivX
Certified® device that plays DivX video. Visit divx.com for more
information and software tools to convert your files into DivX videos.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device
must be registered in order to play purchased DivX
Video-on-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section in your device setup
menu. Go to vod.divx.com for more information on how to complete
your registration.
• DivX Certified® to play DivX® video .
• DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
• Covered by one or more of the following U.S. patents : 7,295,673;
7,460,668; 7,515,710; 7,519,274.
• HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
• This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
• iPod,iPod classic,iPod nano and iPod touch are
trademark of Apple Inc., registered in the U.S. and
other countries.
Copyright
© 2012 Samsung Electronics Co., Ltd. All rights reserved.
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you
should only connect your product directly to your TV, not to a VCR.
Connecting to a VCR results in a distorted picture from copy-protected DVD
discs.
• This product incorporates copyright protection technology that is protected by
U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision, and is intended for
home and other limited viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited .
Accessories
Check for the supplied accessories below.
Video Cable FM Antenna User's Manual
Remote Control/
Batteries(optional)
Scart Adapter
(Europe only)
123
45 6
78
0
9
VOL VOL
TOOLS
RETURN
EXIT
INFO
MO/STDISPLAY
SLEEP
TIMER
A B C D
TUNING
TUNING
HOME USBREC
REPEAT
TIMER
CDREC
FUNCTION
SOUND DISCSKIP
DISCMENU TITLEMENU
SYNC
RDSPTY RDSDISPLAY
SPEED ON/OFF CLOCK
DVDEQ

4English
English 5
Contents
SAFETY INFORMATION
2
2 Safety Warnings
3 Accessories
3 Cautions on Handling and Storing Discs
3 License
3 Copyright
3 Copy Protection
GETTING STARTED
5
5 Precautions
5 Icons that will be used in manual
6 Disc Types and Characteristics
9 Description
9 Front Panel
9 Top Panel
10 Rear Panel
11 Remote control
CONNECTIONS
12
12 Connecting the Speakers
13 Connecting Audio from External Components
13 Connecting the FM Antenna
14 Connecting the Video Out to your TV
SETUP
16
16 Before Starting (Initial Setting)
16 Setting the Setup menu
17 Display
17 TV Aspect
17 BD Wise
17 Resolution
17 Video Out Signal
18 HDMI Format
18 Audio
18 DRC (Dynamic Range Compression)
18 AUDIO-SYNC
18 Speaker Selection
18 Audio Return Ch.
19 System
19 Initial Setting
19 DivX(R) Registration
19 DivX(R) Deactivation
19 Language
19 Security
19 Parental Rating
19 Change Password
19 Support
19 Product Information
BASIC FUNCTIONS
20
20 Disc Playback
20 Audio CD(CD-DA)/MP3/WMA Playback
21 JPEG File Playback
21 Using the Playback Function
26 Sound Mode
26 Mute Function
26 Display Function
27 Listening to Radio
27 About RDS broadcasting(optional)
29 Setting the Clock
29 Timer Function
30 Sleep Timer Function

4English English 5
01 Getting Started ENGLISH
Getting Started
Icons that will be used in manual
Make sure to check the following terms before
reading the user manual.
Icon Term Definition
d
DVD
This involves a function available
with DVD-Video or DVD±R/±RW
discs that have been recorded
and finalised in Video Mode.
B
CD This involves a function available
with a data CD (CD-DA,
CD-R/-RW).
A
MP3 This involves a function available
with CD-R/-RW discs.
G
JPEG This involves a function available
with CD-R/-RW discs.
D
DivX This involves a function available
with MPEG4 discs.
(DVD±R/±RW, CD-R/-RW)
!
CAUTION
This involves a case where a function
does not operate or settings may be
canceled.
✎NOTE
This involves tips or instructions on
the page that help each function
operate.
ADVANCED FUNCTIONS
31
31 Using Bluetooth
33 USB Function
33 Using an iPod/iPhone
35 Recording Function
OTHER INFORMATION
36
36 Troubleshooting
37 Language code list
38 Specifications
Precautions
• EnsurethattheACpowersupplyinyourhousecomplieswith
theidenticationstickerlocatedonthebackofyourproduct.
• Installyourproducthorizontally,onasuitablebase(furniture),
withenoughspacearounditforventilation(7.5~10cm).
• Donot place the productonampliersorotherequipmentwhich
maybecomehot.Makesuretheventilationslotsarenotcovered.
• Donotstackanythingontopoftheproduct.
• Beforemovingtheproduct,ensuretheDiscInsertHoleisempty.
• Inorderto disconnect the productcompletelyfromthe
powersupply,removethe AC plugfromthewalloutlet,
especiallywhenleftunusedforalongperiodoftime.
• Duringthunderstorms,disconnecttheACplugfromthewall
outlet.Voltagepeaks due to lightning could damage the
product.
• Donot exposetheproducttodirectsunlightorotherheat
sources.Thiscouldleadtooverheatingandmalfunctionof
theproduct.
• Protectthe productfrommoisture,and excess heat or
equipmentcreatingstrongmagnetic or electricfields(i.e.
speakers.).
• Disconnectthepowercable fromtheACsupplyifthe
product malfunctions. Your product is not intended for
industrialuse.
• Useofthisproductisforpersonaluseonly.
• Condensationmayoccurifyourproductor disc has been
storedincoldtemperatures.Iftransportingtheproduct
duringthe winter,waitapproximately2hoursuntil the
producthasreachedroomtemperaturebeforeusing.
• Thebatteriesusedwiththisproductcontainchemicals
thatareharmfultotheenvironment.Donotdisposeof
 batteriesinthegeneralhouseholdtrash.
• Maintainanopenspaceofapproximately6inches(15cm)
onthesidesandrearofthesystem,forventilationpurposes.
• Placetheloudspeakersatareasonabledistanceoneither
sideofthesystemtoensuregoodstereosound.
• Directtheloudspeakerstowardsthelisteningarea.
• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either
a. an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual)
b. you bring the unit to a repair centre and there is no defect in the product
(i.e. where you have failed to read this user manual).
• The amount of such administration charge will be advised to you before any work or home visit is carried
out.

6English
Getting Started
English 7
Disc Types and Characteristics
Region Code
The product and the discs are coded by region. These
regional codes must match in order for the disc to play. If the
codes do not match, the disc will not play.
Disc Type Region
Code Area
DVD-VIDEO
1
The U.S., U.S. territories and
Canada
2
Europe, Japan, the Middle East,
Egypt, South Africa, Greenland
3
Taiwan, Korea, the Philippines,
Indonesia, Hong Kong
4
Mexico, South America, Central
America, Australia, New Zealand,
Pacific Islands, Caribbean
5
Russia, Eastern Europe, India,
most of Africa, North Korea,
Mongolia
6
China
Getting Started
Disc types that can be played
Disc Types &
Mark (Logo)
Recorded
Signals
Disc
Size Max. Playing Time
DVD-VIDEO
VIDEO 12 cm
Approx. 240 min.
(single-sided)
Approx. 480 min.
(double-sided)
AUDIO-CD
AUDIO
12 cm 74 min.
AUDIO
+
VIDEO
12 cm
-
Do not use the following types of disc!
• LD, CD-G, CD-I, CD-ROM, DVD-ROM and
DVD-RAM discs cannot be played on this product.
If such discs are played, a <WRONG DISC
FORMAT> message appears on the TV screen.
• DVD discs purchased abroad may not play on this
product.
If such discs are played, a <Wrong Region. Please
check Disc.> message appears on the TV screen.
Disc Types And Disc Format
This product does not support Secure (DRM) Media files.
CD-R Discs
• Some CD-R discs may not be playable depending on
the disc recording device (CD-Recorder or PC) and the
condition of the disc.
• Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minutes as
they may not be played back.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully
played. If the session is closed but the disc is left open,
you may not be able to fully play the disc.

6English
English 7
01 Getting Started
CD-R MP3 Discs
• Only CD-R discs with MP3 files in ISO 9660 or
Joliet format can be played.
• MP3 file names should contain no blank spaces
or special characters (. / = +).
• Use discs recorded with a compression/
decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions
can be played.
• Only a consecutively written multisession disc can
be played. If there is a blank segment in the
Multisession disc, the disc can be played only up
to the blank segment.
• If the disc is not closed, it will take longer to begin
playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR)
format, i.e. files encoded in both low bit rate and
high bit rate (e.g., 32Kbps ~ 320Kbps), the
sound may skip during playback.
• A maximum of 999 tracks can be played per CD.
• A maximum of 250 folders can be played per CD.
CD-R JPEG Discs
• Only files with the "jpg" extensions can be played.
• If the disc is not closed, it will take longer to start
playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet
format can be played.
• JPEG file names should be 8 characters or less in
length and contain no blank spaces or special
characters (. / = +).
• Only a consecutively written multisession disc can be
played. If there is a blank segment in the multisession
disc, the disc can be played only up to the blank
segment.
• A maximum of 999 images can be stored on a folder.
• When playing a Kodak/Fuji Picture CD, only the JPEG
files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may
take longer to start playing or may not play at all.
DVD±R/±RW, CD-R/RW Discs
• Software updates for incompatible formats are not
supported.
(Example : QPEL, GMC, resolution higher than
800 x 600 pixels, etc.)
• If a DVD-R/-RW disc has not been recorded
properly in DVD Video format, it will not be
playable.
DivX (Digital internet video express)
DivX® is a video file format developed by DivX, Inc and
is based on MPEG4 compression technology to
provide audio and video data over the Internet in
real-time.
MPEG4 is used for video encoding and MP3 for audio
encoding, enabling to watch a movie at near
DVD-quality video and audio.
Supported Formats (DivX)
This product only supports the following media formats.
If both video and audio formats are not supported, the
user may experience problems such as broken images
or no sound.
Supported Video Formats
Format Supported Versions
AVI DivX3.11~DivX5.1
WMV V1/V2/V3/V7
Supported Audio Formats
Format Bit Rate Sampling
Frequency
MP3 80~320kbps 44.1khz
WMA 56~128kbps
AC3 128~384kbps 44.1/48khz
• Aspect Ratio : This product supports up to 720x576
pixels. TV screen resolutions higher than 800 will not
be supported.
• When you play a disc whose sampling frequency is
higher than 48khz or 320kbps, you may experience
shaking on the screen during playback.
• Sections with a high frame rate might not be played
while playing a DivX file.
• Since this product only provides encoding formats
authorized by DivX Networks, Inc., a DivX file
created by the user might not play.

8English
Getting Started
English 9
USB Host Specification
USB Host Specification
• Supports USB 1.1 or USB 2.0 compliant devices.
• Supports devices connected using the USB A type
cable.
• Supports UMS (USB Mass Storage Device) V1.0
compliant devices.
• Supports the device of which the connected drive is
formatted in the FAT (FAT, FAT16, FAT32) file system.
Non-compliance
• Does not support a device that requires installing a
separate driver on the PC (Windows).
• Does not support connection to a USB hub.
• A USB device that is connected using the USB
extension cable may not be recognized.
• A USB device requiring a separate power source
needs to be connected to the product with the
separate power connection.
Operational Limitations
• A device supporting USB 1.1 alone may cause a
difference in the picture quality, depending on the
device.
USB Devices that can be used with the
product
• USB Storage Device, MP3 Player.
• Removable HDD
- Removable HDDs equipped with less than 160
Gbytes are supported. Removable HDDs
equipped with 160Gbytes or more may not be
recognized, depending on the device.
- If the connected device does not work due to
insufficient power supply, you can use a
separate power cable to supply power so that it
can work properly. The connector of the USB
cable may differ, depending on the manufacturer
of the USB device.
• USB card Reader: One slot USB card reader and
Multi slot USB card reader.
- The USB card reader may not be supported,
depending on the manufacturer.
- If you install multiple memory devices into a multi
card reader, you may experience problems.
Supported file Formats
Format Still
Picture Music Movie
File name
JPG MP3 WMA WMV DivX
File
extension
JPG
.JPEG .MP3 .WMA .WMV .AVI
Bit rate
–80~320
kbps
56~128
kbps
4Mbps 4Mbps
Version
– – V8 V1,V2,
V3,V7
DivX3.11~
DivX5.1
Pixel
640x480 – – 720x576
Sampling
Frequency
– 44.1kHz 44.1kHz 44.1KHz~ 48KHz
• CBI (Control/Bulk/Interrupt) is not supported.
• Digital Cameras that use PTP protocol or require
additional program installation when connected to a
PC are not supported.
• Some MP3 players, when connected to this product,
may not operate depending on the sector size of their
file system.
• The USB host function is not supported if a product
that transfers media files by its manufacturer specific
program is connected.
• Does not operate with Janus enabled MTP (Media
Transfer Protocol) devices.
• The USB host function of this product does not
support all USB devices.
• A certain USB, digital camera device, USB card
reader or Smart Phone may not be supported.
• iymbols in filenames (MP3/JPEG/DivX) are not
supported.

8English
English 9
01 Getting Started
Description
Front Panel
PHONE
5V 500mA
Top Panel
VOLUME
GALAXY
12 3 4
12 3 4 5 6 7 8 9 10 11
1. Disc Tray
2. Window Display
3. USB jack
4. Phone jack
•If you plug the headset connector into the headset
jack of the main unit, no sound will be produced further
through the speakers.
1. Galaxy Dock
2. iPod Dock
3. POWER button
• Pressthisbuttontoswitchyourproduct.
4. Function button
5. Search/Skip button
6. STOP/Tuning Mode button
7. PLAY/PAUSE button
8. Search/Skip button
9. OPEN/CLOSE button
10. VOLUME control button
11. Galaxy button
USING THE TOUCH BUTTON
¡Tap on touch screen with your fingertip.
¡To avoid damage to the touch screen, do not use any object other than your fingers to operate it.
¡Do not tap on the touch screen if your fingers are not clean.
¡Do not tap on the touch screen with gloves on.
¡The touch screen may not function if you use your fingernail or other instrument such as a ballpoint pen.

10 English
Getting Started
English 11
Rear Panel
1
2.0 CHANNEL SPEAKER OUTPUT
CONNECTORS Connect the speakers.
2
VIDEO OUT JACK Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
3
FM ANTENNA JACK Connect the FM antenna.
4
AUX IN JACK Connect the Audio Out of the external analog component to the AUX IN
jack.
5
COMPONENT VIDEO OUTPUT
JACKS Connect a TV with Component video inputs to these jacks.
6
HDMI OUT JACK Use an HDMI calbe,connect this HDMI output terminal to the HDMI
input termianl on your TV for the best quality picture.
7
ONLY FOR SERVICE This jack is just for testing, please don't use it.
SPEAKERS
OUT (4 )
SPEAKERS
OUT (4 )
ONLY FOR
SERVICE
VIDEO OUT
HDMI
OUT
123456 7

10 English
English 11
01 Getting Started
Installing batteries in the Remote Control
✎NOTE
`Place batteries in the remote control so they match the
polarity : (+) to (+) and (–) to (–).
`Always replace both batteries at the same time.
`Do not expose the batteries to heat or a flame.
`The remote control can be used up to approximately 23
feet (7 meters) in a straight line.
* Battery size: AAA
Remote control
Tour of the Remote Control
123
45 6
78
0
9
VOL VOL
TOOLS
RETURN
EXIT
INFO
MO/STDISPLAY
SLEEP
TIMER
A B C D
TUNING
TUNING
HOME USB REC
REPEAT
TIMER
CD REC
FUNCTION
SOUND DISC SKIP
DISC MENU TITLE MENU
SYNC
RDS PTY RDS DISPLAY
SPEED ON/OFF CLOCK
DVDEQ
DISPLAY, A button
TITLE MENU button
DISC MENU button
REPEAT button
POWER button
TIMER ON/OFF button
MO/ST, B button
CD REC SPEED button
Number(0~9) button
TIMER/CLOCK button
SLEEP button
EQ button
SOUND button DVD* button
FUNCTION button
INFO button
TOOLS button
TUNING button
PLAY button
SKIP, RDS PTY* button
PAUSE button
VOL + button
RETURN button
USB REC button
TUNING button
EXIT button
CURSOR/ENTER button
VOL - button
STOP button
SKIP button
SEARCH,RDS DISPLAY button
HOME button
SEARCH button
D button
C button
MUTE button
SYNC* button
* This product does not support the DISC SKIP/SYNC function with marked [
*
].
* This product may not have the RDS function depending on your region.

12 English
Connections
English 13
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Connecting the Speakers
Position of the product
Place it on a stand or cabinet shelf, or under the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.
Example : For 32" TV's 6.56 ~ 7.87 feet (2~2.4 m)
For 55" TV's 11.5 ~ 13.1 feet (3.5~4 m)
Front Speakers ei
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ear.
!CAUTION
`Do not let children play with or near the speakers. They could get hurt if the speaker falls.
`When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
✎NOTE
`If you place a speaker near your TV set, screen color may be distorted because of the magnetic field
generated by the speaker. If this occurs, place the speaker away from your TV set.
SPEAKERS
OUT (4 )
Speaker (R) Speaker (L)
ONLY FOR
SERVICE
VIDEO OUT
HDMI
OUT

12 English
English 13
02 Connections
Connecting Audio from External Components
AUX : Connecting an External Analog Component
Analog signal components such as a VCR.
1. Connect AUX IN (Audio) on the back of the product to the Audio Out of the external Analog component.
• Be sure to match the colors of the connecting jacks.
2. Press the FUNCTION button to select AUX input.
• The mode switches as follows :
DVD/CD ➞ARC ➞ FM ➞USB ➞ R.IPOD ➞ IPOD ➞AUX ➞ BT/GAL.
✎NOTE
`You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the
VCR to this product.
SPEAKERS
OUT (4 )
ONLY FOR
SERVICE
VIDEO OUT
HDMI
OUT
Audio Cable (not supplied)
If the external analog
component has only one Audio
Out, connect either left or right.
Connecting the FM Antenna
1. Connect the FM antenna (supplied) to the FM Antenna jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
✎NOTE
`This product does not receive AM broadcasts.
SPEAKERS
OUT (4 )
PHONES AUX IN ONLY FOR SERVICE
ONLY FOR
SERVICE
VIDEO OUT
HDMI
OUT
FM Antenna
(supplied)

14 English
Connections
English 15
Connecting the Video Out to your TV
Choose one method for connecting to a TV.
METHOD 1 : Component Video(BETTER QUALITY)
If your television is equipped with Component Video inputs, connect a Component video cable (not supplied)
from the COMPONENT OUT (Pr, Pb and Y) Jacks on the back of the product to the Component Video
Input Jacks on your TV.
METHOD 2 : Scart (Europe only)
If your television is equipped with a SCART input, connect the supplied video cable from the VIDEO OUT jack
on the back of the product to the VIDEO jack on the Scart adapter (Europe only), then connect the SCART
adapter's jack to the SCART IN jack on your television.
METHOD 3 : Composite Video(GOOD QUALITY)
Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack
on your TV.
METHOD 4 : HDMI(BEST QUALITY)
Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN
jack on your TV.
✎NOTE
`Resolutions available for the HDMI output are 480p(576p), 720p,1080i/1080p. See page 17 for the resolution setting.
`This product operates in Interlace scan mode 480i(576i) for component/composite output.
`After making the video connection, set the Video input source on your TV to match the corresponding Video output mode on
your product.
Turn this product on first before you set the video input source on your TV. See your TV owner's manual for more information
on how to select the TV's Video Input source.
SPEAKERS
OUT (4 )
COMPONENT IN
TV
VIDEO INPUT
ONLY FOR
SERVICE
VIDEO OUT
HDMI
OUT
SCART IN
METHOD 2
(supplied)
METHOD 1
(not supplied)
METHOD 4
(not supplied)
METHOD 3
(supplied)

14 English
English 15
02 Connections
!CAUTION
`Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright
protection systems and the picture will be distorted on the television.
HDMI FUNCTION
HDMI Auto Detection Function
If your TV is Samsung TV and it supports CEC function.The product's video output will automatically change to HDMI
mode when connecting an HDMI cable while power is on.
• HDMI (High Definition Multimedia Interface)
• HDMI is an interface that enables the digital transmission of video and audio data with just a single
connector. Using HDMI, the product transmits a digital video and audio signal and displays a vivid picture
on a TV having an HDMI input jack.
• HDMI connection description
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears
on the screen.
• What is the HDCP?
• HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via
HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a
display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized
copies from being made.
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote
control. Anynet + can be used by connecting this product to a SAMSUNG TV using a HDMI Cable. This is
only available with SAMSUNG TV's that support Anynet+.
1. Connect the the product to a Samsung TV with an HDMI cable. (See page 14)
2. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)
✎NOTE
`The Anynet+ function supports some buttons of the remote control.
`This function is not available if an HDMI cable does not support CEC.
`Depending on your TV, certain HDMI output resolutions may not work.
Please refer to the user’s manual of your TV.
`Please check the logo (If your TV has an logo, then it supports Anynet+ function.)
Using ARC(Audio Return Channel)
ARC is feature that transfer audio from the TV back to the product and listen to your TV's audio through the
product instead of the TV's speakers without having to connect a second cable between the TV and other
audio system.
1. Connect the the product to a Samsung TV with an HDMI cable. (See page 14)
2. Press the Fbutton to select ARC input.
•
You can select ARC by pressing the FUNCTION button on the remote control and the product.

16 English
Setup
English 17
Before Starting (Initial Setting)
1. Press the POWER button when it is plugged in
TV for the first time.
Initial Setting screen will be displayed.
2. Press the ▲▼ buttons to select the desired
language, then press the ENTER button.
3. Press the ▲▼ buttons to select desired TV Aspect,
then press the ENTER button.
✎NOTE
`To move to the previous screen, press and hold the
RED(A) button.
`Once you selected a menu language, you can change it
by pressing the STOP (@) button on the front panel for
more than 5 seconds with no disc inserted.
`When the Initial Setting screen does not appear, refer to
Initial Setting. (see page 19)
Setting the Setup menu
The access step may differ depending on the selected
menu. The GUI (Graphical User Interface) in this
manual may differ, depending on the firmware version.
1
HOME BUTTON : Display the home menu.
2
RETURN BUTTON : Return to the previous
setup menu.
3
ENTER / DIRECTION BUTTON
Move the cursor and select an item.
Select the currently selected item.
Confirm the setting.
4
EXIT BUTTON : Exit the setup menu.
1. In NO DISC mode, or during playback, press
STOP button twice.
2. Press the _+ buttons to select Settings, then
press the ENTER button.
3. Press the ▲▼ buttons to select desired menu,
then press the ENTER button.
4. Press the ▲▼ buttons to select desired
sub-menu, then press the ENTER button.
5. Press the ▲▼ buttons to select desired item,
then press the ENTER button.
6. Press the EXIT button to exit the setup menu.
Function DVD/CD
Settings
Move Select
Initial setting | On-Screen Language
Select a language for the on-screen displays.
English
한국어
Nederlands
Fran ç ais
Deutsch
Italiano
1
24
3

16 English
English 17
03 Setup
Display
You can configure various display options such as
the TV Aspect.
TV Aspect
Depending on the type of television you have, you
may want to adjust the screen setting.
• 4:3 Pan-Scan
Select when you want to see the 16:9
video supplied by the DVD without the
black bars on top and bottom, even
though you have a TV with a 4:3 ratio
screen(extreme left and right portion of
the movie picture will be cut off).
• 4:3 Letter Box
Select when you want to see the total
16:9 ratio screen DVD supplies, even
though you have a TV with a 4:3 ratio
screen. Black bars will appear at the
top and bottom of the screen.
• 16:9 Wide
You can view the full 16:9 picture on
your widescreen TV.
✎NOTE
`If a DVD is in the 4:3 ratio, you cannot view it in the wide screen.
`Since DVD discs are recorded in various image formats, they will
look different depending on the software, the type of TV, and the
TV aspect ratio setting.
`When using HDMI, the screen is automatically converted to the
16:9 Wide mode and TV Aspect is deactivated.
BD Wise
(Samsung products only)
BD Wise is Samsung's latest inter-connectivity
feature. When you connect Samsung products with
BD-Wise to each other via HDMI, the optimum
resolution will be set automatically.
• On : The original resolution of the DVD disc will be
output to the TV direct.
• Off : The output resolution will be fixed according
to the Resolution previously set, regardless of the
resolution of the disc.
✎NOTE
`This will optimize the picture quality according to the
content (In the DVD disc, etc) that you want to play
and the product or your BD Wise-compliant
Samsung TV.
`If you want to change the resolution in BD Wise
mode, you must set BD mode to Off in advance.
`BD Wise will be disabled if the product is connected to
a device that does not support BD Wise.
Resolution
Sets the output resolution of the HDMI video signal.
The number in 480p(576p), 720p, 1080i and 1080p
indicates the number of lines of video.
The i and p indicate interlace and progressive scan,
respectively.
• 480p(576p) : Outputs 480 lines of progressive video.
• 720p : Outputs 720 lines of progressive video.
• 1080i : Outputs 1080 lines of interlaced video.
• 1080p: Outputs 1080 lines of progressive video.
• BD Wise : Automatically sets the optimal
resolution when connected via HDMI to a TV with
the BD Wise feature. (The BD Wise menu item
appears only if BD Wise is set to On.)
✎NOTE
`If Component or Composite is connected, the
resolution supports only 480i(576i).
`1080P may not appear depending on TV.
Video Out Signal
Different countries apply different TV standard.You
can select from NTSC or PAL.
•NTSC : You can set to the NTSC video format
•PAL : You can set to the PAL video format
✎NOTE
`Depending on the type(NTSC or PAL) of main unit you have, the
TV screen displayed may be different.

18 English
Setup
English 19
HDMI Format
You can optimize the color setting from the HDMI
output. Select a connected device Type.
• Monitor : Select if connected to a Monitor via
HDMI.
• TV : Select if connected to a TV via HDMI.
Audio
DRC (Dynamic Range Compression)
This feature balances the range between the loudest
and quietest sounds. You can use this function to
enjoy Dolby Digital sound when watching movies at
low volume at night.
Settings
Move Select Return
DRC : 0
Audio Sync : 50 mSec
Display
Audio
System
Language
Security
Support
Full
6/8
4/8
2/8
Off
Speaker Selection
Audio Return Ch.
• You can select either Full, 6/8, 4/8, 2/8, Off.
AUDIO-SYNC
Video and audio sync may not match with digital TV.
If this occurs, adjust the audio delay time to
match the video.
Settings
Move Select Return
DRC : 0
Audio Sync : 50 mSec
Display
Audio
System
Language
Security
Support
Speaker Selection
Audio Return Ch.
0 ms
25 ms
50 ms
75 ms
100 ms
125 ms
150 ms
175 ms
• You can set the audio delay time between 0 mS
and 300 mS. Set it to the optimal status.
Speaker Selection
The audio signals transmitted over the HDMI Cable
can be changed Audio System/TV Speaker.
• Audio System : Video is transmitted over the
HDMI connection cable only, and
audio is output through the
product speakers only.
• TV Speaker : Both video and audio signals are
transmitted over the HDMI
connection cable, and audio is
output through your TV speakers
only.
✎NOTE
`The default setting of this function is Audio
System .
`HDMI Audio is automatically down-mixed to 2ch
for TV speakers.
`When TV Selection is set to TV Speaker, EQ/
POWER BASS doesn't work.
`With Speaker Selection set to 'TV Speaker', the
volume can be adjusted only using the TV remote
control.
Audio Return Ch.
You can enjoy TV sound from the speakers by using
just one HDMI cable.
• Off : Turn the Audio Return Channel function off.
• Auto: Listen to TV sound from the speakers if your
TV is compatible with the Audio Return Channel
function.
✎NOTE
`When Anynet+ (HDMI-CEC) is Off, the Audio Return
Channel function is not available.
`Using an ARC (Audio Return Channel)-uncertified
HDMI cable may cause a problem in compatibility.
`ARC function is only available if an ARC-compliant
TV is connected.

18 English
English 19
03 Setup
System
Initial Setting
By using the Initial Setting, you can set language and
TV aspect setting.
✎NOTE
`If an HDMI cable is connected to the product, the TV aspect
does not appear and it is set to 16:9 Wide automatically.
DivX(R) Registration
View DivX(R) VOD Registration Code to purchase
and play DivX(R) VOD content.
✎NOTE
`This option is not activated if you select OK.To
activate this option, please activate the DivX(R)
Deactivation.
`Even after you reset the system, the settings of DivX
Registration will not be reset.
DivX(R) Deactivation
Select this to get a new registration code.
Language
You can select the language you prefer for
on-screen menu, disc menu, etc.
Settings
Move Select Return
Disc Menu : ENGLISH
Audio : ENGLISH
Subtitle : ENGLISH
Display
Audio
System
Language
Security
Support
OSD Language : ENGLISH
Settings
Move Select Return
Audio : ENGLISH
Subtitle : ENGLISH
Display
Audio
System
Language
Security
Support
OSD Language : ENGLISH
Settings
Move Select Return
Disc Menu : ENGLISH
Subtitle : ENGLISH
Display
Audio
System
Language
Security
Support
OSD Language : ENGLISH
Settings
Move Select Return
Disc Menu : ENGLISH
Audio : ENGLISH
Display
Audio
System
Language
Security
Support
OSD Language : ENGLISH
Disc Menu
English
Arabic
Chinese
Dutch
Farsi
French
German
ENGLISH
KOREAN
DUTCH
FRENCH
GERMAN
ITALIAN
POLISH
PORTUGUESE
ENGLISH
KOREAN
DUTCH
FRENCH
GERMAN
ITALIAN
POLISH
PORTUGUESE
ENGLISH
KOREAN
DUTCH
FRENCH
GERMAN
ITALIAN
POLISH
PORTUGUESE
Audio
Subtitle
OSD
Language
Select the language for the
on-screen displays.
Disc Menu
Select the language for the disc
menu displays.
Audio
Select the language for disc audio.
Subtitle
Select the language for disc subtitles.
aTo select another language, select OTHERS of Disc
Menu, Audio and Subtitle, and enter the language
code of your country (see page 37).
aYou cannot select OTHERS in the OSD Language menu.
✎NOTE
`The selected language will only appear if it is
supported on the disc.
Security
The Parental Lock function works in conjunction with
DVDs that have been assigned a rating which helps you
control the types of DVDs that your family watches.
There are up to 8 rating levels on a disc.
Parental Rating
Select the rating level you want to set.
A larger number indicates that the program is intended
for adult use only. For example, if you select up to Level
6, discs that contain Level 7, 8 will not play.
Enter the password and then press the ENTER button.
- The password is set to "0000" by default.
- Once the setup is complete, you will be taken to the previous screen.
Change Password
Select Change and enter the 4-digit password to set the
parental lock using the number buttons on the remote control.
Settings
Move Select Return
Parental Rating : Off
Password : Change
Display
Audio
System
Language
Security
Support
If you forgot your password
In "NO DISC" mode, press and hold the STOP (@)
button on the front panel for 5 seconds or more.
All settings will revert to the factory settings.
Support
Product Information
Provide contact information for assistance with your product.

20 English
Basic Functions
English 21
Disc Playback
1. Press the OPEN/CLOSE button.
2. Place a disc gently into the disc Compartment
with the disc's label facing up.
3. Press the OPEN/CLOSE button to close the
disc Compartment.
✎NOTE
`Resume function: When you stop disc play, the
product remembers where you stopped, so when
you press PLAY button again, it will pick up where
you left off. (This function works only with DVDs.)
Press the STOP button twice during playback to
disable the Resume function.
` If no buttons are pressed on the product or
remote control for more than 3 minutes when the
product is in Pause mode, it will be changed to
Resume stop mode. and after another 5 minutes
in Resume stop mode, it will be changed to
screen saver mode.
` The initial screen may appear different, depending
on the content of the disc.
` Pirated discs will not run in this product because
it violates the CSS (Content Scrambling System :
a copy protection system) recommendations.
` DTS Audio is not supported.
※
will appear when an invalid button is pressed.
TV Screen Saver/Power Saving Function
• If no button input is made for more than 5 minutes
in Stop or Play (music) mode, the screen saver will
be activated.
• If the product is left in the screen saver mode for
more than 20 minutes, the power will
automatically turn off. (Except during play a music)
Audio CD(CD-DA)/MP3/WMA Playback
BA
Track01
1/17
0:15 / 3:59
Function DVD/CD Repeat Play Mode
1. Insert an Audio CD(CD-DA) or an MP3 Disc into the
disc Compartment .
• For an Audio CD, the first track will be played
automatically.
- Press the [] buttons to move to the
previous/next track.
• For the MP3/WMA disc, press the _+
buttons to select Music, then press the
ENTER button.
- Press the ▲▼_+ buttons to select a
desiredfileandpressthe ENTER button.
- Press the () buttons to move to the
previous/next pages.
2. Press the STOP (@) button to stop playback.
✎NOTE
`Some MP3/WMA-CDs may not play, depending on
the recording mode.
`Table of contents of a MP3-CD varies depending on
the MP3/WMA track format recorded on the disc.
`WMA-DRM files cannot be played.
