Samsung SDS-P3022 Installation and operation manual

www.samsungsv.com
FIRST EDITION 03-2014
DVR
• 960H real-time monitoring & recording
• Built-in 500GB hard disk drive (SATA)
• View from anywhere : Android, iPhone, iPad, PC, Mac
• Support network monitoring without LAN cable connection
to Router (Wi-Fi ready)
Camera
• 720TV lines of high resolution camera* (x 2)
• True Day & Night with ICR for perfect color reproduction
• IP66 weather resistant rating
• Night vision up to 82ft (25m)
Protect your asset
960H All-In-One Security Kit
SDS-P3022
4 Channel 960H DVR Security System
* SDC-7340BCN : 720TV lines / SDC-7340BCP : 700TV lines

Design and specifications are subject to change without notice.
4 Channel 960H DVR Security System
SDS-P3022
SAMSUNG TECHWIN CO., LTD.
6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, SEOUL 463-400 Rep. of KOREA
Tel : [phone]~8749, 8752~8760 Fax : [phone] www.samsungsecurity.com www.samsungcctv.com
COPYRIGHT BY SAMSUNG TECHWIN. ALL RIGHT RESERVED
SAMSUNG TECHWIN EUROPE LTD.
2nd Floor, No. 5 The Heights, Brooklands, Weybridge,
Surrey, KT13 0NY, UK
Tel : [phone] Fax : [phone]
SHANGHAI SAMSUNG TECHWIN CO., LTD.
32F, Blk B, International Business Center,
No. 391 Guiping Rd., Shanghai, China, 200233
Tel : [phone] Fax : [phone]
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,
and indicates that the product
satisfies the EU RoHS Directive.

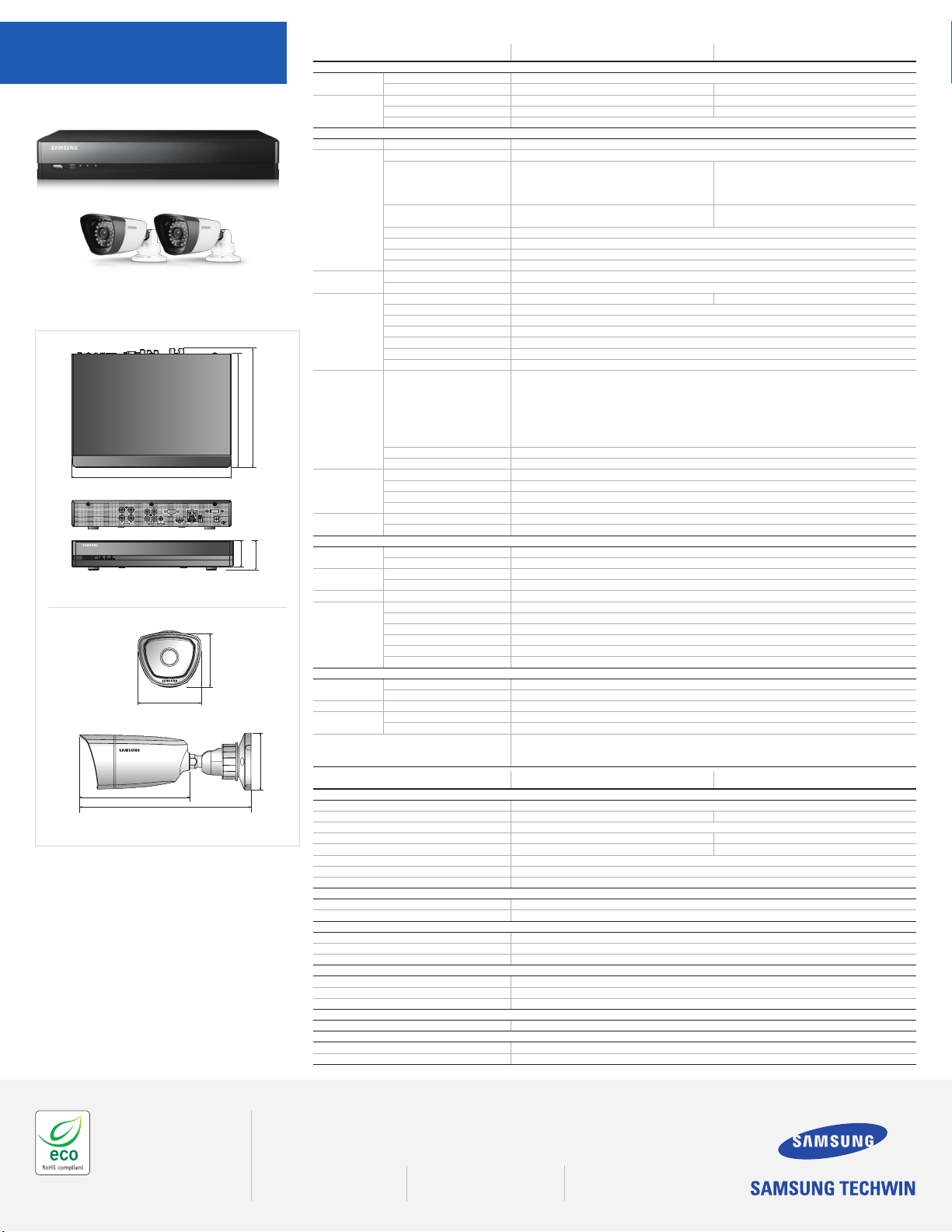

SDR-3102N SDR-3102P
DISPLAY
Video Inputs 4 composite video
Resolution 960 x 480, 720 x 480 960 x 576, 720 x 576
Live
Frame Rate 120fps 100fps
Resolution 960 x 480 960 x 576
Multi Screen Display 1 / 4 / Sequence / PIP
PERFORMANCE
Operating System Embedded Linux
Recording
Compression H.264
Record Rate
Up to 120fps@960 x 480
Up to 120fps@704 x 480
Up to 120fps@704 x 240
Up to 120fps@352 x 240
Up to 100fps@960 x 576
Up to 100fps@704 x 576
Up to 100fps@704 x 288
Up to 100fps@352 x 288
Mode Manual, Schedule (Continuous / Event),
Event (Pre / Post), Time lapse (1~30 fps) Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
Event Video loss, Motion (Sensitivity level 1 ~ 10), Tampering
Overwrite Modes Stop / Continuous
Pre-alarm Off / 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search &
Playback
Search Mode Date/Time, Event, Back up, Motion
Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward
Network
Transmission Speed 960H / 4CIF / 2CIF / CIF (120fps) 960H / 4CIF / 2CIF / CIF (100fps)
Bandwidth Up to 8Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Bandwidth Control Automatic
Live Stream H.264 (4CIF / 2CIF / CIF selectable)
Max. Remote Users 10 persons (Search up to 3 / Live unicast / Live multicast available)
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Monitoring SmartViewer, Webviewer, Mobile Viewer
Smart Phone
Web / App viewer
Supported OS
- PC : Windows XP / VISTA / 7 / 8, MAC OS X 10.7 / 10.9
- Mobile : Android OS v.2.3.5, v4.0.3, v4.1.2, 4.2, v4.3 / iOS OS v5.1.1, v6.0, v6.0.2, v6.1, v7.0
Supported Browser
- Microsoft Internet Explorer (Ver. 11, 10, 9, 8, 7), Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15), Apple Safari (v5.1, v6.1, v7.0)
(Mac OS X only - 10.9, 10.8, 10.7)
Protocol Support RTP, RTSP, HTTP, CGI
Max. Remote Users Live 1
Storage
Internal HDD 1 SATA HDD (500GB)
External (e-SATA Interface) 1 e-SATA I/F
USB (Back up) 2 USB ports (1 front / 1 Back)
File Format (Back up) BU (DVR player), EXE (Include player), AVI
Security Password Protection 1 Admin, 10 Group, 10 User per 1 group
Data Authentication Watermark
INTERFACE
Monitors VGA / HDMI 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080) / 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Simulatneous Output VGA and HDMI
Audio Inputs / Output 4CH line in / 1CH line out
Compression G.711
Alarm Remote Notification Notification via e-mail
Connections
Ethernet 1 RJ-45 10/100 Base-T
Serial Interface RS-485
USB / e-SATA USB 2.0, 2 ports (Front / Rear) / 1 External SATA port
Wi-Fi Optional with Samsung USB WiFi adapter
Application Support Mouse, Remote controller
Protocol Support Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, VICON, GE
GENERAL
Electrical Input Voltage / Current 12V DC adaptor, 100 ~ 240V AC ±10%, 50/60Hz
Power Consumption Max. 10W (With 1x HDD)
Environmental Operating Temperature / Humidity
+0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH
Mechanical Dimensions (WxHxD) 315.0 x 52.0 x 224.0mm (12.4" x 2.05" x 8.82")
Weight (With hard disks) Approx. 1.53Kg (3.37 lb)
Language
Korean, Japanese, Chinese (Simplified), English, French, German, Spanish (European), Italian, Russian,
Polish, Czech, Turkish, Dutch, Portuguese (South American), Swedish, Danish, Thai, Romanian, Serbian,
Croatian, Hungarian, Greek, Chinese (Traditional), Finnish, Norwegian (25 Language)
192.4 (7.57")
72.1 (2.84")
62.9 (2.48")
64.0 (2.52")
124.2 (4.89")
192.4 (7.57")
72.1 (2.84")
62.9 (2.48")
64.0 (2.52")
124.2 (4.89")
192.4 (7.57")
124.2 (4.89")
64.0 (2.52")
72.1 (2.84")
62.9 (2.48")
Dimensions
Unit : mm (inch)
SDR-3102
SDR-3102
SDC-7340BC
SDC-7340BC
315.0 (12.4")
224.0 (8.82") 235.0 (9.25")
52.0 (2.05")
57.0 (2.24")
315.0 (12.4")
224.0 (8.82") 235.0 (9.25")
52.0 (2.05")
57.0 (2.24")
52.0 (2.05")
57.0 (2.24")
315.0 (12.4")
224.0 (8.82") 235.0 (9.25")
315.0 (12.4")
235.0 (9.25")
57.0 (2.24")
52.0 (2.05") 224.0 (8.82")
Kit Contents
• DVR (SDR-3102)
• Camera (SDC-7340BC) 2pcs
• Remote Control / Battery / Mouse
• Adapter / Power Cord
• 60ft BNC Camera Cable 2pcs
• CD (Smart Viewer, User Manual)
• Quick Guide / Network Cable
• HDMI Cable
SDC-7340BCN SDC-7340BCP
VIDEO
Imaging Device 1/3" 960H CMOS
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Scanning System Interlace
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution 720TV lines 700TV lines
Min. Illumination Color : 7Lux, B/W : 0Lux (IR LED on)
S / N Ratio 46dB
Min. Cable Length 60ft (18.3m) included
LENS
Focal Length / Max. Aperture Ratio 3.8mm / F2.0
Angular Field of View H : 60˚ / V : 48˚ / D : 72˚
OPERATIONAL
Shutter Mode / Gain Control Auto (Rolling shutter) / Auto
White Balance / Digital Noise Reduction Auto (1,800°K ~ 10,500°K) / Auto
Day & Night / IR Distance (850nm) Mechanical : Auto (ICR) / 82ft (25m)
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH
Storage Temperature / Humidity -20°C ~ +60°C (+4°F ~+140°F) / 20% ~ 85%RH
Ingress Protection IP66 grade
ELECTRICAL
Input Voltage / Power Consumption 12V DC / Max. 3W
MECHANICAL
Color / Material White, Silver gray / Plastic (Poly carbonite)
Dimensions (WxHxD) / Weight 72.1 x 62.9 x 192.4mm (2.84" x 2.48" x 7.57") / 252g (0.55 lb)
