Sapporo SPW-2006 User manual

Fully Automatic Washing Machine
User's manual
Model SPW-2006
Please read this manual carefully before using.
Retain it for future reference.
0030507021A
S
A
P
P
O
R
O

Specifications.....................................................................................the 2nd cover
Names of the parts................................................................................................1
Safety precautions .............................................................................................2
Installation and adjustment ...................................................................................4
Preparation before washing .................................................................................8
Put in the laundries ..............................................................................................9
Usage of the detergent ........................................................................................9

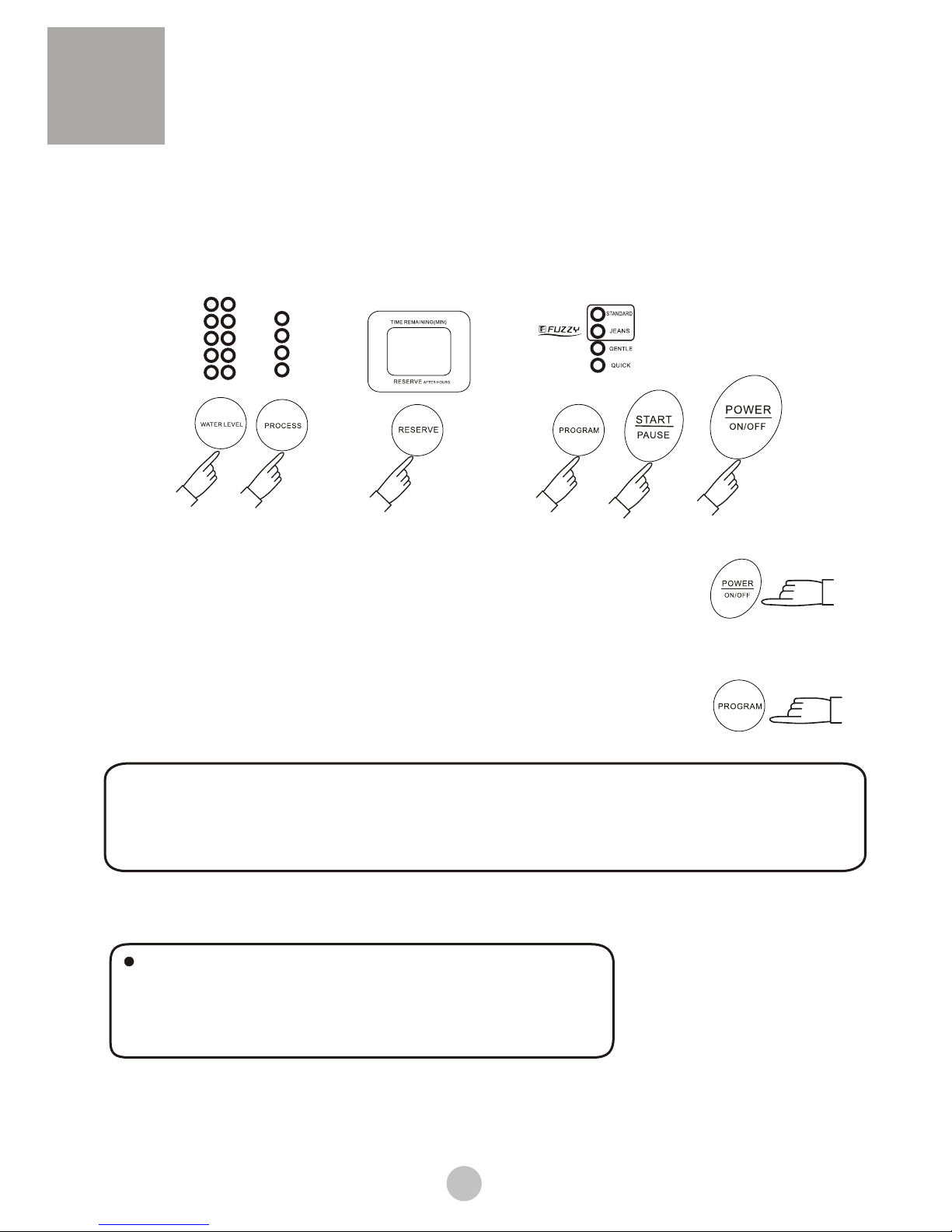

Use the operation buttons ..................................................................................10
Close the top lid .................................................................................................14
Finish washing ....................................................................................................14
Disposal after washing .......................................................................................15
Trouble shooting answer to question .............................................................16

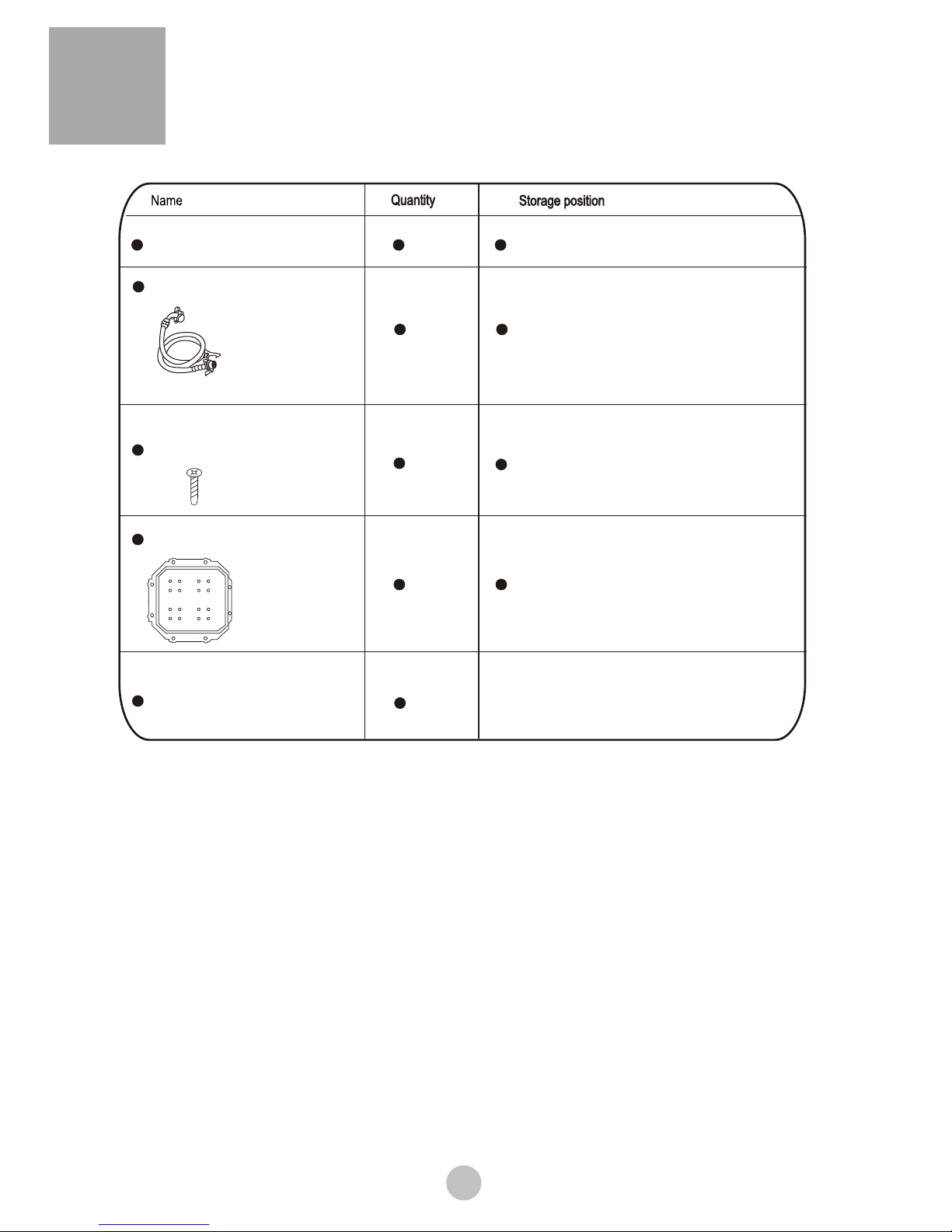

Packing list .........................................................................................................17
Specifications
Contents
L

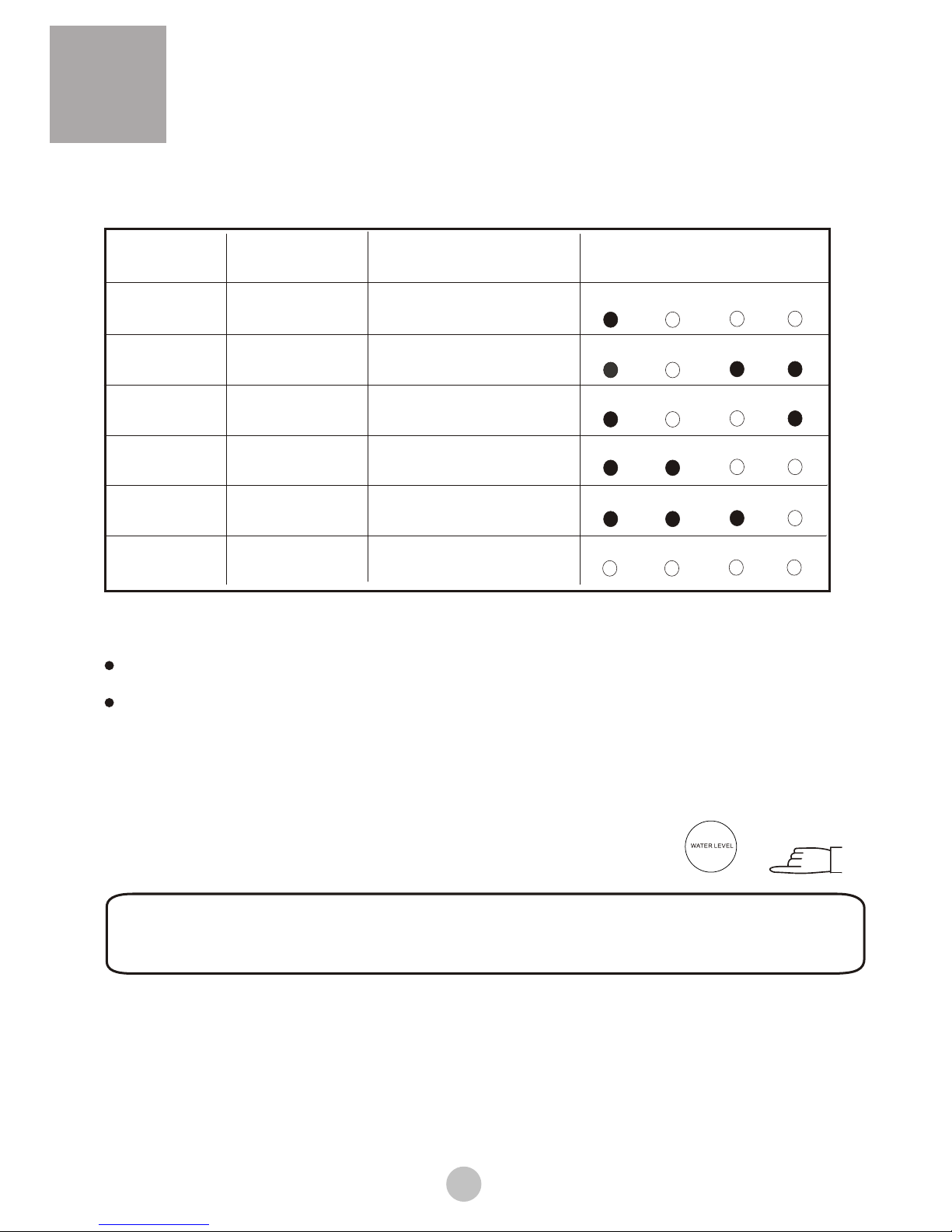

Water level/Water
quantity ( )
Water inlet pressure 0.03MPa-1MPa
washing / spinning
capacity(kg)
7.2
1/13 2/15 3/19 4/23 5/26
6/28 7/30 8/33 9/35 10/38

1
Names of the parts
Handle
Water inlet valve
Water absorption
cushion
Block cover
(do not dismantle)
Power cord
Drain hose
hanging hole
Drain hose
Back cover
Top lid
Detergent box
Control panel seat
Inner tub
Control panel film
Pulsator
Cabinet
Access for
liquid bleacher
Lint filter
Adjustable foot
Fixed foot
Adjustable foot label
Contents marked with that symbol are related to the safety
of the product and the personal safety of the users. Please
operate in strict conformity to the contents, otherwise it may
cause damage of the machine or injure the personal safety
of the user.
Contents marked with that symbol are actions forbidden to
perform. Performing of those actions may result in damage
of the machine or injure the personal safety of the user.
Meaning and description of the symbols
Warning sign
Forbidden sign

2
Safety precautions
Back
Front
The ventilation
holes at the bottom
Soft object
Do not let the machine share one receptacle with other
electric appliances. If the plugging into the receptacle
is loose, do not use the plug any more.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
Do not put the machine at damp place like
the bathroom. Never wash it with water. Do
not put wet laundries on the control panel.
Do not use water hotter than 50 .
In case the washing machine is installed on ground
with carpet, do not block the ventilation hole with
carpet.
Earth
Please plug the power plug on special
receptacle. Be sure to use three-pins
power receptacle. Ensure that the earthing
prong of the power receptacle is earthed
reliably. Use leakage protector if possible.
Do not bend ,extend,twist,bind by force.Do not press or nip it with weight.
Keep the pin of the power plug clean,if the power plug is polluted with dust,
please wipe with dry cloth carefully.
If the power cord or the power plug is bad, to avoid risk it is
required to have it replaced by the technicians of our
special shop or our customer care agent.
The washing machine must be positioned so that
the plug is accessible. Be sure to pull the plug off
and close the water faucet in following cases:
power failure, delivering the machine, setting the
machine idle or cleaning the machine. Do not plug
or pull the power plug with wet hand.

3
×¢ÒâÊÂÏî
Safety precautions
Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children. Do not let the children
climb the washing machine.
Petrol
Thinner

4

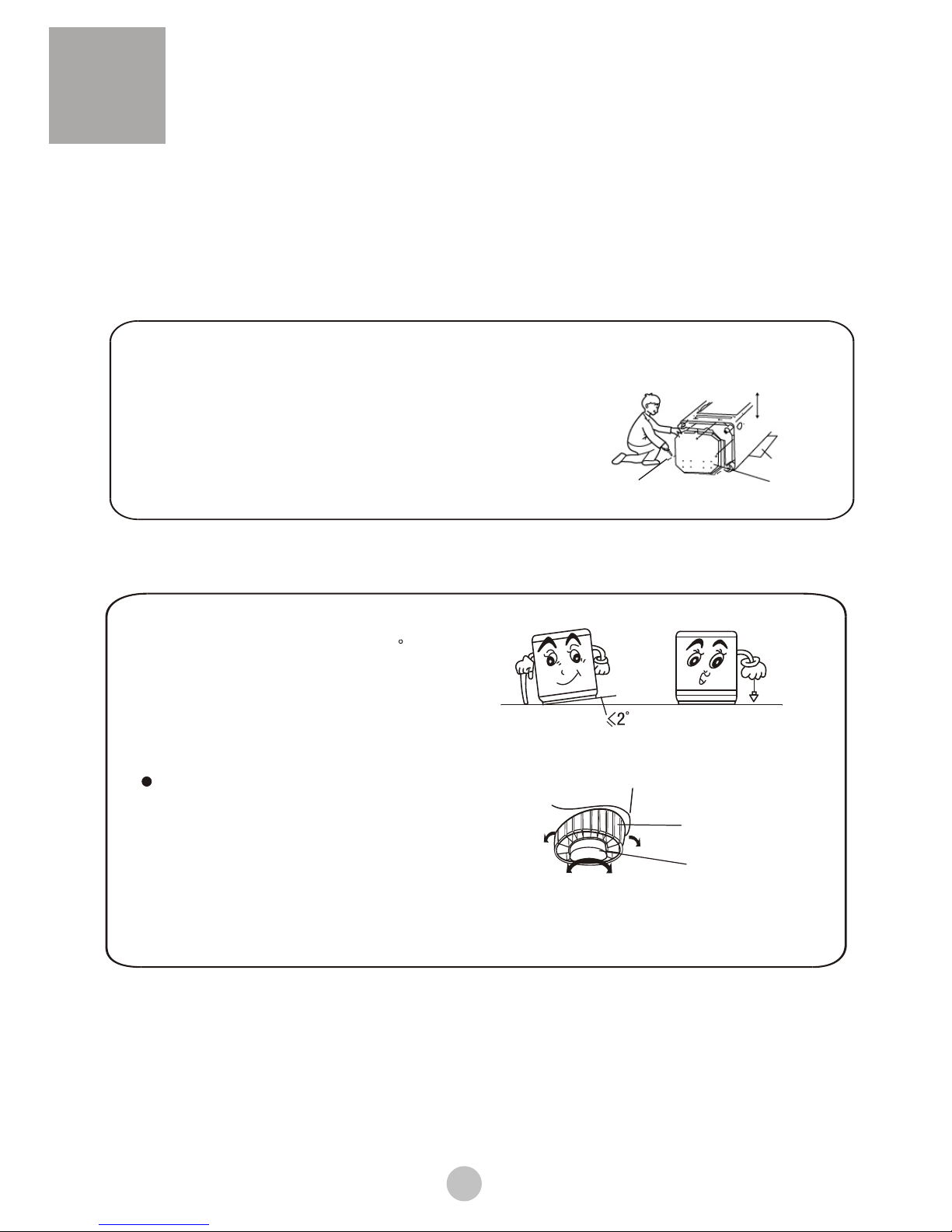

Installation and adjustment
The largest allowed slope of the
shank base of the machine is 2 .
The slanting or rough ground will
result in unstable running or
stoppage of the machine. Please
adjust it with following methods:
Adjust the adjustable foot:
Install the bottom plate
Adjust the installation position
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
1.To twist the adjustable foot, please
first lift up the side of the foot slightly,
loosen the adjustable nut, and twist
the foot.
2.Fasten the nut after adjustment.
Loosen Fasten
High Low
adjustable nut
adjustable foot
After you open the package, please lean the
washing machine gently down on soft items
( like the towel cloth, blanket, etc. ). Install the
bottom plate to the bottom of the machine with
the eight screws by a cross screwdriver,
then lift the machine up gently. See to the figure:
Screw
Front
Bottom plate
Soft items
Back

5

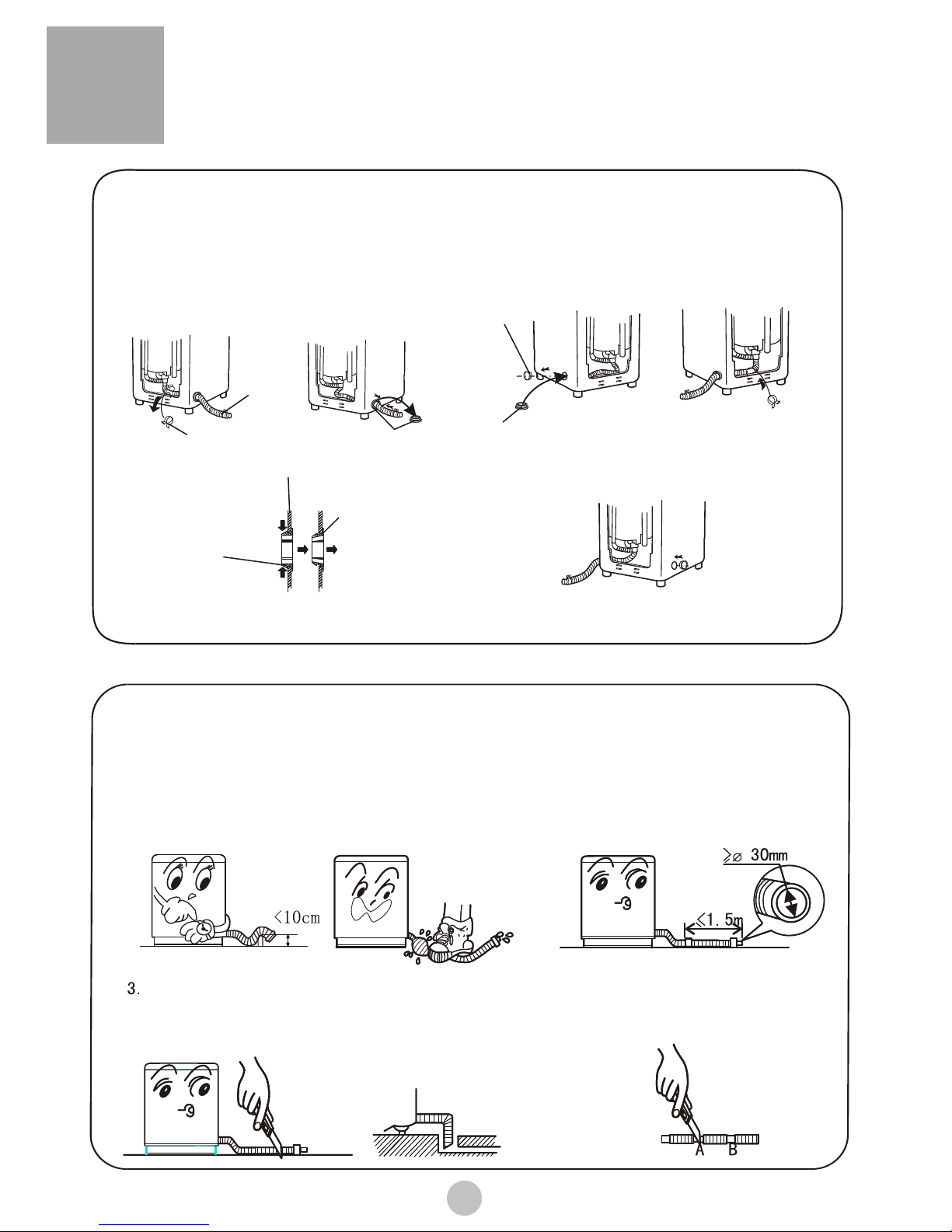

1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not trample or press the drain hose.
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
If the extra hose is too long, cut it
either atA orat B point.
How to change the direction of the drain hose
Usage of the drain hose
The drain hose shall drain smoothly
1.Dismantle the back cover of the washing machine. 3.Dismantle the protecting cover of the drain outlet
at the other side (method the same as the bushing).
Install the bushing as per indicated in Figure 4.
4.Extend the drain hose from the other side. Fix the
drain hose onto the base frame with the drain hose
frame. (As indicated in Figure 5)
5.Install the protecting cover of the drain outlet
at the other side as per indicated in Figure 6.
Drain outlet
protecting cover
Drain hose bushing Drain hose bushing
Figure 1
Figure 4 Figure 5
Figure 6
Drain hose
bushing
Take off
Drain hose
bushing claw
Cabinet Figure 2
Figure 3
Inner
Press
Press
Outer
2.Put down the drain hose. Take off the drain
hose frame. As indicated in Figure 1, put the
drain hose into the cabinet. Then stretch one
hand into the cabinet to nip the claw of the
drain hose bushing to remove the claw from
original position. Take off the drain hose
bushing with the other hand. (As indicated in
Figure 2 and 3).
Drain hose frame
Outer
drain
hose
Attention: To guarantee the proper installation, it is suggested to have the direction changing of drain
hose performed by the after-sales service technicians of our company.

6

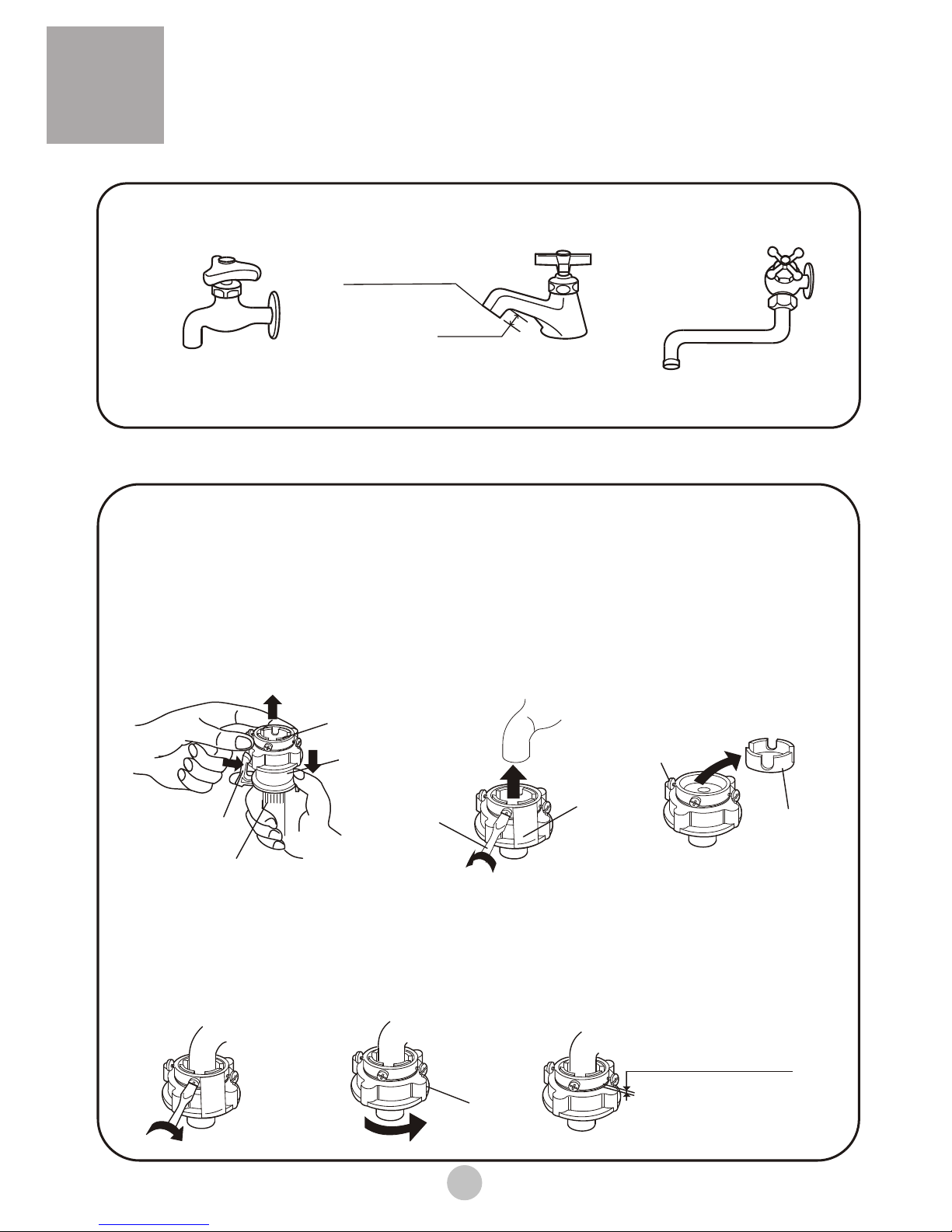

Water tap,suitable Water tap,not suitable
It is required that the front end shall belonger than 10mm.
The outlet endsurface of thetap shall beflat and smooth.If not please file it to
avoid leakage.
3.Loosen the screw till the water tap can be accessed. Put the jointer of the water
inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer
can not be set on the water tap, please loosen the four screws and take out the
bushing in the jointer. See to the figure3.)
2.Press the lower end of the lock lever and push down the slider. Take off the water
inlet hose jointer from the water inlet hose component. See to Figure 1.
Remarks: Before twisting the fastening nut, the thread is 4mm above the
upper surface ofthe nut.After twisting the fastening nut,the thread is2mm
above the upper surface of the nut. See to Figure 6.
5.Take off the nameplate. Twist the fastening nut as per the indication of the figure.
See to Figure 5.
4.Fasten the four screws evenly. See to Figure 4.
>10mm
Outlet end surface
Nut
About 4mm before twisting
About below 2mm after twisting
Screw
Screwdriver Mark label bushing
Figure 2
Figure 5
Figure 1
Figure 4
Figure 3
Figure 6
Slider
Water inlet pipe jointer
Water inlet pipe
Locking lever
Install the water inlet hose
Confirm the water tap
Connection between the water inlet hose jointer and
the water tap
1.Use the new water inlet hose provided with the machine to connect to the water
faucet. Old hose sets should not be reused.

7
1.Do not takeoff the water absorption
cushion. Please checkif the cushion
is dropped ordamaged before each
usage. If ithappens please contact
our after-sale departmentimmediately.
2.Put the nutof the waterinlet hose on
the valve jointer.
3.Fasten the nut.Swaying it gentlyto
confirm if it'ssuitable.
1.Close the water tap.
2.Press the locking lever. Push down the slider. Then
pull off the water inlet hose. If the machine is used
more than once every week, the jointer of the water
inlet hose can be kept on the tap to prevent
damaging the fixing screw.
1.Push down theslider. Insertthe
water inlet hoseinto the jointer.
2.Hang the locklever to thejointer.
Release the slidertill a click
sound is heard.
Locking lever
Slider
Water absorption cushion
Nut of the water inlet hose
Jointer of thewater inlet valve
Slider
Jointer of thewater
inlet hose
Locking lever
Connection between the water inlet hose and the
washing machine
Connection between the jointer of the water inlet
hose and the water inlet hose
Check the connection between the jointer of the
water inlet hose and the water tap
Take down the water inlet hose
1.Swaying the hose gently to confirm if it is fastened
stable.
2.After installation, openthe tap tocheck if itleaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if
the connection between the jointer
of the water inlet hose and the water
tap, and the installation of the
water inlet hoseare firm, soas to
prevent dropping from improper

Ï´Ç°×¼±¸
8
Preparation before washing

9
Put in the laundries
Usage of the detergent
Access for
liquid bleacher
Control panel seat
Washing powder
inlet
Washing powder box
Add washing powder into the box
directly as per indicated in left figure
After adding, close the box.
How to use the whitener
Fill water to decided level .Dilute the
whitener with container. Pour it slowly
into the washing tub.
Avoid using whitener on laundries
with color or pattern as they are prone
to lose color.
The whitener shall not touch the laundries
directly.
Refer to the user's manual for the usage
and quantity of the whitener.
For powder whitener, please dissolve it
before use.
The capacity of washing of the machine refer to the largest weight of the standard
laundries under dry condition that can be washed in one time. Laundries quantity
in one washing cycle shall be lower than the rated capacity.
The thickness ,size , type of the cloth will influence the actual washing capacity.
It is suitable to put inreasonable amount of laundries and the laundries can be turned
round in washing for one time washing.
Do not select more than "4" water level for laundries less than 1.0kg ,so as to
avoid splashing of water.
How to use washing powder
Washing powder with poor quality or long-time storage may
get caked. Please clean the detergent box duly in usage.
Dissolve directly inside the washing machine: (not applicable
for fuzzy and reserve program)
1.Add some water(select the "1" water level)
2.Add washing powder. Run for about 30s to fully dissolve
the powder. Then push the"s tart/pause" button.
3.Put in laundries. Select suitable water level. Push the
"start/pause"
button again.
Quick dissolving of washing powder:
1.Prepare warm water of 30 C and container.
2. Add washing powder while stirring to dissolve it completely.
It is not recommended to use rich-foam washing powder.
If you select quick program, it is suggested to use liquid
detergent instead of washing powder to guarantee the
washing effect.
Please add suitable washing powder as per the laundries
quantity, the set water level and water quantity.
It is suggested to add washing powder into the box directly
under fuzzy program and reserve program.

Ï´µÓ˳Ðò
10
Use the operation buttons
a. Description of the function of the buttons
Flashing: indicate therunning program
On: indicate theprogram about torun, or
indicate the selectedmode
Off:
Water level selection button
""
Reserve/remain time digitron
During sensing, it displays --
During reserve process, it displays the
remained reserve time (in hours).
During runtime of program, it displays
the remained time (minutes)
The washing machine can detect the laundries auto-
matically. After detection, it will set the water level to
suitable value among 4, 6, 8,and 10 automatically.
You can also set water level by yourself. After the
machine is started, it will not set water level auto-
matically. You shall push the start/pause button to
make new setting.
If there's water inside the tub, the machine cannot
detect the laundries and will display water level 6 .
If quick program is selected, it will display water level
2. When water level 2 is reached in water filling, it will
perform washing while filling water. When water level
4 is reached, it will change to normal washing.
During wash process, you can push and hold the
water level button to add water.
The water level decided may be different from actual
value because of the different moisture level of the
laundries.
With it you can select one or
several processes of soak,
wash, rinse and spin.
"PROCESS button"
Mode and meaning of the indicator light
9
7
5
3
1
10
8
6
4
2
SOAK
WASH
RINSE
SPIN
WATER LEVEL PROCESS RESERVE

Ï´µÓ˳Ðò
11
After the power is switched on, push
it to start the machine
During working, push it to pause working.
During pause, push it to resume working.
Start/Pause button
""
Push the On/Off button to switch
on the power.
When the power is on, push it again
to switch off the power.
Push the On/Off button to switch
on the power. If the start/pause
button is not pushed, the washing
machine will automatically switch
off the power after 5 minutes.
Normal wash
Large, thick or heavily soiled laundry
Woolen textiles or underwear
10 min quick wash for load below 1 kg
"PROGRAM " button
You can select from the following four programs.
Program
Jeans
Gentle
Quick
Standard
Power On/Off button""

Use the operation buttons
b. Operating procedure and explanations for the
buttons
12
After switching on the power, the machine will set to STANDARD program automatically.
To select other program, push the PROGRAM button till the corresponding indicator
is on.
For example: select QUICK for the quick washing of the laundries with light dirt.
""
""
In selecting the STANDARD or JEANS programs,
the machine will execute fuzzy program to control the
complete procedure automatically according to the cloth,
weight and water temperature to select water level,
current and washing time.
""""
1 Push the POWER ON/OFF button to switch on
the power ""
2 Push the PROGRAM button to select the
suitable automatic program
""
42
3
56
1
9
7
5
3
1
10
8
6
4
2
SOAK
WASH
RINSE
SPIN

After switching on the power, the machine will set to wash-rinse-spin program automatically.
That is the most common program. To select other program, push the PROCESS button to
select one or more programs among soak/wash/rinse/spin. Refer to the Selection method
of the process programs for the selection.
""
"
"
3 Push the PROCESS button to select suitable
programs""
Use the operation buttons
Even there's no water in the tub, the
spinning will start after a certain period.
Wash the laundries that are prone to
lose colors separately from other laundries.
The pulsator will not rotate unless the water is filled to selected water level.
Attention

13
If you push the PROCESS button for 6 times, it will resume the original mode,
and it will circulate like that.
The soak program can be used as fitting of the STANDARD & JEANS automatic
programs. Soak with slight stirring before wash.
""
Times of pushing
button
""PROCESS
0
1
2
3
4
5
Applicable procedure
Contents(the lighted indicators
indicate the programs about to run)
Spin(spin after
drain)
Wash(the washing
liquid remains in
the tub)
When the common laundries
need washing, rinsing and
spinning.
Repeat using the washing
liquid
When the laundries need
rinsing and spinning after
manual washing
When the laundries need only
spinning after manual
washing (first drain then spin)
If the laundries are very dirty,
or the sleeve and collar are
dirty, first soak then wash
Wash, rinse, spin
Rinse, spin
Wash, rinse(the
rinsing liquid
remains in the tub)
Repeat using the washing
liquid
Selection method of the process programs
Selected procedure
program
Soak Wash Rinse Spin
Soak Wash Rinse Spin
Soak Wash Rinse Spin
Soak Wash Rinse Spin
Soak Wash Rinse Spin
Soak Wash Rinse Spin
Soak, wash,
rinse, spin
When the power is switched on, the washing machine will check the cloth automatically.
After that, the water level is set automatically. To select other water level, push the button.
4 Push the WATER LEVEL button to select
suitable water level
""

14
the washing willfinish
about 12 hours later
Confirm the reserveprogram
6 Press the "start/pause" button
5 Push the " " button to select
suitable reserve program
RESERVE
Close the top lid
Finish washing
The washing machinecuts off thepower supply
automatically when washcycle ends.
When the power is switched on, the reserve program is disabled automatically. If you
need to finish the washing in reserved time, please push the "RESERVE " button to
select suitable program.
When the reserve program is started, pressing the button,
the numeral tube displays the reserved hours to the wash
cycle end. The point light flashes to indicate in-reservation.
To change the running program or cancel reservation,
you have to switch off the power and make new
selection.
If you open the top lid,the machine will stop working and alarm in
spinning process.

Disposal after washing
After using, please clean the lint and foreign materials of the lint filter etc. in time.
Otherwise it may influence your using the machine.
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
Please first pull off the power plug from the receptacle before cleaning.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time
(about 1 hour), then close the top lid.
4.Hang up the power cord and drain hose.
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
15
If the cabinetis dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it withneutral detergent.
Do not wipe it with thinner, petrol,
alcoholetc.
The filter screen of the water inlet
valve is likely to be blocked by
foreign materials andinfluence
the water inlet.Please clean it.
Thinner
Petrol
Alcohol
Clean the detergent box and set it on
the control panel seat.
1.The method of dismantle:Push it up aslant and gently.
2.The method of install : install it upwards and aslant
and push it in .
Dismantle Install
The lint filter must be used during washing.
It must be cleaned in time after each using.
Dismantle and install lint filter
Dismantle and install lint filter back cover
Filter cover
Lint filter
The back cover of lint filter
The front cover of lint filter
install
dismantle
The methods ofdismantle and installlint filter as
follows:
1.Push down thespring piece ofthe top lintfilter
to make theclaws out ofthe filter cover, and then
pull out thelint filter toget it down.
2.Pull the backof the lintfilter, andthen you can
get down itoff the frontcover of thelint filter.
3.Sweep the rubbishin the lintfilter.
4.Put the backof the lintfilter into thefront cover .
5.Put the lintfilter into filtercover, andmake it tight
6.Make sure thelint filter iswell installed, orit can
influence your use.

16
Trouble-shooting answer to question
Phenomena The reason How to settle
The top lid is not closed
Is the drain hose put down?
Is the drain hose blocked by
foreign material?
Are the laundries put slantingly?
Are the laundries slanting in
spinning?
Is the machine slanting?
Is the machine slanting?
The water tap is not open
The water inlet valve is blocked
Is there power failure?
Is the power plug loose?
Is the jointer screw of the water
inlet hose is loose or twisted
awry?
The water faucet leaks
There's abnormal sound inside the
machine
The machine does
not act
Close the top lid
Put down the drain hose. Open
and close the top lid once.
Clean the foreign material.
Open and close the top lid once.
Re-order the laundries. Close the
top lid.Level the machine in right
position.
Open and close the top lid once.
Open the water tap.
Push the "Start/Pause" button.
Clean the water inlet valve.
Push the "Start/Pause" button.
Wait for the normal water pressure
Before use.
Use it when the power is on.
Insert the power plug tightly.
Level the machine properly.
Re-order the laundries.
Fasten the jointer screw
properly.
Does the water level arrive at the
set water level?
Affusion to the set water level.
Is the power plug loose? Insert the power plug tightly.
Is the top lid closed? Close the top lid
Are the laundries put orderly? Put the laundries orderly.
Not spin
Not wash
Buzzing upon reservation starts,
the digitron displays "E0"
Safety switch actuates, not
spin, (after self-correction
twice), the digitron displays
"E3", buzzing
No or slow water filling ,
the digitron displays "E4",
buzzing
No or slow drain, the digitron
displays "E1" , buzzing.
The top cover leaves open Close the top lid
Running pause during spin,
the digitron displays "E2",
buzzing
There may be some water flowing out of the
drain hose in the first use of the machine.
It is the water remained performance inspection
by the factory.
Common phenomena
Phenomena Explanation
The spinning is intermittent when it starts.
The wash procedure pauses.
Select spin program, but it does not work.
Balance the laundries to avoid slanting.
The cloth sensor is detecting , it will add water
after about 48 senconds.
The program is setting the drain time , certain
period is needed before it starts spinning.
(If there's breakdown, please pull off the power plug before checking) The following phenomena are not
breakdowns sometimes. Please confirm again before sending it to repair. Do not repair it by yourself.
The water pressure is too low
and the current is too small
The water level sensor is bad. Please contact the after-sales
service department.
The digitron displays E6.

Packing list
17
Automatic washing machine
Between the upper cushion of the washing
machine package and the upper seal of the
package carton
Bottom plate
One
Inside the accessory bag
Eight
Tapping screws
Inside the document bag
One
One
User's manual
One Inside the accessory bag
Components of the water inlet
hose
