SB SB4084 User manual

Instruction Manual
Upright Freezer
SB4084
GB
Read and retain these instructions for future reference

2
Operating Instructions
Dear customer,
To enable you to use your new freezer effectively and safely, please read this instruction
book carefully before you start the appliance, which contains important information for
installation, safe use and maintenance of this appliance. Please keep the book for future
reference and remember to pass it on to the new owner. The following symbol will be found
in the book to guide you through the instruction:
Guide to use the instruction ook
arnings Operating instructions
Tips and notes
arnings are stressed with a warning triangle or with signal words ( arning!, Important!),
which are provided in the interest of your safety. Ensure that you understand them all before
installing and using this appliance.
Tips and notes will inform you with necessary knowledge of how to use the appliance
economically and environmentally.
Operating instructions presented in the section of “Trouble shooting” contain instructions for
correction of possible malfunctions by users. If these instructions are not sufficient, contact
your supplier.
Safety Instructions Hints and Tips
Thefollowing Symbols will befound in thetext to guideyou through theinstructions

3
Index
Important Safety Instructions …………………………………………………………………………….4
Description of the Appliance ……………………………………………………………………………..7
Using your Appliance………….……………..………………………………………………………..…...9
Change the Reversi le Door…………………..………………………………………………….……..11
Hints and Tips………………...……………………………..………………………………………………14
Trou le Shooting……………………………………..…………………...………………………………..15
Correctly Positioning…………………………………..…………………………………………………..16
Warranty….. ……………………………………….…………………………………………………………18

4
Important Safety Instructions
These warnings are provided in the interest of your safety. Ensure that you understand them
all before installing or using this appliance. Your safety is of paramount importance. If you
are still unsure about the meaning of these warnings, contact the supplier for assistance.
Intended use
The refrigerator is designed for domestic use only, in detail for storage of edible foods at
low temperature. If the refrigerator is used for other purposes such as commercial
applications or used incorrectly, the manufacturer accepts no liability for any damage that
may occur. Alterations or changes to the refrigerator are not permitted for reasons of safety.
Prior to initial start-up
Check the appliance for transport damage. Under no circumstances should a damaged
appliance be plugged in. In the event of serious damage, don’t hesitate to contact with your
supplier.
Refrigerant
The refrigerant isobutene (R600a), a natural gas with high level of environmental
compatibility and non-flammable, is contained within the refrigerant circuit of the appliance.
Ensure that none component of the refrigerant circuit becomes damaged during
transportation and installation.
If the refrigerant circuit should be damaged:
•Avoid opening flames and sources of ignition.
•Thoroughly ventilate the room in which the appliance is situated.
Warning!
•Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear
of obstruction.
•Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•In order to avoid a hazard, the supply cord should be replaced by the manufacturer,
or the service agent, or a similar qualified person when it has been damaged.
Safety of children
Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of
suffocation! Keep packaging materials away from children!
Remember to dispose the old appliance that is unusable. Pull out the mains plug, cut off the
mains cable, break or remove spring or bolt catches if fixed. And ensure that children cannot
lock themselves in the appliance when playing (there is risk of suffocation) or involve
themselves in other dangers, for children cannot recognize the hazard present in household
appliances themselves. Therefore, it is very important for parents to make adequate
Thefollowing Symbols will befound in thetext to guideyou through theinstructions

5
supervision in case children play with the appliance!
Daily operation
Containers with flammable gases or liquids can leak at low temperature. There is a risk of
explosion! Do not store any container with flammable materials such as spray cans in the
refrigerator.
Do not operate any electrical appliance in the refrigerator (e.g. electric ice cream makers,
mixers etc.).
Before cleaning the appliance, always switch off the appliance and unplug it, or pull the
house fuse or switch off the circuit breaker.
In case of malfunction
If a malfunction occurs, please look first in the “Trouble Shooting” section for help. If the
information given there does not help, just leave it alone and ask your supplier for help.
Under no circumstances should you attempt to repair the appliance yourself. For repairs
carried out by inexperienced persons may cause injuries or serious malfunctions.
Installation Instructions
The appliance should be placed in a dry and well-ventilated room. Since the performance and
energy consumption of the refrigerator can be affected by the ambient temperature, the
following instructions should be ensured:
•Don’t expose the appliance to direct sunlight,
•Don’t install the appliance close to radiators, cookers or other sources of heat,
•Place the appliance at a location where the ambient temperature corresponds to the
climate classification for which it is designed. You can find the climate classification
on the circuit-diagram-serial-plate located at the left-upper side of the appliance.
The following table shows this climate classification and its matching ambient temperature:
Climate classification Am ient temperature
SN 10~32
N 16~32
ST 18~38
T 18~43
Your appliance will be heavy when loaded with foods and must therefore be placed on a
strong firm floor and ensure the power socket is accessible.
Ventilation Requirements
Ensure that the air could circulate freely around the cabinet. There should be 100mm
between the top of the appliance and any overhanging furniture, and a gap of 25mm on
either side of the appliance.
Ensure that the appliance does not stand on the electrical supply cable. Parts that heat up
should not be exposed. henever possible the back of the appliance should be close to a

6
wall but remember to leave the suitable distance required for ventilation.
Leveling
The appliance should be level in order to eliminate rocking. To make the appliance level, it
should be upright and both adjusters should be firmly contacted with the floor. You can also
adjust the level by screwing out the appropriate level adjuster at the front (use your fingers
or a suitable spanner), but much care should be taken when moving this appliance since it
should be heavy.

7
Description of the Appliance
Article number: SB4084
Ean number: 8718226350190
View of the appliance
1. Control panel 2. Ice tray (inside) 3. Upper drawer 4. Motor fan part (inside) 5.Air
outlet
6.Middle drawers 7.Drawers 8.Middle drawers 9.Lower drawer 10.Caster 11.Door
Note
Due to unceasing modification of our products your refrigerator may be slightly different

8
from this Instruction Manual, but its functions and using methods remain the same.
Note
Due to unceasing modification of our products your refrigerator may be slightly different
from this Instruction Manual, but its functions and using methods remain the same.
Freezer cham er
It is for freezing and storing frozen foods and making ice cream, etc.
Ice tray
It is for making ice, pour cool boiled water into ice tray up to 4/5 of its volume, place it in
freezer room for 2 hours and the ice can be made automatically. hen you want to take ice
tubes, please twist the ice tray slightly, and the ice tubes are separated form the ice tray. But
do not bend it, otherwise it will crack.
Notes: Technical information
Because it takes a long time to make ice tubes, you can not hold the ice tray directly
when take out the ice cubes to avoid the ice tray sticking and hurting your hands.
Drawers in freezer
It is for freezing or storing foods. You must cut the big meat into small pieces to avoid hard
cutting when cook. The quick-freeze foods must be evenly placed in drawer, and put them
together to store after freezing.

9
Using Your Appliance
This appliance is designed for domestic use only, specifically for the storage of edible foods.
And it is designed to operate in ambient temperatures (surrounding air temperature)
between 16 and 38. If the temperature exceeds that designed, either colder or warmer,
the appliance will not work effectively and correctly. Should the ambient temperature be
exceeded for long period, the temperature in the freezer will rise above -18 and food
spoilage may occur.
Before use
Remove all securing tapes. ash the inside of the appliance with lukewarm water added with
a little bicarbonate of soda (5ml to 0.5 liter of water). Do not use soap or detergent since the
smell may linger. After cleaning, dry the appliance thoroughly.
To start the appliance
Operating instructions
1. Allow the appliance to stand for 2 hours after installation.
2. Plug in the appliance and turn on the power.
3. Turn the thermostat control to the required setting. A midway setting is usually
suitable for normal operation.
4. Leave the appliance for approximately 4 hours to reach the correct temperature
before placing food inside.
Thermostat Control
The control panel that is for control the temperature inside refrigerator compartmemt and
freezer compartment is loaded in the supporting of top cover plate..
Thermostat of Freezer Compartment
If you press the ▲ or ▼,you can set the temperature until you want the freezer temperature
setting rang is from -30  to -14.
If you press the ▲ or ▼ for more than 1 seconds, the temperature would increase or
descend 1 per 0.5 seconds.

10
Super Freezer
If you need the temperature inside freezer to drop quickly , please press this button. the unit
runs in SUPER FREEZER until the temperature inside freezer reach your setting.
Alarm for Door
If you do not close doors after open for 2 minutes ,the buzz give alarm 3 times per 30
seconds, and it would stop buzz until the door open for 10 minuets.
Alarm for Freezer
If the freezer room temperature is set between -14 and -30, when the inside temperature
Tf-6, the buzz would give alarm 3 times per 10 seconds, at the same time the alarm LED
and the freezer room displayed temperature flash, if you press the super freezer button or if
the buzz alarms for more than 2 min, the buzz would stop alarm and the room displayed
temperature stop flash.
If you press the super freezer button for 3 seconds, you can see the above record of highest
current inside temperature again,if freezer room temperature Tf-6 the alarm LED and the
displayed temperature of freezer room stop flash.

11
Change the Reversi le Door
The fridge has been built with the door hinges on the right. If you wish to change the
opening direction, follow the instruction below:
Warning!
hen changing the side at which the door opens, the appliance must not be connected to
the mains. Remove plug from the mains beforehand.
Tip
Food in the fridge should always be covered or packaged, to prevent drying and tainting of
other food.
The following are suited for packaging:
•Polyethylene airtight bags and wraps
•Plastic containers with lids
•Special plastic covers with elastic
•Aluminium foil
First, remove the left upper hinge cover. Then remove the right upper hinge cover, and the
three bolts, then remove the upper hinge that hold the door in place. Lift the upper door and
place it on a padded surface to prevent scratching it.

12
Remove the screws that hold the lower hinge, and transfer them to the accessory package
Take another lower hinge from the accessory package then transfer it and the support to
the left property position.
Take another lower hinge from the accessory package then transfer it and the support to
the left property position

13
Make the lower hinge reverse the direction 180 degree, then transfer it to the left property
position. Make the lower hinge pin into the upper hole of the door, then tight the bolts, tight
the screws to secure the door.
Place the right upper hinge cover at the left position. Take another right upper hinge from
the plastic bag that is used to cover user manual, then set it to the right property position.
Place the base grille
Door swing reversal (optional)

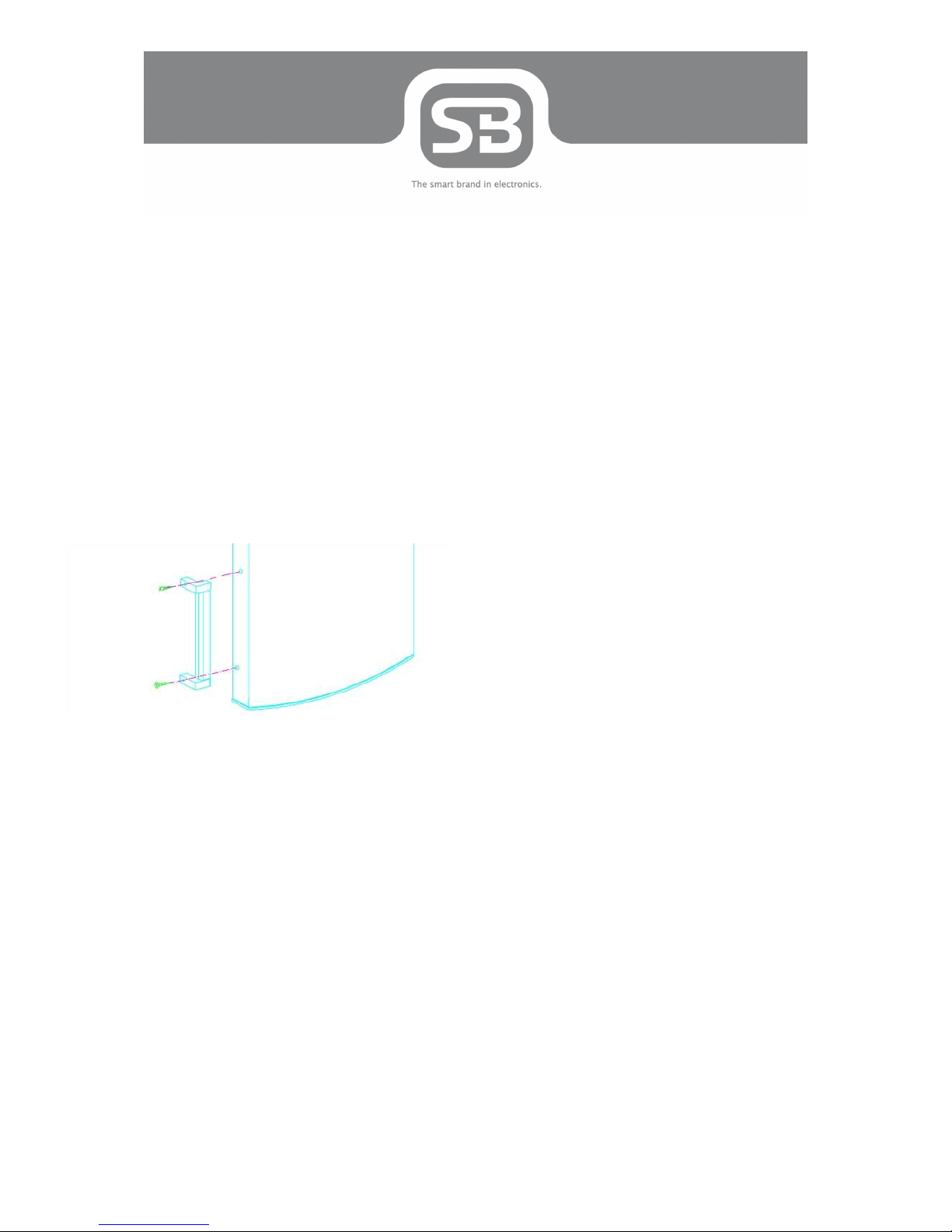

Remove the handle screws that hold the door handle on the up door from the left holes as
illustrated, and transfer them to the uncover hole at the right side, tight the screws. Then
remove the screws that hold the handle cover on the up door panel from the left side to the
right side, tight the screws.
The method of changing lower handle is same.

14
Hints and Tips
Food storage
To use your appliance more effectively, evaporator should be placed in the larder
compartment. Avoid buying frozen food if you cannot store it. Store in original container is
advisable. Please place the frozen foods you bought into the freezer as soon as you arrive
home, and make sure:
•Do not push food together too much.
•Try to allow air to circulate around each item.
•Do not store food uncovered.
Ensure the foods placed in the freezer are dated and labeled, and used them in date order,
so you can consume them at its best. Remember to remove suspect food from your freezer
and keep it cleaning inside.
Energy saving advice
Do not locate the appliance close to heat sources such as cookers, dishwashers or radiators.
Make sure the appliance is placed in a cool well-ventilated room so that the air can circulate
very well.
Avoid unnecessary frosting in the cabinet by packing all foodstuffs into sealed packages.
Avoid keeping the door open for a long time, for the warm air outside will enter the cabinet
as well as the cold air inside will leak out of the cabinet, which will cause energy wasting.
Ensure there exists no obstruction preventing the door from closing properly.
In the event of a power failure
If there is a power failure when the appliance works, don’t open the door. If the temperature
inside your freezer should rise, do not refreeze the food without checking its state.
The following guidelines will assist you:
•Ice cream :Once thawed should be discarded.
•Fruit and vegetables: If soft should be cooked and used up.
•Bread and cakes: Can be refrozen without danger.
•Shellfish: Should be refrigerated and used up quickly.
•Cooked dishes: i.e. casseroles, should be refrigerated and used up.
•Large pieces of meat: Can be refrozen if there are ice crystals remaining within them.
•Small joints: Should be cooked and then refrozen as cooked dishes.
•Chicken: Should be cooked and refrozen as a fresh dish.

15
Trou le Shooting
Noises during Operation
The following noises are normal characteristics of the appliance when it works:
•henever the compressor switches on or off, a click can be heard.
•As soon as the compressor is in operation, you can hear it humming.
•hen refrigerant flows into thin tubes, you can hear bubbling or splashing noises.
•Even after the compressor has been switched off, the noise of splashing can be heard
for a short time.
Repairs to the freezer may only be conducted by competent service engineers. Improper
repairs can lead to significant hazards for users. If your appliance needs repairing, please
contact your specialist dealer or your local Service Force Center.
PROBLEM SOLUTION
The freezer does not
operate
Check that it is properly plugged in, that the fuse has not
blown or that the circuit-breaker has not tripped.
The freezer is too warm
Check the thermostat and make sure that the door stays
open as little as possible. Also check that the door closes
properly.
The motor runs
continuously
Make sure that the freezer is well ventilated, leaving gaps
as mentioned in the “Installation” chapter. Also check that
your appliance is not exposed to a direct source of heat.
You may also have placed too much food inside or the
door may not close properly.

16
Correctly Positioning
Good ventilating
For the purpose of safety, reliance, low power consumption and durability to you fridge, a
space should be need around the refrigerator. please keep 100mm of space between the
back of the appliance and the wall.
Power supply
The refrigerator is only suitable to single –phase alternating current of 220-240V, 50HZ.
Notes
Its plug must match the socket with ground wire, the socket must be connected according to
E earth line, N zero line, L fire line.
Power Cord
The cord should be neither lengthened nor folded into coil during operation. Moreover, it is
forbidden that the cord is kept close onto the
compressor at the back of the fridge, the surface temperature of which is quite high when
operating. Touching with it may melt the insulation and cause electrical leakage.
Protection from Moisture
Avoiding placing the fridge in a place where heavy moisture is present so as to minimize
possibility of rusty for its metal parts. Still more, the fridge is forbidden to be directly
sprayed by water, otherwise, it would cause poor insulation and current leakage may occur.
Fixing Sta ly
Floor on which fridge will be placed must be flat and solid. It should not be laid on any soft
material such as foam plastic, ect if the fridge is not on the same level, adjust the screws
suitable. The fridge should not be placed near anything which may echo.
Protection from Heat
The fridge should be far away from any heat source or direct sunshine.
Keep Away from Danger
It is inadvisable that the fridge is placed near any volatillizables or combustibles such as gas,
petrol, alcohol, lacquer and banana oil,etc. The above-mentioned objects can not be stored
in the refrigerator.
Moving
hen fixing or moved, the fridge can not beset horizontally or declined to less than
113°F(45°)or upside-down.

17
The instructions shall include the warnings
•ARNING—Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
•ARNING—Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
•ARNING—Do not damage the refrigerant circuit.
•ARNING—Do not use electrical appliances inside the food storage compartments of
the recommended by the manufacturer.
•ARNING—The appliance is not intended for use by young children or infirm persons
without supervision.
•ARNING—Young children should be supervised to ensure that they do not play with
the appliance.
•ARNING— hen disposing of the appliance do so only at an authorized waste
disposal centre. Do not expose to flame.
•ARNING—If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.

18
Warranty
You have 2 years warranty on technical defects after purchase
Not included in warranty:
•Other than normal domestic use (this appliance is for normal domestic use only).
•Causes not being related directly to the appliance such as;
•Damage occurring during transport or because of wrong usage such as dents,
scratches, broken parts.
•Installation errors (such as wrong voltage).
•Malfunctioning because of improper usage, dust/fluff in and on the appliance,
amongst others blocking of air circulation, as well as breaking of plastics, rubber,
glass which other than by normal use has gone defect, such to be judged by the
service man and or importer.
You have 2 year warranty on technical defects on the appliance after date of purchase,
warranty is only valid if a valid notice of purchase/invoice can be shown.
arranty rights are not transferable.
If appliance is offered for servicing it needs to be clean, otherwise service can be refused.
