OPERATOR’S MANUAL
PARTS MANUAL 4172375 www.bobcatturf.com
MAN 4172376 Rev. A 06-2015
MOWERS
®
912480
BC QUICKCAT FX651V KAW 48" SD
(S/N 0600 and higher)
912520
BC QUICKCAT FX691V KAW 52" SD
(S/N 0800 and higher)
912610
BC QUICKCAT FX730V KAW 61" SD
(S/N 0300 and higher)

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects
and other reproductive harm.
Californie Proposition 65Avertisse-
ment
Les échappements des moteurs diesel et
certainsdeleurscomposéssontreconnuspar
l’Etat de Californie pour être cancérigènes,
provoquerdesdéfautscongénitauxetd’autres
dangers en matière de reproduction.
California Advertencia
de la Proposicion 65
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
containschemicalsknowntotheState
of California to cause cancer, birth
defects or other reproductive harm.
El estado de California hace saber que
los gases de escape de los motores diesel
y algunos de sus componentes producen
cáncer, defectos de nacimiento y otros
daños en el proceso de reproducción
humana.
L’ é missiondumoteur de ce mat é rielcon-
tient des produits chimiques que l’Etat de
Californie consid è re ê tre canc é rig è nes,
provoquer des d
é fauts cong é nitaux et
d’autres dangers en mati
è re de reproduc-
tion.
ElestadodeCaliforniahacesaberquelos
gasesdeescapedeesteproductocontienen
productosquÍmicosqueproducencáncer,
defectos de nacimiento y otros daños en
el proceso de reproducción humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

1
QUICKCAT
MOWERS
®
06-2015
IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class mowing
product, one of the best designed and built anywhere.
ThismachinecomeswithanOperationandSafetyManualandaseparateSetup,PartsandMaintenanceManual.
The useful life and good service you receive from this machine depends to a large extent on how well you read
and understand these manuals. Treat your machine properly, lubricate and adjust it as instructed, and it will give
you many years of reliable service.
Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety
features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best
protection, study the manuals thoroughly. Learn the proper operation of all controls. Observe all safety precau-
tions. Follow all instructions and warnings completely. Do not remove or defeat any safety features. Make sure
those who operate this machine are as well informed and careful in its use as you are.
See a Schiller Grounds Care, Inc. dealer for any service or parts needed. Schiller Grounds Care, Inc. service
ensures that you continue to receive the best results possible from Schiller Grounds Care, Inc. products. You
can trust Schiller Grounds Care, Inc. replacement parts because they are manufactured with the same high
precision and quality as the original parts.
Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive man-
ner. For longest life, use this machine only as directed in the manuals, keep it in good repair and follow safety
warnings and instructions. You'll always be glad you did.
Schiller Grounds Care, Inc.
One Bob Cat Lane
Johnson Creek, WI 53038-0469
TABLE OF CONTENTS PAGE
SAFETY.........................................................................................................................................................2-7
LABELS.......................................................................................................................................................8-10
CONTROLS...............................................................................................................................................11-13
PRE-OPERATION CHECK LIST....................................................................................................................14
OPERATION .............................................................................................................................................15-17
MAINTENANCE CHART ...............................................................................................................................18
MAINTENANCE RECORD.............................................................................................................................19
MAINTENANCE .......................................................................................................................................20-26
ADJUSTMENTS........................................................................................................................................27-30
BELT REPLACEMENT ..................................................................................................................................31

2
QUICKCAT
MOWERS
®
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care, Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed,developed,testedandapprovedbySchiller
Grounds Care, Inc. Engineering Department. Any
Schiller Grounds Care, Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture–including the
addition of “after-market” accessories or component
parts not specically approved by Schiller Grounds
Care, Inc.–will result in the Schiller Grounds Care,
Inc. Warranty being voided.
Anyandallliabilityforpersonalinjuryand/orproperty
damage caused by any unauthorized modications,
add-on accessories or products not approved by
Schiller Grounds Care, Inc. will be considered
the responsibility of the individual(s) or company
designing and/or making such changes. Schiller
Grounds Care, Inc. will vigorously pursue full
indemnication and costs from any party responsible
for such unauthorized post-manufacture modications
and/or accessories should personal injury and/or
property damage result.
MODEL NUMBER: This number appears on sales
literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only on
your mower. It contains the model number fol-
lowed consecutively by the serial number. Use this
number when ordering parts or seeking warranty
information. Located behind rider pad on frame of
unit.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manualandonthesafetylabelsattachedtoSchiller
Grounds Care, Inc. machines. For your safety and
thesafetyofothers,readandfollow theinformation
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situationwhich,if not avoided, WILL result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTIONindicatesapotentiallyhazardoussituation
which,ifnotavoided,MAY resultinminorormoderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage

3
QUICKCAT
MOWERS
®
SAFETY

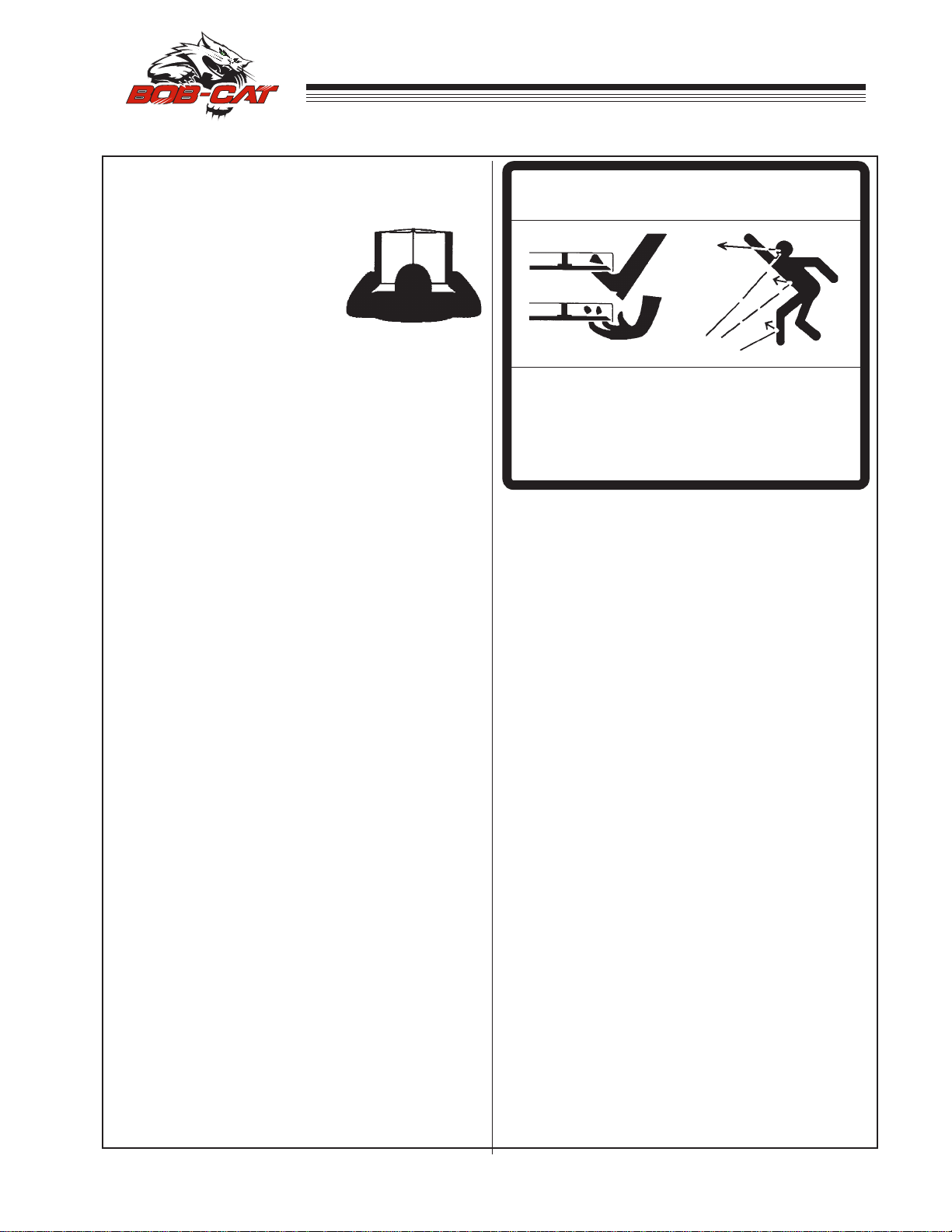

PREPARING FOR SAFE OPERATION
Operator preparation and training
Read the Operation & Safety
Manual
– If an operator or mechanic
cannot read English, it is
the owner's responsibility
to explain this material to
them. If any portion of this
material is unclear, contact
your dealer representative for clarication.
– Become familiar with the safe operation of the
equipment, operator controls and safety signs.
Be prepared to stop the engine and attachments
quickly in an emergency. Do not operate or
allow another person to operate this machine if
there are any questions about safety.
– All operators and mechanics should be trained.
The owner is responsible for training the users.
– Wear appropriate clothing, including long
trousers and safety goggles or safety glasses
with side shields when operating mower. Do not
operate barefoot or wearing open sandals. Long
hair, loose clothing or jewelry may get tangled in
moving parts.
– Wear hearing protection.
– Never allow underage children, unskilled
or improperly trained people to operate this
equipment. Local regulations can restrict the age
of the operator.
– Data indicates that those operators age 60 years
and above are involved in a large percentage of
riding mower-related injuries. Those operators
should evaluate their ability to operate the riding
mower safely enough to protect themselves and
others from injury.
– Do not carry passengers, especially small chil-
dren. They may fall off and be seriously injured.
– Keep warning labels and this operator's manual
legible and intact. Replacement labels and
manuals are available from the factory.
– Do not operate machine while under the
inuence of drugs or alcohol.
– The owner/user can prevent and is responsible
for accidents or injuries occurring to themselves,
other people or property.
All rotary lawnmowers are potentially
dangerous.They canamputatehandsand
feet and throw objects. Failure to follow
these safety and operating instructions
could result in serious injury or death.
WARNING
Site preparation and circumstances
– Evaluate the terrain to determine what
accessories and attachments are needed to
properly and safely perform the job. Only use
accessories and attachments approved by the
manufacturer.
– Clear the area to be mowed of objects such as
rocks, toys, wire or other debris that may be
picked up or thrown by the mower.
– Be sure the area is clear of pets and people,
especially young children. Never assume they
will remain where you last saw them. Stop the
machine if any enter the area.
– Mow only in daylight or in good articial light.
– Do not mow wet grass as tires may lose traction.

4
QUICKCAT
MOWERS
®
SAFETY
OPERATING SAFELY
IN GENERAL
– Use extra care when loading or unloading the
machine onto a trailer or truck.
– Watch out for trafc when near or crossing
roadways.
– Do not run the engine in an enclosed area where
dangerous carbon monoxide fumes can collect.
– Do not place your foot on the ground while
operating the machine.
– Before operating, lower the discharge chute,
install the mulcher or put the entire grass catcher
in place.
– Keep clear of the discharge opening at all times.
Never direct the discharge toward a bystander.
Stop operation if someone approaches.
– Keep washout ports and other mower housing
service openings closed when mowing.
– Do not pull any loads or equipment.
– Never leave a machine unattended. Always turn
off blades, set parking brake, stop engine and
remove keys before dismounting.
MACHINE OPERATION
– Check operator present interlock system and
brake operation. Adjust or repair any problems
before using.
– Do not tamper with or defeat safety devices.
Keep guards, shields and interlock safety devices
in place and in proper working condition. They
are for your protection.
– Keep all fasteners such as nuts, bolts and pins
well secured.
– Visually inspect blades, blade bolts and the cutter
assembly for wear or damage. Replace worn or
damaged blades and bolts to preserve balance.
– Verify that machine and attachments, if any, are
in good operating condition.
– Do not engage blades until ready to mow.
STARTING
– Start only according to instructions in this manual
or on the machine.
– Before attempting to start the engine, make sure:
- the parking brake is on;
- the PTO is disengaged;
- the traction drive is in NEUTRAL.
– When starting the engine, make sure hands and
feet are clear of the blades.
– Do not start the machine while standing in front
of the discharge chute or with the chute directed
at someone.
– Do not engage PTO at full throttle. Throttle to
idle or lowest possible engine speed.
– Do not change engine governor settings or
overspeed the engine. Operating the engine
at excessive speed can increase the hazard of
personal injury.
MANEUVERING SAFELY
IIN GENERAL
– Slow down before turning.
– Do not mow in reverse unless absolutely
necessary. Always look behind and down
for small children and pets before and during
backing.
– Be aware when approaching blind corners,
shrubs, trees, tall grass or other objects that may
obscure vision.
– If tires lose traction, disengage the blades. If on
a slope, head down.

5
QUICKCAT
MOWERS
®
SAFETY
INTERRUPTING OPERATION
– Before leaving the operator's position:
- Park on level ground;
- Disengage the PTO;
- Set the parking brake;
- Shut off the engine and remove the key.
– Disengage the PTO and wait until the blades quit
rotating:
- before raising cutterdeck;
- when not mowing;
- for transport;
- when crossing surfaces other than grass.
– Stop the engine, disengage the PTO and wait
until the blades quit rotating:
- before refueling;
- before removing grass catcher;
- before making height adjustment unless the
adjustment can be made from the operator's
position.
– Stop the engine, disengage the PTO and
disconnect the spark plug wire(s) or remove the
key:
- before clearing blockages or unclogging chute;
- before checking, cleaning or working on the
machine;
- after striking a foreign object. Inspect the
machine for damage and make repairs before
restarting.
- if the machine begins to vibrate abnormally:
Inspect and make repairs as needed before
restarting;
- except for repairs or adjustments as
specically noted, such as for carburetor
adjustment, where the engine must be running.
Keep hands and feet clear of moving parts in
these circumstances.
– Allow the blades to come to a complete stop
when stopping operation to clear blockages,
unclog, inspect the machine, do maintenance or
repair.
– Reduce the throttle setting during engine shut-
down and, if the engine is provided with a shut-
off valve, turn the fuel off at the conclusion of
mowing.
MOWING SLOPES
Slopes are a major factor in loss-
of-control and tipover accidents
that sometimes lead to severe
injury or death. All slopes
require extra caution.
– Do not mow on slopes if
uneasy or uncertain. Ultimate reponsibility for safe
operation on slopes rests with the operator.
– Do not mow excessively steep slopes.
– With ride-on machines, including articulated
steering machines, mow up and down slopes, not
across, except for zero turn machines. Zero turn
machines should mow across slopes.
– With walk-behind machines, always mow across
slopes, not up and down.
– Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
straight down the slope.
– With a zero turn machine, if tires lose traction
going down a slope, steering control may be
regained by speeding up.
– Mid-mount zero turns (belly mounted deck) have
much greater traction pointed up slope than down
slope. Be aware that traction may be lost going
down a slope. Do not operate a mid-mount zero
turn on slopes it cannot back up.
– Keep all movement on the slopes slow and
gradual. Do not make sudden changes in speed
or direction.
– Do not turn on slopes unless necessary, and then
turn slowly and downhill when possible.
– Stay away from slopes if the ground is loose or if
caught in the rain during mowing.
– Use lower speeds on a slope to avoid stopping or
shifting.
– Use extra care with grass catchers or other
attachments. These can change the stability of the
machine.
– Avoid driving over ruts, holes, rocks and roots
whenever possible. Be alert to dips and rises.
Uneven terrain can overturn a mower or cause it
to slide.
– Do not mow dropoffs, ditches or embankments.
The machine could suddenly turn over if a wheel
runs over the edge or an edge caves in.
– Follow the manufacturer's recommendations
for wheel weights or counterweights to improve
stability.
WARNING

6
QUICKCAT
MOWERS
®
SAFETY
MAINTENANCE SAFETY
IN GENERAL
– Maintain machine according to manufacturer's
schedule and instructions for maximum safety
and best mowing results.
– Park machine on level ground.
– Never allow untrained personnel to service ma-
chine.
– Adjust or repair only after the engine has been
stopped and the blades have stopped rotating.
– Inspect grass catcher components regularly. If
worn, damaged or deteriorated, they may expose
moving parts or allow objects to be thrown.
– Replace parts if worn, damaged or faulty.
For best results, always replace with parts
recommended by the manufacturer.
– Disconnect battey or remove spark plug wire(s)
before making any repairs. Disconnect the nega-
tive terminal rst and the positive last. Reconnect
positive rst and negative last.
– Do not dismantle the machine without releasing
or restraining forces which may cause parts to
move suddenly.
– Provide adequate support for lifted machine or
parts if working beneath.
– Do not put hands or feet near or under rotating
parts.
– Clean up oil or fuel spillage thoroughly.
– Replace faulty mufers.
– To reduce re hazards, keep the engine, mufer,
battery compartment and fuel storage area free
of grass, leaves, debris buildup or grease.
BLADES
– Mower blades are sharp and
can cut. Use extra caution
when handling. Remove
obstructions with care. Wrap
the blade(s) or wear gloves.
– Be aware that rotating one blade
on multiblade mowers can cause other blades to
rotate.
– Only replace blades. Never straighten or weld
them.
– Keep other persons away from blades.
WARNING
FUEL
– Gasoline and diesel fuels are
ammable; gasoline vapors
are explosive. Use extra
care when handling.
– Store only in containers spe-
cically designed for fuel.
– When refueling or checking fuel level:
- Stop the engine and allow to cool;
- Do not smoke;
- Refuel outdoors only;
- Use a funnel;
- Do not overll;
- If fuel is spilled, do not attempt to start the
engine until the spill is cleaned up and vapors
have cleared.
Sparks from static electricity can start res or cause
explosions. Flowing fuel can generate static
electricity. To prevent static electricity sparks:
– Do not ll containers in a vehicle or on a truck or
trailer bed with a plastic liner. Fill containers on
the ground away from the vehicle.
– When practical, remove gas powered equip-
ment from the truck or trailer and refuel it on the
ground. If equipment must be refueled on the
truck or trailer, refuel from a portable container
rather than a dispenser nozzle.
– Keep the dispenser nozzle in contact with the rim
of the fuel tank or container opening until fuel-
ing is complete. Do not use a nozzle lock-open
device
– Replace caps on fuel cans and tanks securely.
WARNING

7
QUICKCAT
MOWERS
®
SAFETY
BATTERY
Battery acid is caustic and fumes
are explosive and can cause seri-
ous injury or death.
To reduce the risk of personal in-
jury when working near a battery:
– When working with battery
acid, use protective equip-
ment such as, but not limited to,
goggles, face shield, rubber gloves
and apron.
– Avoid leaning over a battery.
– Do not expose a battery to open ames or
sparks.
– Be sure batteries with ller caps are properly
lled with uid.
– Do not allow battery acid to contact eyes or skin.
Flush any contacted area with water immediately
and get medical help.
– Charge batteries in an open, well ventilated area,
away from sparks and ames. Unplug charger
before connecting or disconnecting from bat-
tery.
- Your unit is equipped with an AGM type battery .
An AGM type battery charger should be used on
these when charging.
STORAGE SAFETY
– Stop the engine and allow to cool before storing.
– Drain the fuel tank outdoors only.
– Store fuel in an approved container in a cool, dry
place.
– Keep the machine and fuel containers in a
locked storage place to prevent tampering and to
keep children from playing with them.
– When the machine is to be parked, stored or left
unattended, lower the cutterdeck unless a posi-
tive mechanical lock is used.
– Do not store the machine or fuel container near
heating appliances with an open ame such as a
water heater or an appliance with a pilot light.
– Keep gasoline storage area free of grass, leaves
and excessive grease to reduce re hazard.
JUMP STARTING
1. Be sure the jumper cables are in good condition.
Turn off the ignition and all electrical accessories
on both machines.
2. Position the machine with a good (charged) bat-
tery next to but not touching the machine with the
dead battery so jumper cables will reach.
3. When making cable connections:
- make sure the clamps do not touch anywhere
except to intended metal parts,
- Never connect a positive ("+" or red) terminal
to a negative ("–" or black) terminal.
- Make sure the cables won't get caught in any
parts after the engines are started.
4. Connect one end of the rst jumper cable to the
positive terminal on one battery. Connect the
other end to the positive terminal on the other
battery.
5. Connect one end of the other cable to the
negative terminal of the machine with a good
(charged) battery. Make the nal connection on
the engine of the machine to be started, away
from the battery.
6. Start the vehicle with the good battery, then the
machine with the discharged battery.
7. Remove the cables in the exact reverse order of
installation. When removing each clamp, take
care it does not touch any other metal parts while
the other end remains attached.
WARNING

8
QUICKCAT
MOWERS
®

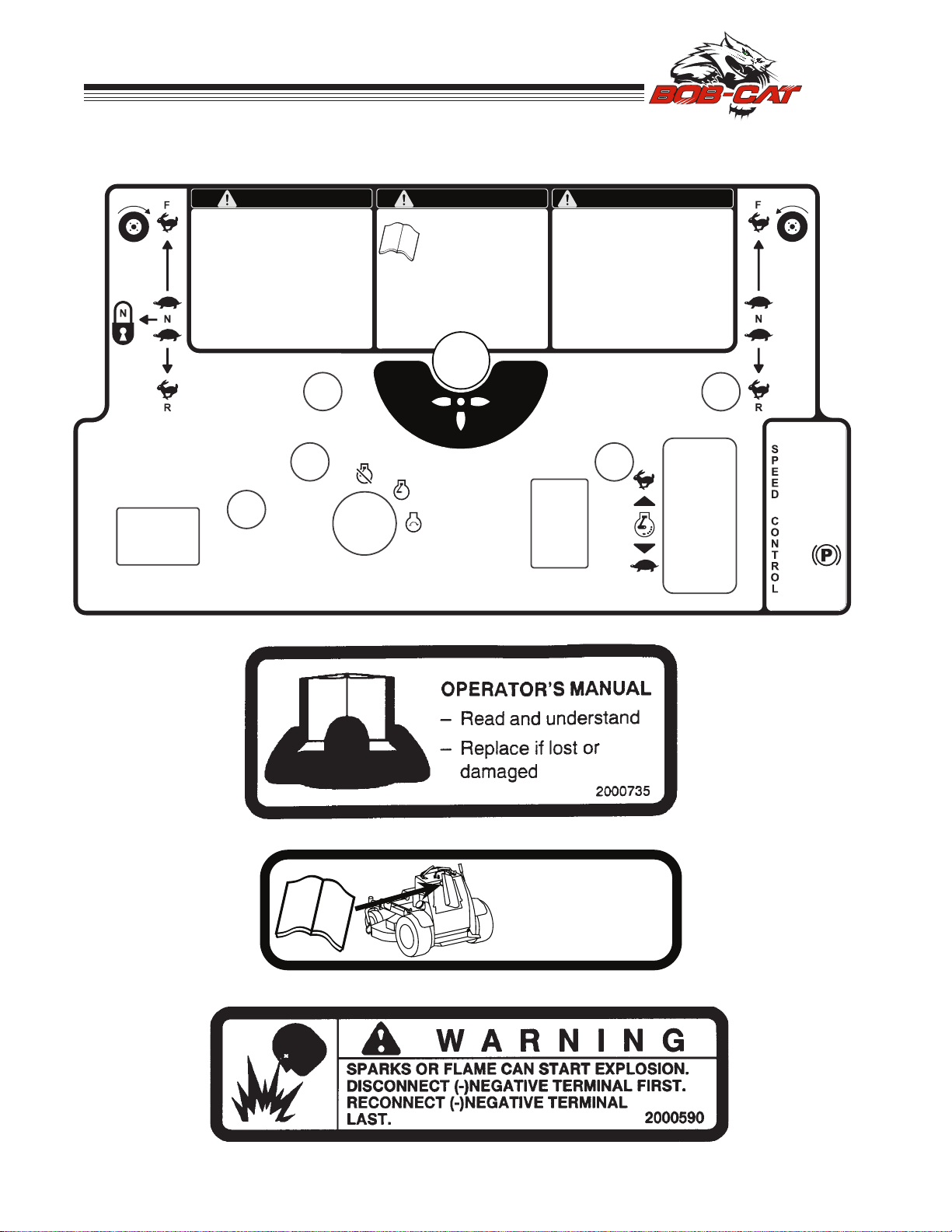

LABELS
RESERVE
OFF
ON
WARNING
TRANSPORT
CUT
4170623
FUEL CONTROL
WARNING ADVERTENCIA
AVOID SERIOUS INJURY OR DEATH:
-Remove objects that can be thrown by the blades.
-Use caution on slopes. Stay off slopes the
machine cannot back up.
-Stop blades and drive down slowly if machine
slides or stops going on slope.
-Do not mow when children or others are around.
-Do not carry a child or passenger-even with
blades off.
-Look down and behind before and while backing.
-Do not operate unless trained.
-Do not operate unless guards, shields and
interlocks are in place and working.
-Replace labels and Operation and Safety Manual
if lost or damaged.
- Leer el manual del operador. No permitir que
personas no capacitadas para ello usen la máquina.
- Mantener los protectores en su lugar y sus tornillos
debidamente fijados.
- Antes de limpiar, ajustar o reparar este equipo,
apagar todos los mandos, aplicar el freno de
estacionamiento y apagar el motor.
- Mantener las manos, los pies y la ropa alejados de
las piezas en movimiento.
- No conducir como pasajero ni llavar pasajeros en
máquinas sin asiento para ello.
- Mantener a las demás personas alejadas durante
el funcionamiento de la máquina.
- Si no sabe leer inglés, solicitarie a otra persona
que le lea y explique el contenido de las etiquetas y
del manual de la máquina.
BEFORE STARTING OR SERVICING:
READ AND UNDERSTAND
THE OPERATOR’S MANUAL
AND LABELS
-Be sure the machine is in safe operating
condition and the operator presence works.
Make necessary repairs.
-Push PTO switch to “OFF”.
BEFORE LEAVING OPERATOR’S POSITION:
-Push PTO switch to “OFF”.
-Apply parking brake.
-Turn engine off.
-Remove key.
OPERATOR’S MANUAL
LOCATED BEHIND
RIDER PAD
4171344

9
QUICKCAT
MOWERS
®
LABELS
4170653
TRANSPORT
41
2
13
4
21
4
31
4
33
4
23
4
4
11
2
2
21
2
3
31
2
41
4
TRANSPORT
41
2
4
3
2
31
2
21
2
11
2
13
4
21
4
23
4
31
4
33
4
41
4
4170988

10
QUICKCAT
MOWERS
®
LABELS
- SPRING LENGTH FOR WHEN
INSTALLING NEW BELTS ONLY
- DO NOT READJUST AFTER USE
4171408
634
"±
18
"

11
QUICKCAT
MOWERS
®
KEYSWITCH (K) - The keyswitch has three
positions: OFF, RUN, and START. Insert the
key and turn it clockwise to move the switch from
OFF to RUN. Turn it further to START and hold
to engage the starter. Release the key and the
switch will return to RUN from START. Turn the key
counterclockwise to OFF to stop the engine.
THROTTLE (T) - Move the throttle lever for-
ward to increase engine speed until the maximum
governed engine RPM is reached. Move the lever
rearward to decrease engine speed until the engine
reaches its idle speed.
CHOKE (C) - Pull the choke control out to set the
choke ON. Push it in to set the choke OFF.
POWER TAKE OFF (PTO) SWITCH (P) -
Pulling the PTO switch out engages (turns on) the
PTO and starts the blades or other attachment.
Pushing the PTO switch in disengages (turns off) the
PTO and stops the blades or other attachment.
NOTE: The PTO switch does not control
attachments powered by a separate engine.
–Disengage the PTO whenever you stop or leave
the operator’s position.
–Shut off engine with the key and remove the
spark plug wires before making adjustments or
unplugging a clogged mower.
–Do not engage the PTO until ready to start
mowing.
HOUR METER (M) - Records accumulated time
CONTROLS
the machine is in operation and provides service
alerts. Push and release MODE button to toggle
between functions. Provided service alerts include
change engine oil and lter, change hydraulic oil,
and service air lter. When the service time is
approaching, an alert message will ash temporarily,
interrupting whatever mode the meter is in. This
will continue until the alert is reset. When the
service interval reaches "0" hours, the word "NOW"
replaces the hours remaining. To reset the service
alert, depress and hold down the mode button for 6
seconds while in the alert to be cleared.
HEIGHT OF CUT (HOC) HANDLE (X) - Used
to secure the cutterdeck in transport position. To
return to preset height of cut, lower HOC handle until
latch lever contacts height of cut pin A.
HEIGHT OF CUT(HOC) PIN (A) - Sets height
of cut and allows easy return from transport to
desired height of cut. Raise the deck to transport
using the HOC handle. Position pin Ain the hole
corresponding to the desired height of cut. Lower the
HOC handle until it rests on pin A.
CONTROL LEVERS (L & OP) - Each of the
two control levers controls the drive wheel located
on its side. They control the forward and reverse
movement of the machine, provide steering and also
provide dynamic braking.
The left control handle is the operator presence. The
operator presence must be held down for PTO opera-
tion and when machine is NOT in park. If the PTO
switch or machine is NOT in park, the engine will kill.

12
QUICKCAT
MOWERS
®
PARKING BRAKE (R) - Pull the parking brake
lever into park to put the parking brake on. This will
also lock the control handles. Push the parking brake
to "CUT" to limit the speed for maximum recom-
mended cutting speed. Push the parking brake to
"TRANSPORT" to allow for maximum speed.
The parking brake must be ON to start the engine.
It must also be ON to keep the engine running if the
operator releases the operator presence control lever
(OP).
CONTROLS
FUEL VALVE (U) - A fuel tank selector valve is
provided on the control panel.The fuel tank selector
valve has three positions:
OFF: The tank selector is off when the lever points
toward the operator The selector should be off when-
ever the machine is transported or stands unused for
any length of time. Shutting off the fuel supply avoids
the possibility of ooding should any dirt get under
the carburetor oat needle. Leaving the tank selec-
tor in either tank position can allow severe ooding,
which may ruin the engine by diluting the oil.
ON: Fuel ows from the tank when the selector is
turned 1/4 turn toward the left, when facing the valve.
RESERVE: Fuel ows from the tank when the selec-
tor is turned 1/4 turn toward the right, when facing
the valve. A small reserve is available in the event
the machine starts to run out of fuel. This reserve is
meant to allow you to drive your machine to a safe
place to refuel.
Located on control panel.
Parking brake in ON position
(operator's right side)

13
QUICKCAT
MOWERS
®
CONTROLS
PUSHING THE MACHINE
The machine may be pushed with the engine off, the
parking brake off, and the bypass valves open.
Bypass valves are located on the frame by the rider
platform. To open the bypass valves, move the
parking brake to any OFF position, then lift and pull
bypass control rod Cthrough the large opening D,
until the control rod stop is past the opening. Drop
rod Cinto the small opening to lock in place. Repeat
for the other bypass control rod.
To close the bypass valves, lift bypass control rod C
allowing the control rod stop to retract through the
large opening D.

14
QUICKCAT
MOWERS
®
PRE-OPERATION CHECK LIST
(OWNER’S RESPONSIBILITY)
___ Review and follow all safety rules and safety
decal instructions.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check to make sure all shields and guards
are properly installed and in good condition.
Be sure that either the discharge shield or
complete vacuum attachment is installed.
___ Check that all hardware is properly installed.
and secured.
___ Check that equipment is properly and securely
attached to power unit.
___ Check to be sure engine is free of dirt and
debris. Pay particular attention to the cooling
ns, governor parts and mufer. Clean air
intake screen. Check air cleaner; service if
necessary.
___ Never allow riders.
___ Inspect area and remove stones, branches or
other hard objects that might be thrown,
causing injury or damage.
___ Clean area around oil ll dipstick. Remove
dipstick and check to be sure oil is in operating
range (between marks on dipstick). Add oil if
necessary but Do Not Overll. Install dipstick
assembly rmly until cap bottoms out on tube.
Dipstick assembly must always be secured into
ll tube when engine is running.
___ Check all lubrication points and grease as
instructed in manual.
___ Check hydrostatic uid level. Check to be sure
cooling ns on hydrostat are clean.
___ Perform a functional check of the safety
interlock system each time you operate the
unit.
PRE-OPERATION CHECK LIST
SERIOUS INJURY OR DEATH MAY RESULT
FROM MACHINE ROLLOVER
 • DO NOT OPERATE MACHINE ON STEEP
SLOPES OR NEAR DROPOFFS
 • AVOID SHARPAND/OR QUICK TURNS
ROLLOVER MAY CAUSE PERMANENT INJURY OR DEATH.
• ROPS RAISES THE CENTER OF GRAVITYAND REDUCES STABILITY ON SLOPES.
• SUDDEN STARTS OR TURNS ON RAMPS OR SLOPES CAN CAUSE OVERTURN.
• USE GREATER CARE ON RAMPS AND AS THE SLOPE INCREASES.
Use caution when making turns. Slow down before making sharp turns to help maintain control and to
prevent torn turf from skidding or spinning tires. To help prevent turf damage, keep both drive tires moving
whenever a turn is made.
TIP: The best way to make a sharp "zero" turn is to come to a stop, get the machine moving in reverse with
both drive wheels and then powering the machine around with the outside wheel. This technique keeps the
drive tires turning and results in less turf damage.

15
QUICKCAT
MOWERS
®
OPERATION
FUELING
– Fill fuel tanks with good quality, clean, unleaded
gasoline. Do not use hi-test fuel.
– Use a funnel to avoid spillage.
WARNING
TO CHECK OR ADD FUEL:
– Do it outdoors
– Do not smoke
– Stop engine; allow to cool
– Fill to one inch below bottom
of ller neck
– Do not overll
– Clean up spilled fuel
BEFORE STARTING THE ENGINE
– Be familiar with all controls, how each functions
and what each operates.
– Check the engine oil level and add if necessary.
Turn fuel valve to ON.
– Choke: For cold starts, set the throttle lever to
the half-open position and pull the choke out to
the ON position. For warm starts set the throttle
to the half-open position and the choke to the OFF
position.
OPERATOR PRESENCE
INTERLOCK SYSTEM
To start the engine:
–The PTO switch must be OFF.
–The left handle operator presence handle must be
in the neutral position.
–The parking brake must be ON.
To operate the machine:
1. The operator must hold the operator presence
handle down or engaging the PTO will kill the
engine.
STARTING THE ENGINE
1. Turn the key to operate the electric starter to start
the engine. Release the key when the engine
starts.
2. If the engine does not start immediately, do not
crank for more than 10 seconds at a time. Allow
60 seconds for the starter motor to cool down
between starting attempts to prevent the starter
motor from burning out.
3. If the choke is ON when the engine starts, gradu-
ally back it off until the engine runs with no choke
at all.
DRIVING
1. With the PTO disengaged, move the parking
brake to CUT or TRANSPORT speed position.
2. Move control traction lever out of neutral.
3. Push both traction levers forward evenly to drive
forward in a straight line. Pull both traction levers
back evenly to drive backward in a straight line.
OPERATING NOTES
– Practice at slow engine and travel speeds with the PTO off until fully familiar with the controls.
– For normal cutting, the throttle should be set at the full open position. By using the traction levers to speed
up or slow down the machine during use, maximum control and cutting efciency can be maintained.
– Using the machine at less than full throttle in heavy conditions will cause the engine to labor and result in
excessive wear to the engine and hydraulic system.

16
QUICKCAT
MOWERS
®
Turns during reverse movement:
–Reverse right turn -
move the right traction
lever forward toward
neutral to slow the right
drive wheel.
–Reverse left turn -
move the left traction
lever forward toward
neutral to slow the left
drive wheel.
Slow, sweeping turns are made with both traction
levers on the same side of neutral and slightly
apart. True zero radius turns about the center of the
machine are made by having one lever in reverse
while the other is in forward. By varying the relative
positions of the two levers, the rate of turn is varied to
suit the mowing situation.
Slow down before making sharp turns. The machine
is capable of turning very rapidly when the levers are
moved further apart from each other. Loss of control
and/or turf damage may result.
STOPPING
1. Turn PTO switch to OFF.
2. Release control traction levers or move to neutral.
3. Put machine in PARK.
4. Turn key to OFF (counterclockwise).
STEERING
Forward movement - To
move the machine straight
ahead, push both control
levers forward equally
from their neutral posi-
tion. Increase speed: as the levers are moved
farther forward from the neutral position. There are
two maximum forward speeds. There is a "CUT"
speed and a "TRANSPORT" speed. Cut speed is
limited to a maximum recommended speed to obtain
a good quality cut. Transport speed is limited to
the maximum speed of the machine. Decrease
speed: when traveling forward, pulling the traction
levers rearward slows the machine. Stopping: The
machine will stop when the levers reach the neutral
position.
Reverse movement - To
move the machine straight
back, pull both traction
levers back equally from
their neutral position. Reverse speed increases as
the levers are moved back farther. Maximum reverse
speed is reached when the levers stop. When mov-
ing in reverse, pushing the levers forward slows the
machine, and the machine stops when the neutral
position is reached.
NOTE: The control levers are spring loaded to return
to neutral in both forward and reverse. This spring
resistance may be felt when moving the traction le-
vers. When control levers are released, spring ten-
sion will quickly return them to the neutral position.
To turn, move one lever forward and one back.
Turns during forward movement:
–Forward Right turn
- move the right trac-
tion lever back toward
neutral to slow the right
drive wheel.
–Reverse Left turn
- move the left traction
lever back toward neu-
tral to slow the left drive
wheel.
OPERATION
N
FORWARD
N
REVERSE
N
FORWARD RIGHT TURN
N
FORWARD LEFT TURN
N
REVERSE RIGHT TURN
N
REVERSE LEFT TURN
N
ZERO TURN RADIUS
N
ZERO TURN RADIUS
N
ZERO TURN RADIUS

17
QUICKCAT
MOWERS
®
OPERATION
CUTTING
1. Place the discharge chute in the down position or
correctly t a grass collector or mulcher plate.
2. Stand on rider platform.
3. Start the engine.
4. Turn the blades on by pulling up on the PTO
switch. Do not start the blades at full throttle.
Instead, use the slowest throttle setting that will al-
low the engine to pick up the blade load to reduce
the wear on the belts and electric clutch.
5. After the blades are rotating, set the throttle to
maximum. Use the traction levers to obtain the
required cutting speed, to steer around obstacles
and to turn at the end of a cut.
CUTTING TIPS
– When mowing large areas, start by turning to the
right so that clippings will be discharged away
from shrubs, fences, driveways, etc. After two or
three rounds, mow in the opposite direction, left
hand turns, until nished.
– If grass is extremely tall, it should be mowed
twice, the rst cut relatively high, the second cut to
the desired height.
– Use the left side of the mower for trimming.
– Choose cutting directions so that clippings are
thrown onto areas that already have been cut.
This method results in the most even distribution
of clippings and more uniform, better appearing
cuts.
– Use a different mowing pattern each time a prop-
erty is cut where possible. This helps prevent
rutting and leads to a more uniform cut by keeping
the grass from always laying the same way.

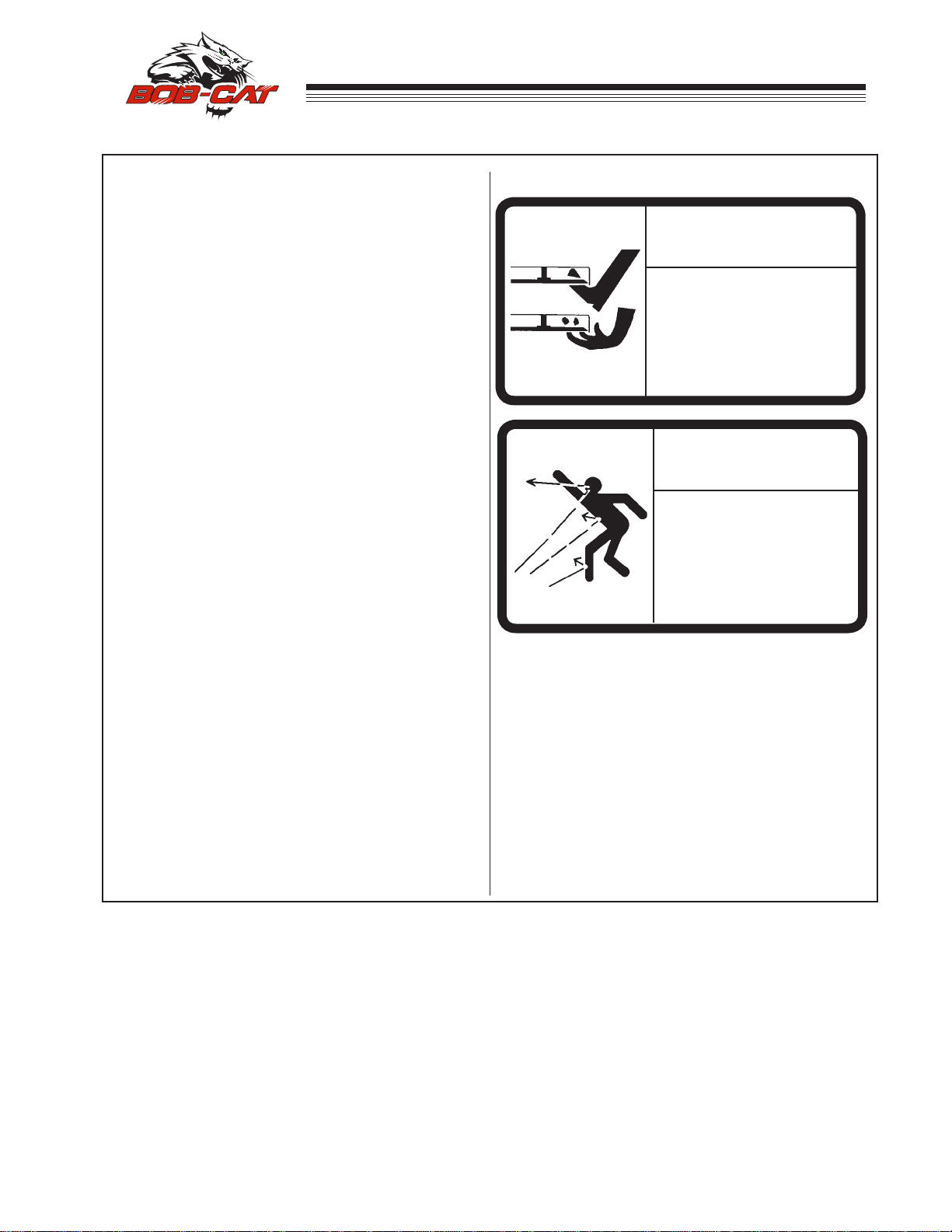

THROWN OBJECTS
–KEEP AREA CLEAR OF PEOPLE
AND PETS.
–REMOVE OBJECTS BLADE MAY
STRIKE AND THROW.
–STOP BLADES TO CROSS GRAVEL
AREAS
–DO NOT OPERATE WITHOUT CHUTE,
MULCHER OR ENTIRE GRASS COL-
LECTOR IN PLACE.
WARNING
ROTATING BLADES
–KEEP HANDS AND FEET AWAY.
–STOP ENGINE AND LET BLADES STOP
BEFORE REMOVING GRASS COLLEC-
TOR OR UNCLOGGING.
DANGER

18
QUICKCAT
MOWERS
®
MAINTENANCE CHART
ECNANETNIAM NOITAREPO
neewtebsemitmumixameraslavretniesehT.bojgniognonasiecnanetniaM .snoitidnocerevesrednunetfoerommrofreP.snoitarepoecnanetniam
5TSRIFSRUOH
EROFEB HCAE ESU YREVE 52 SRUOH YREVE 05 SRUOH YREVE 001 SRUOH YREVE 002 SRUOH YLRAEY
ENIGNE
snoitcurtsnidnanoitamrofnilanoitiddaroflaunamenigneehttlusnoC
pUpoT/kcehC leveLliO X
skaeLroFkcehCX
ekatnIriAnaelC neercS X
renaelCriAnaelC renaelcerP X
renaelCriAnaelC tnemelE X
sniFgnilooCnaelC X
dnAliOegnahC retliF alunams'rerutcafunamenigneeeS
ecalpeR/kcehC sgulPkrapS X
E*LXASNART
leveLliOkcehCX
skaeLroFkcehCX
dnAliOegnahC retliF X
ENIHCAM
kcolretnIkcehC noitarepO X
eriTkcehC serusserP X
pUpoT/kcehC yrettaB X
stnioPllAetacirbu
X
LX
X
X
*
*CHANGE TRANSAXLE OIL AFTER INITAL 75-100 HOURS.
