Schiller Grounds Care Steiner 75-70855A User manual

OP / P ARTS MAN U AL
MAN 4167917 Re v . C 0 2 - 2 0 1 7
MOD EL S :
75-70855A
MOWER D EC K - 4 8 ”MD 4 4 8
S / N 0 4 5 3 t o p r e s e n t
75-70860A
MOWER D EC K - 6 0 ”MD 4 6 0
S / N 0 2 7 9 6 t o p r e s e n t
75-70865A
MOWER D EC K - 7 2 ”MD 4 7 2
S / N 0 1 1 6 4 t o p r e s e n t

2
C AL I F ORN I A P ROP OS I TI ON 6 5
WARN I N G : C a n c e r a n d Re p r o d u c t i v e H a r m - w w w . P 6 5 Wa r n i n g s . c a . g o v .
AD V ERTEN C I A: C á n c e r y D ã n o Re p r o d u c t i v o - w w w . 6 5 Wa r n i n g s . c a . g o v .

3
ROTARY
MOWER
I MP ORTAN T MES S AG E
Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class product,
one of the best designed and built anywhere.
This product comes with an Owner/Operator's Manual. The useful life and good service you receive from this
product depends to a large extent on how well you read and understand this manual. Treat this product properly
and adjust it as instructed, and it will give you many years of reliable service.
See a Schiller Grounds Care, Inc. dealer for any service or parts needed. Schiller Grounds Care, Inc. service
ensures that you continue to receive the best results possible from Schiller Grounds Care, Inc. products. You
can trust Schiller Grounds Care, Inc. replacement parts because they are manufactured with the same high
precision and quality as the original parts.
Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive man-
ner. For longest life, use this product only as directed in the manual, keep it in good repair and follow safety
warnings and instructions. You'll always be glad you did.
S c h i l l e r G r o u n d s C a r e , I n c .
On e B o b C a t L a n e
J o h n s o n C r e e k , WI 5 3 0 3 8 - 0 4 6 9
02-2017
TAB L E OF C ON TEN TS F I G U RES P AG E
INTRODUCTION / SPECIFICATIONS.............................................................................................................4
SAFETY.........................................................................................................................................................5-8
DECALS.....................................................................................................................................................9, 10
ASSEMBLY INSTRUCTIONS ........................................................................................................................11
INSTALLATION ..............................................................................................................................................12
OPERATION...................................................................................................................................................13
SERVICE...................................................................................................................................................14-18
PARTS SECTION...........................................................................................................................................19

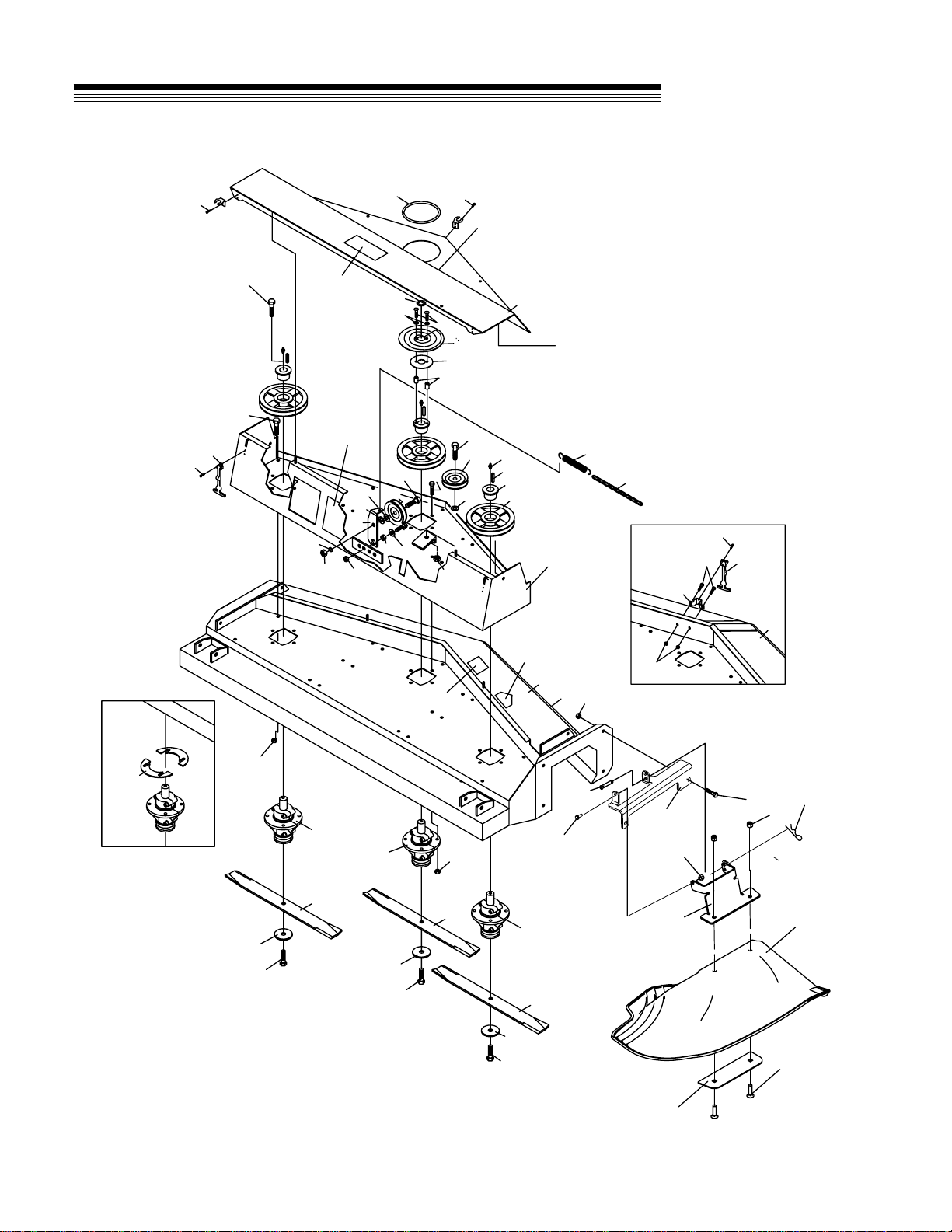

DECK PARTS 48"................................................ FIGURE 1...................................................................20, 21
DECK PARTS 60"................................................ FIGURE 2...................................................................22, 23
DECK PARTS 72"................................................ FIGURE 3...................................................................24, 25
FRAME PARTS 48".............................................FIGURE 4...................................................................26, 27
FRAME PARTS 60".............................................FIGURE 5...................................................................28, 29
FRAME PARTS 72".............................................FIGURE 6...................................................................30, 31
HITCH & DRIVE PARTS .....................................FIGURE 7...................................................................32, 33
SPINDLE PARTS ................................................FIGURE 8...................................................................34, 35
FLIP-UP DECKS ................................................. FIGURE 9...................................................................36, 37

4
ROTARY
MOWER
I N TROD U C TI ON / S P EC I F I C ATI ON S
D ES C RI P TI ON
A full-oating rotary mower deck is designed to t all Steiner power units with the quick hitch front lift.
Three sizes match the power unit to the application. These decks are easy to attach and detach allowing
interchange with the many other front mounted attachments. The side discharge rotary mower provides
even distribution of clippings while the full-oating deck follows the contours of the terrain for an even cut with
cutting height controlled by the front caster wheels and full width rear roller. The deck can be safely serviced
and cleaned while still attached to the tractor. Convenient handles enable the deck to be lifted vertically over
90 degrees so the blades are fully exposed. Exceptional visibility and maneuvering is possible with this front
mounted design mower.
S P EC I F I C ATI ON S
Model 75-70855A 75-70860A 75-70865A
Overall Width with Chute:.......... 61" ................................73 3/4"...........................86 1/4"
Overall height: ........................... 19" ................................19".................................19"
Overall length: ........................... 49-1/2".......................... 48-3/4" ..........................55"
Cutting Width:............................ 47" ................................ 59-3/8" ..........................72"
Cutting Height:........................... 1" to 4-1/2"....................1" to 4-1/2"....................1" to 4"
Blades:....................................... 3 - 16-1/4" blades .........3 - 20-1/2" blades..........3 - 24-3/4" blades
Weight: ...................................... 330 lbs..........................360 lbs..........................470 lbs.

5
ROTARY
MOWER
S AF ETY
N OTI C E ! ! !
Unauthorized modications may present e x t r e m e
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care, Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed,developed,testedandapprovedbySchiller
Grounds Care, Inc. Engineering Department. Any
Schiller Grounds Care, Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture–including the
additionof“after-market”accessoriesorcomponent
parts not specically approved by CGC, Inc.–will
result in the Schiller Grounds Care, Inc. Warranty
being voided.
Any and all liability for personal injury and/or
property damage caused by any unauthorized
modications, add-on accessories or products not
approved by Schiller Grounds Care, Inc. will be
considered the responsibility of the individual(s) or
company designing and/or making such changes.
Schiller Grounds Care, Inc. will vigorously pursue
full indemnification and costs from any party
responsibleforsuchunauthorizedpost-manufacture
modications and/or accessories should personal
injury and/or property damage result.
This symbol means:
ATTEN TI ON !
B EC OME AL ERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manualandonthesafetylabelsattachedtoSchiller
Grounds Care, Inc.machines. For your safety and
thesafetyofothers,readandfollowtheinformation
given with these signal words and/or the symbol
shown above.
D AN G ER indicates an imminently hazardous
situationwhich, if not avoided, WI L L result in death
or serious injury.
WARN I N G indicates a potentially hazardous
situation which, if not avoided, C OU L D result in
death or serious injury.
C AU TI ON indicatesapotentiallyhazardoussituation
which,ifnotavoided,MAY resultinminorormoderate
injury. It may also be used to alert against unsafe
practices or property damage.
C AU TI ON used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage
MOD EL N U MB ER: This number appears on
sales literature, technical manuals and price lists.
S ERI AL N U MB ER: This number appears only
on your unit. It contains the model number fol-
lowed consecutively by the serial number. Use
this number when ordering parts or seeking war-
ranty information.

6
ROTARY
MOWER
S AF ETY
1. Read and understand the Owner’s Manual before attempting to operate this machine.
2. Operate all controls from the operator’s seat, (if so equipped). N O RI D ERS .
3. Keep all shields in place and safety switches adjusted properly.
4. Do not leave equipment unattended. Park on a level surface, set parking brake, STOP the engine and
remove the key.
5. Do not allow minors or the inexperienced to operate this machine.
6. Keep people and pets a safe distance away from machine using power driven attachments. Injury could
result from ying debris.
7. Do not attempt to work on unit or any attachments with engine running!
8. Wear all the necessary protective clothing and personal safety devices to protect your head, eyes, ears,
hands and feet. Operate the machine only in daylight or in good articial light.
G EN ERAL S AF ETY

7
ROTARY
MOWER S AF ETY
I MP ORTAN T
S a f e Op e r a t i o n P r a c t i c e s f o r
Mo w e r s
Th i s c u t t i n g m a c h i n e i s c a p a b l e o f a m p u t a t i n g
h a n d s a n d f e e t a n d t h r o w i n g o b j e c t s . F a i l u r e t o
o b s e r v e t h e f o l l o w i n g s a f e t y i n s t r u c t i o n s c o u l d
r e s u l t i n s e r i o u s i n j u r y o r d e a t h .
I G EN ERAL OP ERATI ON
• Read, understand, and follow all instructions in
the manual and on the machine before starting.
• Only allow responsible adults, who are familiar
with the instructions, to operate the machine.
• Clear the area of objects such as rocks, toys,
wire, etc., which could be picked up and thrown
by the blade.
• Be sure the area is clear of other people before
mowing. Stop the machine if anyone enters
the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely
necessary. Always look down and behind
before and while backing.
• Be aware of the mower discharge direction and
do not point it at anyone. Do not operate the
mower without the discharge chute in place
and in the locked posiiton.
• Only lift the chute for transport.
• Slow down before turning.
• Never leave a running machine unattended.
Always turn off blades, set parking brake, stop
engine, and remove keys before dismounting.
• Turn off blades when not mowing.
• Stop engine before unclogging discharge
chute.
• Mow only in good light, keeping away from
holes and hidden hazards.
• Do not operate the machine while under the
inuence of alcohol or drugs.
• Watch for trafc when operating near or
crossing roadways.
• Use extra care when loading or unloading the
machine into a trailer or truck.
• Always wear safety goggles or safety glasses
with side shields when operating mower.
I I S L OP E OP ERATI ON
S l o p e s a r e a m a j o r f a c t o r r e l a t e d t o
l o s s - o f - c o n t r o l a n d t i p - o v e r a c c i d e n t s , w h i c h c a n
r e s u l t i n s e v e r e i n j u r y o r d e a t h . Al l s l o p e s
r e q u i r e e x t r a c a u t i o n . I f y o u f e e l u n e a s y o n i t , d o
n o t m o w i t .
D O:
• Mow up and down slopes, not across.
• Remove obstacles such as rocks, tree limbs,
etc.
• Watch for holes, ruts, or bumps. Uneven
terrain could overturn the machine. Tall grass
can hide obstacles.
• Use slow speed on slopes.
• Follow the manufacturers recommendations
for wheel weights or counterweights to improve
stability.
• Use extra care with grass catchers or other
attachments. These can change the stability of
the machine.
• Keep all movement on the slope slow and
gradual. Do not make sudden changes in
speed or direction.
• Avoid stopping or starting on a slope. If tires
lose traction, disengage the blades and
proceed slowly straight down the slope.

8
ROTARY
MOWER
S AF ETY
D O N OT:
• Do not turn on slopes unless necessary, and
then, turn slowly and gradually downhill, if
possible.
• Do not mow drop-offs, ditches, or
embankments. The mower could suddenly
turn over if a wheel is over the edge of a cliff or
ditch, or if an edge caves in.
• Do not mow on wet grass. Reduced traction
could cause sliding.
• Do not try to stabilize the machine by putting
your foot on the ground.
• Do not use grass catcher on steep slopes.
I I I C H I L D REN
Tr a g i c a c c i d e n t s c a n o c c u r i f t h e o p e r a t o r i s n o t
a l e r t t o t h e p r e s e n c e o f c h i l d r e n . C h i l d r e n a r e
o f t e n a t t r a c t e d t o t h e m a c h i n e a n d t h e m o w i n g
a c t i v i t y . N e v e r a s s u m e t h a t c h i l d r e n w i l l r e m a i n
w h e r e y o u l a s t s a w t h e m .
• Keep children out of the mowing area and
under the watchful eye of another responsible
adult.
• Be alert and turn machine off if children enter
the area.
• Before and when backing, look behind and
down for small children.
• Never carry children as passengers, even
with the blades off. They may suddenly fall off
and be seriously injured or interfere with safe
machine operation.
• Never allow children to operate the machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects that
may obscure vision.
I V S ERV I C E
• Use extra care in handling gasoline and other
fuels. They are ammable and the vapors are
explosive.
- Use only an approved container.
- Never remove gas cap or add fuel with
engine running. Allow engine to cool before
refueling.
- Do not smoke.
- Never add or drain fuel with machine indoors.
- Never store the machine or fuel container
inside where there is an open ame, such as
in a water heater.
• Never run the machine in a closed area.
• Keep nuts and bolts, especially blade
attachment bolts, tight and keep equipment in
good condition.
• Never tamper with safety devices. Check their
proper operation regularly.
• Keep machine free of grass, leaves, and other
debris build-up. Clean up oil or fuel spillage.
Allow machine to cool before storing.
• Stop and inspect the equipment if you strike
an object. Repair, if necessary, before re-
starting.
• Never make adjustments or repairs with the
engine running.
•Discharge chute components are subject to
wear, damage, and deterioration, which could
expose moving parts or allow objects to be
thrown. Frequently check components and
replace with manufacturer’s recommended
parts, when necessary.
•Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves, and use extra caution
when servicing them.
• Check brake operation frequently (if equipped).
Adjust and service as required.

9
ROTARY
MOWER
D EC AL S
L o c a t i o n :
On m o w e r d e c k , f r o n t c e n t e r .
L o c a t i o n :
On m o w e r d e c k .
L o c a t i o n :
On m o w e r d e c k t o p f r o n t c e n t e r , b o t h s i d e s .

1 0
ROTARY
MOWER
D EC AL S
L o c a t i o n :
On m o w e r d e c k t o p s h i e l d .

1 1
ROTARY
MOWER
AS S EMB L Y I N S TRU C TI ON S
1. Remove the mower from the shipping crate.
2. Remove top shield.
3. Install both left and right hitch arms as shown on page 32, in Figure 7. Torque the 1/2" attaching bolts to
85 ft. lbs.
Install the 1/2" bolt and the 1/2" nut, which holds the two hitch arms together. Torque to 85 ft. lbs.
4. Be sure that the mower main drive belt is installed correctly on all pulleys. Check spring-loaded idler arm
position. Choose a mounting hole in the deck which allows the idler arm to lean toward the drive shaft,
with the spring attached. Fasten spring to chain and idler arm as shown on Page 16.
Choose a chain link that stretches spring approximately 1" on 75-70860A or 1-1/2" on 75-70855A &
75-70865A.
5. Check bolts mounting spindles to the deck. Torque should be 35-40 ft. lbs.
6. Check blade bolts. Torque should be 75 - 85 ft. lbs.
7. Check 1/4" cap screws on pulley bushings for 75-70865A( page 24 Figure 3, Item 9). Torque should be
95 inch pounds. Tighten these cap screws in alternating sequence 10-12 times to assure equal torque on
all cap screws.
8. Reinstall the top shield.
9. Remove 1/2" locknut on height adjustment lever (located in the hardware bag) and position correctly as
shown for: 75-70855A (page 26, Figure 4)
75-70860A (page 28, Figure 5)
75-70865A (page 30, Figure 6)
10. Remove the drive pulley shield and install the proper drive belt for the power unit. Replace shield.
11. The chute is shipped in the locked position. With the chute brackets in the locked posiiton, attach the
chute to the chute bracket using the hardware located in the hardware as shown for:
75-70855A (page 20, Figure 1, Item 9)
75-70860A (page 22, Figure 2, Item 9)
75-70865A (page 24, Figure 3, Item 9)
Leave the harware loose. Adjust the chute for the best t against the deck. NOTE: There should be
minimal gaps between the chute and deck, and the chute should hit the deck before the bracket does.
Tighten hardware until bolt heads are partially pulled into the rubber of the chute.
12. Attach mower to power unit. See Page 11 for installation instructions. See Pages 8 & 9 for safety
instructions and Page 14 for operating instructions.

1 2
ROTARY
MOWER
ATTAC H I N G MOWER TO TRAC TOR:
- Operate latch control to open hitch latches.
- Drive tractor into position aligning the quick hitch.
- Be sure both latches engage fully and and are placed in the locked position.
- S t o p e n g i n e ! Do not attempt to install drive belt with engine running.
- Release idler assembly to facilitate easy installation of the drive belt.
- Put belt over drive pulleys and engage or adjust idler assembly.
(See Power Unit Operator’s Manual for PTO belt tension adjustments.)
- Set mower to desired cutting height.
- Start engine and engage PTO slowly to prevent shock load on mower components.
- Mow with front lift lever in “FLOAT” position only.
REAR WEI G H T REQ U I REMEN TS
The table of requirements for rear weights is based upon average mowing conditions and operator’s weight of
150 lbs. The recommendations may vary with the weight of the operator, other accessories, and the mowing
conditions. It is the operator’s responsibility to determine the correct amount of weight needed to improve
stability. All weights must be removed when the mower is removed. (See Caution in Power Unit Operator’s
manual.)
I N S TAL L ATI ON
P OWER U N I T
MOD EL 4 8 " D EC K 6 0 " D EC K 7 2 " D EC K
220 / 230 0 WEIGHT 0 WEIGHTS 2 WEIGHTS
410 2 WEIGHTS 4 WEIGHTS THIS DECK IS NOT
RECOMMENDED
420 / 430 2 WEIGHTS 4 WEIGHTS 5 WEIGHTS
425 2 WEIGHTS 2 WEIGHTS 4 WEIGHTS
525 0 WEIGHT 0 WEIGHT 0 WEIGHT
440 / 450 0 WEIGHT 1 WEIGHT 2 WEIGHTS

1 3
ROTARY
MOWER
OP ERATI ON
OP ERATI N G I N S TRU C TI ON S
- Do not operate mower without discharge chute in lace and in the locked position. To unlock for
transport, remoce the clevis pin and swing the chute up so it rests on the deck, and reinstall the clevis
pin in one bracket hole. To lock, remove the clevis pin from bracket and swing chute down and
resinstall clevis pin through both brackets.
- Mow with front lift lever in “FLOAT” position only.
- Engage PTO slowly at low engine r.p.m.
- Mower is designed to operate at full throttle for mowing heavy turf, but 3/4 throttle is adequate for
average conditions. Set mower blade speed with throttle and control ground speed with Forward -
Reverse control.
- Use extreme caution when operating on hills. Mow up and down whenever possible.
- See Page 11 for weight recommendations.

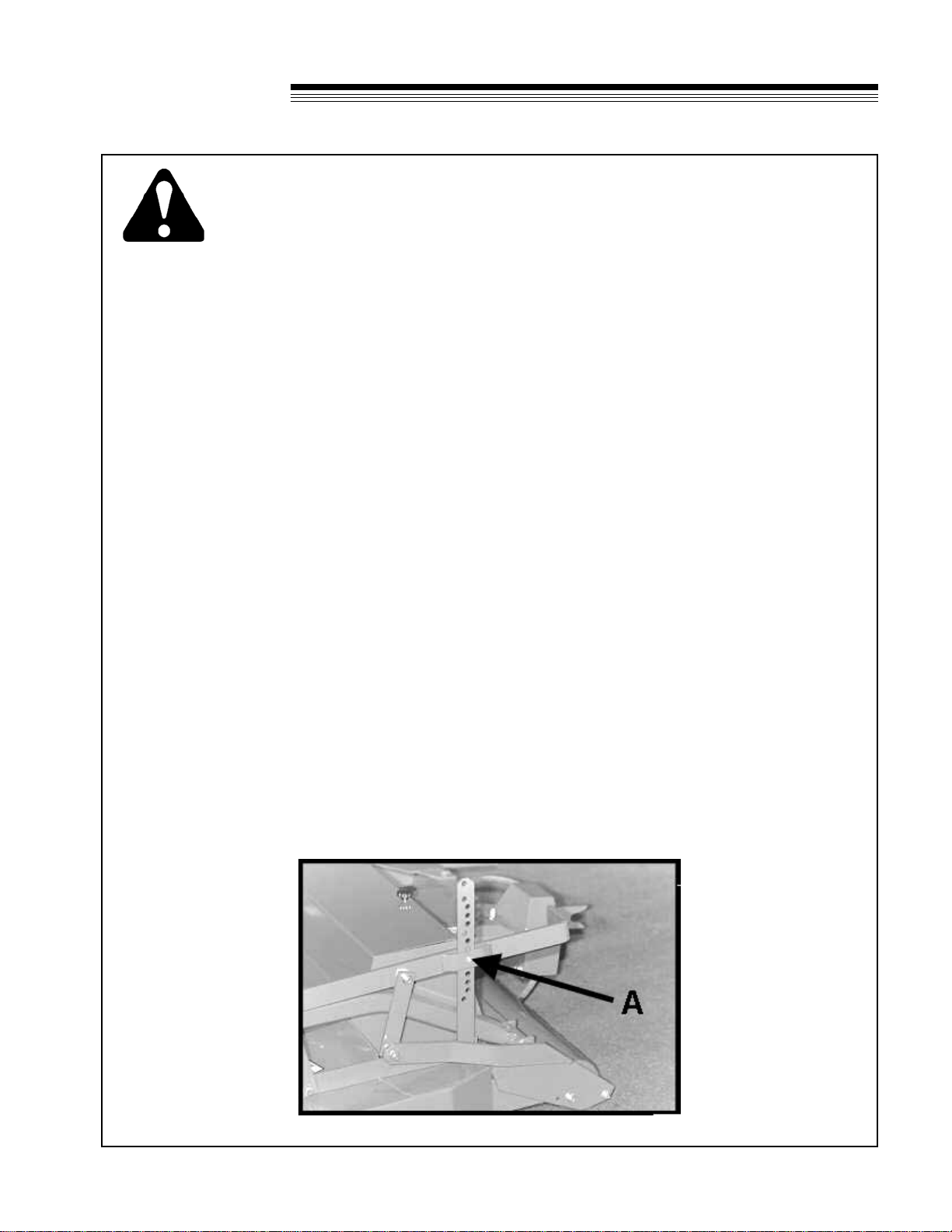

S ETTI N G MOWER C U TTI N G H EI G H T
- Lift mower deck off the ground and shut off tractor engine.
- Remove clevis pin at location Afrom height adjustment link.
- Raise or lower deck to desired height.
- Replace clevis pin into height adjustment link.
Ob s e r v e a l l s a f e t y d e c a l s .
K e e p a l l s h i e l d s i n p l a c e . D o n o t o p e r a t e m o w e r w i t h d i s c h a r g e c h u t e r e m o v e d .
D o n o t o p e r a t e m o w e r w i t h o t h e r p e r s o n s i n t h e a r e a . I r r e g u l a r i t i e s i n g r o u n d s u r f a c e
c a n p e r m i t f o r e i g n m a t e r i a l t o b e p r o p e l l e d f r o m b e n e a t h d e c k t o c a u s e s e r i o u s i n j u r y
o r d e a t h .
B e f o r e l e a v i n g t r a c t o r , s t o p o n a l e v e l s u r f a c e , m o v e F o r w a r d - Re v e r s e c o n t r o l t o n e u -
t r a l p o s i t i o n , d i s e n g a g e P TO, s e t p a r k i n g b r a k e , l o w e r m o w e r d e c k a n d s t o p e n g i n e .
Re m o v e k e y f r o m i g n i t i o n i f m a i n t e n a n c e p r o c e d u r e s a r e t o b e p e r f o r m e d o r t r a c t o r i s
t o b e l e f t u n a t t e n d e d .

1 4
ROTARY
MOWER
S ERV I C E
MAI N TEN AN C E
Visual inspection for loose parts and accumulation of grass and dirt.
Clean accumulation of grass clippings from beneath deck daily for better mowing performance.
Keep blades sharp. Check the tips of the blades for wear.
In addition to daily maintenance, grease roller and all bearings.
Spindle housings must be kept full of grease. Grease spindles until grease “shows” at the relief hole
under the spindle drive pulley.
N OTE: The relief hole is under the spindle hub and is not visible. As grease enters the spindle
housing you can hear the sound of escaping air at the relief hole. Stop greasing when the sound of
escaping air ceases.
Check drive belt tension. See Drive Belt Installation on Page 16.
Check 1/4" cap screws on pulley bushings. Torque should be 95 inch pounds. Tighten these cap
screws in alternating sequence 10-12 times to assure equal torque on all cap screws.
Check blade bolts. Torque should be 75-85 ft. lbs.
In addition to daily and 25 hour maintenance, remove the drive belt and check for cracks or wear.
Rotate each spindle to check for roughness which would indicate bearing wear. Remove and
sharpen blades, clean and wash deck prior to storage. The acid in grass clippings causes premature
corrosion and rusting of mower parts.
Grease all bearings after washing.
AD J U S TMEN TS
S h a r p e n i n g b l a d e s
Be careful while sharpening blades that the corners of the blade do not become rounded at the tips. This
reduces the blades overlap and will cause skipping. While sharpening, it is essential to ensure the balance of
the blades is maintained to prevent vibration. Blade bolt torque should be 75-85 ft. lbs. Rotate blades after
re-installing to check for bent or bowed blades and blade alignment.

1 5
ROTARY
MOWER
S ERV I C E
B l a d e a l i g n m e n t
When installing sharpened blades or new blades be sure the mating surfaces are clean and the retaining
washer is not bent. Check for bent blades by rotating blades until tips are near each other. (It is easier to do
this with main drive belt idler spring unhooked.)
L e v e l i n g m o w e r d e c k
The front to rear leveling adjustment is provided by two slots in the linkage which supports the front of the
deck. This allows each side to be adjusted independently. Check the blade level with mower resting on a
level oor and the cutting height set at about 2-1/2" setting. Measure to the tip of the left blade at the rear,
then rotate the blade 180 degrees and measure again to the tip of the blade at the front. The cutting height
should be equal or 1/16" lower at the front. Change adjustment in the left slot as required and measure again
until proper setting is reached. Repeat procedure for blade at right end of the deck and adjust right slot.

1 6
ROTARY
MOWER
TO REMOV E B EL T:
Remove the six 1/4" X 3/4" bolts from the ip-up braces and remove the pivot stop pin and the idler spring.
Remove the braces.
• With the idler spring released, move the idler toward the drive shaft.
• Slip belt off the outer spindle pulleys.
• Slip belt off the front center idler and spindle.
• Remove belt.
S ERV I C E

1 7
ROTARY
MOWER
S ERV I C E

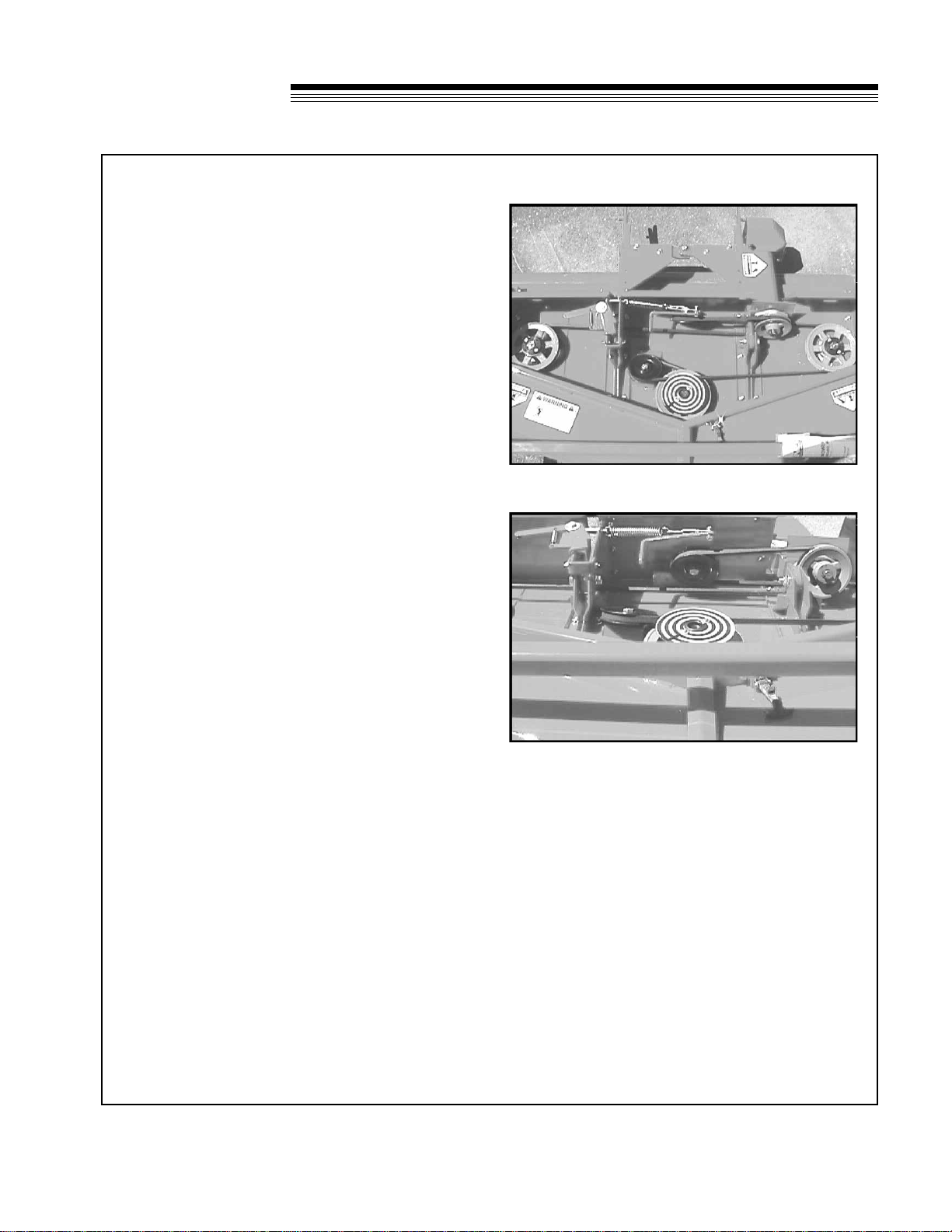

TO I N S TAL L B EL T:
• Form loop for drive pulley and idler pulley as
shown. (Photos 2 & 3)
• Slip loop over drive pulley on left hitch arm.
(Photos 2 & 3)
• Form a loop around the center spindle pulley
and xed idler pulley. (Photos 2 & 3)
• Position belt on the outer spindle pulleys.
(Photos 2 & 3)
Re-install hitch arms and pivot braces. Torque 1/2"
attaching bolts to 85 ft. lbs. (Photos 2 & 3)
Hook idler spring in place.
Choose chain link which stretches spring
approximately one inch on 75-70860A or 1-1/2" on
75-7085A5 & 75-70865A.
• Re-install top shield.
P H OTO 2
P H OTO 3

1 8
ROTARY
MOWER
U S I N G TH E F L I P - U P OP TI ON ON TH E 7 5 - 7 0 8 5 5 , 7 5 - 7 0 8 6 0 AN D 7 5 - 7 0 8 6 5 ROTARY MOWERS
1. Stop on a level surface, set parking brake and shut off the tractor.
2. Lift the deck.
3. Remove the top deck shield and set aside.
4. Standing at the front of the deck, pull the handle on the idler arm so the belt comes loose.
5. Remove the belt from the drive pulley.
6. Remove the presto pin and slide pin from holes.
7. Grasp the handles and lift the deck up and back until you hear a click. This indicates that the latch has
engaged.
8. Lower the deck until the roller touches the ground. This gives stability when working on the deck.
9. Complete your work under the deck.
10. Start the tractor and lift the deck again. Shut off the tractor.
11. Grasp the handles at the front of the deck. Push the deck back slightly and release the catch.
12. Pull the deck forward and down, keeping a rm grip on the handles.
13. Lower the deck to the ground.
14. Replace the pin and clip in the hole above the lift arm.
15. Grasp the idler arm handle again and pull to stretch the spring. Place the belt onto the drive pulley.
16. Make sure the belt is around all pulleys. Release the idler arm.
17. Replace the top shield and secure with the rubber latches.
18. Moving the power unit with the deck in the ipped up position is not recommended. Serious injury and or
damage could result.
S ERV I C E

PARTS
SECTION

2 0
ROTARY
MOWER
D EC K P ARTS 4 8 "
F I G U RE 1
38
33
22
24
39
41
43
6
42
4139
41
15
16
19
36
37
35
32
34
18
12
24
29
28
27
26
21
4
44
23
21
20
13
17
31
30
21
15
11
12
13
14
10
9
8
7
46
45
2
SHIMS
OPTIONAL REPAIR
29
28
26 26
28
29
27
27
51
49
50
47
48
52
54
40
53
55
4
16
57
5
56
41
58
3
25
59
