Scion-Tech SC08.MX600 Series User manual
User Manual
Version 1.0
Configurable AV Matrix over IP
with Video Wall
SCION
Transmitter
SC08.MX600
User Manual
Scion Tech SC08.MX600
User Manual
Scion Tech SC08.MX600
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric
shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and
extend the life of your equipment.
Table of Contents
1. Introduction…………………………………………………….…………………………….…….…………….……………………….
2. Features……………………………………………………………………………………………………….……….…………….……..
3. Package Contents…………………………………….……………………………………………………………….……….………..
4. Specifications…………………………………………………………………….………………………………………………….……
5. Transmitter Panel Description……………………………….….………….…………………………………………….……….
6. Receiver Panel Description…………………………………….…….…………….…………….…………………………………
7. Connecting the Transmitter……………………………………………….…………………….………………………….………
8. Connecting the Receiver……………………………………….….….…………….…………………….………….……………….
9. Preparing your PC.….……….……..….…………….….………….….….……….….….…….………….…………….….….………
9.1. Setting PC for DHCP.……………….…………………….……..……………………………………………………………….
9.2. Setting PC for Static IP Address..……..……..………….…………………………….…………..…….….……….………
10. Setting Device IP Addresses.….….….…………….….………..….….………………………………….………….…………..
10.1. Setting Transmitter IP Address..…..…….….…………………….….…………………………………………………..
10.2. Setting Receiver IP Address..…….………………………………….…………………….…..………..………………….
11. Application Drawing……………………………………………….….…….…….…………………….…………………………..
12. Maintenance………………………………………………………….….……….……………………………….…………………….
12.1. Servicing……………………………………………….…….…………………………………………….……….…….………..
12.2. Warranty……………………………………………………………….……………………….…….………….………………..
12.3. Returning a Product……………………………………..….…………………………….…….……………………………..
12.4. Warranty Limits and Exclusions……………………………………….………………….….….………………………
2
2
2
3
4
5
6
6
7
7
8
9
9
11
13
14
14
14
14
15
Page 1
Software and Control
For software and control you need to download the SC08.CTL100 LAN Controller user manual.
User Manual
Scion Tech SC08.MX600
1. Introduction
The SC08.MX600 is an over IP solution for high definition signal extension over copper cables. This solution
leverages 1G Ethernet switches and enables signal management of 1080p/60Hz (4:4:4) signals with virtually zero
frame latency. Bi-Directional RS232, Infra-Red, and embedded audio are also supported.
The video wall mode allows a single video source to be stretched across multiple displays, each receiver crops and
scales the region of interest according to its position in the wall matrix. The receivers are locked to the source and
thus to each other with no frame rate conversion.
The SC08.MX600 is managed and controlled using RS232 and IP control codes over the network using an integrated
web browser or from virtually any third party controller, including those from AMX, Crestron, Control4.
2. Features
●Uses H.265 Encoding
●1080p/60Hz, 4:4:4
●Point-to-Point, Point-to-Multipoint & Multipoint-to-Multipoint
●Video Wall Functions
●Uses 1G Ethernet
●Matrix Routes - IR, RS232, USB
●PoE (Power over Ethernet)
●Control: RS232, TCP/IP, Web Interface
3. Package contents
Page 2
Transmitter
1. 1 x Main Unit (SC08.MX600T)
2. 1 x IR Blaster Cable
3. 1 x IR Receiver Cable
4. 1 x 12V/1A Power Adaptor
5. 1 x User Manual
Receiver
1. 1 x Main Unit (SC08.MX600R)
2. 1 x IR Blaster Cable
3. 1 x IR Receiver Cable
4. 1 x 12V/1A Power Adaptor
5. 1 x User Manual
User Manual
Scion Tech SC08.MX600
4. Specifications
Page 3
Technical
HDMI Standards HDMI 1.4, HDCP 1.4
Bandwidth 10.2Gbps
Video Resolutions 1080p/120Hz and 1080p/3D 60Hz
Colour Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Colour Depth 8-bit
HDMI Audio Formats LPCM 7.1CH, Dolby True HD™, Dolby Digital Plus™ and DTS HD Master Audio™.
Analogue Audio L/R Stereo Audio 20KHz, 0dB, 10K ohms
Infra-Red Wide Bandwidth 30KHz to 56KHz (940nm)
End to End Latency Less than 100ms
Transmission Distance 100m @ 1080p point-to-point or greater using 1G switches (LAN)
Transmitter Connections
Inputs
HDMI 1 x HDMI Type A, 19-Pin
Infra-Red 1 x 4-Pin Phoenix Terminal
Stereo Audio 1 x 3-Pin Phoenix Terminal
Ethernet 1 x RJ45 Data Socket
RS232 1 x 3-Pin Phoenix Terminal
USB 1 x USB Type B (Host)
Power 1 x 2.1mm Jack Socket
Outputs
HDMI (Looped) 1 x HDMI Type A, 19-Pin
Stereo Audio 1 x 3-Pin Jack Socket
Infra-Red 1 x 2-Pin Phoenix Terminal
Receiver Connections
Inputs
Ethernet 1 x RJ45 Data Socket
Infra-Red 1 x 4-Pin Phoenix Terminal
RS232 1 x 3-Pin Phoenix Terminal
Power 1 x 2.1mm Jack Socket
Outputs
HDMI 1 x HDMI Type A, 19-Pin
Infra-Red 1 x 2-Pin Phoenix Terminal
Stereo Audio 1 x 3-Pin Phoenix Terminal
USB 2 x USB Type A (Devices)
Power Transmitter Receiver
Type AC to DC Mains Adaptor AC to DC Mains Adaptor
Input 100 ~ 240V AC 50/60Hz 100 ~ 240V AC 50/60Hz
Output DC 12V DC 12V
Consumption 2.4 Watt 2 Watt
Environment Transmitter Receiver
Storage Temperature -20° to 60°C
Operating Temperature 0° to 40°C
Operating Humidity 20% to 90% RH (No Condensation)
Dimensions (W) 200 x (D) 100 x (H) 20mm (W) 200 x (D) 100 x (H) 20mm
Weight 470g 475g
ESD Human Body: +/-8Kv (air gap discharge), +/-4Kv (contact discharge)
Safety & Emissions CE, FCC, RoHS
Page 4
User Manual
Scion Tech SC08.MX600
5. Transmitter Panel Description
Number Name Function
1 Power LED System power status LED. The red LED will illuminate when the transmitter is
powered.
2 Link LED Data transfer LED. The blue flashing LED indicates normal operation. Always on
indicates connection failure. Unit requires re-booting.
3 Reset Button Press and hold for 5 seconds to re-boot the unit.
4 DC 12V 12 volt 1 amp power input (unless using PoE switch).
5 Ethernet Connect to Ethernet switch using CAT5e/6/7 cable.
6 IR IN Connect IR receiver cable. The IR is routed with the HDMI signal to the receiver. Unit
operates on both +5V and +12V devices.
7 IR Out Connect the IR emitter and attach the other end to the source device.
8 RS232 Full duplex RS232 routed with HDMI signal.
9 USB USB routed with HDMI signal.
10 Audio In Embedded analogue stereo audio.
11 Audio Out De-Embedded analogue stereo audio from HDMI input.
12 HDMI In HDMI input from source device.
13 HDMI Out HDMI output looped from input
DC 12V Ethernet IR IN IR OUT RS232 USB Audio IN Audio Out HDMI IN HDMI OUT
S 5V 12V S TX RX L R L R
4 5 6 7 8 9 10 11 12 13
Power Link Reset
1 2 3
SCION
SC08.MX600T
Transmitter
Video over IP
Number Name Function
1 Power LED System power status LED. The red LED will illuminate when the transmitter is
powered.
2 Link LED Data transfer LED. The blue flashing LED indicates normal operation. Always on
indicates connection failure. Unit requires re-booting.
3 Reset Button Press and hold for 5 seconds to re-boot the unit.
4 DC 12V 12 volt 1 amp power input (unless using PoE switch).
5 Ethernet Connect to Ethernet switch using CAT5e/6/7 cable.
6 IR IN Connect IR receiver cable. The IR is routed with the HDMI signal to the receiver. Unit
operates on both +5V and +12V devices.
7 IR Out Connect the IR emitter and attach the other end to the display IR window.
8 RS232 Full duplex RS232 routed with HDMI signal.
9 USB USB routed with HDMI signal.
10 USB USB routed with HDMI signal.
11 Audio Out De-Embedded analogue stereo audio from HDMI or analogue input of transmitter.
12 HDMI Out HDMI output looped from input
User Manual
Scion Tech SC08.MX600
6. Receiver Panel Description
Page 5
Power Link Reset
1 2 3
SCION
SC08.MX600R
Receiver
Video over IP
DC 12V Ethernet IR IN IR OUT RS232 USB Audio Out HDMI OUT
S 5V 12V S TX RX L R
4 5 6 7 8 9 10 11 12
USB
Page 6
User Manual
Scion Tech SC08.MX600
7. Connecting the Transmitter
1. Place the transmitter on a non-heat emitting surface such as a shelf. Do not place the transmitter on a third
party product as this may cause overheating and damage the unit.
2. Ensure all cables are snag free and not laying across the transmitters housing as this may damage the cables.
3. Connect the HDMI cable to the HDMI IN and to your source device output.
4. Optional - Connect the HDMI cable to the HDMI OUT and the local sink device.
5. Optional - Connect the IR receiver cable to the IR IN and place the other end of the cable in line sight of the
display IR remote control.
6. Optional - Connect the IR emitter (blaster) cable to the IR OUT and position the emitter over the source
device IR window. Use a IR cover or blocker to prevent light bleeding to other devices.
7. Connect a CAT5e/6/7 patch cable to the LAN/Ethernet port and the 1G network switch.
8. Optional - Connect a host USB cable to the USB port and the PC.
9. Optional - Connect a 3-Pin Phoenix Terminal to the Audio IN and the audio source device. This audio is
software selectable on the receiver.
10. Optional - Connect a 3-Pin Phoenix Terminal to the Audio OUT and the sound distribution system. The audio
is software selectable between the HDMI input and the analogue Audio IN.
11. Connect the power supply unless you are using PoE network switches.
8. Connecting the Receiver
1. Place the receiver on a non-heat emitting surface such as a shelf or mount vertically behind the display. Do
not place the transmitter directly on the display as this may cause overheating and damage the unit.
2. Ensure all cables are snag free and not laying across the transmitters housing as this may damage the cables.
3. Connect the HDMI cable to the HDMI OUT and to your display input.
4. Optional - Connect the IR receiver cable to the IR IN and place the other end of the cable in line sight of the
source device IR remote control.
5. Optional - Connect the IR emitter (blaster) cable to the IR OUT and position the emitter over displays IR
window.
6. Connect a CAT5e/6/7 patch cable to the LAN/Ethernet port and the 1G network switch.
7. Optional - Connect a keyboard to the USB port.
8. Optional - Connect a mouse to the USB port.
9. Optional - Connect a 3-Pin Phoenix Terminal to the Audio OUT and the display or sound amplifier. The audio
is software selectable between the HDMI input and the analogue Audio IN of the transmitter.
10. Connect the power supply unless you are using PoE network switches.
Software and Control
For software and control you need to download the SC08.CTL100 LAN Controller user manual.
User Manual
Scion Tech SC08.MX600
Page 7
9. Preparing your PC
a. If your network includes a router or DHCP server, IP addresses will be issued automatically and therefore
your PC settings should be set to “Obtain an IP address automatically”.
b. If no router or DHCP server is used, all the devices including the PC will need individual static IP
addresses.
9.1. Setting PC for DHCP
1. On your PC, go to Control Panel > Network and Internet > Network Connections > Local Area
Connections, right click on it and choose Properties.
2. In the “Local Area Connections Properties” dialogue box, double click Internet Protocol Version 4
(TCP/Ipv4).
3. In the “Internet Protocol Version 4(TCP/Ipv4) Properties” dialogue box, select “Obtain an IP address
automatically”.
4. Click “OK”.
5. Your PC is now ready to accept an IP address issued by the router or DHCP server.
Local Area Connection Properties
Networking
Connect using:
Cancel
OK
X
Install…
Realtek PCIe GBE Family Controller
Configure…
This connection uses the following items:
Client for Microsoft Networks
QoS Packet Scheduler
Internet Protocol Version 6 (TCP/Ipv6)
Internet Protocol Version 4 (TCP/Ipv4)
Uninstall Properties
Description
Transmission Control Protocol/Internet Protocol. The default wide
area network protocol that provides communication across
diverse interconnected networks
Internet Protocol Version 4 (TCP/Ipv4) Properties
General
Cancel
OK
X
Advanced…
You can get IP settings assigned automatically if your network
supports this capability. Otherwise, you need to ask your network
administrator for the appropriate IP settings.
Use the following IP address:
Obtain an IP address automatically:
IP address: 169 . 254 . 23 . 30
Subnet mask: 255 . 255 . 255.0
Default gateway: 169 . 254 . 23 . 30
Use the following DNS server addresses:
Obtain DNS server address automatically
Preferred DNS server: 169 . 254 . 23 . 30
Alternate DNS server: 255 . 255 . 255.0
Validate settings upon exit
9.2. Setting PC for Static IP Address
1. On your PC, go to Control Panel > Network and Internet > Network Connections > Local Area
Connections, right click on it and choose Properties.
2. In the “Local Area Connections Properties” dialogue box, double click Internet Protocol Version 4
(TCP/Ipv4).
3. In the “Internet Protocol Version 4(TCP/Ipv4) Properties” dialogue box, select “Use the following IP
address”.
4. Insert the IP address 169.254.23.30 and subnet mask 255.255.255.0
5. Click “OK”.
6. Your PC is now ready and can be connected to the transmitter or receiver.
Local Area Connection Properties
Networking
Connect using:
Cancel
OK
X
Install…
Realtek PCIe GBE Family Controller
Configure…
This connection uses the following items:
Client for Microsoft Networks
QoS Packet Scheduler
Internet Protocol Version 6 (TCP/Ipv6)
Internet Protocol Version 4 (TCP/Ipv4)
Uninstall Properties
Description
Transmission Control Protocol/Internet Protocol. The default wide
area network protocol that provides communication across
diverse interconnected networks
User Manual
Scion Tech SC08.MX600
Page 8
Internet Protocol Version 4 (TCP/Ipv4) Properties
General
Cancel
OK
X
Advanced…
You can get IP settings assigned automatically if your network
supports this capability. Otherwise, you need to ask your network
administrator for the appropriate IP settings.
Use the following IP address:
Obtain an IP address automatically:
IP address: 169 . 254 . 23 . 30
Subnet mask: 255 . 255 . 255. 0
Default gateway: 169 . 254 . 23 . 30
Use the following DNS server addresses:
Obtain DNS server address automatically
Preferred DNS server: 169 . 254 . 23 . 30
Alternate DNS server: 255 . 255 . 255.0
Validate settings upon exit
User Manual
Scion Tech SC08.MX600
Page 9
10. Setting Device IP Addresses
The IP address of your PC is now set to 169.254.23.30, therefore all other products on the LAN should be in the same
network segment. IP: 169.254.23.XX and Subnet: 255.255.255.0.
The default IP addresses for the transmitter and receiver is 169.254.23.10 and 169.254.23.11 respectively. When changing
the addresses we recommend using the following IP address range.
●Transmitter 1 = 169.254.23.51
●Transmitter 2 = 169.254.23.52
●Transmitter 3 = 169.254.23.53
●Continue with 54, 55 etc.
●Receiver 1 = 169.254.23.101
●Receiver 1 = 169.254.23.102
●Receiver 1 = 169.254.23.103
●Continue with 104, 104 etc.
Important: Do not use the IP addresses assigned to the PC (169.254.23.30) or the SC08.CTL100 controller (169.254.23.100)
as this will cause network problems.
10.1. Setting Transmitter IP Address
1. Connect the CAT5e/6 Ethernet cable to the transmitter “LAN” port and the PC or network switch. If the switch
has the facility to provide PoE the transmitter will power.
2. After initialising the blue LED will begin to flash.
3. Open your Web Browser and enter the transmitters default IP address (169.254.23.10).
4. In the Login dialogue box enter the user name “admin” and password “admin”.
169.254.23.10
169.254.23.10i
Username: admin
Password: admin
User Manual
Scion Tech SC08.MX600
169.254.23.10
169.254.23.10i
IP Settings
HDMI
Network
Status
Video
Update
Mode Static DHCP
IP Address 169 . 254 . 23 . 51
Subnet Mask 255 . 255 . 255 . 0
Gateway 169 . 254 . 23 . 1
Port 80
Web Login Settings
Mode User Admin
Old Password
New Password
Confirm
Password
Set Network Defaults Save
5. Select “Static”.
6. Enter the IP address, subnet mask, gateway and port.
7. Click “Save” to confirm the changes.
The transmitter is now ready to connect to the system.
Page 10
Software and Control
For software and control you need to download the SC08.CTL100 LAN Controller user manual.
User Manual
Scion Tech SC08.MX600
10.2. Setting Receiver IP Address
1. Connect the CAT5e/6 Ethernet cable to the receiver “LAN” port and the PC or network switch. If the switch has
the facility to provide PoE the receiver will power.
2. After initialising the blue LED will begin to flash.
3. Open your Web Browser and enter the receivers default IP address (169.254.23.11).
4. In the Login dialogue box enter the user name “admin” and password “admin”.
169.254.23.11
169.254.23.11i
Username: admin
Password: admin
Page 11
User Manual
Scion Tech SC08.MX600
169.254.23.11
169.254.23.11i
IP Settings
HDMI
Network
Status
Video
Update
Mode Static DHCP
IP Address 169 . 254 . 23 . 101
Subnet Mask 255 . 255 . 255 . 0
Gateway 169 . 254 . 23 . 1
Port 80
Web Login Settings
Mode User Admin
Old Password
New Password
Confirm
Password
Set Network Defaults Save
5. Select “Static”.
6. Enter the IP address, subnet mask, gateway and port.
7. Click “Save” to confirm the changes.
The receiver is now ready to connect to the system.
Page 12
Software and Control
For software and control you need to download the SC08.CTL100 LAN Controller user manual.
User Manual
Scion Tech SC08.MX600
11. Application Drawing
Page 13
LAN USB USB RS232 DC 12V
TX RX
DC 12V Ethernet IRIN IR OUT RS232 USB Audio IN Audio Out HDMI IN HDMI OUT
S 5V 12V S TX RX L R L R
DC 12V Ethernet IRIN IR OUT RS232 USB Audio IN Audio Out HDMI IN HDMI OUT
S 5V 12V S TX RX L R L R
DC 12V Ethernet IRIN IR OUT RS232 USB Audio IN Audio Out HDMI IN HDMI OUT
S 5V 12V S TX RX L R L R
DC 12V Ethernet IRIN IR OUT RS232 USB Audio Out HDMI OUT
S 5V 12V S TX RX L R
USB
DC 12V Ethernet IRIN IR OUT RS232 USB Audio Out HDMI OUT
S 5V 12V S TX RX L R
USB
DC 12V Ethernet IRIN IR OUT RS232 USB Audio Out HDMI OUT
S 5V 12V S TX RX L R
USB
SC08.CTL100
LAN Controller
Web Interface
Gigabit Switch
CAT5e/6
SC08.MX600T
Transmitter
SC08.MX600T
Transmitter
SC08.MX600T
Transmitter
SC08.MX600R
Receiver
SC08.MX600R
Receiver
SC08.MX600R
Receiver
DC 12V Ethernet IRIN IR OUT RS232 USB Audio IN Audio Out HDMI IN HDMI OUT
S 5V 12V S TX RX L R L R
DC 12V Ethernet IRIN IR OUT RS232 USB Audio Out HDMI OUT
S 5V 12V S TX RX L R
USB
DC 12V Ethernet IRIN IR OUT RS232 USB Audio IN Audio Out HDMI IN HDMI OUT
S 5V 12V S TX RX L R L R
DC 12V Ethernet IRIN IR OUT RS232 USB Audio Out HDMI OUT
S 5V 12V S TX RX L R
USB
Page 14
User Manual
Scion Tech SC08.MX600
12. Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices.
12.1 Servicing
Damage requiring service: This product should be serviced by a qualified service engineer if:
●The DC power cord or AC adaptor has been damaged.
●Objects or liquids have entered the housings.
●The product has been exposed to rain.
●The product has stopped working or shows signs of significant change in operating performance or function.
●The unit has been dropped or severely damaged externally.
Servicing personnel: Do not attempt to service the product beyond that described in these instructions. Refer all
other servicing to authorised serving personnel.
Replacement parts: When parts need replacing ensure the service engineer uses parts specified by the
manufacture or parts that have the same characteristics as the original parts. Unauthorised substitutes may
result in fire, electric shock or other hazards.
Safety check: After a repair or service, ask the engineer to perform safety checks to confirm the product is in
proper working condition.
12.2 Warranty
If your product does not work properly because of a defect in materials or workmanship, our Company (referred
to as "the warrantor" ) will , for the length of the period indicated as below, (Parts and labour 2 years) which
starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product
with new or refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair or
replace will be made by the warrantor.
During the "Labour" Limited Warranty period there will be no charge for labour. During the "Parts" warranty
period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited
Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase
receipt or other proof of original purchase date is required for Limited Warranty service.
12.3 Returning a Product
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original
carton. Include a letter detailing the complaint and provide a day time phone number and/or email address
where you can be reached.
User Manual
Scion Tech SC08.MX600
Page 15
12.4 Limited warranty limits and exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT
COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages
which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures
which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation,
set-up adjustments, maladjustment of consumer controls, improper maintenance, power line surge, lightning
damage, modification, or service by anyone other than a Factory Service centre or other authorized service
engineer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".THE
WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages
for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the
service, loss of or damage to media or images, data or other recorded content. The items listed are not exclusive,
but are for illustration only).
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
This returns policy does not affect your legal rights. Details of your legal rights are available from Trading
Standards or Citizens Advice Consumer Service.
Scion Tech Limited
Thatcham, Berkshire, United Kingdom
This manual suits for next models
2
Table of contents
Other Scion-Tech Receiver manuals
Popular Receiver manuals by other brands
YewdaleDefiant
YewdaleDefiant 980027 Programming instructions
Amalgamated Wireless
Amalgamated Wireless 1C6940 Instruction book
Daikin
Daikin BRP15B61 Operation manual
VOLTCRAFT

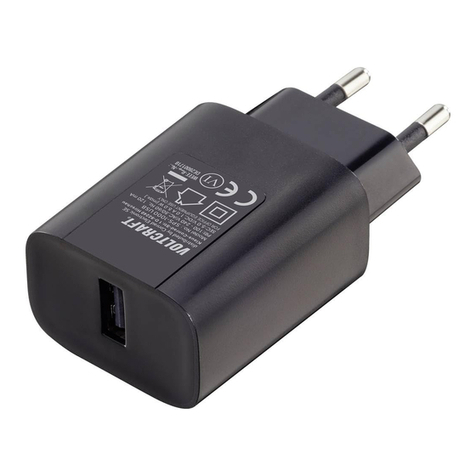

VOLTCRAFT SPS-1000 USB-V2 operating instructions
XM Satellite Radio
XM Satellite Radio SA10175 user guide
Belkin
Belkin F8Z492 user manual
